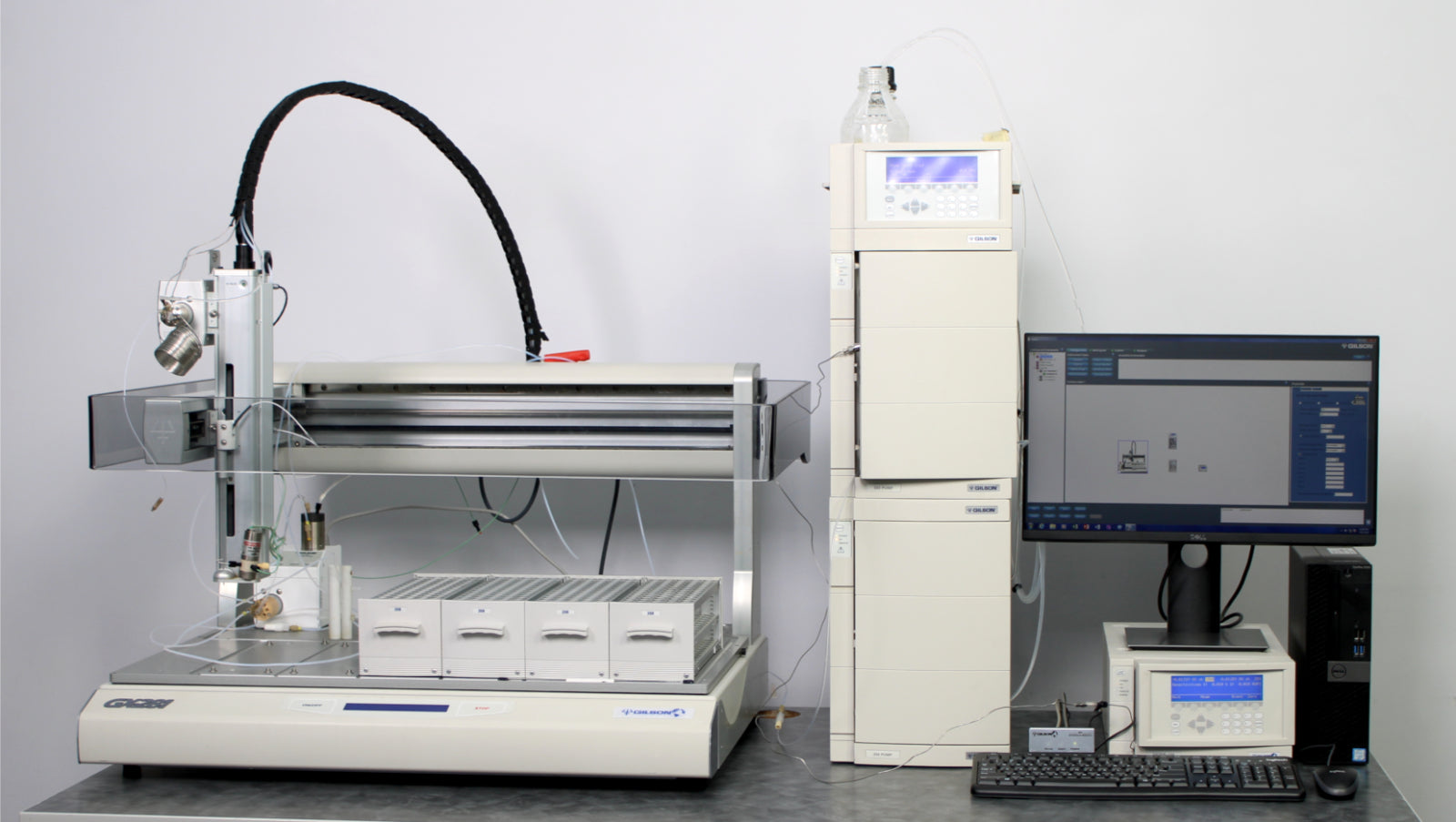

Gilson GX-281 Liquid Handler with 333 and 334 Pumps and UV/VIS-155 Detector

Gilson GX-281 Liquid Handler with 333 and 334 Pumps and UV/VIS-155 Detector

Item Number: 27950

Warranty

Includes a 90-Day warranty
Inquire for Warranty Upgrade Availability

QUALITY ASSURED BY NLS TECH STAFF

Price:

$17,995.00

Specs Below

You Will Receive:

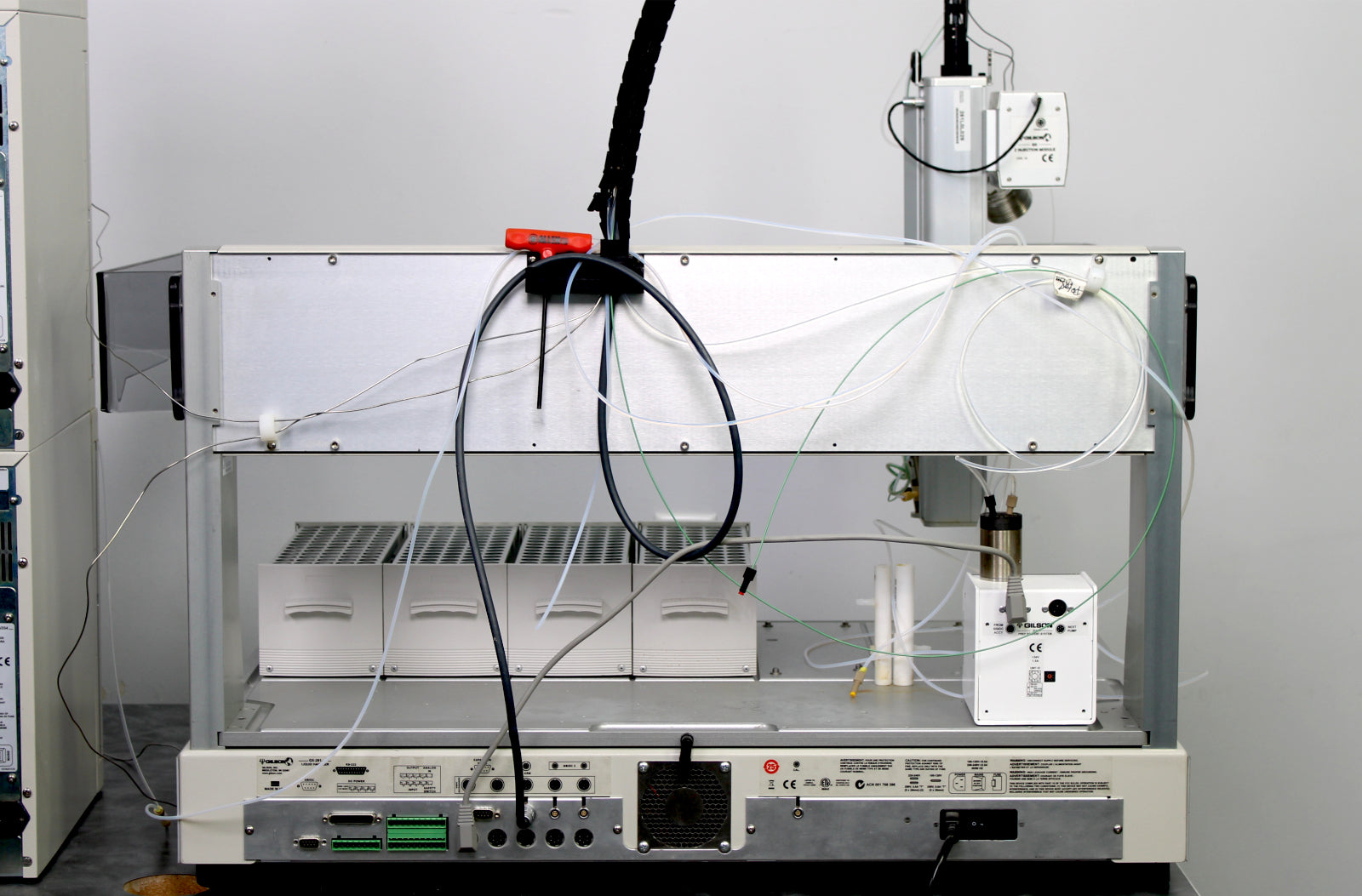

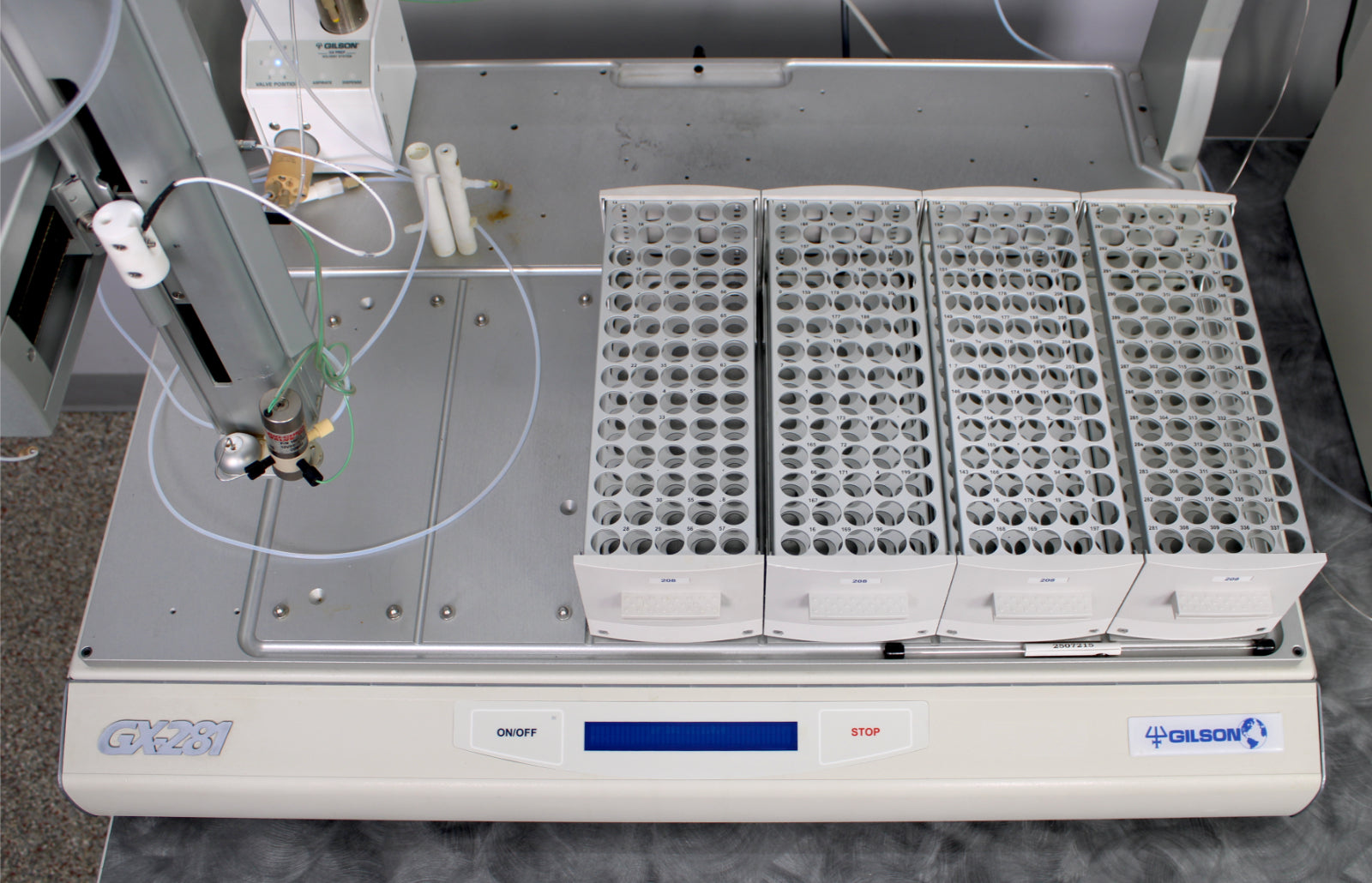

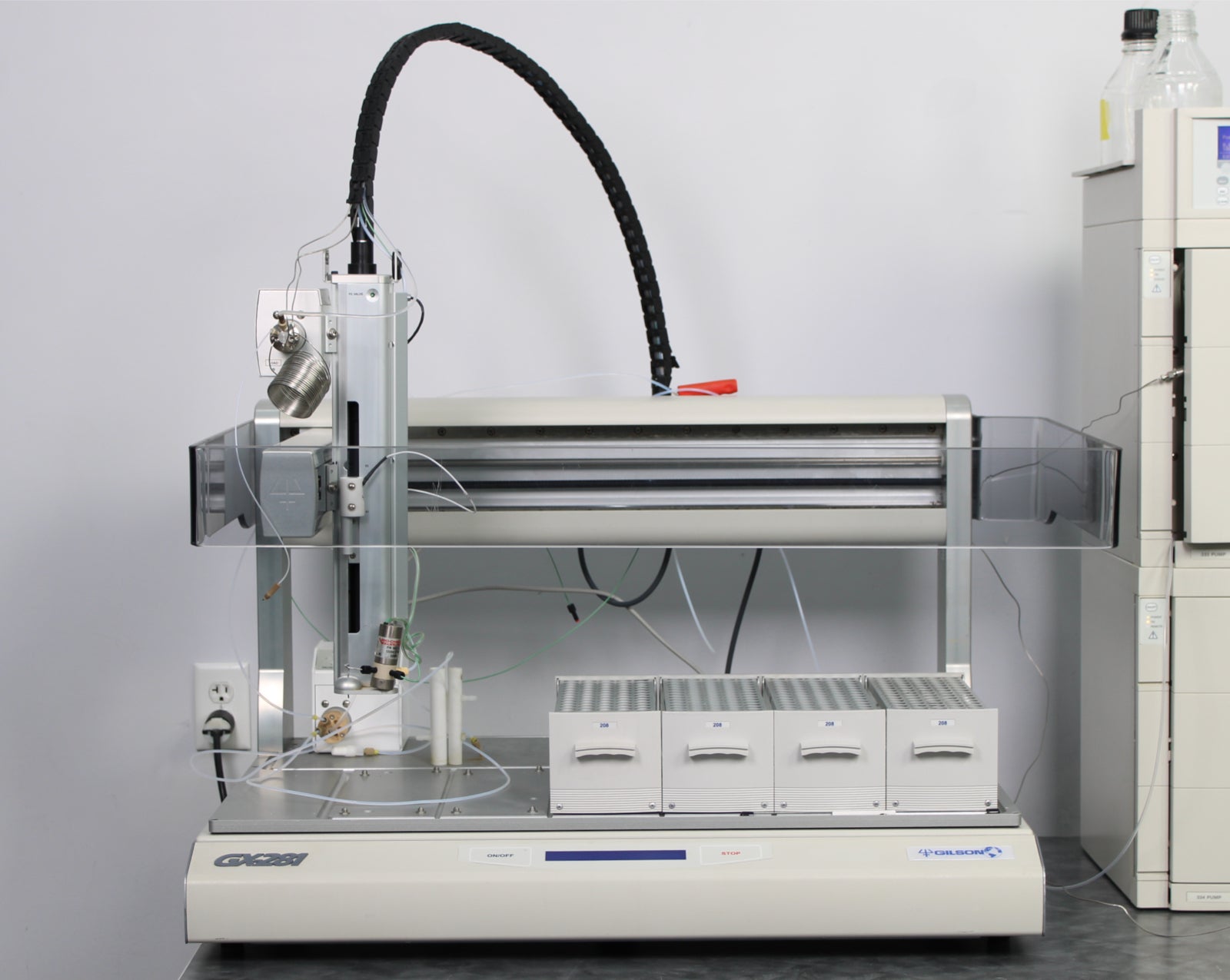

- Gilson GX-281 Automated Liquid Handler
- x4 Gilson Racks (Code 208)

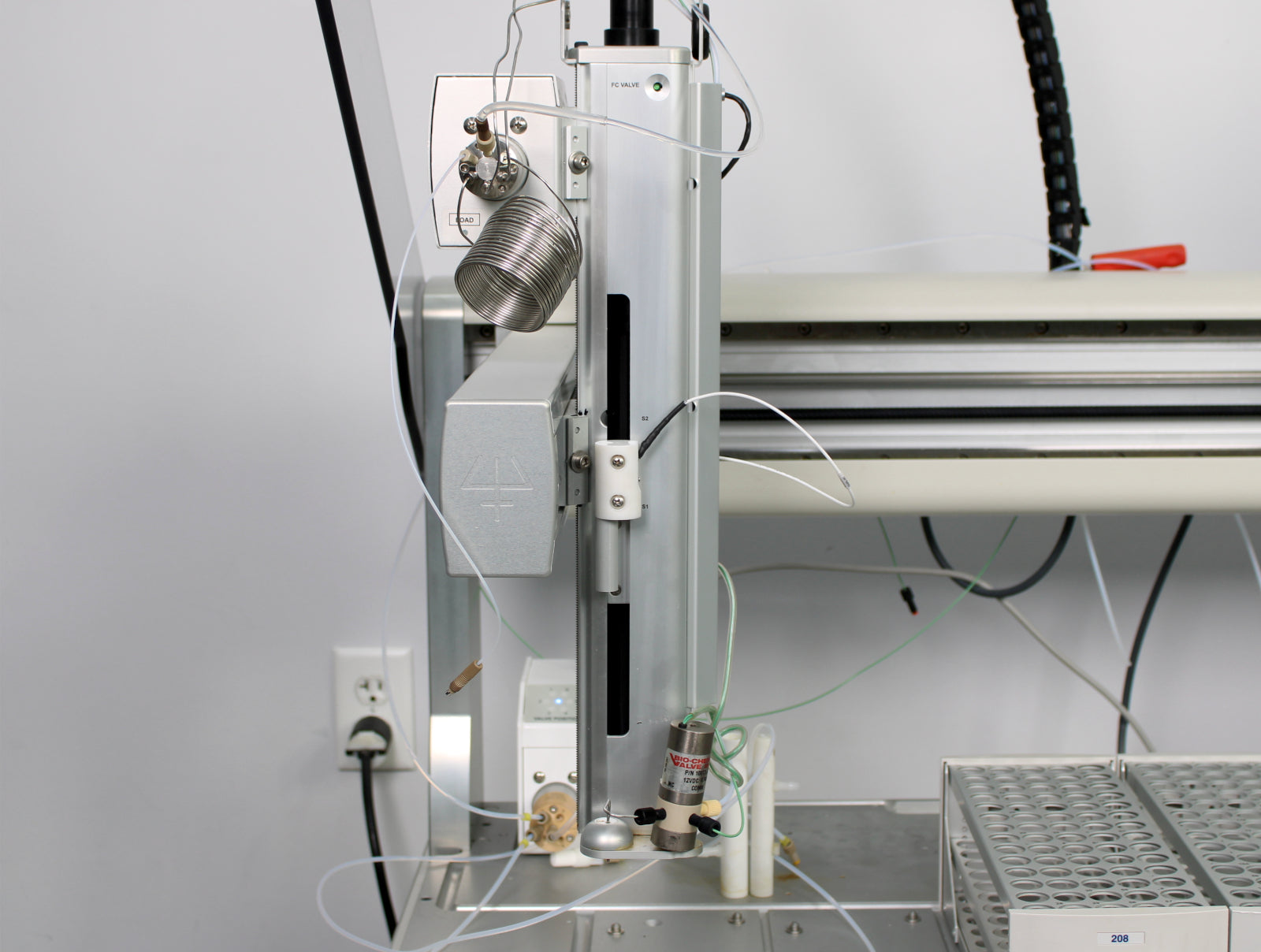

- Gilson Z Injection Module

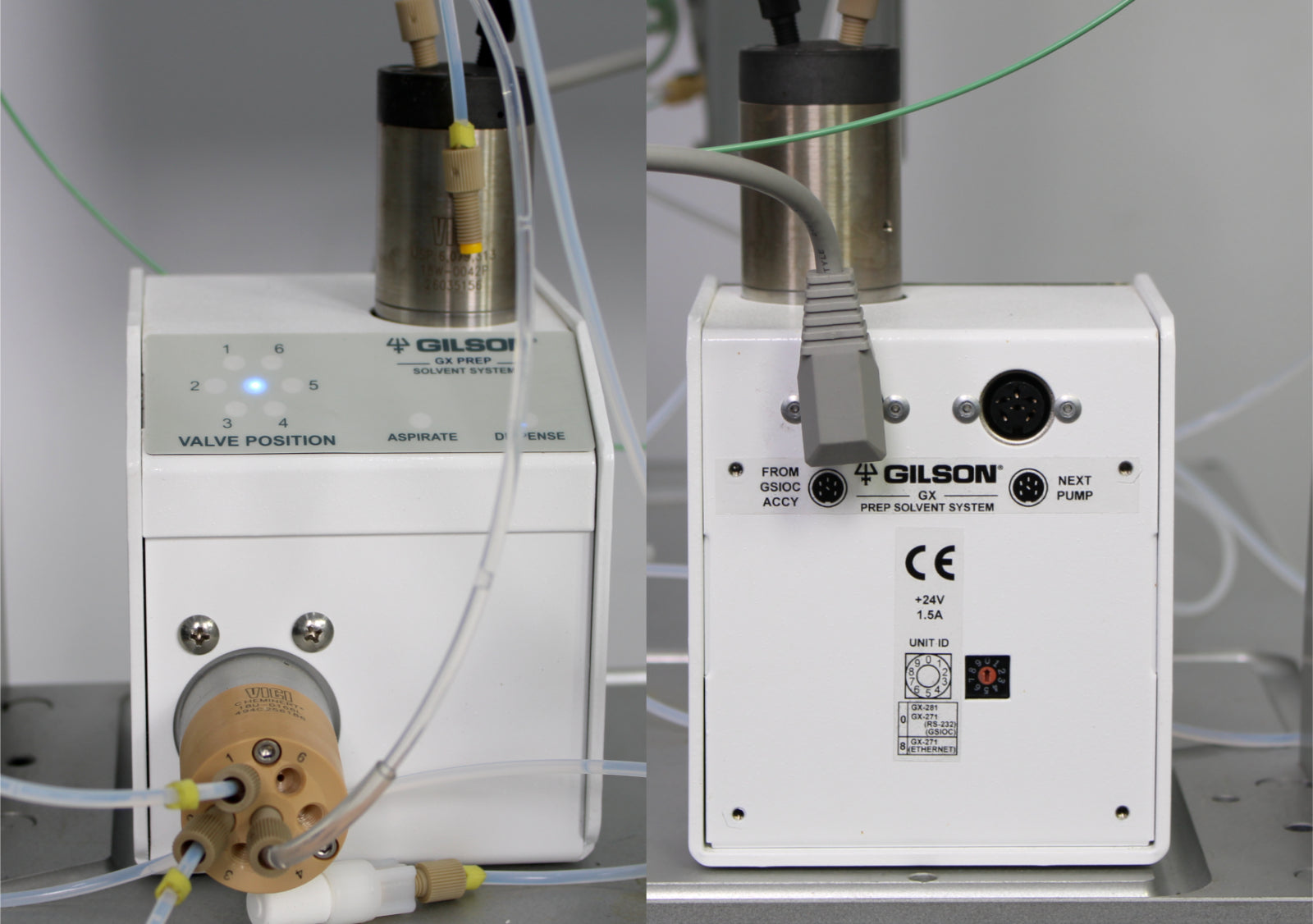

- Gilson GX Prep Solvent System

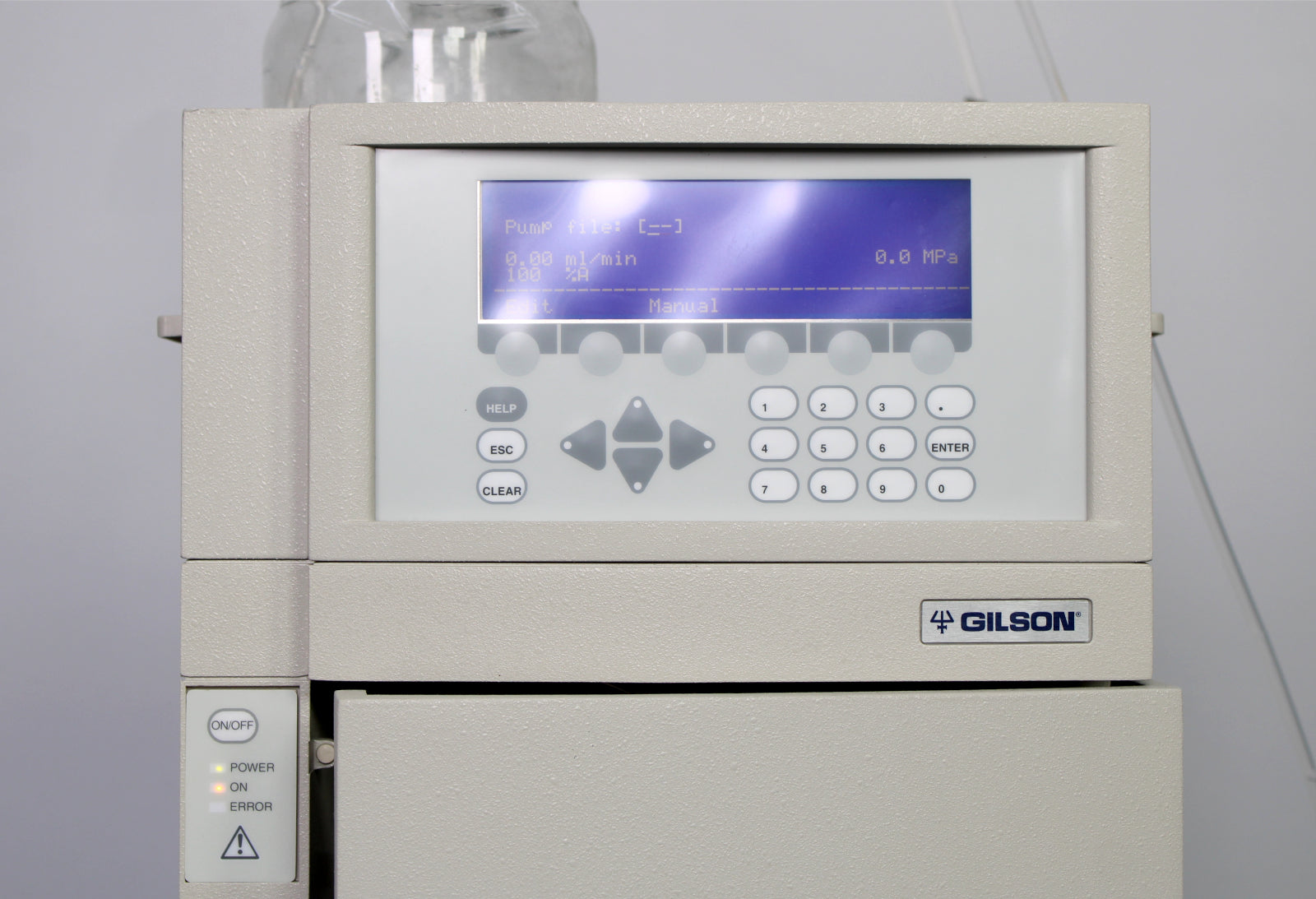

- Gilson 333 HPLC Pump
- Gilson 334 HPLC Pump
- Gilson UV-VIS 155 Detector

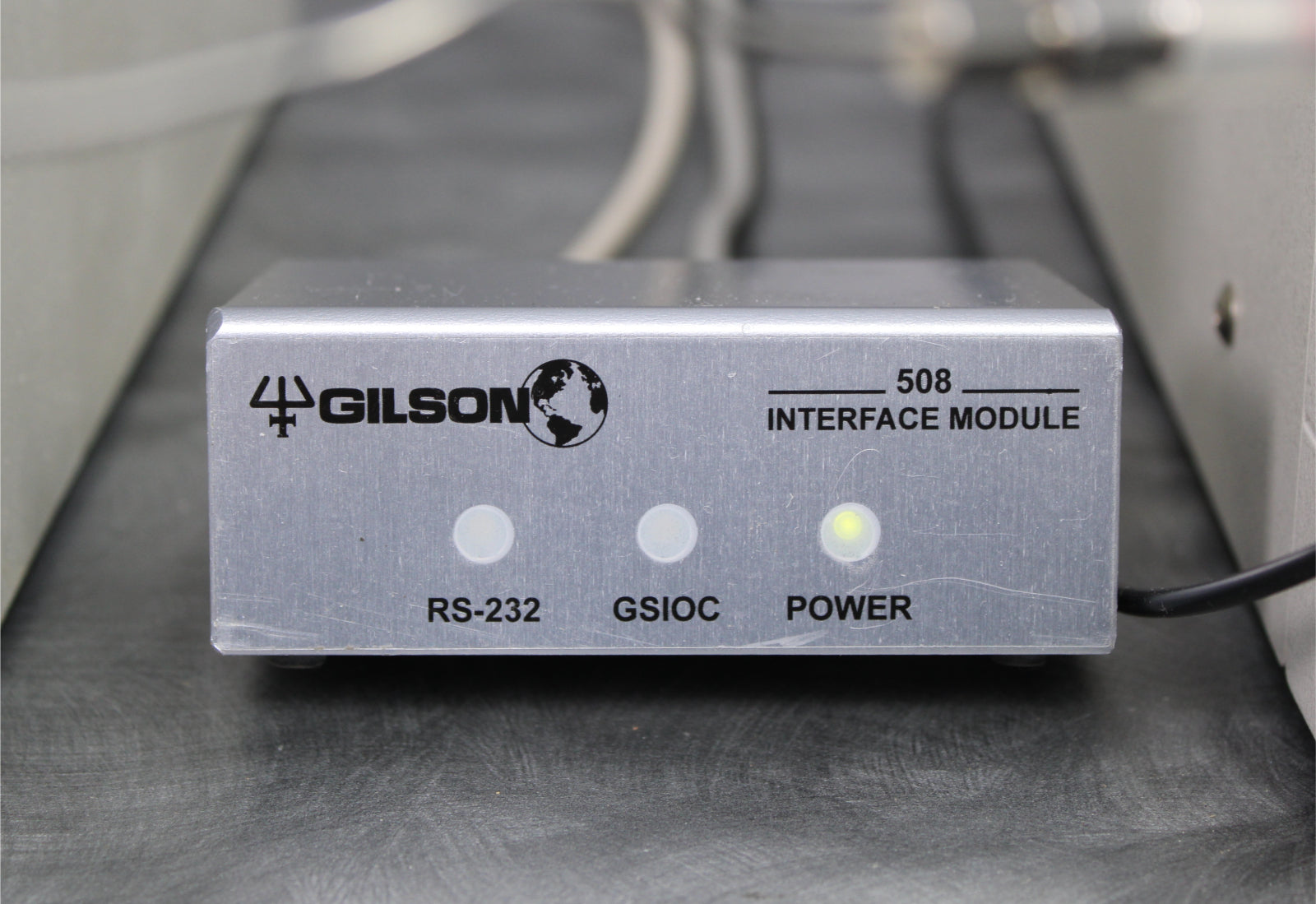

- Gilson 508 Interface Module
- Tubing

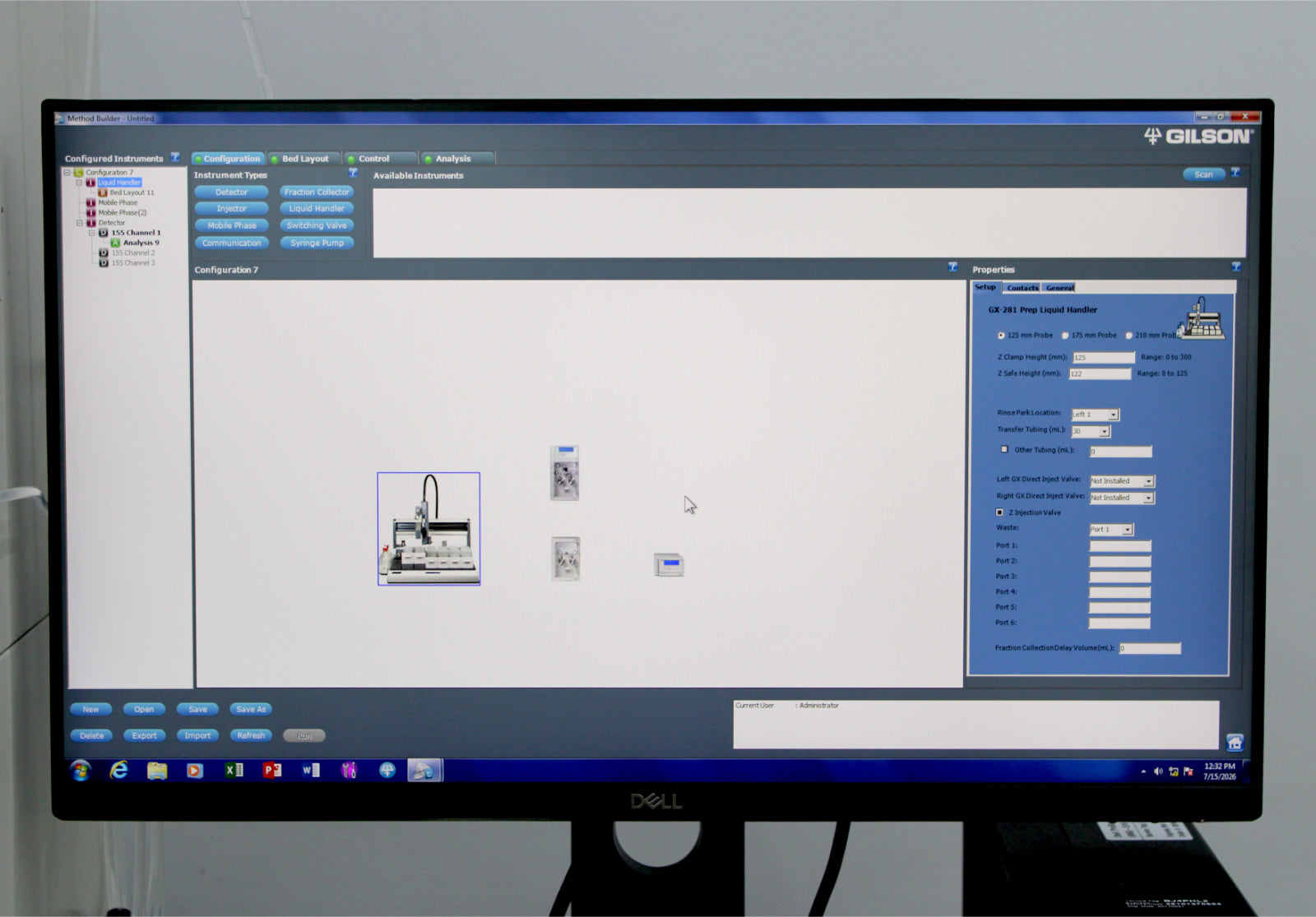

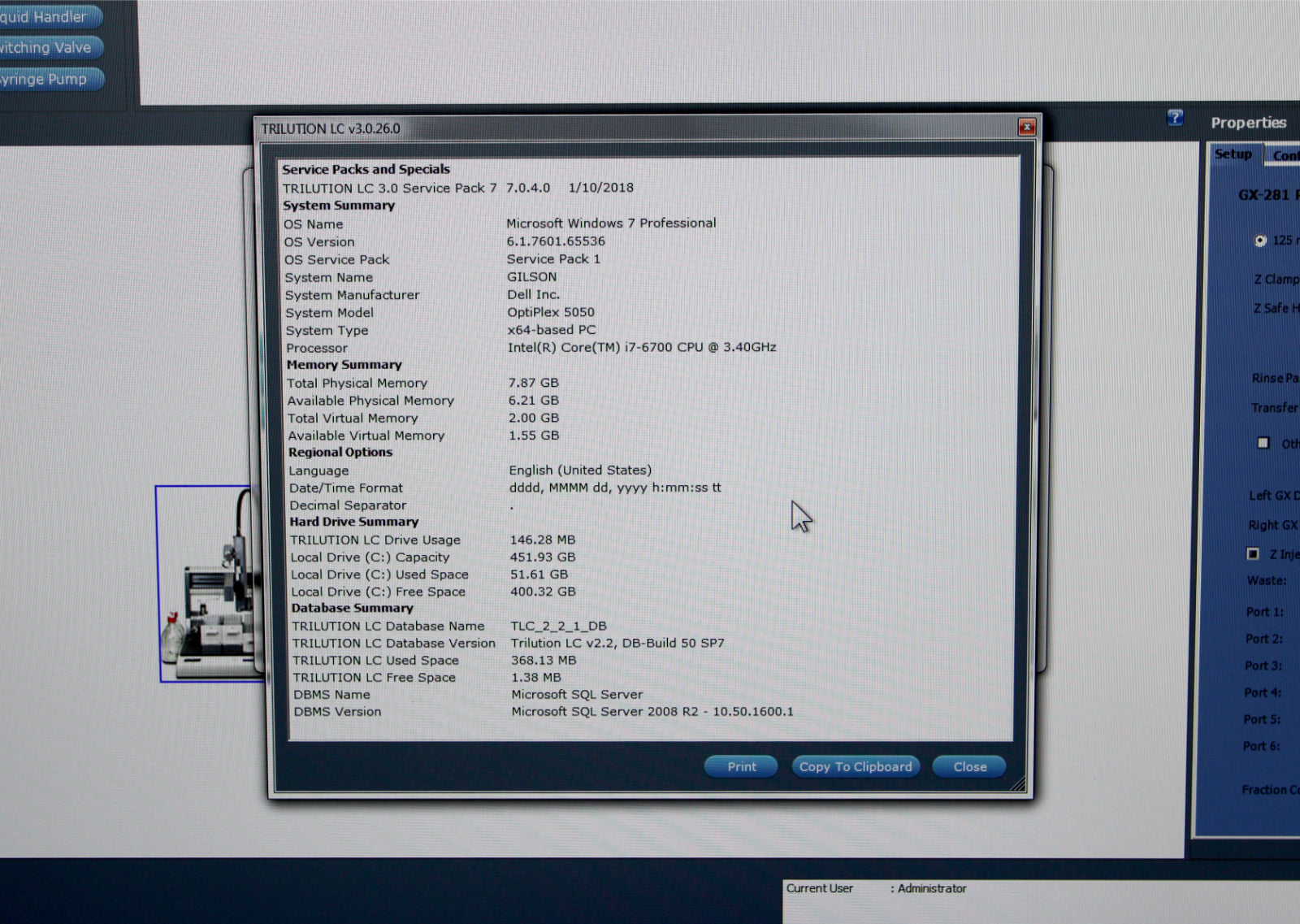

- Computer with Software
- Monitor, Keyboard, and Mouse
- Display Cable
- Communication Cables
- x6 Power Cables
- 90-Day Warranty

Not Included:

- Solvent, Bottles, and Test Tubes

Notice: You may need additional tubing if you want to connect more components to the system.

Fully Tested and Working Without Issue:

After its initial disinfection and inspection, our technicians tested the Gilson GX-281 automated liquid handler system with the following results:

- Created methods: PASSED
- Pumps and valves: PASSED
- Detector: PASSED
- Liquid handler homing and probe: PASSED

Notice: This liquid handler system has some minor cosmetic blemishes. Please review the available photos to see the physical condition before purchasing.

Specifications:

Manufacturer	Gilson
Model	GX-281

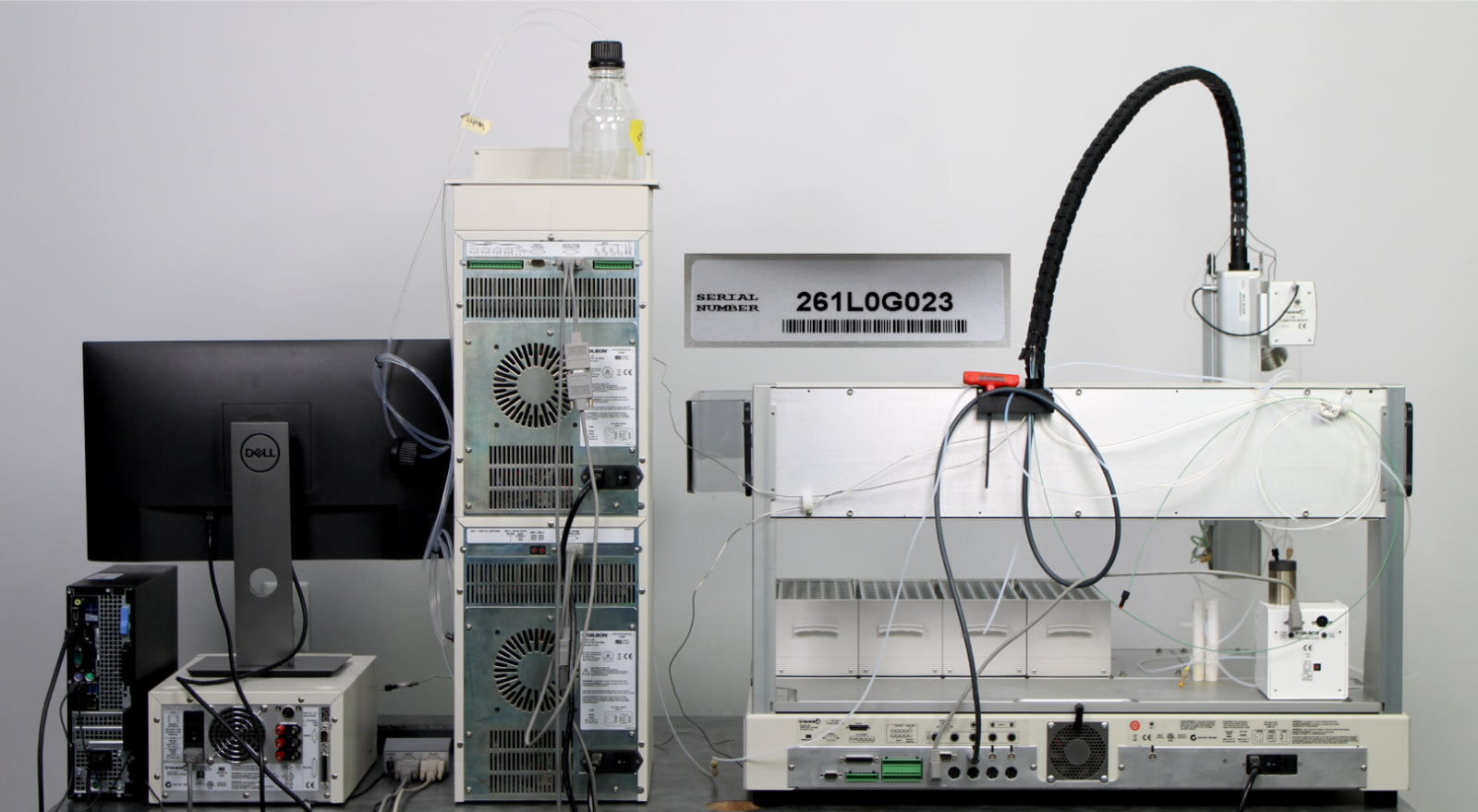

Serial No.	261L0G023
Arm speed	0.01 to 600.00 mm/sec in X dimension 0.01 to 600.00 mm/sec in Y dimension 0.01 to 125.00 mm/sec in Z dimension

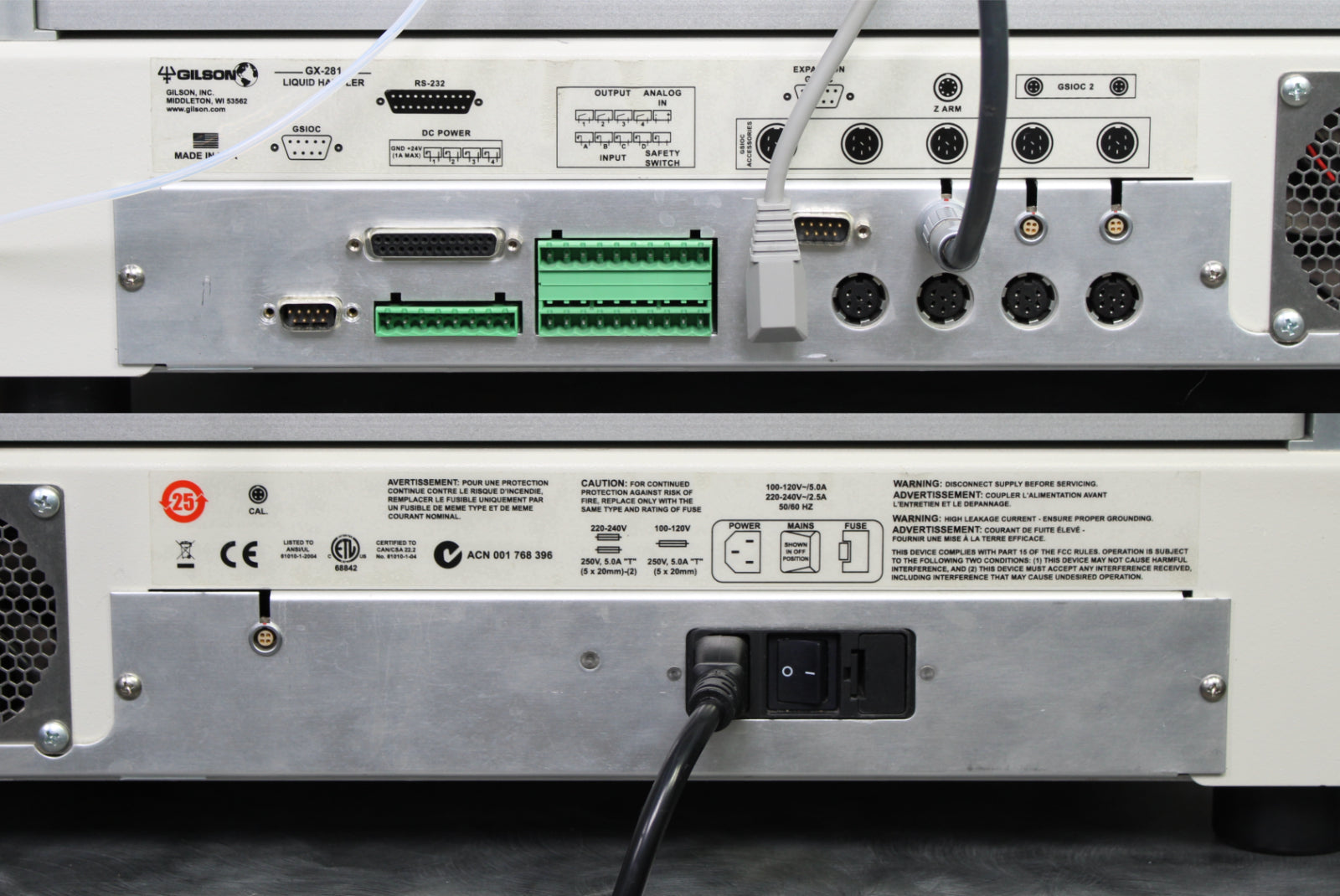

Contact control	Four inputs (contact closure, TTL), four relay outputs, four switched +24V DC 1A outputs, one safety input, and one analog input Note: For your safety, do not switch voltages higher than 30V even though the output contacts are rated for high voltage.
Data acquisition	An input channel for analog-to-digital conversion Input impedance: More than 100K ohms Input voltage range: -1.0V to +1.0V Input resolution: 10μV

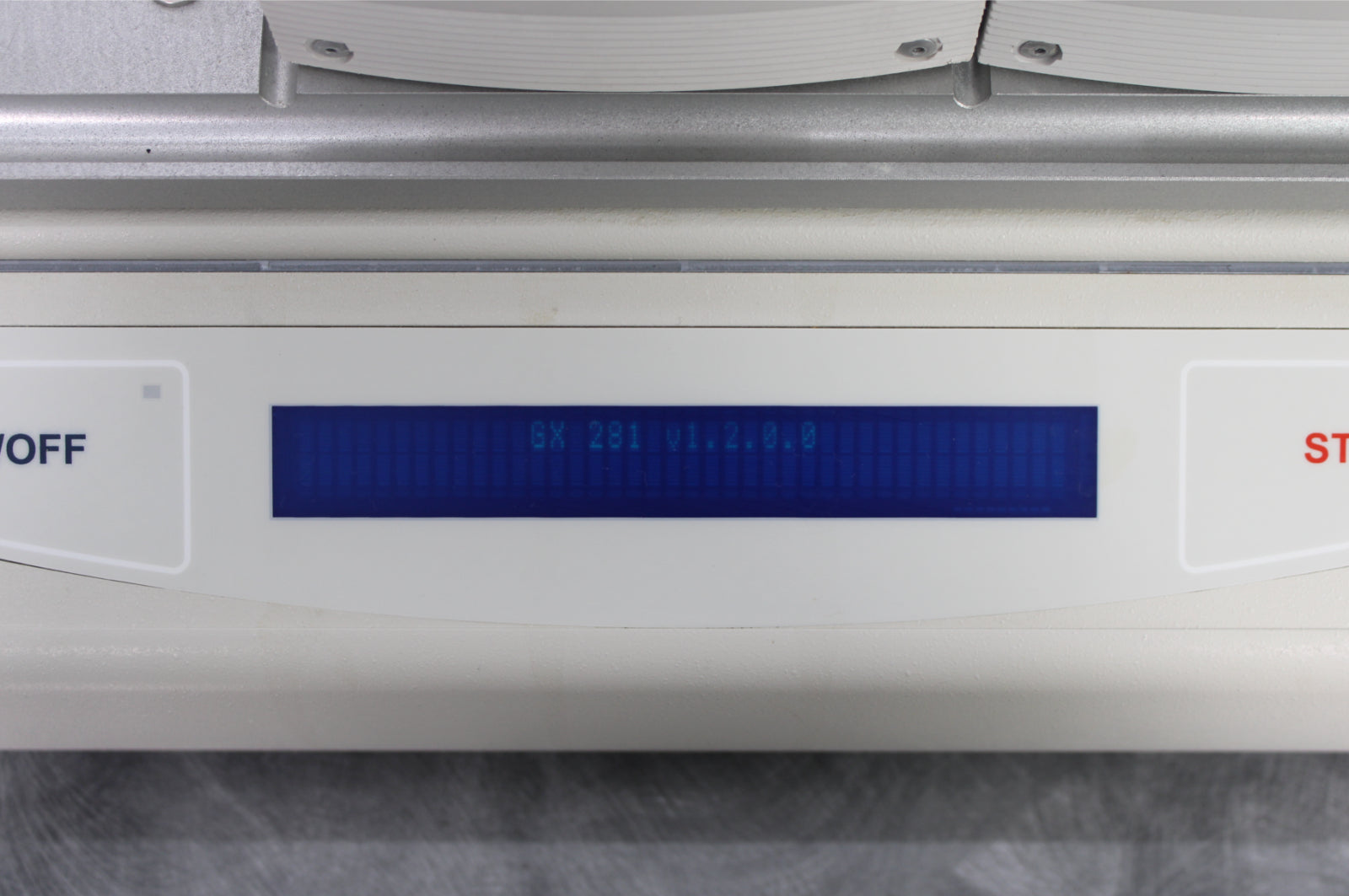

Display	Two lines of 40 alphanumeric characters; vacuum fluorescent display
Environmental conditions	Indoor use Altitude: up to 2000 m Temperature range: 5°–40°C Air pressure: 75–105 kPa Humidity: Maximum relative humidity 80% for temperatures up to 31°C, decreasing linearly to 50% relative humidity at 40°C
Front panel	ON/OFF and STOP soft keys and LED indicator light for power
Horizontal motion strength	X: 1.4 kg (3 lbs) Y: 0.7 kg (1.5 lbs) Z: 5.4 kg (12 lbs)
Locator plate capacity (Qty, Capacity, Gilson rack qty)	576, 13x100 mm tubes, Code 200 (6) 450, 16x100 mm tubes, Code 207 (6) 420, 18x150 mm tubes, Code 208 (6) 162, 20 mL scintillation vials, Code 204 (6) 162, 40 mL scintillation vials, Code 219 (6)
Probe positioning performance	Accuracy: ±0.05 mm in X/Y/Z dimensions Repeatability: ±0.025 mm in X/Y/Z dimensions
Probe rinse	Probe rinsing occurs through a dedicated rinse station
Safety approvals/EMC compliance	Certified to UL, CSA, CE, and C-Tick Safety and EMC standards.
Sampler type	X/Y/Z with stationary rack design
Software control	Computer control via RS-232 or GSIOC and TRILUTION software
Vertical punch strength	10 lb (4.5 kg)
Fuse	5 x 20 mm “T” type 5.0A One for 100-120V; two for 220-240V
Power rating	100-120V~, 5.0A, 50/60Hz 220-240V~, 2.5A, 50/60Hz
Power consumption	500W maximum
Dimensions (W x D x H)	35 x 30 x 38 in (88.9 x 76.2 x 96.5 cm)
Weight	150 lb (68 kg)

Manufacturer	Gilson

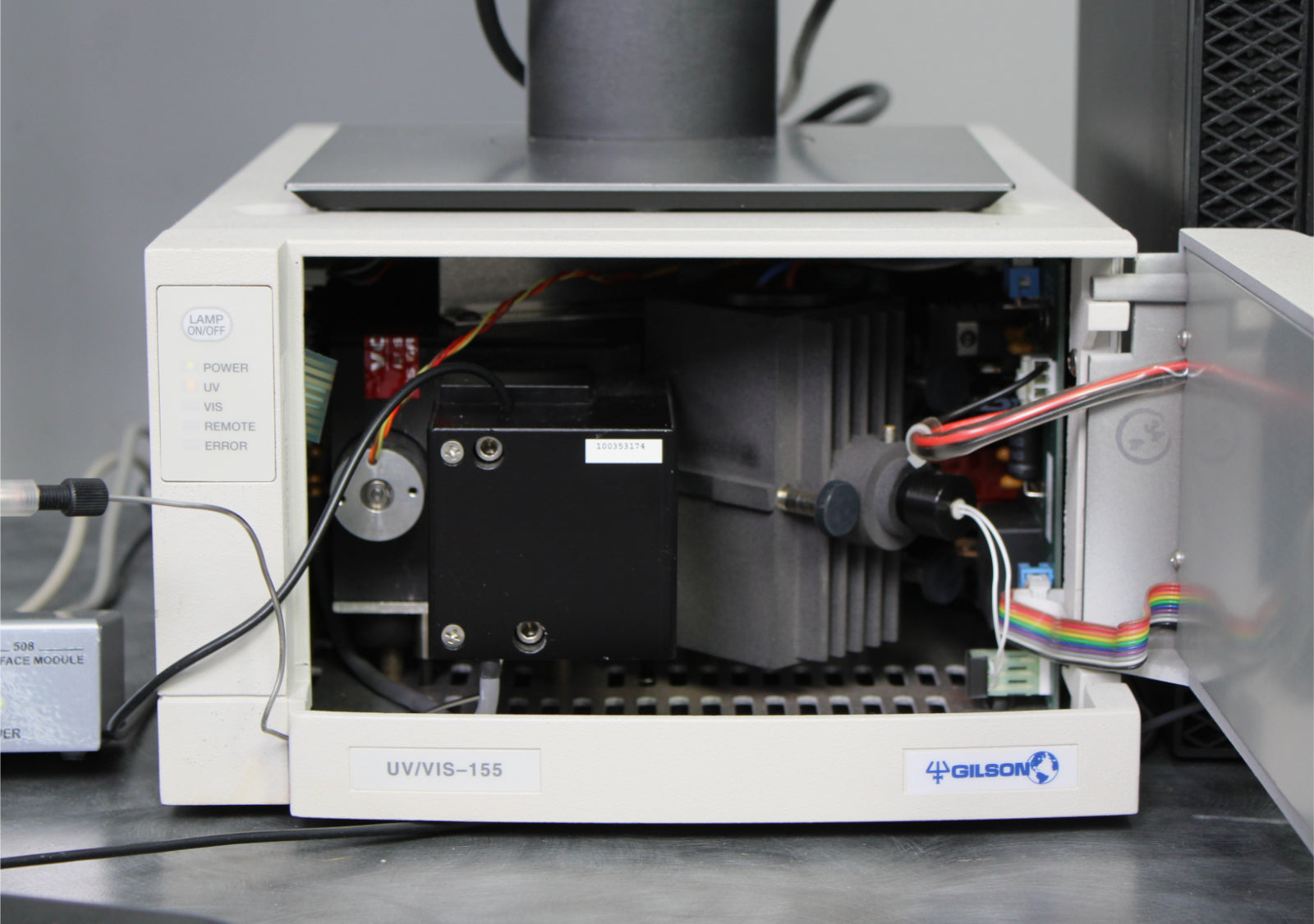

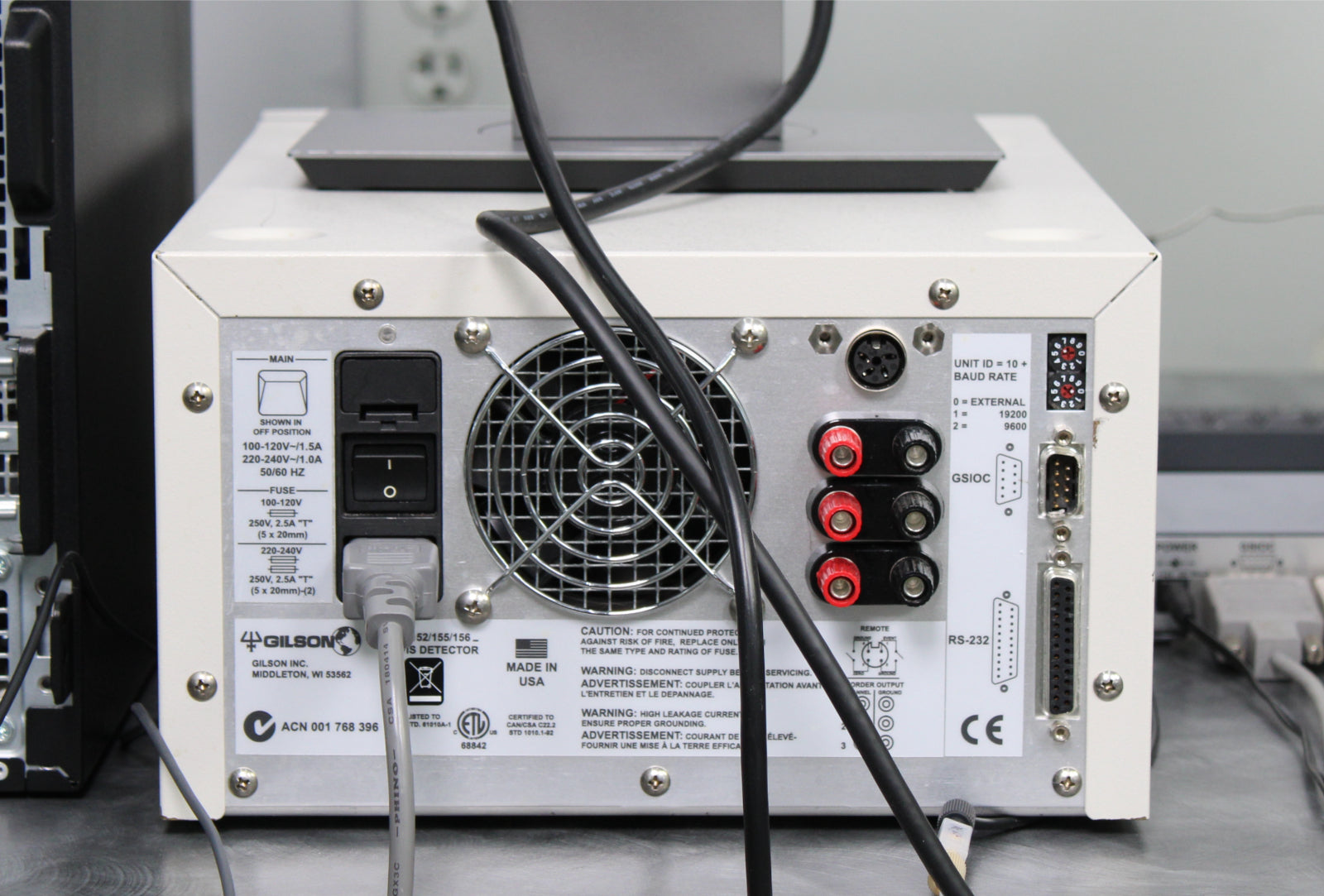

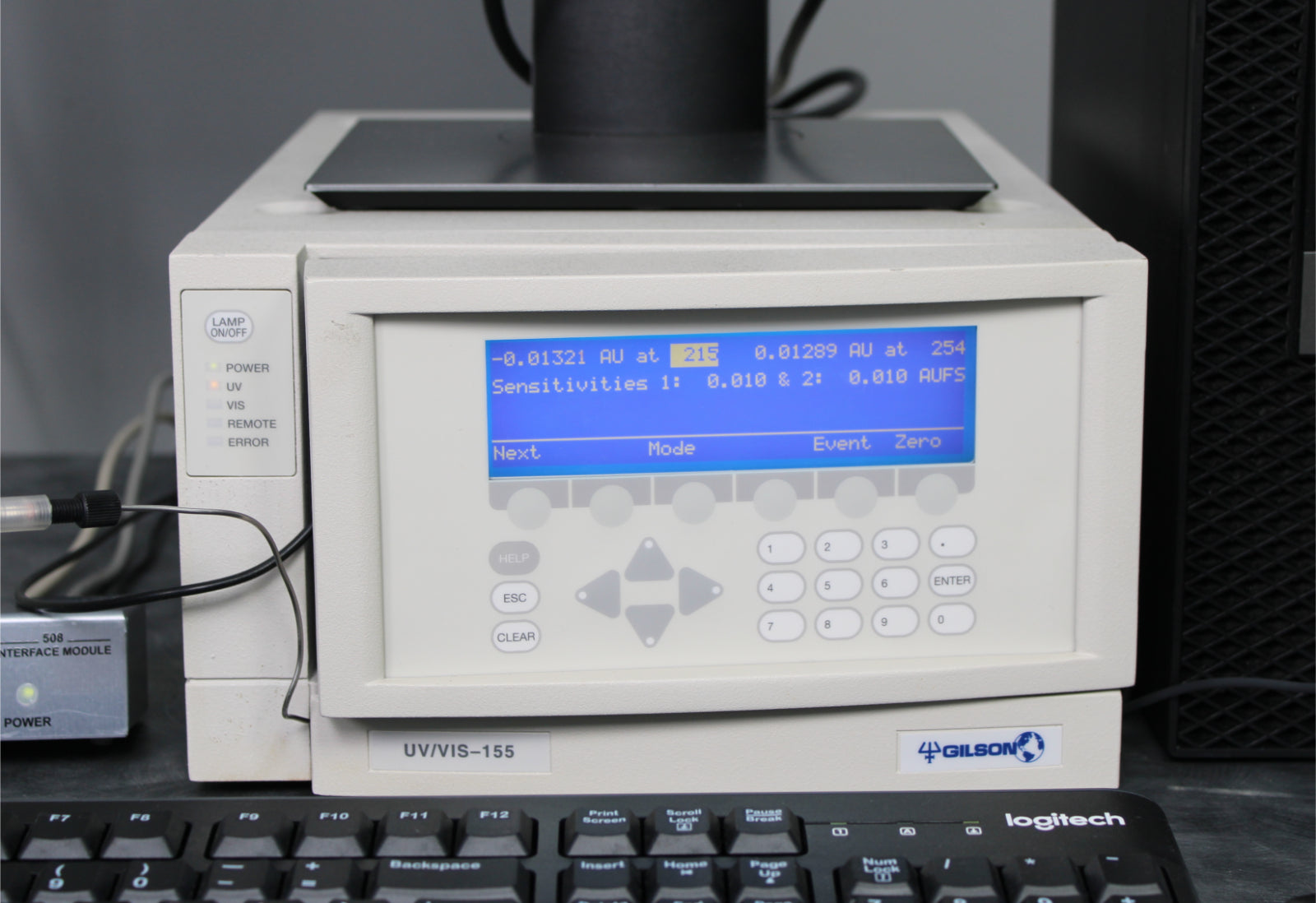

Model	UV/VIS-155
Autozero range	Suppresses up to 1.0 AU with 5 mm flow cell installed
Contact control	Event and autozero inputs: remote contact closure can be activated by other instruments or the computer Three channels output data to a recorder.
Display	Four-line display shows modes, parameters, commands and data (155 only)
Drift	After one hour at constant temperature: 3.0 x 10-4 AU/hour
Short term noise (with air block installed)	2.0 x 10-5 AU; 220 nm, short term, peak to peak 2.5 x 10-5 AU; 254 nm, short term, peak to peak 10.0 x 10-5 AU; 350 nm, short term, peak to peak 8.0 x 10-5 AU; 415 nm, short term, peak to peak 6.0 x 10-5 AU; 520 nm, short term, peak to peak 4.0 x 10-5 AU; 650 nm, short term, peak to peak The air block path length is set to 1cm.
Environmental conditions	Indoor use Altitude: up to 2000 m Temperature range: 5°–40°C Air pressure: 75–105 kPa Humidity: Maximum relative humidity 80% for temperatures up to 31° C, decreasing linearly to 50% relative humidity at 40°C
Flow sensitivity	4.0 x 10-4 AU for flow step of 2.0 mL/min to 0.5 mL/min with methanol
Front panel	LAMP ON/OFF hard key, LED indicator lights for POWER, UV, VIS, REMOTE, and ERROR (155 and 156) Six soft keys, HELP, ESC and CLEAR hard keys, arrow keys, numeric hard keys, and ENTER hard key (155 only)
Lamp warm-up time	15-30 minutes
Lamps	UV lamp: Deuterium, warranted for 750 hours or 180 days shelf-life Visible lamp: Tungsten/halogen lamp, warranted for 500 hours
Linearity	1%, when value is within sensitivity range of 0.001 to 2.0 AU
Monochromator	Dual beam, steppermotor-driven • Range: 190 to 700 nm • Spectral bandwidth: 9 nm • Setting accuracy: ±2 nm • Setting precision: ±0.2 nm
Operating modes	Single wavelength, dual wavelength, scan wavelength, status, setup, and file
Peak width	0.0 or 4.0 to 99.0 seconds
Sensitivity range	0.001 to 2.0 AU. Sensitivity is adjustable in increments of 0.001 AU.
Software control	Gilson TRILUTION® LC Software
Static RI sensitivity	Methanol versus cyclohexane at 270 nm: 5.0 x 10-3 AU
Temperature sensitivity	3.0 x 10-4/°C for temperature change from 21° to 24°C
Electrical requirements	Frequency: 50 to 60 Hz Voltage: 100–240V Current rating: 1.5A for 100–120V or 1.0A for 220–240V
Dimensions (W x D x H)	10.4 x 17.1 x 6.2 in (26.5 x 43.5 x 15.6 cm)
Weight	19 lb (8.6 kg)

Manufacturer	Gilson

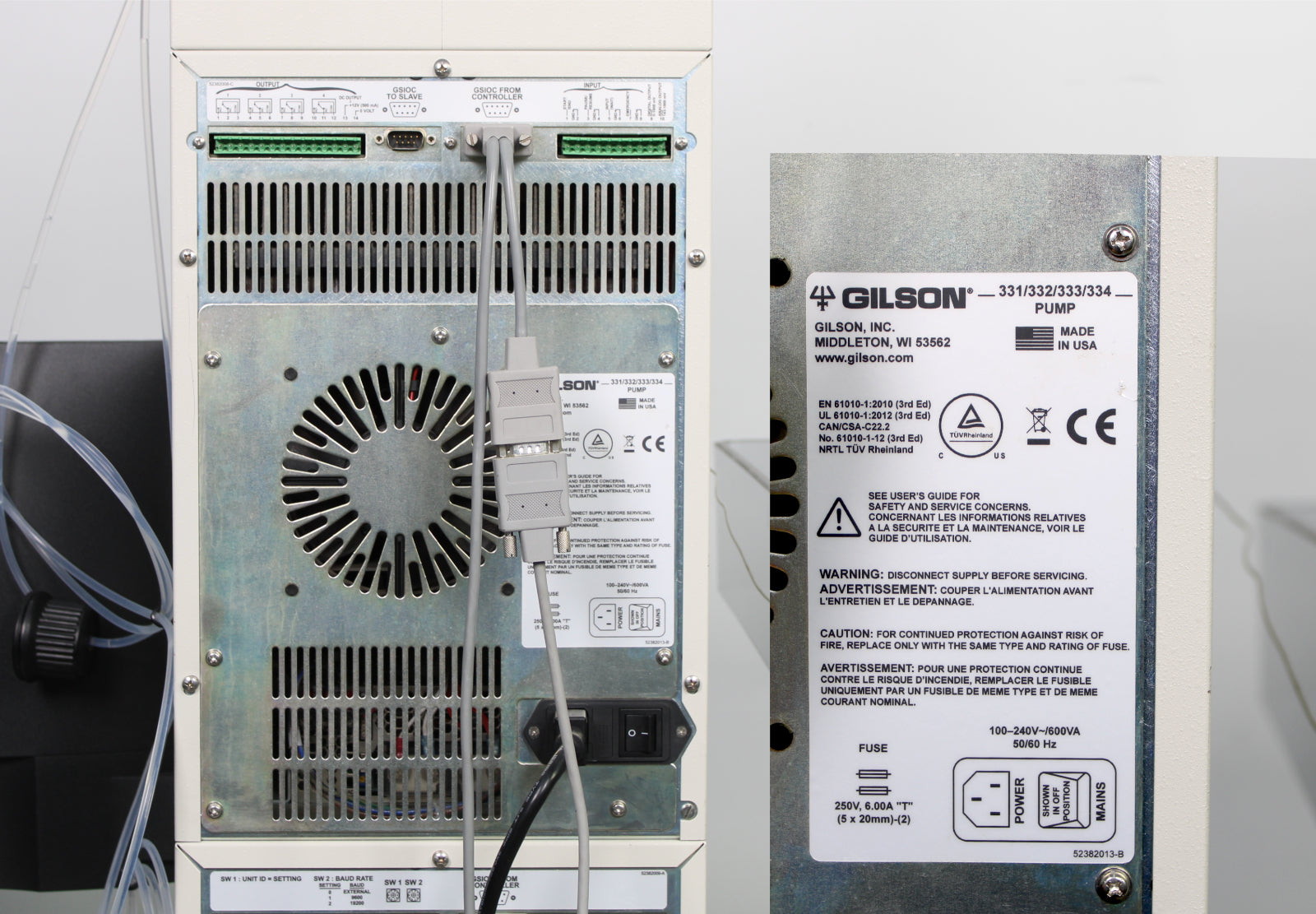

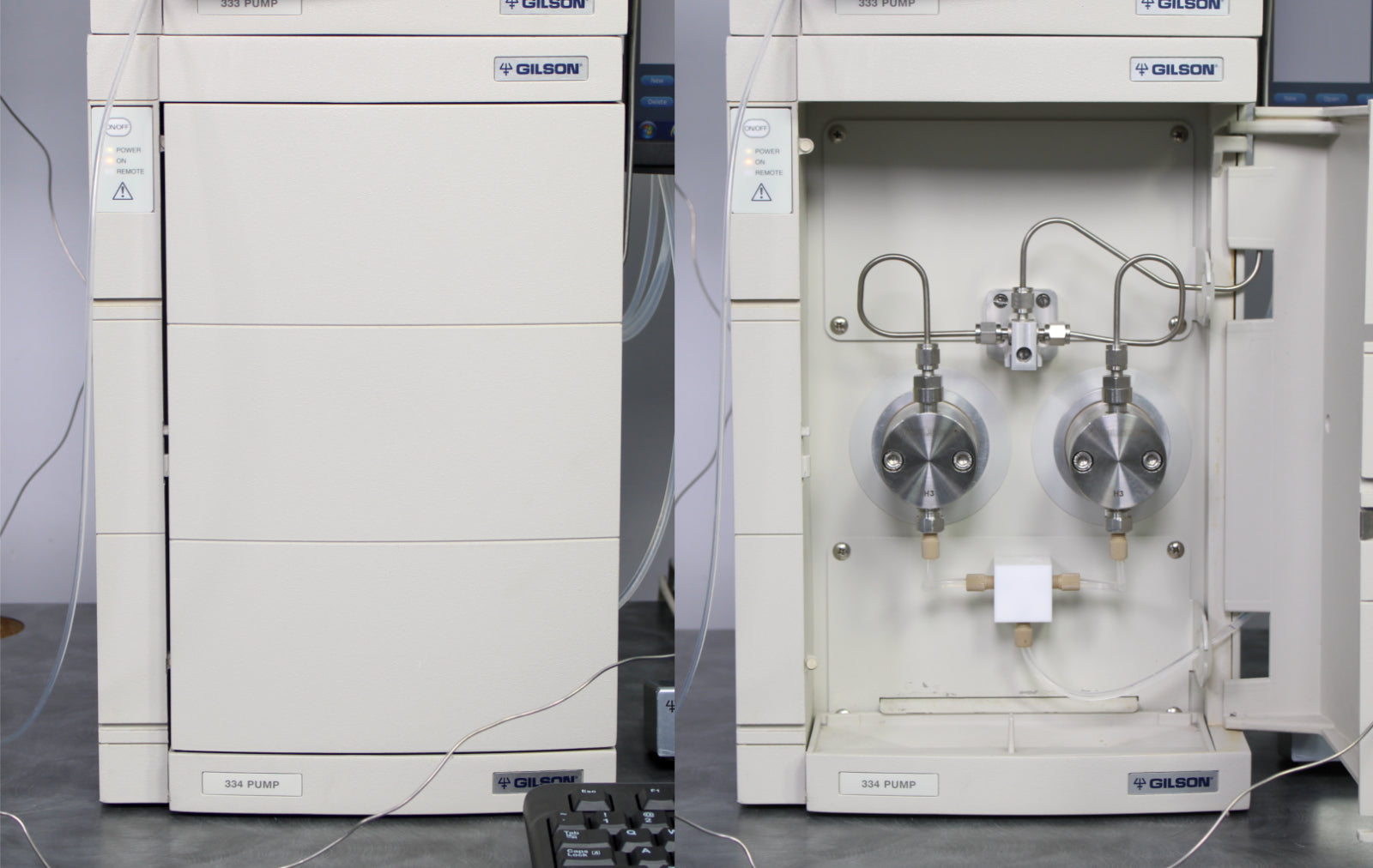

Model	333/334 HPLC Pumps
Pump type	Single solvent pump

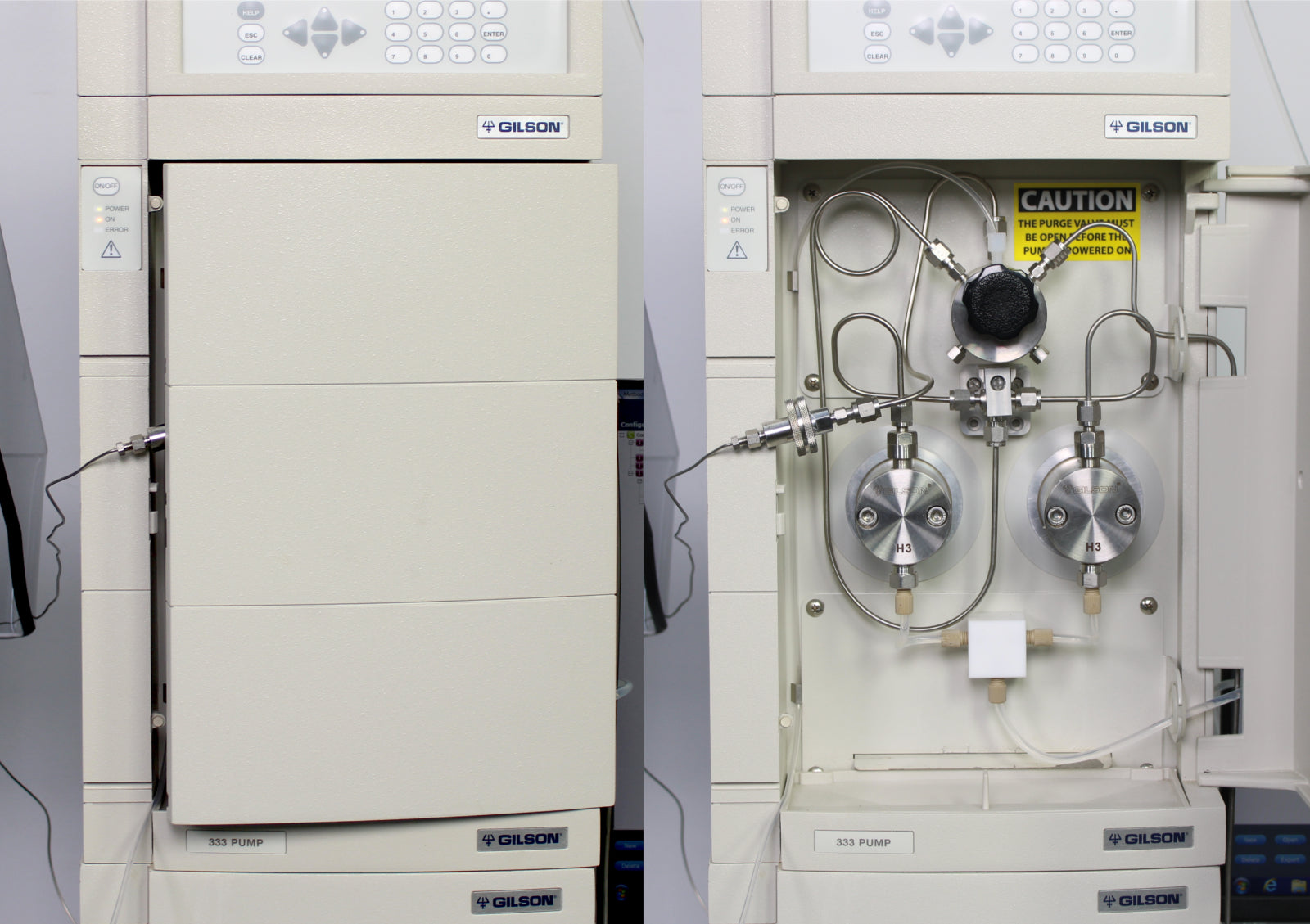

Hydraulic system	Reciprocating dual-piston pump
Pump head	H3: Up to 200 mL/min
Flow rate	Range - Single pump H3: 0.2-200 mL/min Range (Recommended) - Two pumps H3: 2-200 mL/min Increment: 0.01 mL/min
Flow accuracy	±2%
Flow precision	≤0.7% RSD
Gradient	Solvents: Two Formation: High pressure mixing with static mixer as part of pressure, purge, and mixing module (PPMM) Composition increment: 0.1%
Gradient accuracy	±2%
Gradient precision	≤0.7% RSD
Operating pressure	H3: 5-210 bar (70-3040 psi)
Compressibility compensation	Programmable compensation range 0-2000 Mbar
Piston seal wash	Pump head inlet and outlet ports to/from a rinsing chamber
Priming	Manual with built-in purge valve via control software or syringe
Liquid contact materials	316L Stainless Steel, Sapphire, Ceramic, UHMWPE, PTFE, Ruby, Titanium, FEP, PCTFE, ETFE
Control and communication	Communication: GSIOC (Gilson Serial Input Output Channel) Inputs (333 Pump): Four Digital Inputs; Start/End; Pause/Resume; Wait; Emergency Outputs (333 Pump): Four 30V, 2A Relay Outputs; One 12V, 0.5A DC Power Supply; One Output Channel for Pressure, Flow Rate, or Composition; One Analog Output Channel for Pressure Sensor Reading Software Control: TRILUTION LC Software

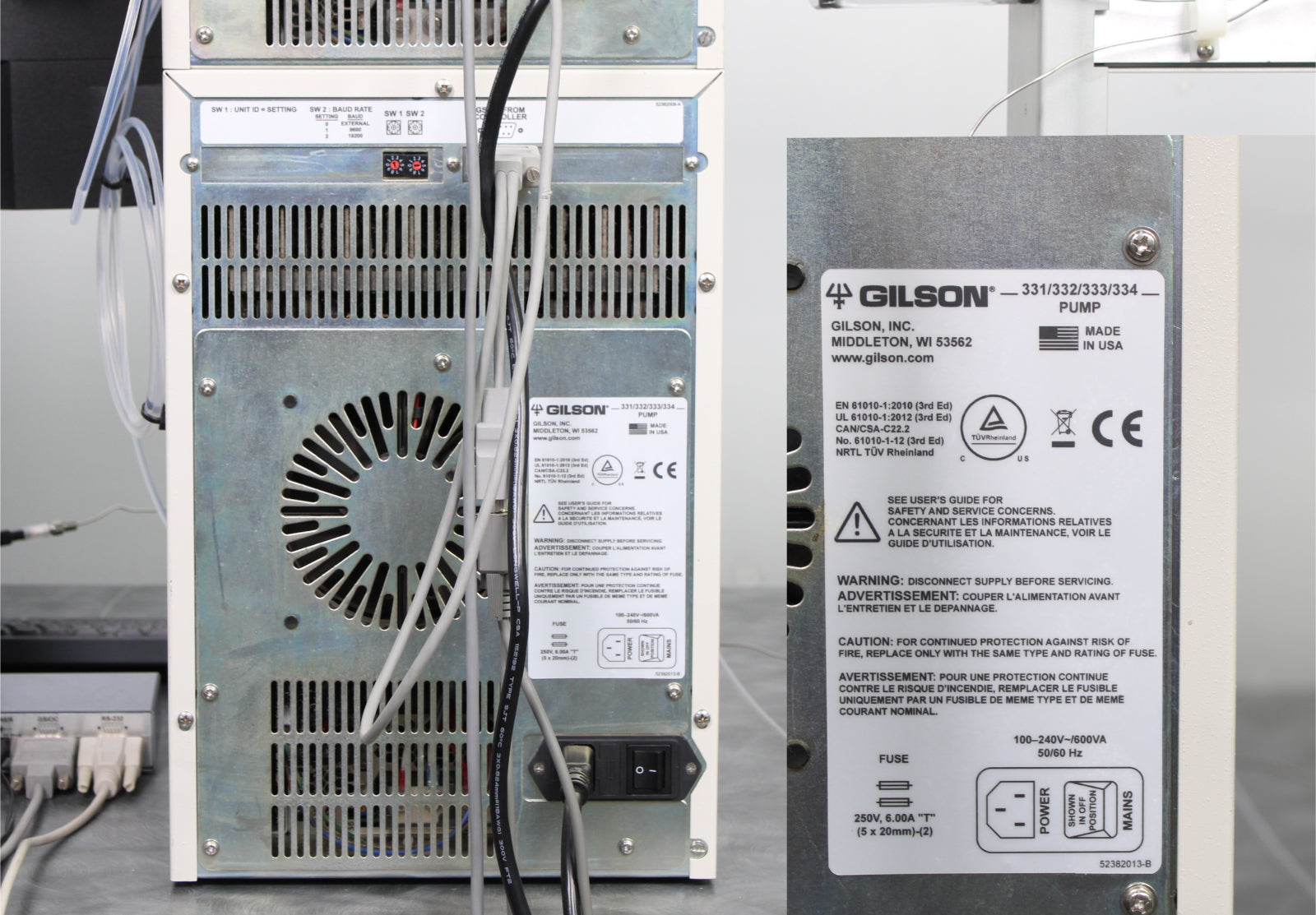

Electrical	Line voltage: 90-260 V Frequency: 50 to 60 Hz Power consumption: 600 W
Environmental	Operating temperature 333 Pump: 10°C to 40°C 334 Pump: 4°C to 40°C Operating humidity: 15%-80% Operating altitude: Up to 2000 m (81 kPa or 604 mmHg)
Physical	Dimensions (W x D x H) 333 Pump: 26 x 41 x 50.7 cm (10.2 x 16.2 x 20 in) 334 Pump: 26 x 41 x 38.7 cm (10.2 x 16.2 x 15.2 in) Weight 333 Pump: 33.1 kg (73 lbs.) Shipping weight: 36.6 kg (80 lbs.) 334 Pump 29 kg (64 lbs.) Shipping weight 33.1 kg (73 lbs.)
