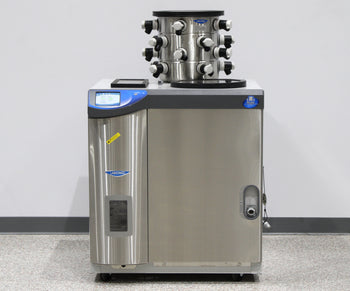

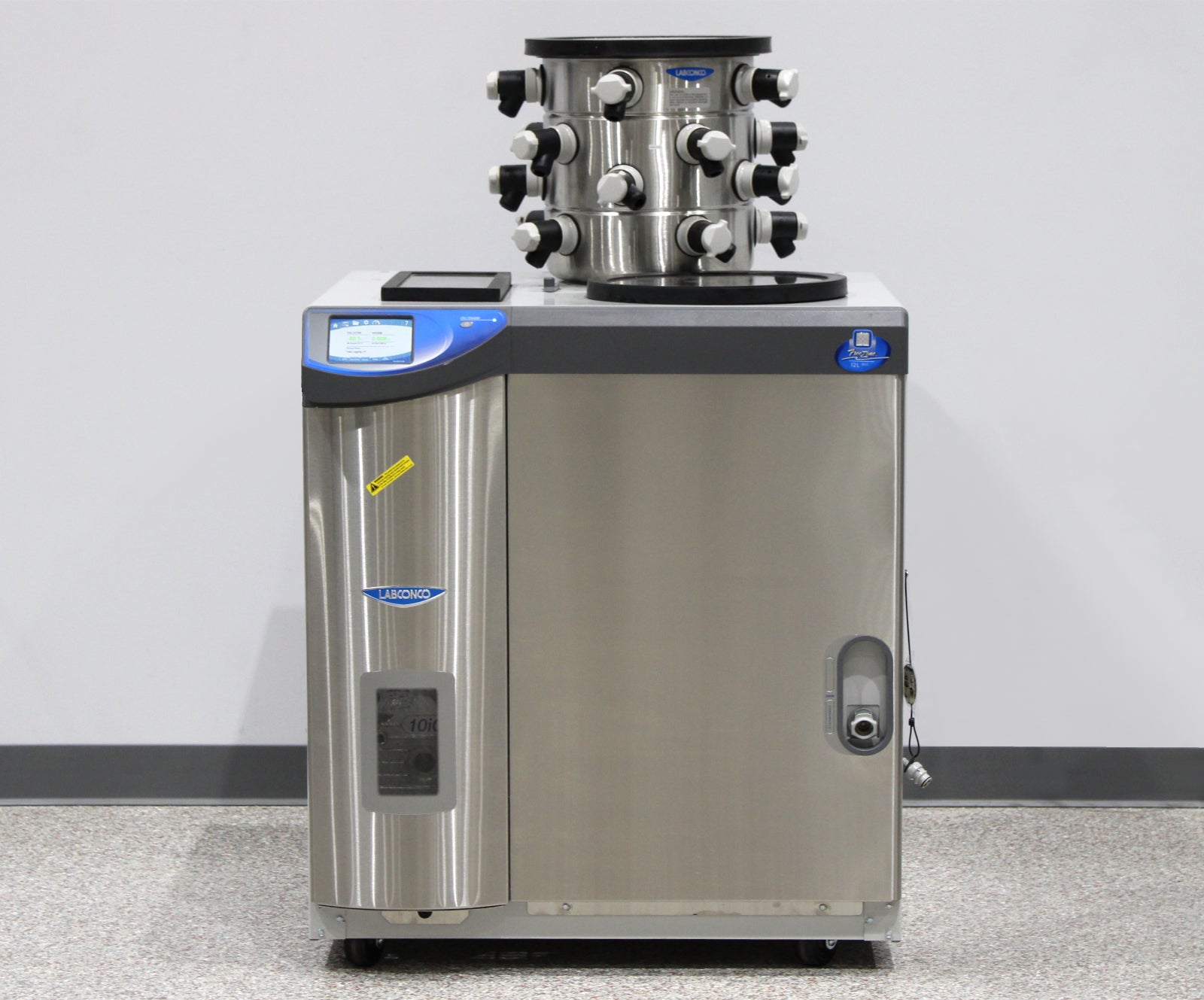

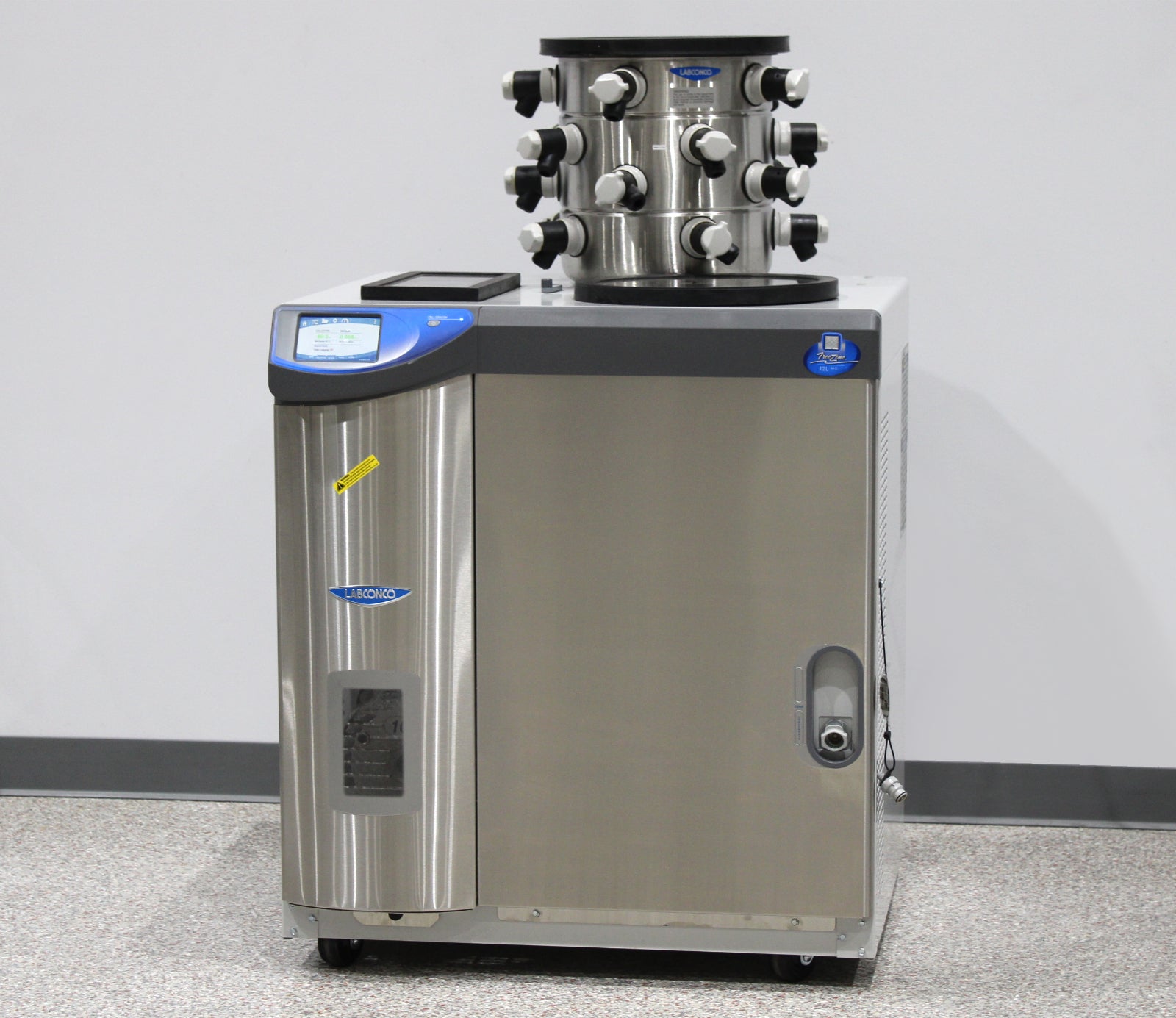

- Labconco FreeZone 12L -84°C Console Freeze Dryer 230V (711212210)

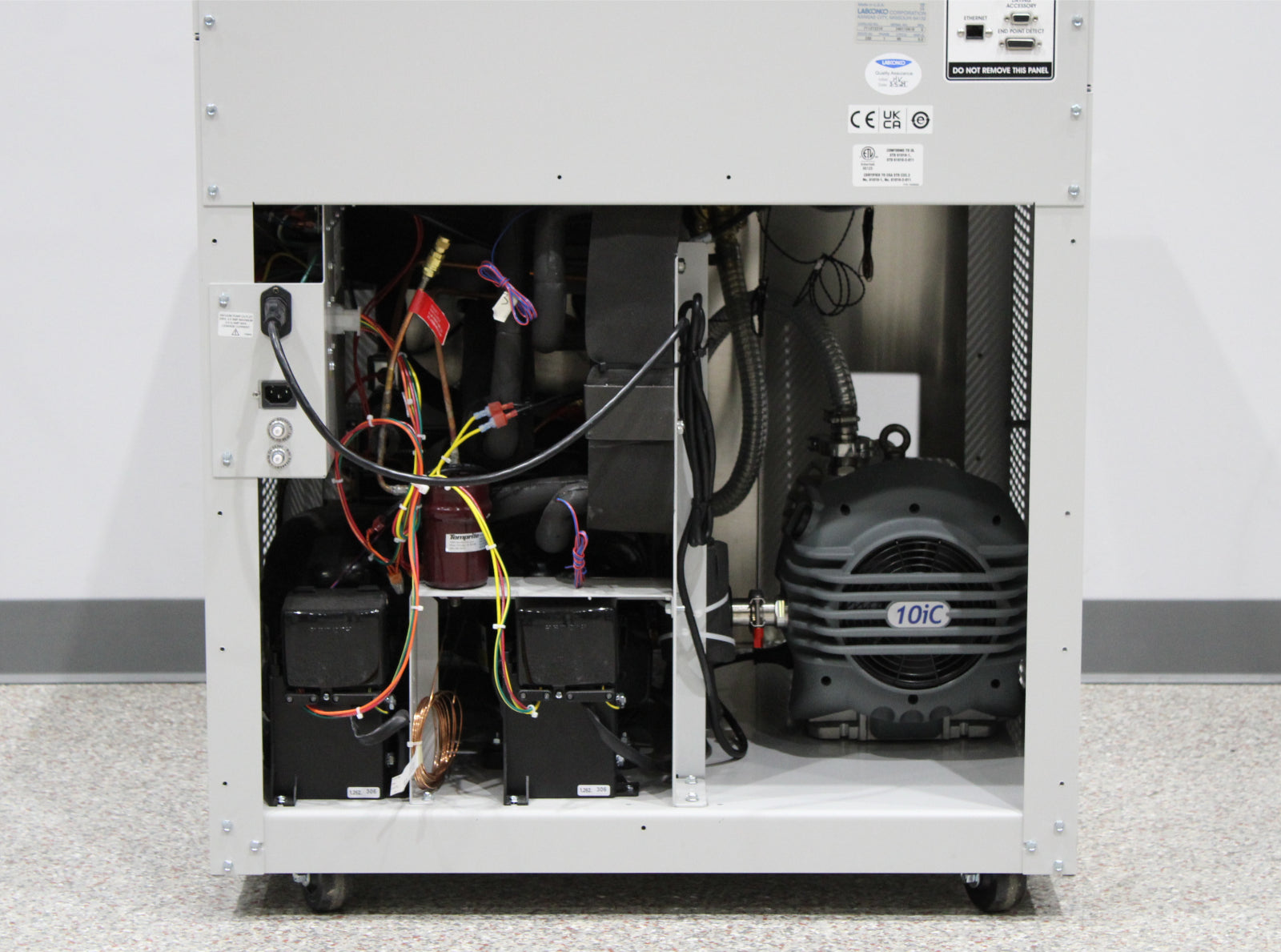

- Edwards 10iC Dry Scroll Vacuum Pump

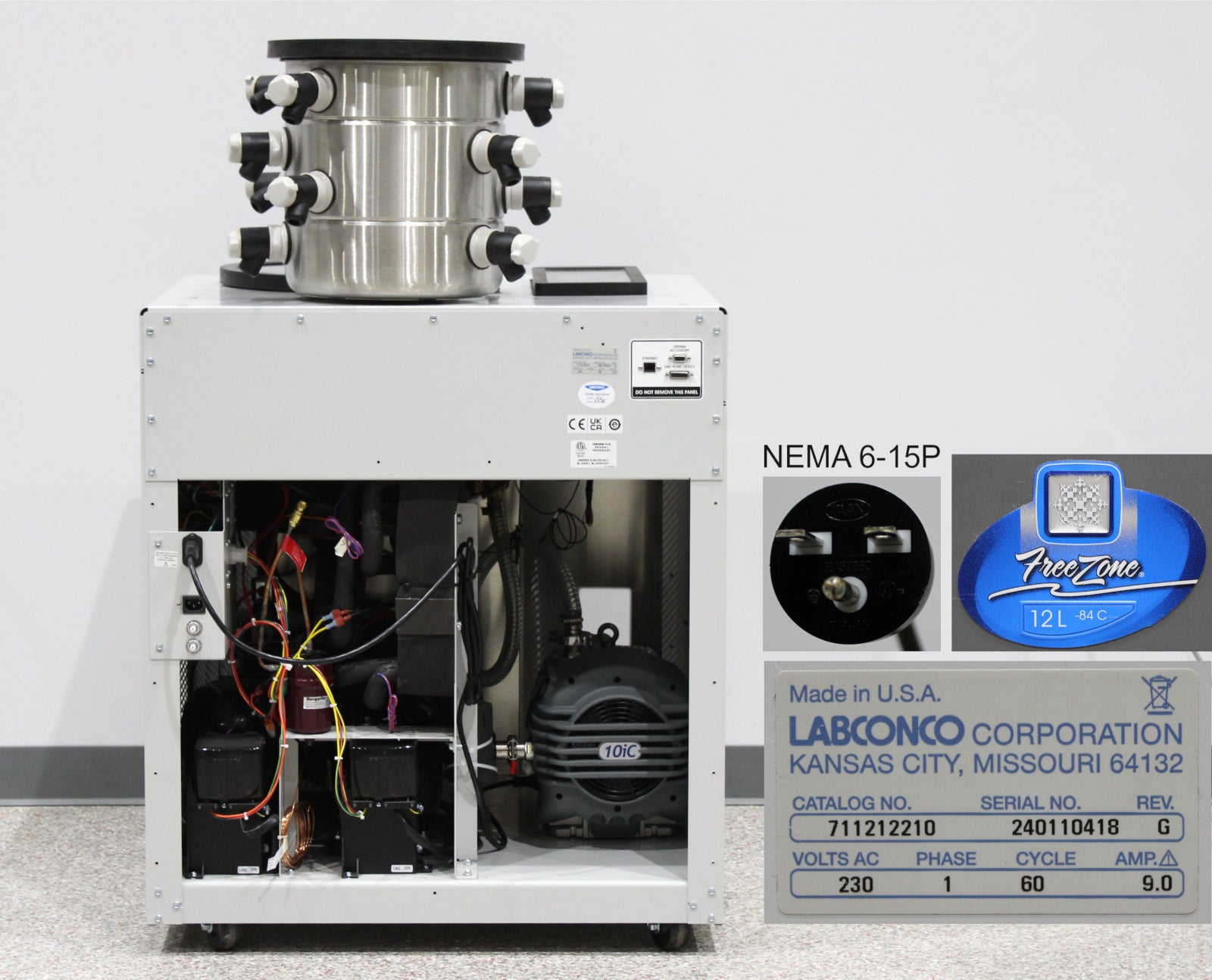

- Power Cable with NEMA 6-15P Plug
- 90-Day Warranty

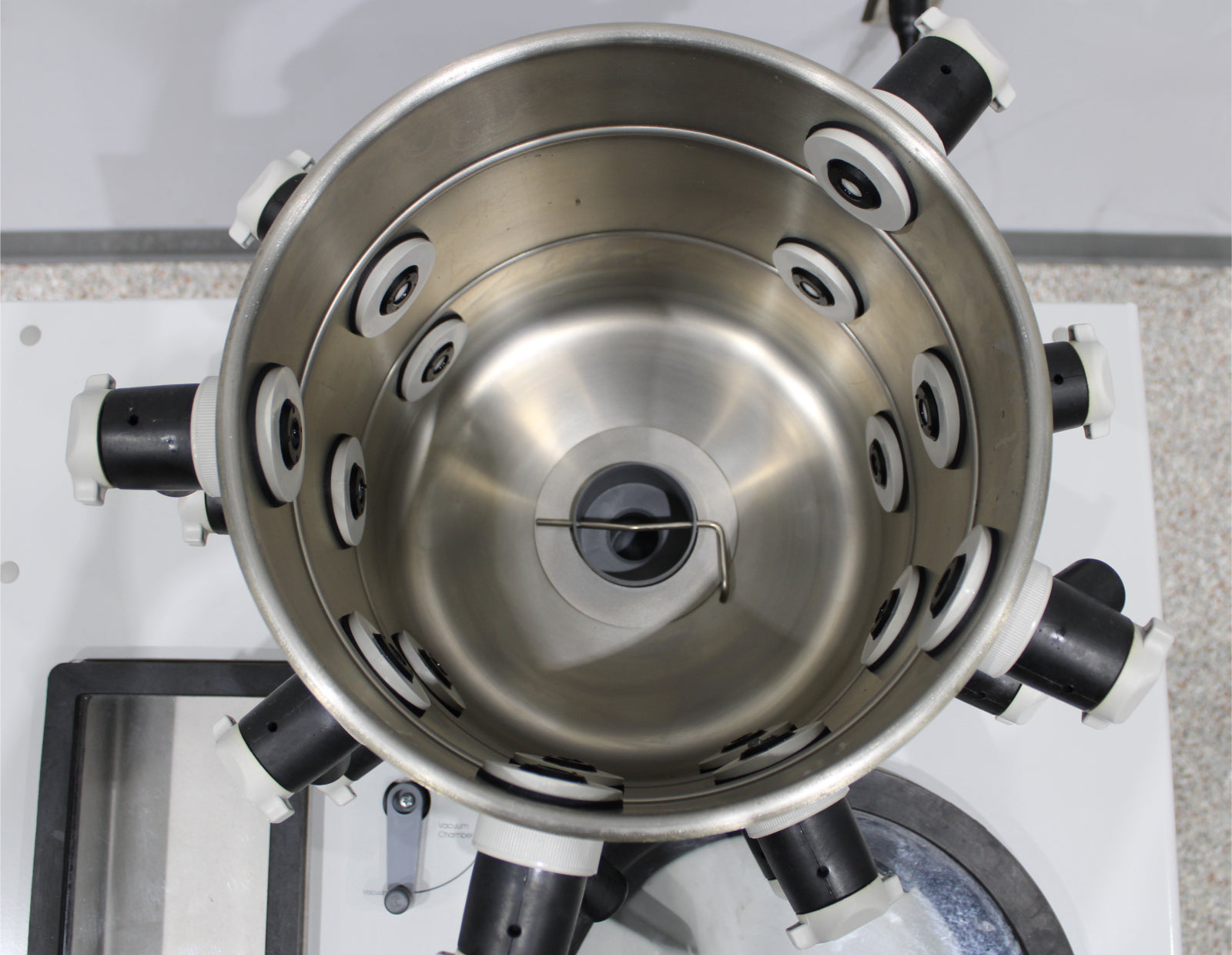

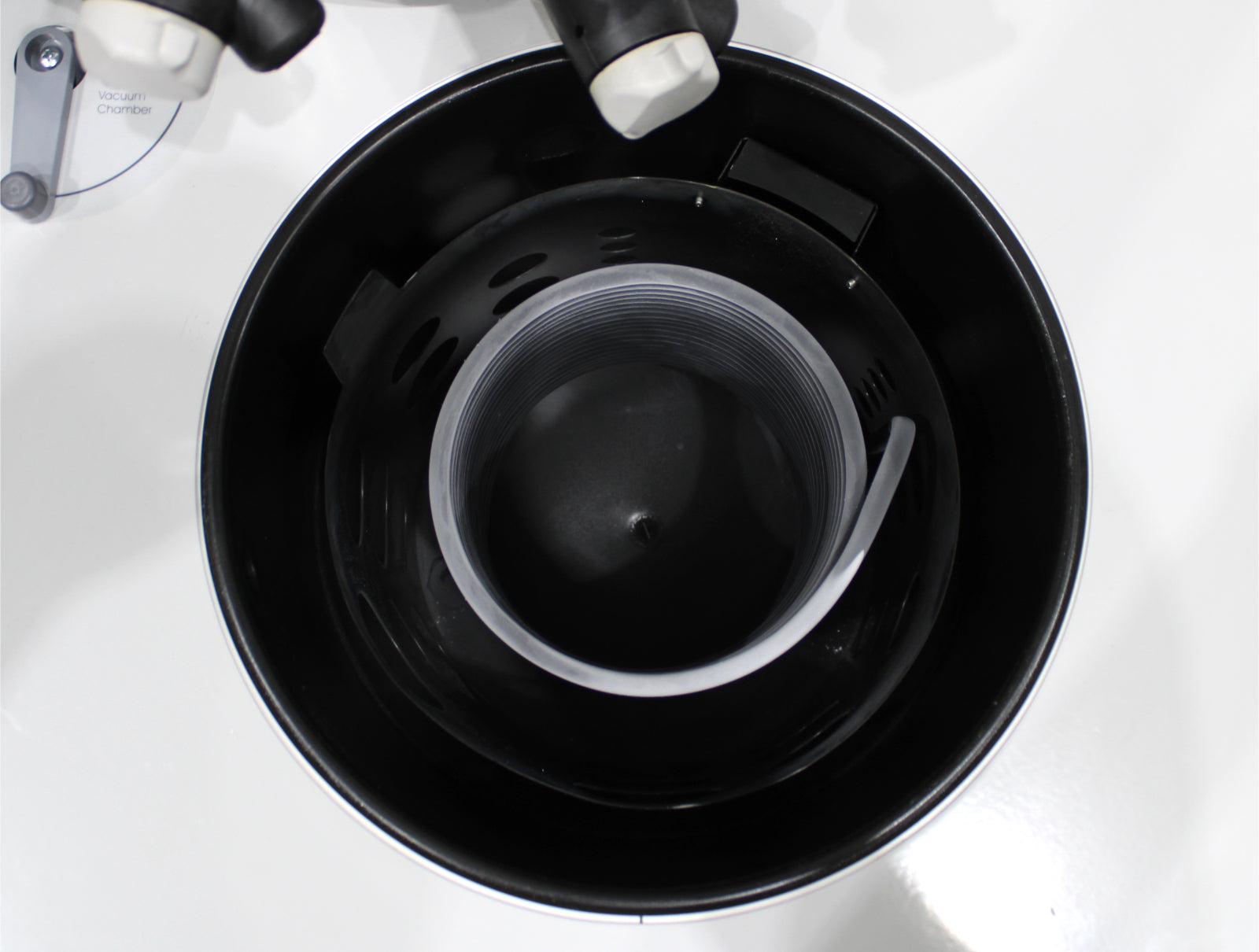

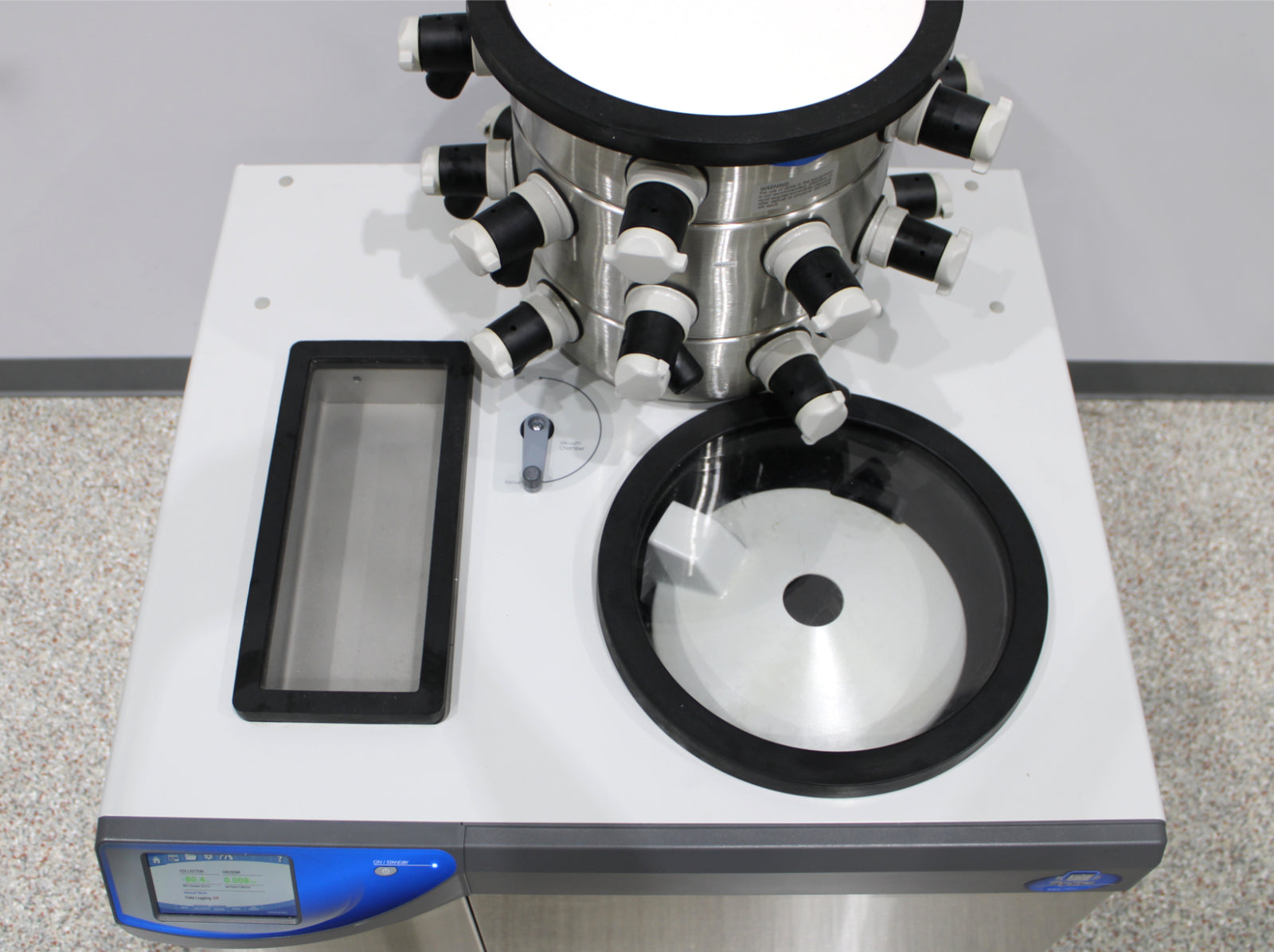

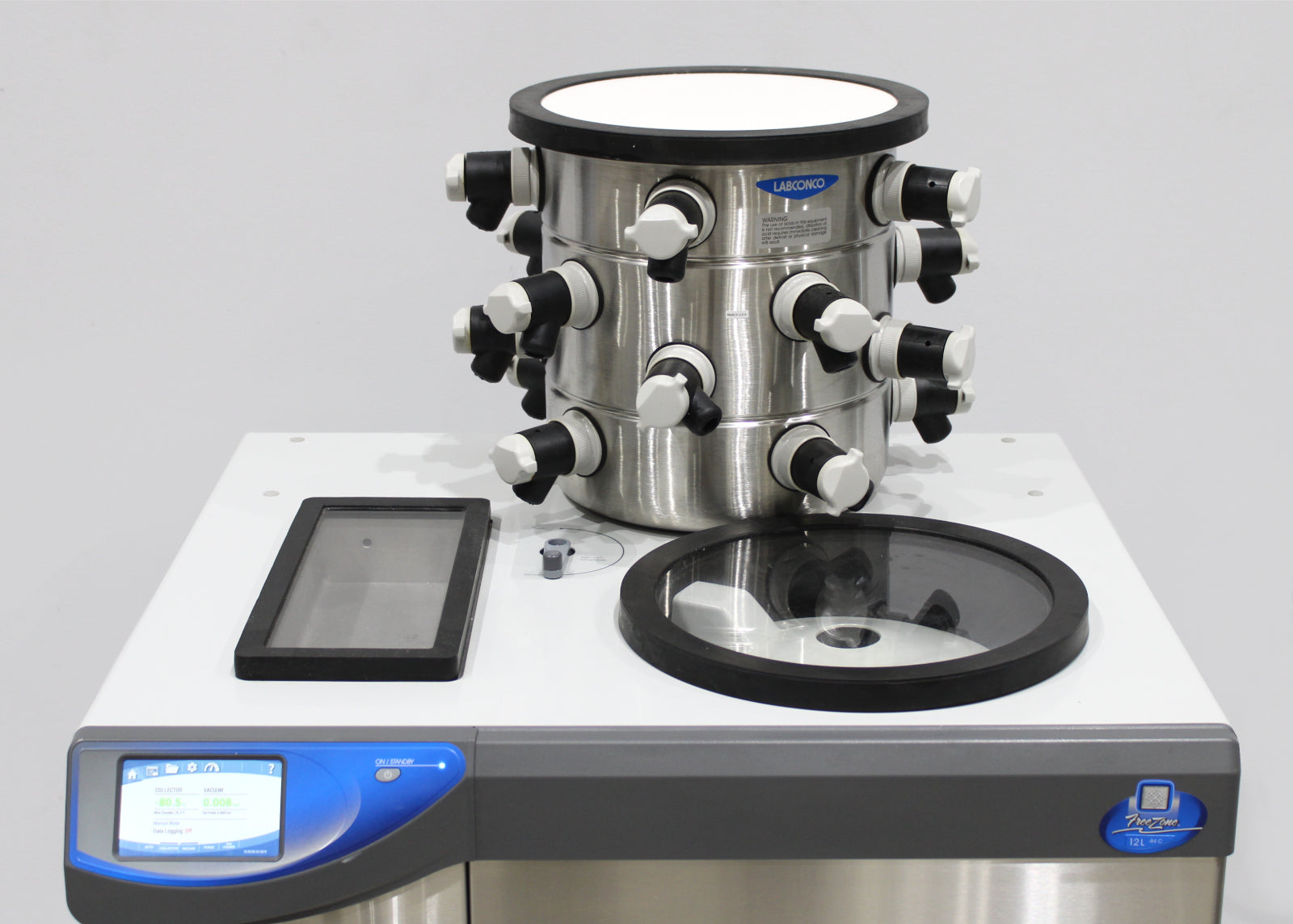

Notice: Collector coil is PTFE-coated stainless steel (for enhanced corrosion resistance). This system also has an integrated mini vacuum drying chamber.
After its initial disinfection and inspection, our technicians tested the Labconco FreeZone 12L -84°C console freeze dryer with the following results:

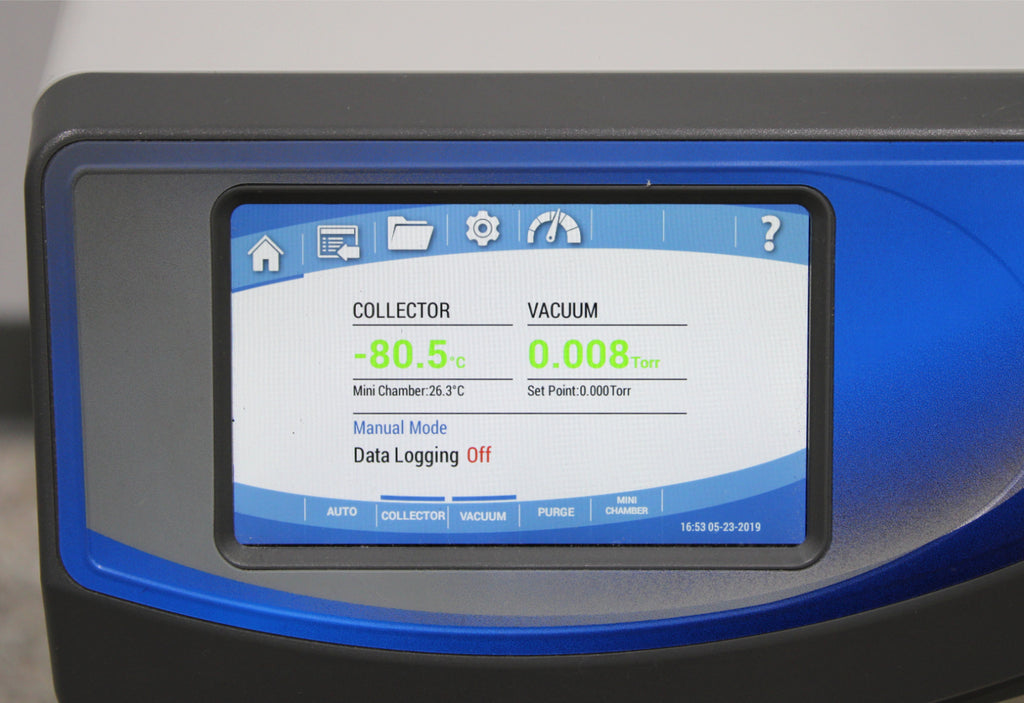

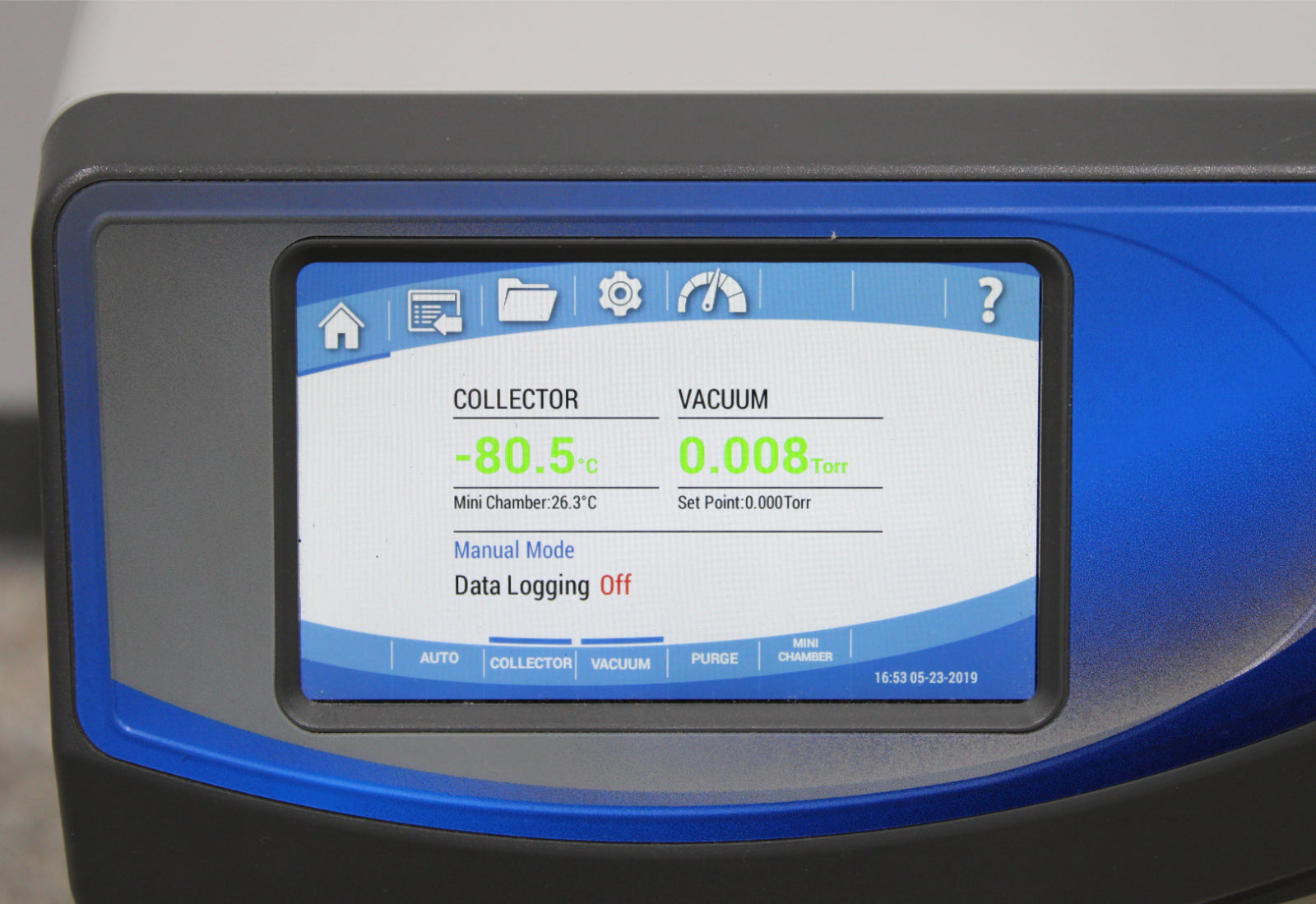

- Collector temperature achieves -80.5°C: PASSED
- Vacuum achieves 8mT: PASSED
- Inspected and replaced vacuum hoses as needed.
- Inspected and reinsulated refrigeration lines as needed.
- Flushed and filled vacuum pump.
|
Manufacturer
|
Labconco
|
|
Model
|
FreeZone 12
|
|

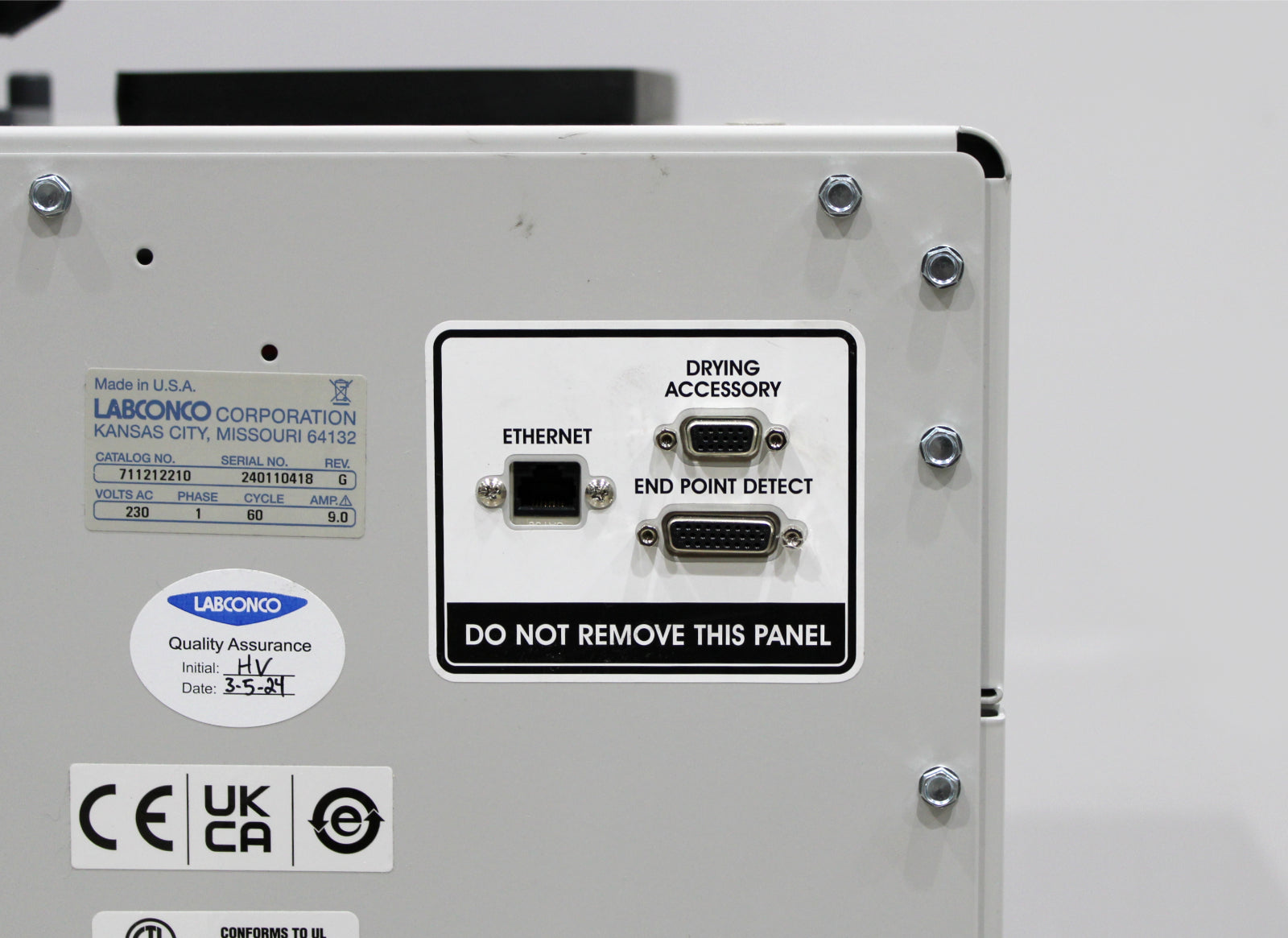

Catalog No.
|
711212210
|
|
Serial No.
|
240110418 G
|
|
Mfg. date
|
2024
|
|
Ice holding capacity
|
12 liters
|
|
Collector temperature
|
-84°C (-119°F)
|
|
Vacuum pump displacement required
|
98L/min or larger displacement
|
|
Style
|
Console
|
|
Conformance
|
CAN/CSA C22.2, UL
|
|
Built-in options
|
None
|
|
Plug type
|
North America, 230V
|
|
Region
|
U.S. and Canada
|
|
Power rating
|
230V, 60Hz, 9.0A, 1Ph
|
|
Dimensions (W x D x H)
|
32.2 x 28 x 36.3 in (81.8 x 71.1 x 92.2 cm)
|
|
Weight
|
325 lb (147.4 kg)
|
