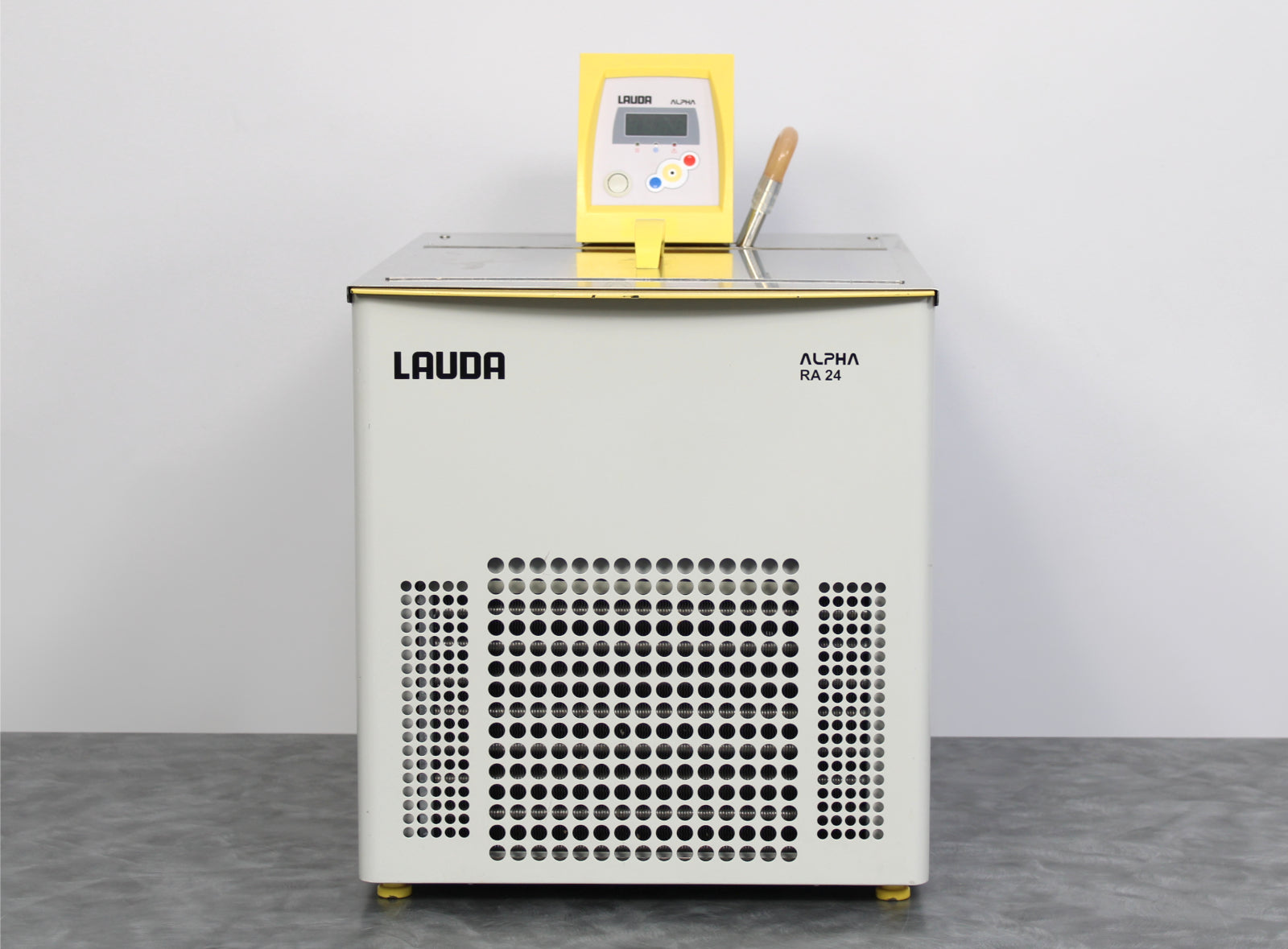

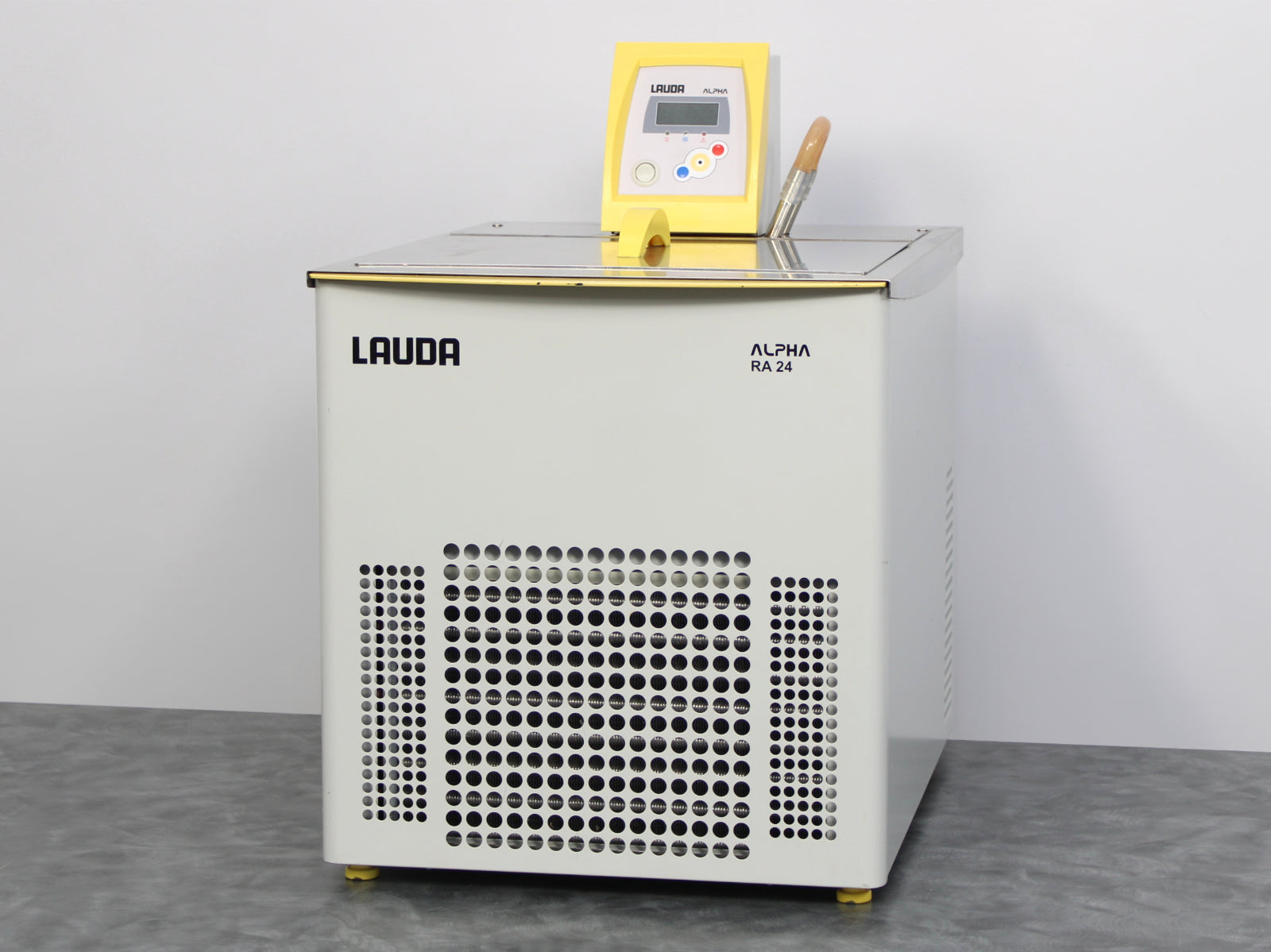

- LAUDA Alpha RA 24 Cooling Thermostatic Bath/Circulator 115V 60Hz

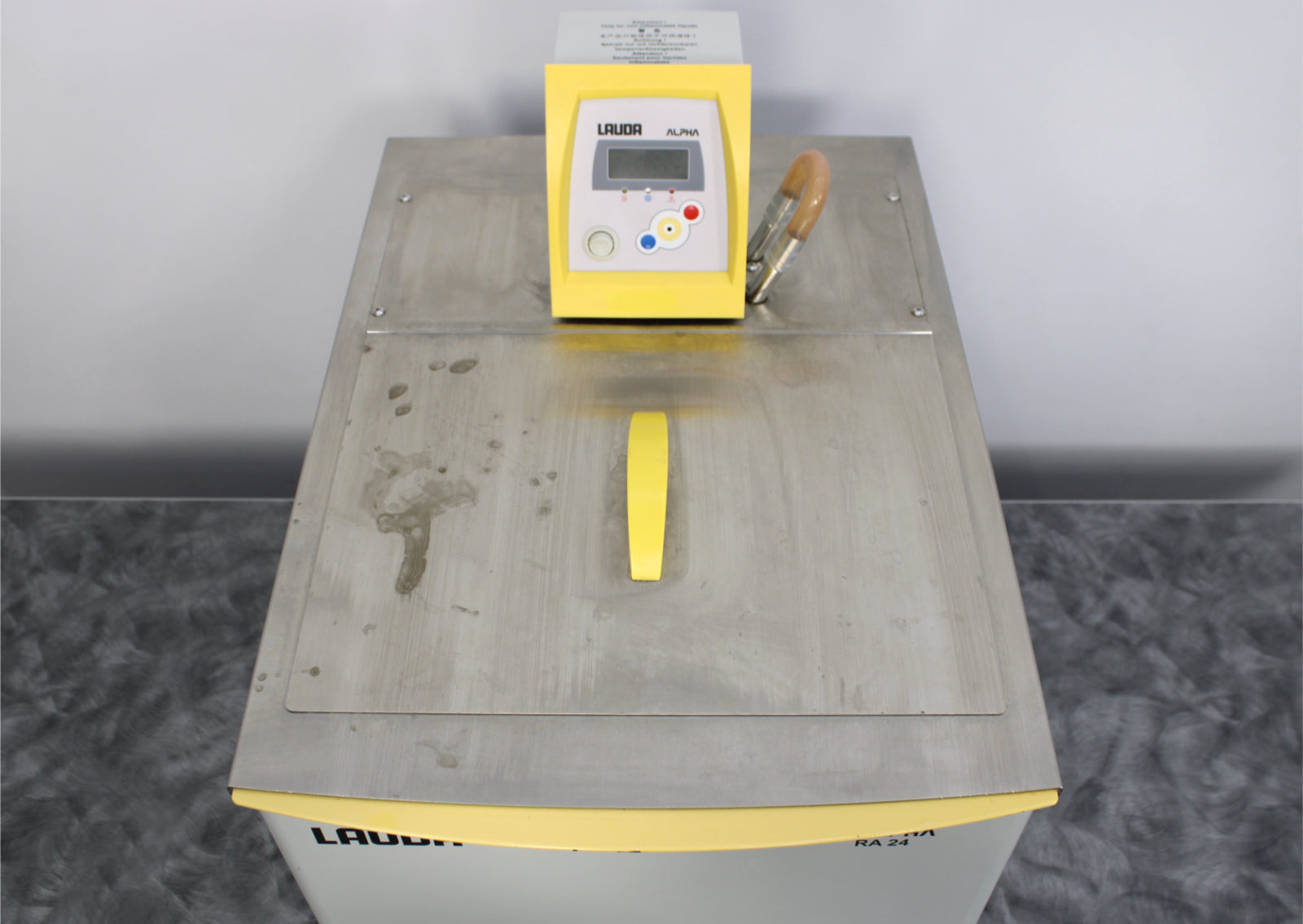

- Bath Cover
- 115V Attached Power Cable
- 90-Day Warranty
After its initial disinfection and inspection, our technicians tested the LAUDA Alpha RA 24 cooling thermostatic bath/circulator with the following results:
- Ran cooling down to 9°C; holds steady: PASSED
- Ran heating back up to 21°C; holds steady: PASSED
- Heater overtemp circuit: PASSED

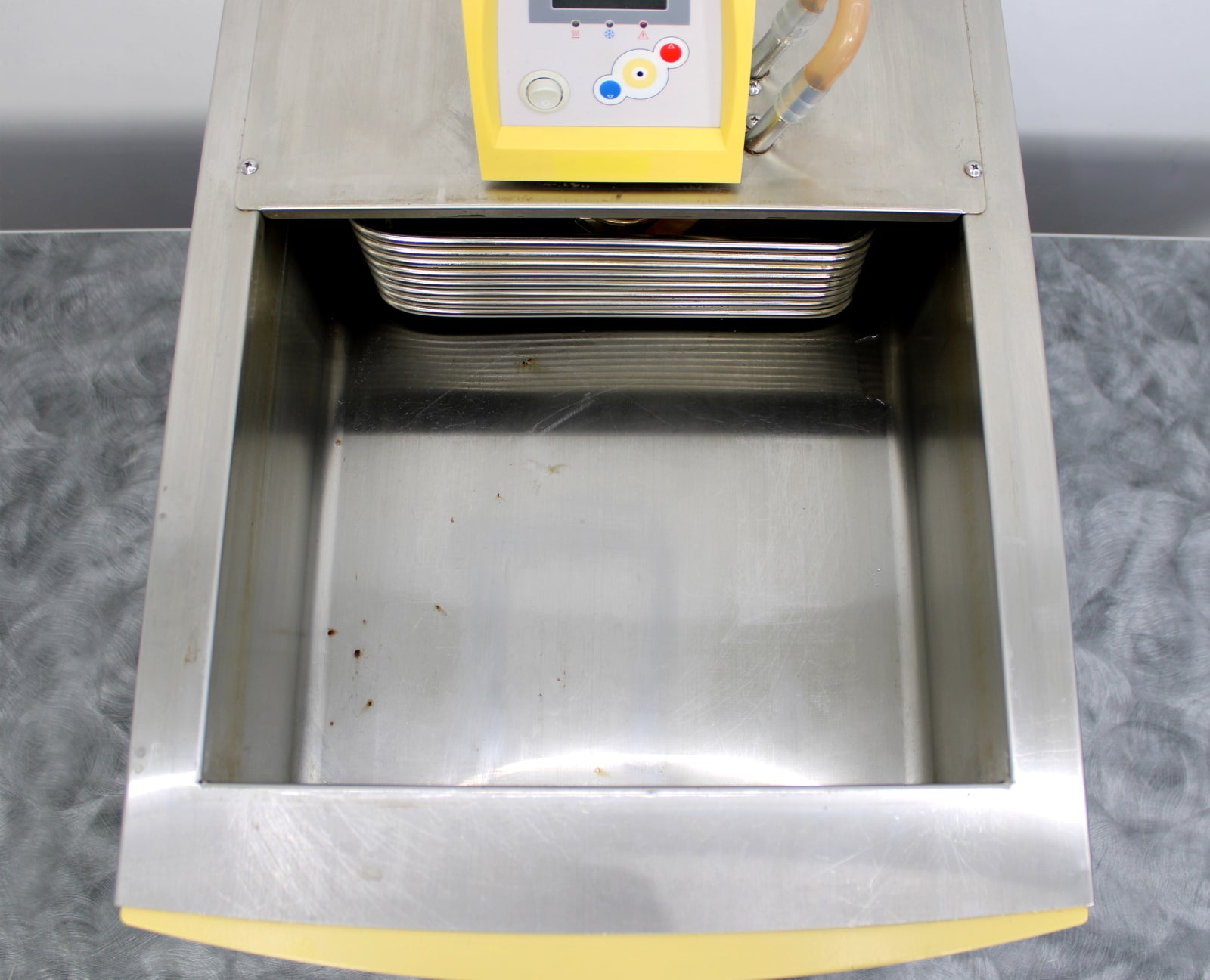

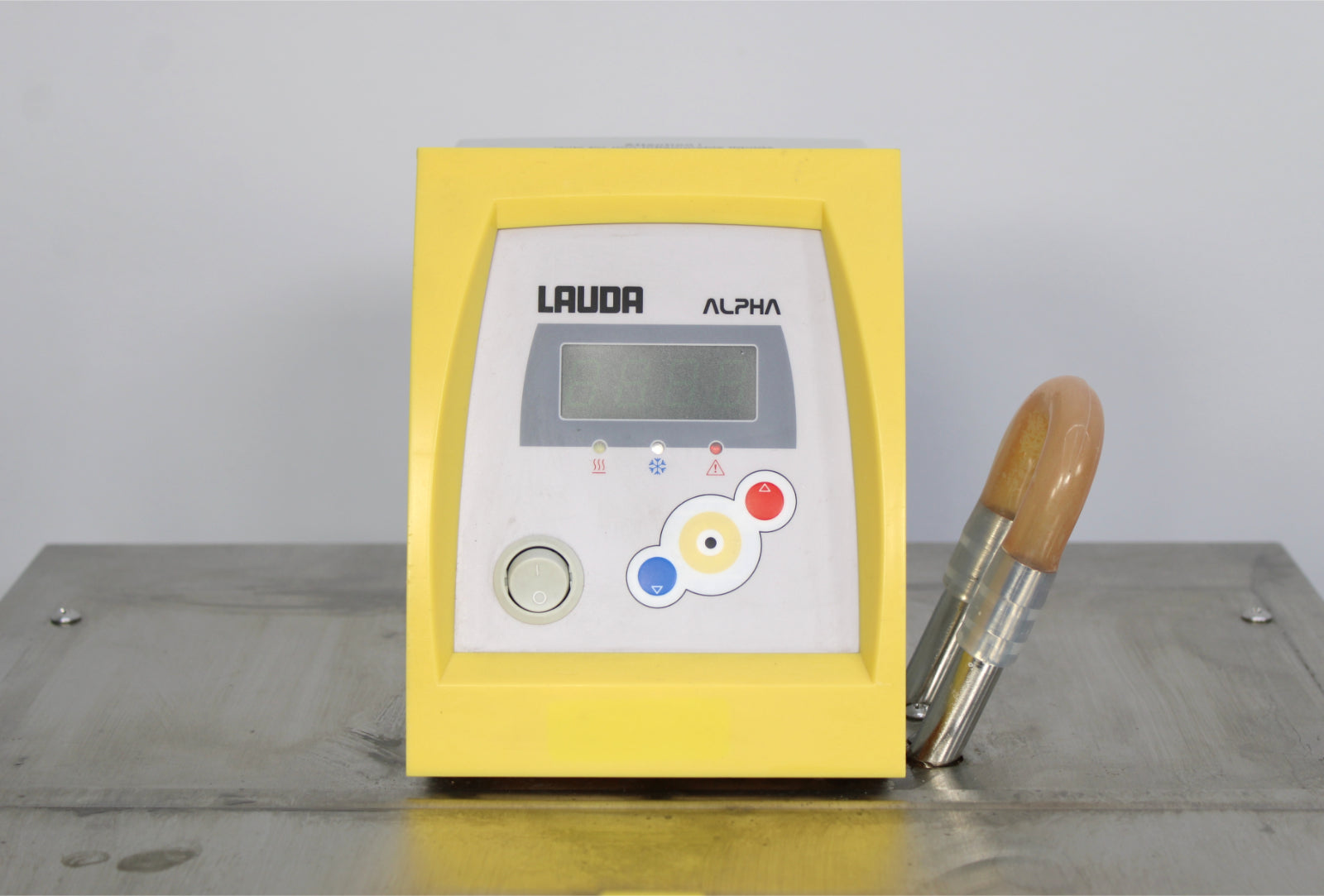

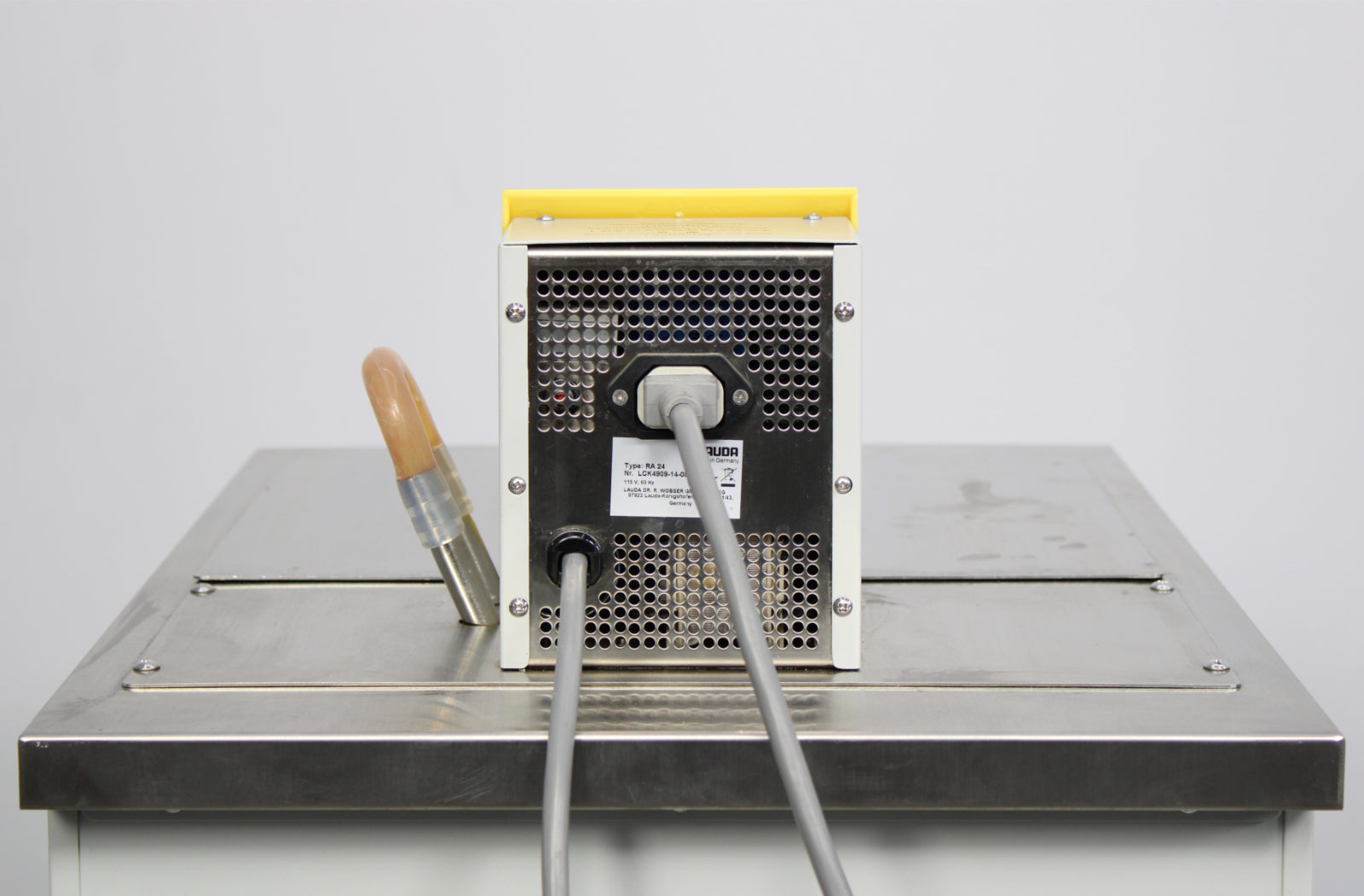

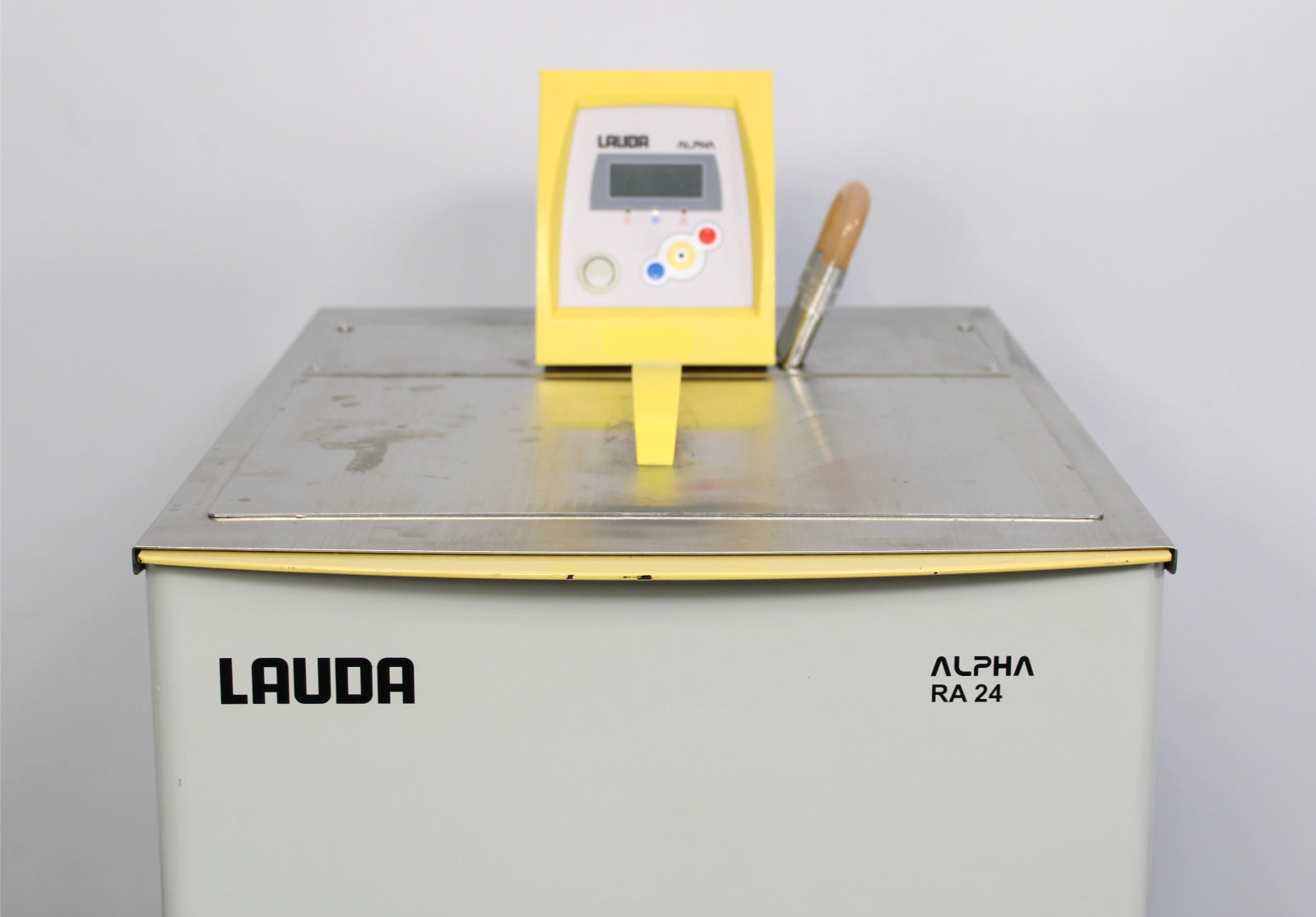

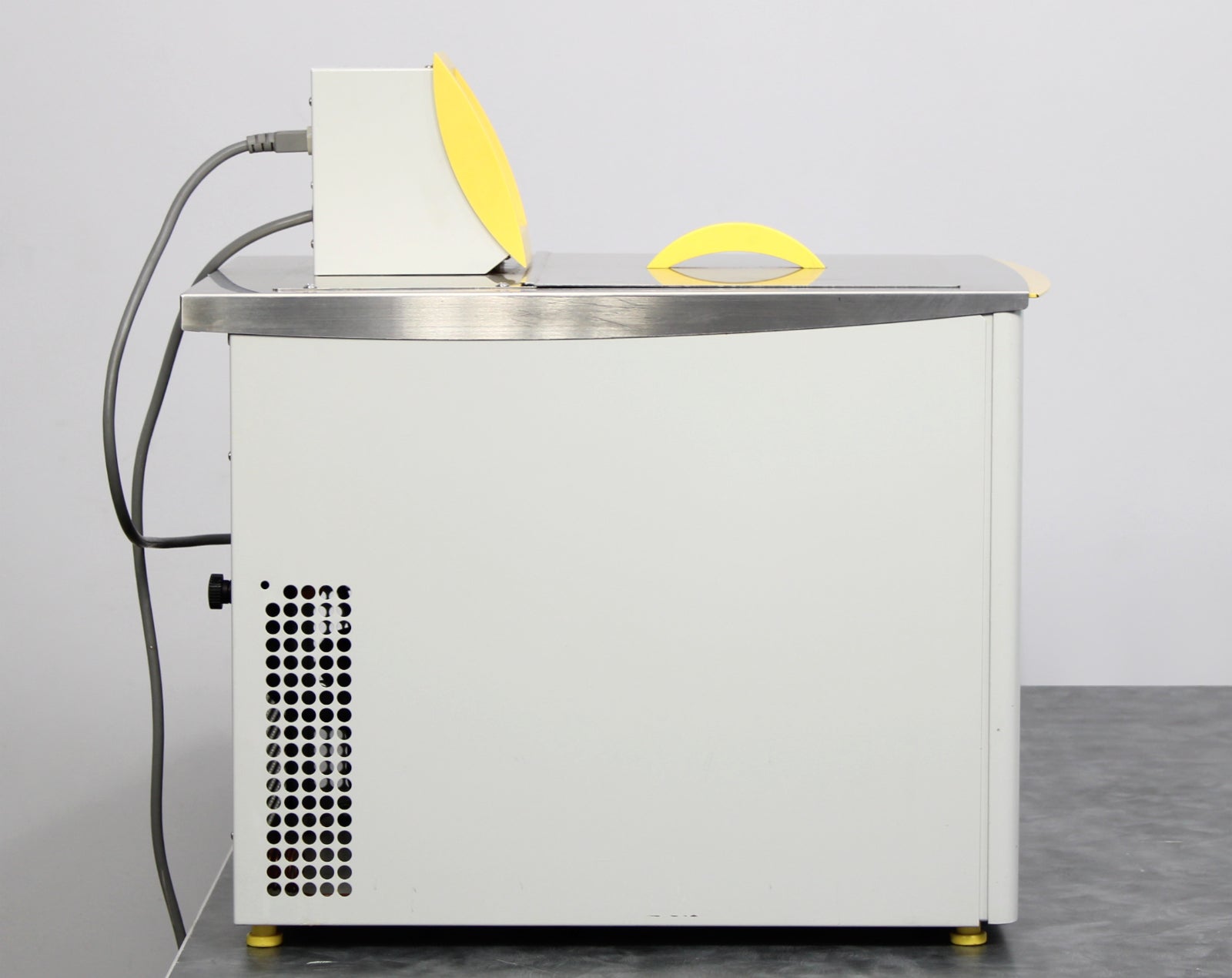

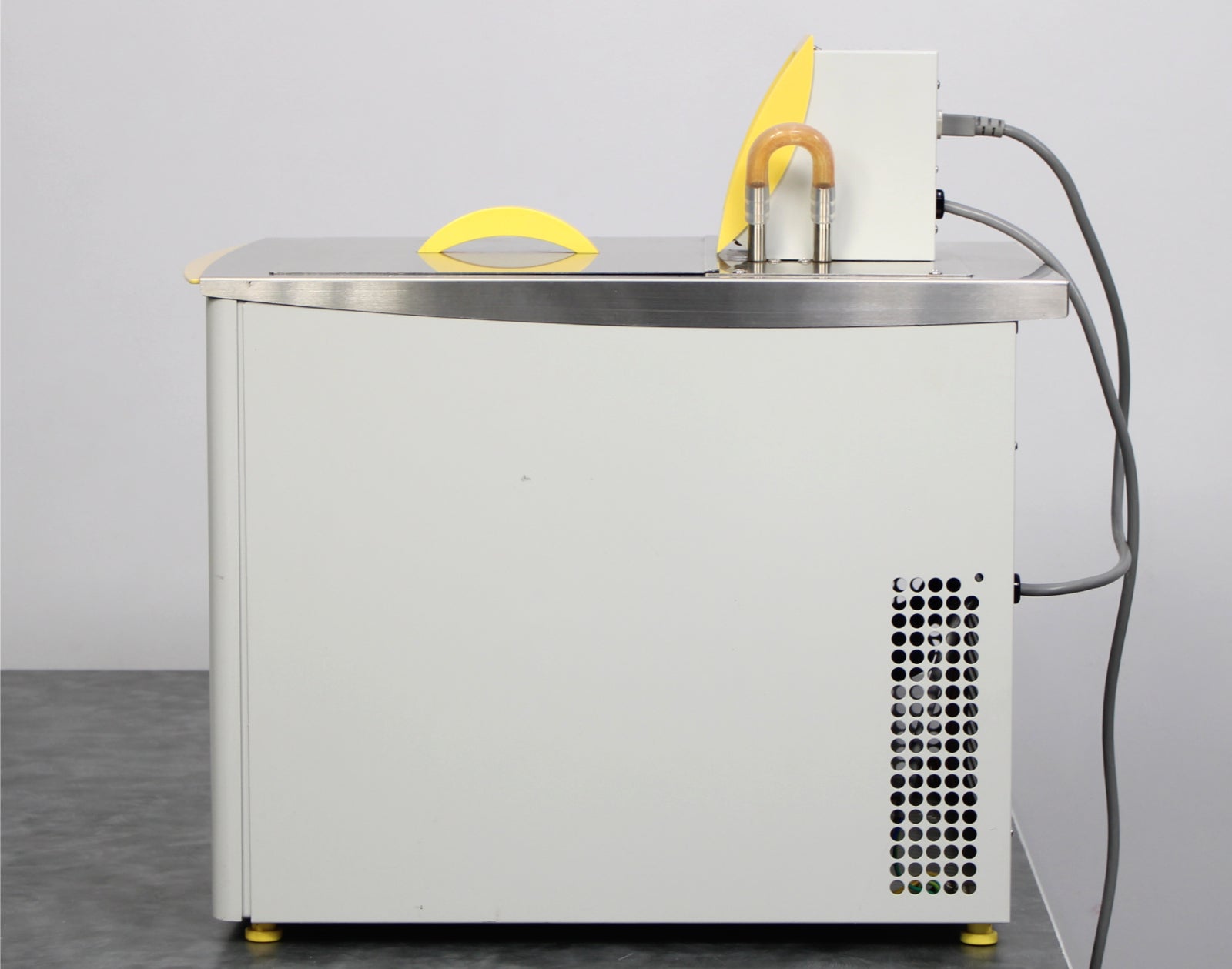

Notice: This bath/circulator has some cosmetic blemishes. Please review the available photos to see the physical condition before purchasing.
|
Manufacturer
|
LAUDA
|
|
Type
|
RA 24
|
|

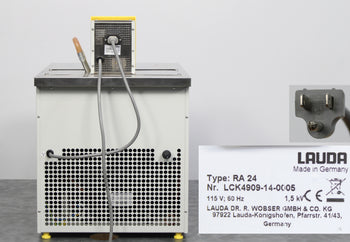

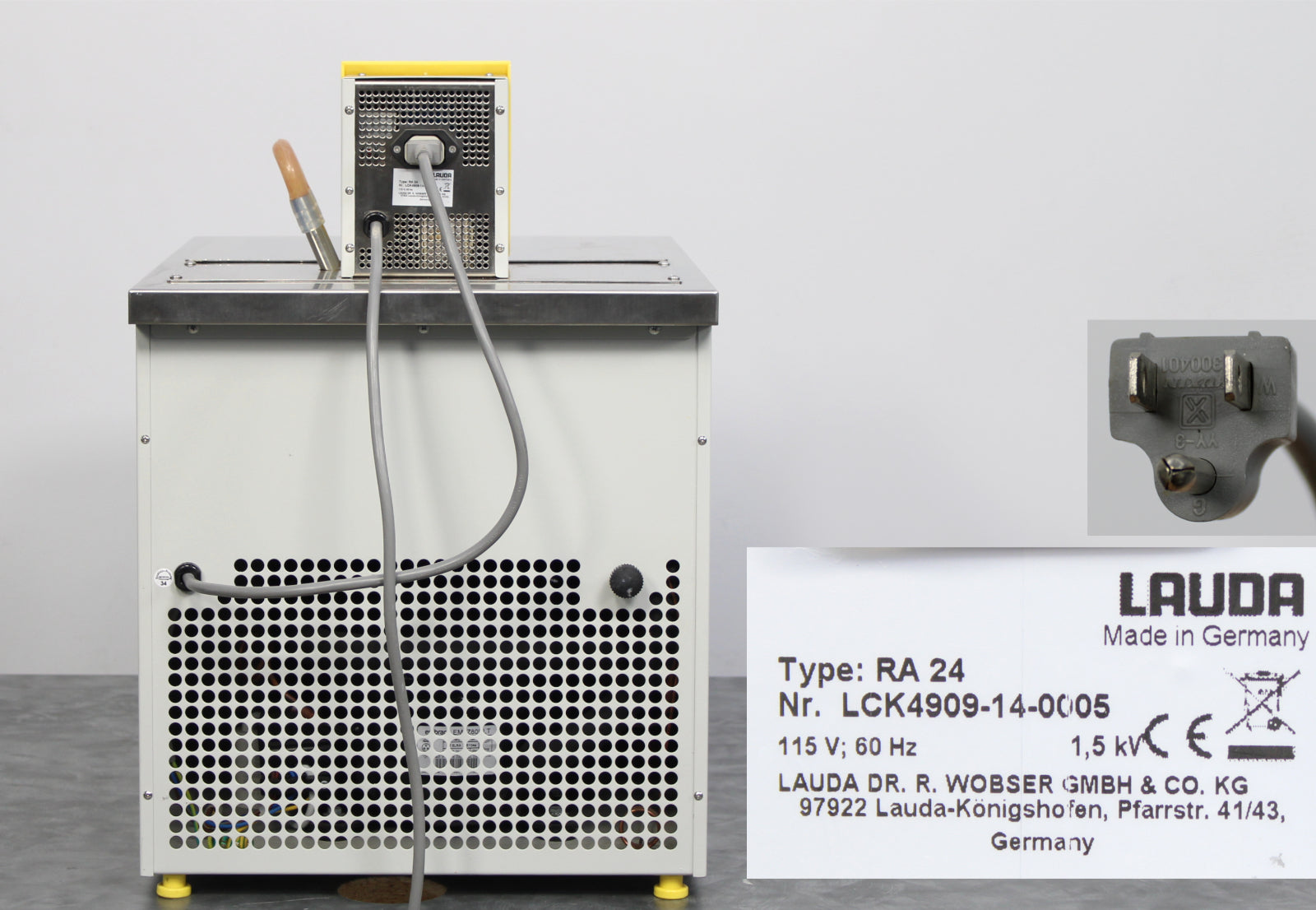

Serial No.
|
LCK4909-14-0005
|
|
Working temperature range
|
-25 … 100°C
|
|
Ambient temperature range
|
5 … 40°C
|
|
Temperature stability
|
0.05 ± K
|
|
Heater power max.
|
1.15kW
|
|
Power consumption
|
1.5 kW max.
|
|
Current max.
|
13 A
|
|
Pump pressure max.
|
0.2 bar
|
|
Pump flow rate max. (pressure)
|
15 L/min
|
|
Bath volume min./max.
|
14.0 / 22.0 L
|
|
Power rating
|
115 V, 60 Hz
|
|
Power plug
|
Power cord with plug (NEMA 5-15P)
|
|
Bath dimensions (W x D x H)
|
13.8 x 10.9 x 6.3 in (35 x 27.7 x 16 cm)
|
|
Exterior dimensions (W x D x H)
|
16.3 x 23.8 x 23.8 in (41.5 x 60.5 x 60.5 cm)
|
|
Weight
|
94.8 lb (43 kg)
|
