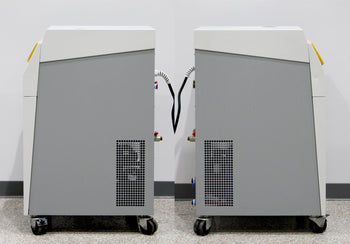

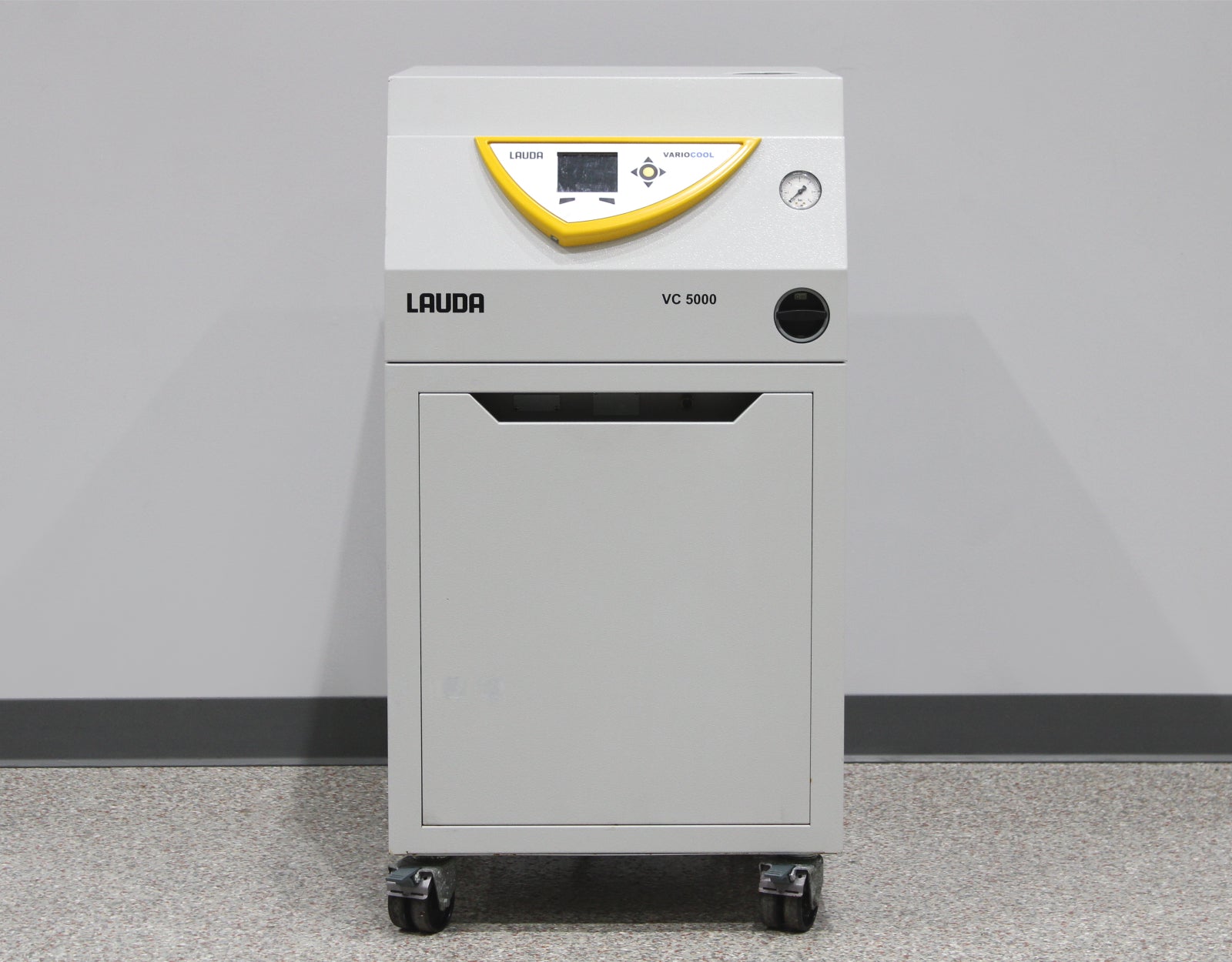

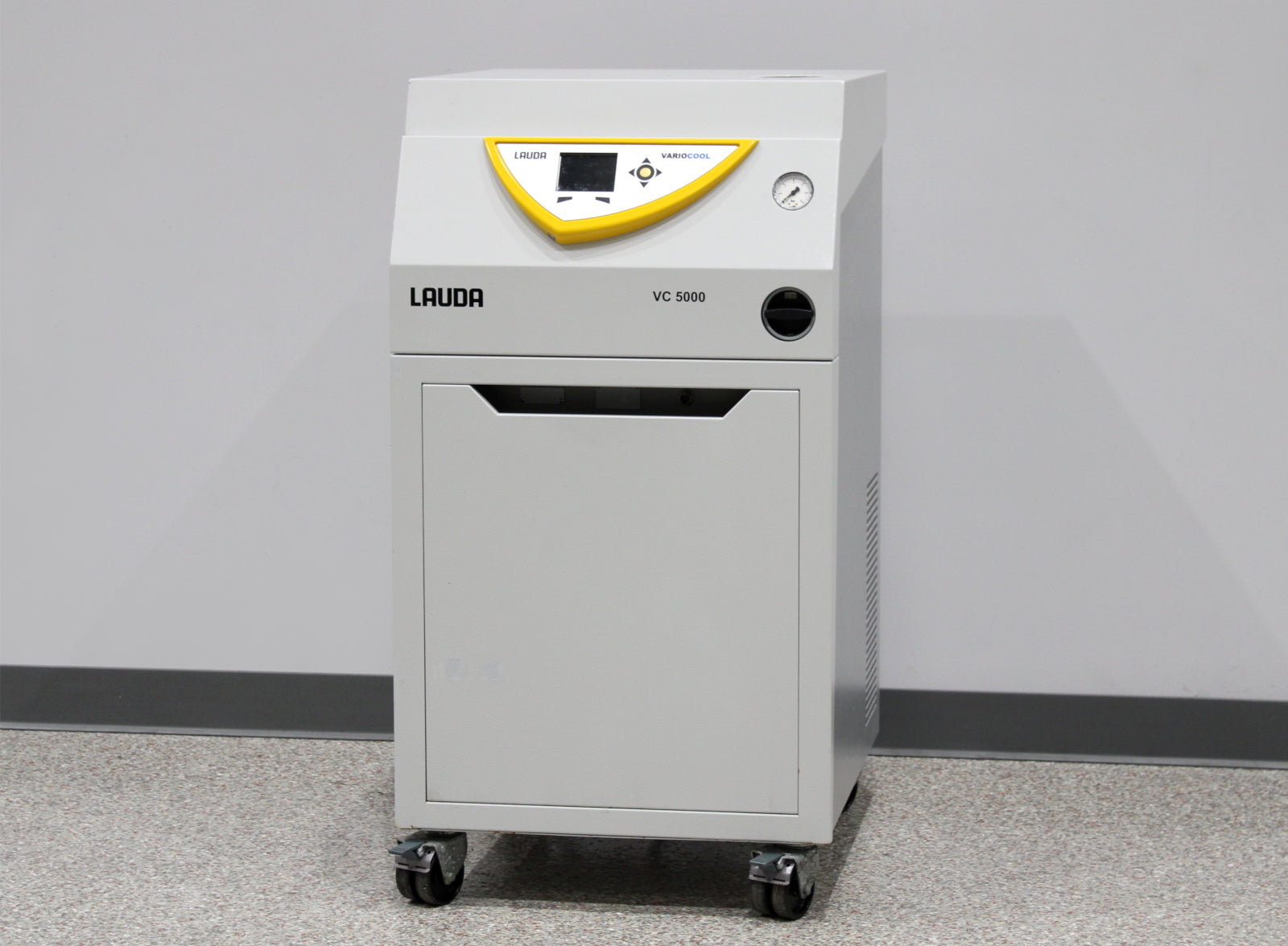

- Lauda Variocool VC 5000 W/D Water-Cooled Recirculating Chiller (L000591)

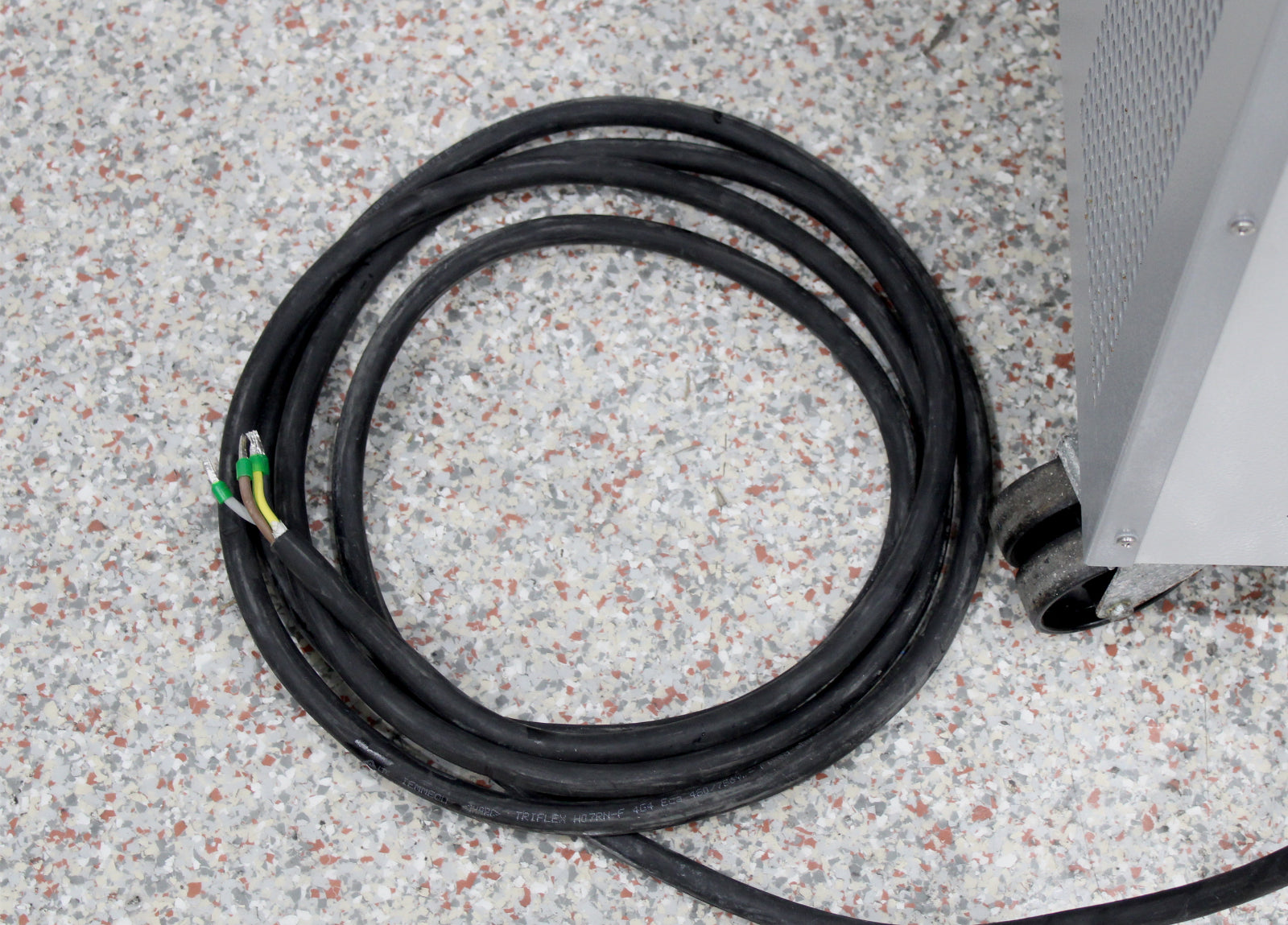

- Attached Power Cable (bare end/wire lead, no plug attached)
- 90-Day Warranty
- Power cable plug (buyer must wire/install a compatible high-voltage plug)
- Fluid hoses/process lines
- Facility cooling water hookup fittings and supply
After its initial disinfection and inspection, our technicians tested the Lauda Variocool VC 5000 W/D water-cooled recirculating chiller with the following results:

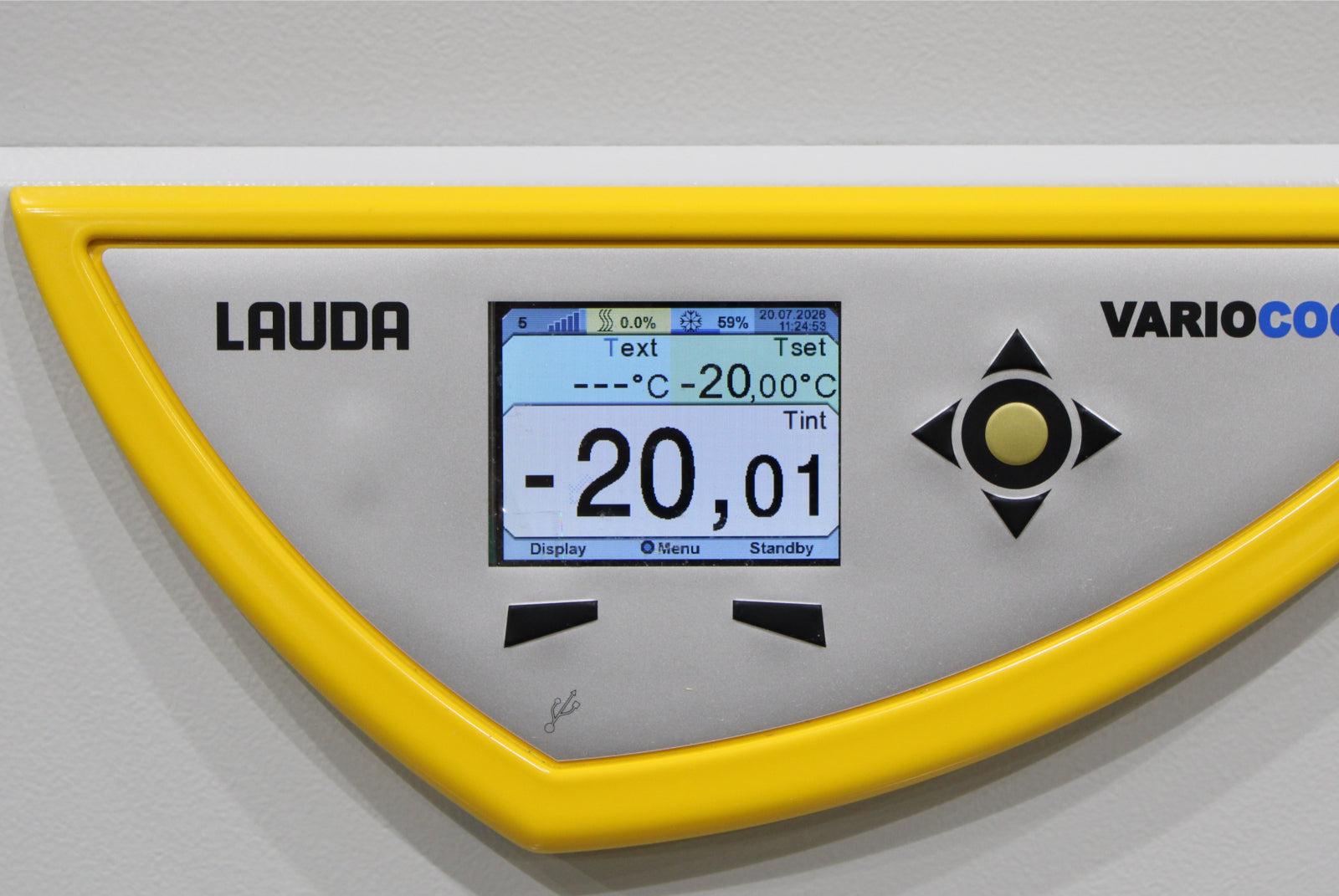

- Cooling pull-down test; successfully reached -20°C: PASSED

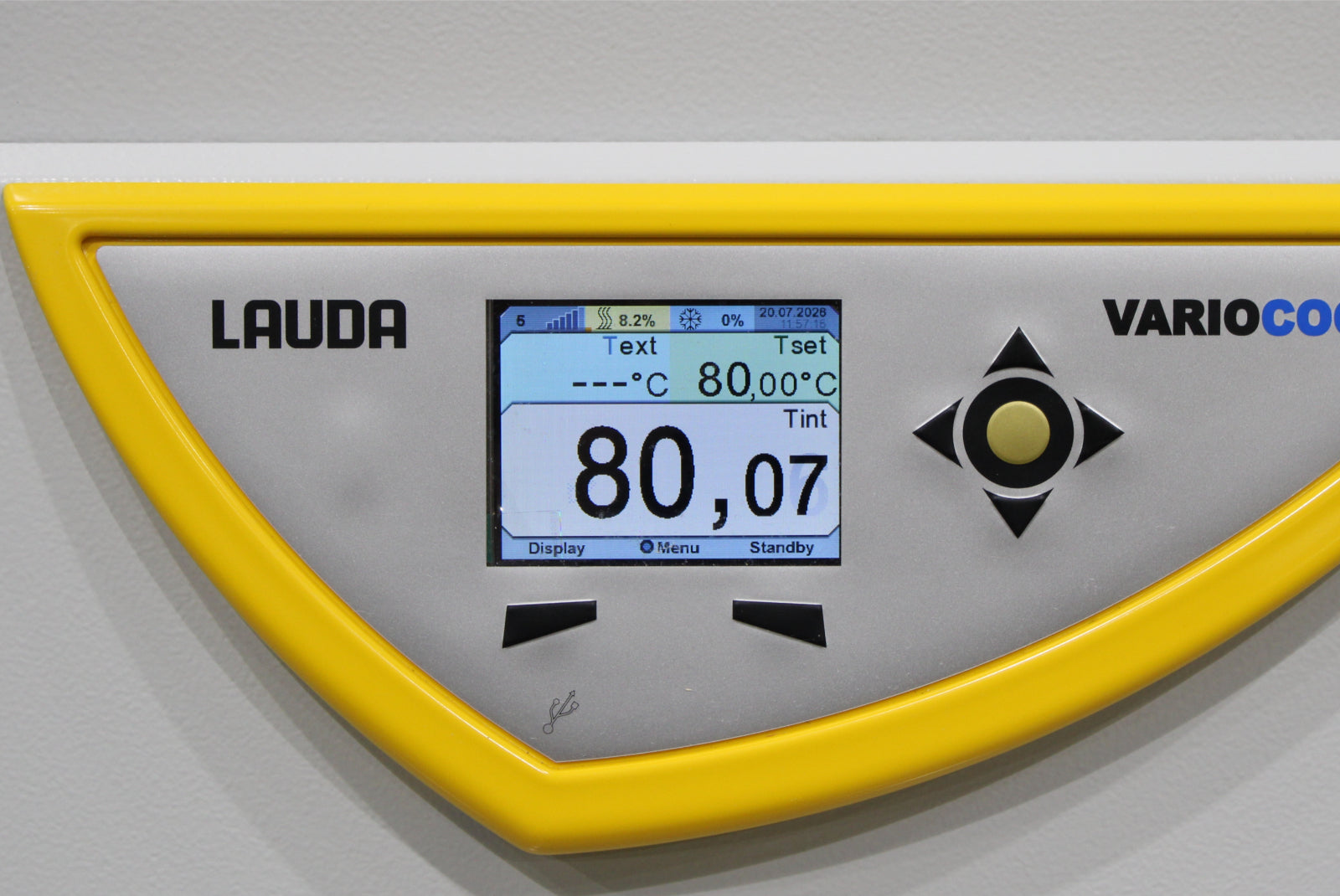

- Heating run test; successfully reached +80°C: PASSED

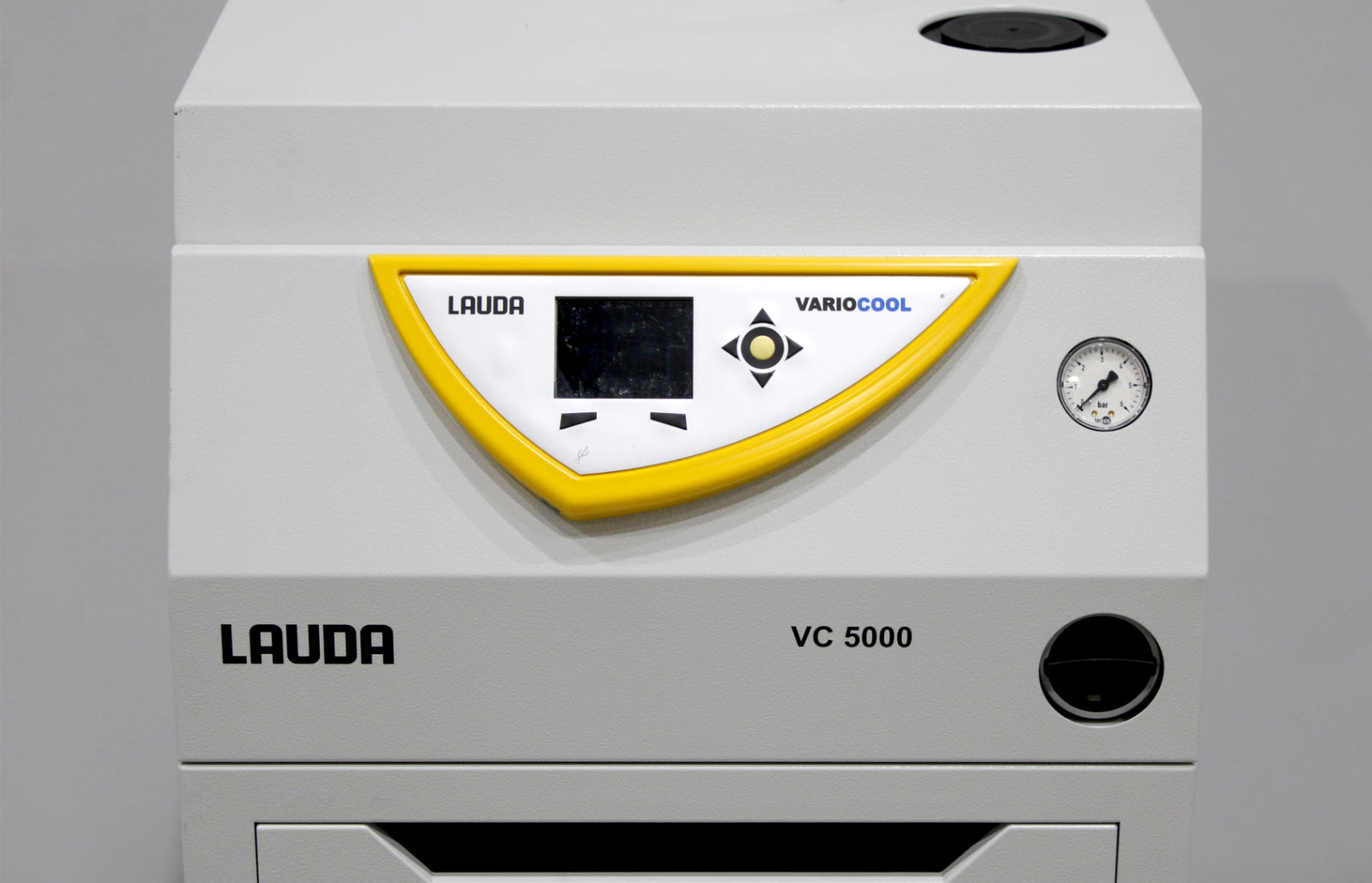

- Color display screen and control panel buttons: PASSED
- Manual over-temp safety circuits test: PASSED
- High/low pressure switch operation verification: PASSED
- External sensor integration validation: PASSED

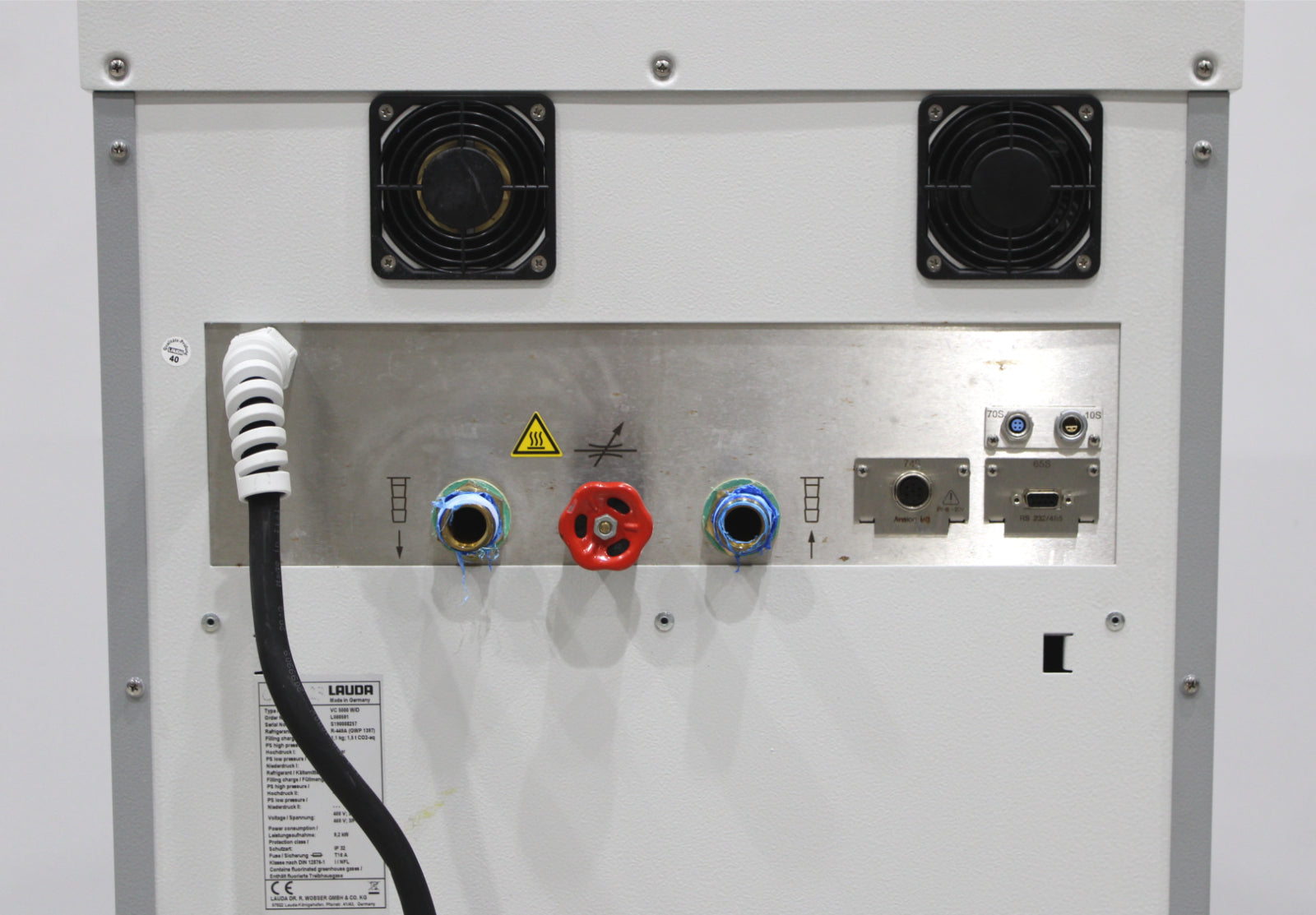

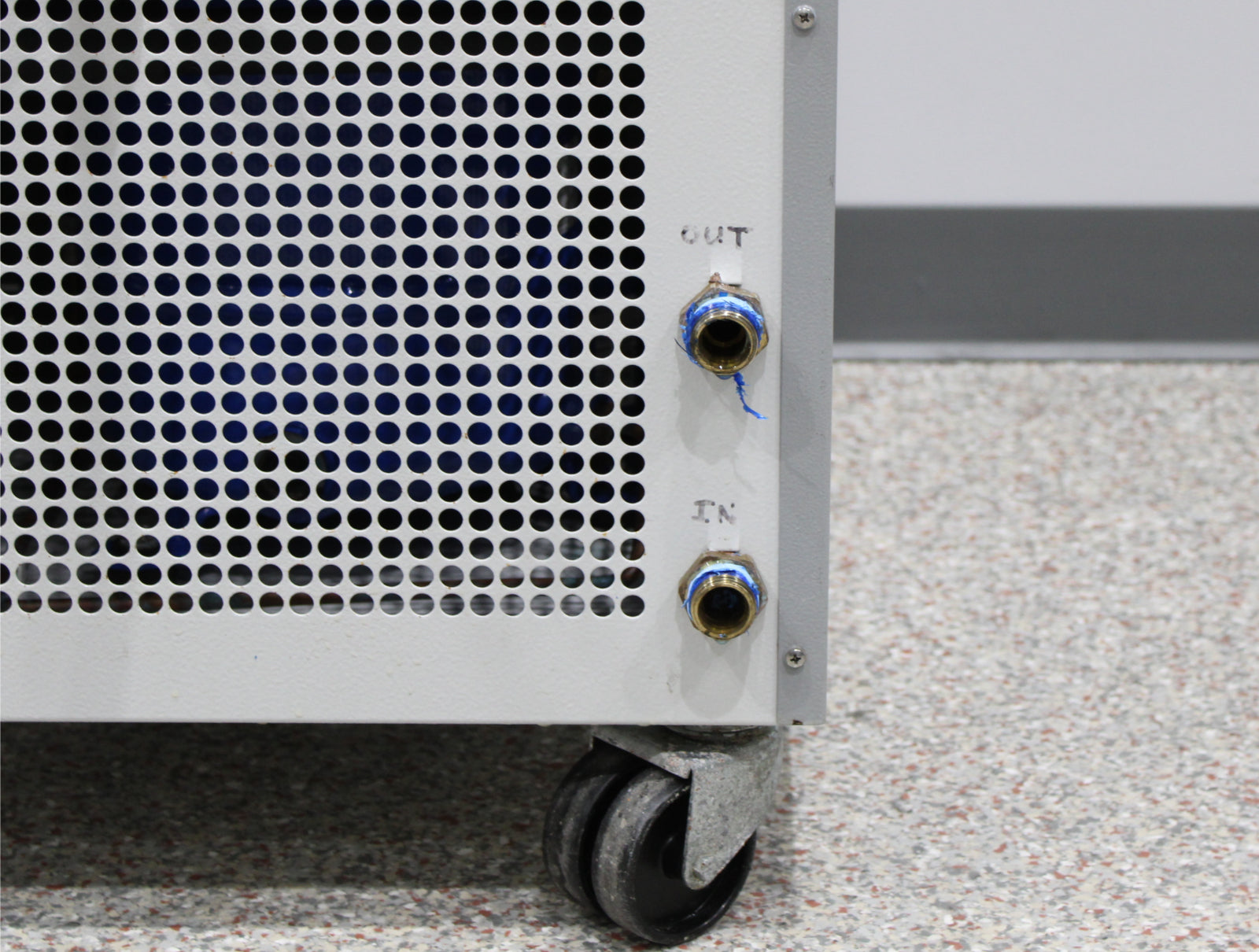

- Inlet and outlet water cooling supply and returns ports inspection: PASSED
- Thread connections and fitting integrity verification: PASSED
- Reservoir low-level sensor functionality test: PASSED
- Circulation pump performance and bypass valve operation verification: PASSED
Notice: This is a WATER-COOLED unit requiring a facility cooling water connection to operate. It is NOT an air-cooled chiller. This chiller also requires a high-voltage power connection (ships with bare-ended cable; buyer must install plug).
|

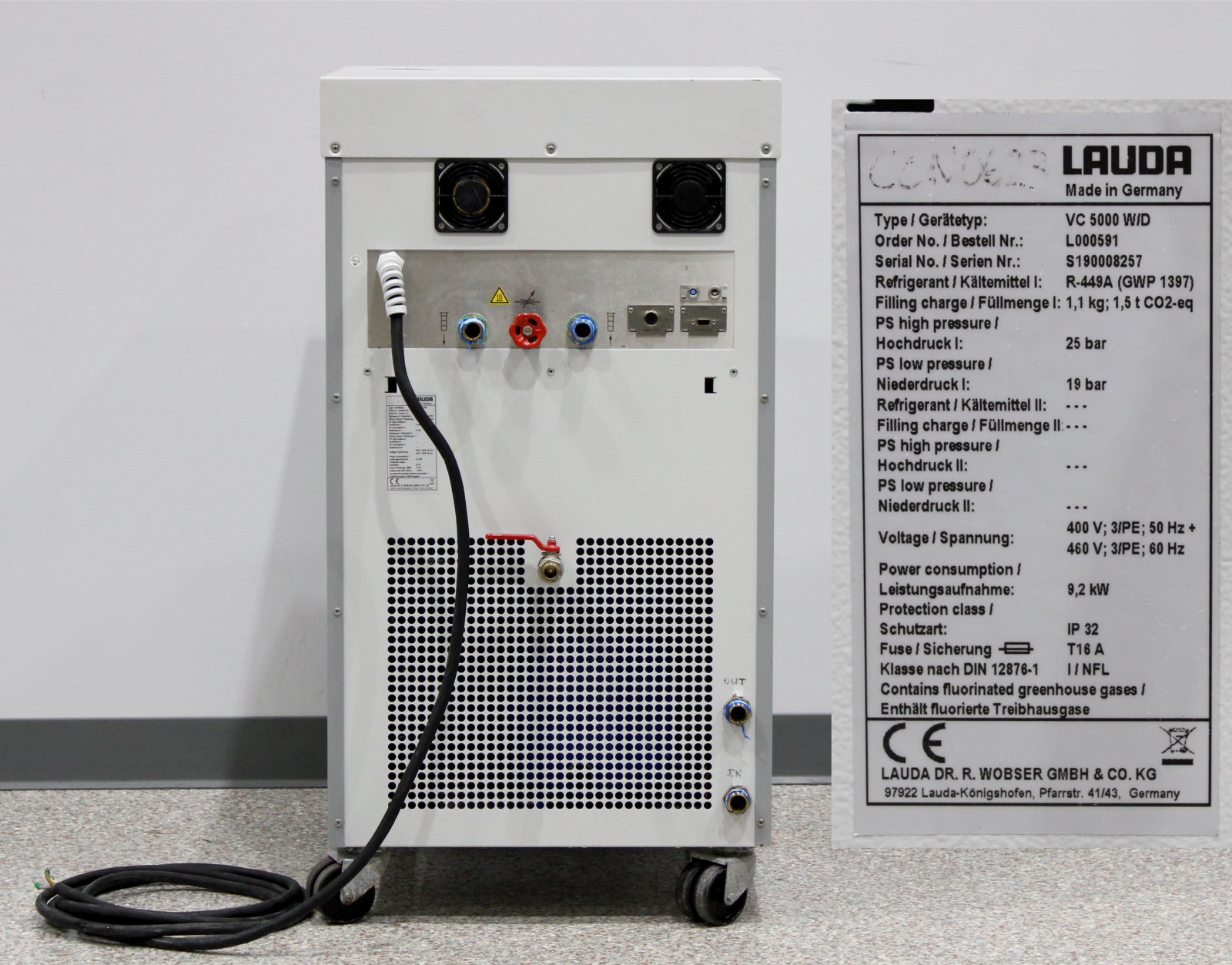

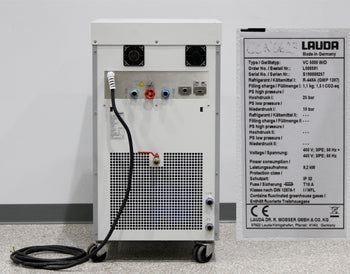

Manufacturer
|
Lauda
|
|
Type
|
VC 5000 W/D
|
|
Order No.
|
L000591
|
|
Serial No.
|
S190008257
|
|
Working temperature range
|
-20 to 40°C
|
|
Working temperature range with optional heater
|
-20 to 80°C
|
|
Temperature stability
|
0.5±K
|
|
Cooling output at 20°C
|
5.0 kW
|
|
Pump pressure maximum
|
3.2 bar
|
|
Pump flow
|
37 L/min
|
|
PS high pressure
|
25 bar
|
|
PS low pressure
|
19 bar
|
|
Protection class
|
IP 32
|
|
Fuse
|
T16 A
|
|
Power rating
|
400 V; 3/PE; 50 Hz+
460 V; 3/PE; 60 Hz
|
|
Power consumption
|
9.2 kW
|
|
Dimensions (W x D x H)
|
21.65 x 25.6 x 38.2 in (55 x 65 x 97 cm)
|
|
Weight
|
207 lb (94 kg)
|
