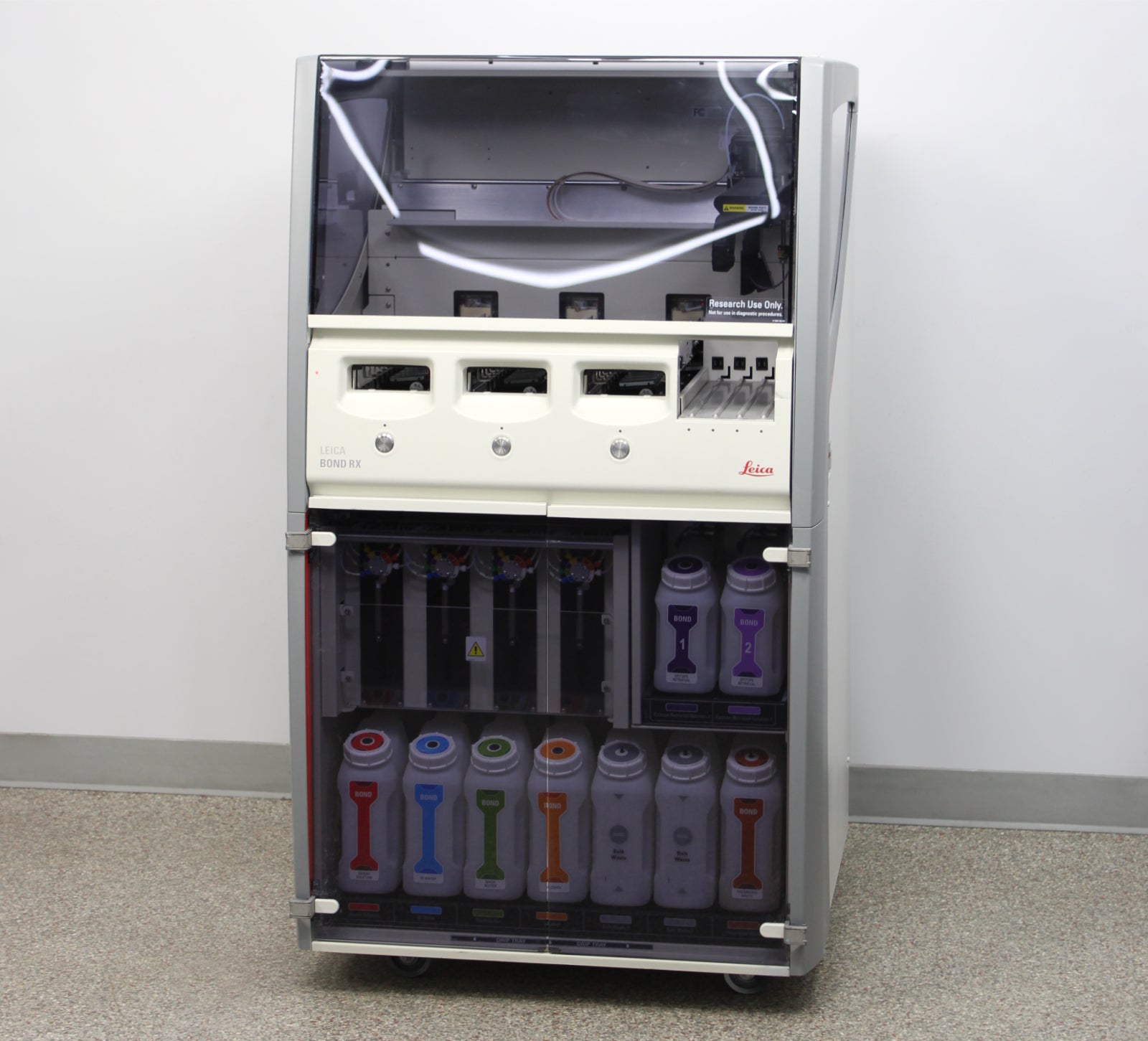

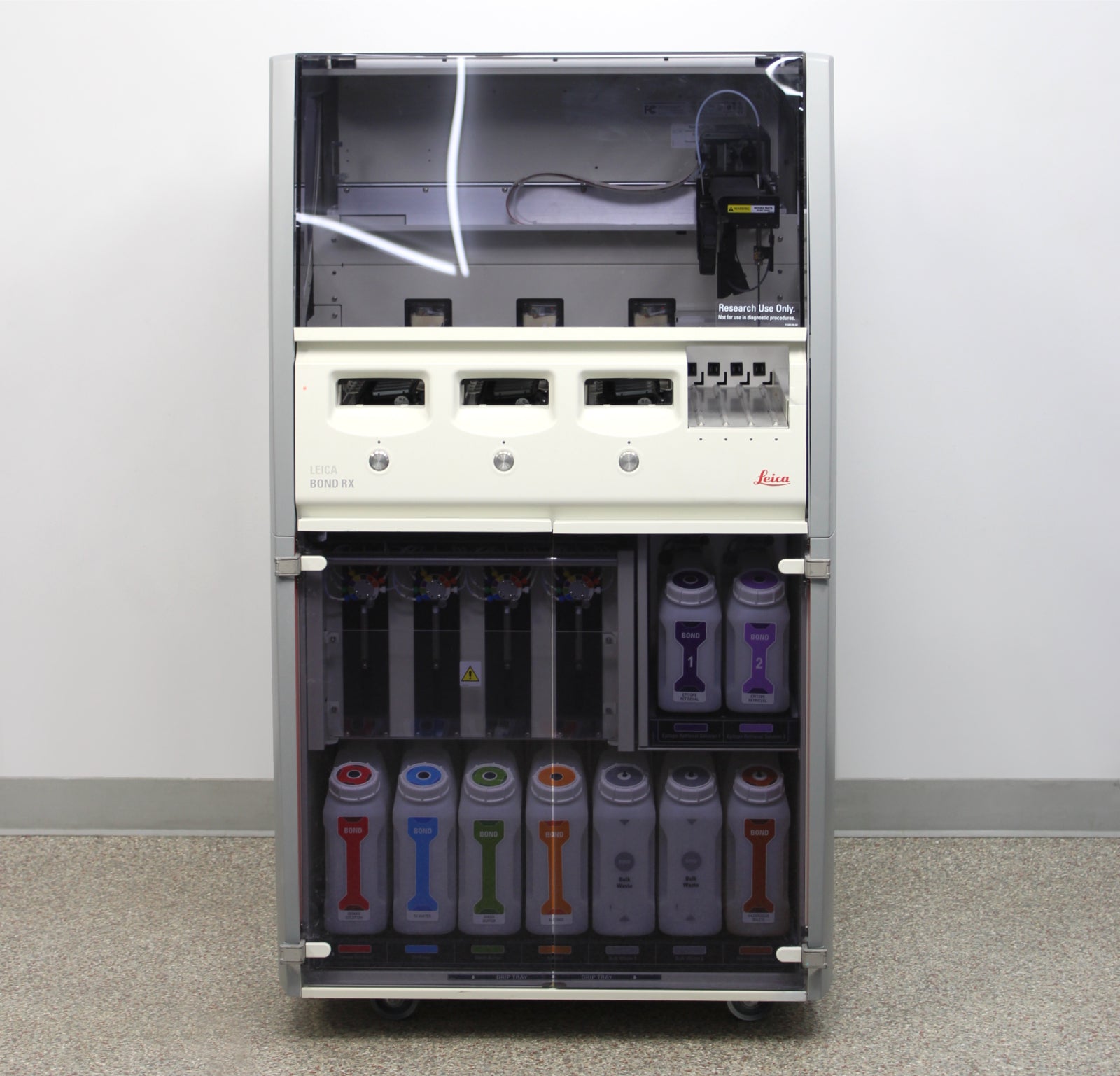

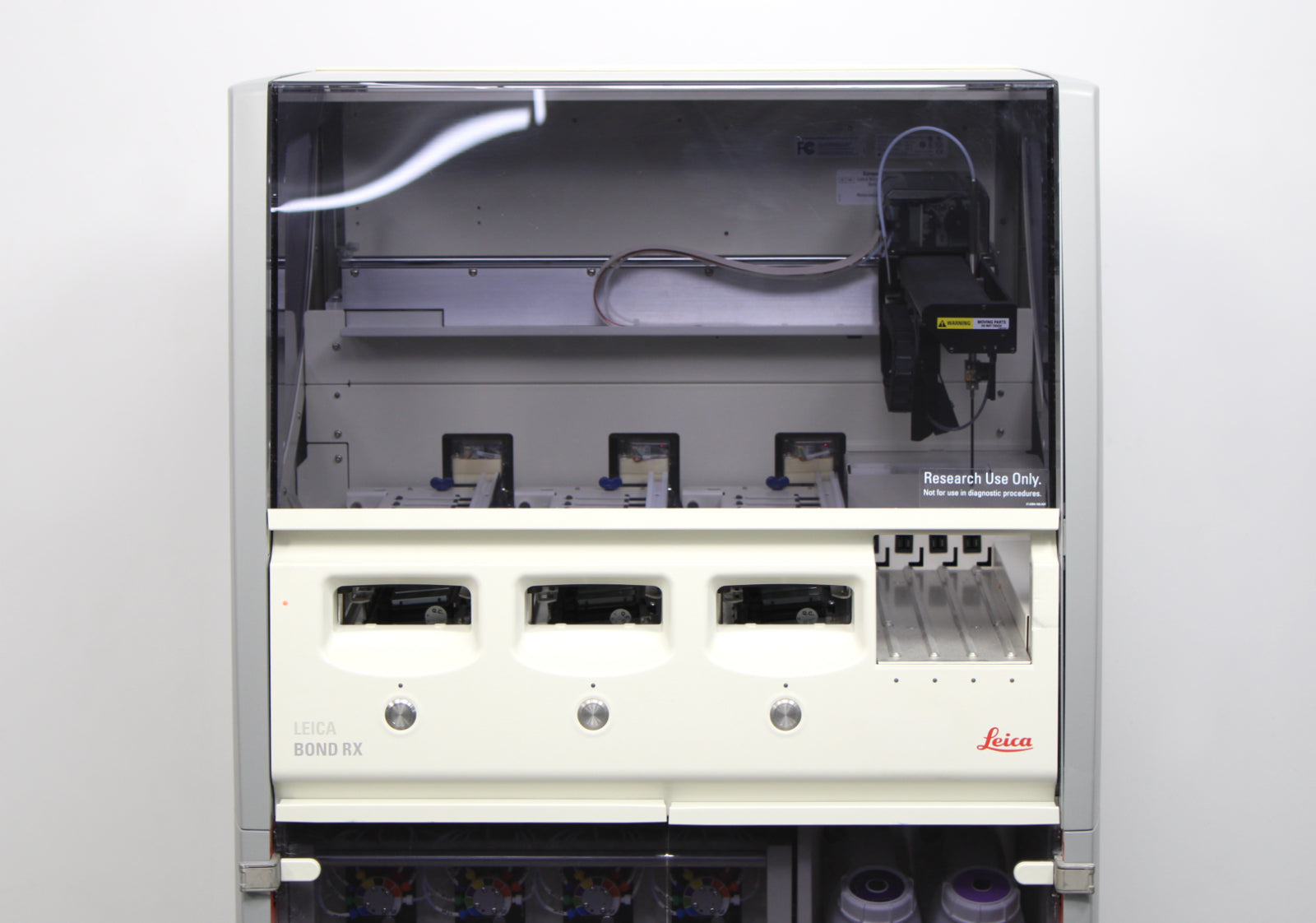

- Leica Biosystems BOND RX Fully Automated Research Slide Stainer
- Reagent Vessels

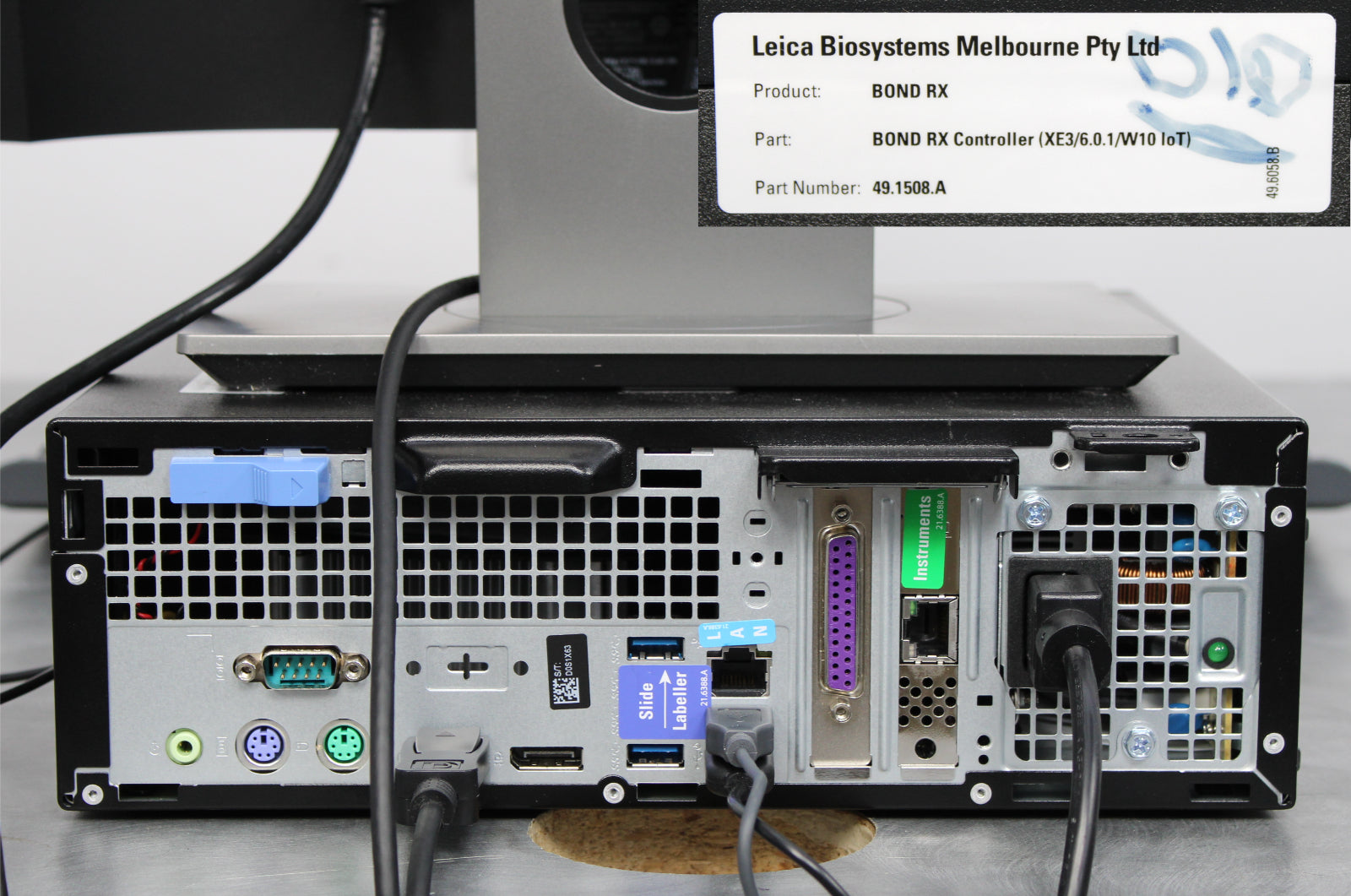

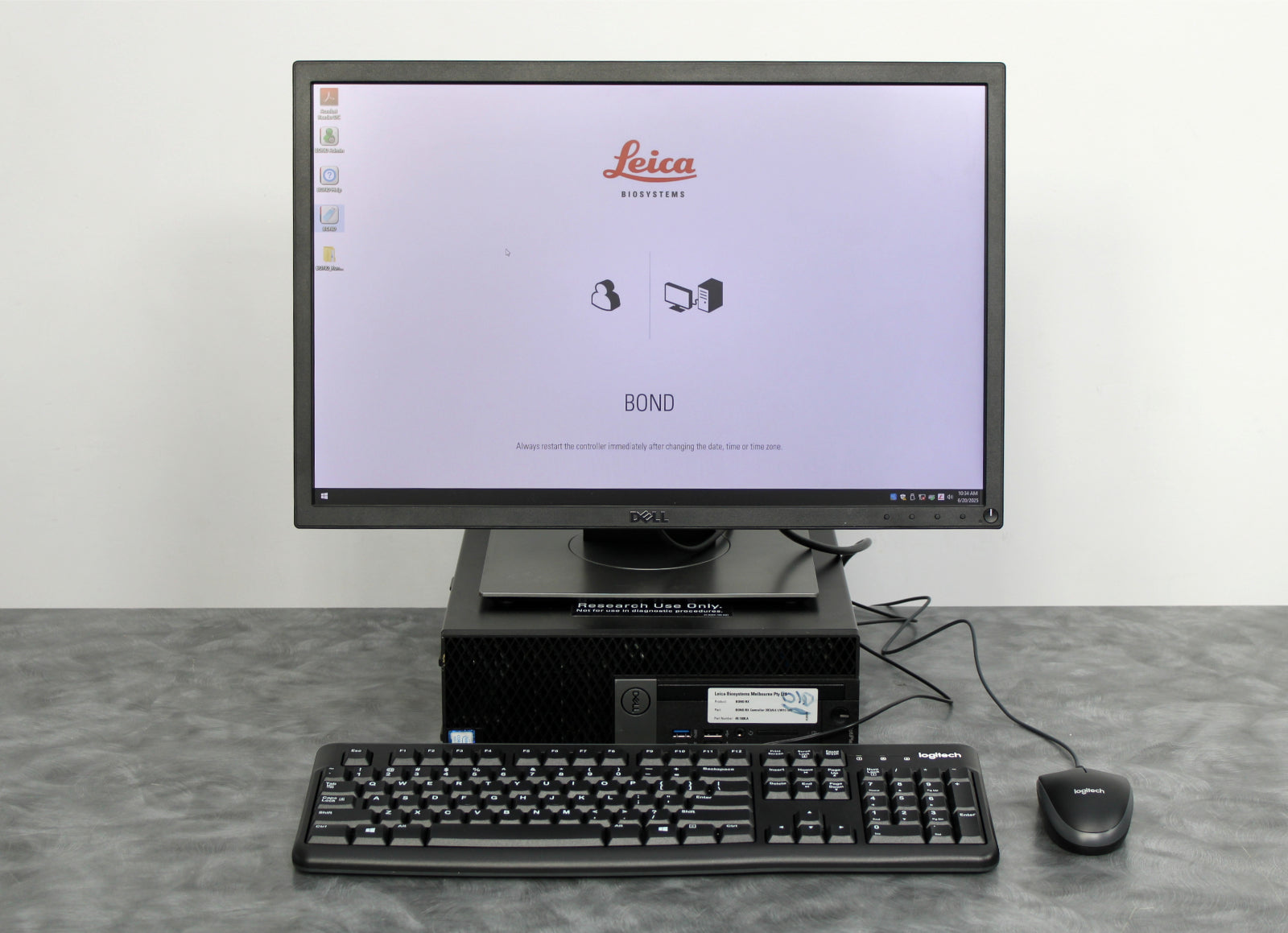

- Computer (BOND RX Controller) with Software Installed
- Monitor, Keyboard, and Mouse
- Display Cable
- x3 Power Cables
- 90-Day Warranty
We powered on this BOND RX and observed the status light illuminate as red and the instrument jingle plays. No further testing could be performed.
Notice: This BOND RX will require a change of ownership before it can be put into operation. A Leica representative will have to come on site to assist with password recovery because it is their company policy that passwords cannot be given out over email or phone.
Notice: This instrument has some minor cosmetic blemishes. Please review the available photos to see the physical condition before purchasing.
|

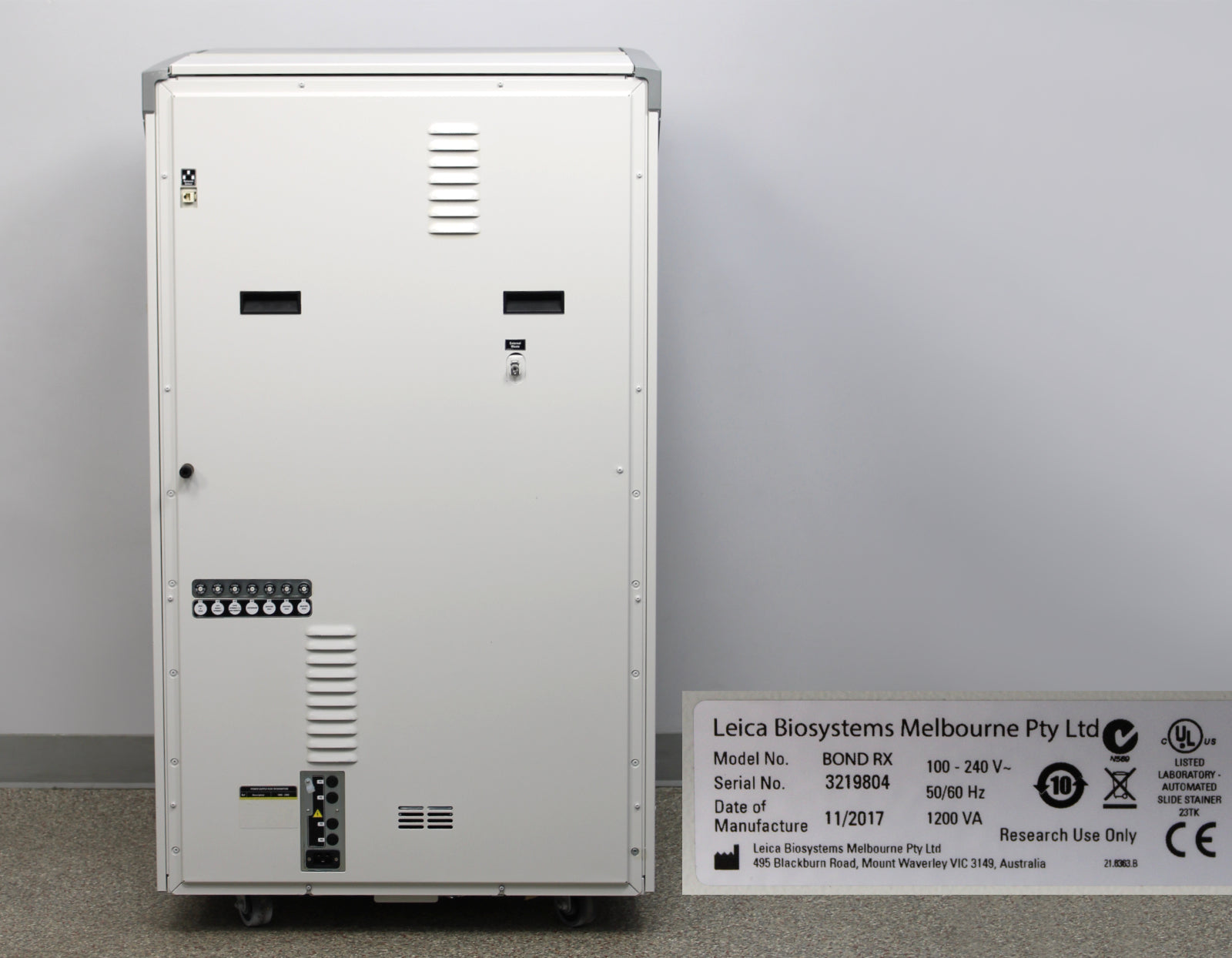

Manufacturer
|
Leica Biosystems
|
|
Model No.
|
BOND RX
|
|
Serial No.
|
3219804
|
|
Mfg. date
|
11/2017
|
|
Slide capacity
|
30

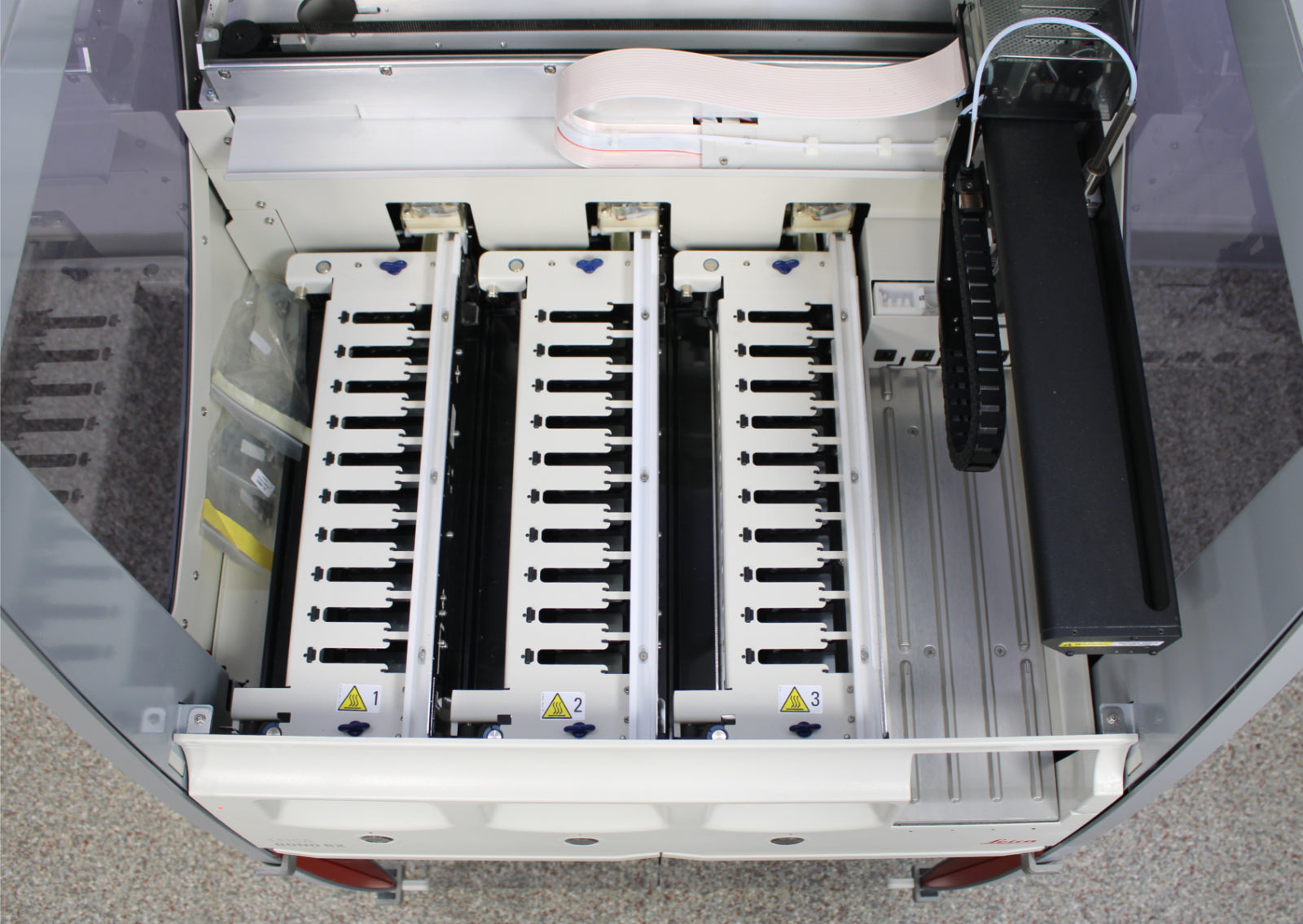

Finished trays (10 slides) may be replaced continuously
|
|
Number of reagent containers
|
36
|
|
Reagent container capacity
|
7 mL and 30 mL
|
|
Titration container capacity
|
6 mL
|
|

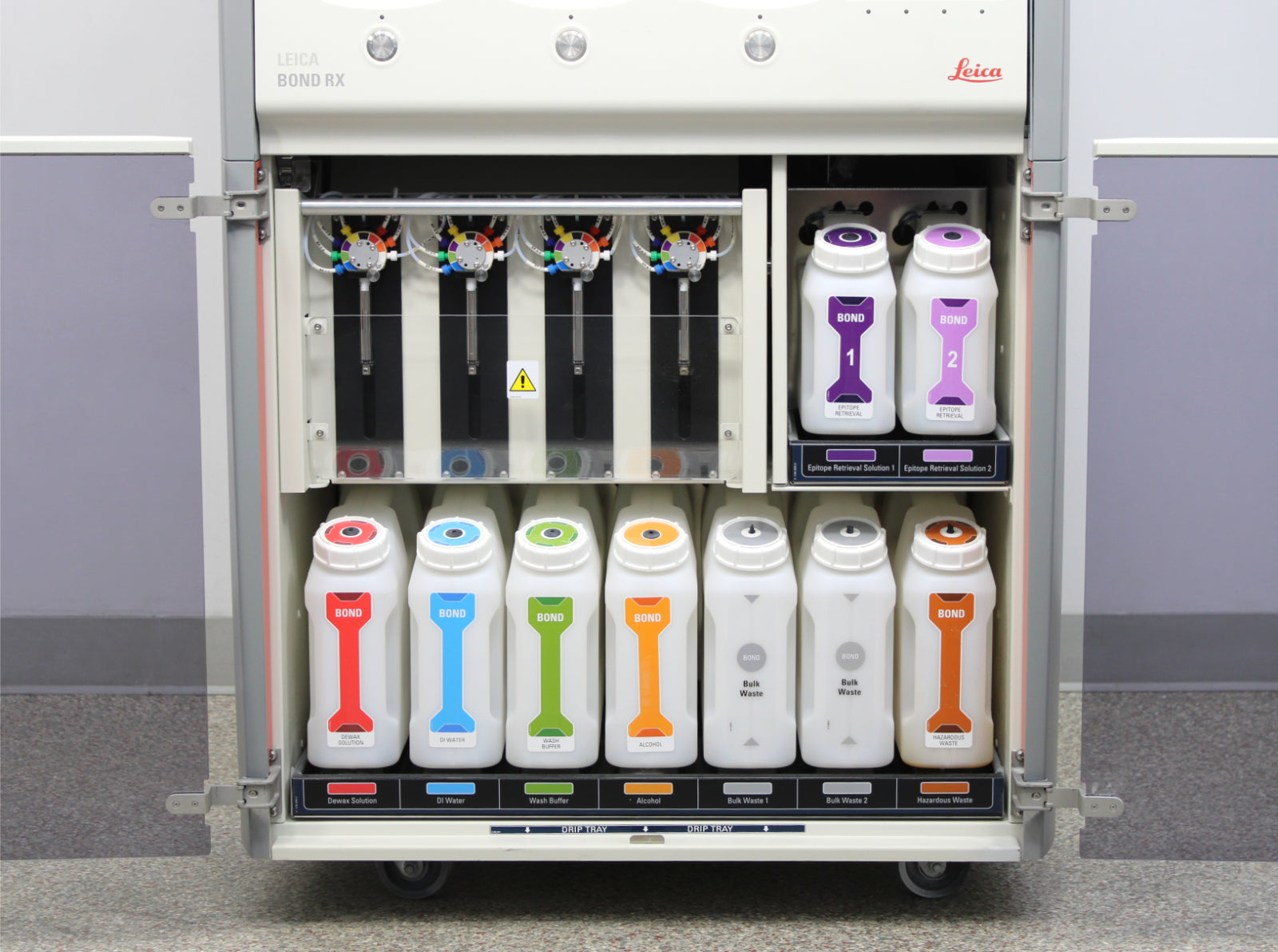

Bulk reagent container capacity
|
2 L or 5 L
|
|
Hazardous waste container capacity
|
5 L
|
|
Standard waste container capacity
|
2 x 5 L
|
|
Chemical compatibility
|
All BOND reagents
70% alcohol solution (for cleaning purposes)
|
|
Temperature indication
|
Defaults (these can be changed by service representatives): Warm: 35°C, Hot: 80°C
|
|
Maximum permitted pressure for gas and liquid connections
|
1.0 bar
|
|
Slide width
|
24.64–26.0 mm (0.97–1.02 in)
|
|
Slide length
|
74.9–76.0 mm (2.95–2.99 in)
|
|
Slide thickness
|
0.8–1.3 mm (0.03–0.05 in)
|
|
Slide label area width
|
24.64–26.0 mm (0.97–1.02 in)
|
|
Slide label area length
|
16.9–21.0 mm (0.67–0.83 in)
|
|
Slide material
|
Glass, ISO 8037/1
|
|
Maximum operating temperature
|
35°C (95°F)
|
|
Minimum operating temperature
|
5°C (41°F)
|
|
Temperature required to meet staining performance requirements
|
18–26°C (64–79°F)
|
|
Maximum heating energy output
|
1200W/1000W
|
|
Operating humidity (non-condensing)
|
30 to 80% RH
|
|
Maximum operation altitude
|
0 to 1600 m (5250 ft.) above sea level
|
|
Sound pressure level output (at 1m)
|
<85 dBA maximum
<65 dBA normal operation
|
|
Storage temperature
|
-20 to 55°C (-04 to 131°F)
|
|
Storage humidity (non-condensing)
|
<80% RH
|
|
Power rating
|
100-240V~, 50/60Hz
|
|
Power consumption
|
1200VA
|
|
Dimensions (W x D x H)
|
31.1 x 31.73 x 54.25 in (79 x 80.6 x 137.8 cm)
|
|
Weight (dry)
|
525 lb (238 kg)
|
