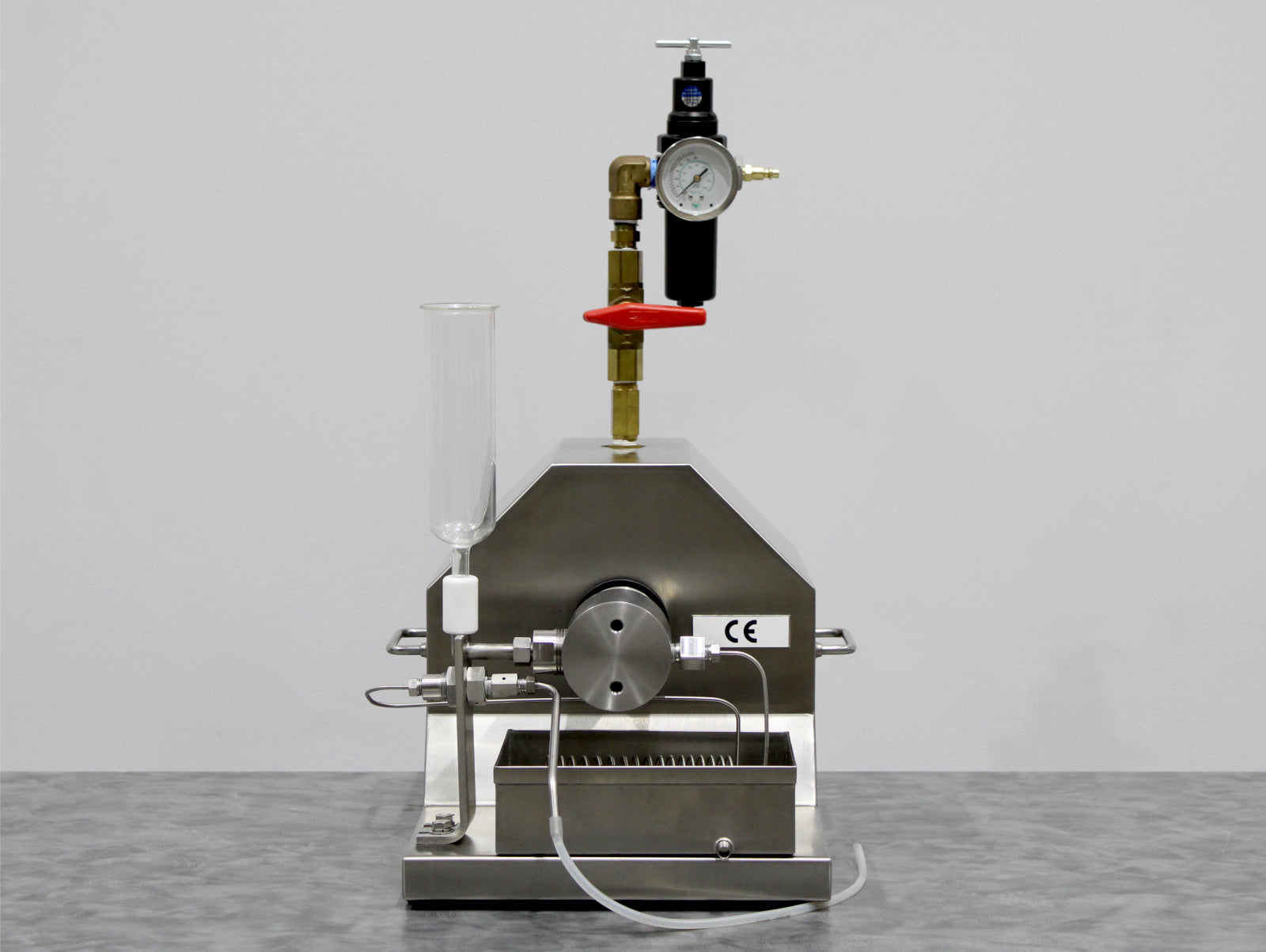

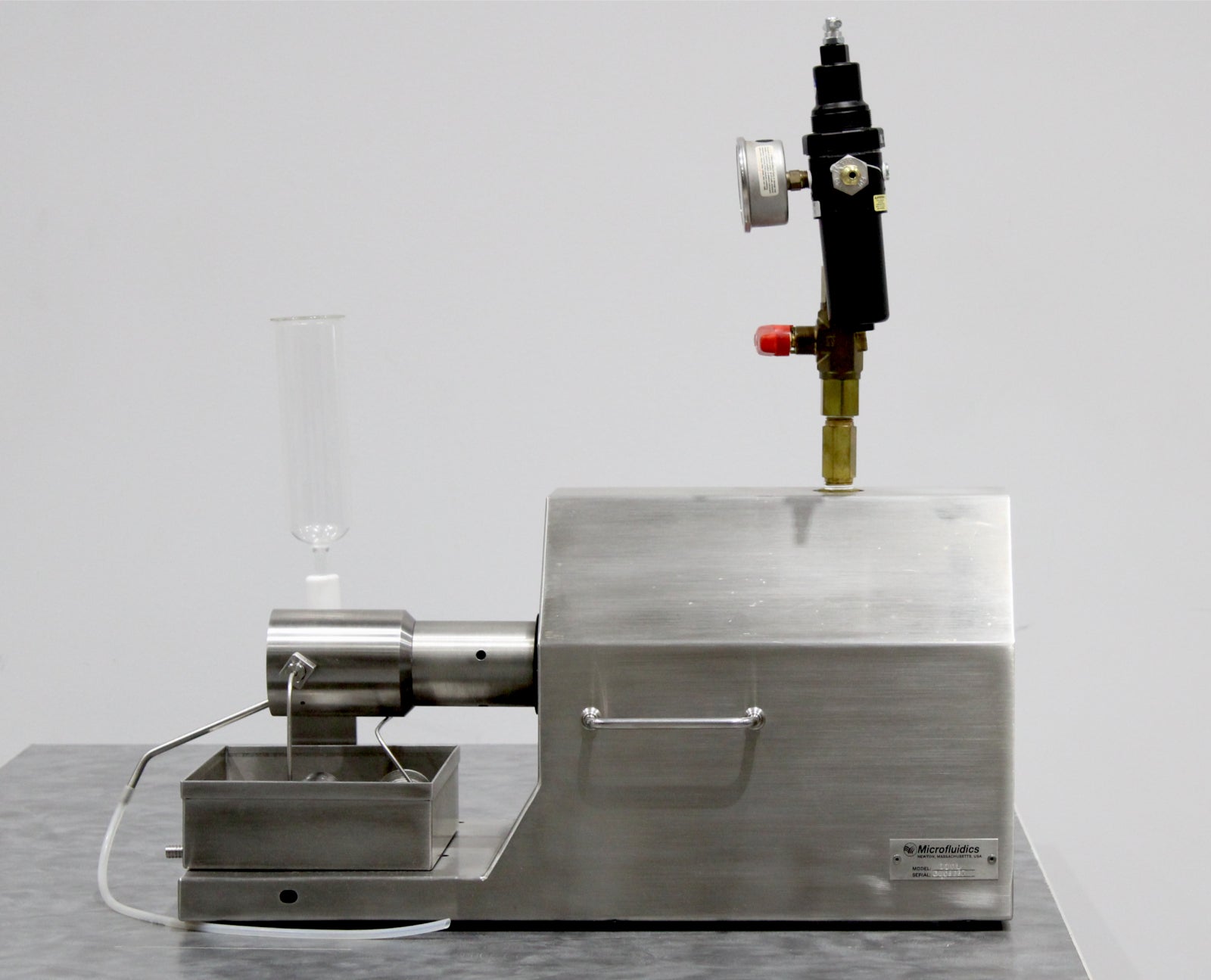

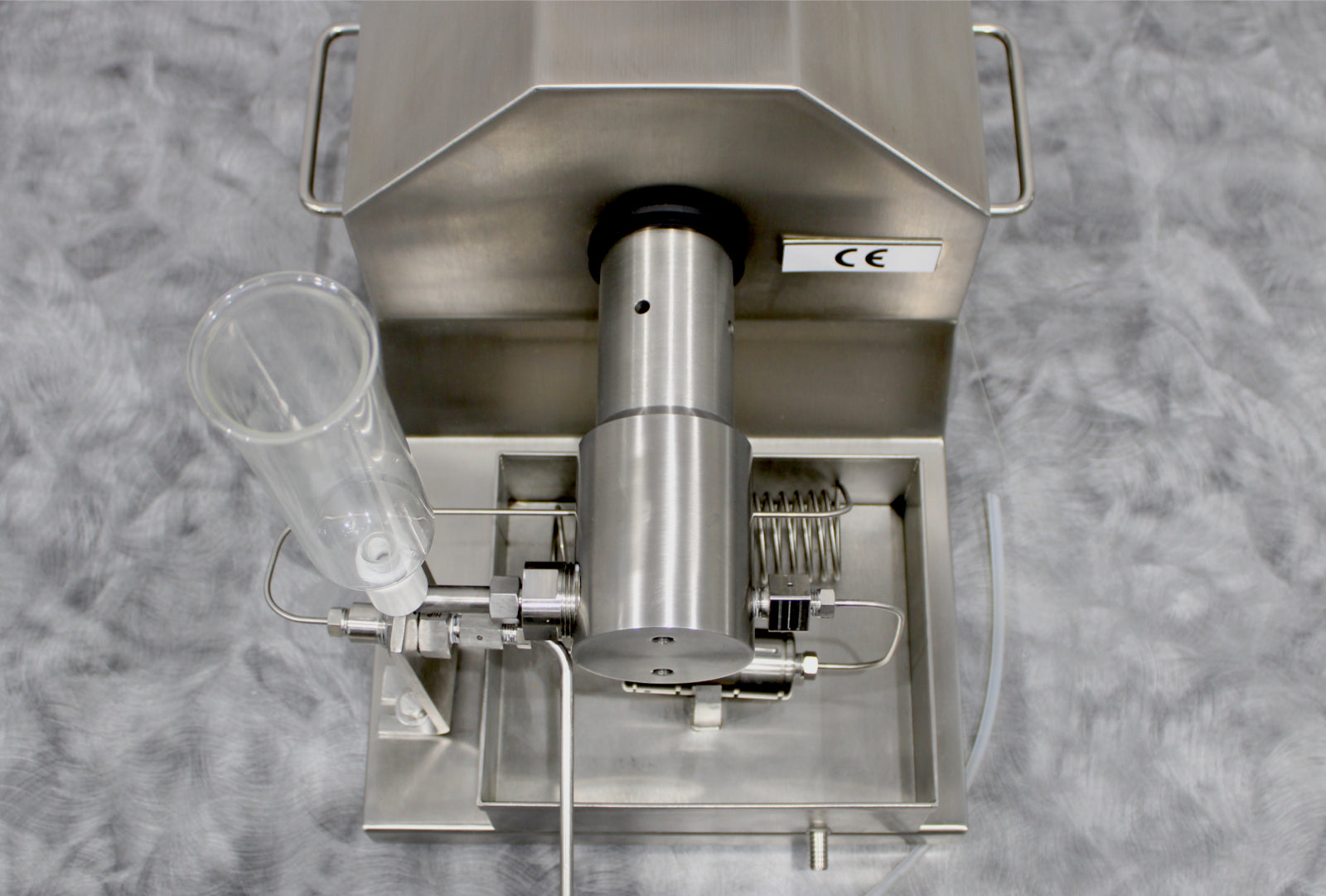

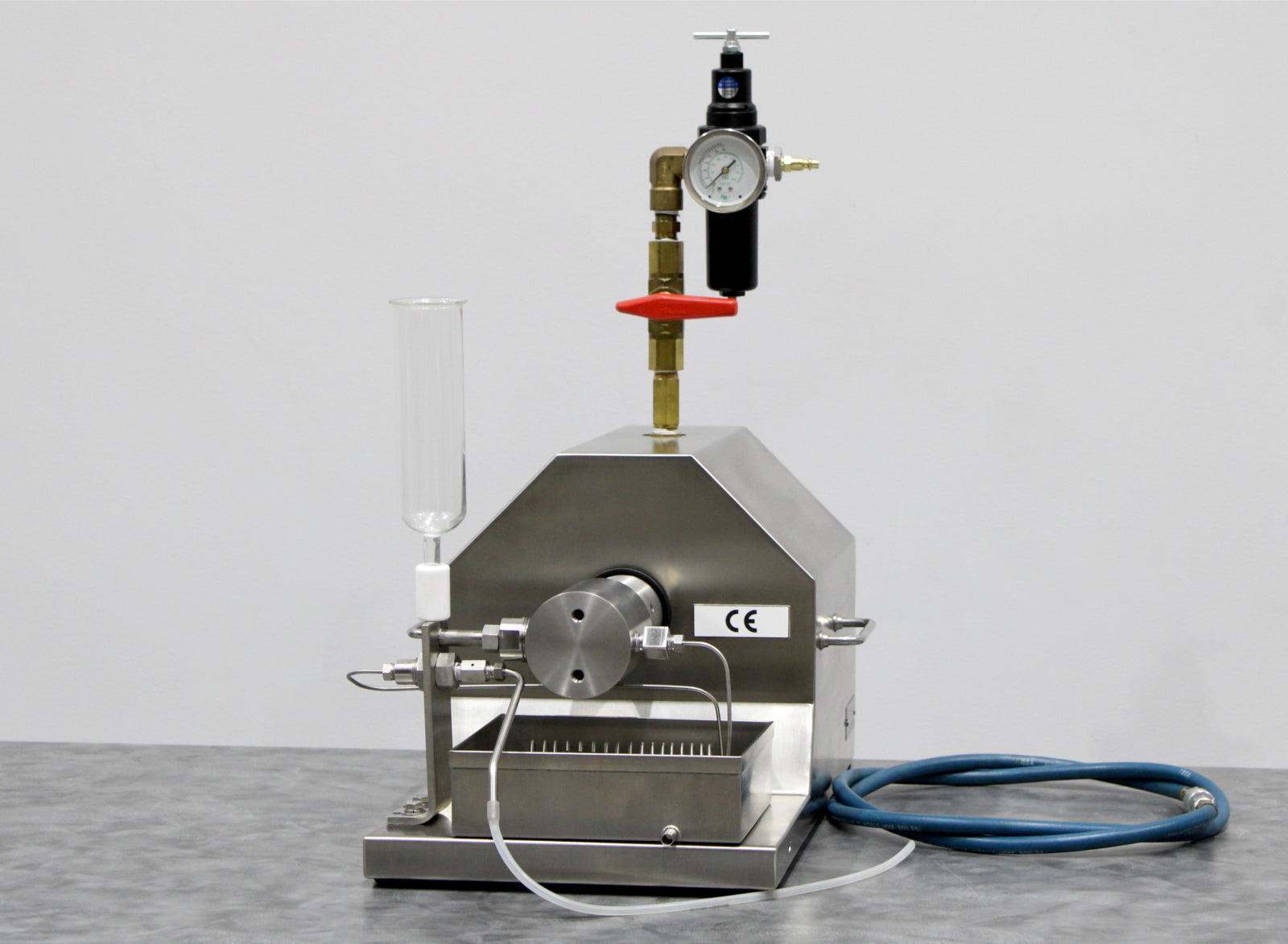

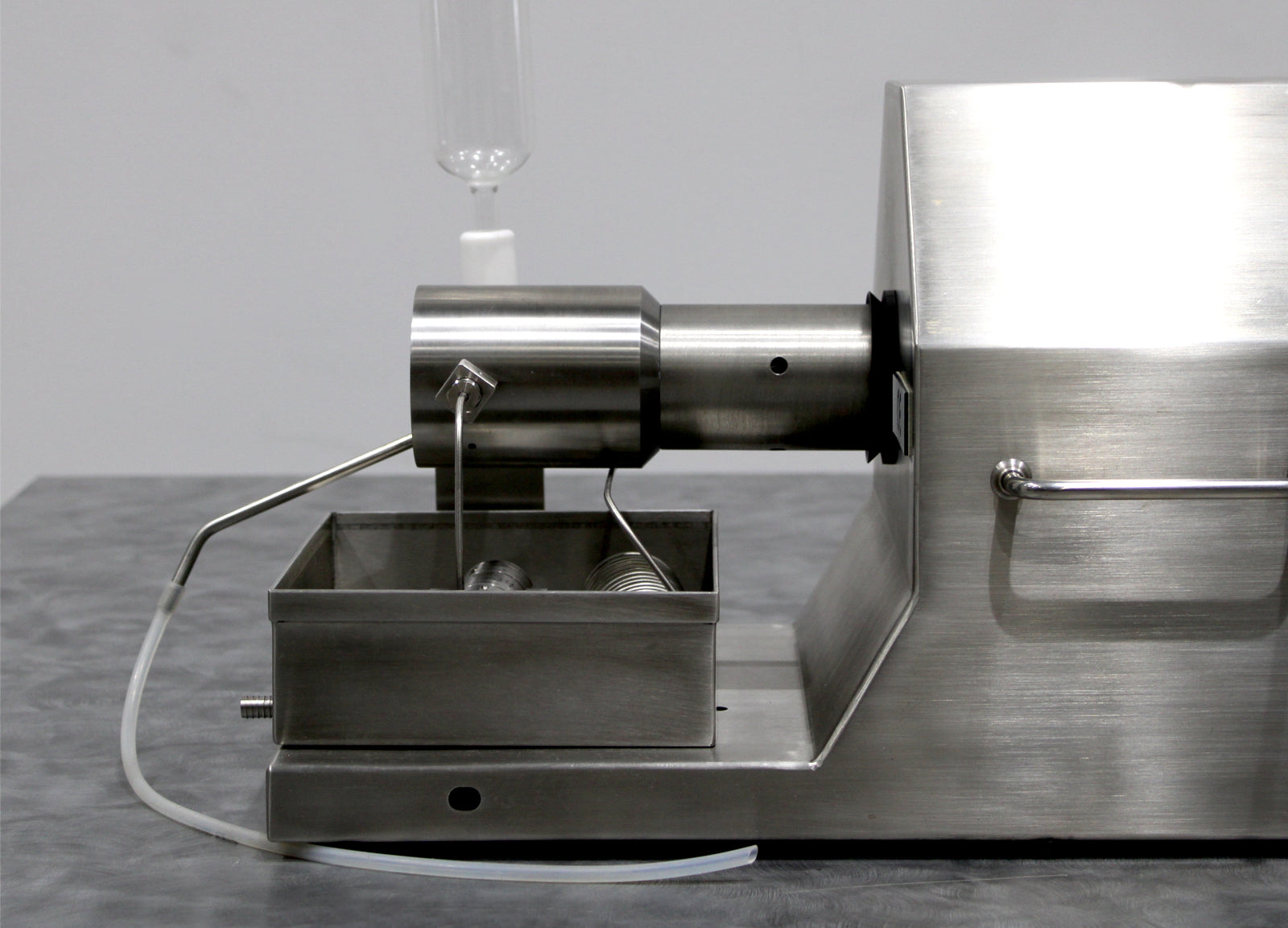

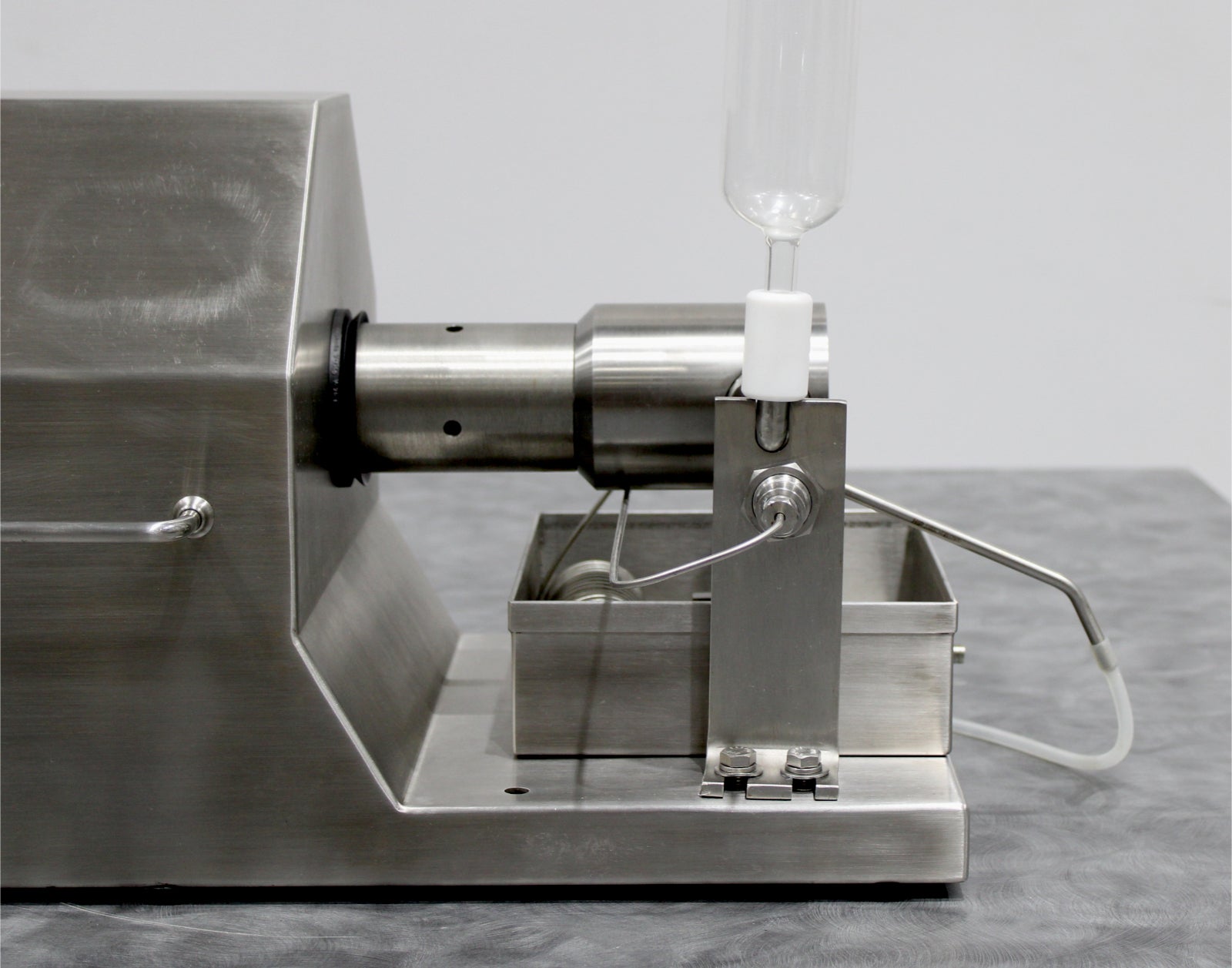

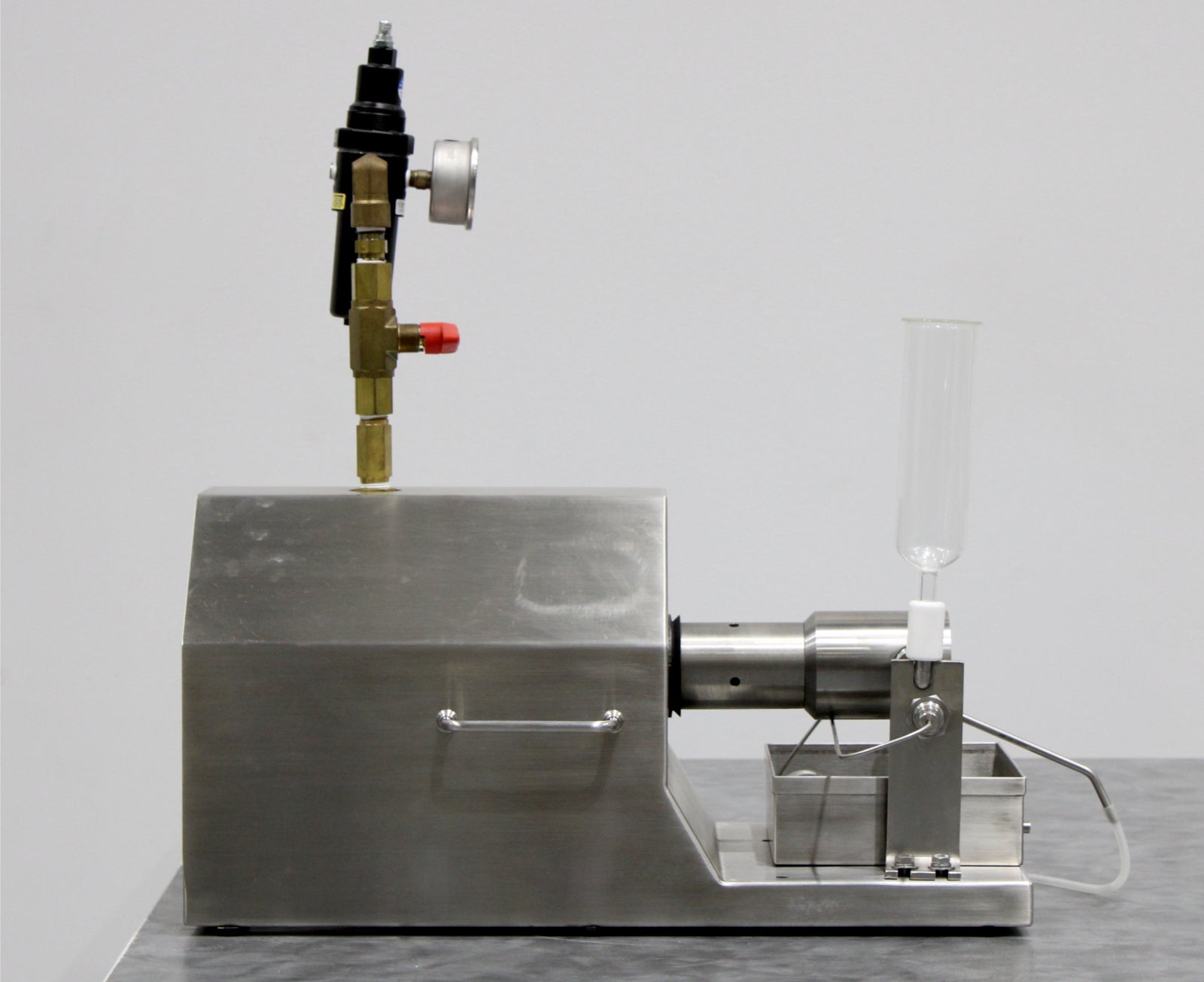

- Microfluidics 110L Microfluidizer High Pressure Homogenizer

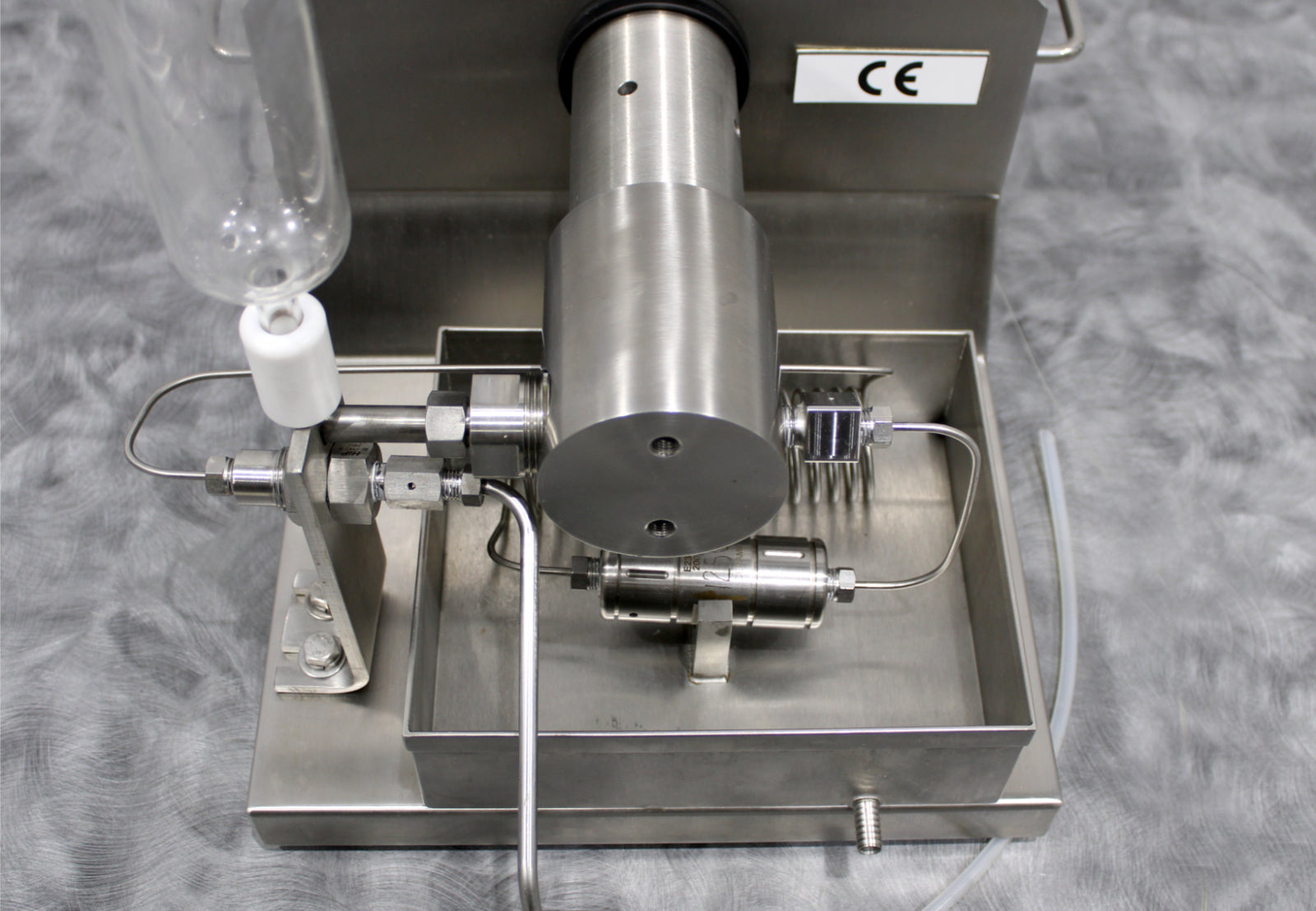

- E230Z 200 Micron Ceramic Interaction Chamber (IXC)

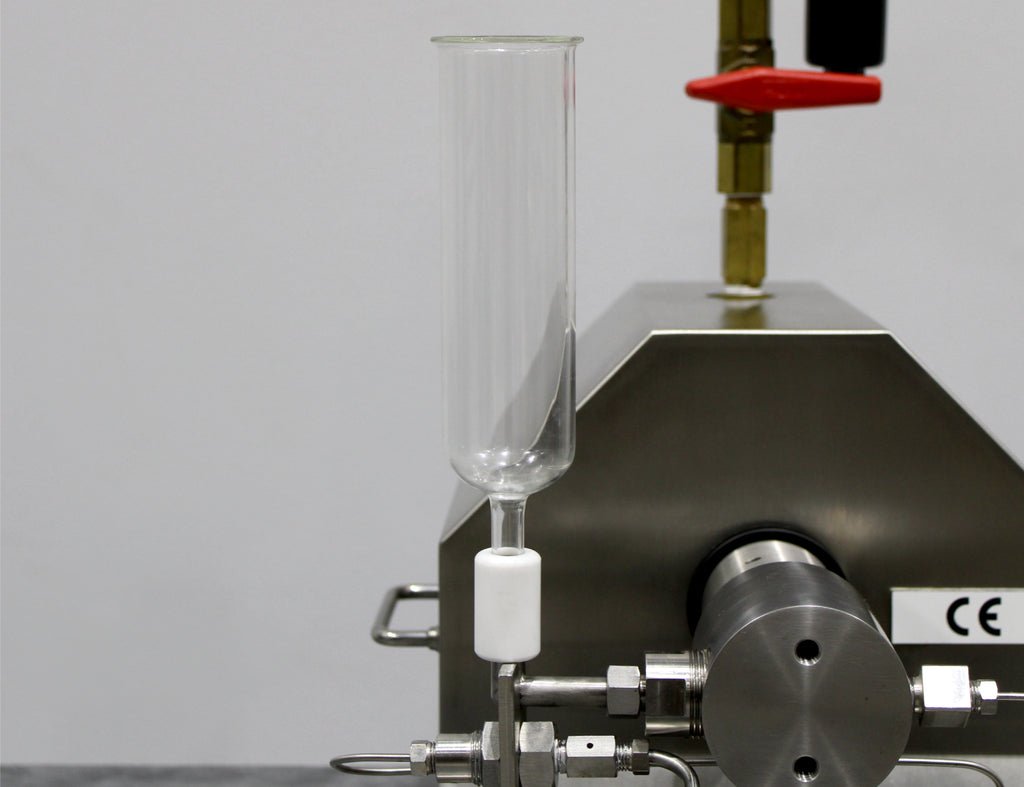

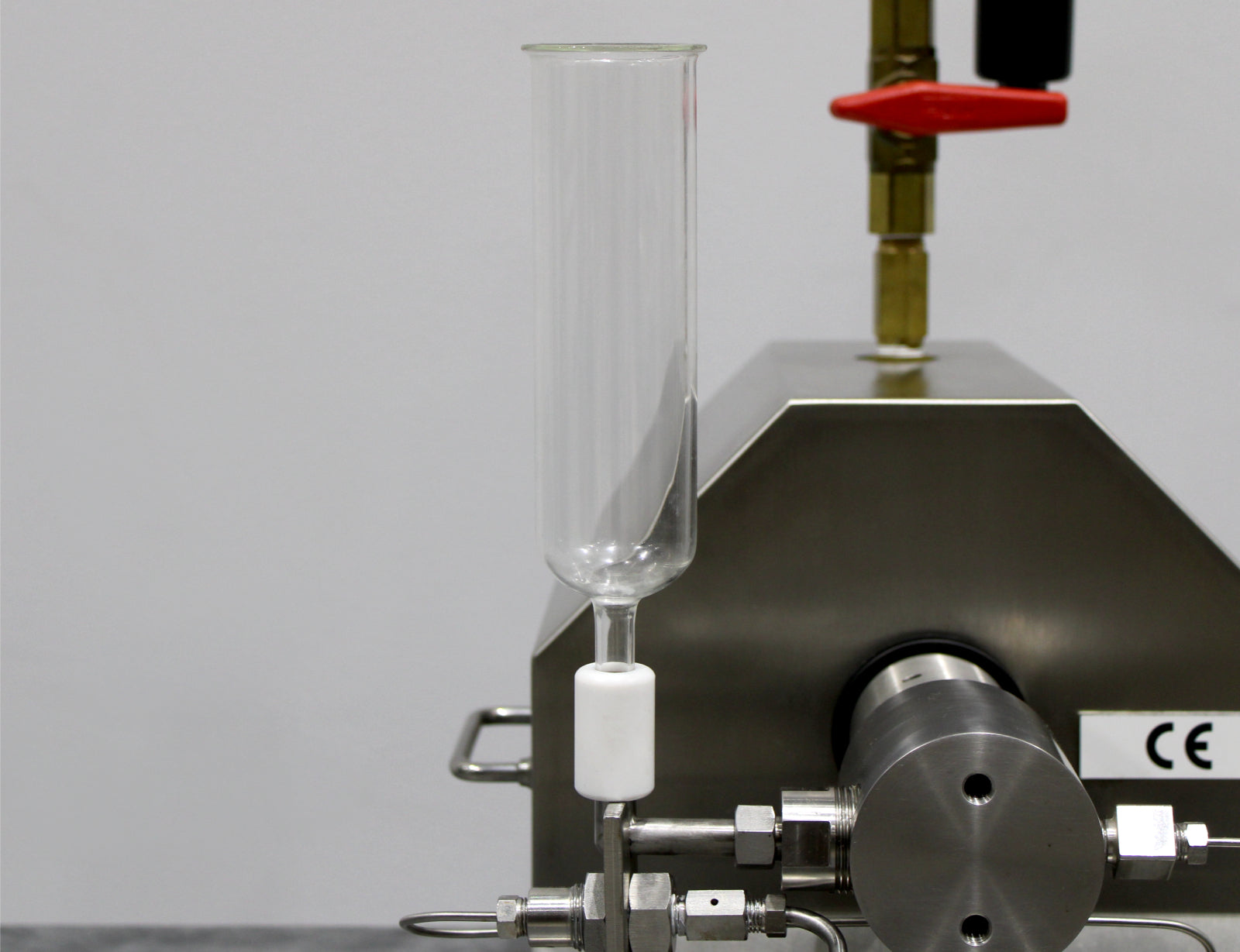

- 300 mL Glass Reservoir

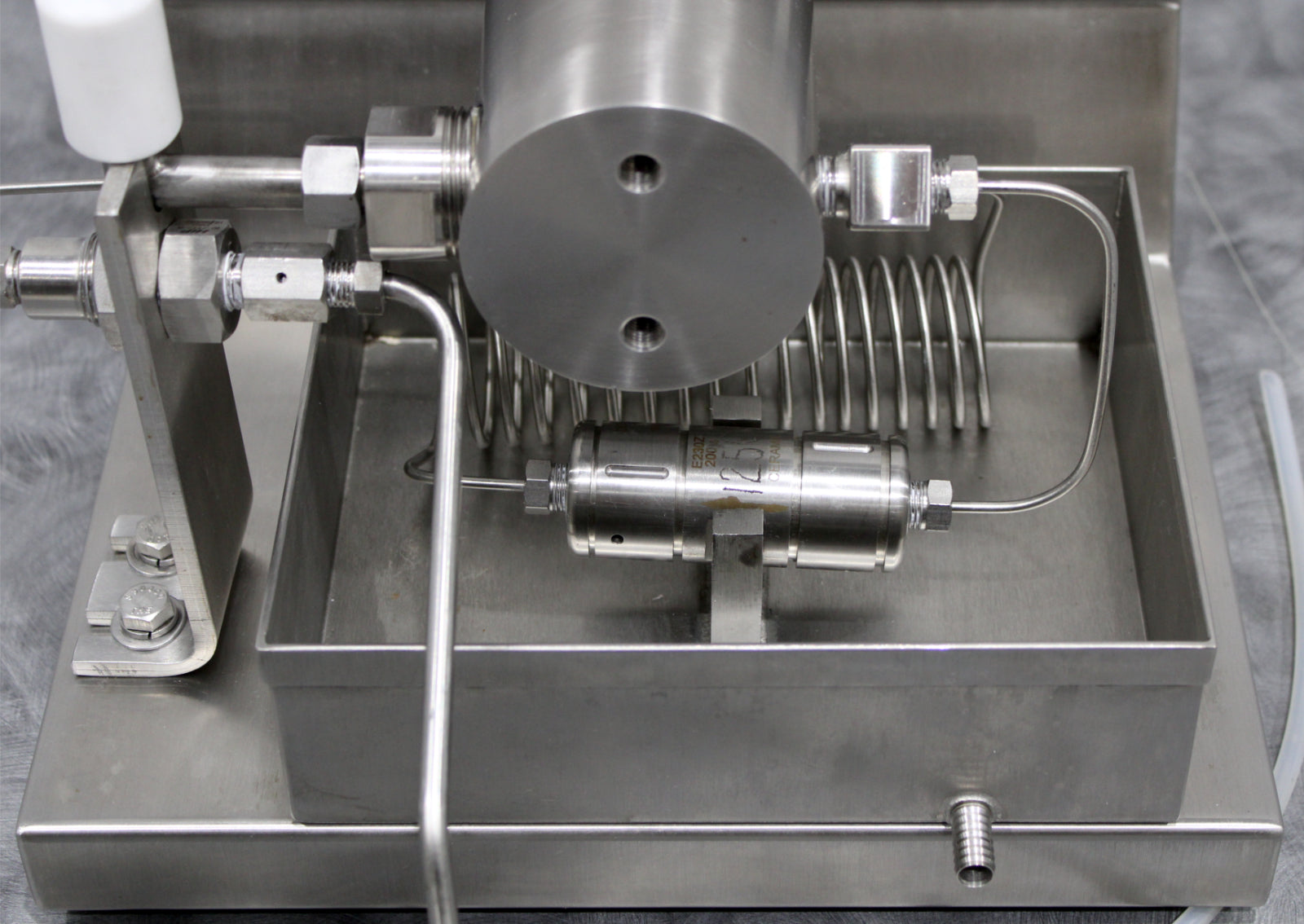

- Cooling Coil and Bath

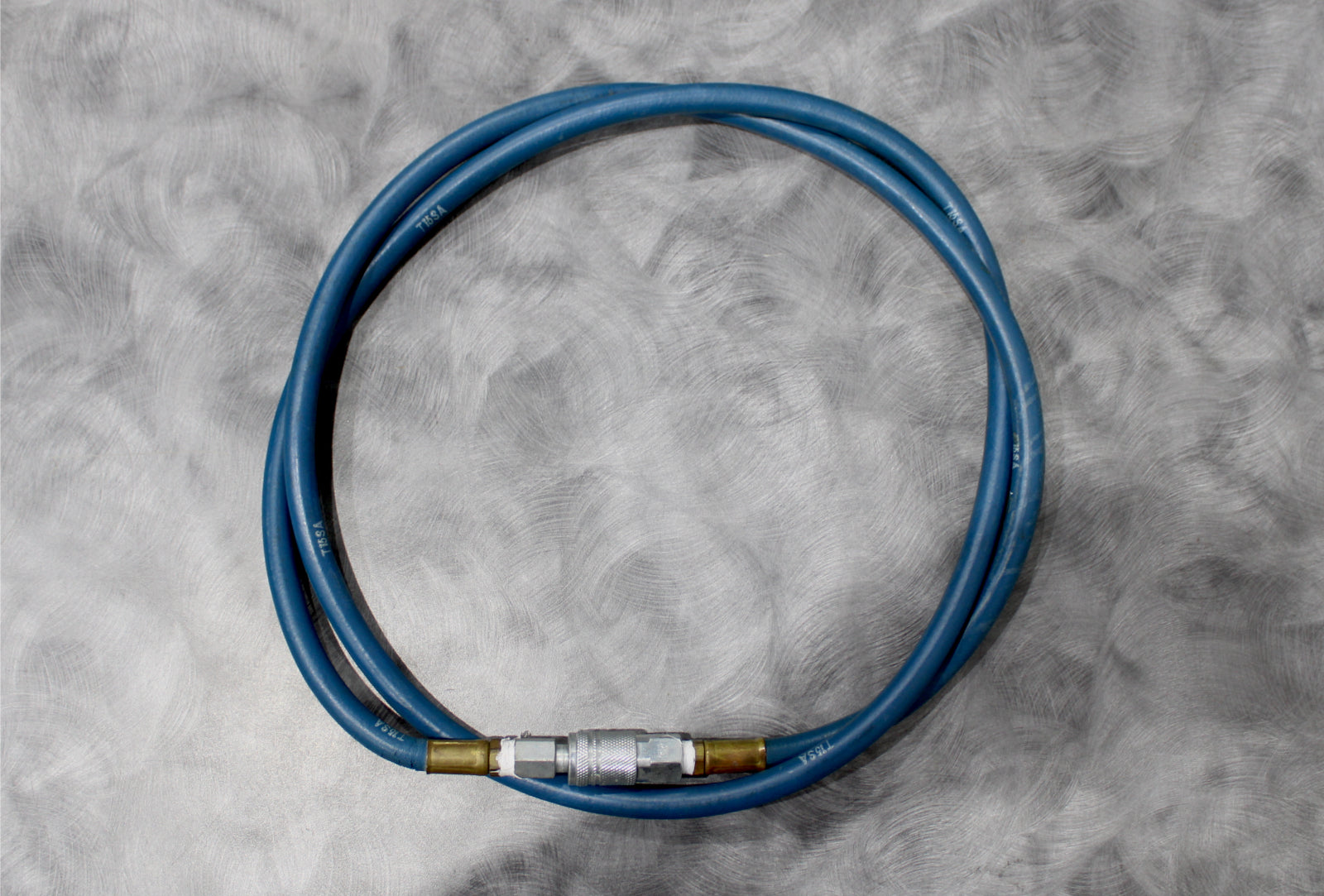

- ¼” Hose with Quick Connects
- 90-Day Warranty
Notice: We recommend the replacement of the IXC because it has reached about 65% wear.

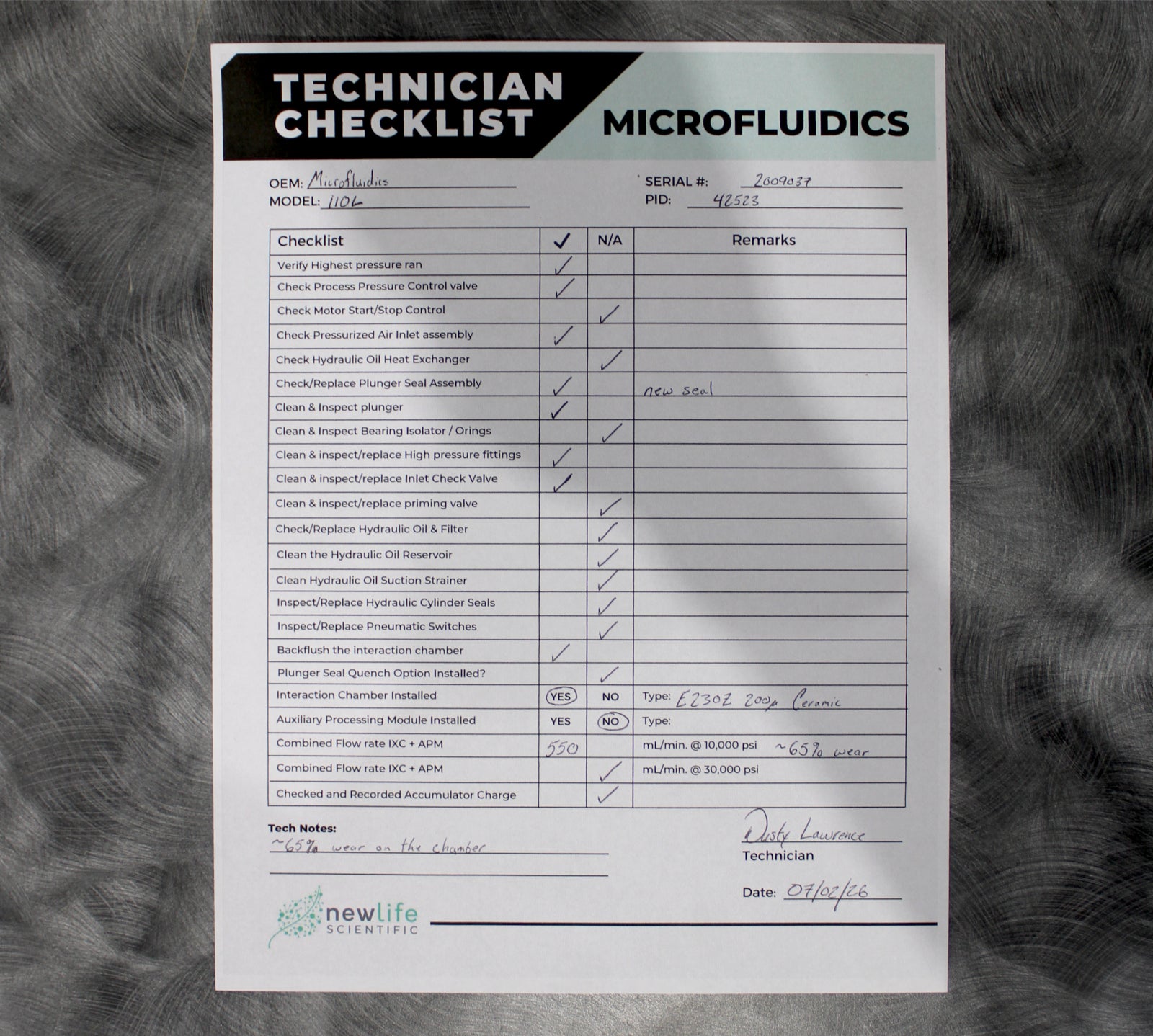

After its initial disinfection and inspection, our technicians tested the Microfluidics 110L microfluidizer homogenizer with the following results:
- Cleaned and inspected liquid end: PASSED
- Ran and sterilized with 1 liter of isopropyl alcohol: PASSED
- Verify highest pressure ran: PASSED
- Check process pressure control valve: PASSED

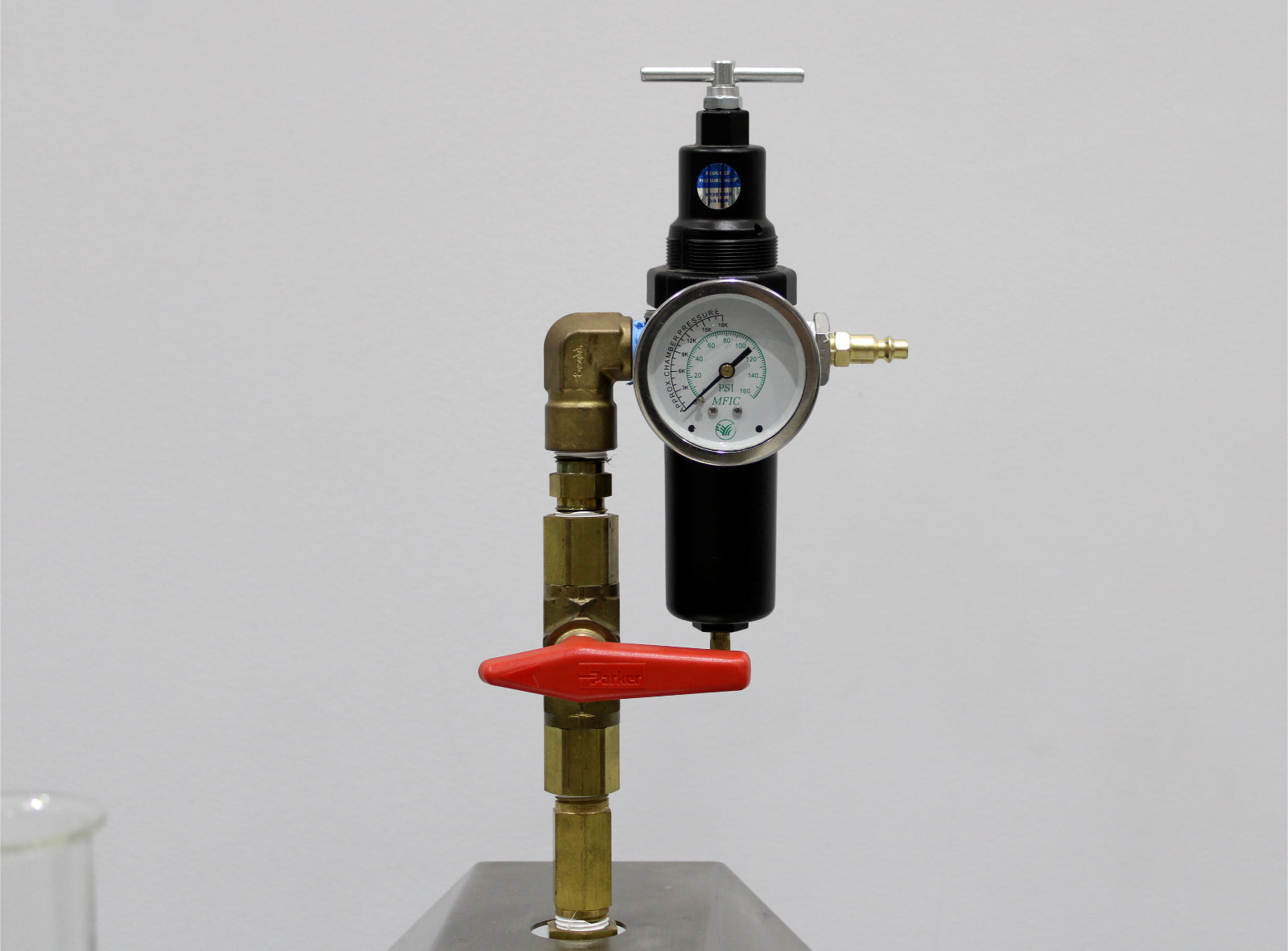

- Check pressurized air inlet assembly: PASSED
- Check and replace plunger seal assembly: PASSED
- Clean and inspect plunger: PASSED
- Clean and inspect/replace high pressure fittings: PASSED
- Clean and inspect/replace inlet check valve: PASSED
- Backflush the interaction chamber: PASSED
|

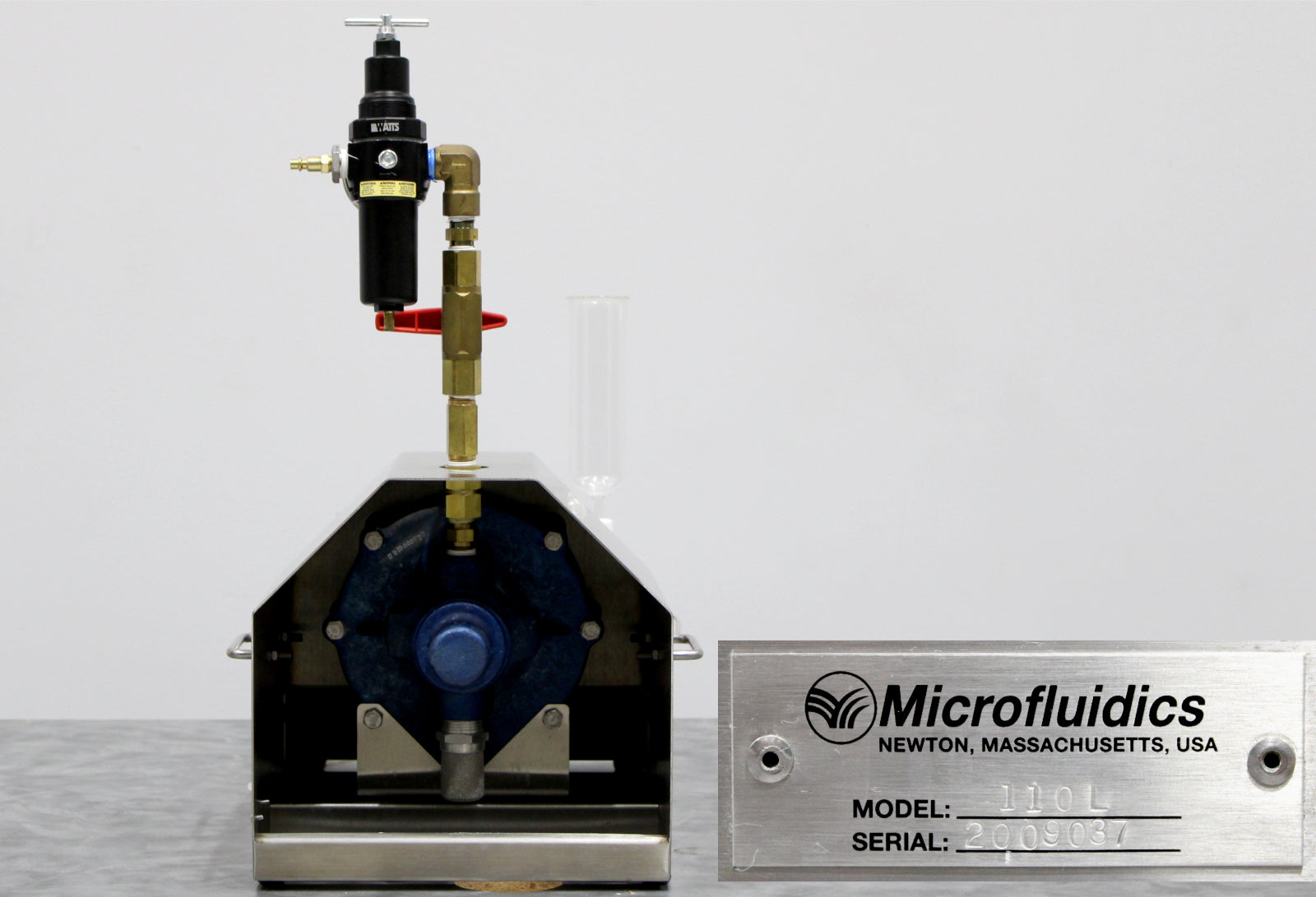

Manufacturer
|
Microfluidics
|
|
Model
|
110L
|
|
Serial No.
|
2009037
|
|
Maximum product processing pressure
|
18,000 psi
|
|
Inlet reservoir capacity (Glass, Standard)
|
200 mL
|
|
Manual priming and purging cylinder inlet capacity
|
45 mL
|
|
Minimum sample size
|
14 mL with up to 12 mL recovery
|
|
Plunger stroke length
|
2.5"
|
|
Approximate stroke displacement
|
.375 in3 (6 mL)
|
|
Air compressor power requirement
|
57 scfm @ 120 psi (0.2m3/min @ 8 bar)
|
|
Coned and threaded fittings (high pressure piping)
|
6.25 ft.-lbs
|
|
Overall dimensions (W x D x H)
|
15 x 23 x 25 in
|
Note: All figures based on testing with water
