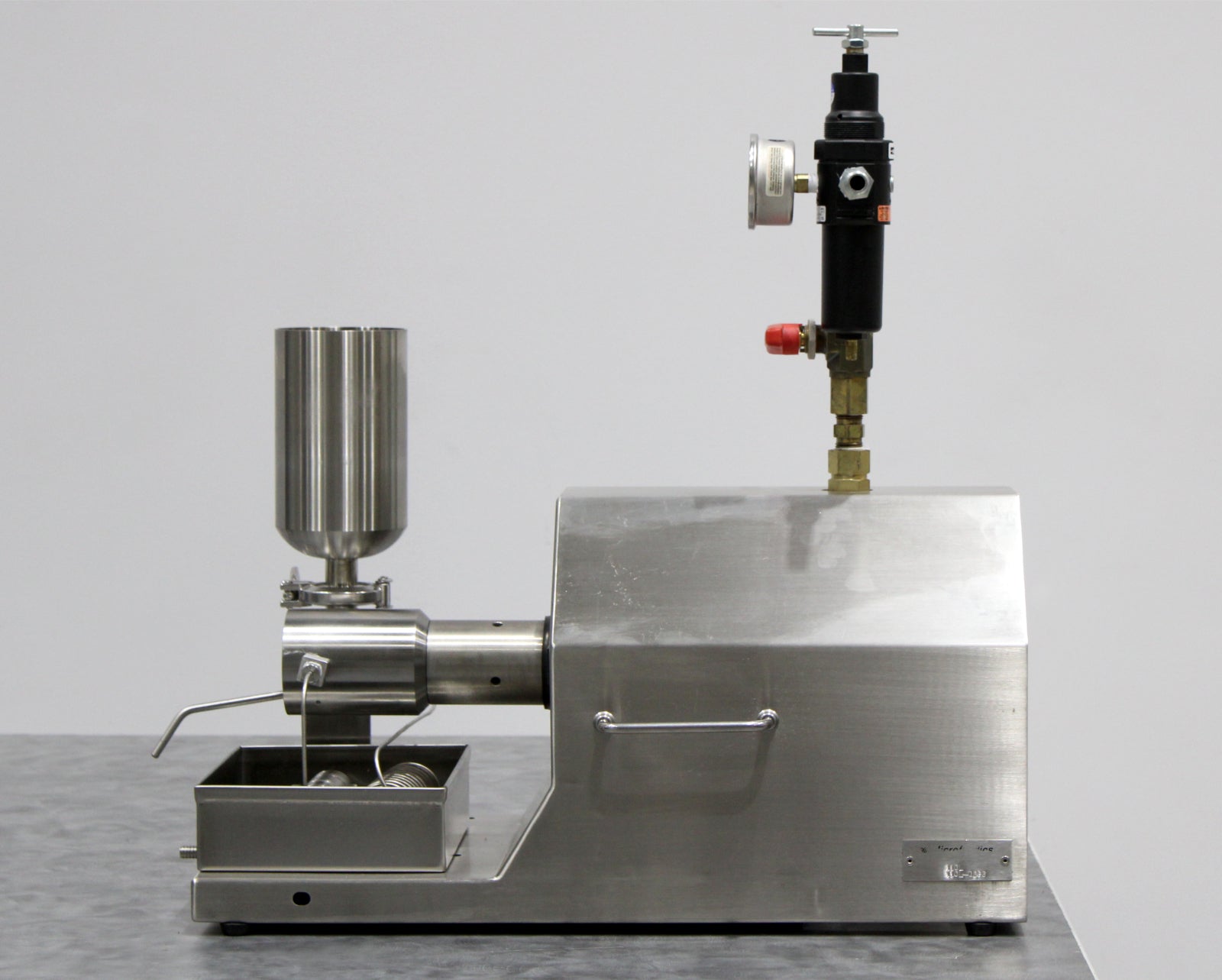

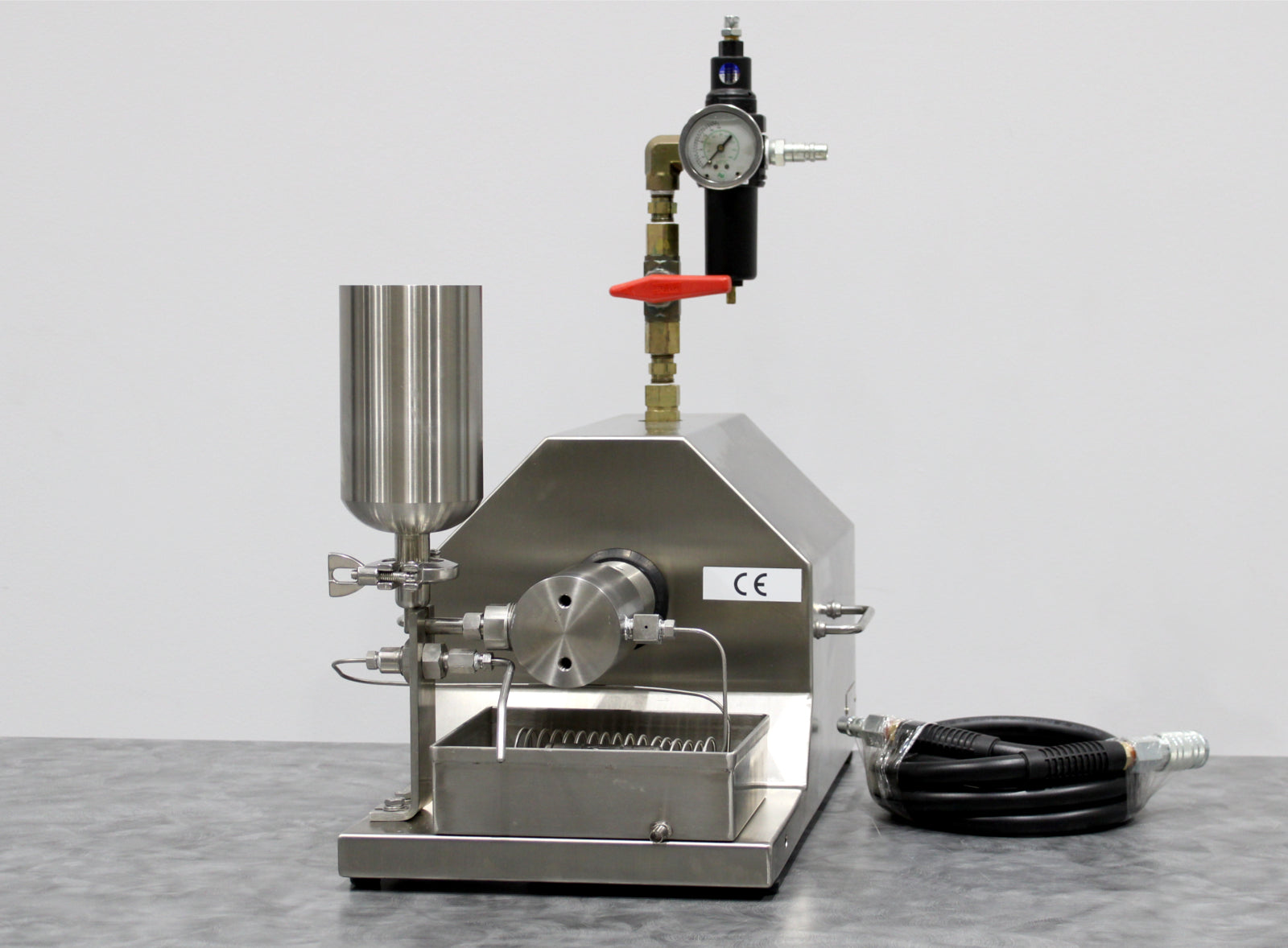

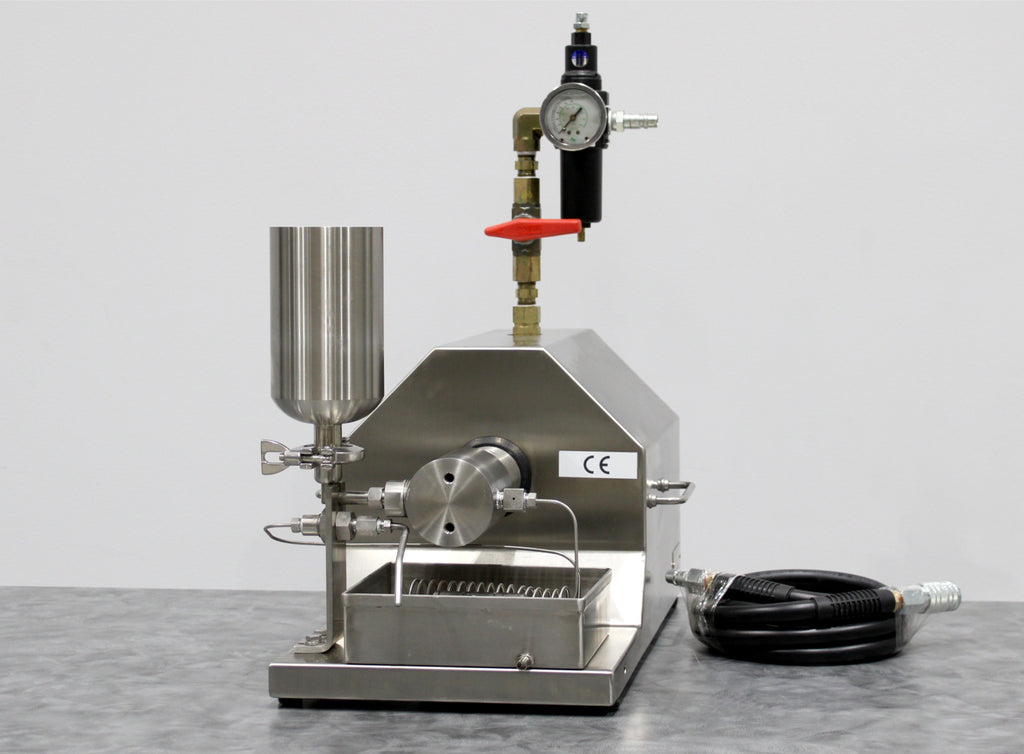

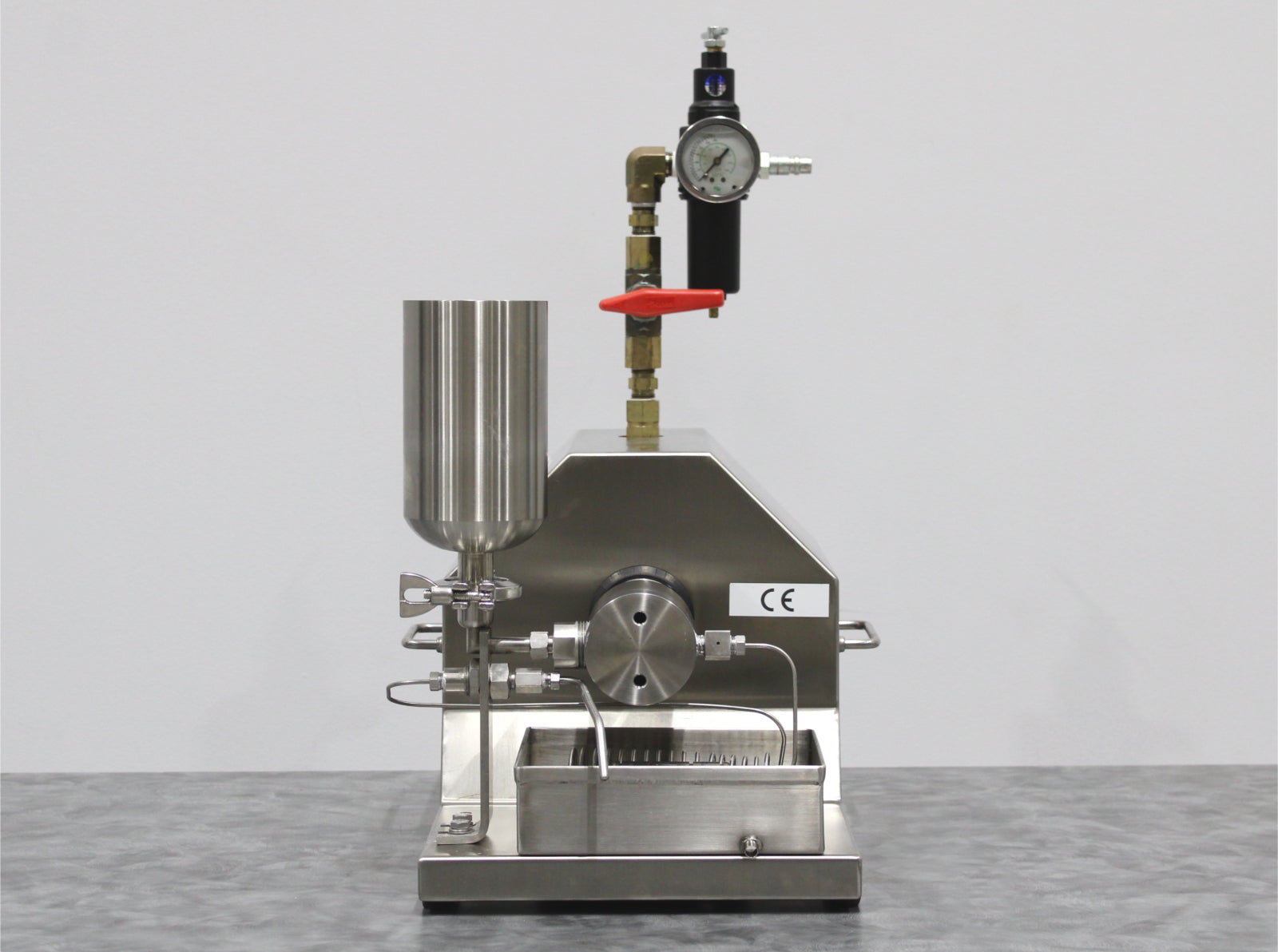

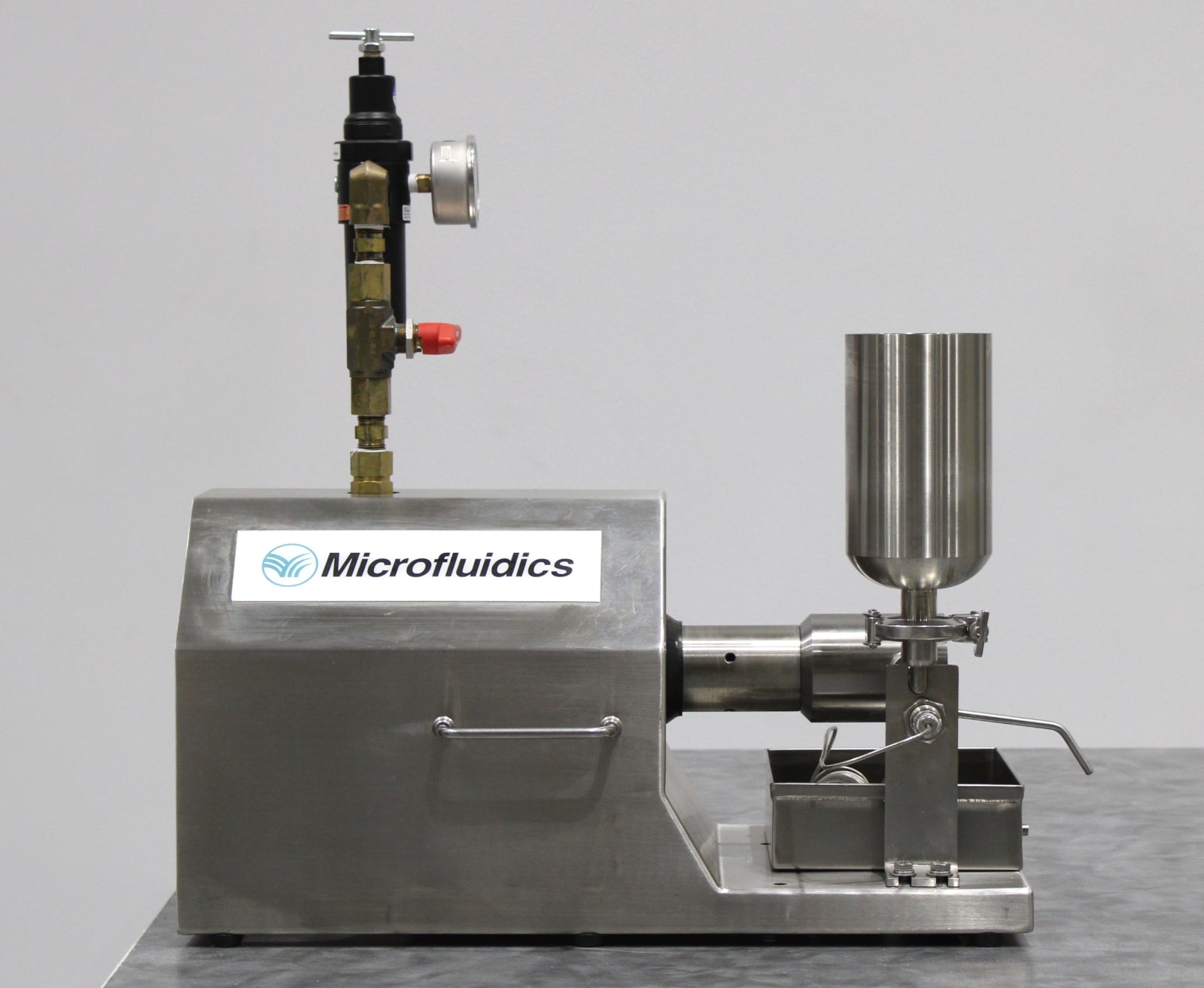

- Microfluidics 110L Microfluidizer Processor High-Pressure Homogenizer
- H10Z 100 Micron Ceramic Interaction Chamber (IXC)

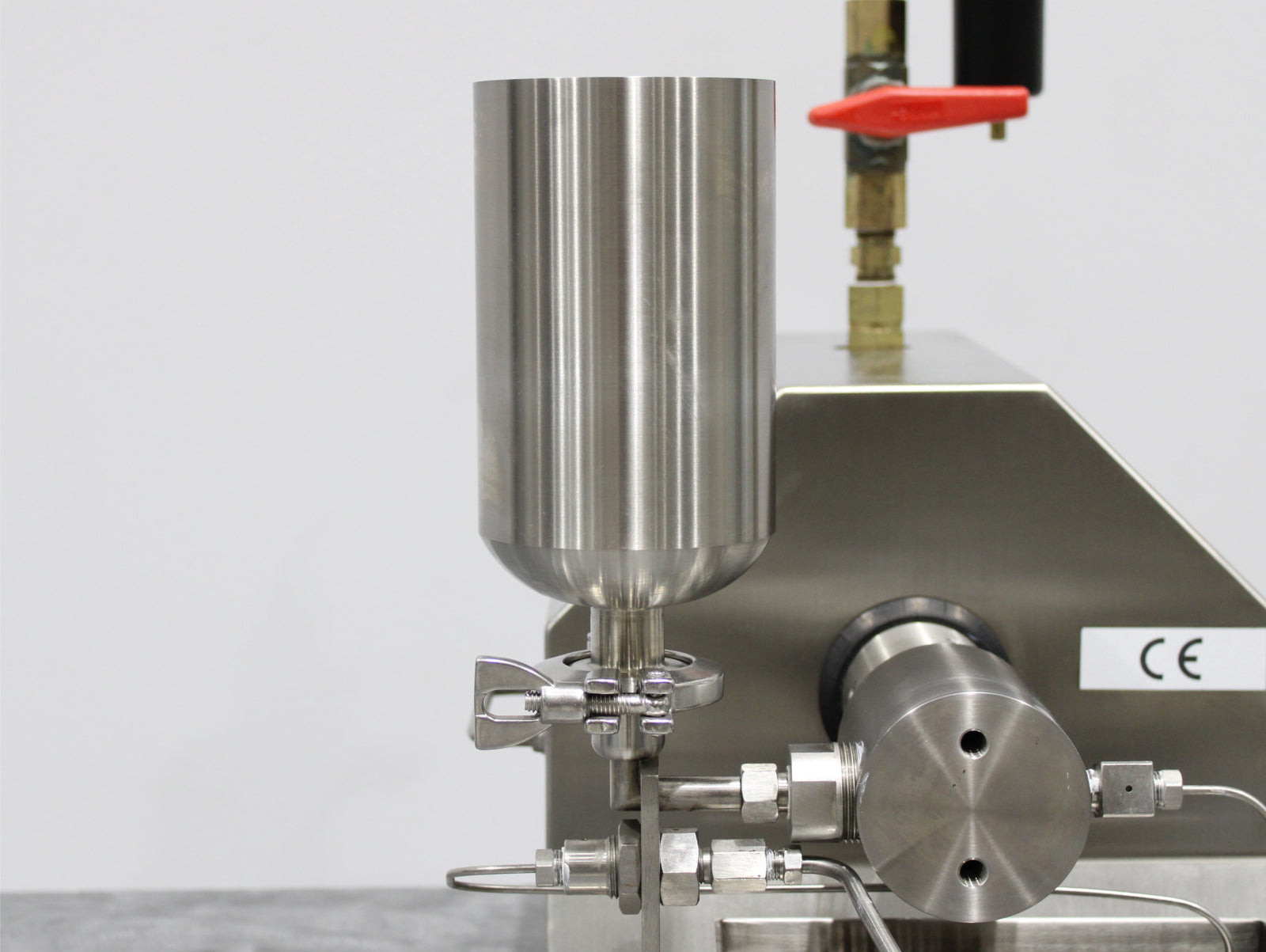

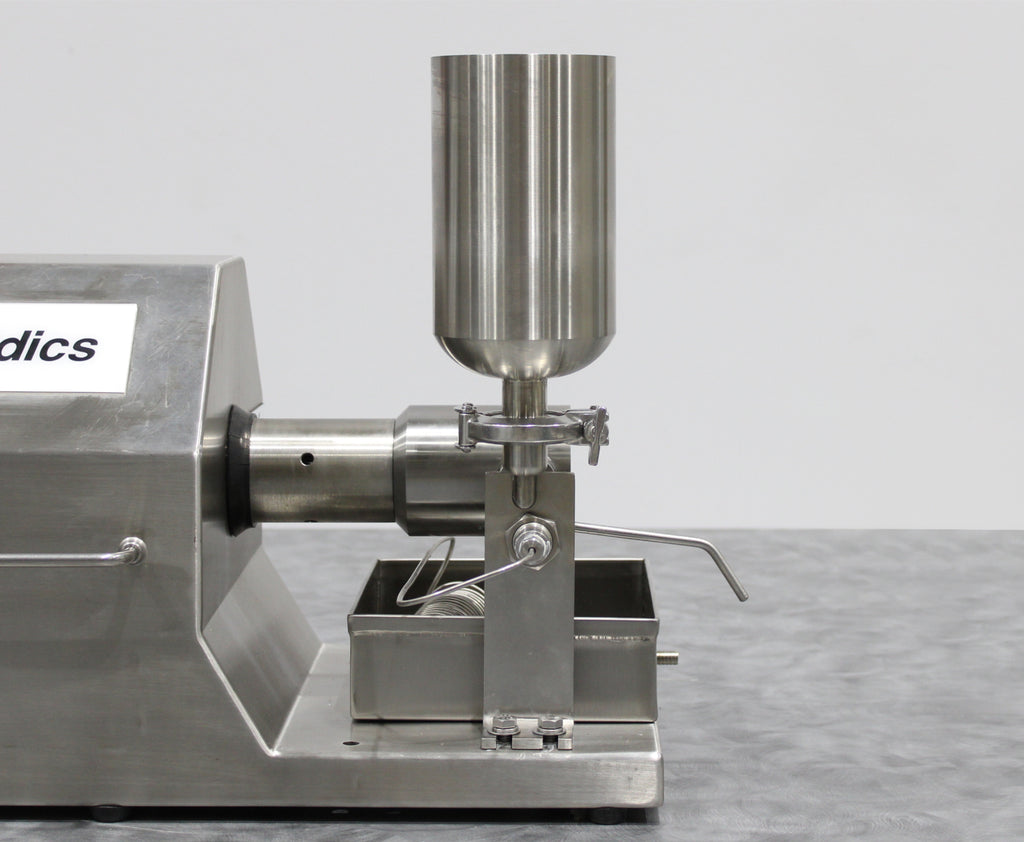

- 1 Liter Stainless Steel Reservoir

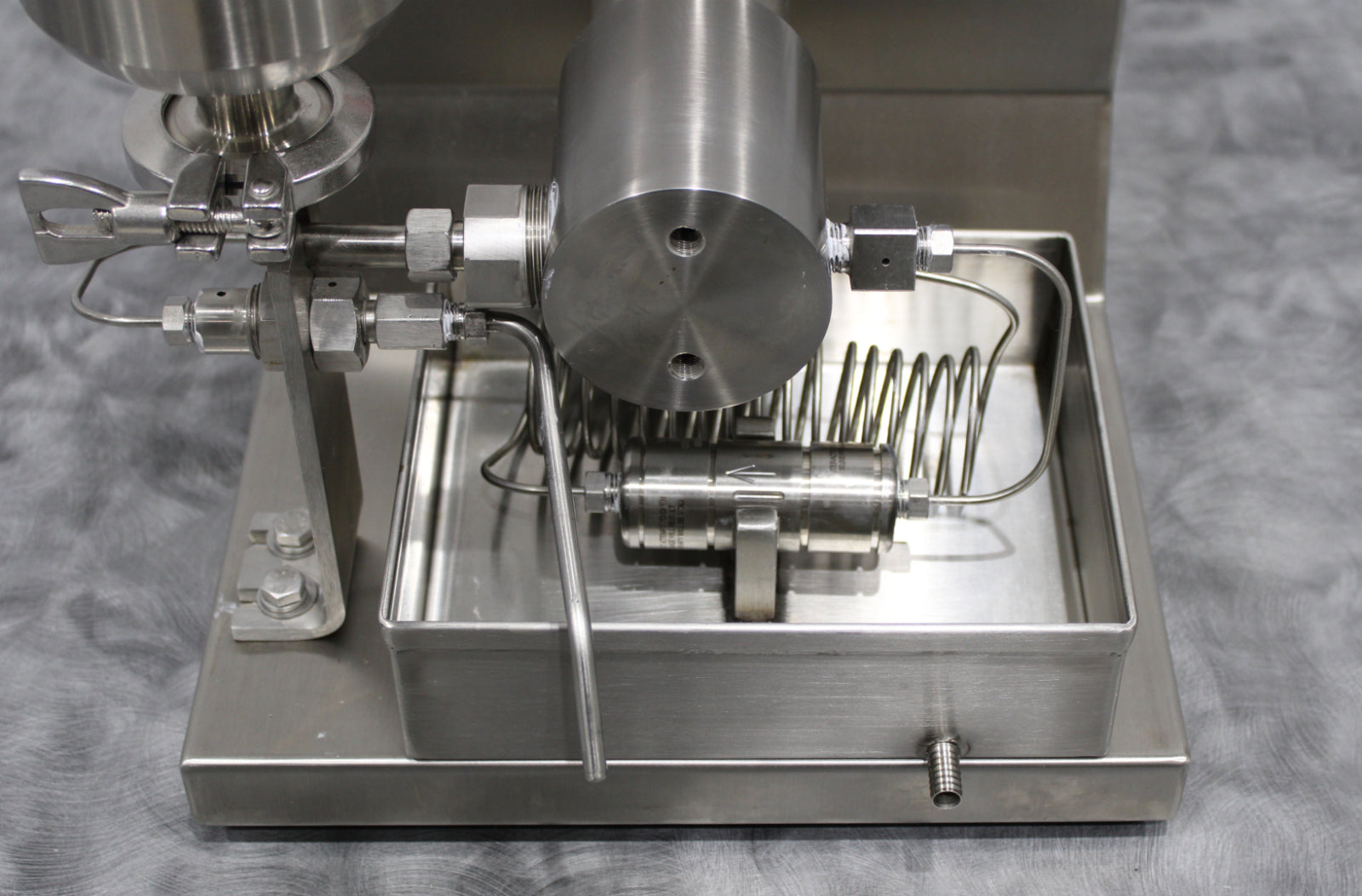

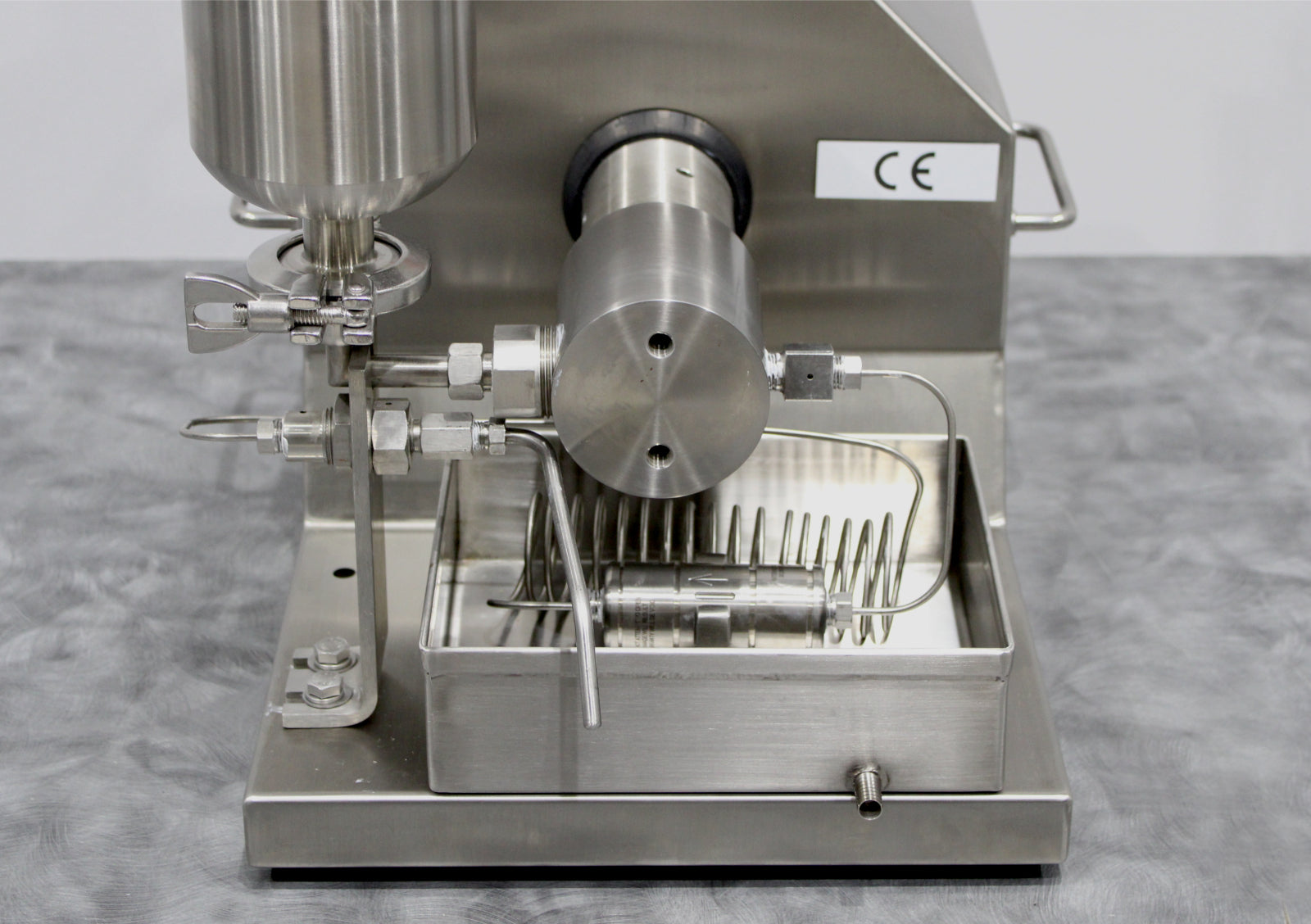

- Cooling Coil and Bath

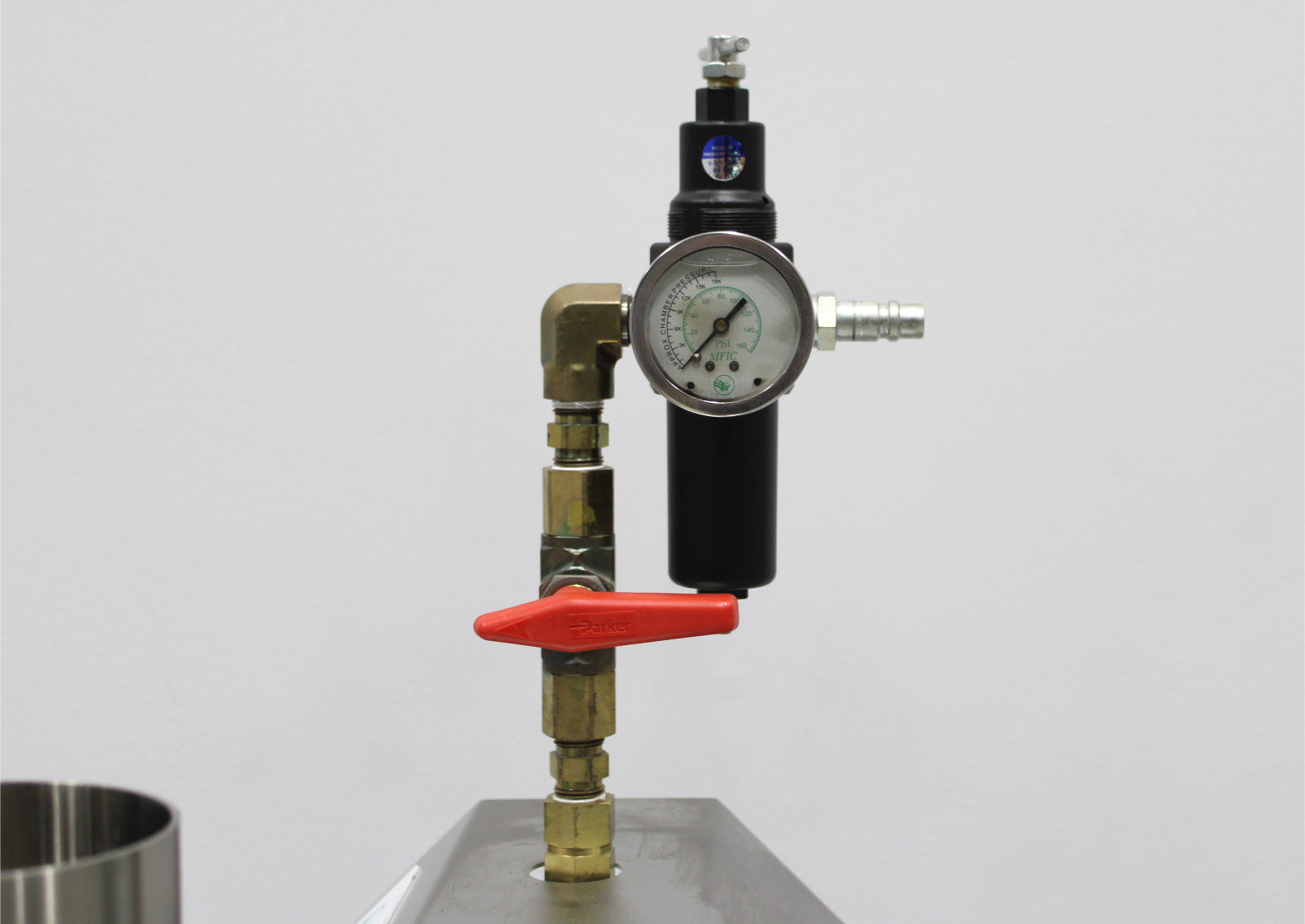

- Analog Pressure Gauge

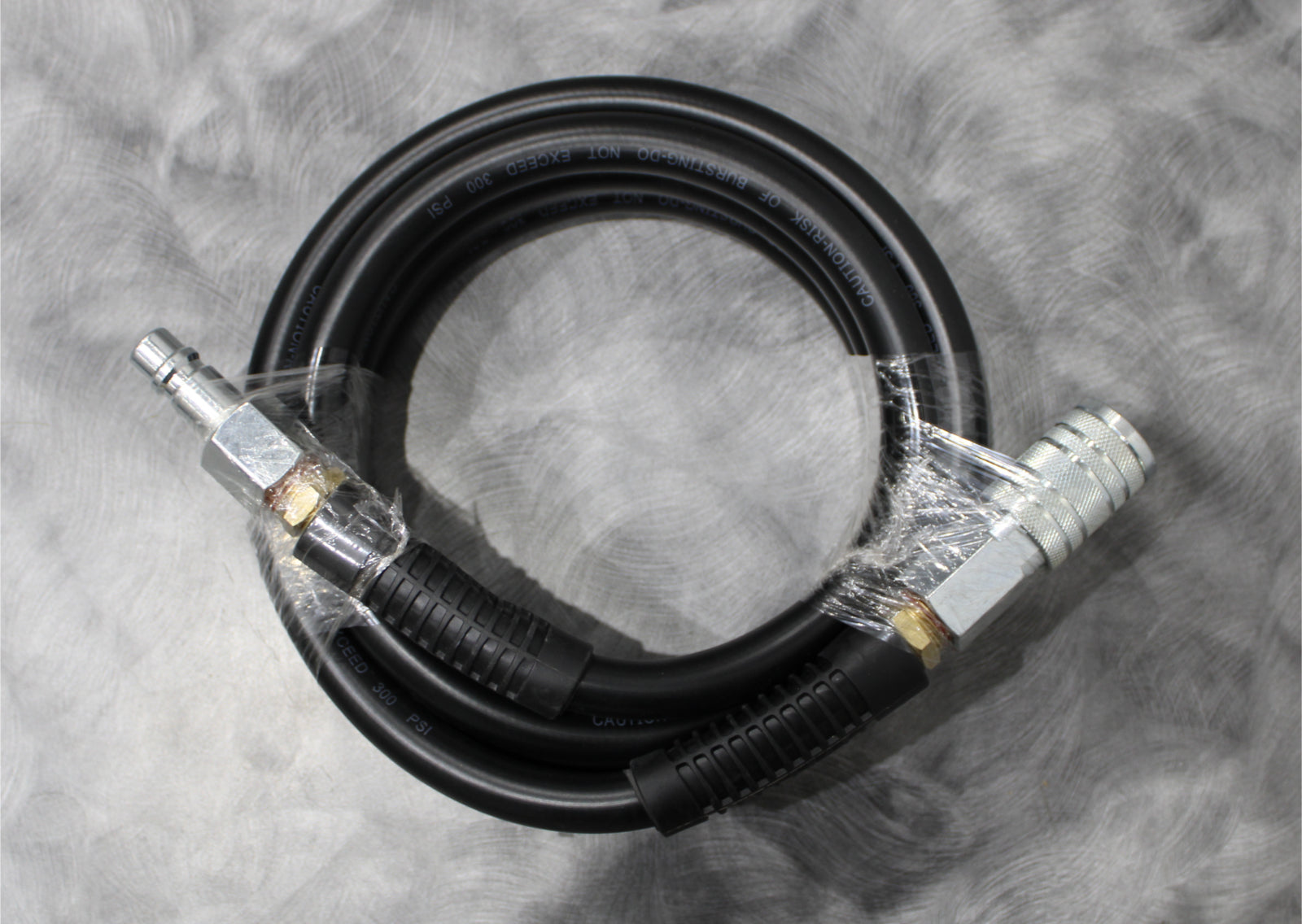

- Air Hose
- 90-Day Warranty
After its initial disinfection and inspection, our technicians tested the Microfluidics 110L microfluidizer processor homogenizer with the following results:
- Cleaned and inspected liquid end: PASSED
- Ran and sterilized with 2 lites of isopropyl alcohol: PASSED
- Verify highest pressure ran of 18,000 psi: PASSED
- Check process pressure control valve: PASSED
- Check motor start/stop control: PASSED
- Check pressurized air inlet assembly: PASSED
- Check/replace plunger seal assembly: PASSED
- Clean and inspect plunger: PASSED
- Clean and inspect bearing isolator/Orings: PASSED
- Clean and inspect/replace high pressure fittings: PASSED
- Clean and inspect/replace inlet check valve: PASSED
- Backflush the interaction chamber: PASSED

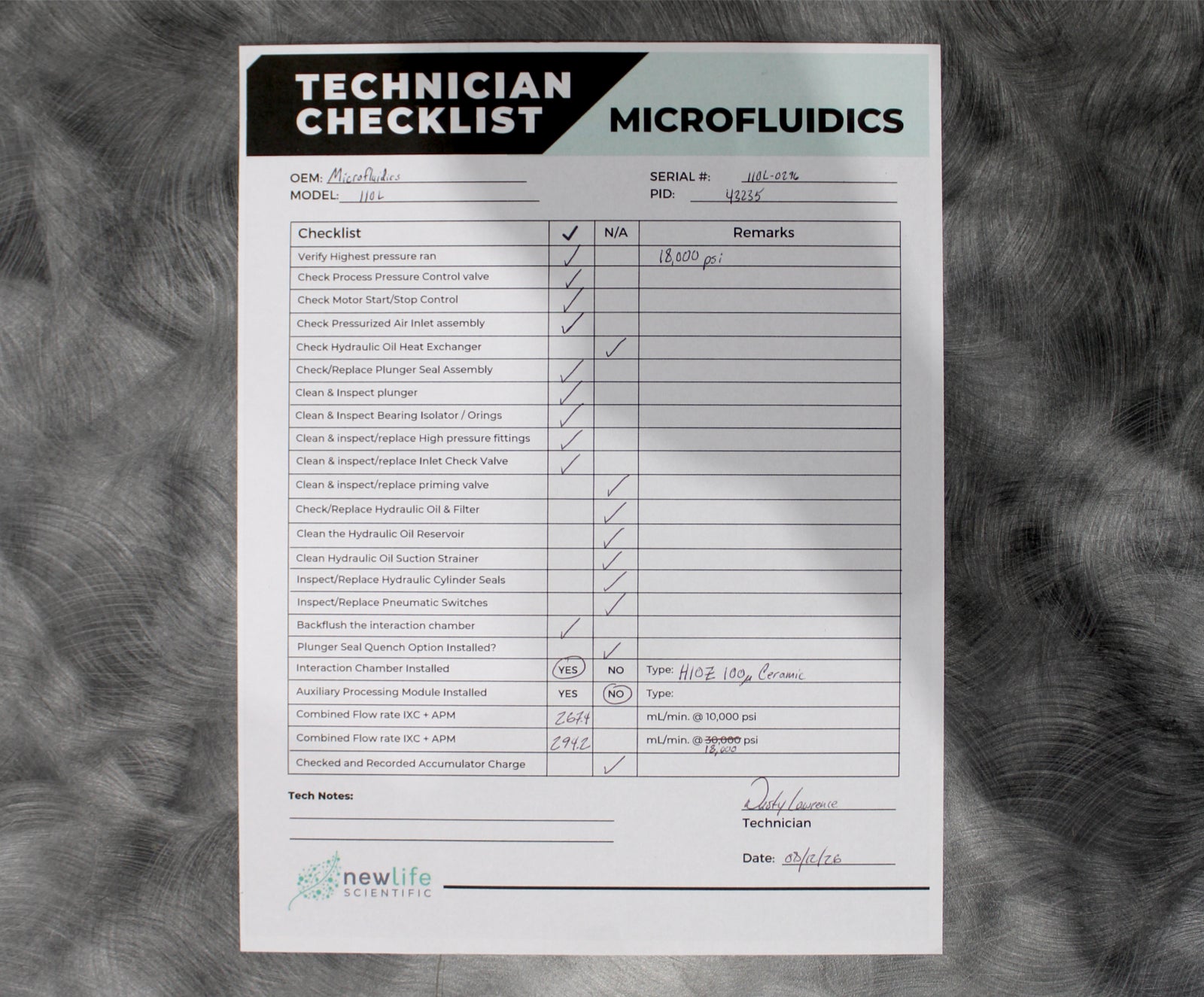

Notice: Please review the technician checklist in the product images to see more details of the inspection and testing performed.

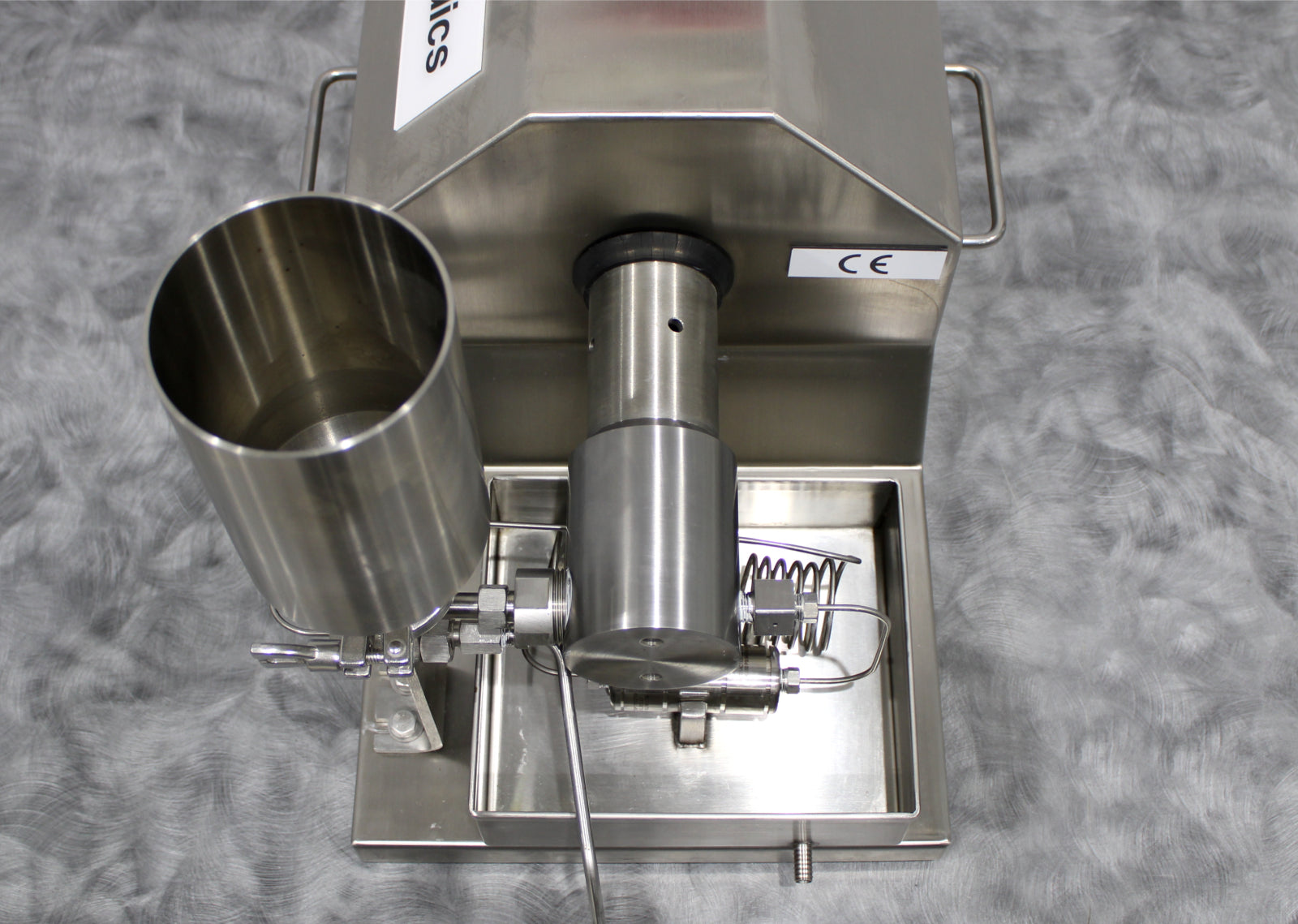

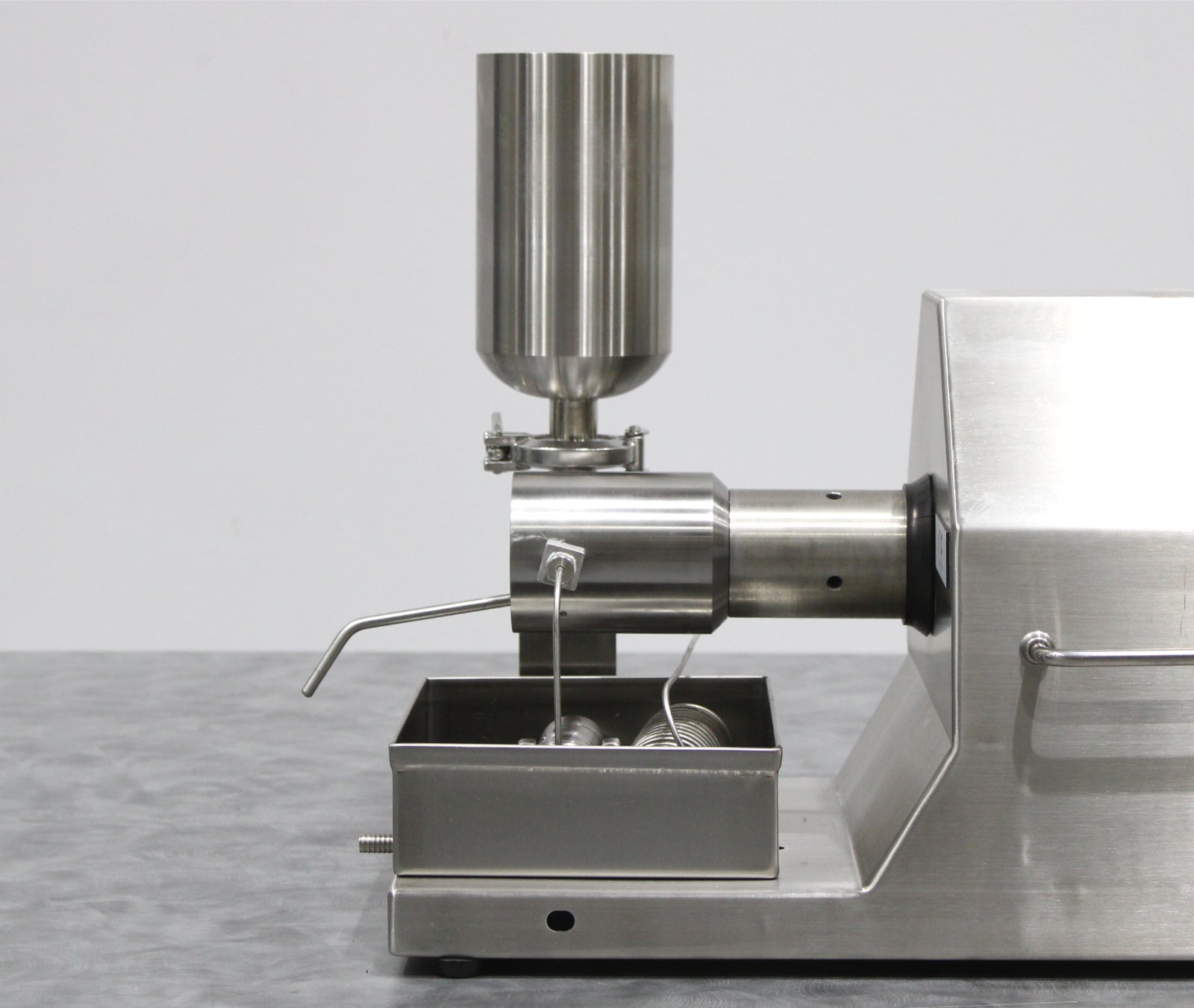

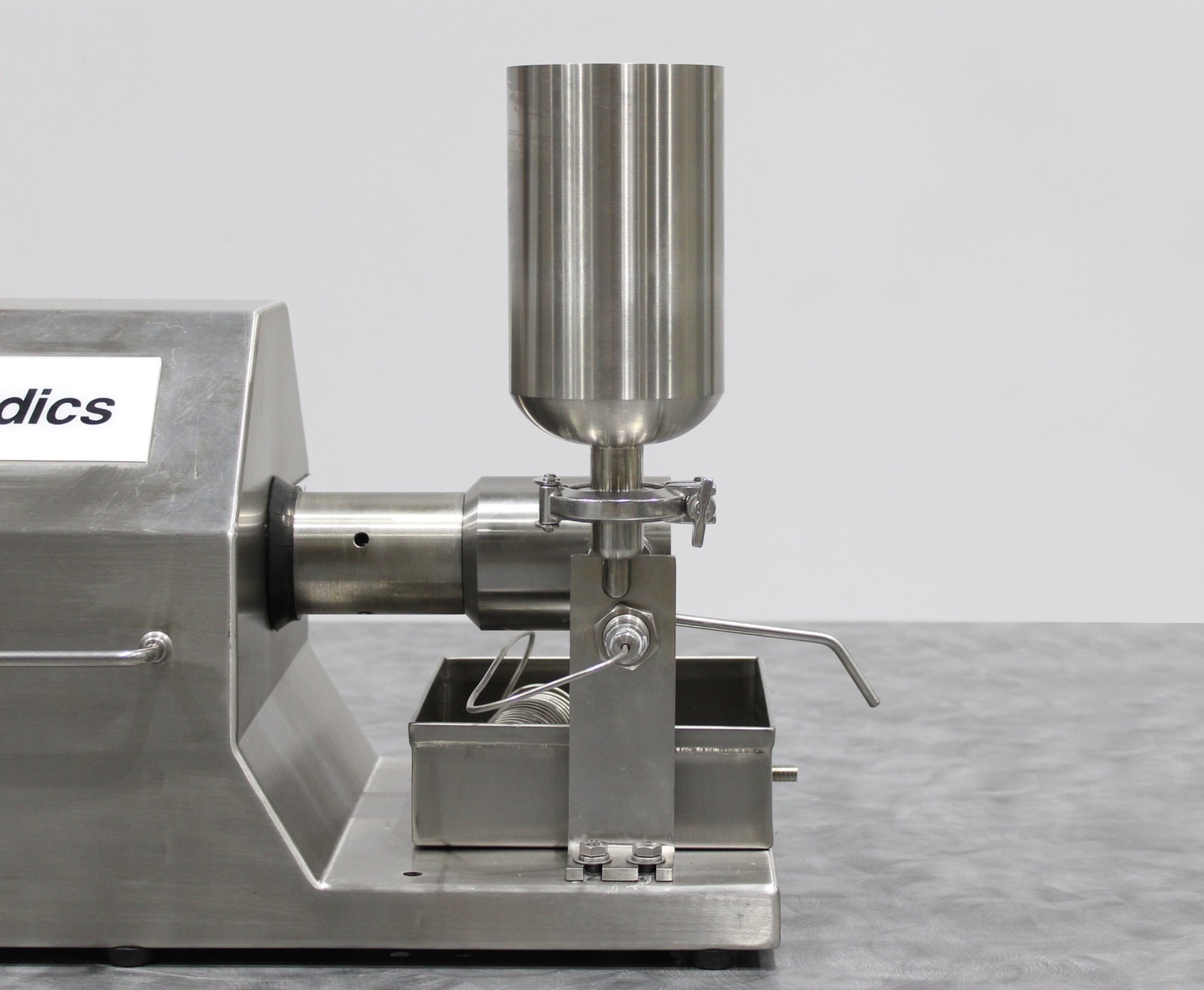

Notice: This homogenizer has some minor cosmetic blemishes. Please review the available photos to see the physical condition before purchasing.
|
Manufacturer
|
Microfluidics
|
|
Model
|
110L
|
|

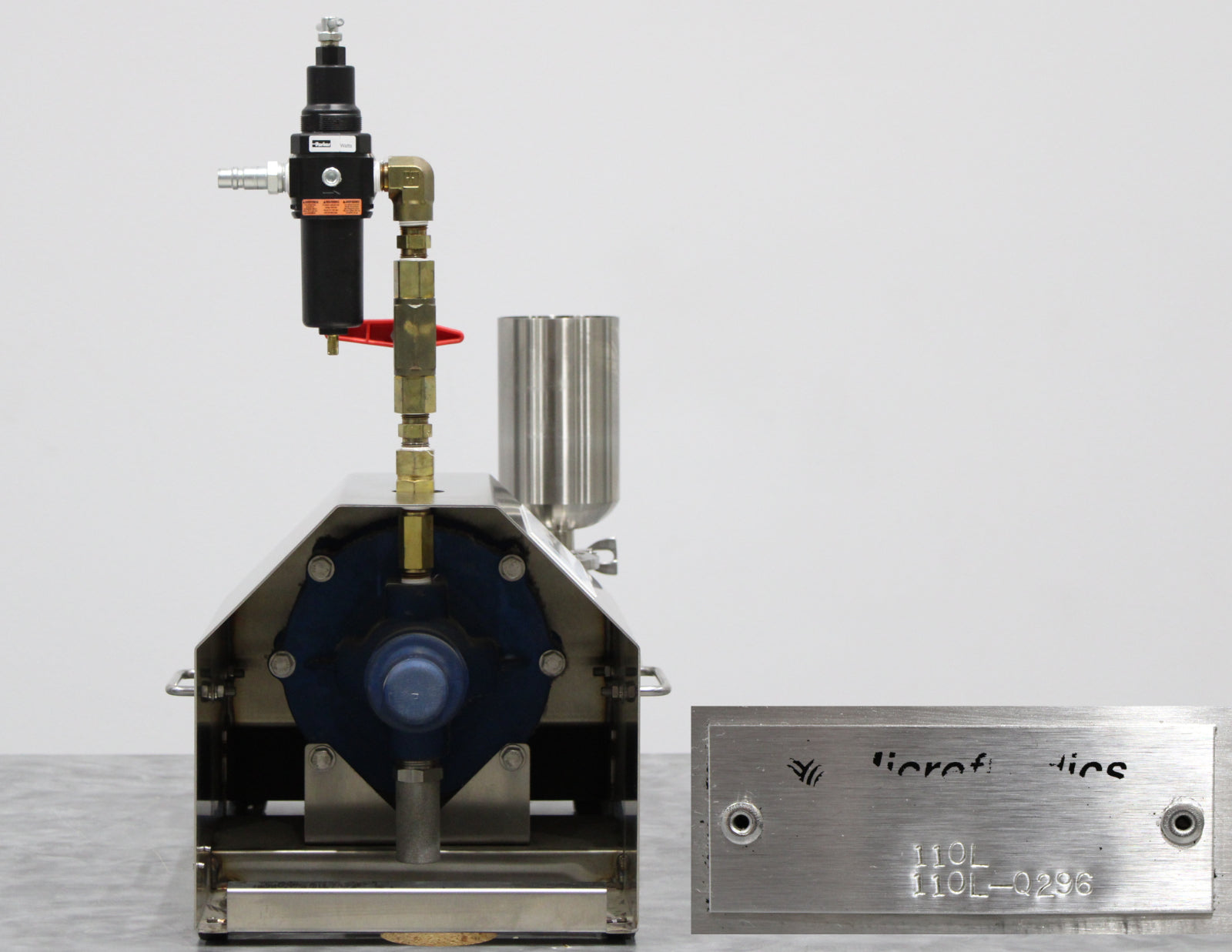

Serial No.
|
110L-Q296
|
|
Maximum product processing pressure
|
18,000 psi
|
|
Inlet reservoir capacity (Glass, Standard)
|
200 mL
|
|
Manual priming and purging cylinder inlet capacity
|
45 mL
|
|
Minimum sample size
|
14 mL with up to 12 mL recovery
|
|
Plunger stroke length
|
2.5"
|
|
Approximate stroke displacement
|
.375 in3 (6 mL)
|
|
Air compressor power requirement
|
57 scfm @ 120 psi (0.2m3/min @ 8 bar)
|
|
Coned and threaded fittings (high pressure piping)
|
6.25 ft.-lbs
|
|
Overall dimensions (W x D x H)
|
15 x 23 x 25 in
|
Note: All figures based on testing with water
