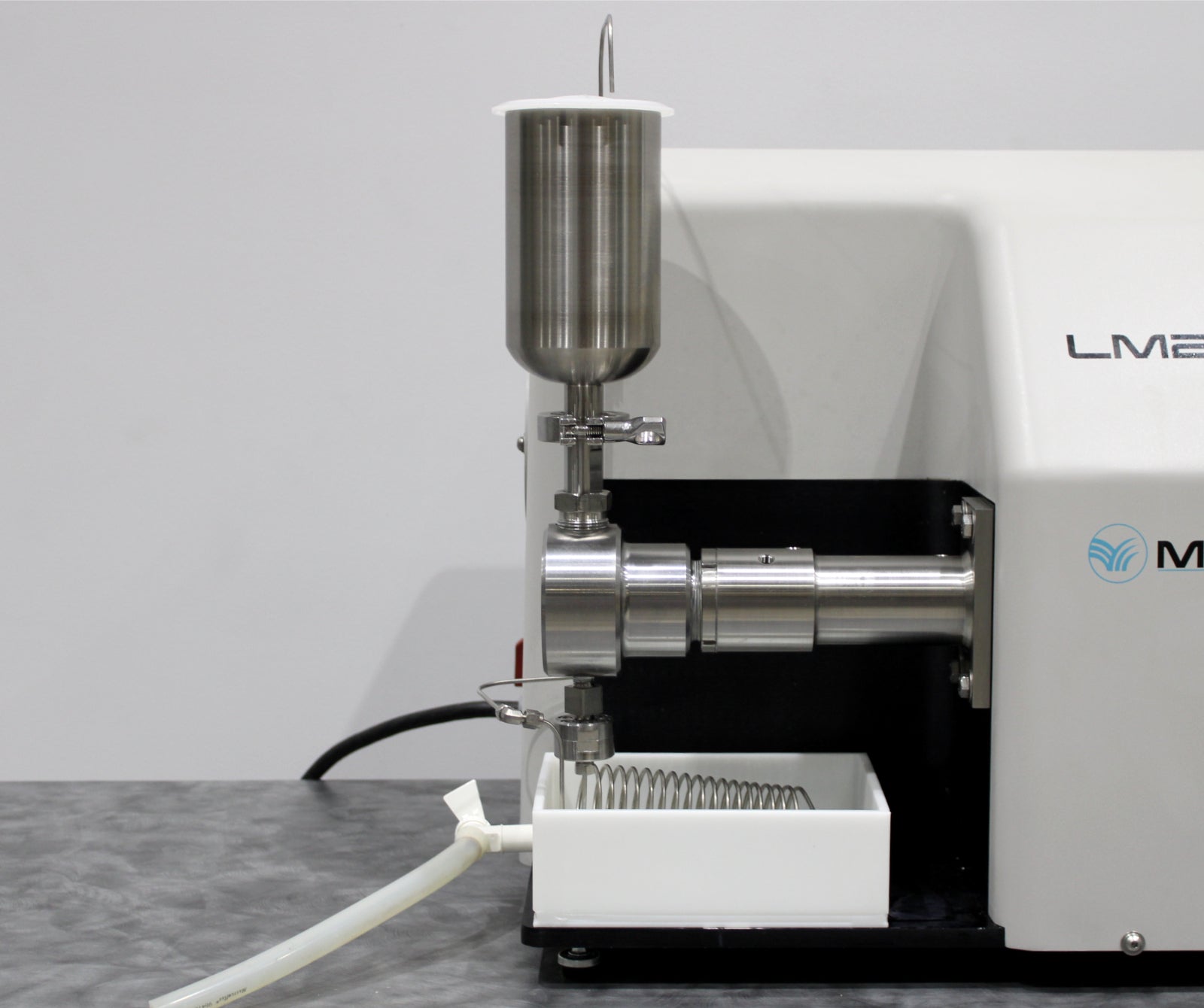

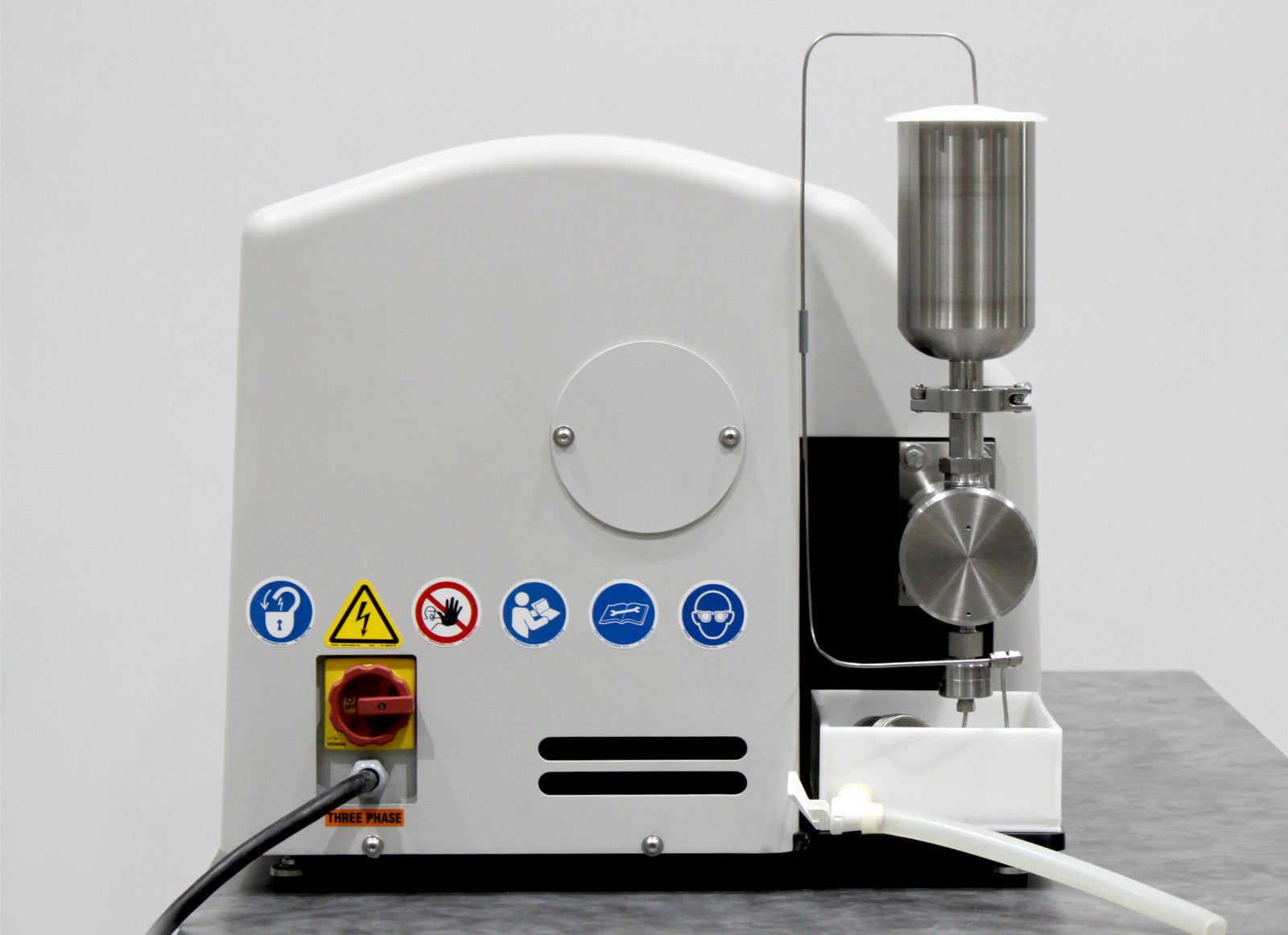

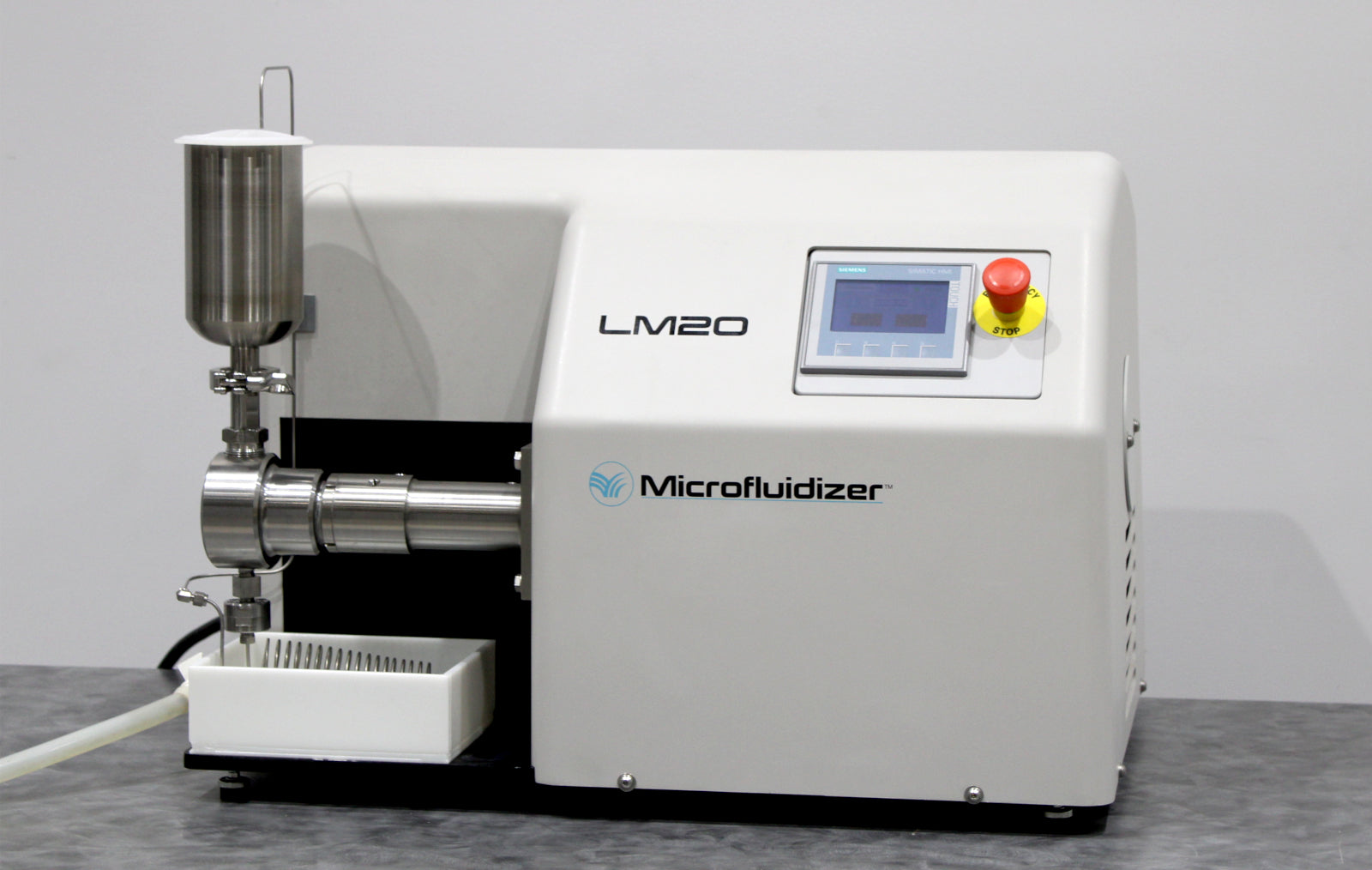

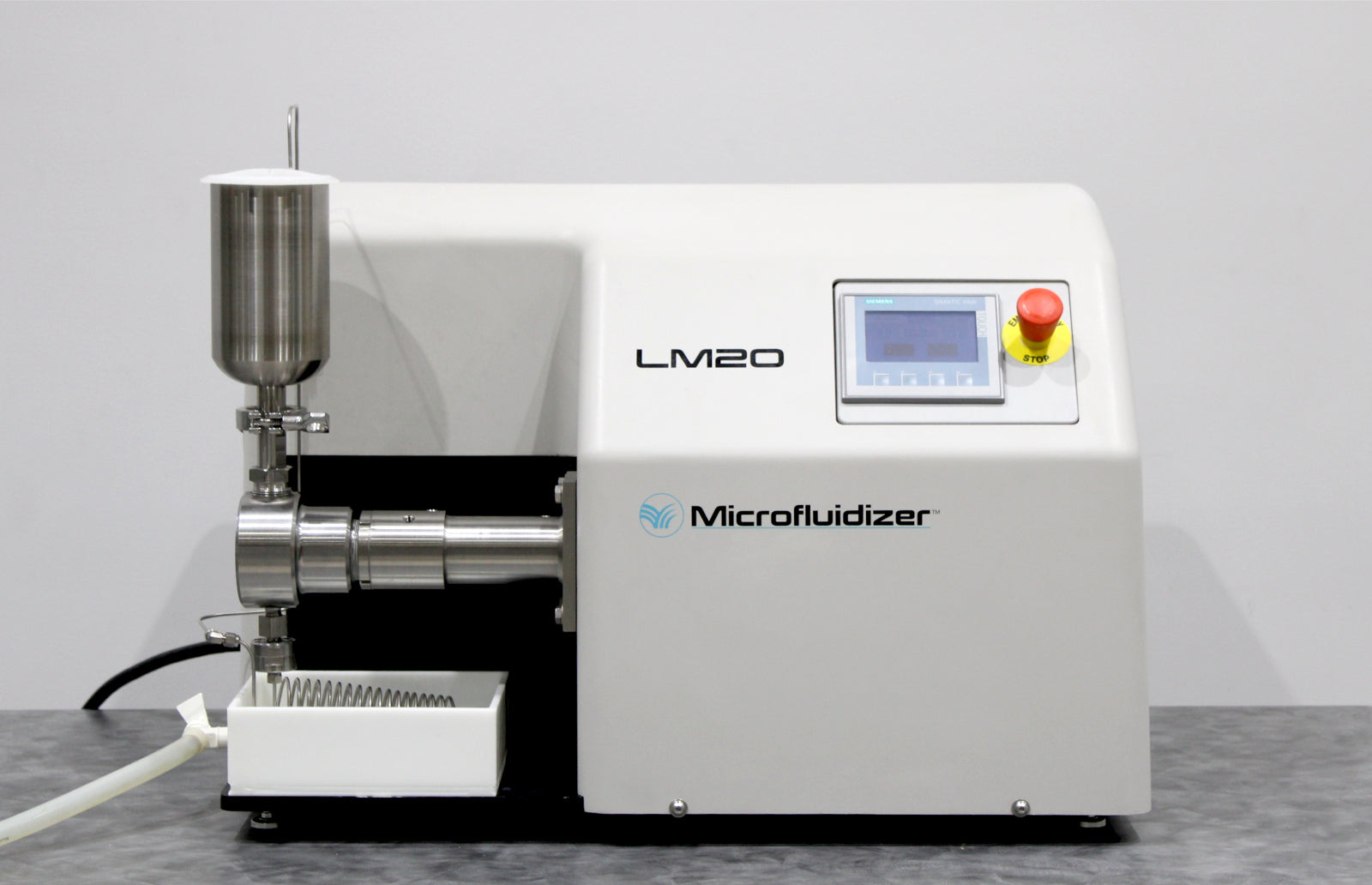

- Microfluidics LM20 30K Microfluidizer Processor High-Shear Fluid Homogenizer
- F12Y 75 Micron Diamond Interaction Chamber (IXC)

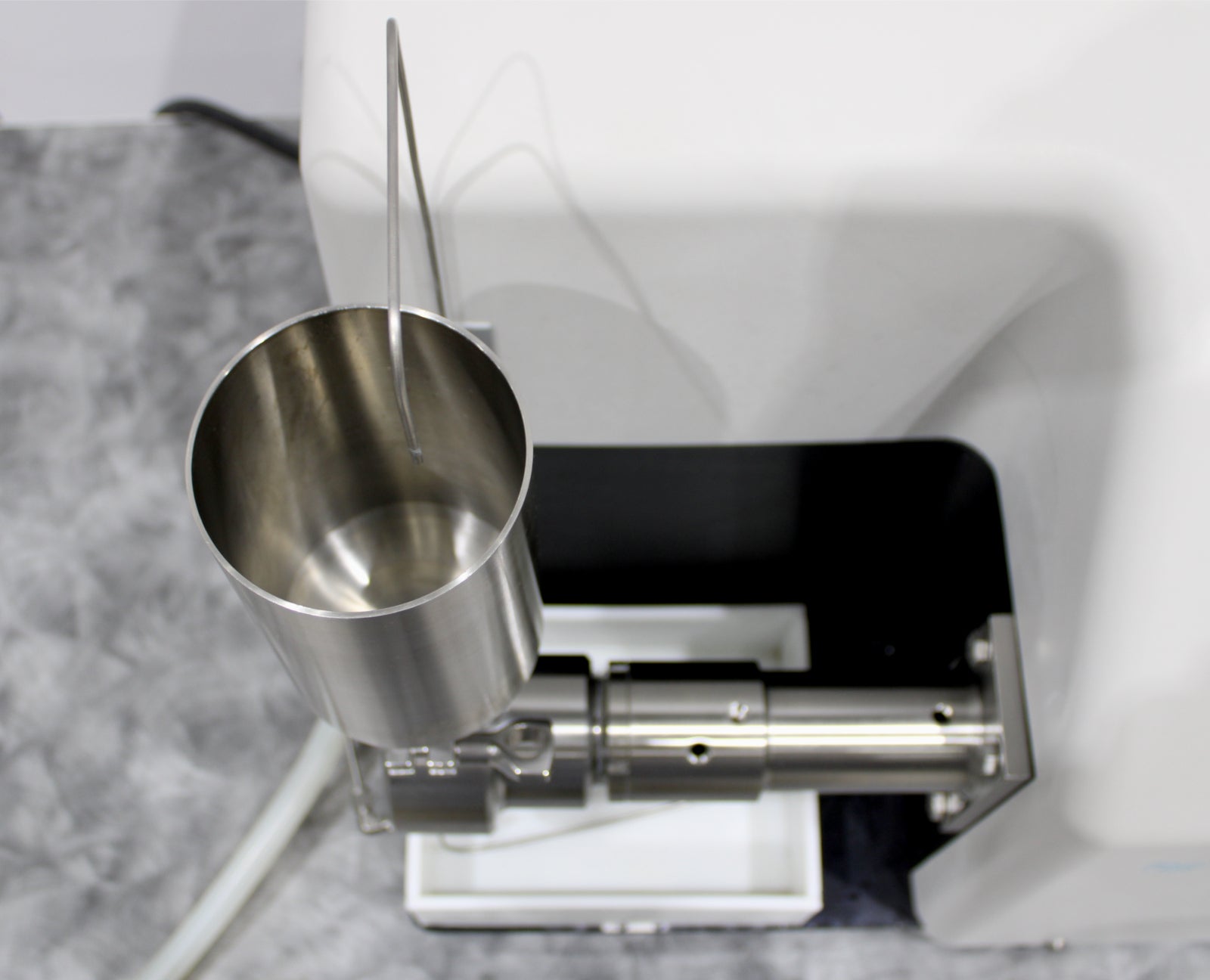

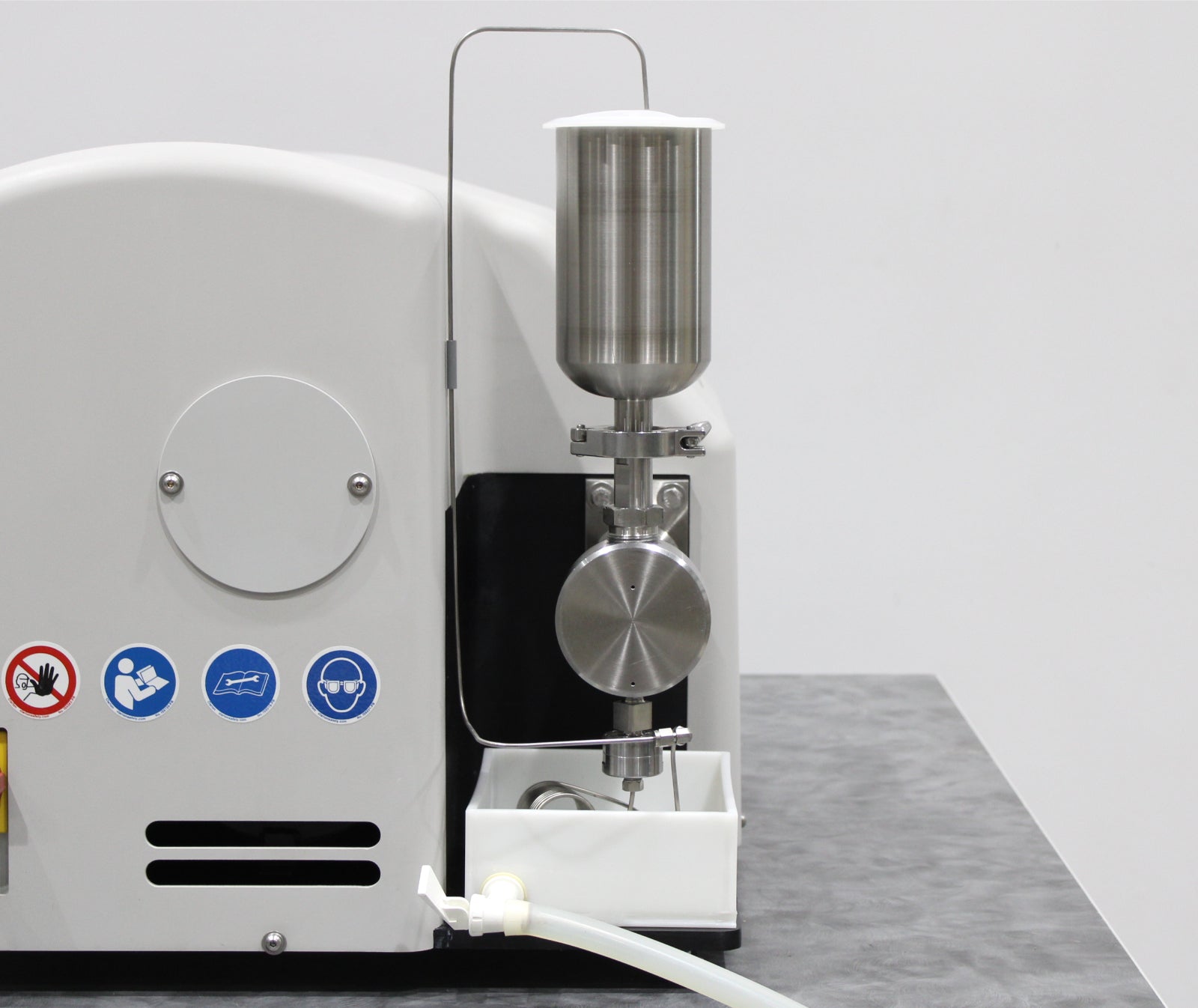

- 1 Liter Stainless Steel Reservoir
- Digital Pressure Gauge

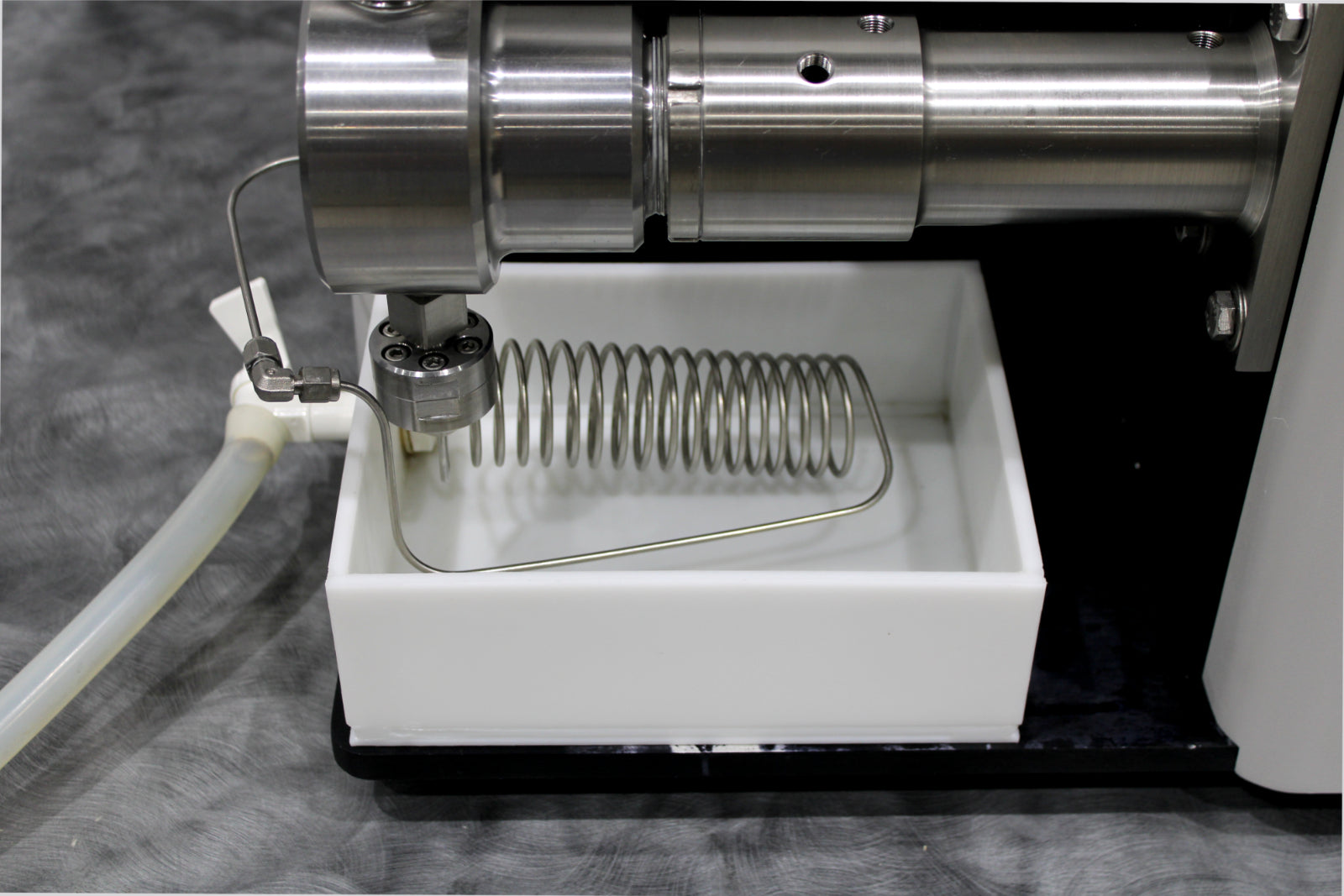

- Cooling Coil and Bath

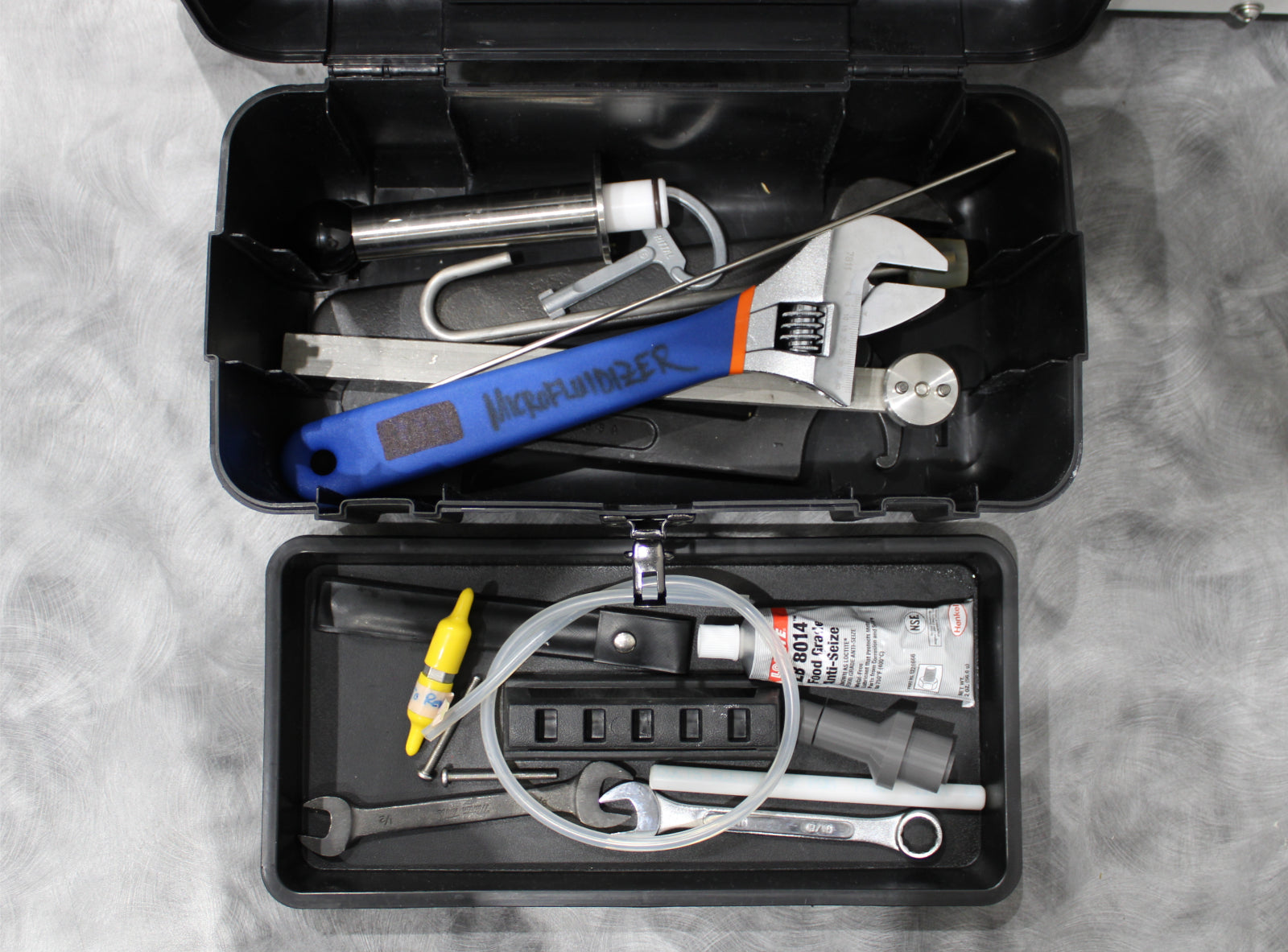

- Preventive Maintenance Toolkit

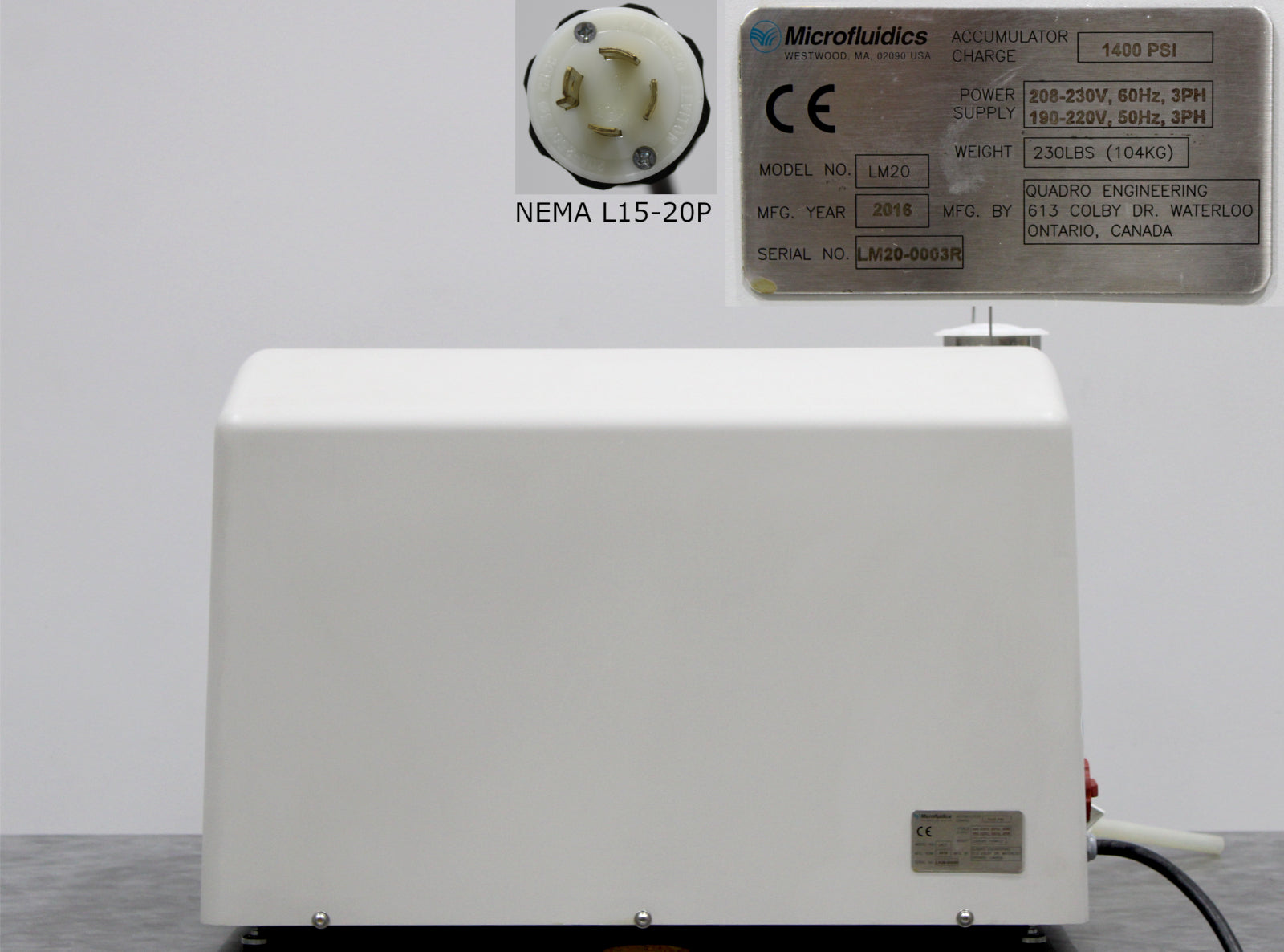

- Attached Power Cable with NEMA L15-20P Plug
- 90-Day Warranty
After its initial disinfection and inspection, our technicians tested the Microfluidics LM20 microfluidizer processor with the following results:
- Cleaned and inspected liquid and hydraulic end: PASSED
- Ran and sterilized with 1 liter of isopropyl alcohol: PASSED
- Verify highest pressure of 30,000 psi: PASSED
- Check process pressure control valve: PASSED
- Check motor start/stop control: PASSED
- Check hydraulic oil heat exchanger: PASSED
- Check/replace plunger seal assembly: PASSED
- Clean and inspect plunger: PASSED
- Clean and inspect bearing isolator/Orings: PASSED
- Clean and inspect/replace high pressure fittings: PASSED
- Clean and inspect/replace inlet check valve: PASSED
- Clean and inspect/replace priming valve: PASSED
- Check/replace hydraulic oil and filter: PASSED
- Clean the hydraulic oil reservoir: PASSED
- Clean the hydraulic oil suction strainer: PASSED
- Inspect/replace hydraulic cylinder seals: PASSED
- Backflush the interaction chamber: PASSED

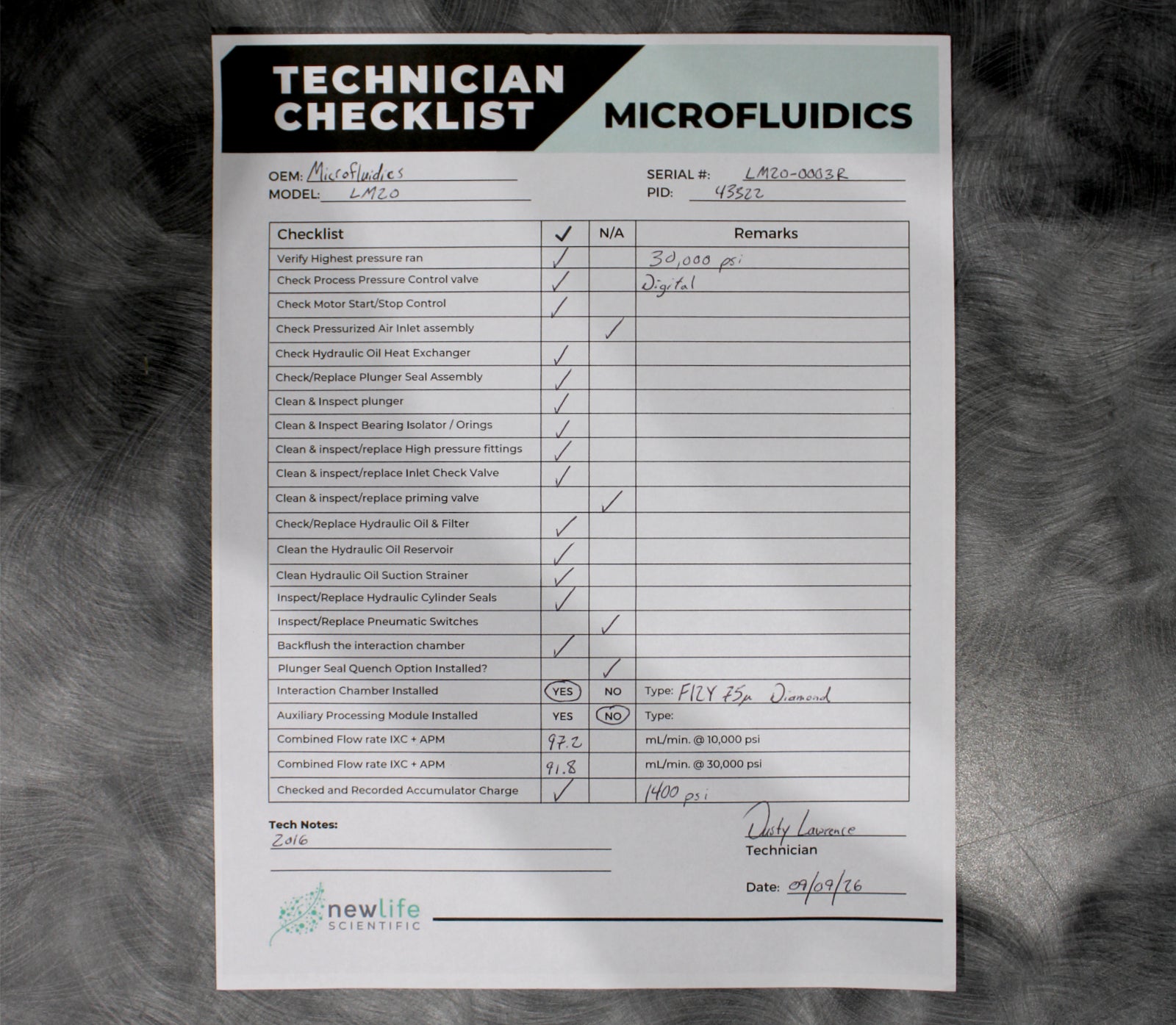

Notice: Please review the technician checklist in the product images to see more details of the inspection and testing performed.
|
Manufacturer
|
Microfluidics
|
|
Model No.
|
LM20
|
|
Serial No.
|
LM20-0003R
|
|
Mfg. year
|
2016
|
|
Pressure range
|
Up to 30,000 psi (2,068 bar)
|
|
Minimum sample size
|
14 ml
|
|
Flowrate range
|
60 ‒ 100 ml/min
|
|
Accumulator charge
|
1400 psi
|
|
Feed temperature
|
Maximum of 75°C (165°F)
|
|
Pump actuator
|
Electro-hydraulic
|
|
Noise level
|
<80 dB TWA
|
|
Plug
|
NEMA L15-20P
|
|
Power supply
|
208-230, 60Hz, 3Ph
190-220, 50Hz, 3Ph
|
|
Dimensions (W x D x H)
|
32 x 25 x 22 in
|
|
Weight
|
230 lb (104 kg)
|
