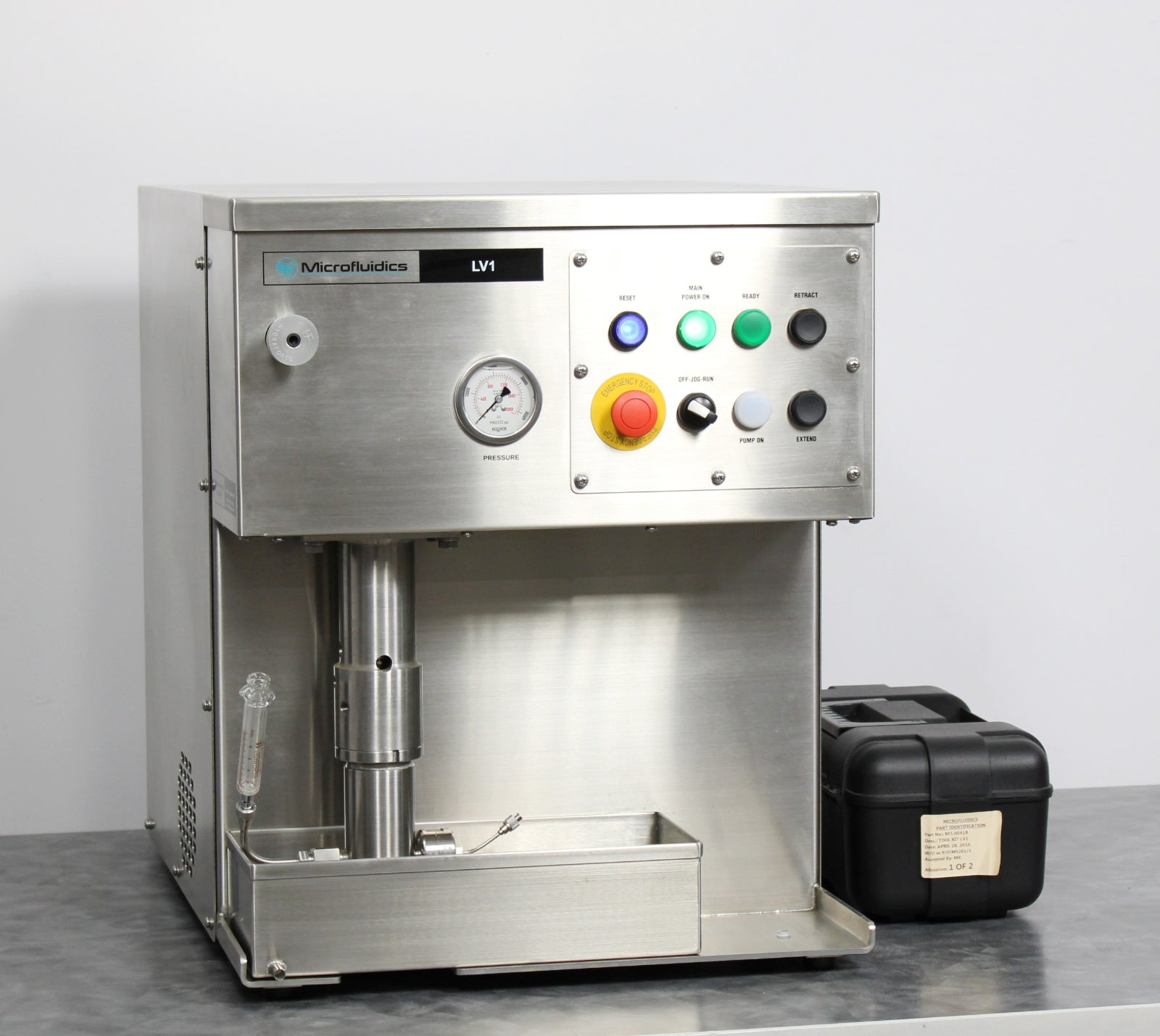

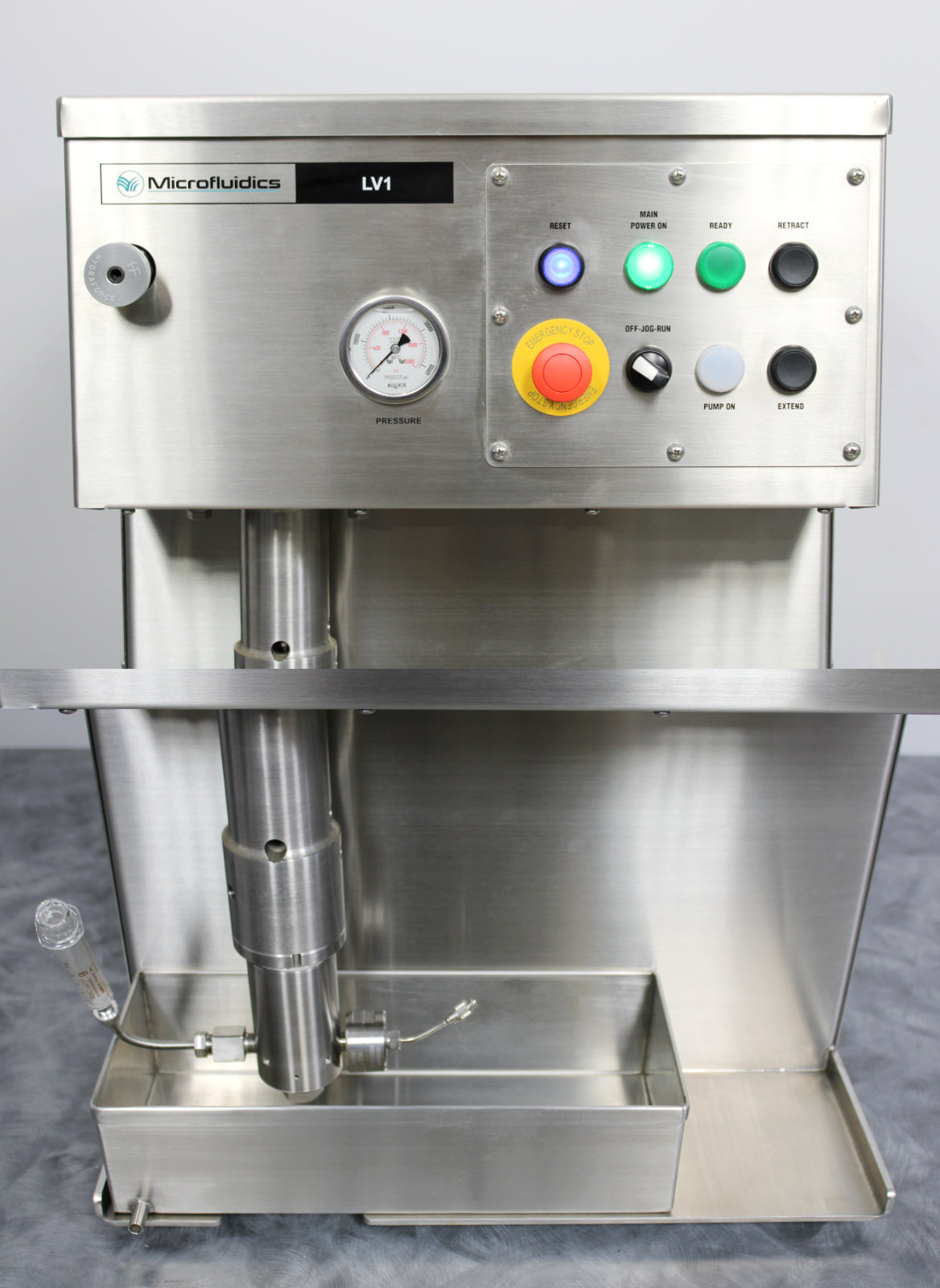

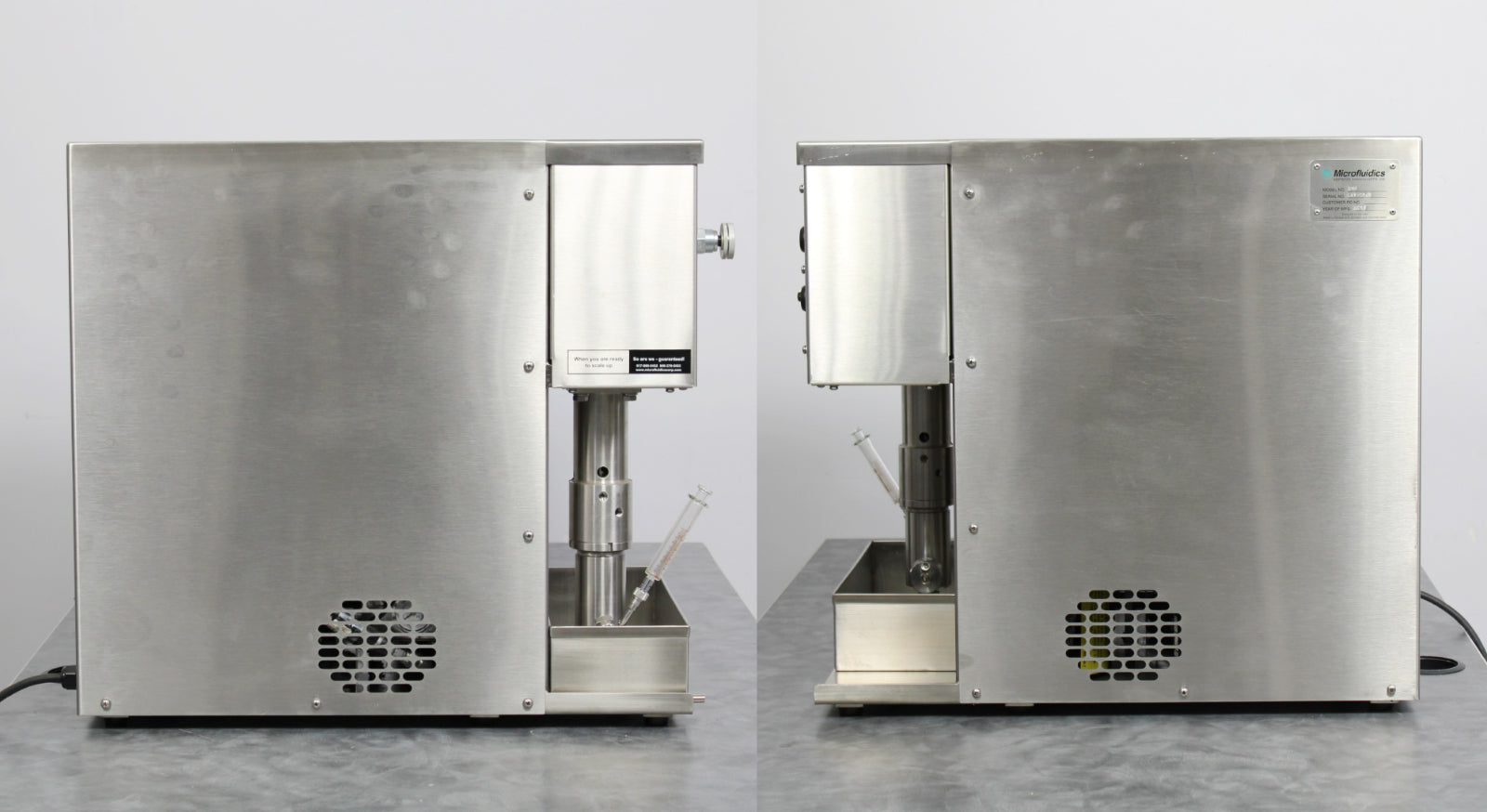

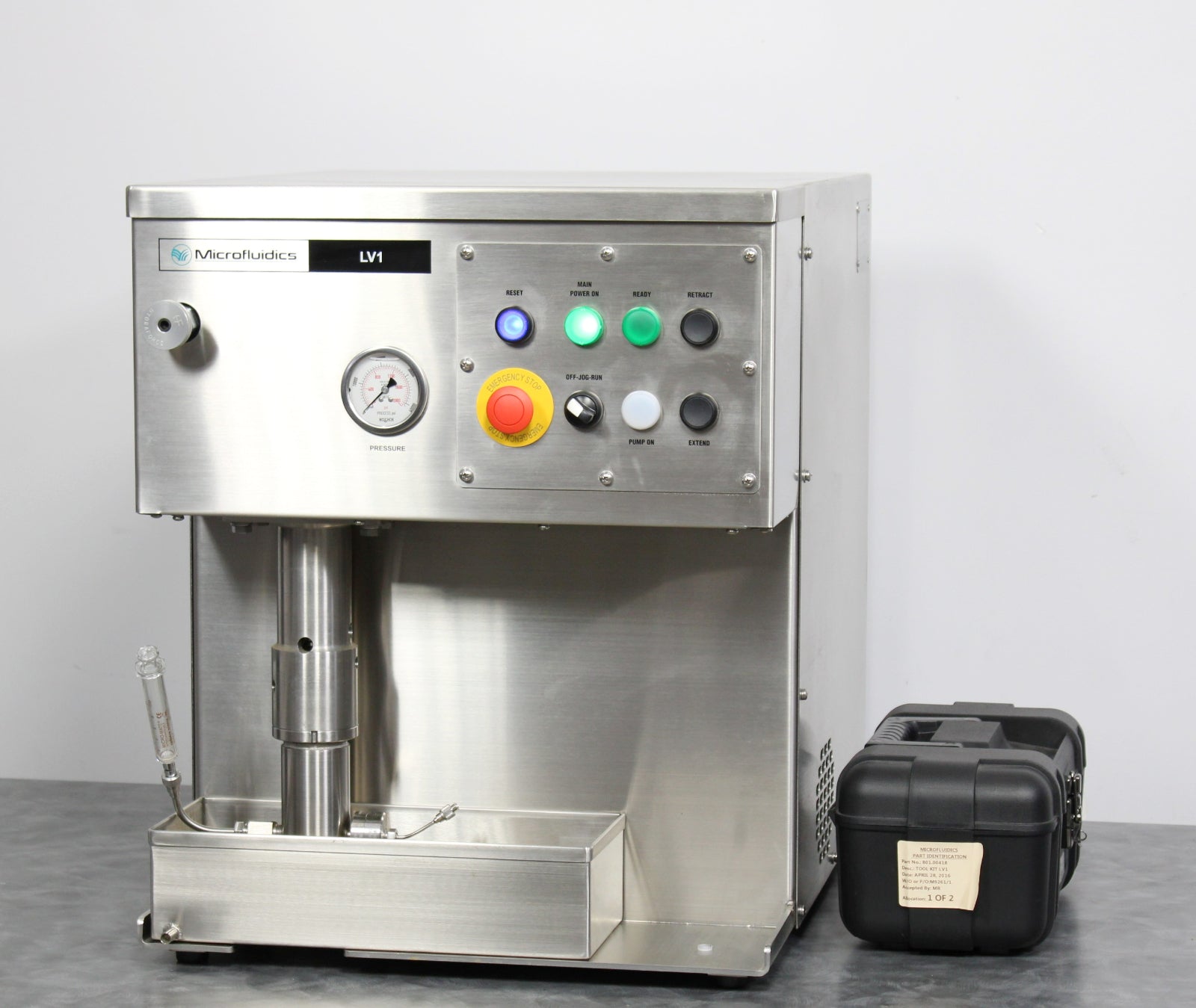

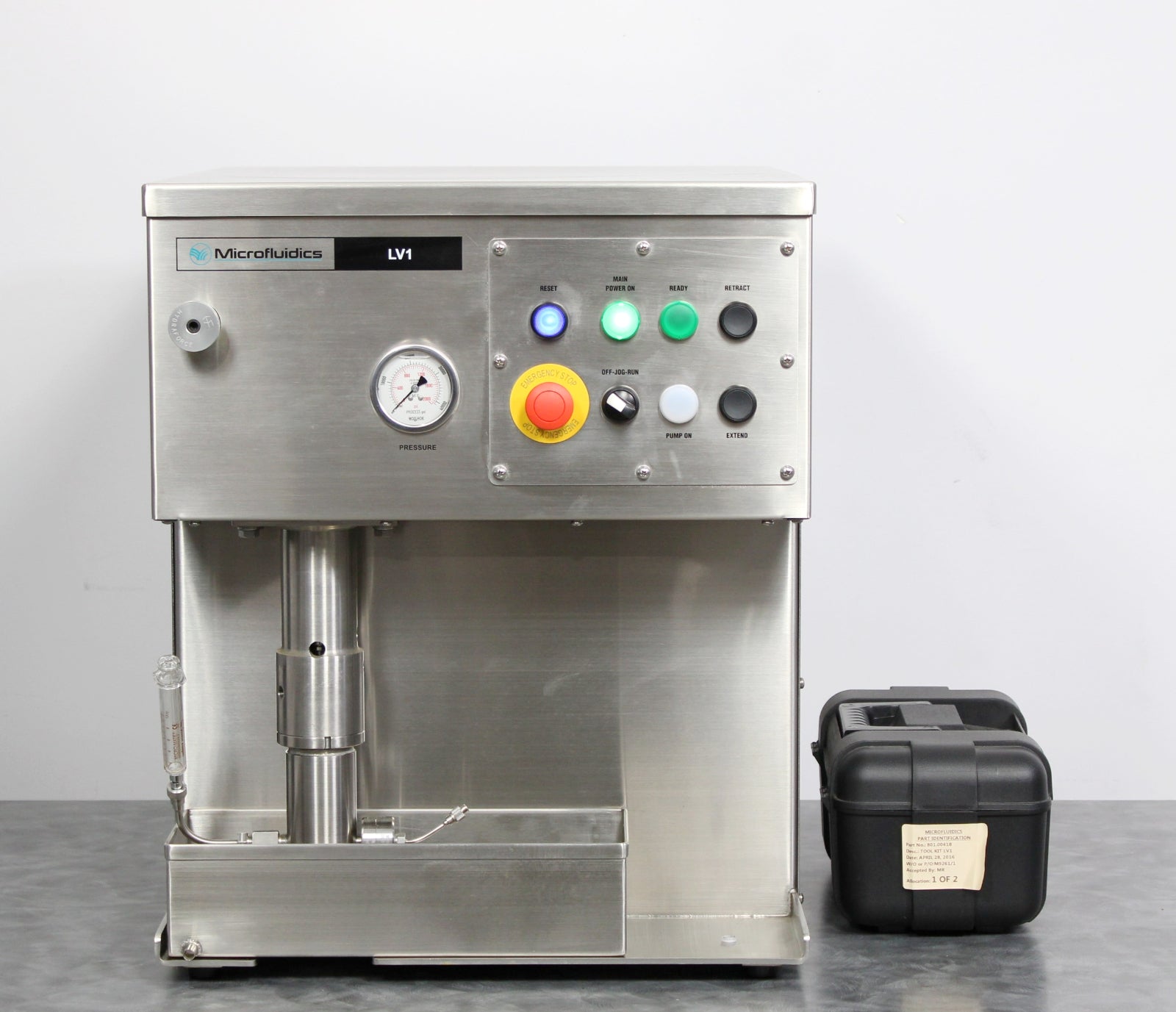

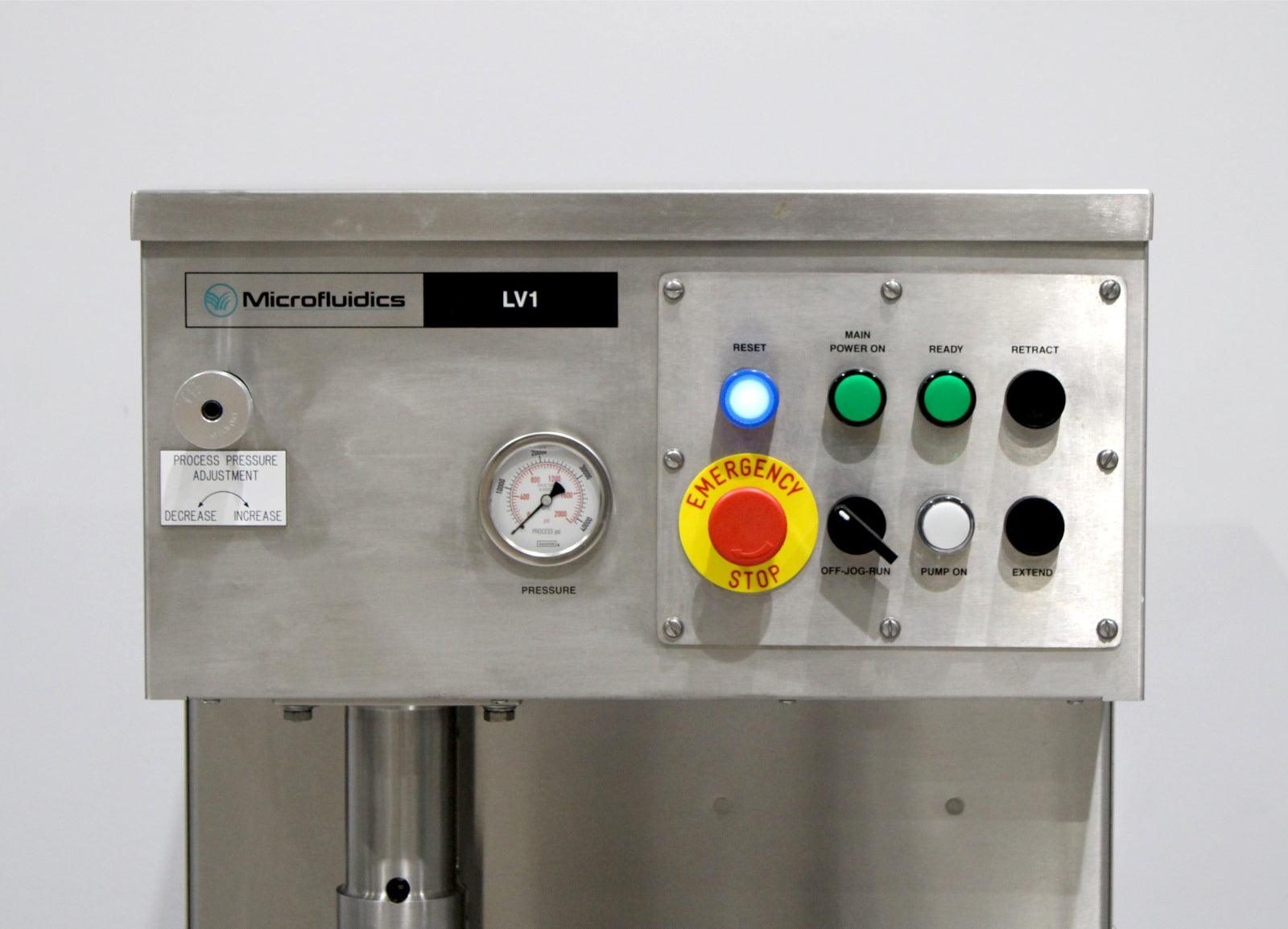

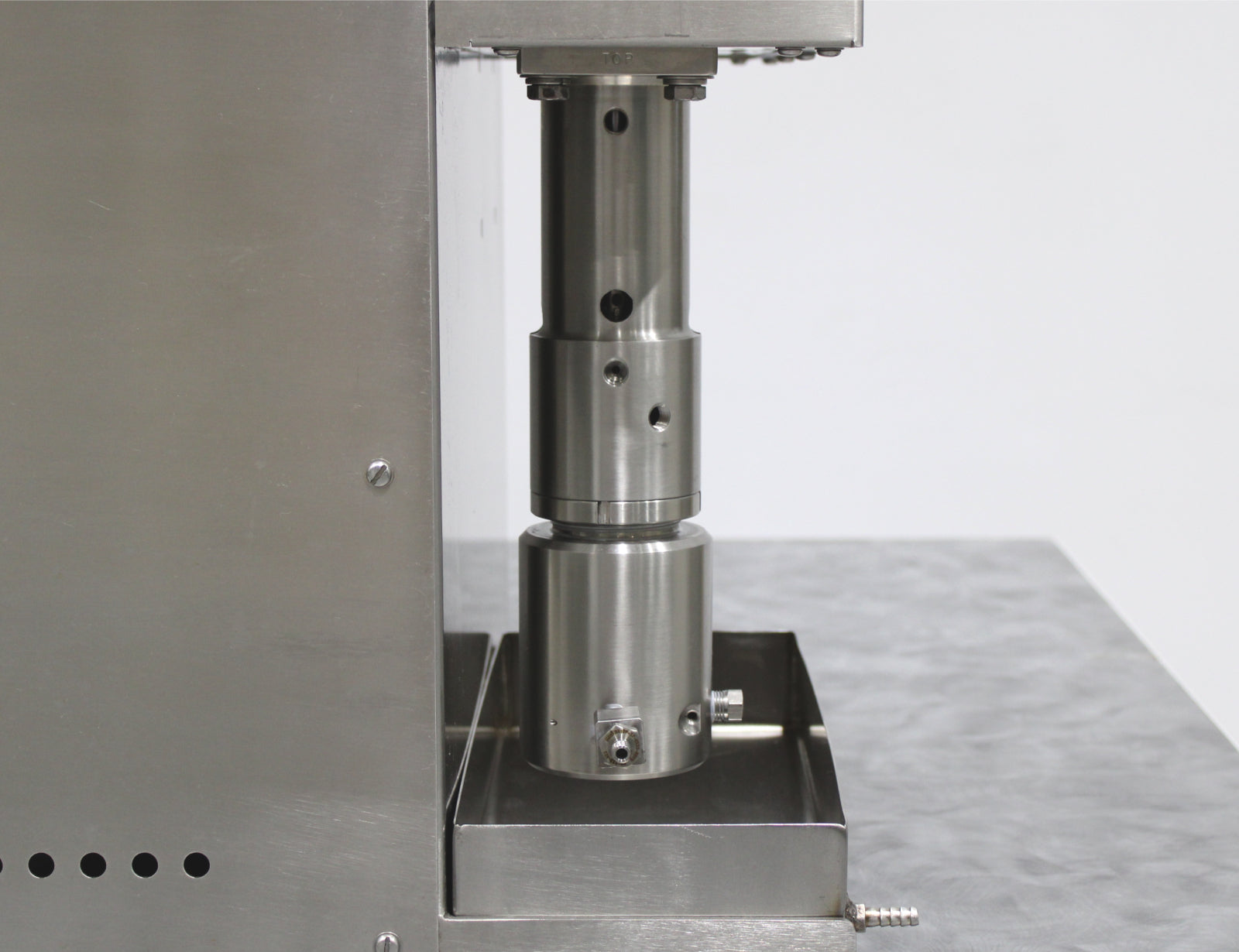

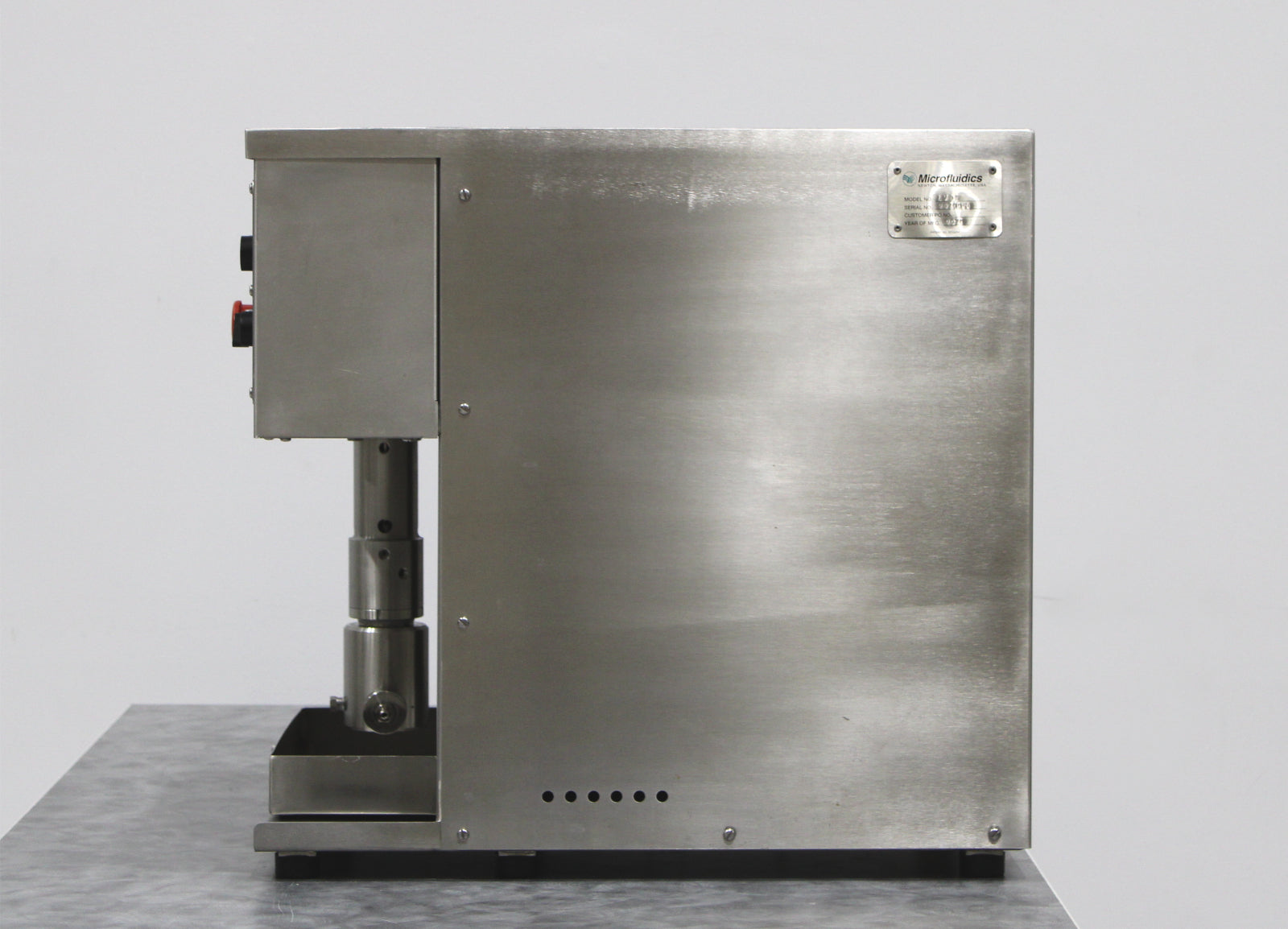

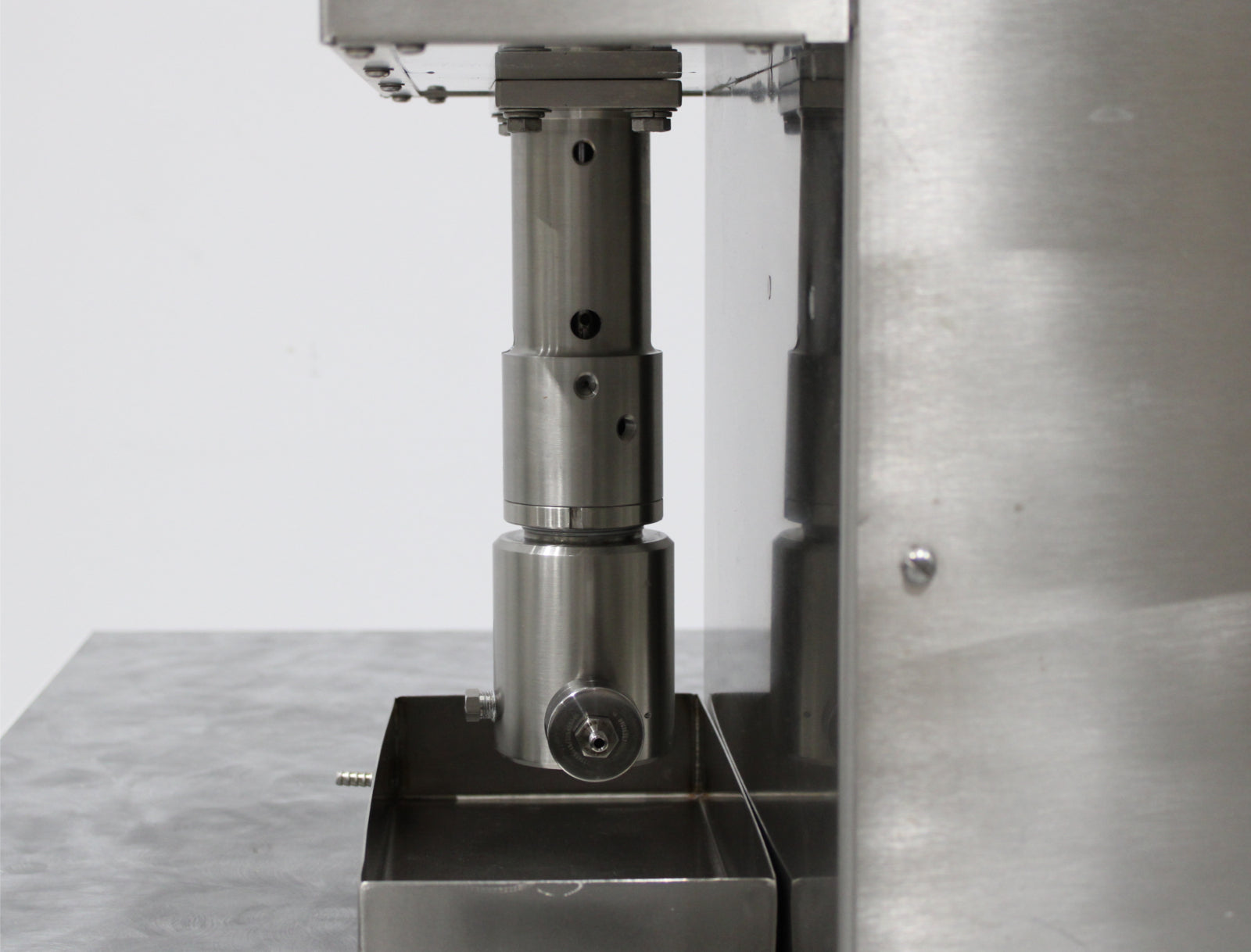

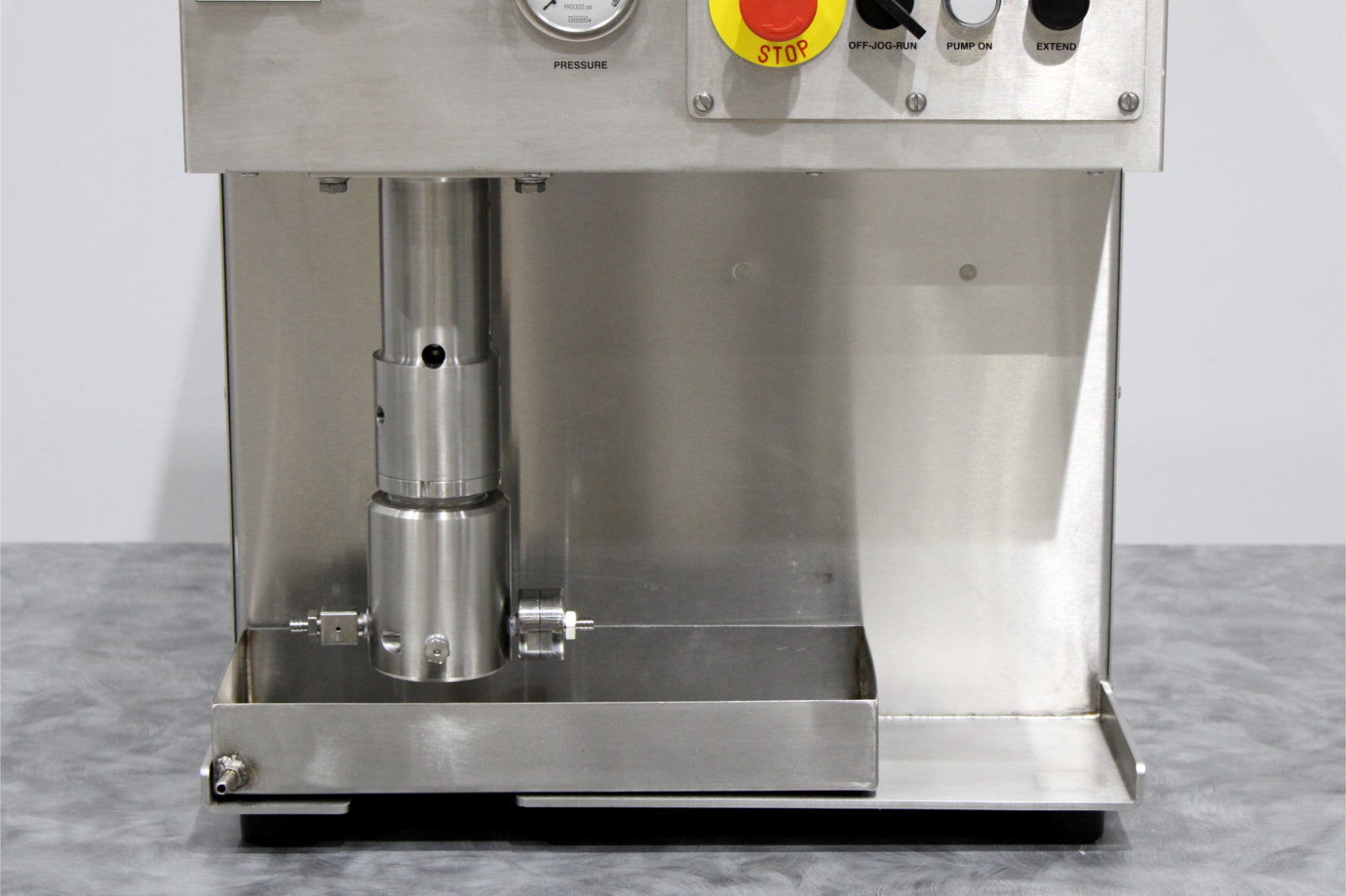

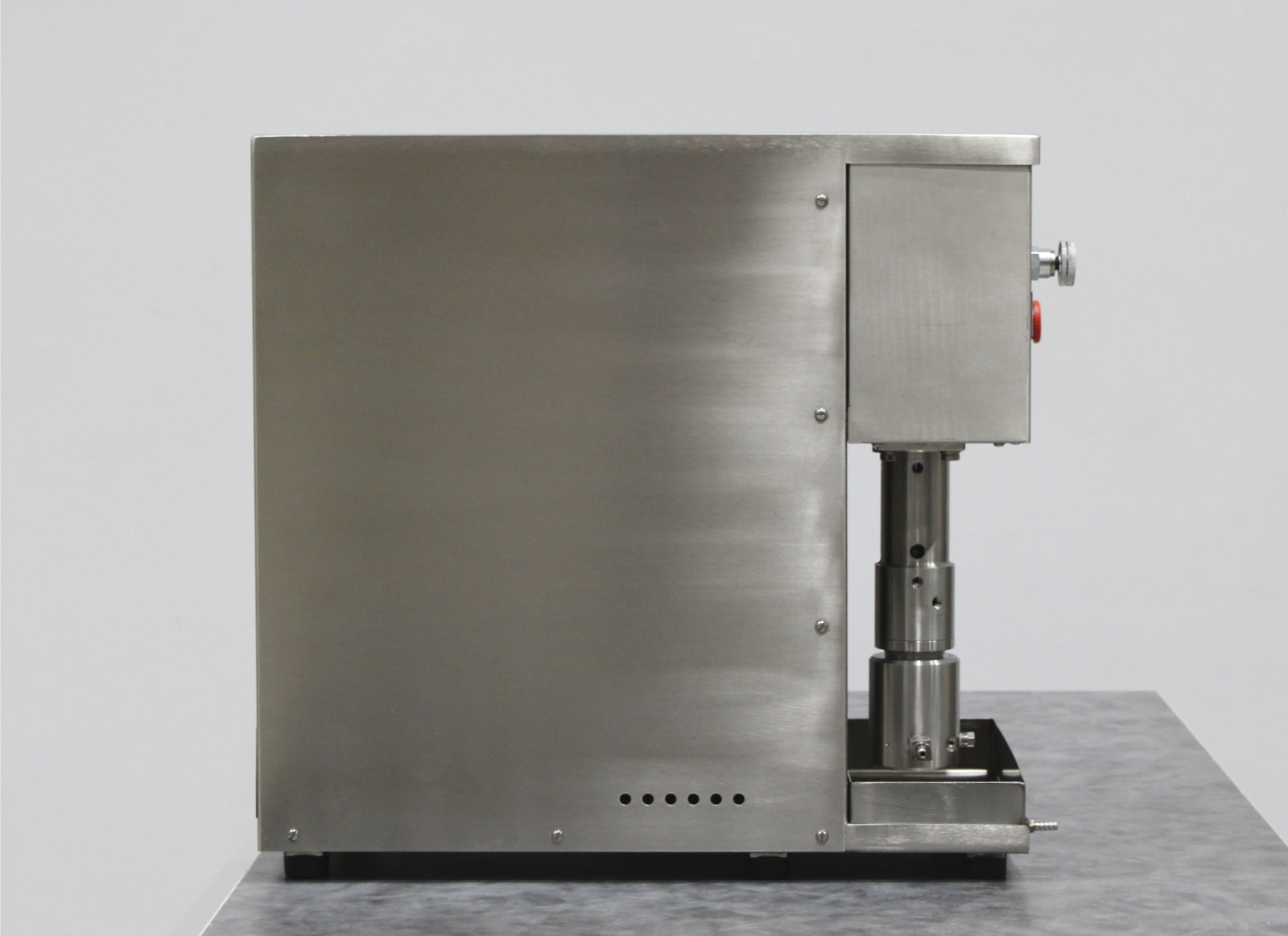

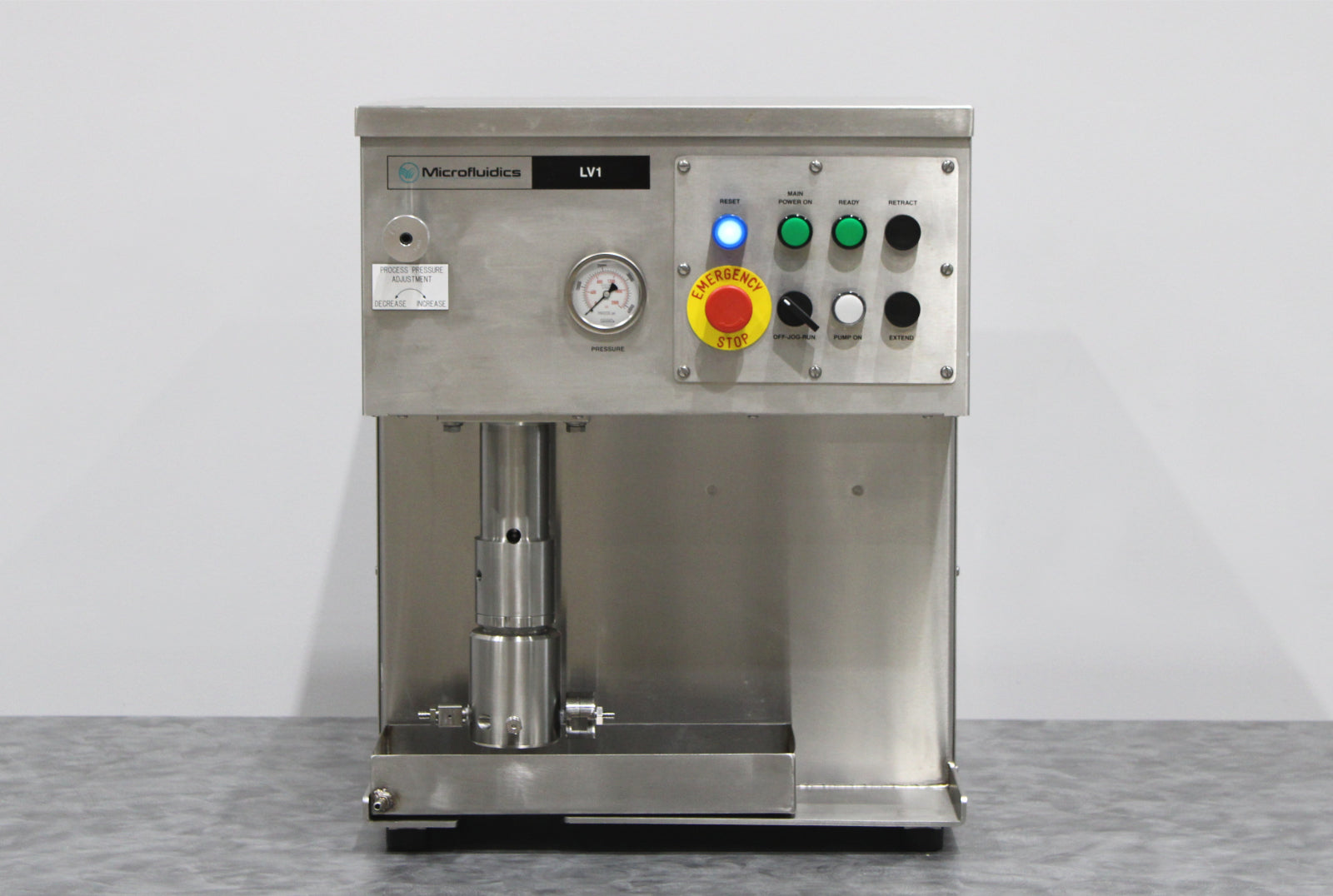

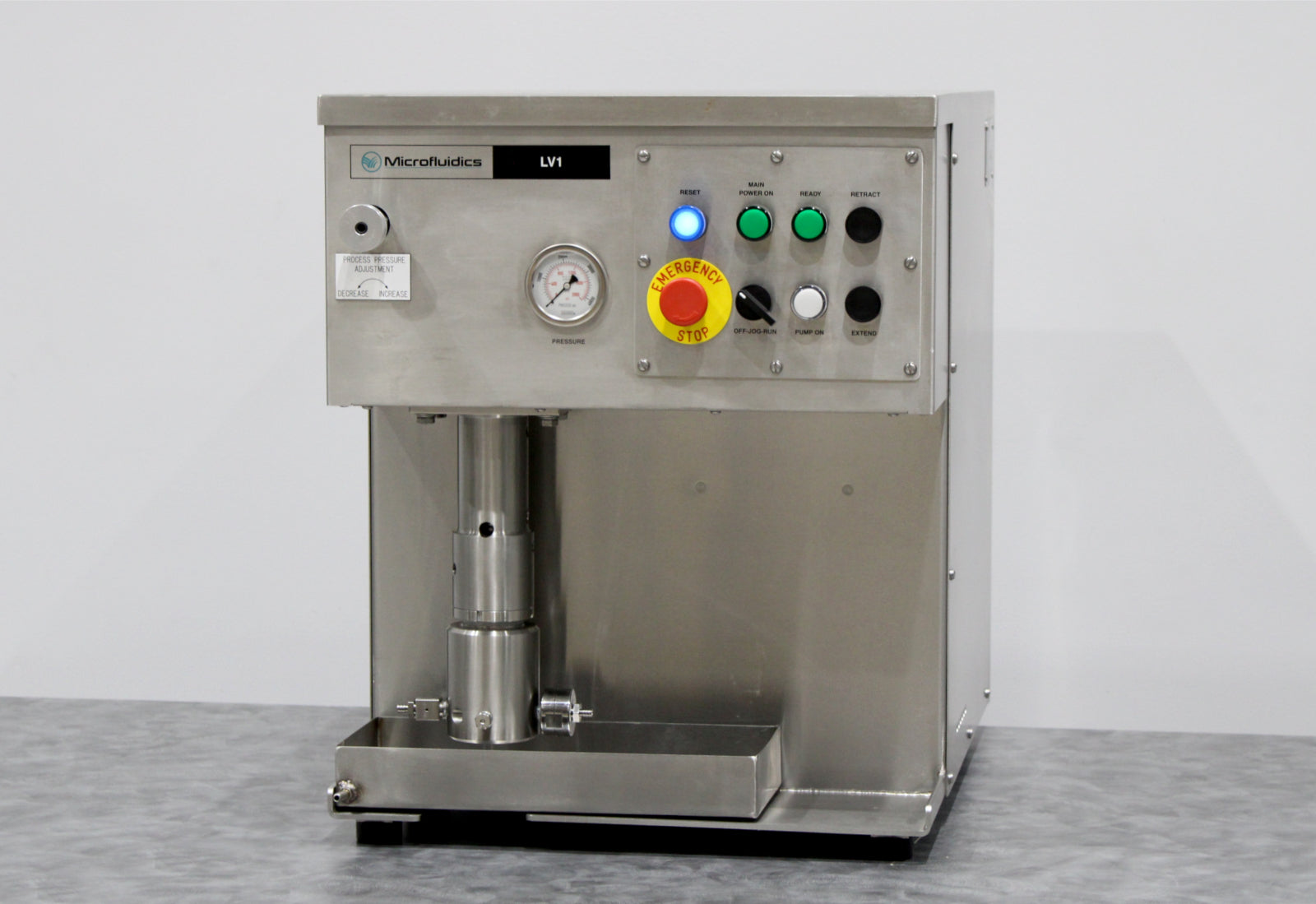

- Microfluidics LV1 low volume microfluidizer homogenizer

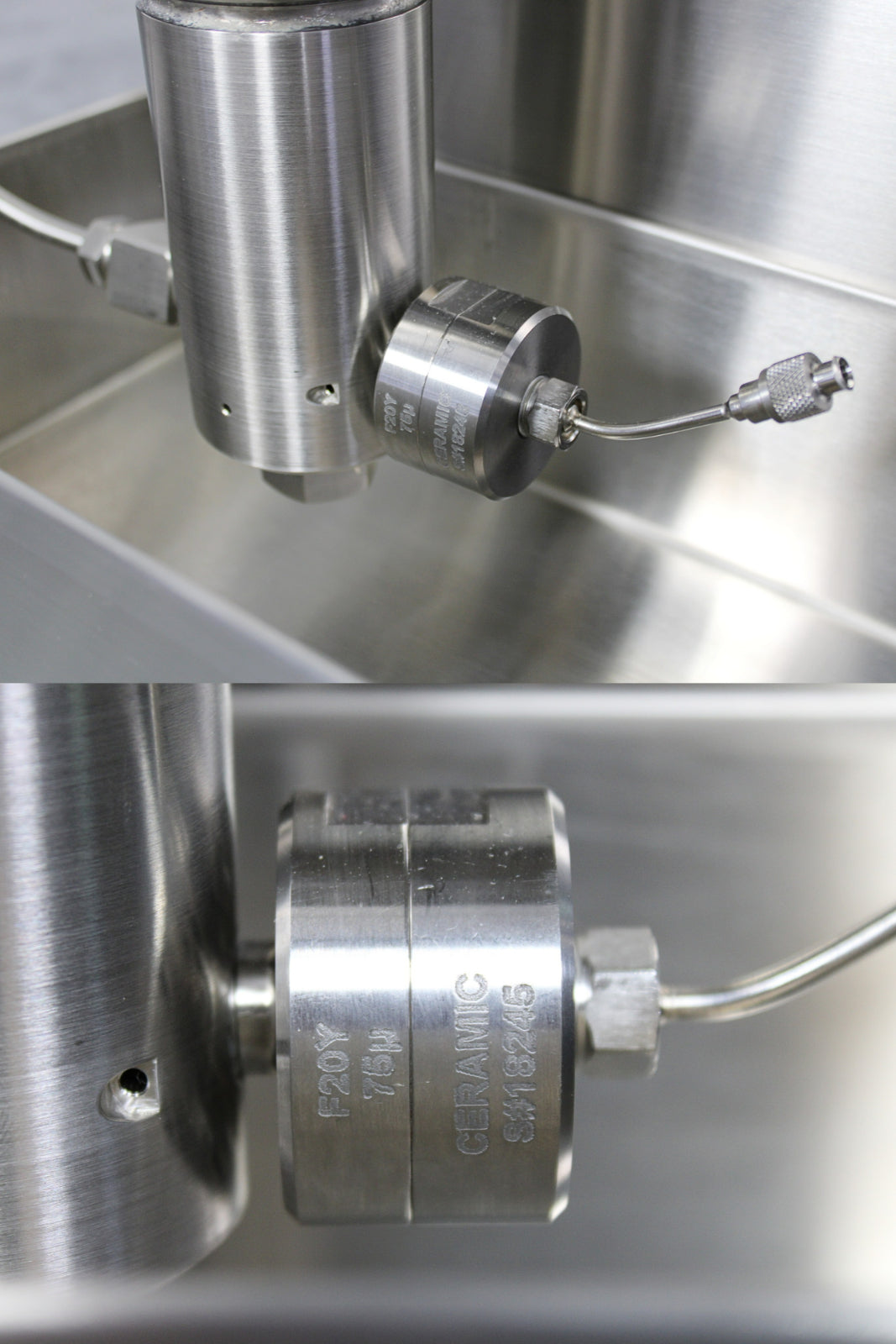

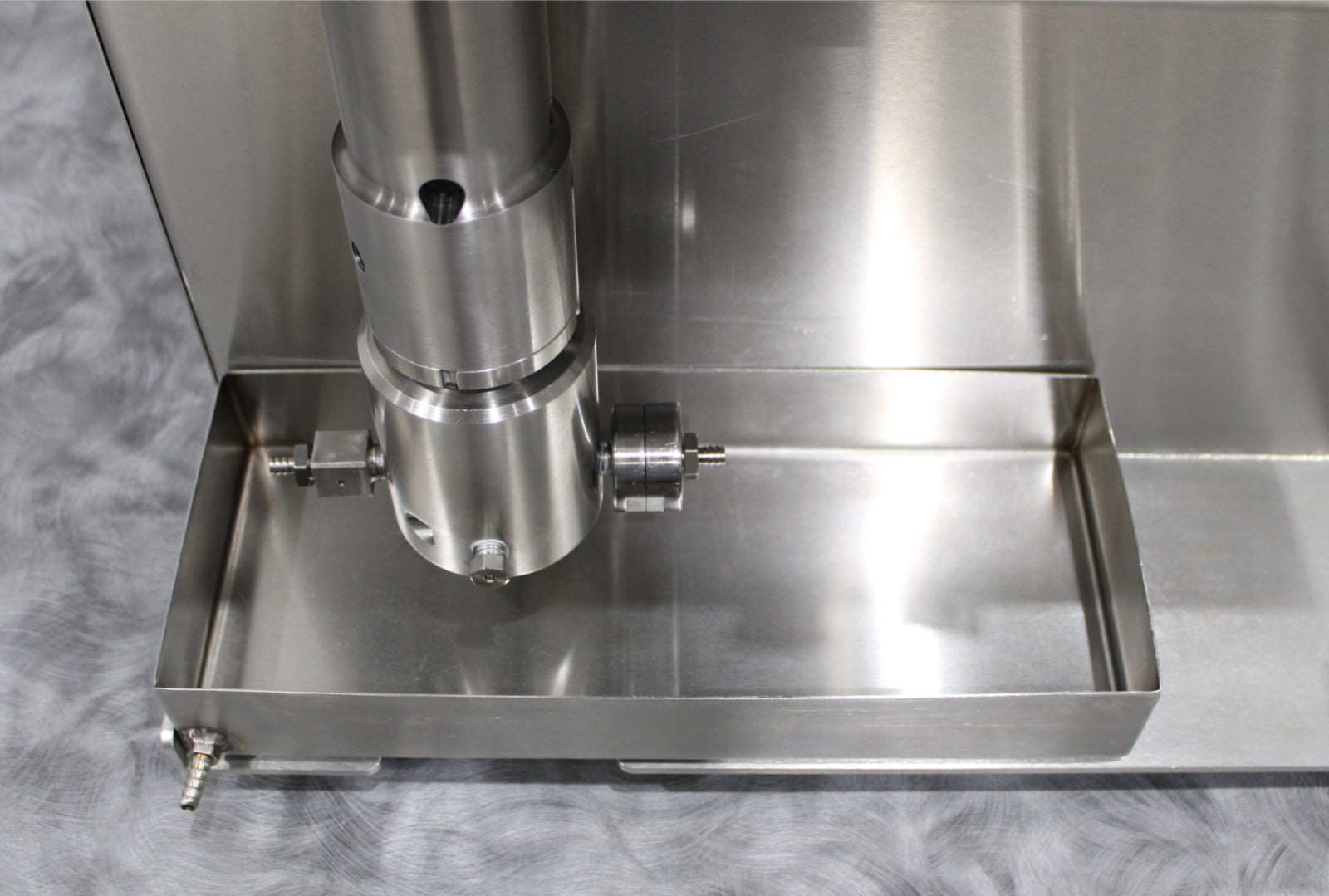

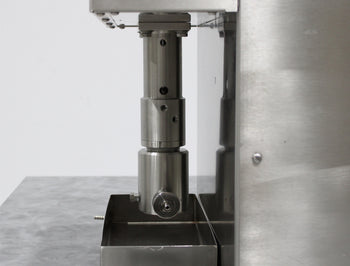

- F20Y 75µ ceramic reaction chamber

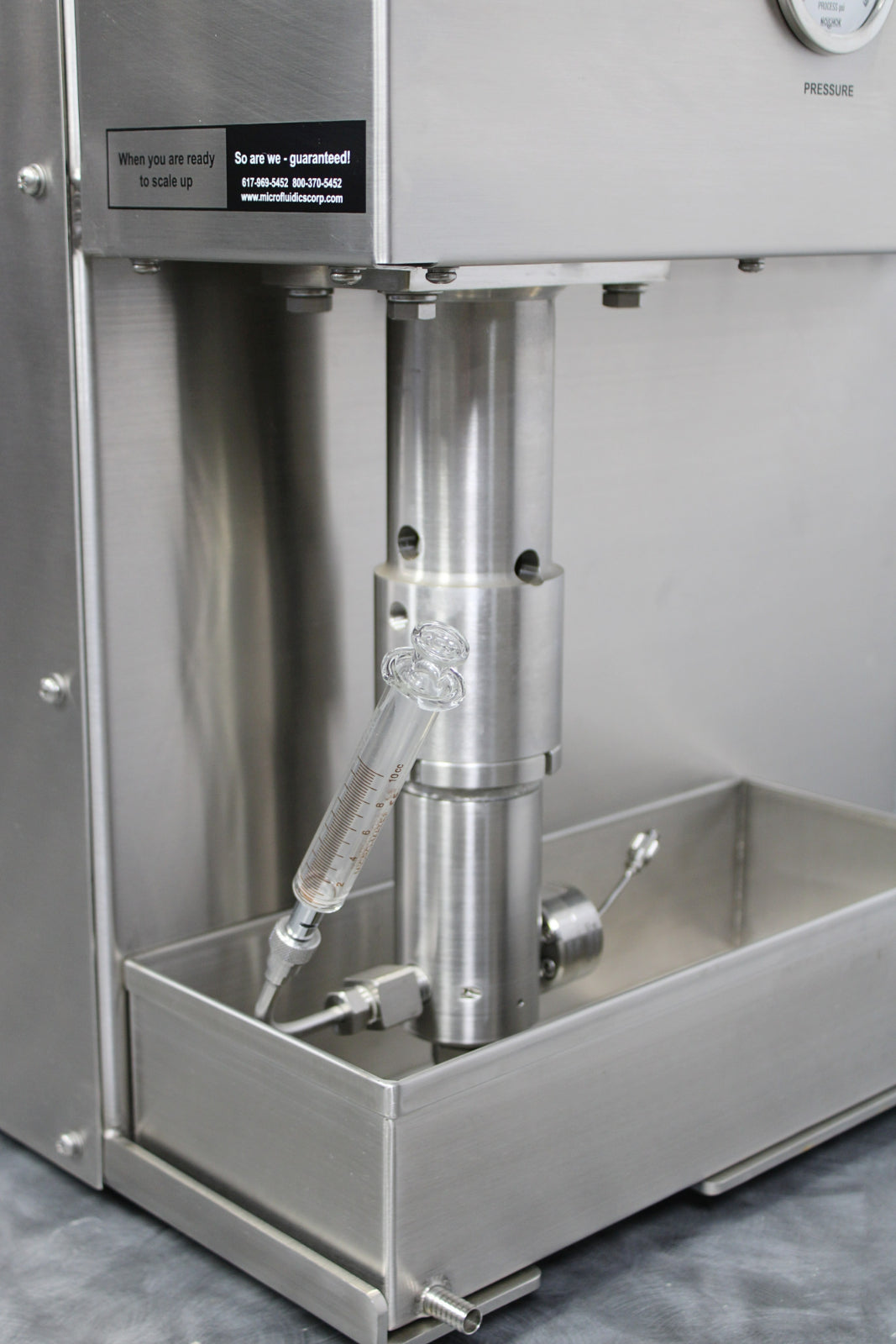

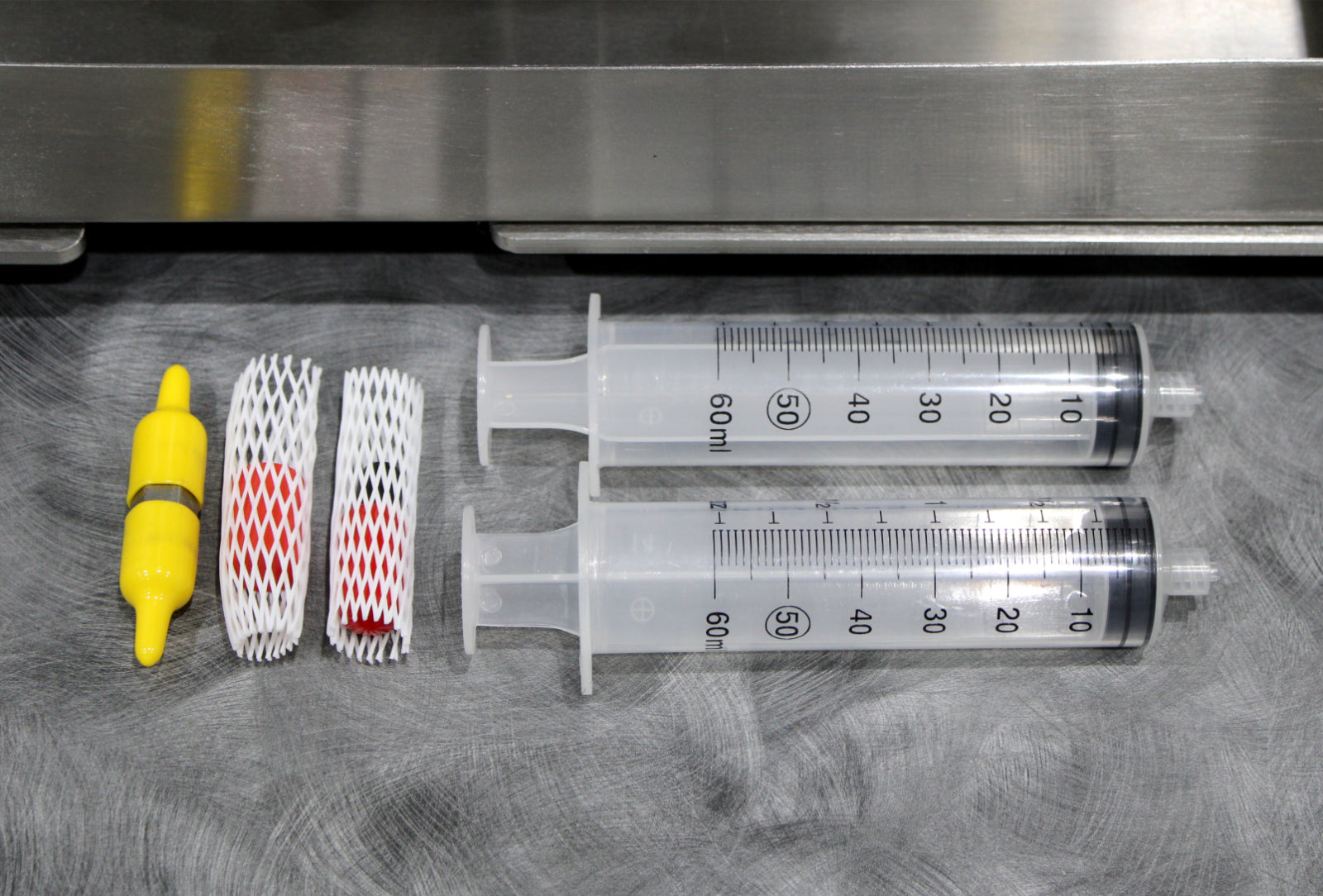

- Glass syringe
- Two (2) plastic syringes

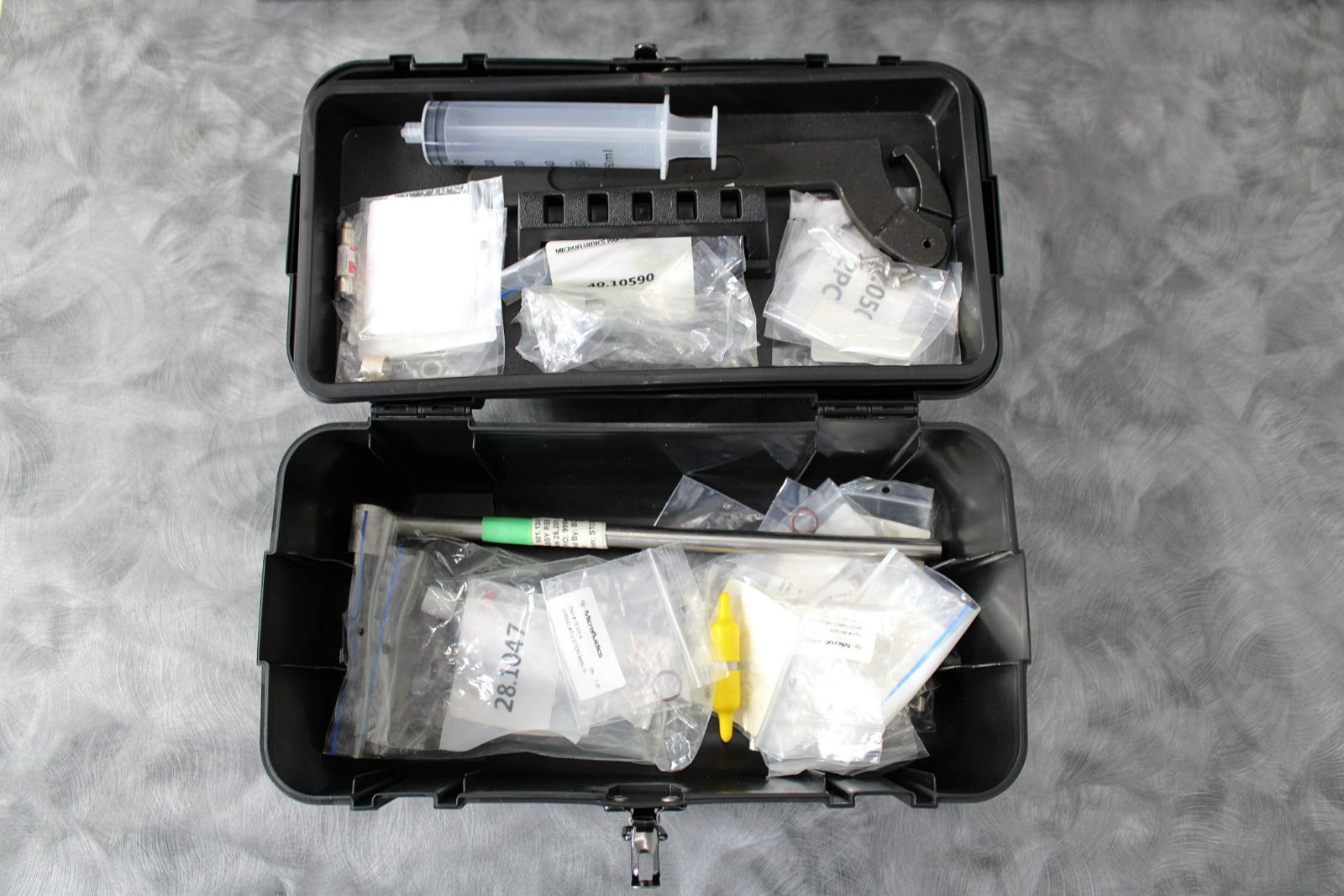

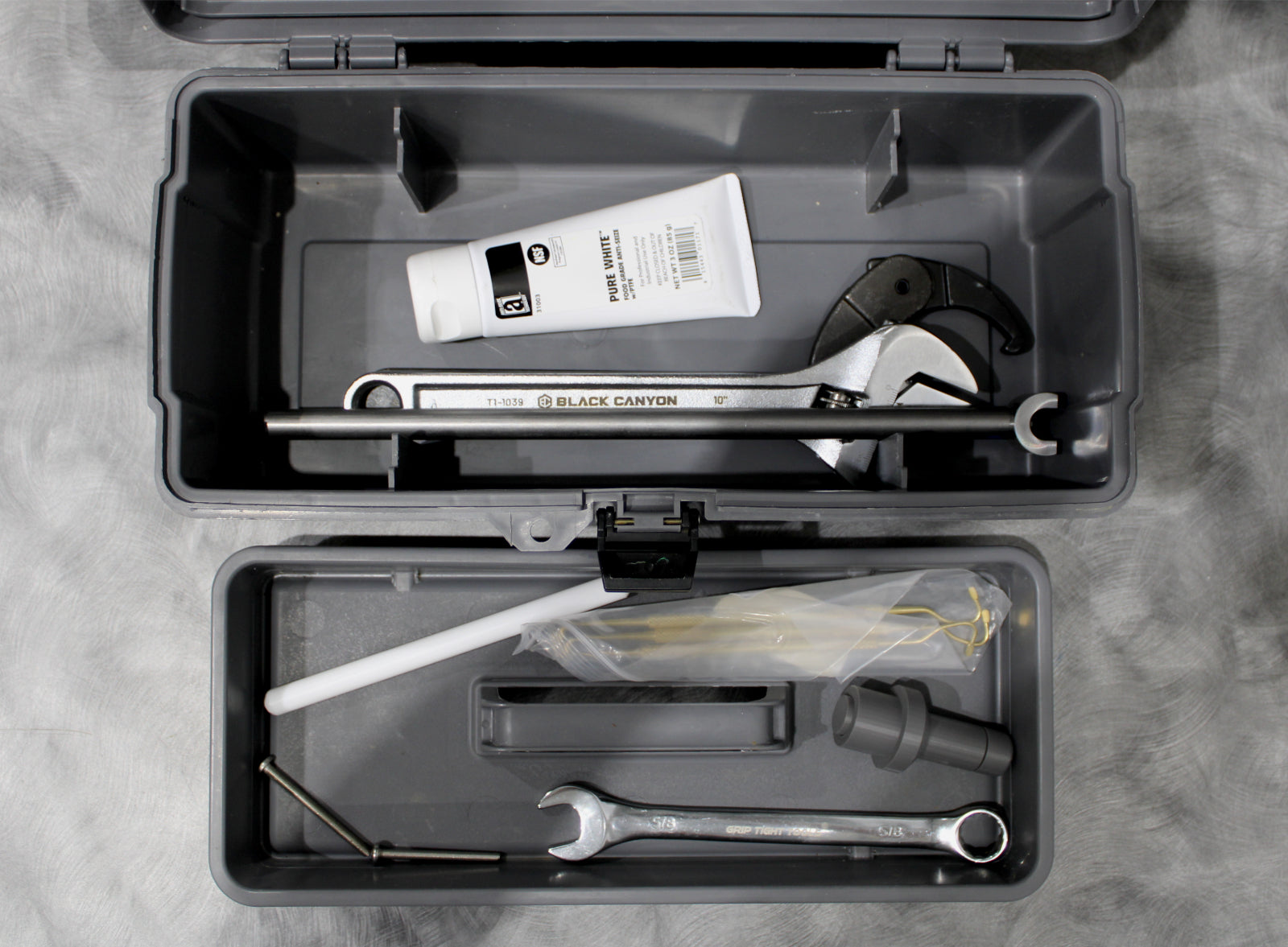

- Tool box with tools and seals to rebuild the pump head
- Power cable
- 120-Day warranty

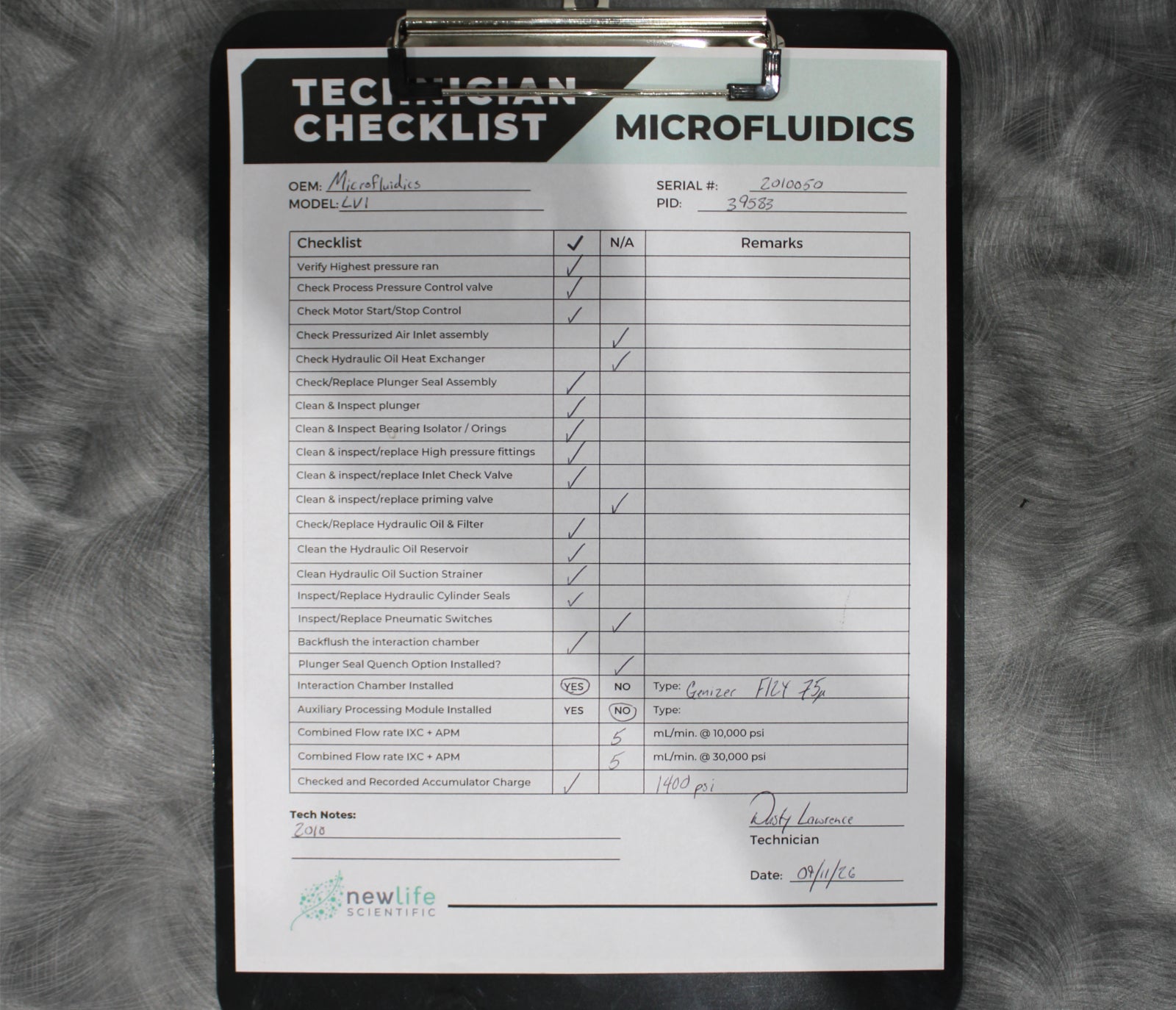

After its initial disinfection and inspection, our technicians tested the Microfluidics LV1 low volume microfluidizer homogenizer with the following results:
- Ran multiple tests with water: PASSED
- Installed new plunger seal
|
Manufacturer
|
Microfluidics
|
|
Model
|
LV1
|
|

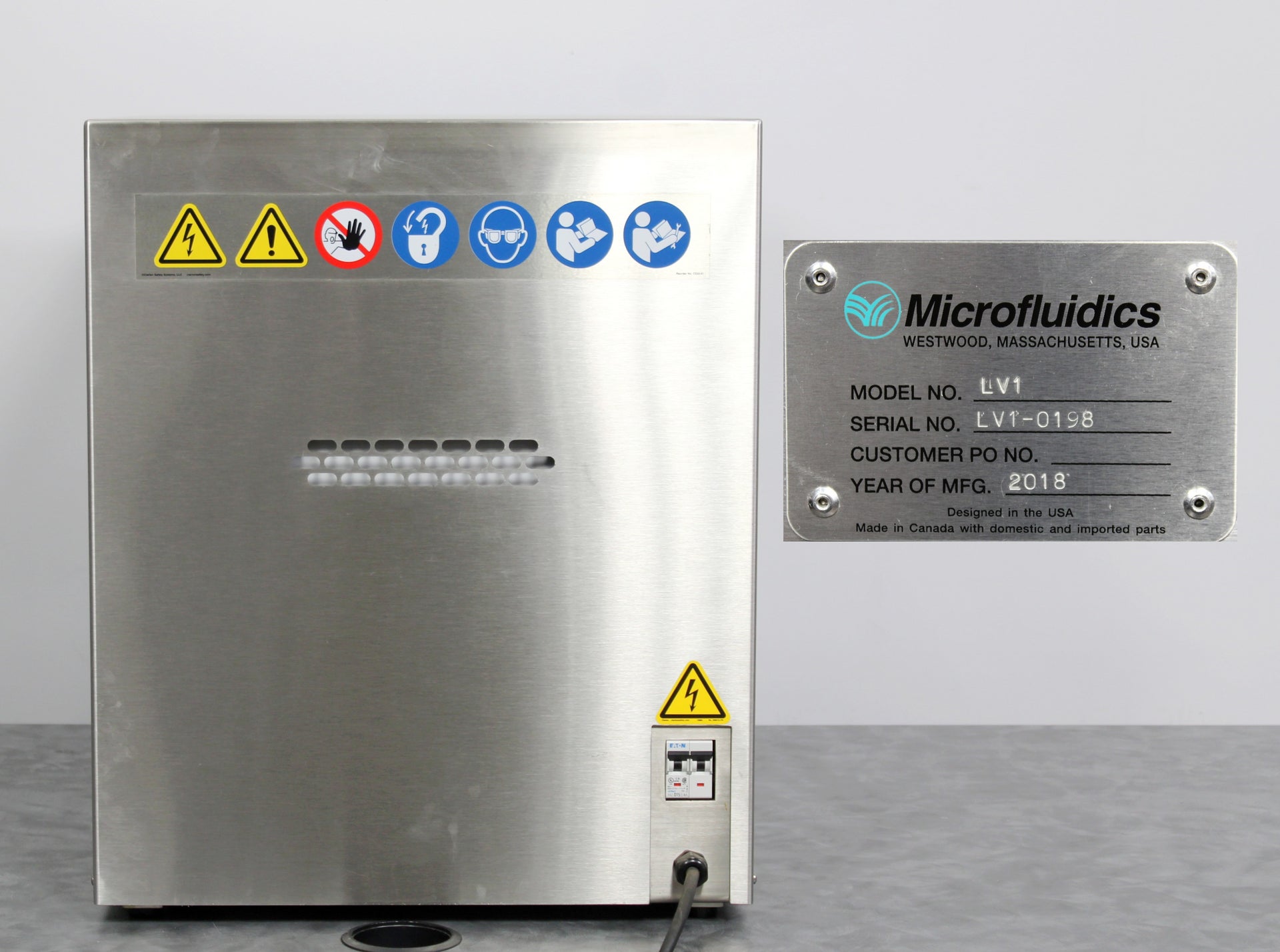

Serial No.
|
LV1-0198
|
|
Mfg. date
|
2018
|
|
Shear rate @ 2069 bar (30,000 psi)
|
1.23 x 107 sec-1
|
|
Minimum sample size
|
1 ml to 6 ml per stroke
|
|
Maximum sample volume
|
6 ml per stroke
|
|
Stroke frequency
|
Up to 2 per minute (user dependant)
|
|
Product temperature limit
|
73°C (165°F)
|
|
Cleaning
|
Flush to clean (no disassembly required)
|
|
Sterilising
|
Autoclavable (disassembly required)
|
|

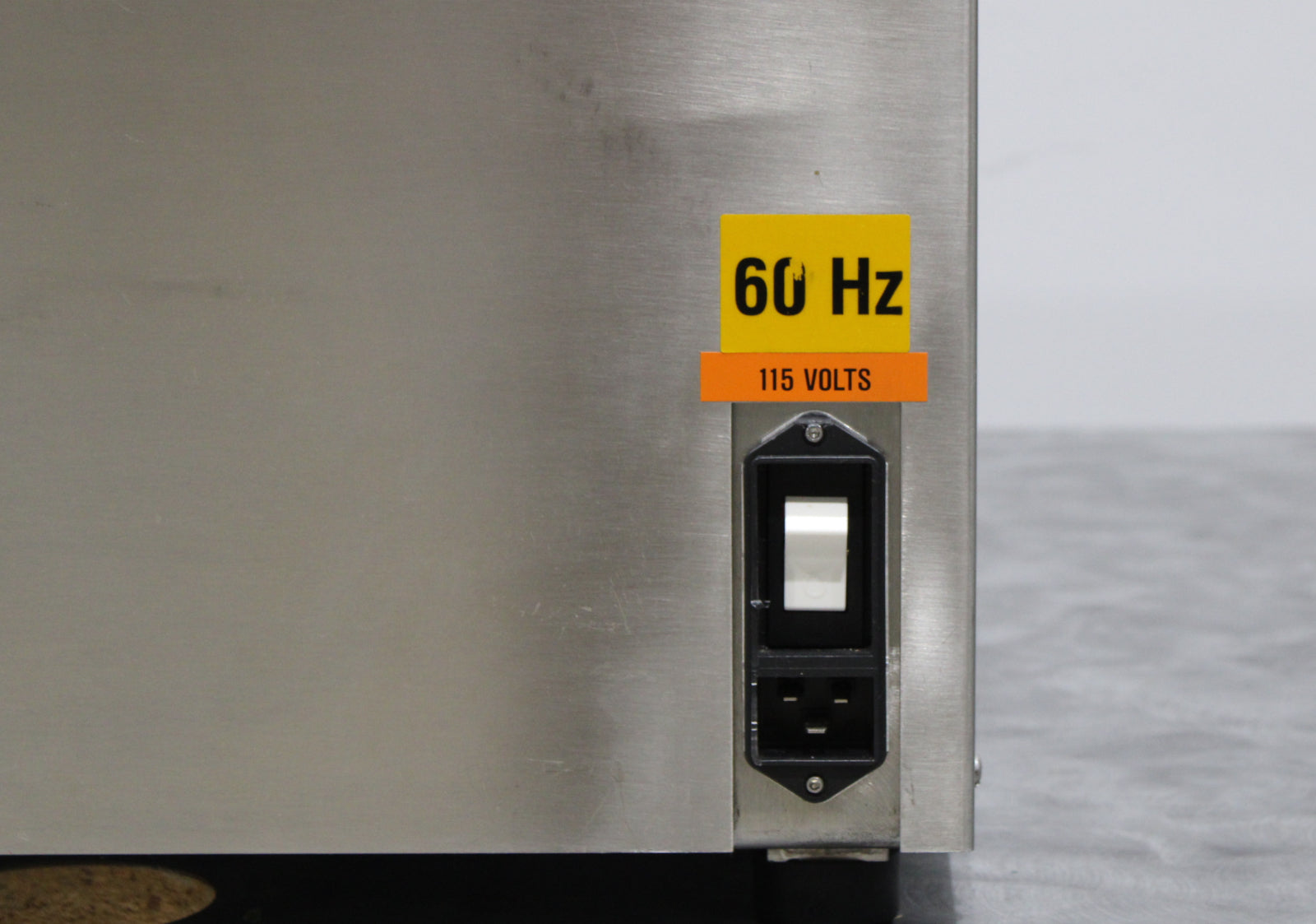

Electrical requirements
|
110 VAC, 50/60Hz, 10A, Ph1
|
|
Dimensions (W x D x H)
|
51cm x 65cm x 60.2cm (20 x 25.8 x 23.7 in)
|
|
Weight
|
109 kg (240 lbs)
|
