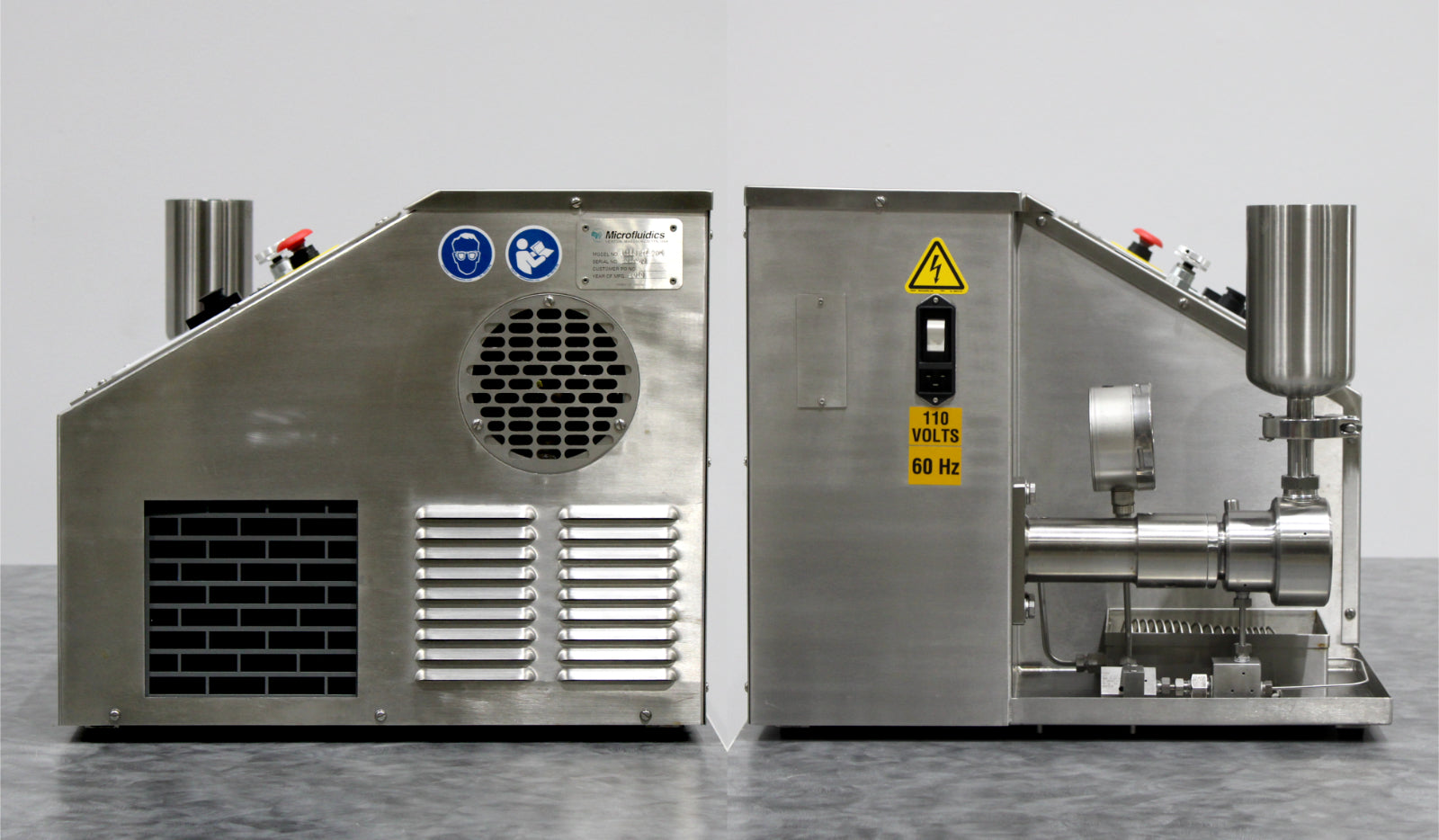

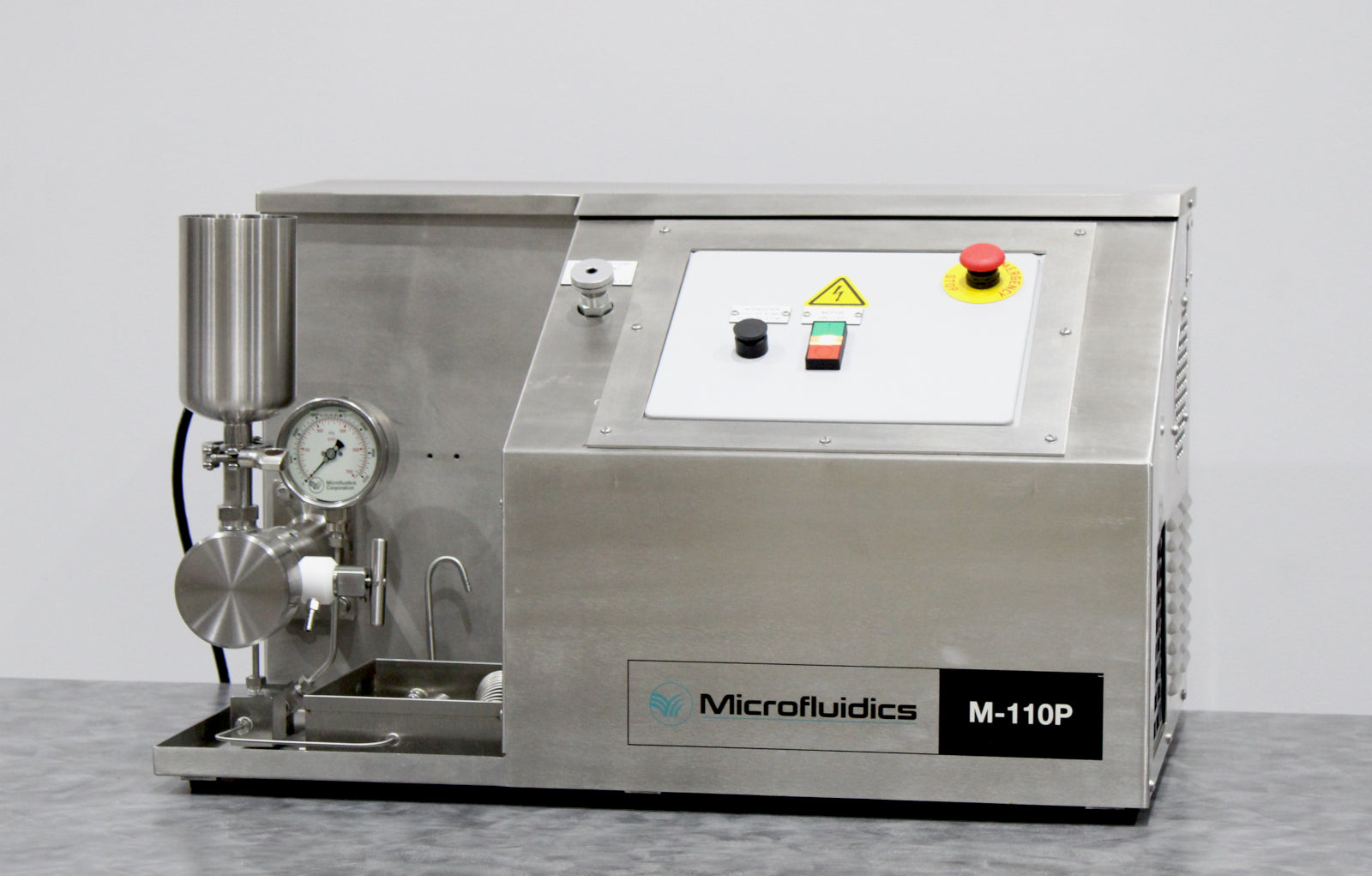

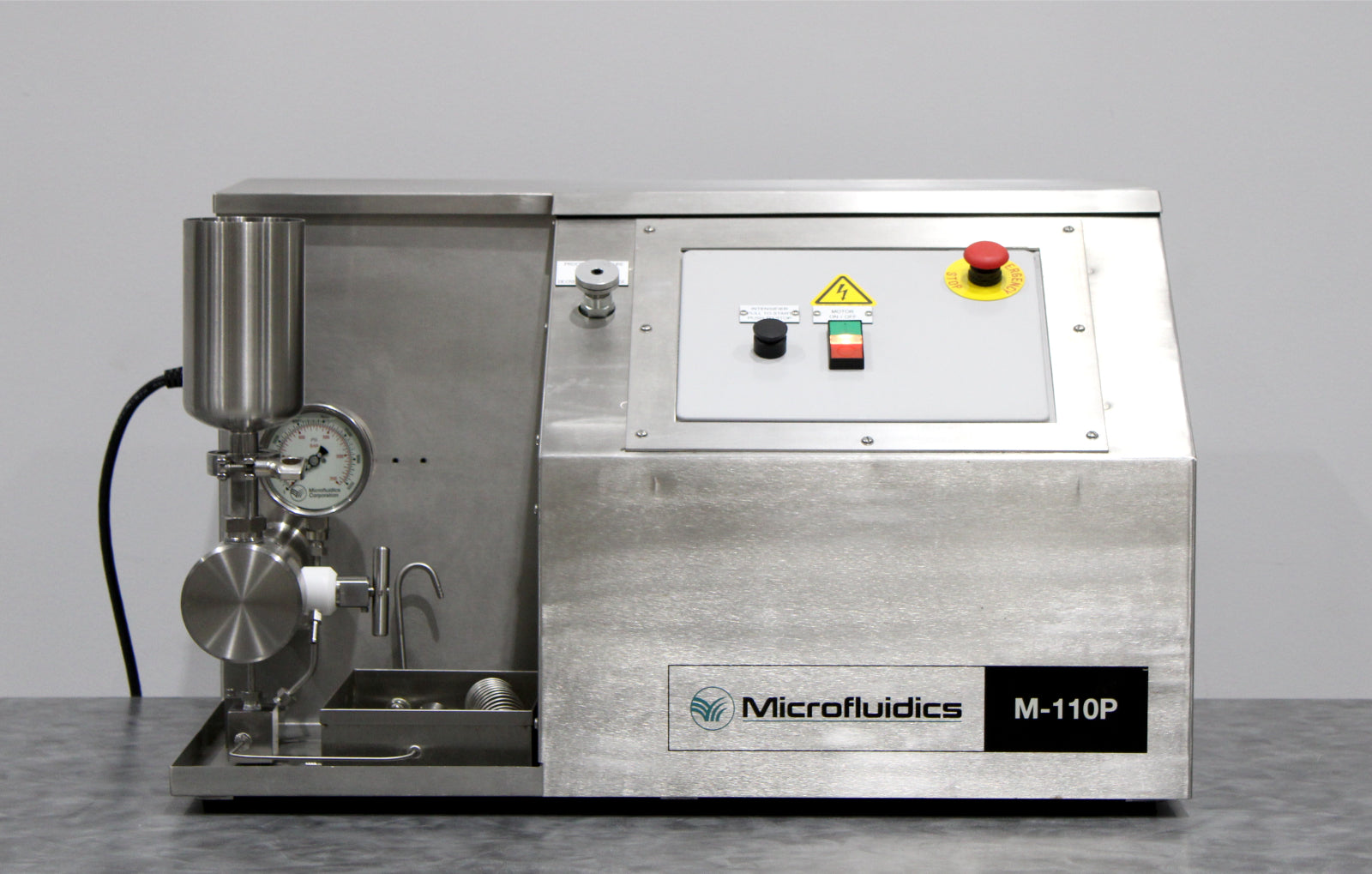

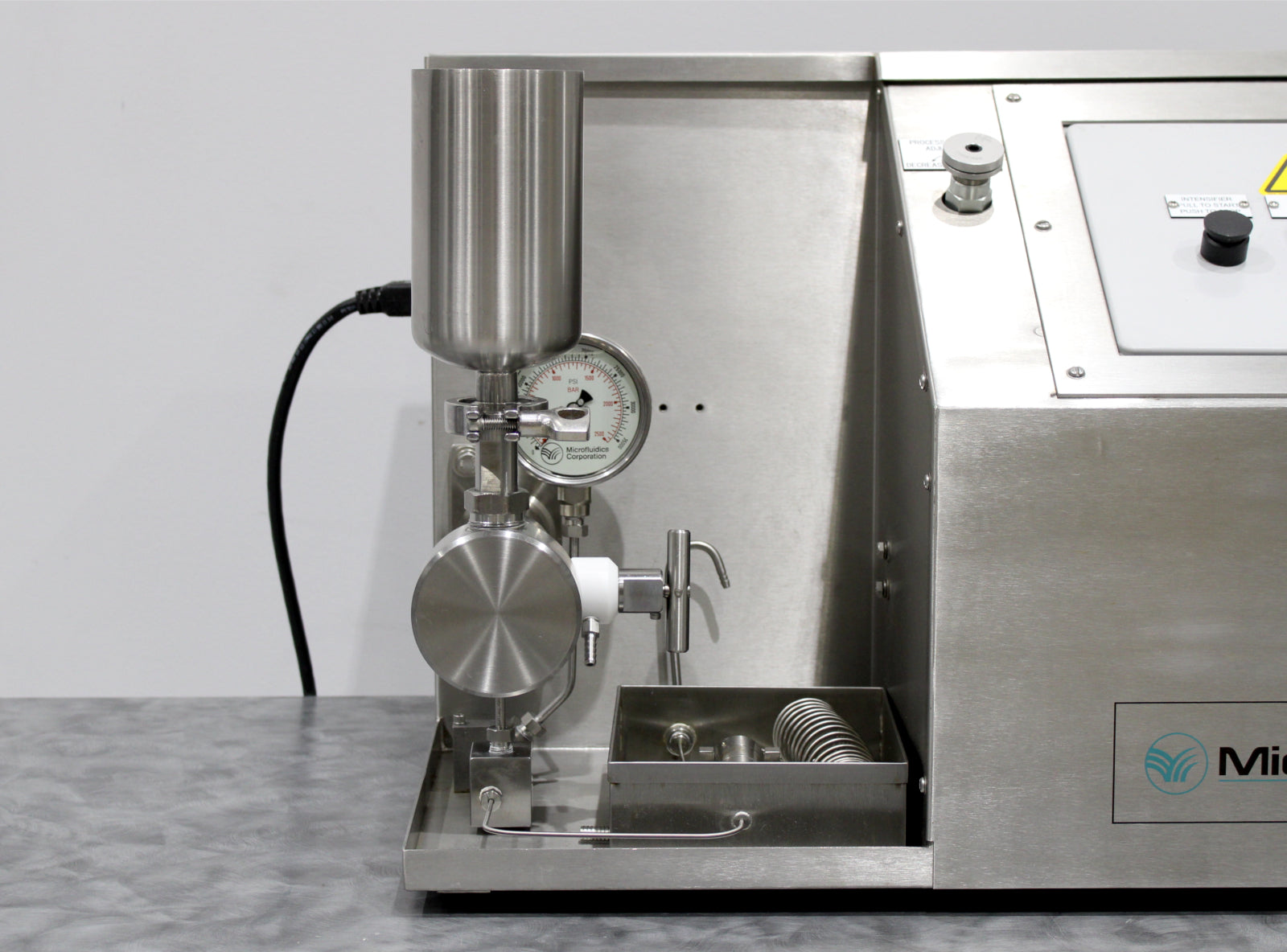

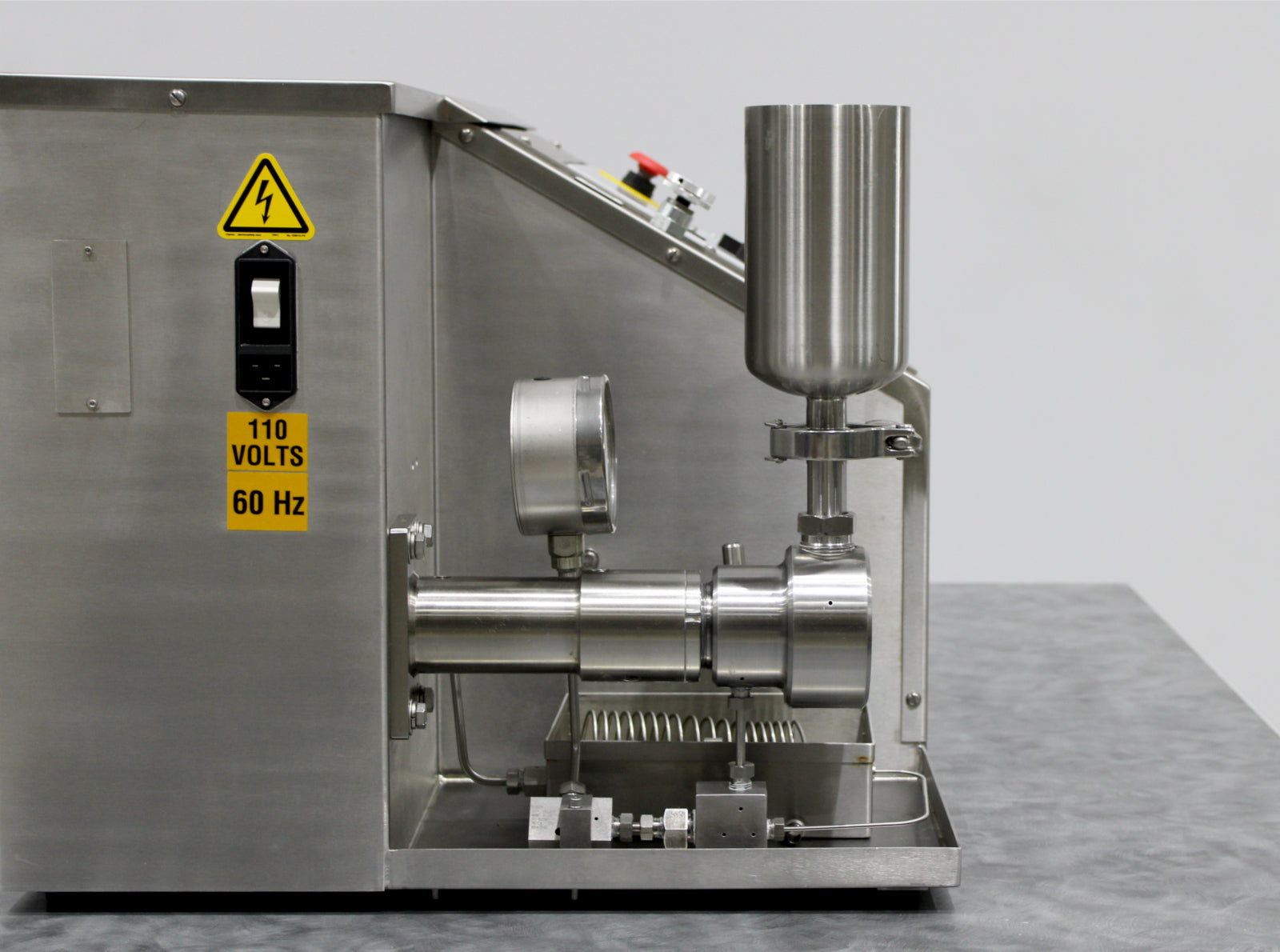

- Microfluidics M-110P Electric-Hydraulic High-Shear Benchtop Microfluidizer Processor 110V (M110PII-20K)
- H10Z 100 Micron Ceramic Interaction Chamber (IXC)
- 1 Liter Stainless Steel Reservoir

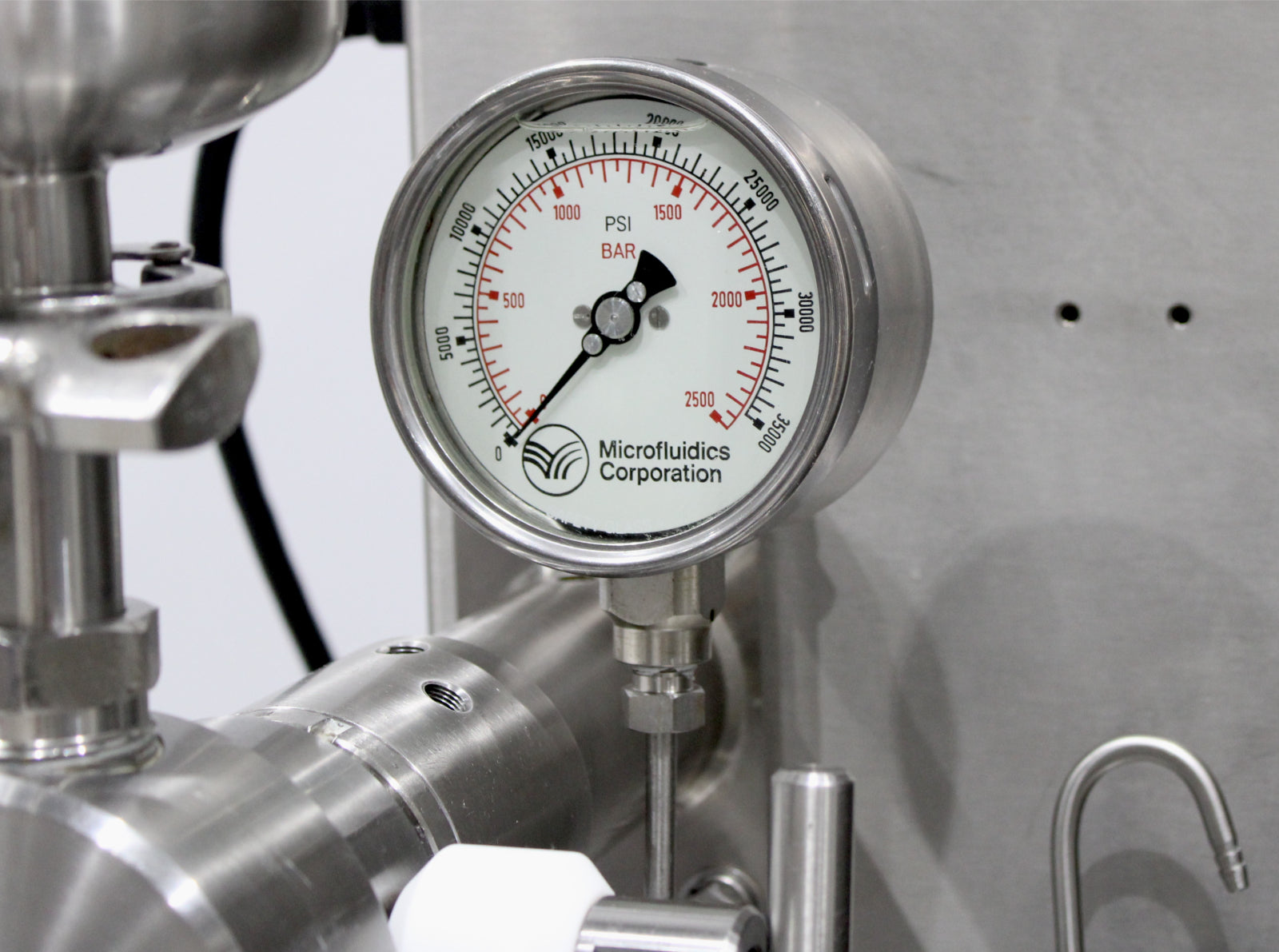

- Mechanical Pressure Gauge
- Ceramic Plunger

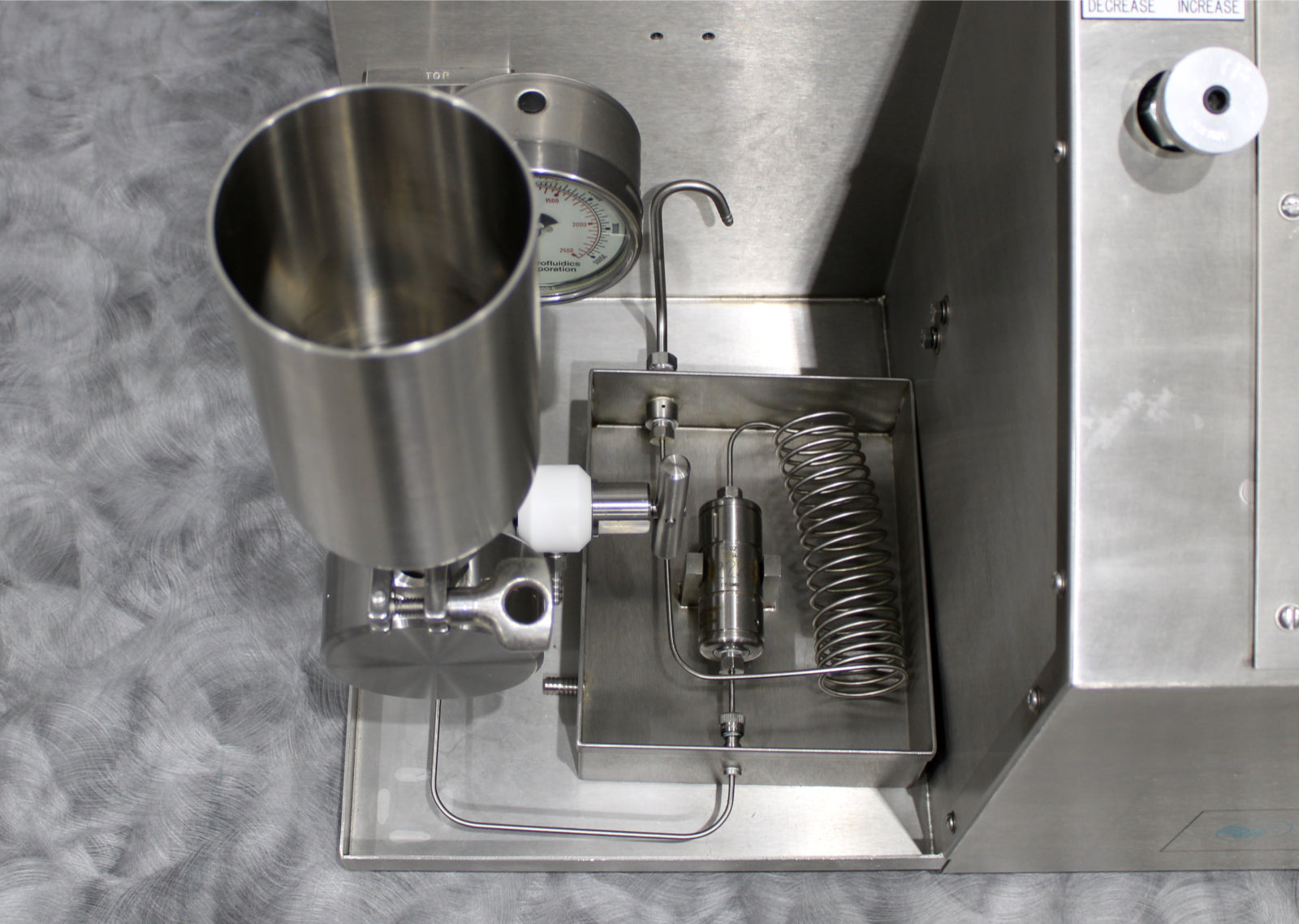

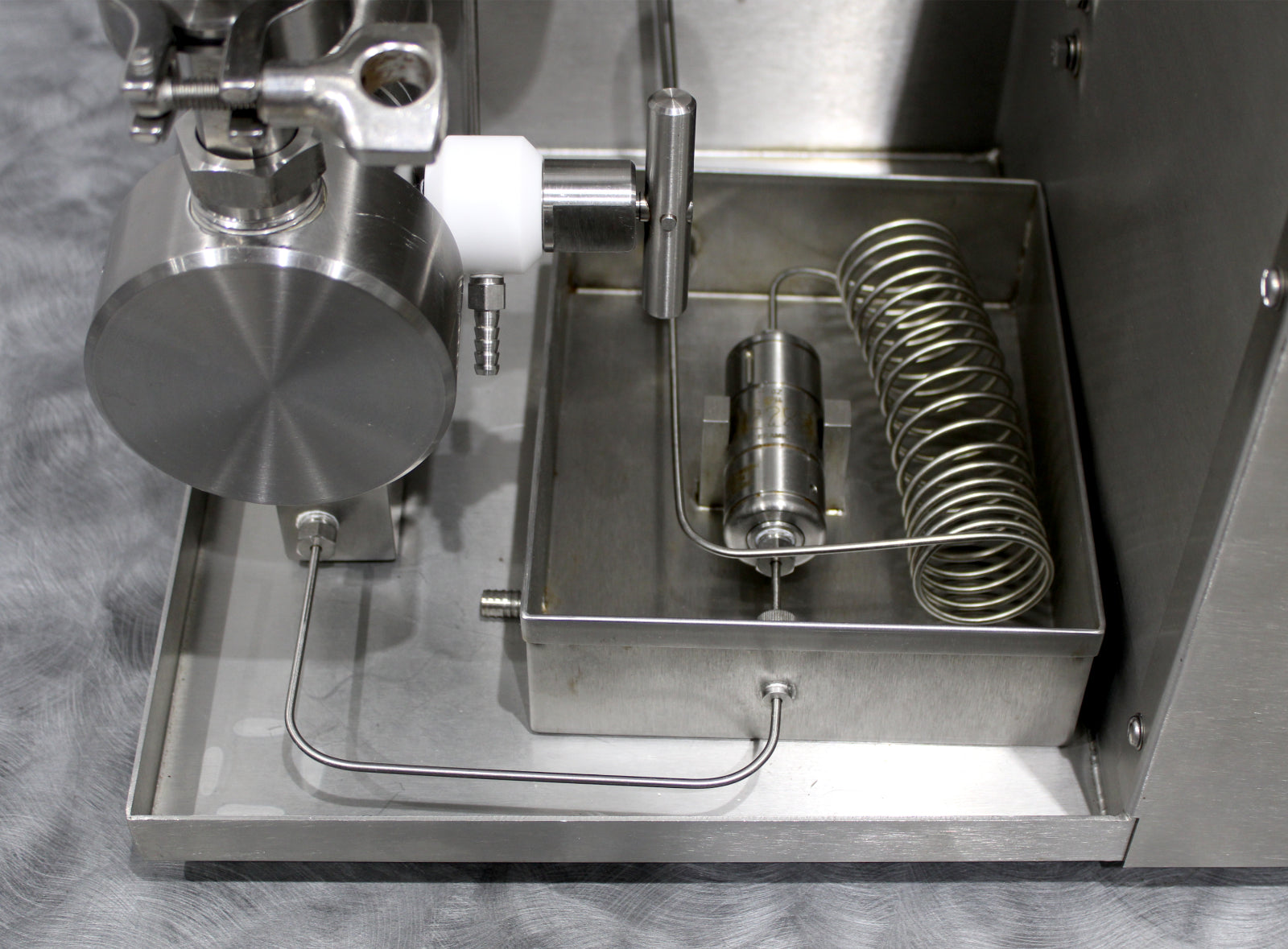

- Cooling Coil and Bath

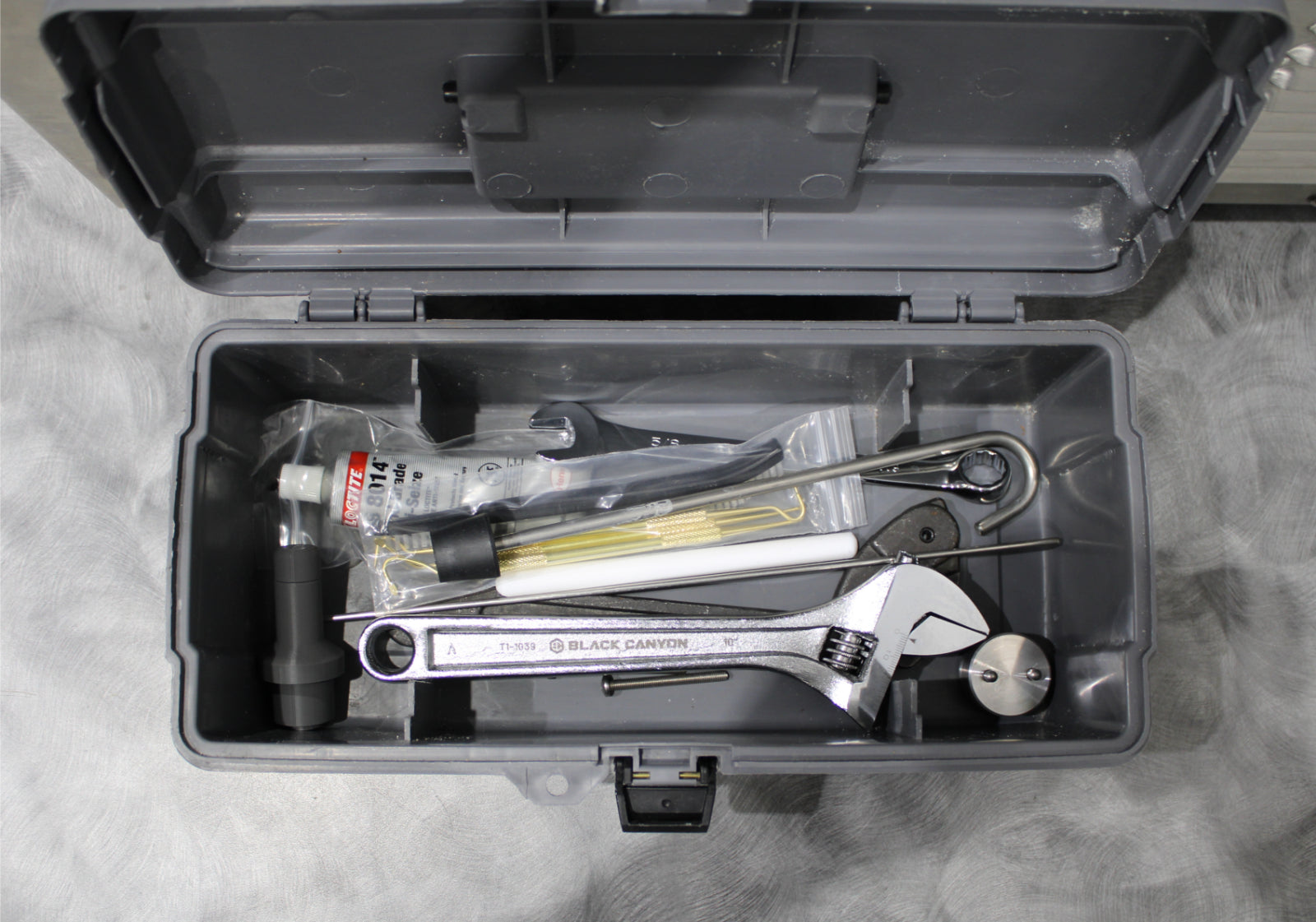

- Preventative Maintenance Toolkit
- Power Cable with NEMA 5-20 Plug
- 90-Day Warranty
After its initial disinfection and inspection, our technicians tested the Microfluidics M-110P electric-hydraulic benchtop microfluidizer processor with the following results:
- Cleaned and inspected liquid end and hydraulic end: PASSED
- Ran and sterilized with 2 liters of isopropyl alcohol: PASSED
- Verify maximum operating pressure of 20,000 psi: PASSED
- Check process pressure control valve: PASSED

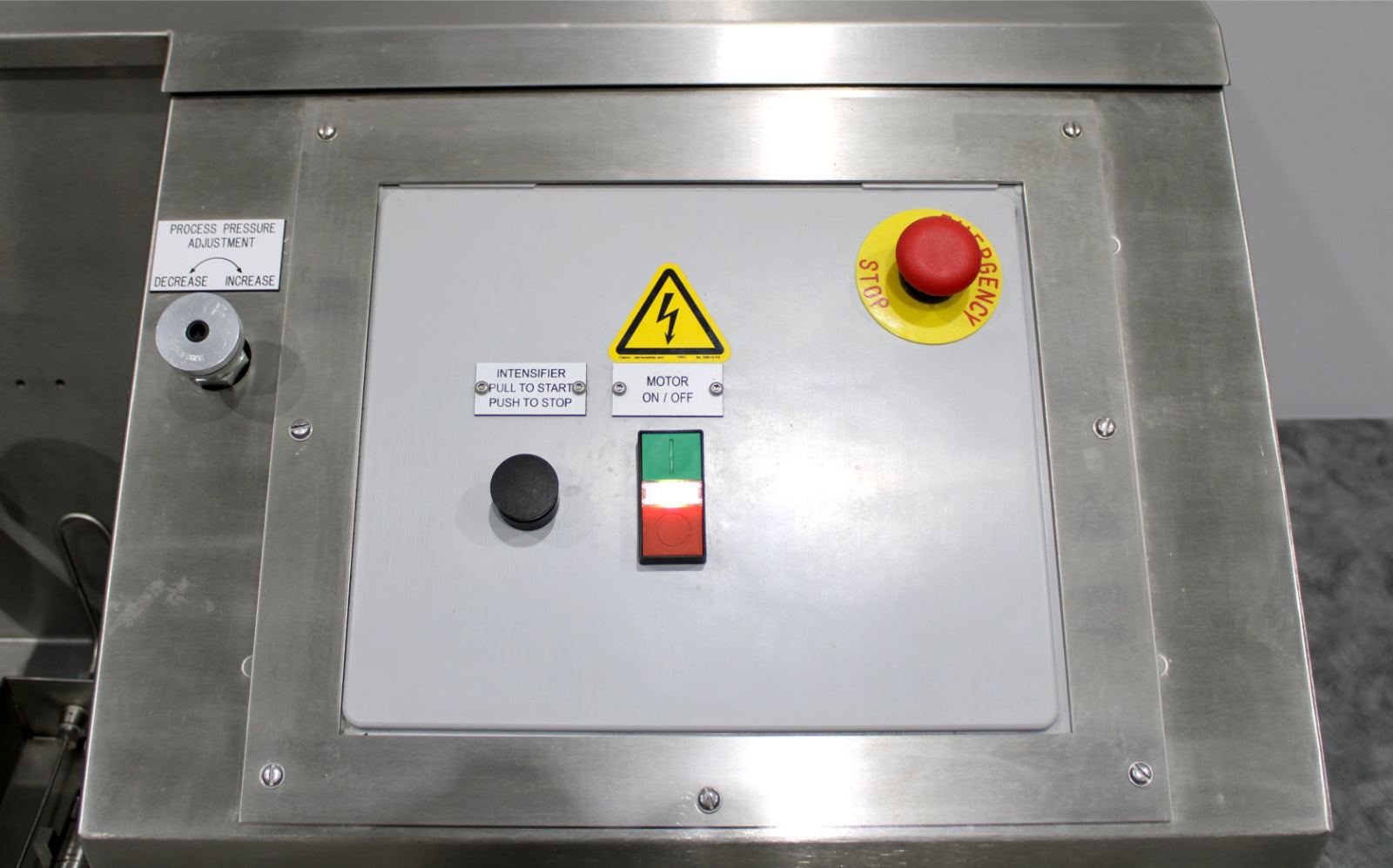

- Check motor start/stop control: PASSED
- Check hydraulic oil heat exchanger: PASSED
- Check/replace plunger seal assembly: PASSED
- Clean and inspect plunger: PASSED
- Clean and inspect bearing isolator/o-rings: PASSED
- Clean and inspect high pressure fittings: PASSED
- Clean and inspect inlet check valve: PASSED
- Clean and inspect priming valve: PASSED
- Check/replace hydraulic oil and filter: PASSED
- Clean the hydraulic oil reservoir: PASSED
- Clean hydraulic oil suction strainer: PASSED
- Inspect/replace hydraulic cylinder seals: PASSED
- Backflush the interaction chamber: PASSED

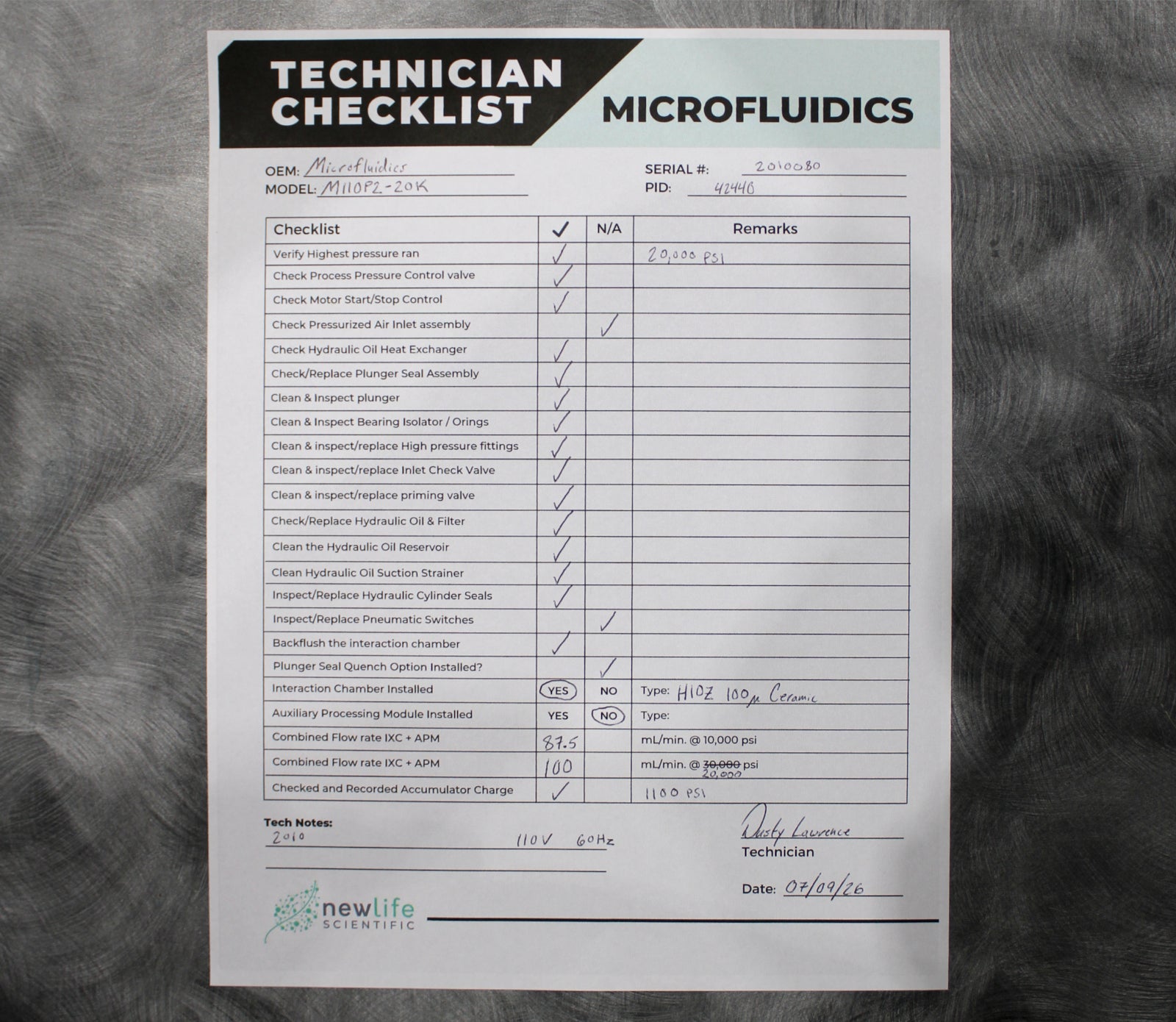

Notice: Please review the technician checklist in the product images to see more details of the inspection and testing performed.
|
Manufacturer
|
Microfluidics
|
|
Model
|
M-110P
|
|
Model No.
|
M110PII-20K
|
|
Serial No.
|
2010080
|
|
Mfg. year
|
2010
|
|
Maximum operating pressure
|
up to 20,000 psi (1379 bar)
|
|
Minimum sample size
|
50 ml
|
|
Flow rate
|
up to 120 mL/min
|
|
Product temperature limit
|
165°F (73°C)
|
|
Accumulator charge
|
1100 psi
|
|

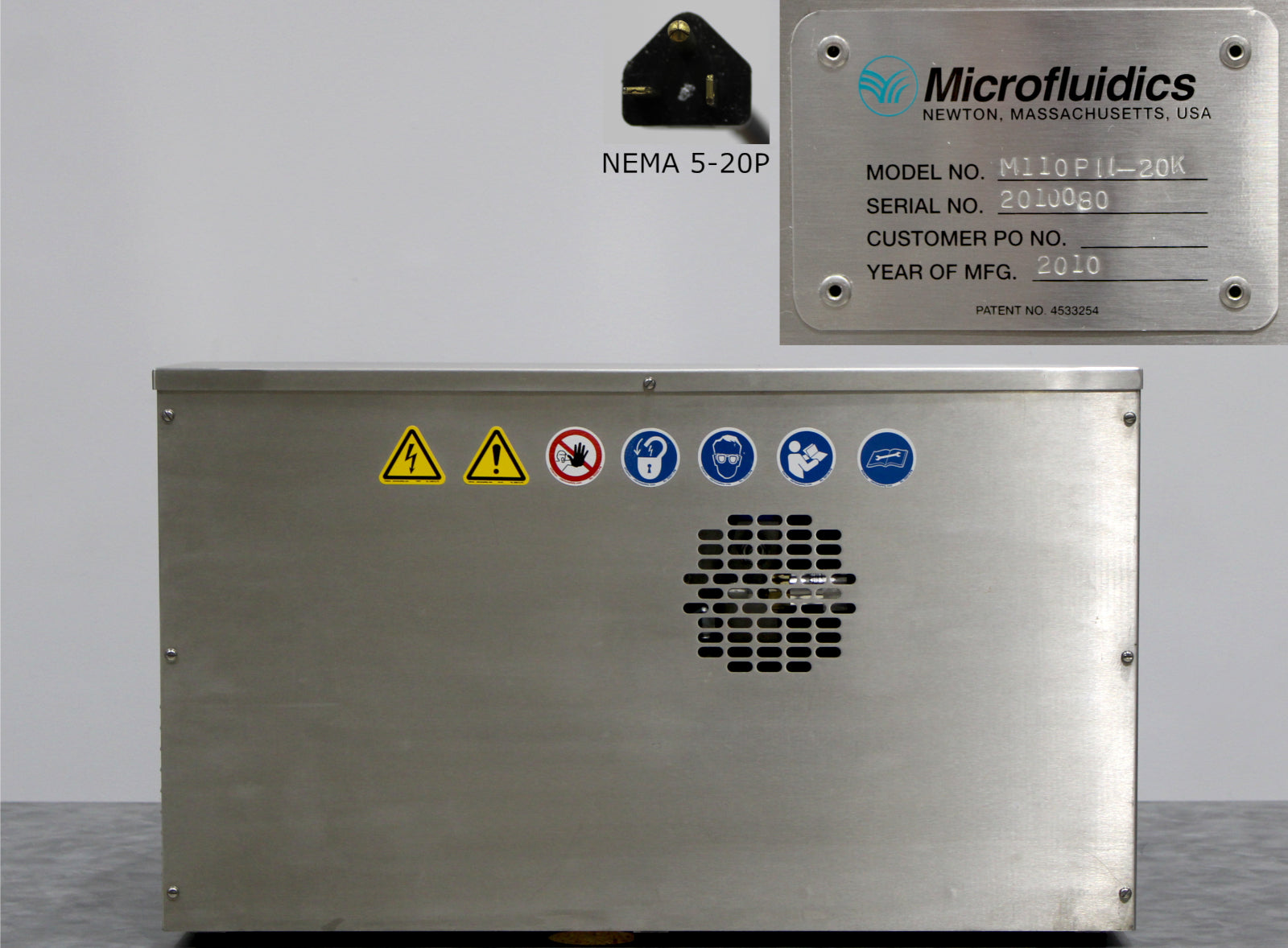

Plug type
|
NEMA 5-20P
|
|
Power rating
|
110V, 60Hz, 1Ph
|
|
Dimensions (W x D x H)
|
33 x 23 x 20 in
|
|
Approximate weight
|
300 lb (136 kg)
|
