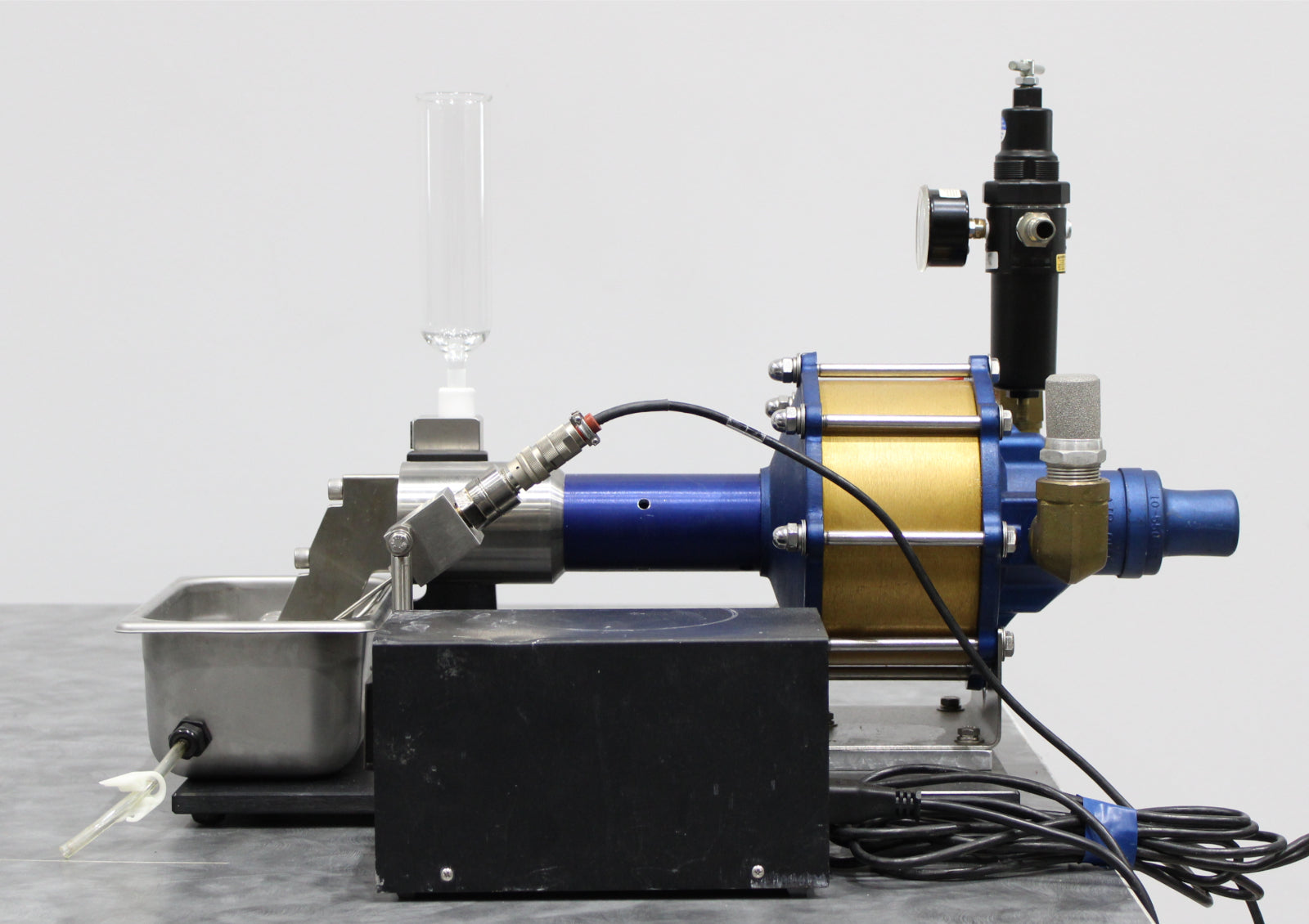

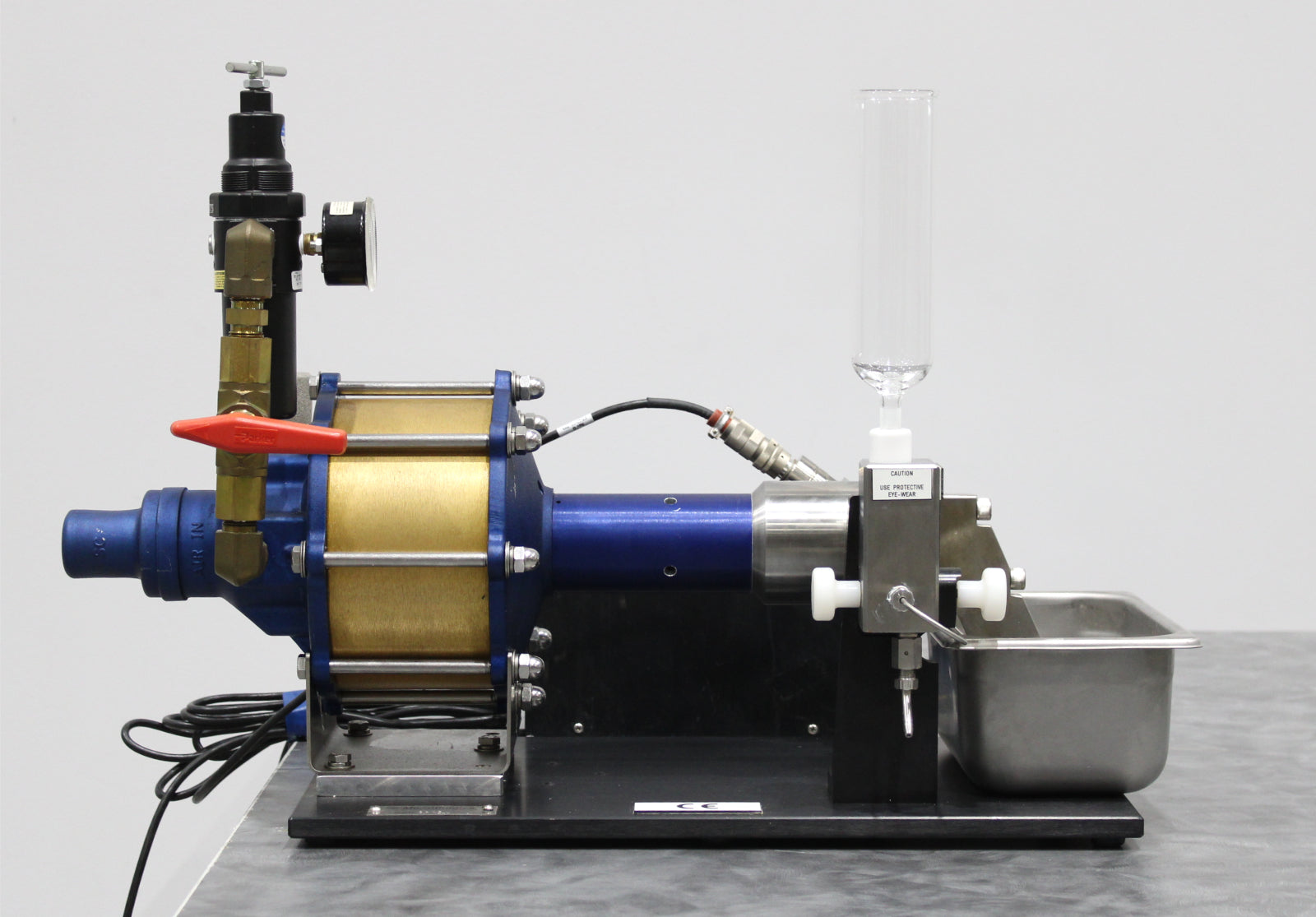

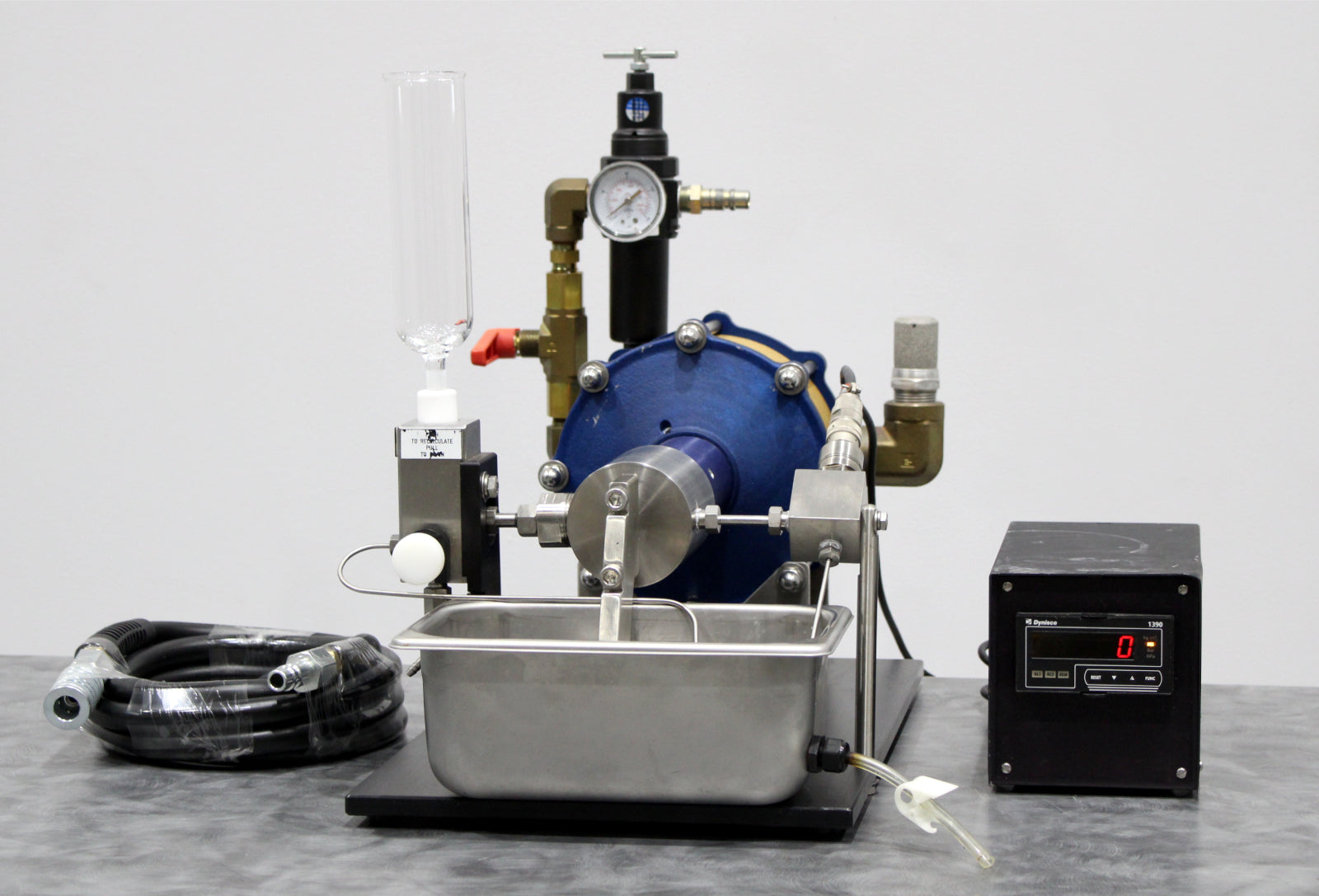

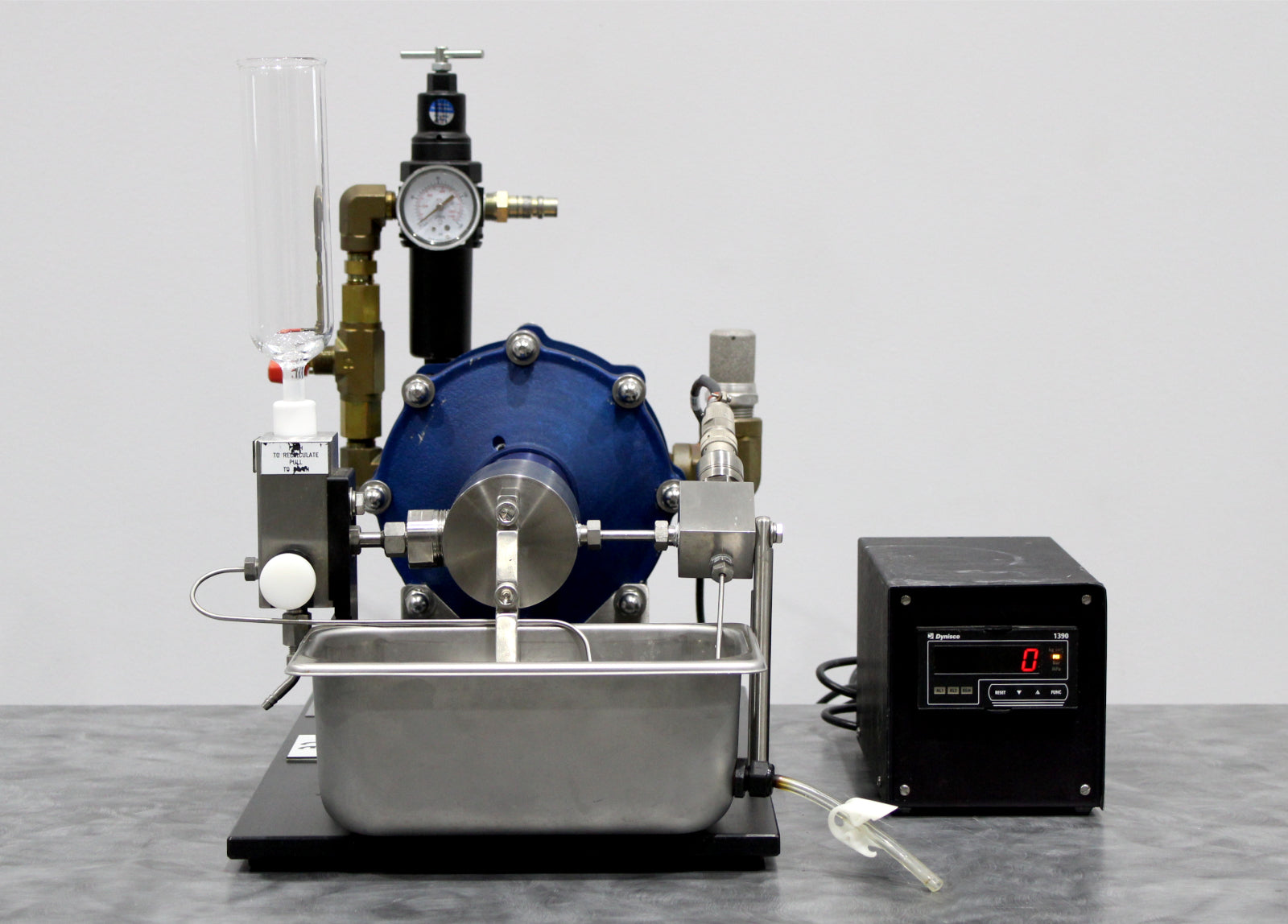

- Microfluidics Model 110S Microfluidizer Processor Homogenizer
- H10Z 100 Micron Ceramic Interaction Chamber (IXC)
- 300 mL Glass Reservoir

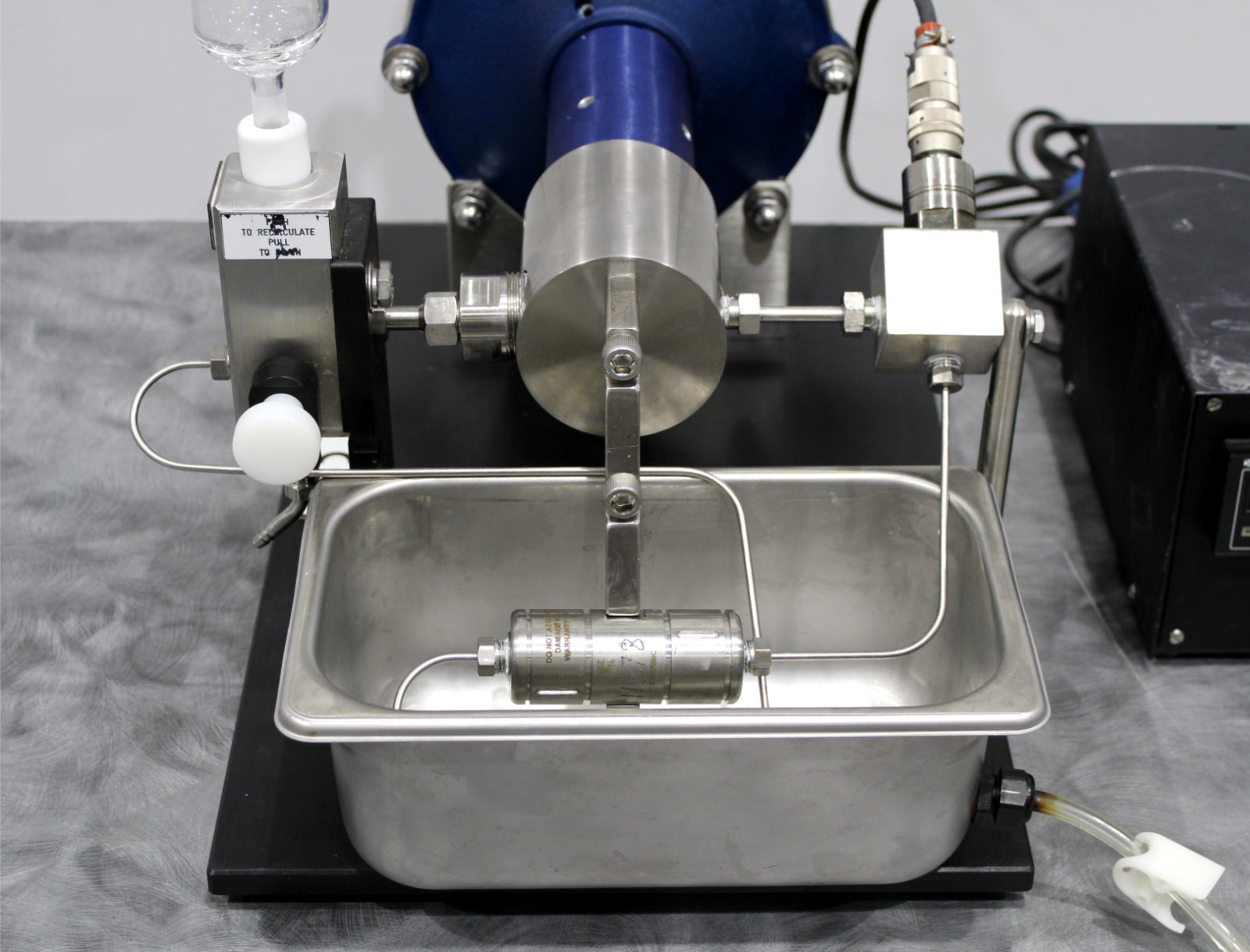

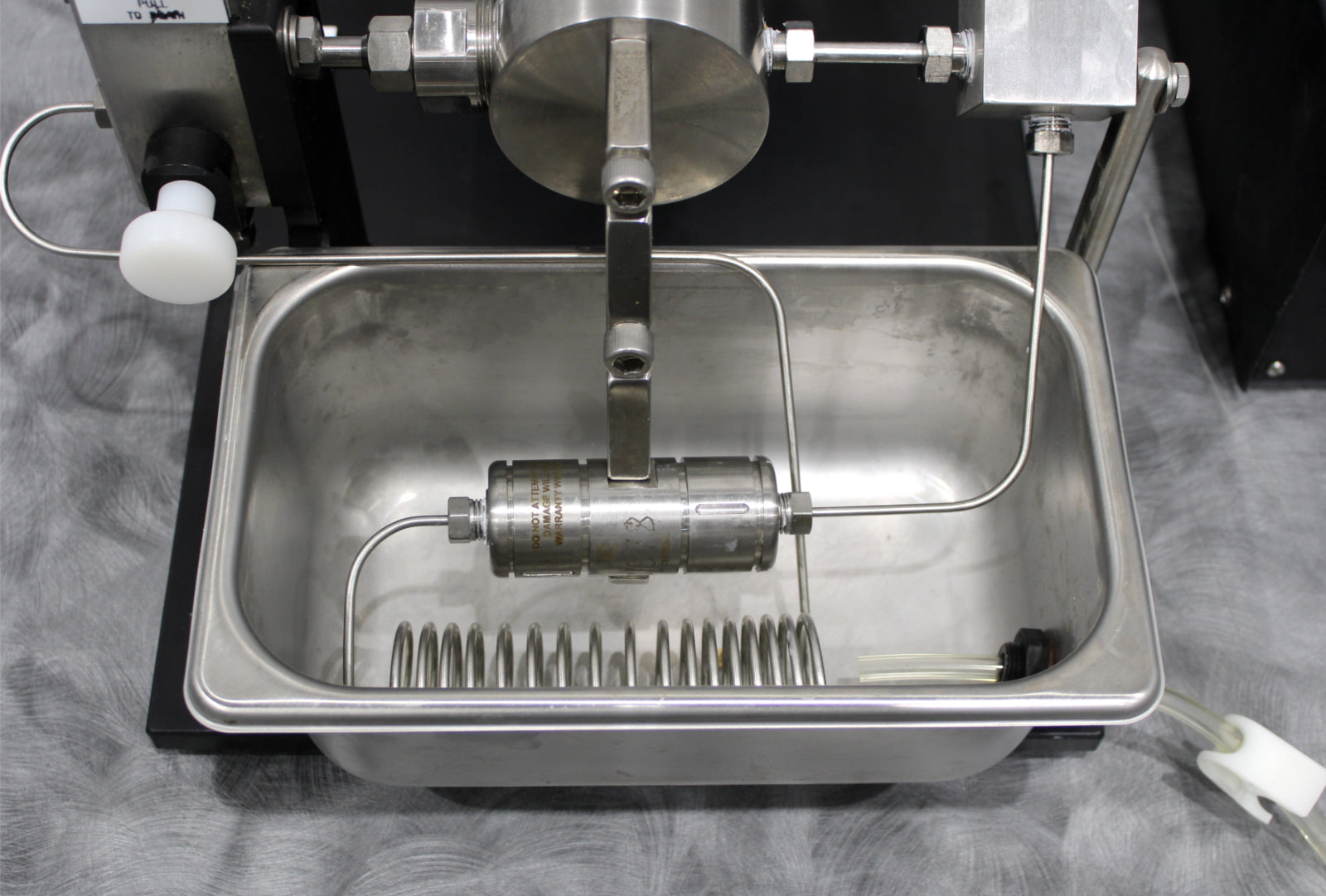

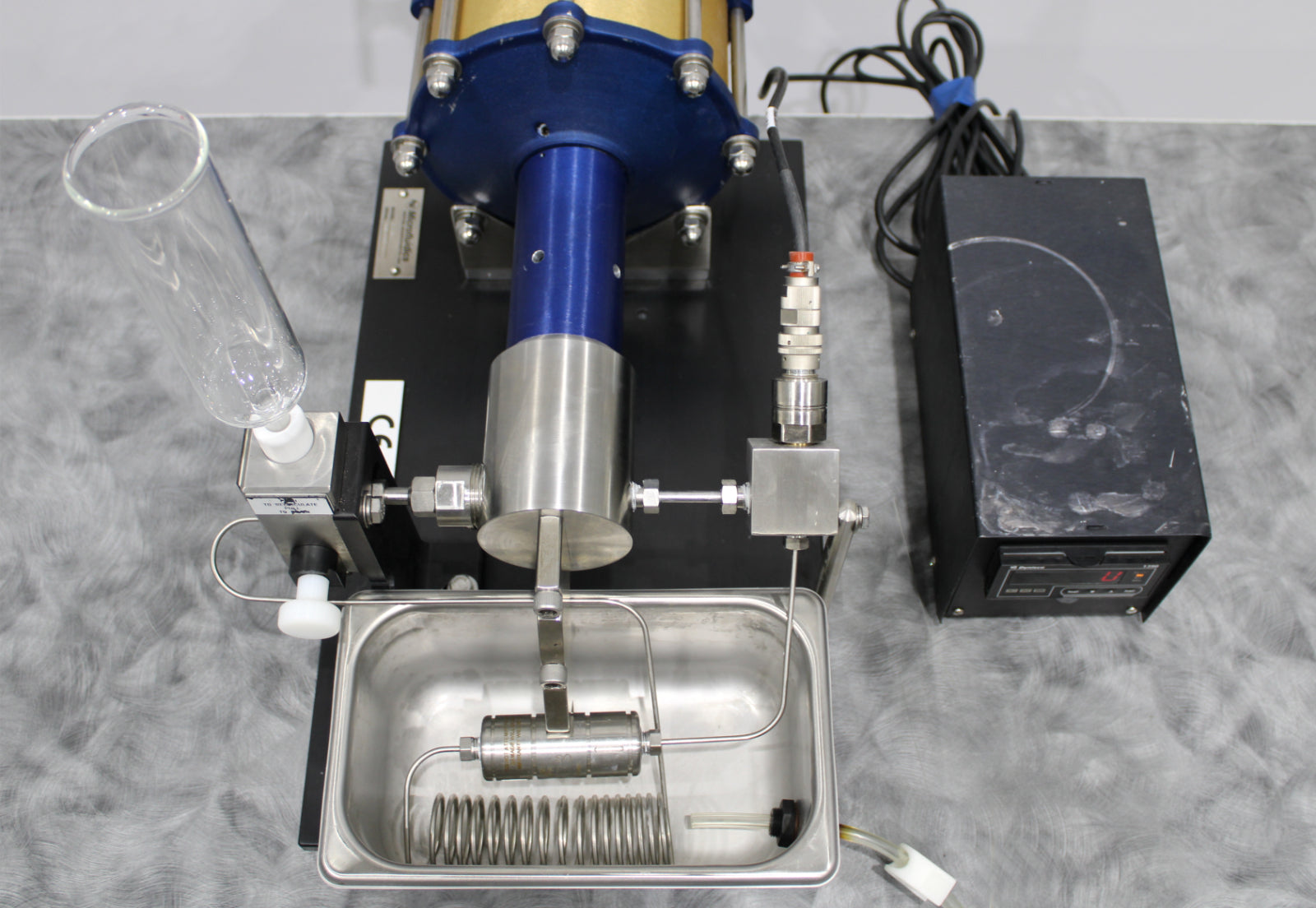

- Cooling Coil and Bath

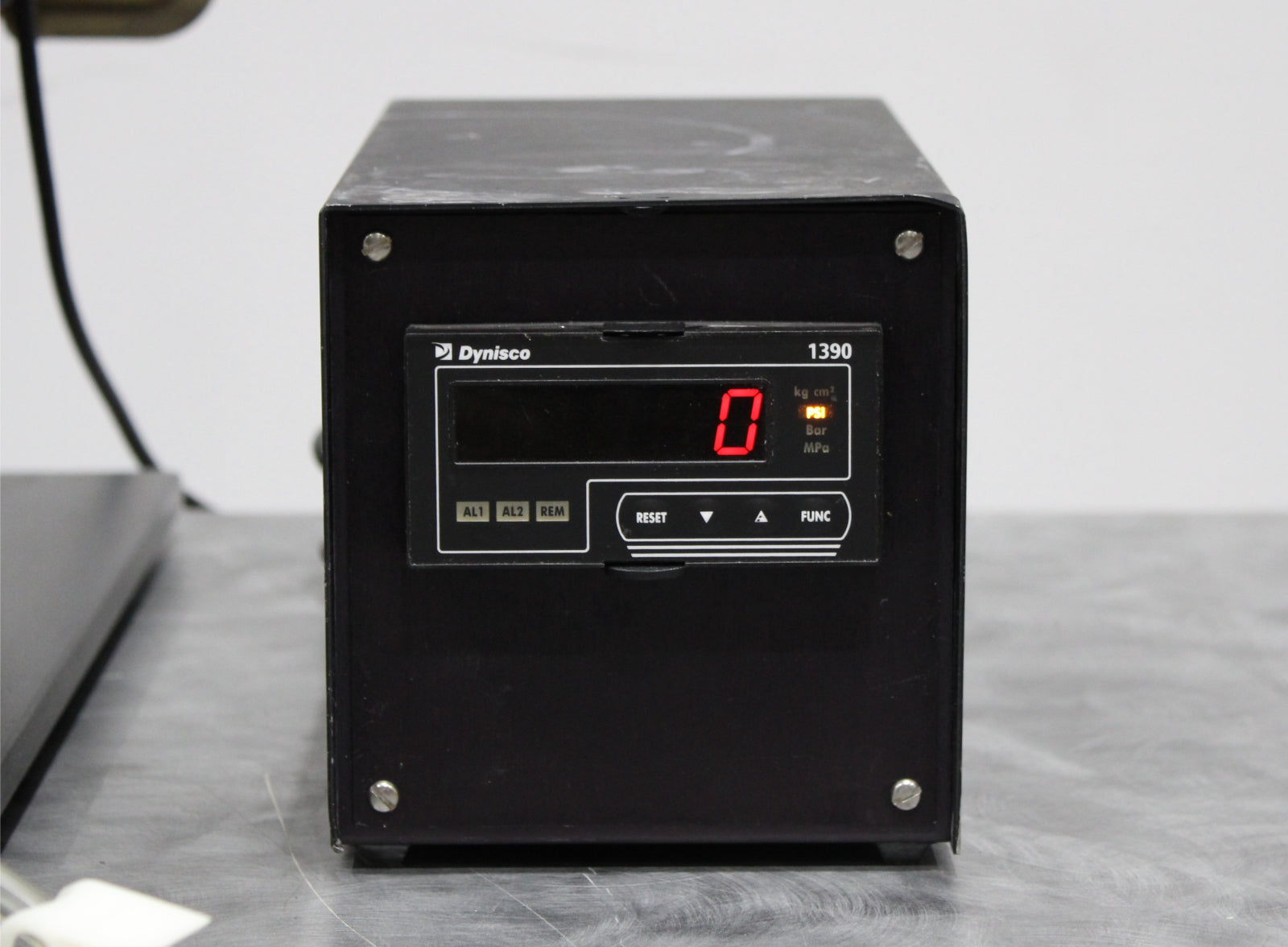

- Digital Pressure Gauge
- Power Cable

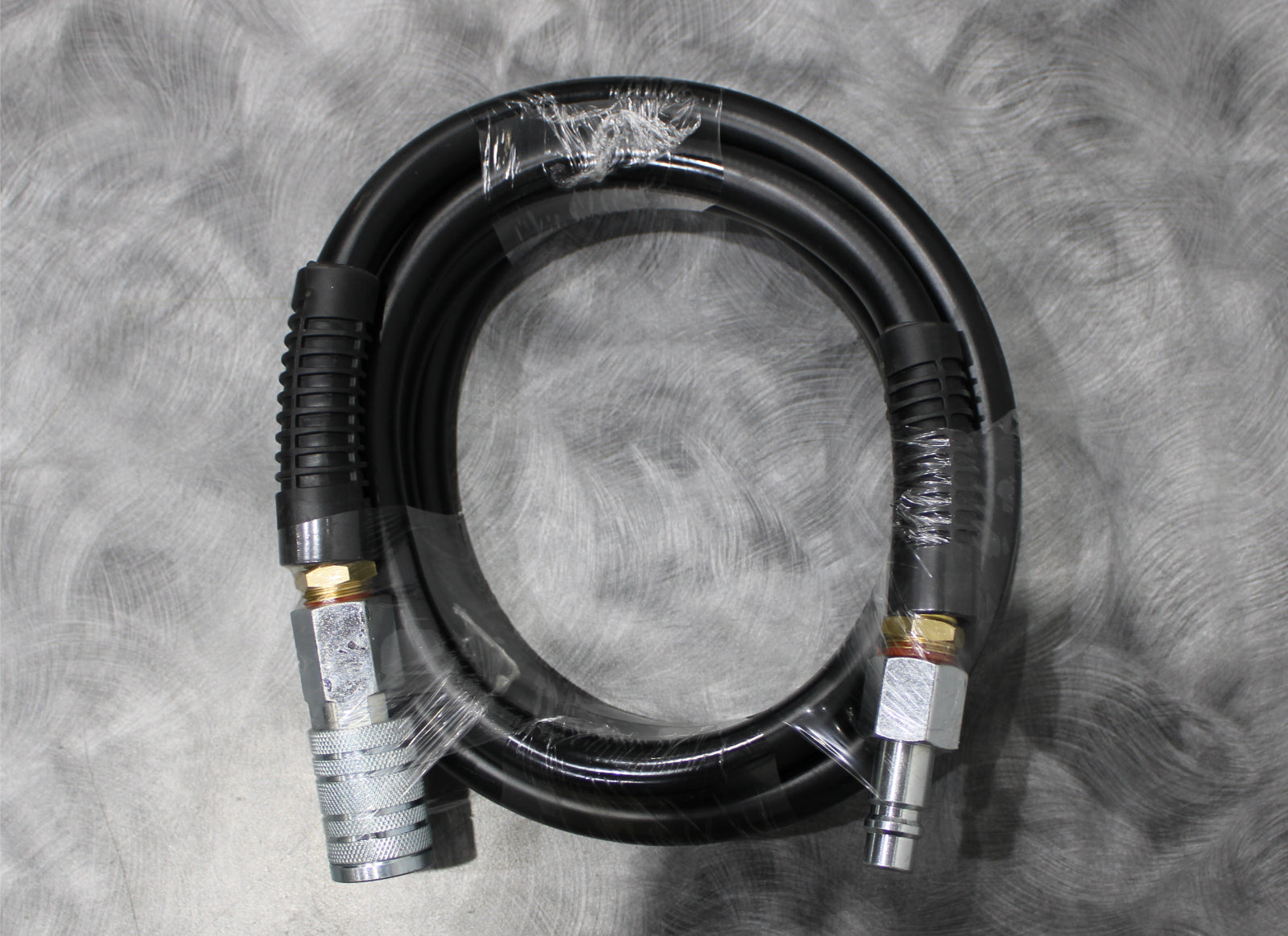

- Air Hose
- 90-Day Warranty
Notice: We recommend the replacement of the IXC due to wear.
After its initial disinfection and inspection, our technicians tested the Microfluidics Model 110S benchtop microfluidizer processor with the following results:
- Cleaned and inspected liquid end: PASSED
- Ran and sterilized with 1 liter of isopropyl alcohol: PASSED
- Verify highest pressure ran: PASSED
- Check process pressure control valve: PASSED
- Check motor start/stop control: PASSED

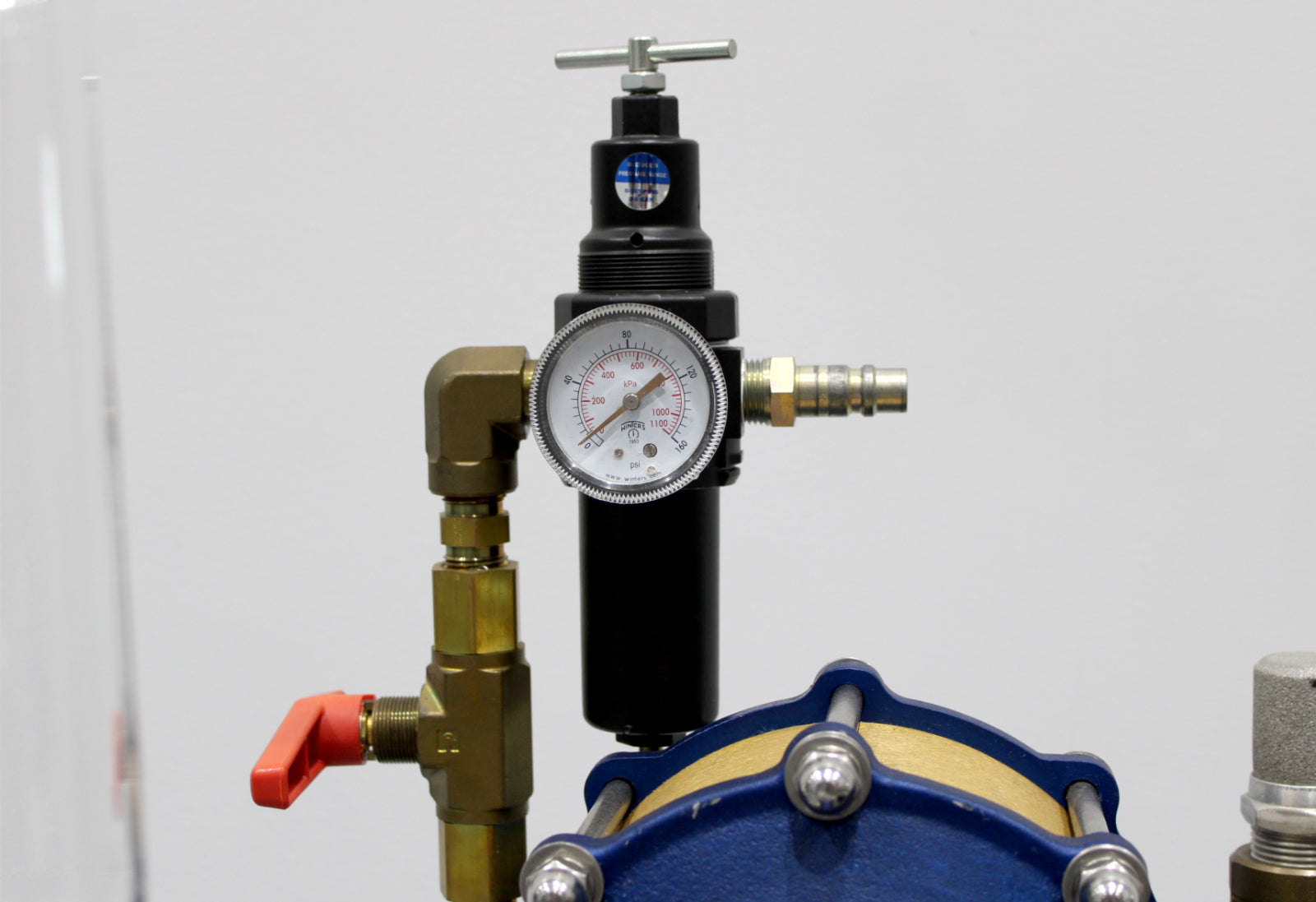

- Check pressurized air inlet assembly: PASSED
- Check/replace plunger seal assembly: PASSED
- Clean and inspect plunger: PASSED
- Clean and inspect bearing isolator/Orings: PASSED
- Clean and inspect/replace high pressure fittings: PASSED
- Clean and inspect/replace inlet check valve: PASSED
- Backflush the interaction chamber: PASSED

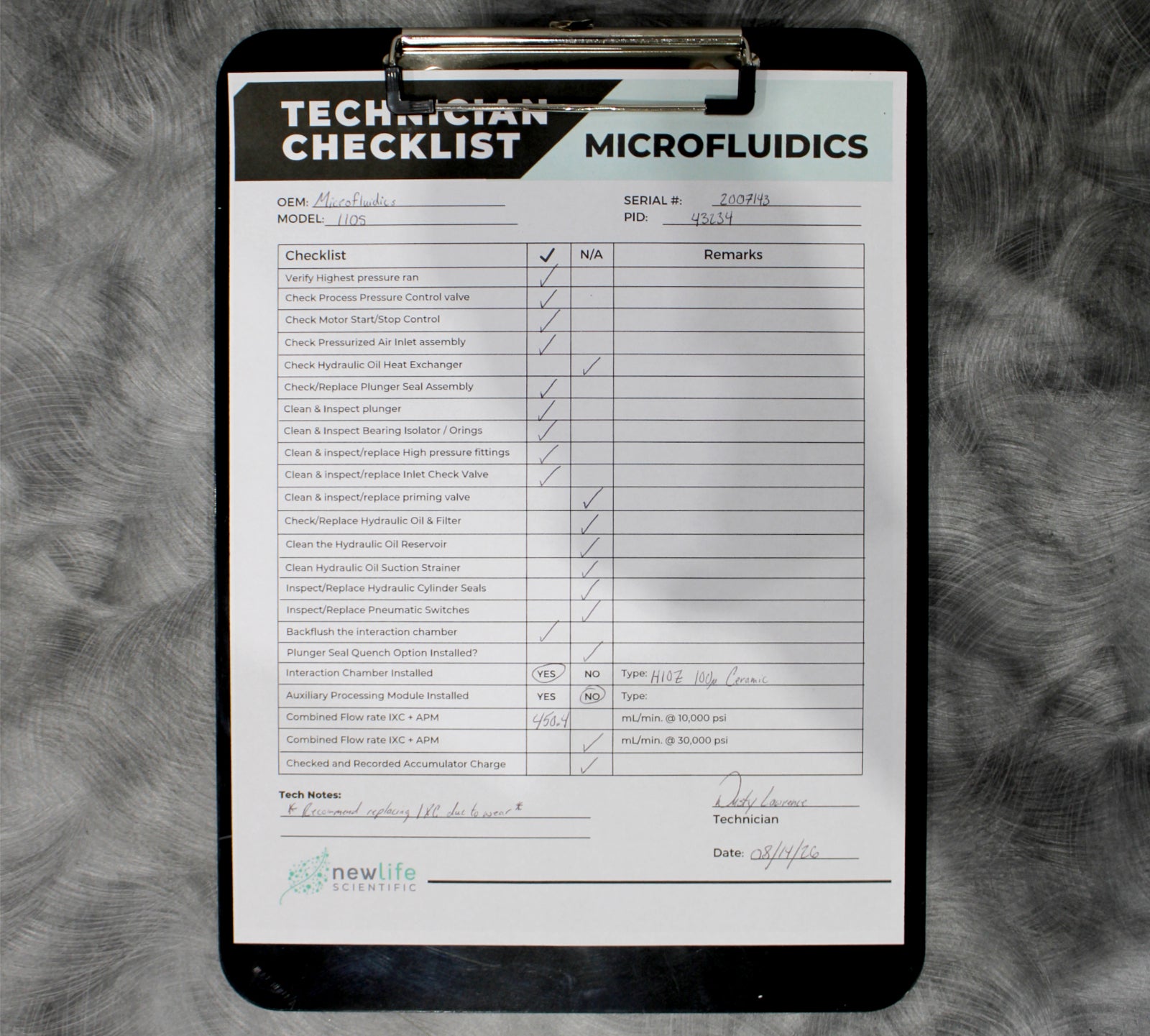

Notice: Please review the technician checklist in the product images to see more details of the inspection and testing performed.

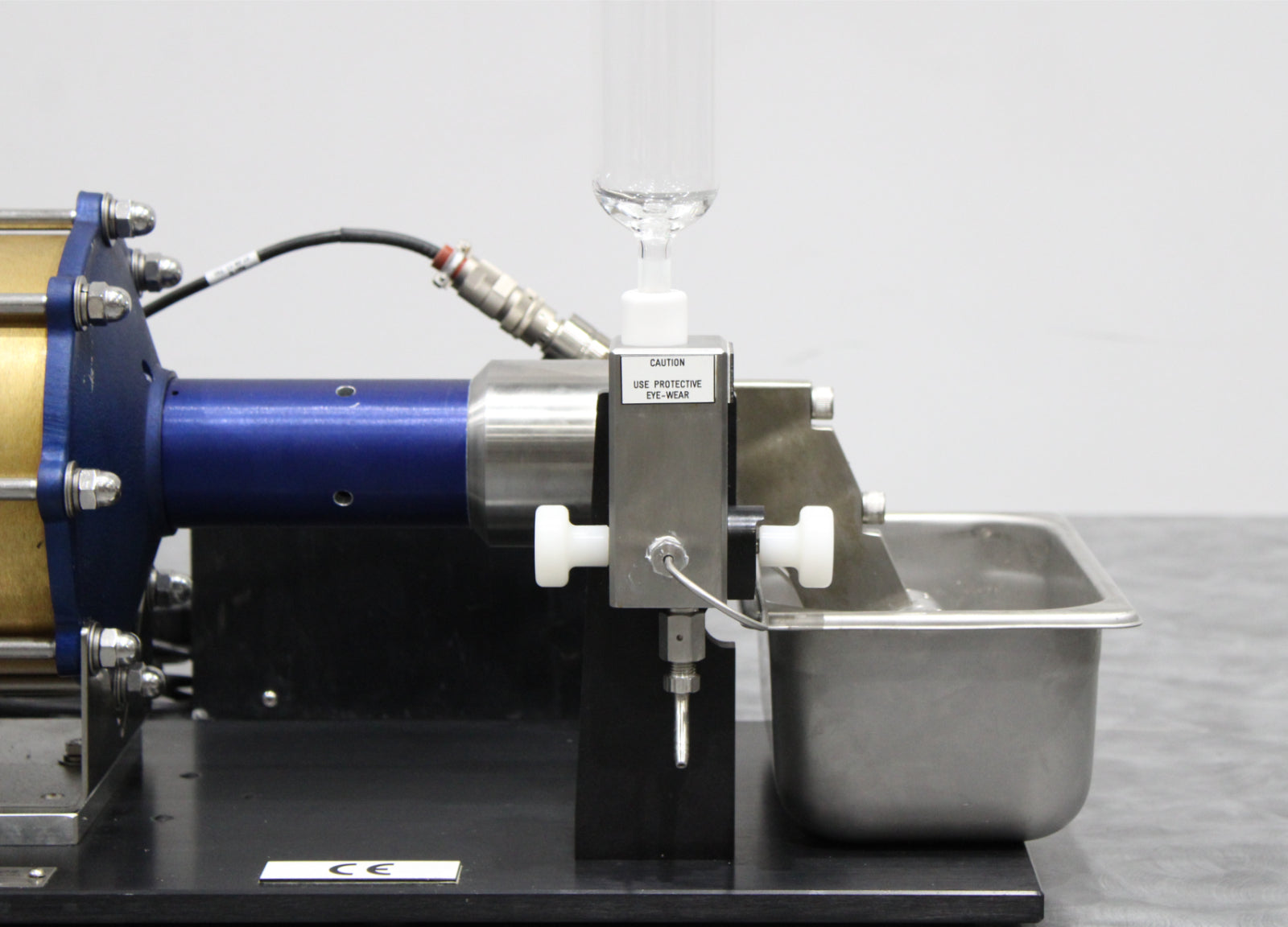

Notice: This homogenizer has some minor cosmetic blemishes. Please review the available photos to see the physical condition before purchasing.
|
Manufacturer
|
Microfluidics
|
|

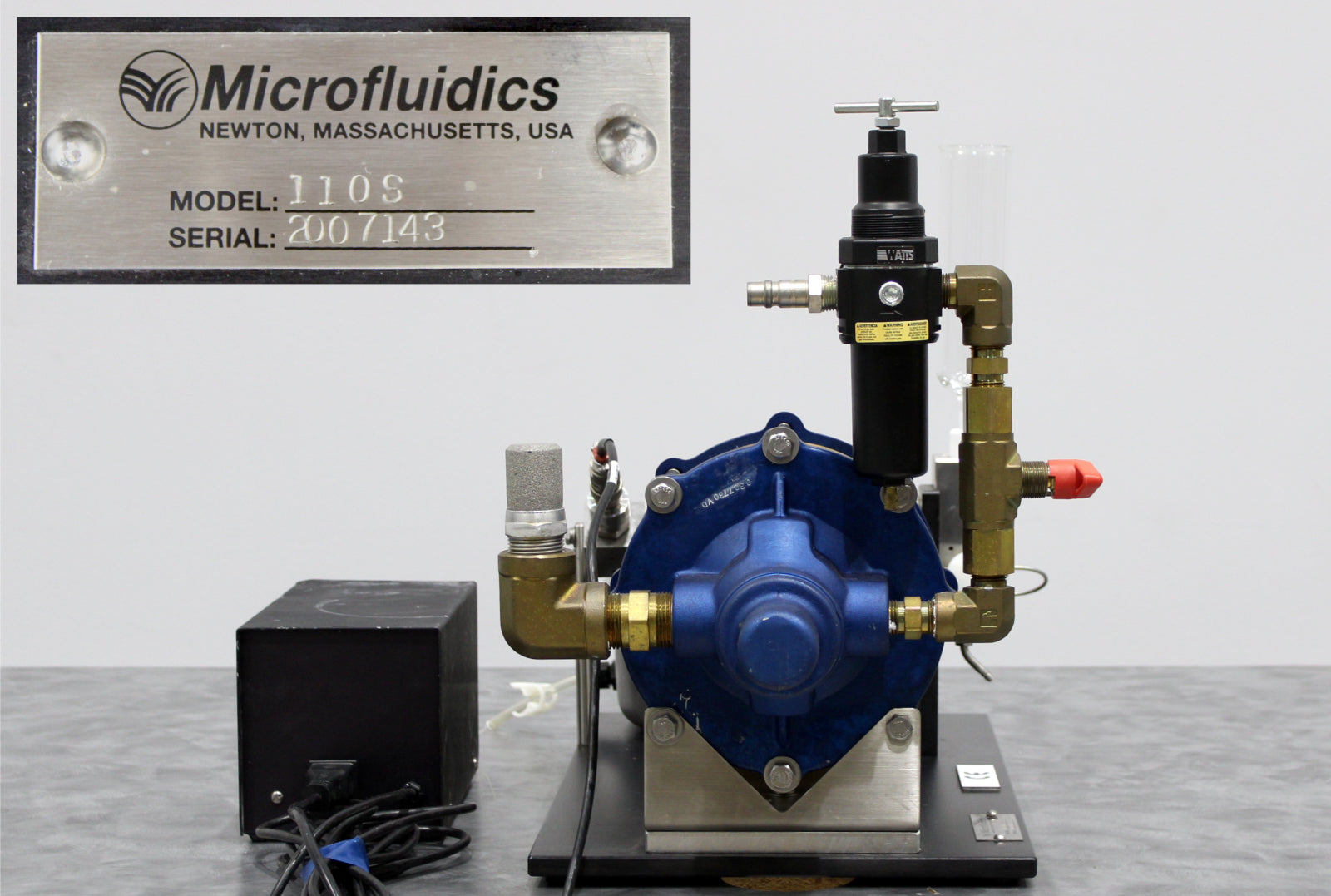

Model No.
|
110S
|
|
Serial No.
|
2007143
|
|
Pressure range
|
3,000 to 23,000 psi (204 to 1,564 bar)
|
|
Flowrate range
|
250 - 600 ml/min
|
|
Feed Temperature
|
Maximum 165°F (75°C)
|
|
Air compressor power requirement
|
57 scfm @ 120psi, (27 l/s @ 8.3 bar), 15 HP (11 kw), pressure dew point of -35°F to 0°F, 15 hp (11 kw)
|
|
Sample size
|
14 mL to continuous
|
|
Overall dimensions (W x D x H)
|
13 x 26 x 19 in
|
|
Weight
|
55 lb (25 kg)
|
Note: All figures based on testing with water
