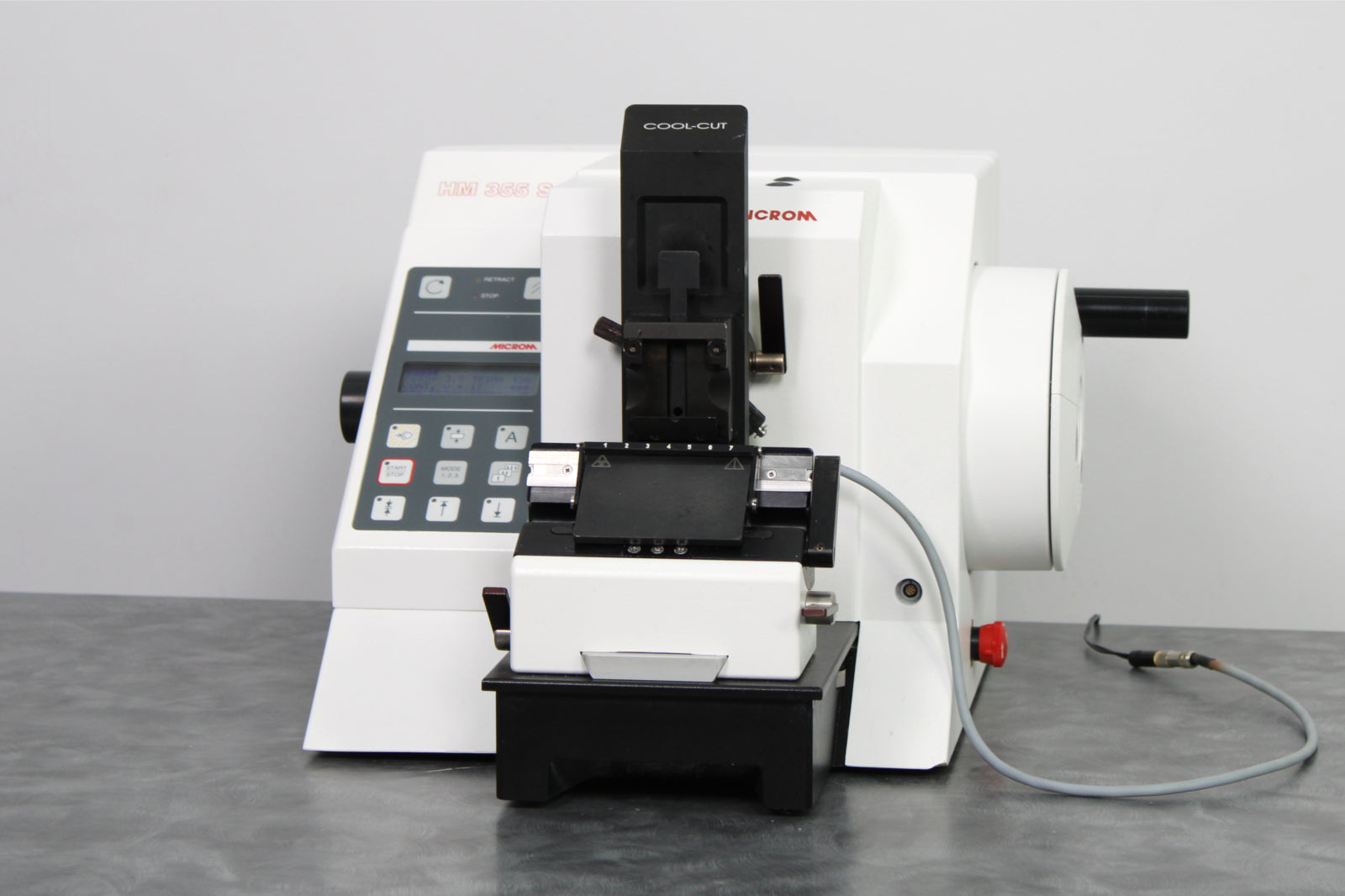

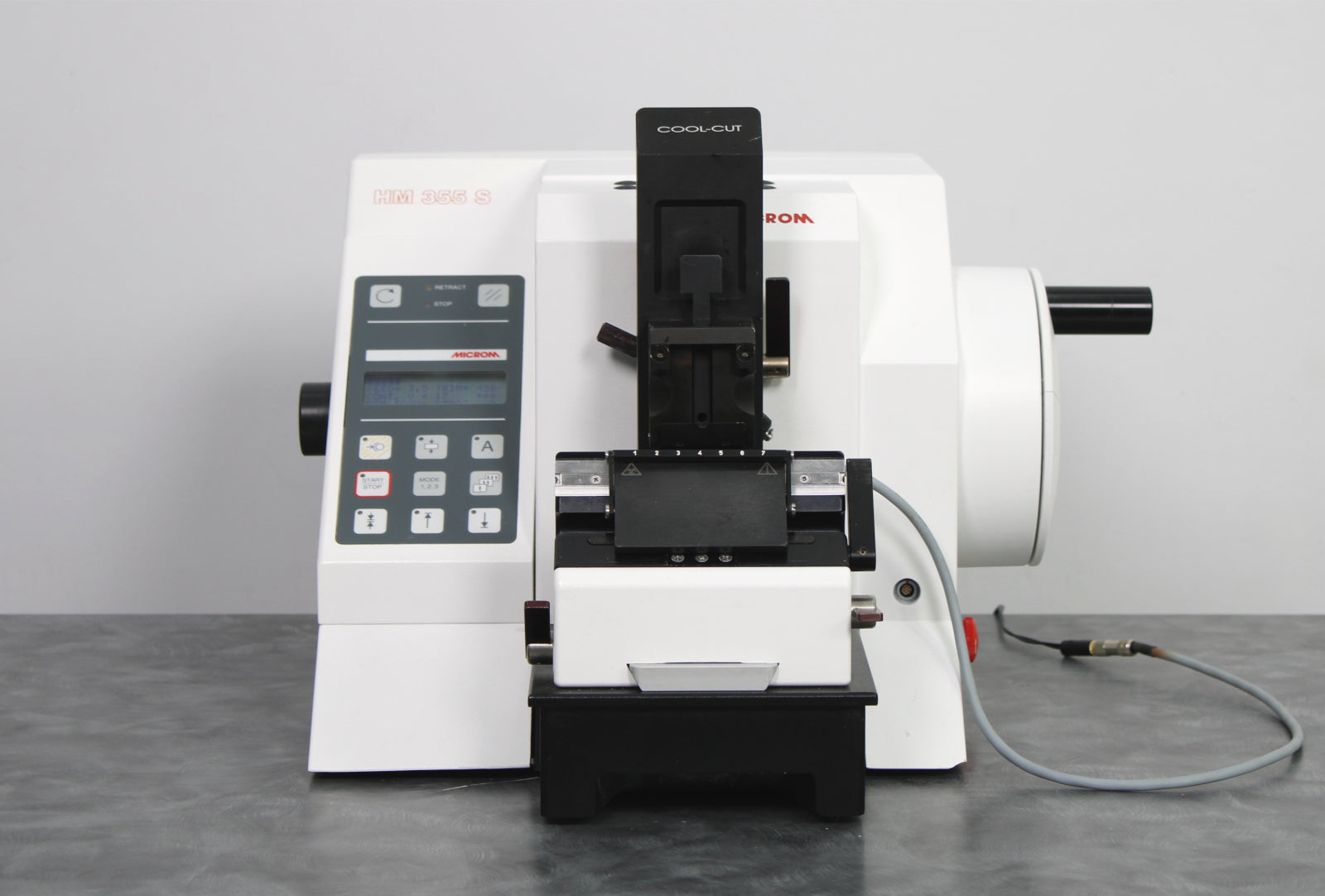

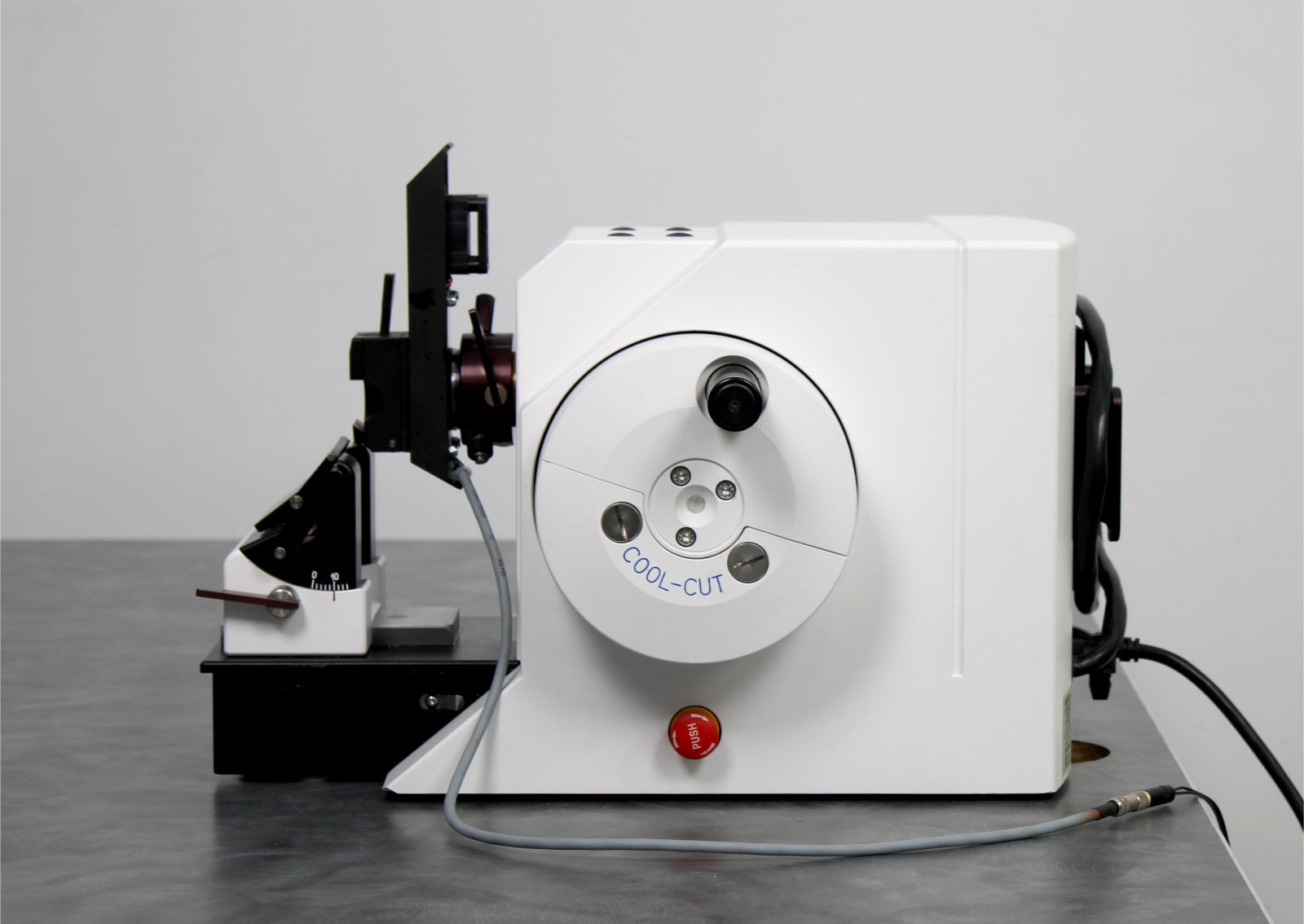

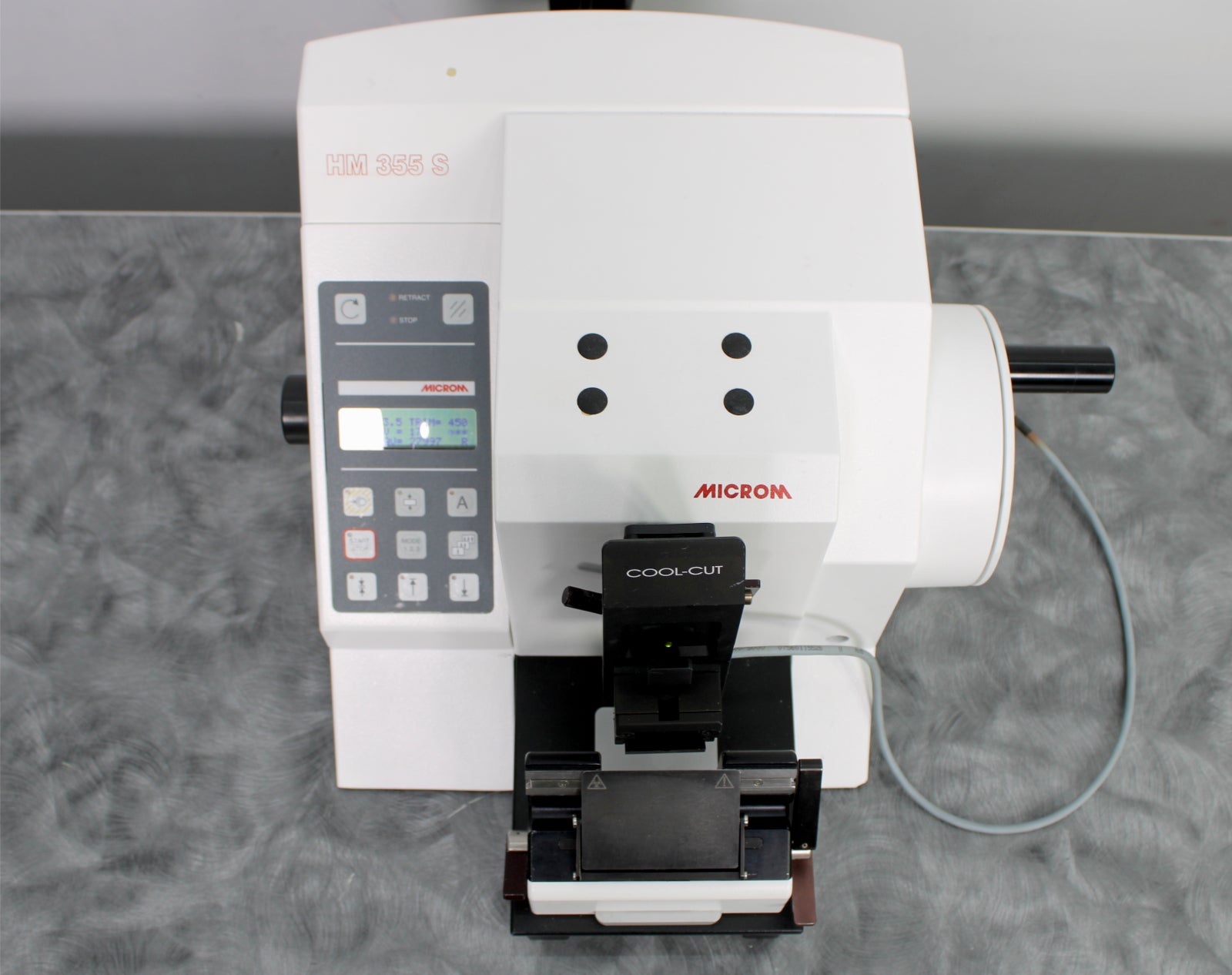

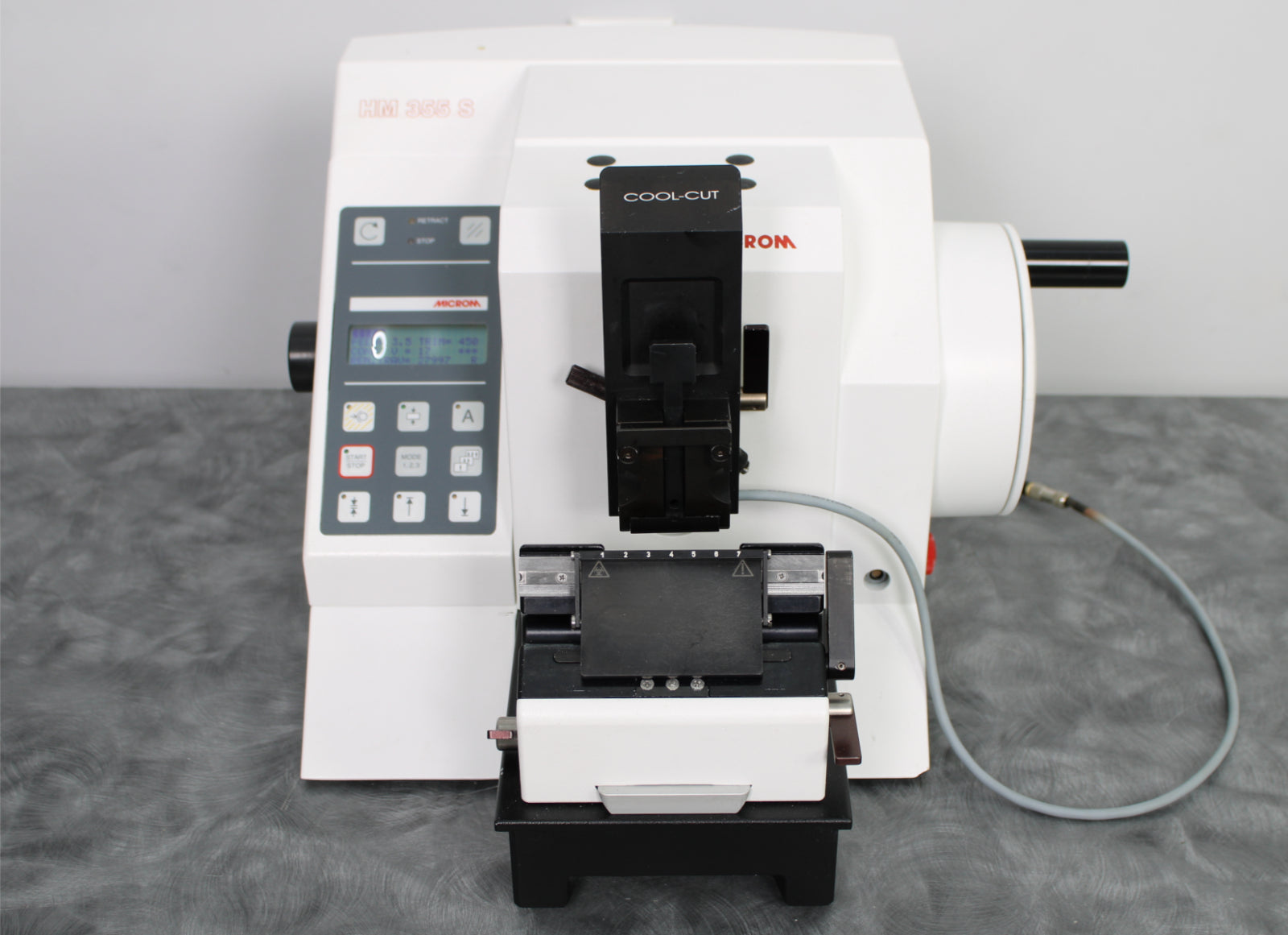

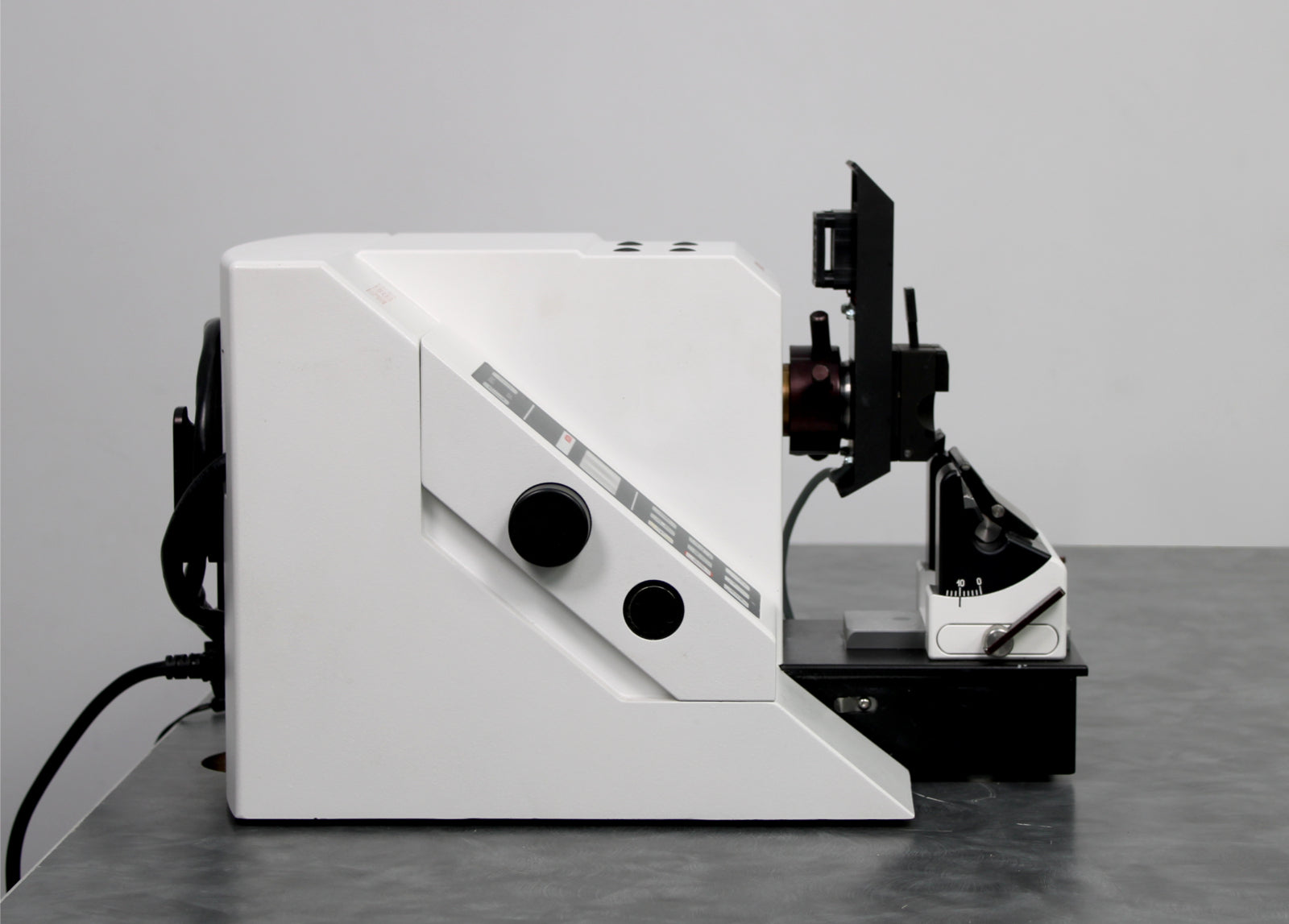

- Microm HM 355 S Motorized Rotary Microtome (905480)

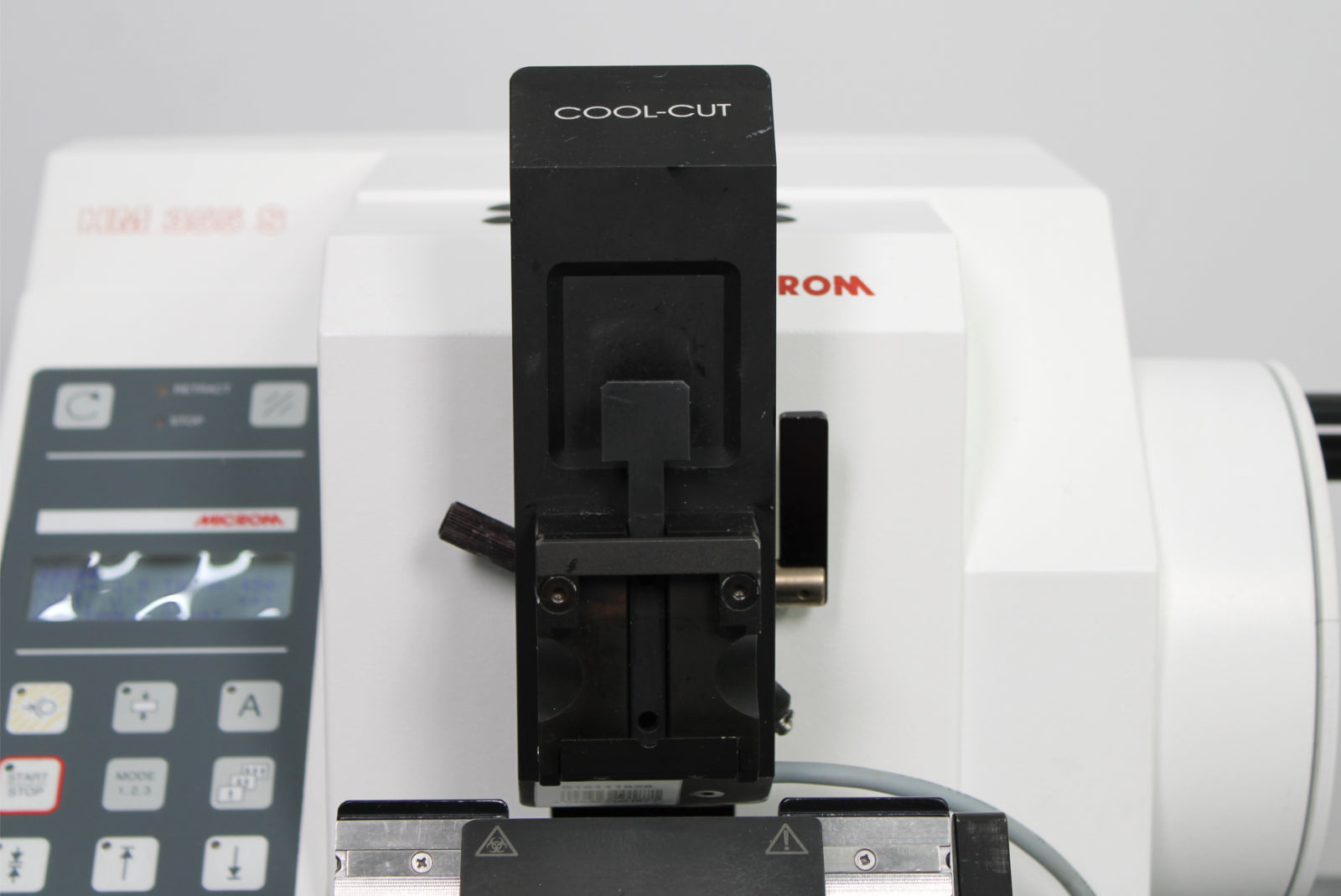

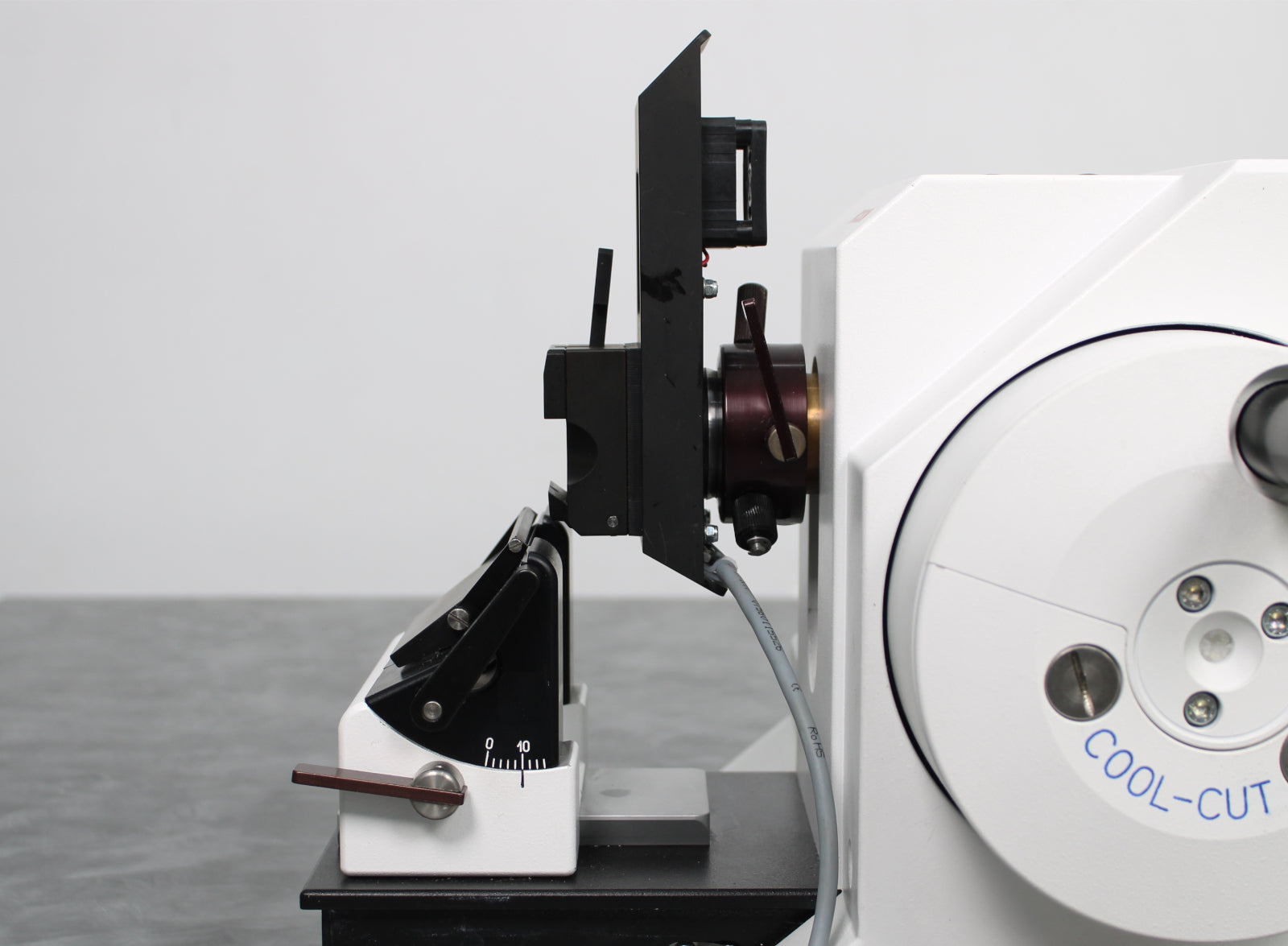

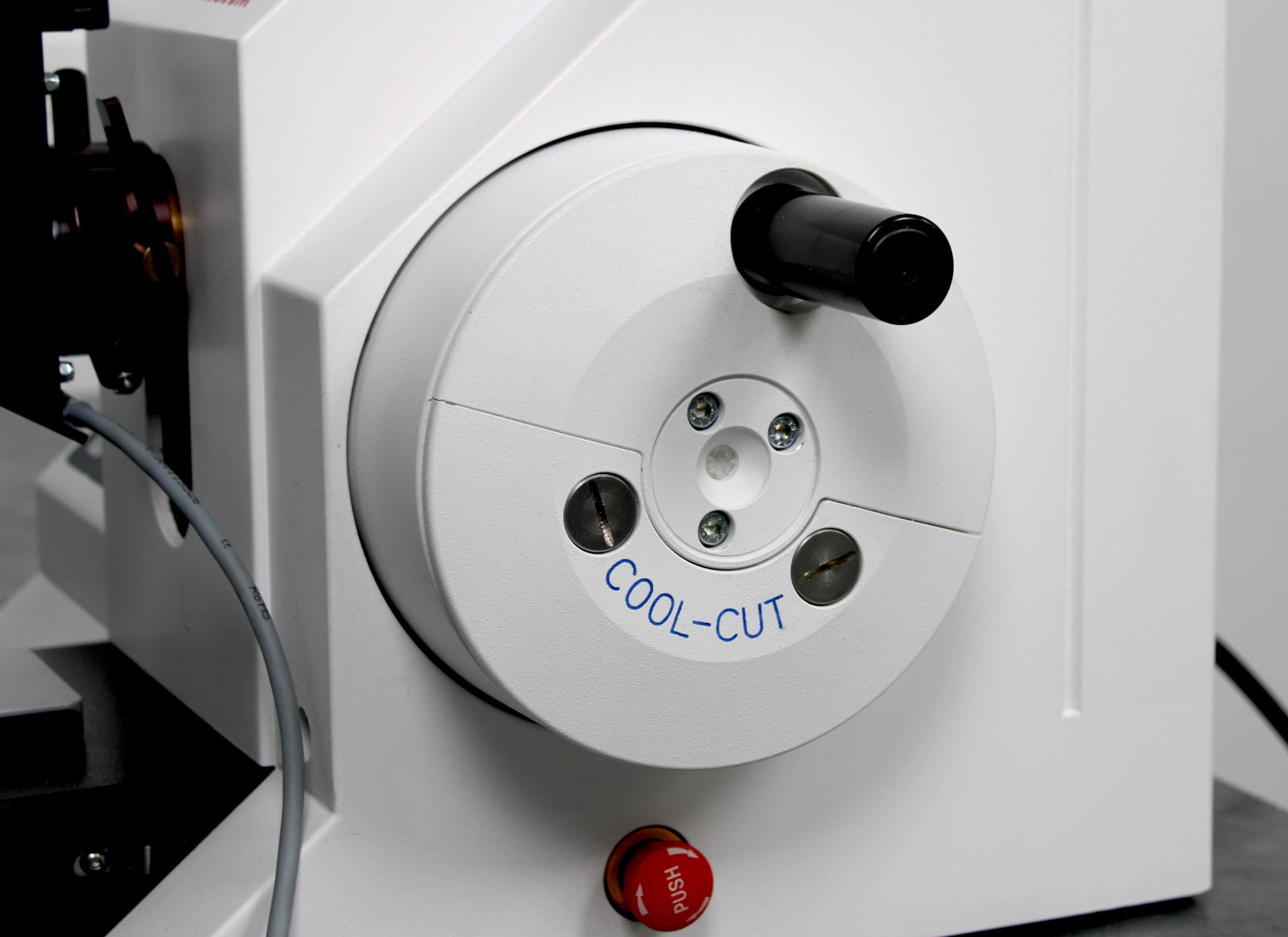

- Thermo Shandon Cool Cut and Cassette Clamp (771110)

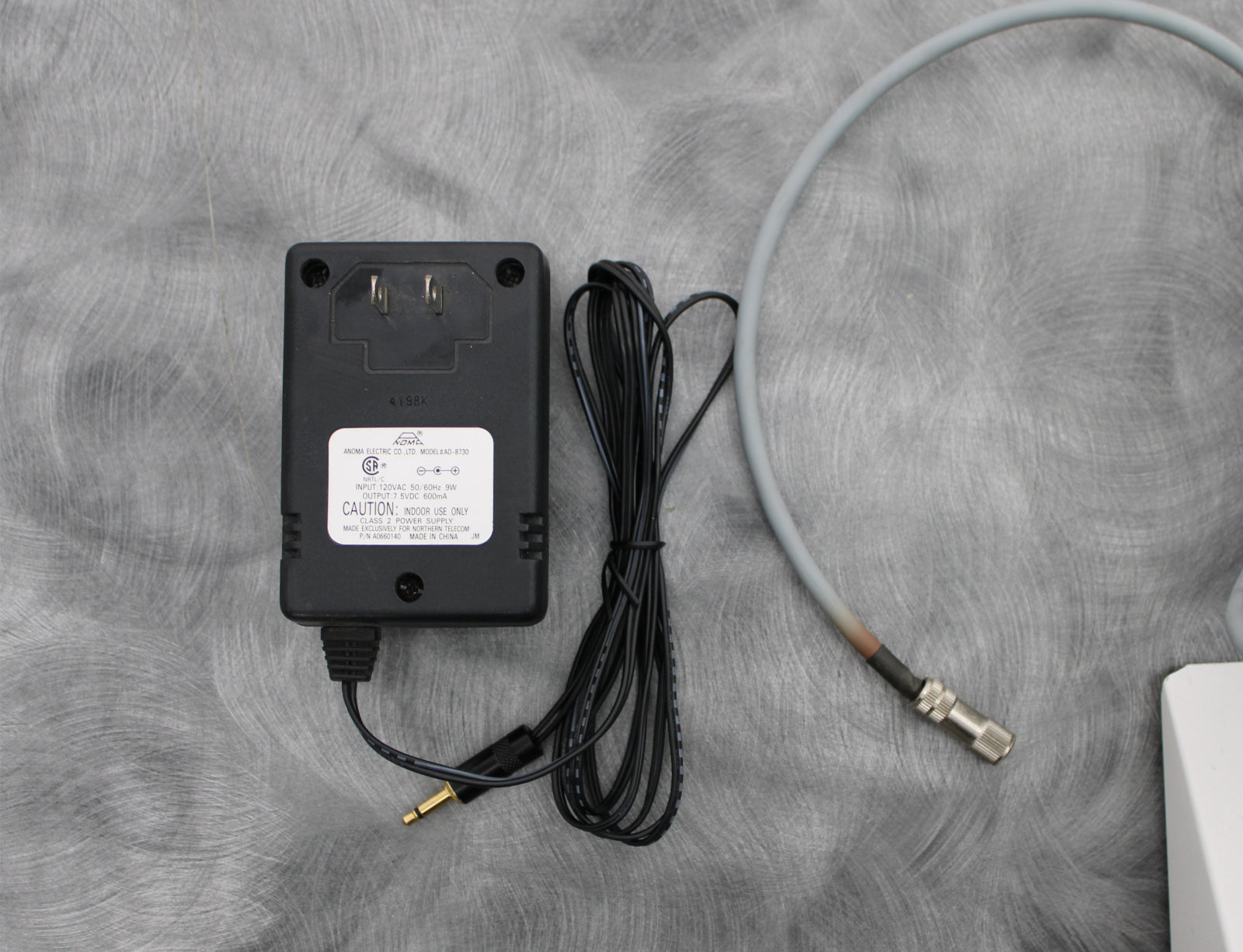

- Power Adapter
- Power Cable
- 90-Day Warranty
After its initial disinfection and inspection, our technicians tested the Microm HM 355 S motorized rotary microtome with the following results:

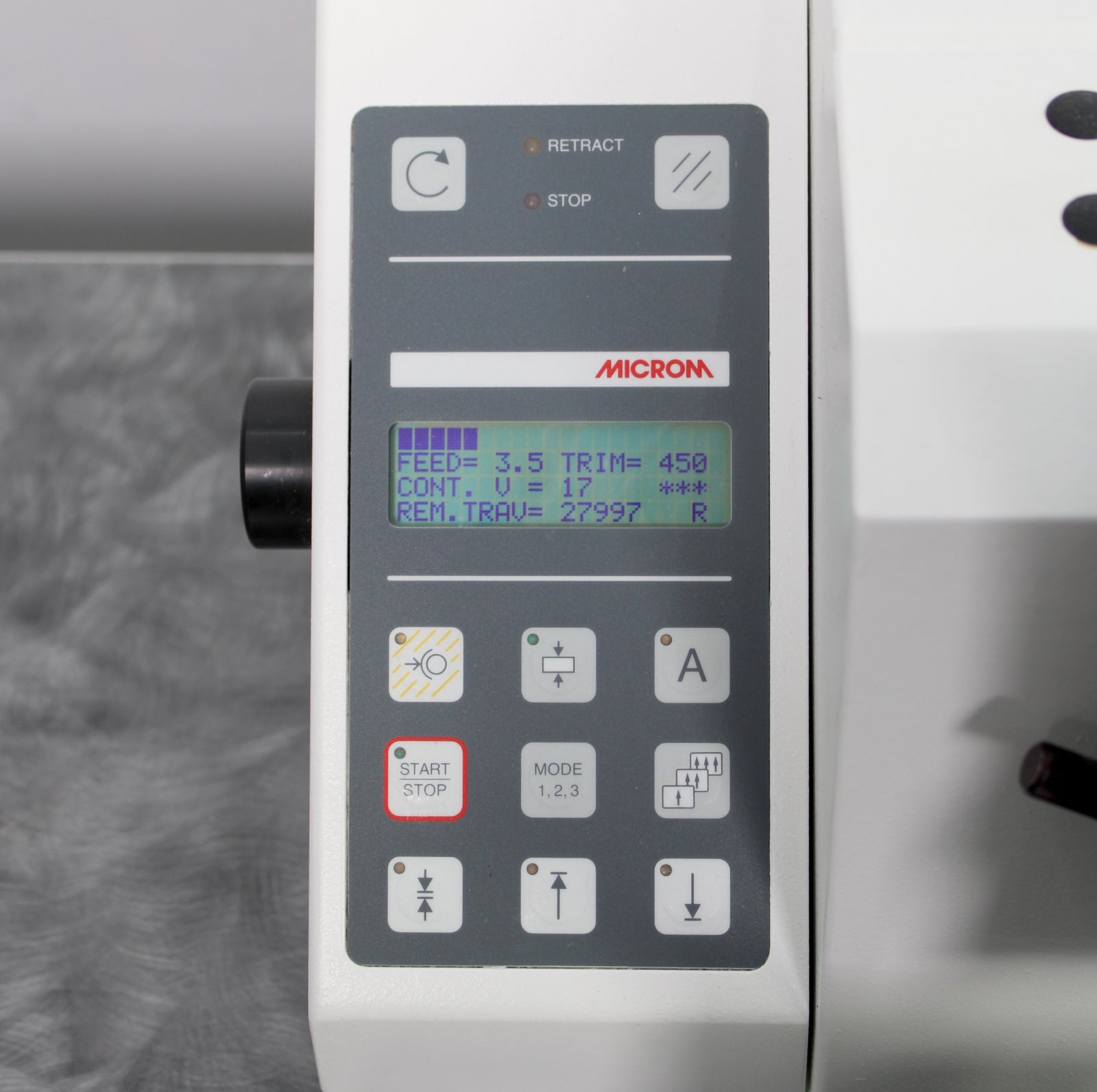

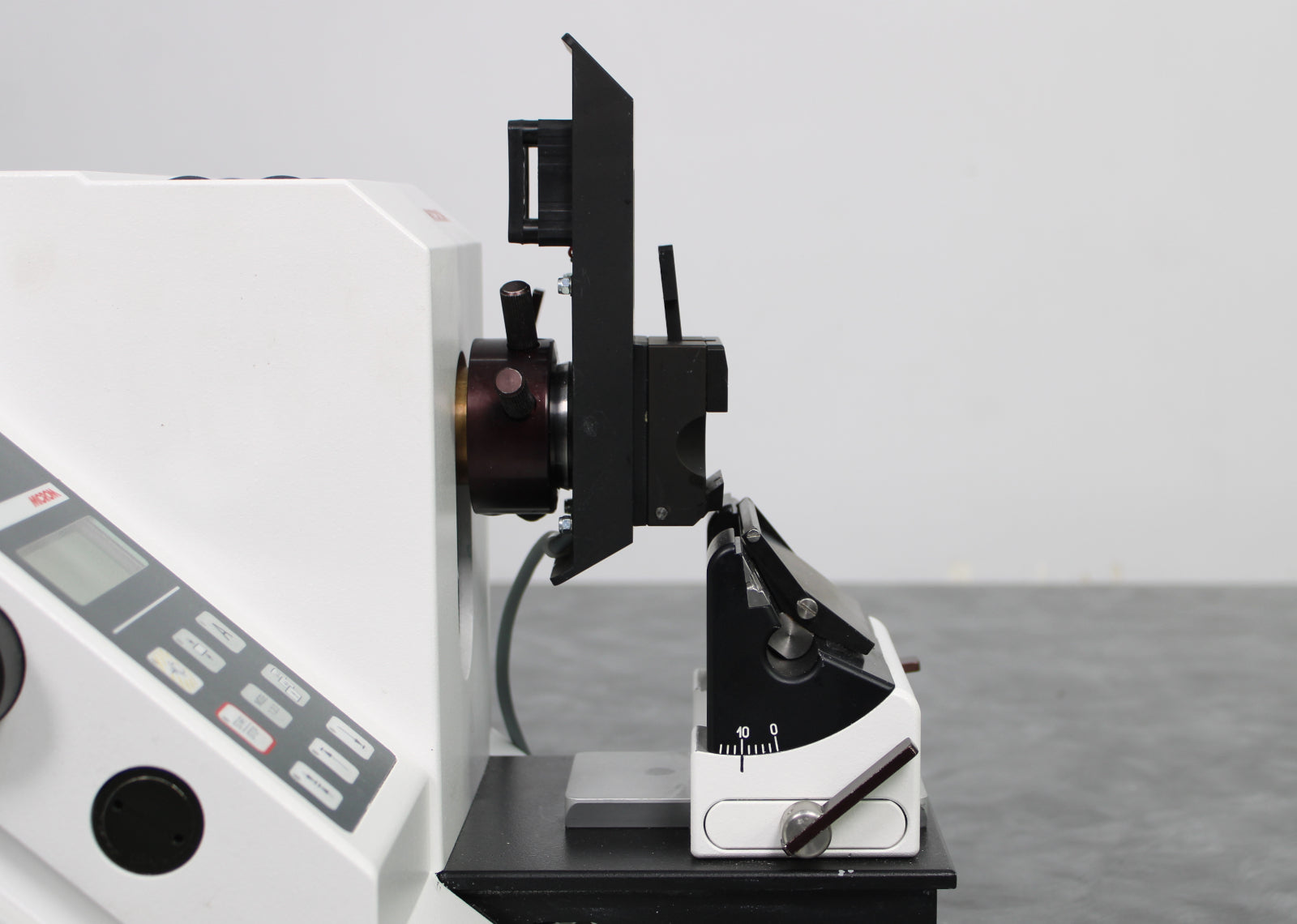

- Control panel: PASSED
- Handwheel: PASSED
- Specimen advance and retract: PASSED
- Power cutting motor: PASSED
- Head adjustments: PASSED
|

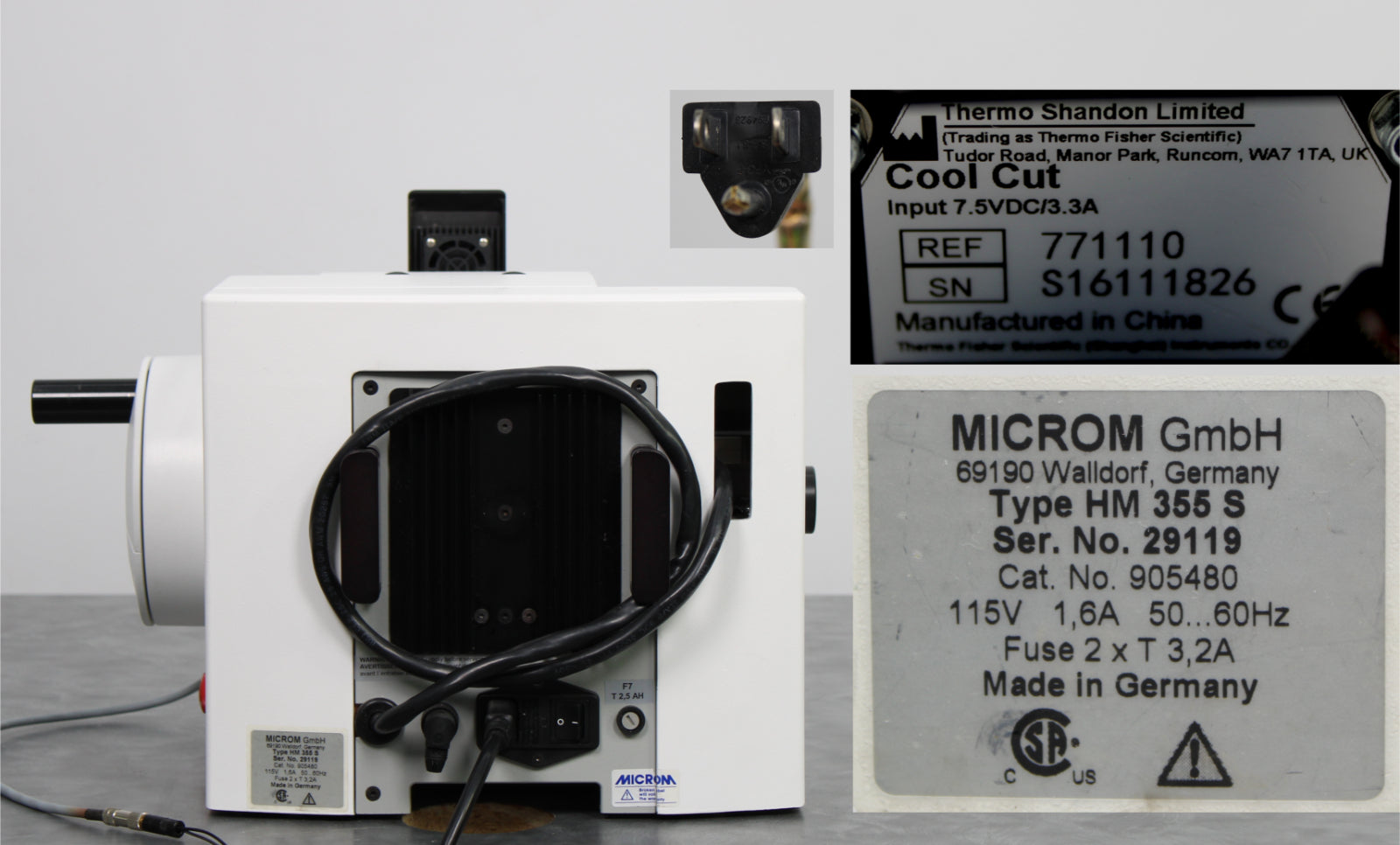

Manufacturer
|
Microm
|
|
Model
|
HM 355 S
|
|
Catalog No.
|
905480
|
|
Serial No.
|
29119
|
|
Fine section thickness range
|
0.5 - 100 µm
|
|
Feed resolution
|
0.5 µm steps for 0.5 - 5 µm
1 µm steps for 5 - 20 µm
2 µm steps for 20 - 30 µm
5 µm steps for 30 - 60 µm
10 µm steps for 60 - 100 µm
|
|
Trim section thickness range
|
5 - 500 µm
|
|
Trimming resolution
|
5 µm steps for 5 - 10 µm
10 µm steps for 10 - 100 µm
20 µm steps for 100 - 200 µm
50 µm steps for 200 - 500 µm
|
|
Storage temperature range
|
-20°C to +50°C
|
|
Operating conditions
|
+10°C to +40°C
Maximum relative humidity of 60%
|
|
Power rating
|
115V, 50-60Hz, 1.6A
|
|
Dimensions (W x D x H)
|
16.1 x 20.5 x 11 in (41 x 52 x 28 cm)
|
|
Weight depending on configuration
|
68.3-77.2 lb (31-35 kg)
|
