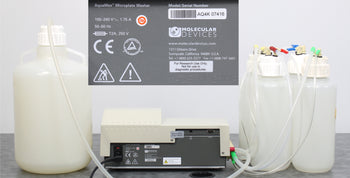

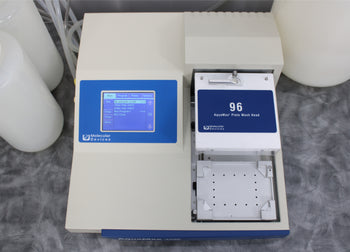

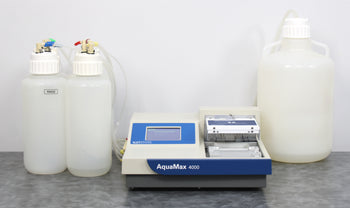

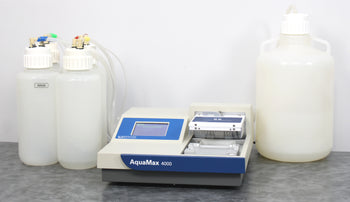

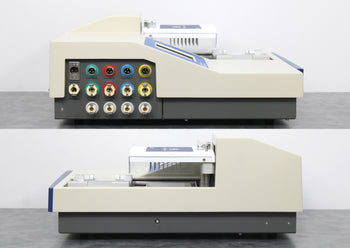

- Molecular Devices AquaMax 4000 Microplate Washer (AQ4K)

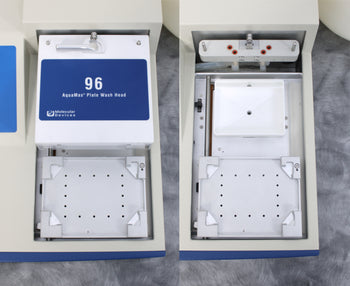

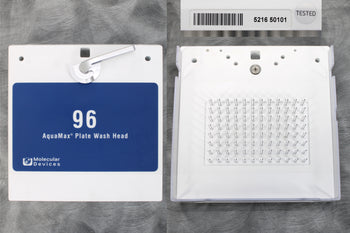

- Molecular Devices AquaMax 96-Well Plate Wash Head

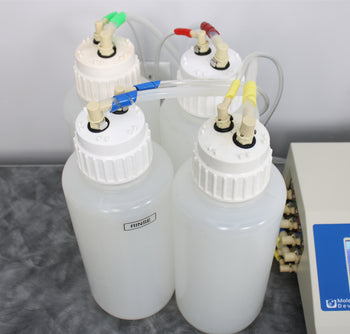

- x4 5 Liter Reagent Bottles with Quick Connect Fittings
- 5 Gallon Waste Bottle with Quick Connect Fitting
- Power Cable
- 90-Day Warranty
After its initial disinfection and inspection, our technicians tested the Molecular Devices AquaMax 4000 AQ4K microplate washer with the following results:

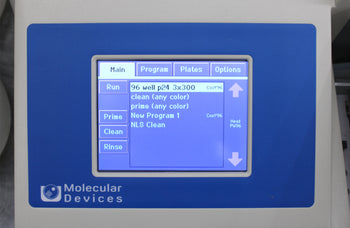

- Washer initializes to main menu: PASSED

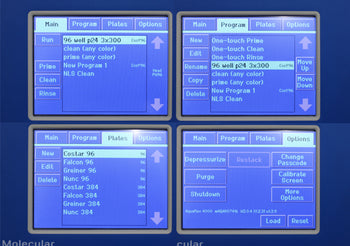

- Created and ran several protocols that tested all functions: PASSED
|
Manufacturer
|
Molecular Devices
|
|
Model
|
AquaMax 4000 (AQ4K)
|
|
Serial No.
|
07416
|
|
Compatible microplates
|
SBS-conforming 96- and 384-well; flat, U-, or V-bottom plates
|
|
Shake options
|
3 speeds, up to 600 sec. max.
|
|
Wash head
|
PET (polyethylene terephthalate), 304 stainless steel
|
|
Precision (96-well)
|
<4%CV @ 300µL
|
|
Precision (384-well)
|
≤3%CV @ 100µL
|
|
Washing times 96 wash head, 300µL/well
|
Single cycle: 11 sec.
Three cycles: 26 sec.
|
|
Washing times 384 wash head, 100µL/well
|
Single cycle: 12 sec.
Three cycles: 28 sec.
|
|
FashWash times (optimized for speed)
|
96 Wash Head, 300µL/well, three cycles: 14 sec.
384 Wash Head, 100µL/well, three cycles: 16 sec.
|
|
Process time with integrated, optional StakMax Microplate Handling System (FastWash, 96 Wash Head, 300µL/well, three cycles)
|
<13 min. for 20 plates
|
|
Wash volume
|
100-3000µL
|
|
Residual volume, 96
|
≤5µL
|
|
Residual volume, 384
|
≤2µL
|
|
Dispense volumes
|
10-400µL/well
|
|
Liquid contact materials
|
Nylon, polypropylene, teflon, polyethylene, stainless steel, and silicone
|
|

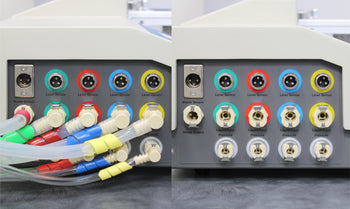

Liquid inlets
|
2 or 4
|
|
Outlets
|
Waste to drain or vented container
|
|

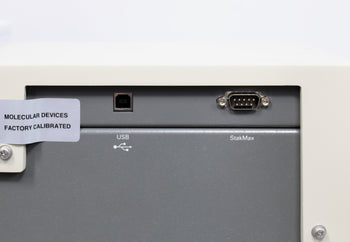

Interface connections
|
USB and proprietary StakMax connect
|
|
Power supply
|
Auto-switching
|
|
Power rating
|
100-240V~, 50-60Hz, 1.75A
|
|
Dimensions (W x D x H)
|
18.3 x 20.3 x 8.3 in (46.6 x 51.7 x 21 cm)
|
|
Weight
|
40.8 lb (18.5 kg)
|
