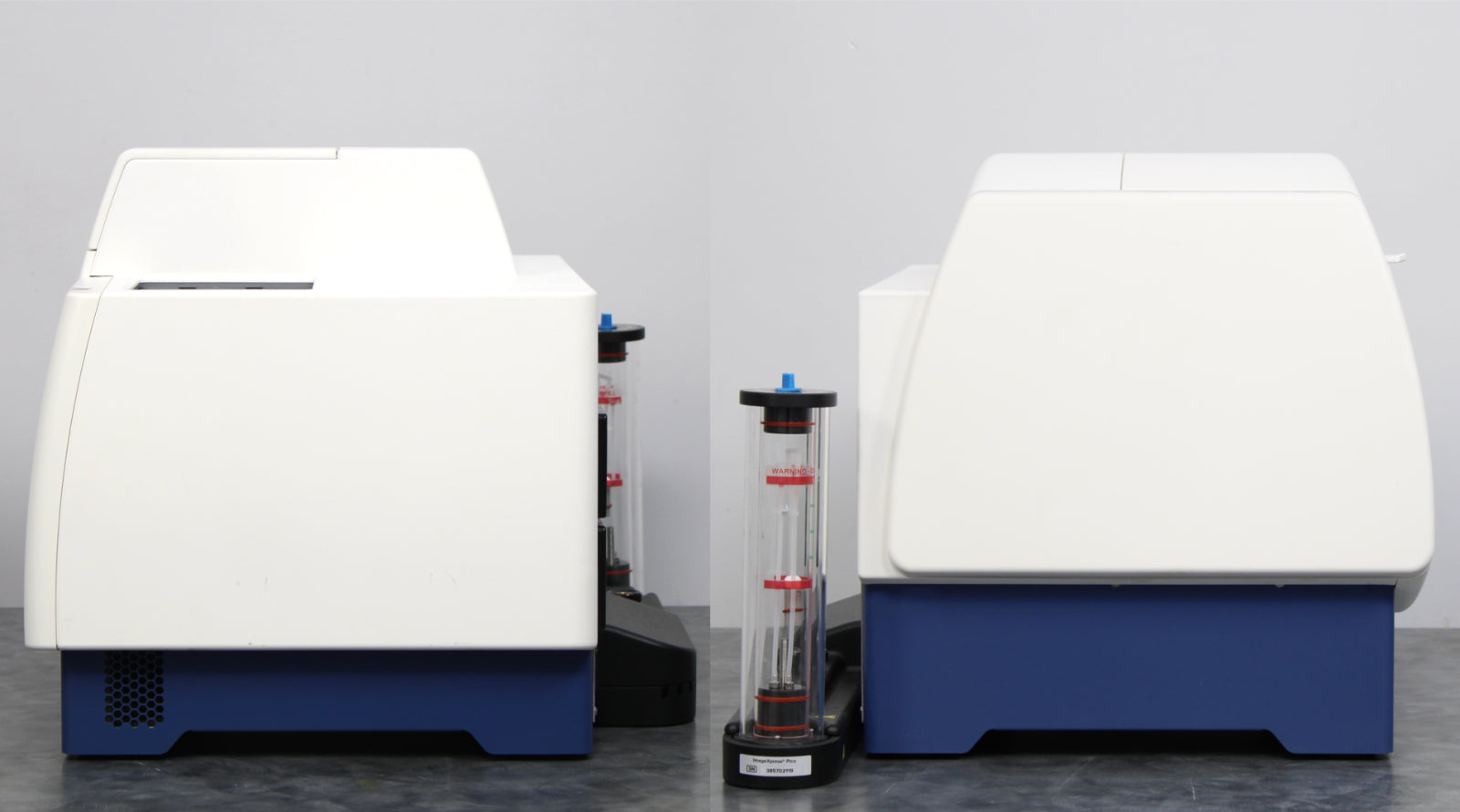

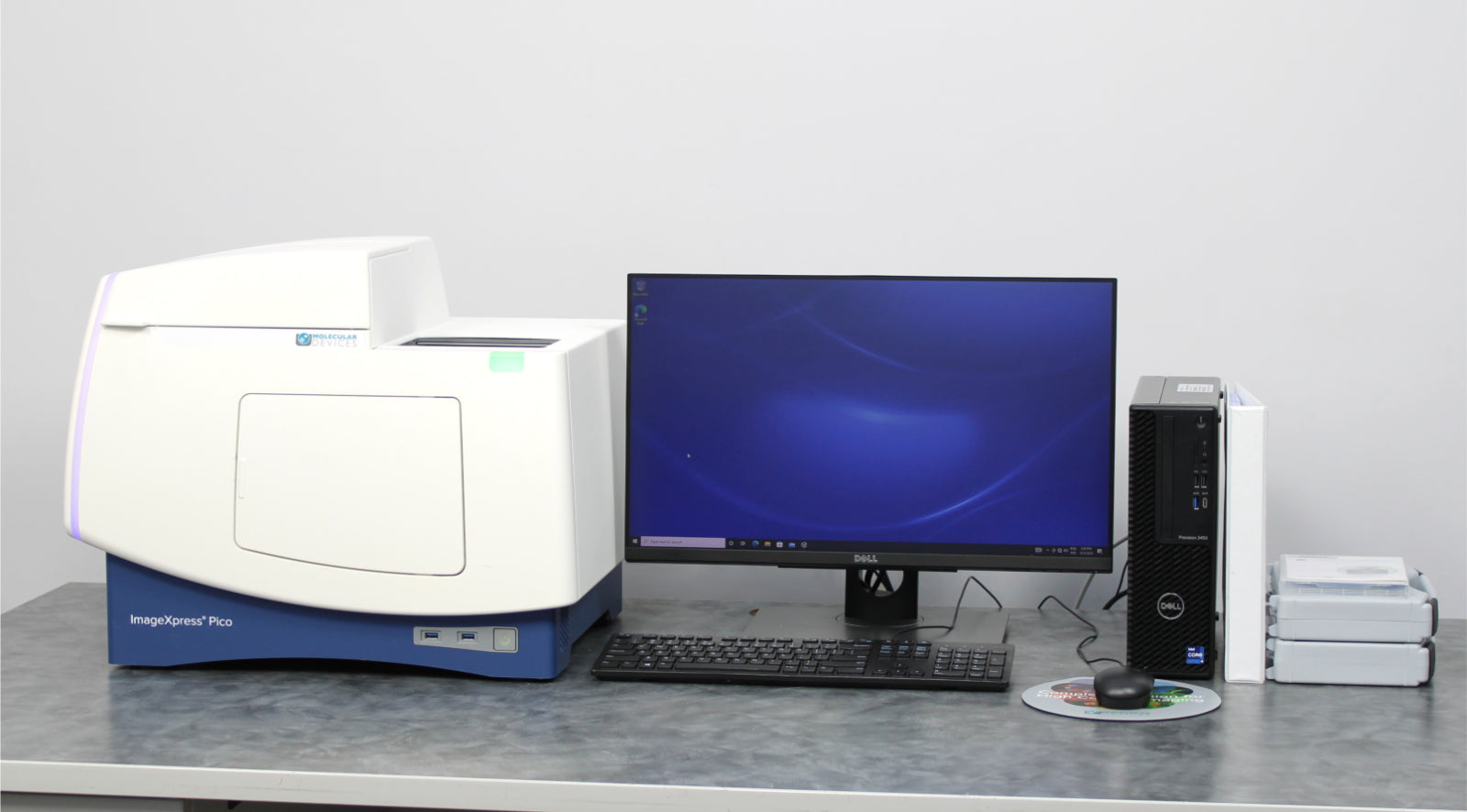

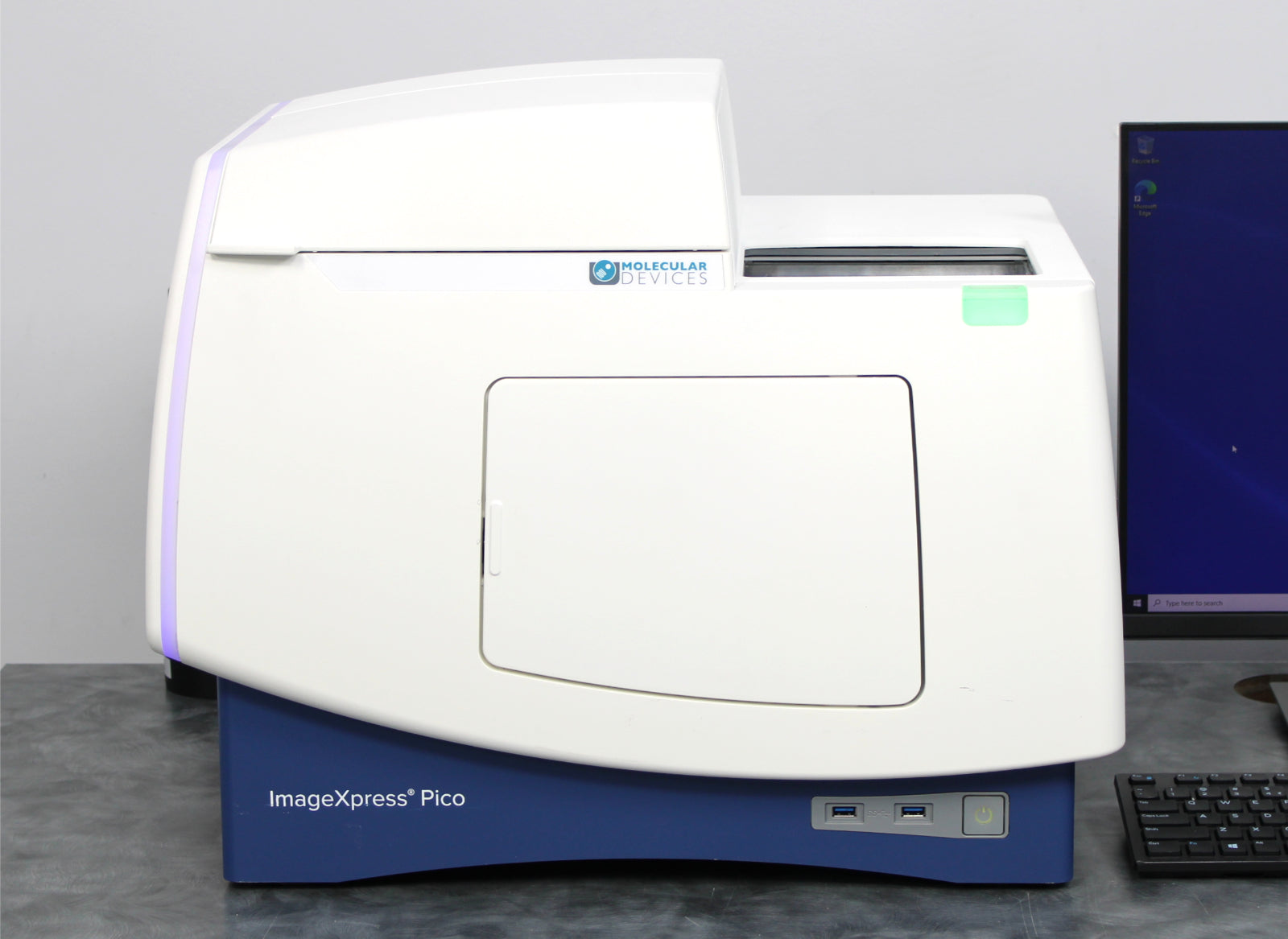

- Molecular Devices ImageXpress Pico Automated Cell Imaging System

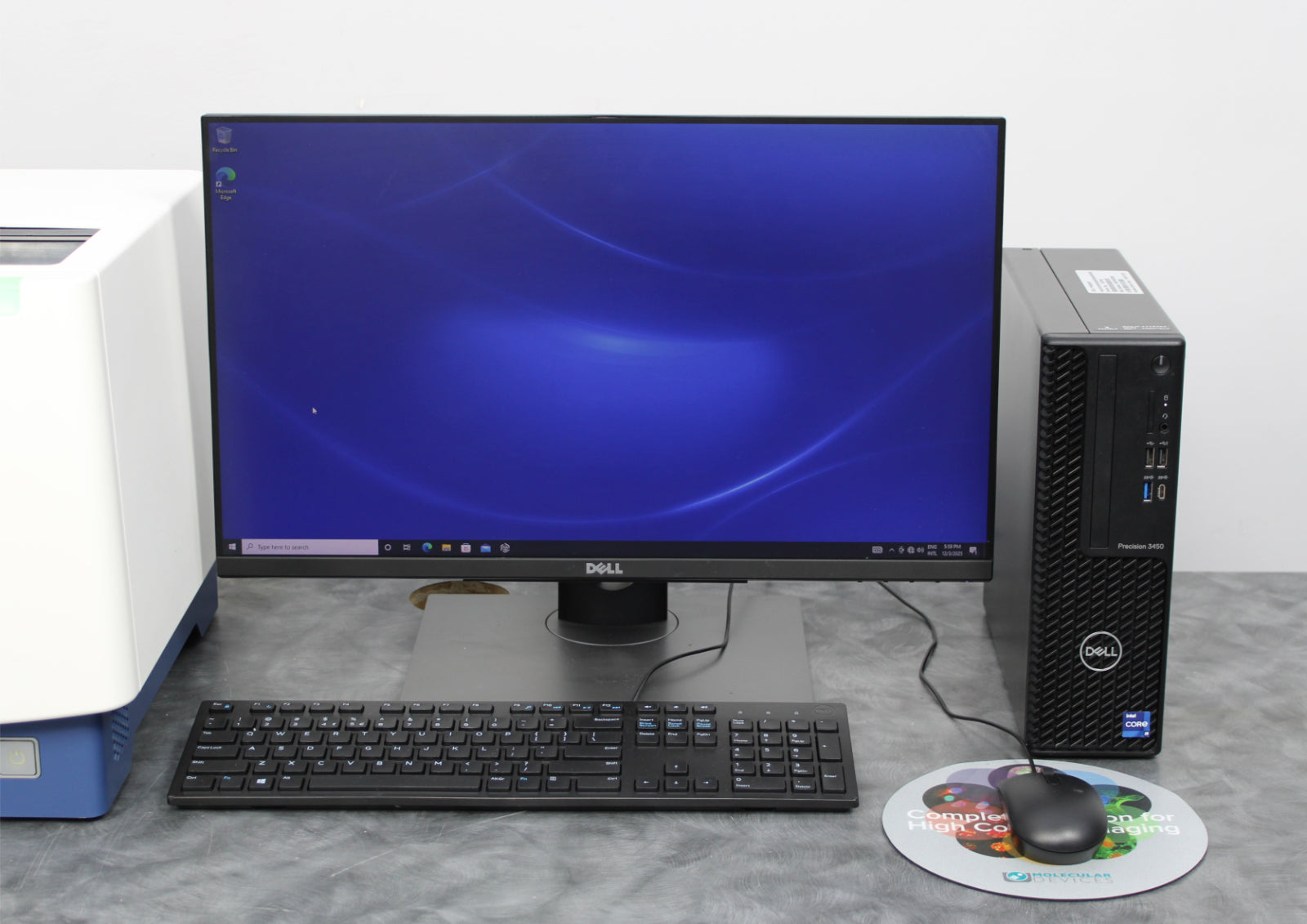

- Computer with Monitor, Keyboard, and Mouse

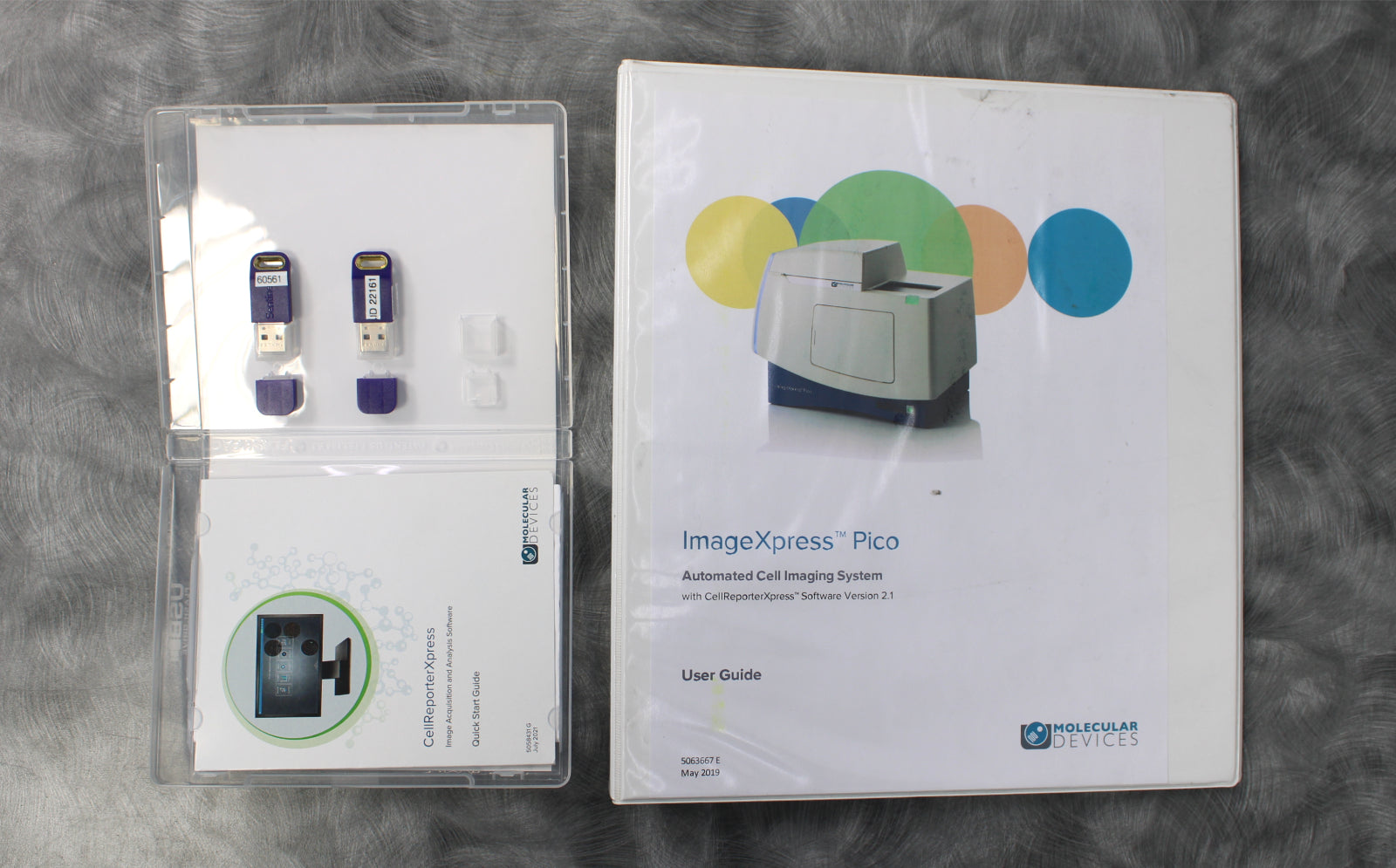

- Software Dongles
- ImageXpress Pico User Guide
- Display Cable
- Network Cable
- x3 Power Cables
- 90-Day Warranty
Notice: This device does not come with software. You must acquire the software separately from Molecular Devices to operate this device. Please make sure you can acquire the software before purchasing this device.
We powered on the ImageXpress Pico and observed no issues with the device. We do not have the required software to operate this device so no further testing was performed. Software must be acquired separately to operate this device.
|
Manufacturer
|
Molecular Devices
|
|
Model
|
ImageXpress Pico
|
|

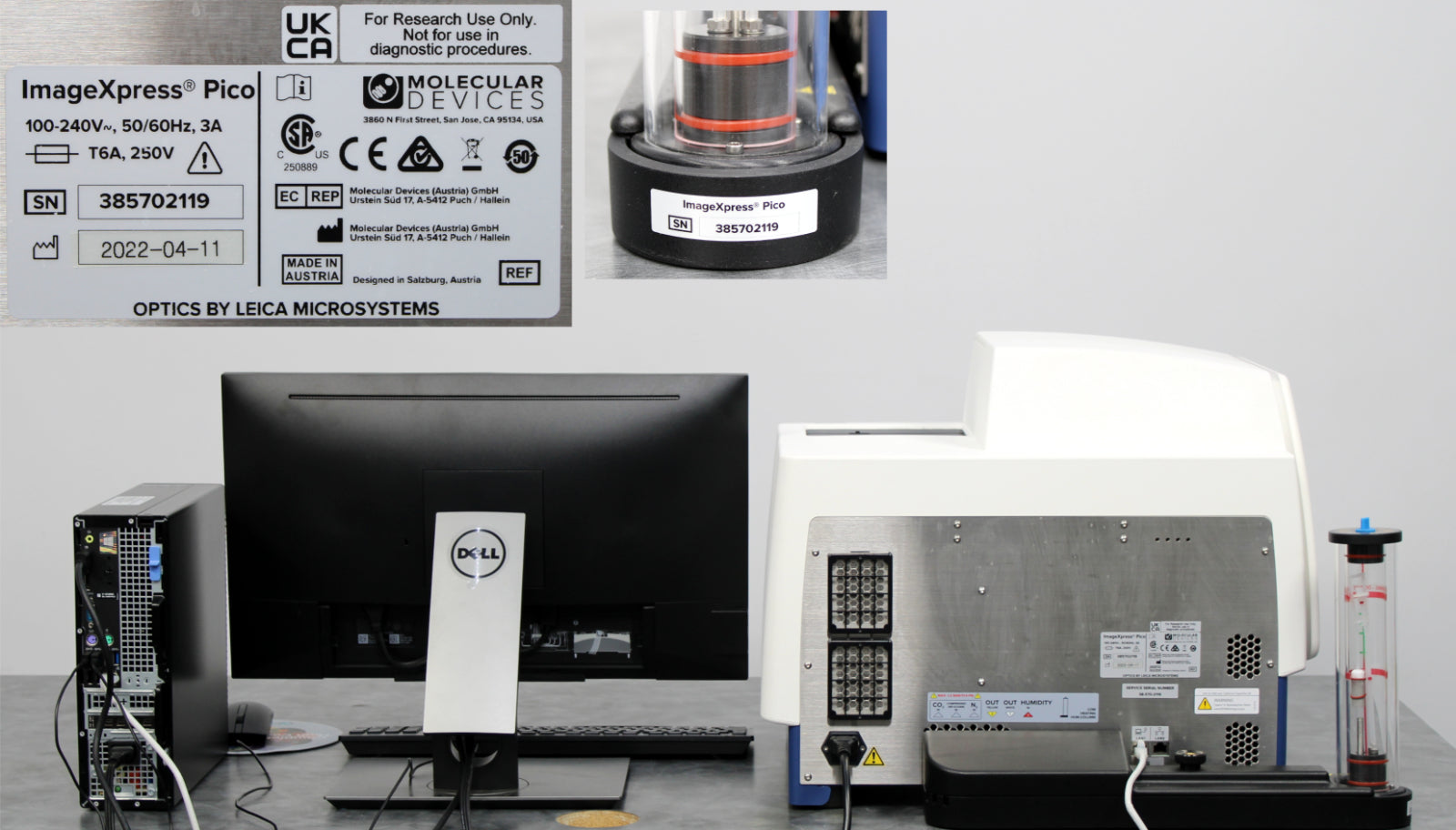

Serial No.
|
385702119
|
|
Mfg. date
|
2022-04-11
|
|
Imaging modes
|
Transmitted light (brightfield), colorimetric, fluorescence, live-preview
|
|
Illumination
|
High power LEDs with >20,000 hour life
|
|
Objectives
|
6 position automated turret with user-exchangeable objectives. Optics by Leica Microsystems: 2.5X N Plan/NA 0.07, FLUOTAR 4x/NA 0.13, 10x/NA 0.32, 20x/NA 0.40, 40x/NA 0.60, 63x/NA 0.70
|
|
Camera
|
Sony CMOS, 5 megapixel
|
|
Channels
|
Cy5, TRITC, FITC, DAPI, Texas Red, CFP, white light, and RGB
|
|
Stage resolution
|
0.625 µm
|
|
Imaging method
|
Single color, multicolor, time lapse, z-stacking, and Digital Confocal* 2D on-the-fly deconvolution
|
|
Autofocus method
|
LED autofocus or image autofocus with LED assist
|
|
Supported labware
|
6- to 384-well plates and 25 mm x 75 mm (1 in. x 3 in.) slides, 35 mm culture dishes
|
|
Software
|
CellReporterXpress
|
|
Supported operating systems
|
Windows 10 (main computer), Windows 10 and macOS (clients)
|
|
Image output
|
16-bit TIFF, JPG, MP4
|
|
Ambient operating temperature
|
18°C to 30°C (59°F to 86°F)
|
|
Temperature control
|
Ambient +8°C to 40°C
|
|
Temperature control homogeneity
|
37°C ± 0.5°C at 23°C ambient
|
|
Gas control
|
O2 control, 1-15% and ambient, CO2 control, ambient to 15%
|
|
Humidity control
|
Active humidity control. Sample compartment controlled to 85% relative humidity.
|
|
Power rating
|
100-240V~, 50/60Hz, 3A
|
|
Dimensions (W x D x H)
|
21.7 x 17.1 x 17.8 in (55.1 x 43.5 x 45.3 cm)
|
|
Weight
|
84 lb (38 kg) including options
|
