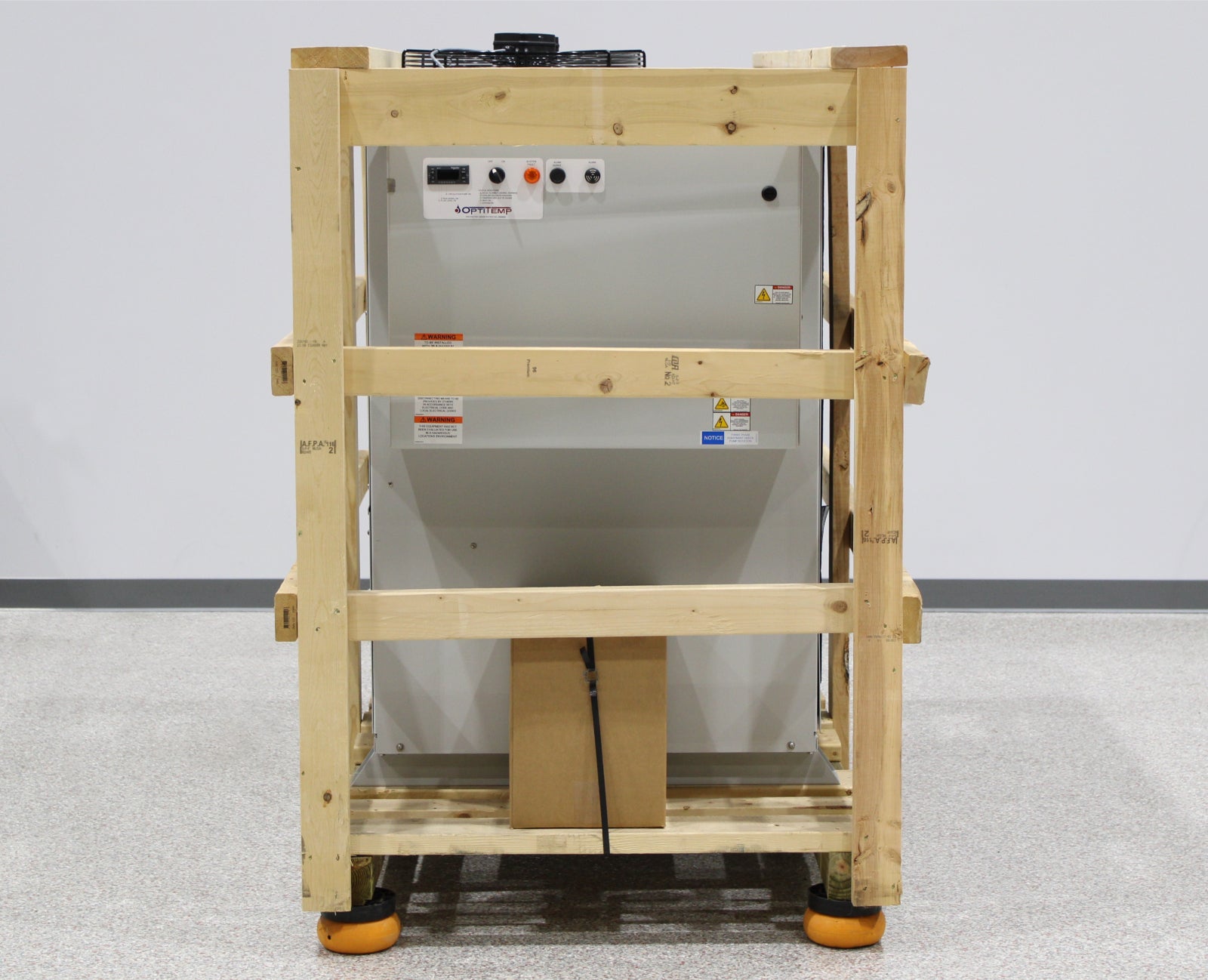

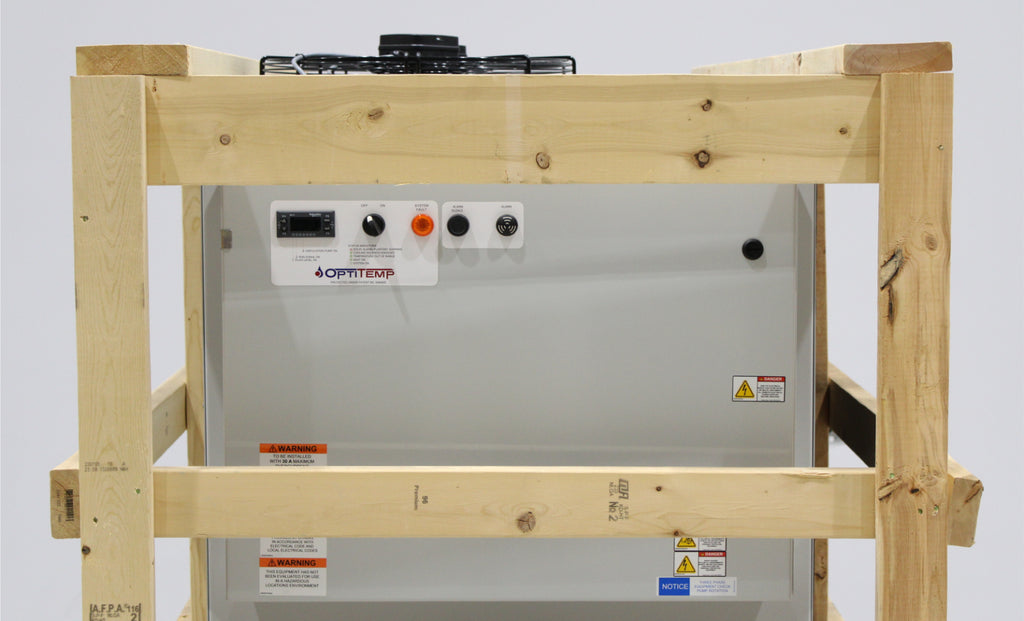

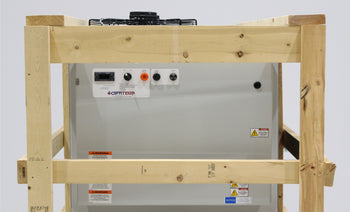

Opti Temp OTC-7.5AC 83450 BTU/hr 30GPM 7 tons Capacity Water Circulating Chiller

Opti Temp OTC-7.5AC 83450 BTU/hr 30GPM 7 tons Capacity Water Circulating Chiller

Item Number: 27506

Warranty

Includes a 90-Day warranty
1-Year Warranty Upgrade Available. Contact for pricing

QUALITY ASSURED BY NLS TECH STAFF

Price:

$9,456.26

Specs Below

click to see what's included

You Will Receive:

- Opti Temp OTC-7.5AC 30GPM 83450 BTU/hr 7 tons Capacity Water Circulating Chiller

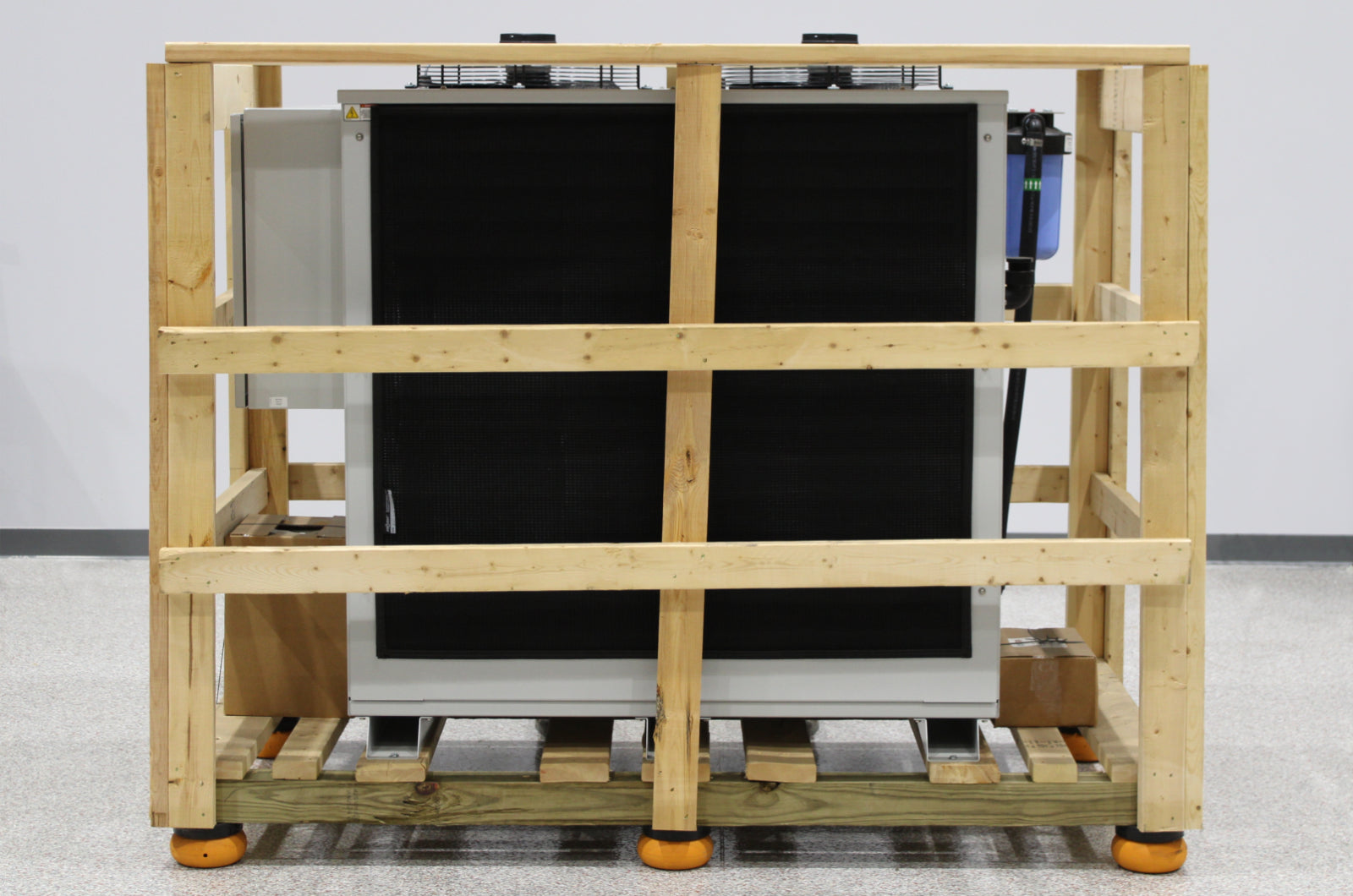

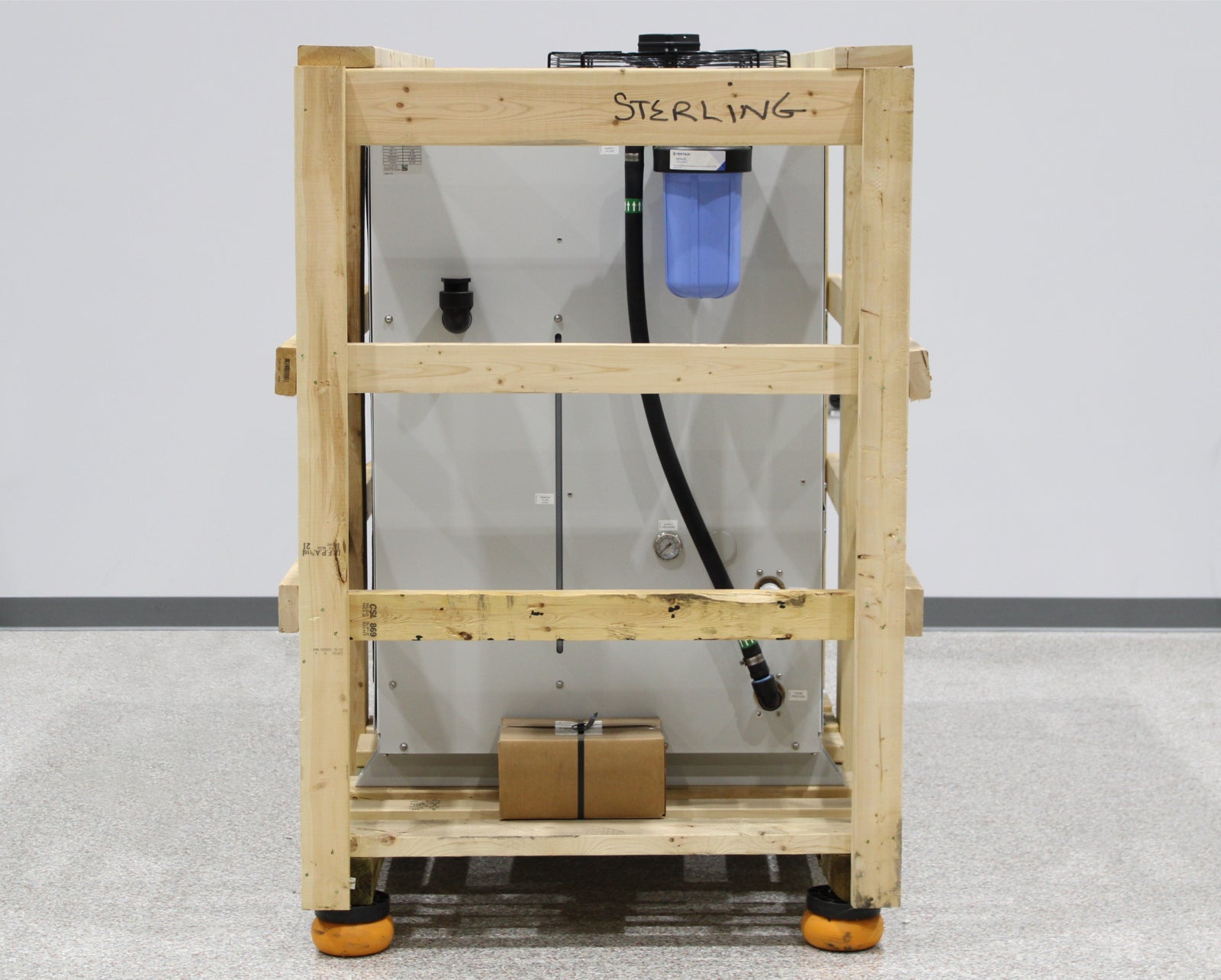

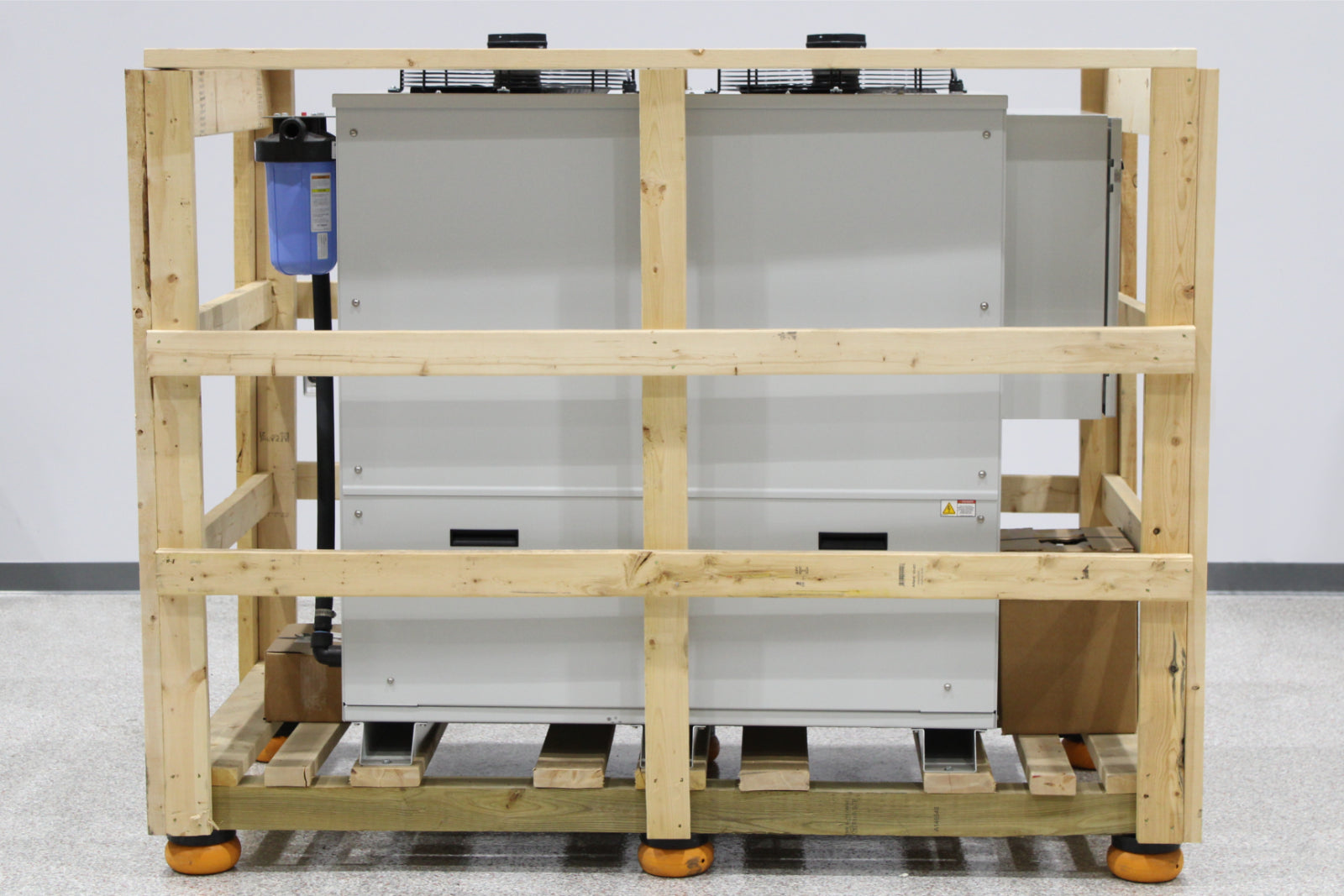

- Shipping Crate
- 90-Day Warranty

New in Crate and in Excellent Condition

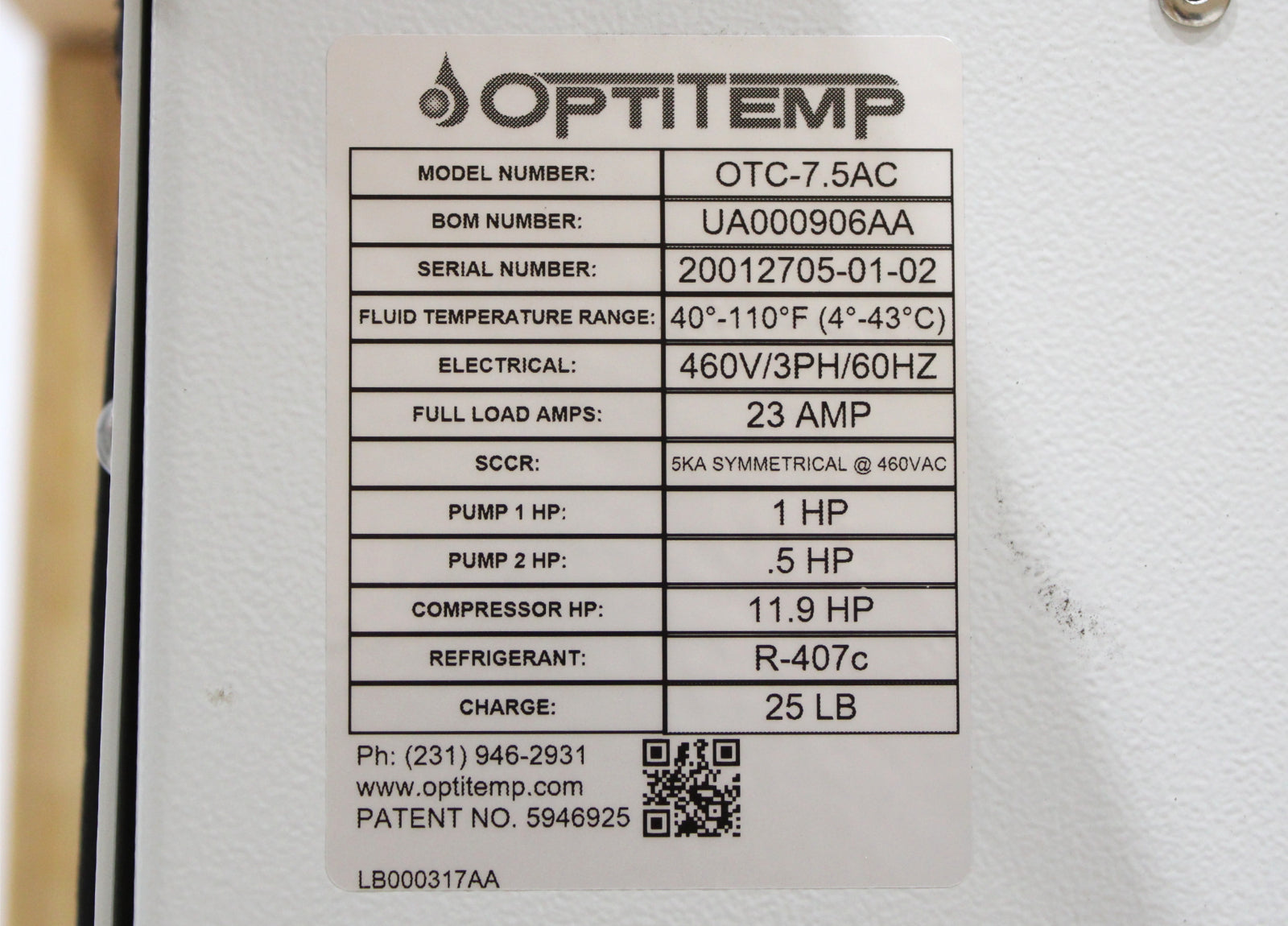

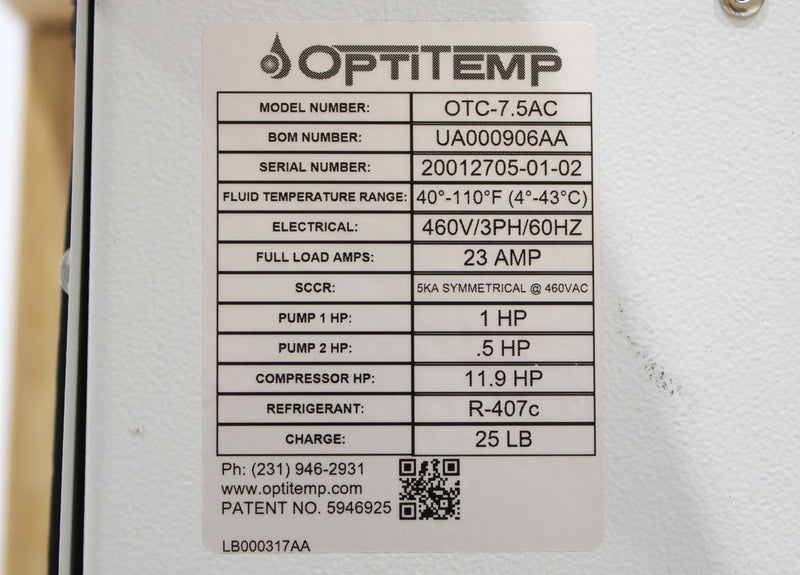

Specifications:

Manufacturer	Opti Temp
Model No.	OTC-7.5AC
BOM No.	UA000906AA
Serial No.	20012705-01-02
Capacity	24.5 kW, 83450 BTU/hr, 7 tons
Fluid temperature range	40-110°F (4-43°C)
Power rating	460V, 60Hz, 3Ph
Full load amps	23
SCCR	5KA symmetrical @ 460VAC
Pump 1 HP	1 HP
Pump 2 HP	0.5 HP
Refrigerant	R-407c
Charge	25 lb
Standard flow rating	30 GPM (55 PSI)
Max available flow range	48 GPM
Pump (standard)	2 HP model C4
Connection	1.25”
Compressor	7.5 HP type S
Internal reservoir	20 gallon
Temp stability	±0.5°F
Dimensions (W x D x H)	38 x 62 x 55 in
Weight	855 lb
