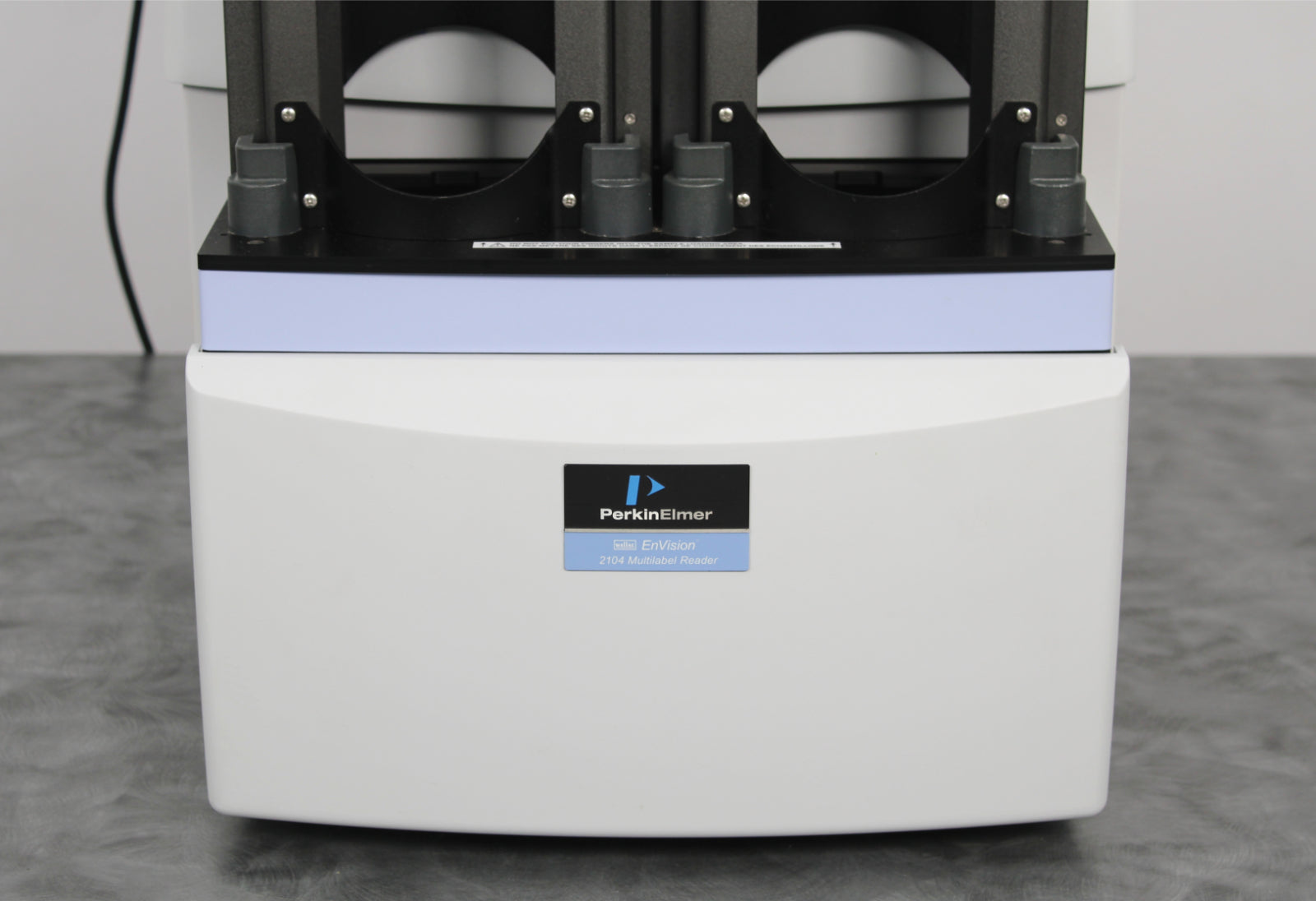

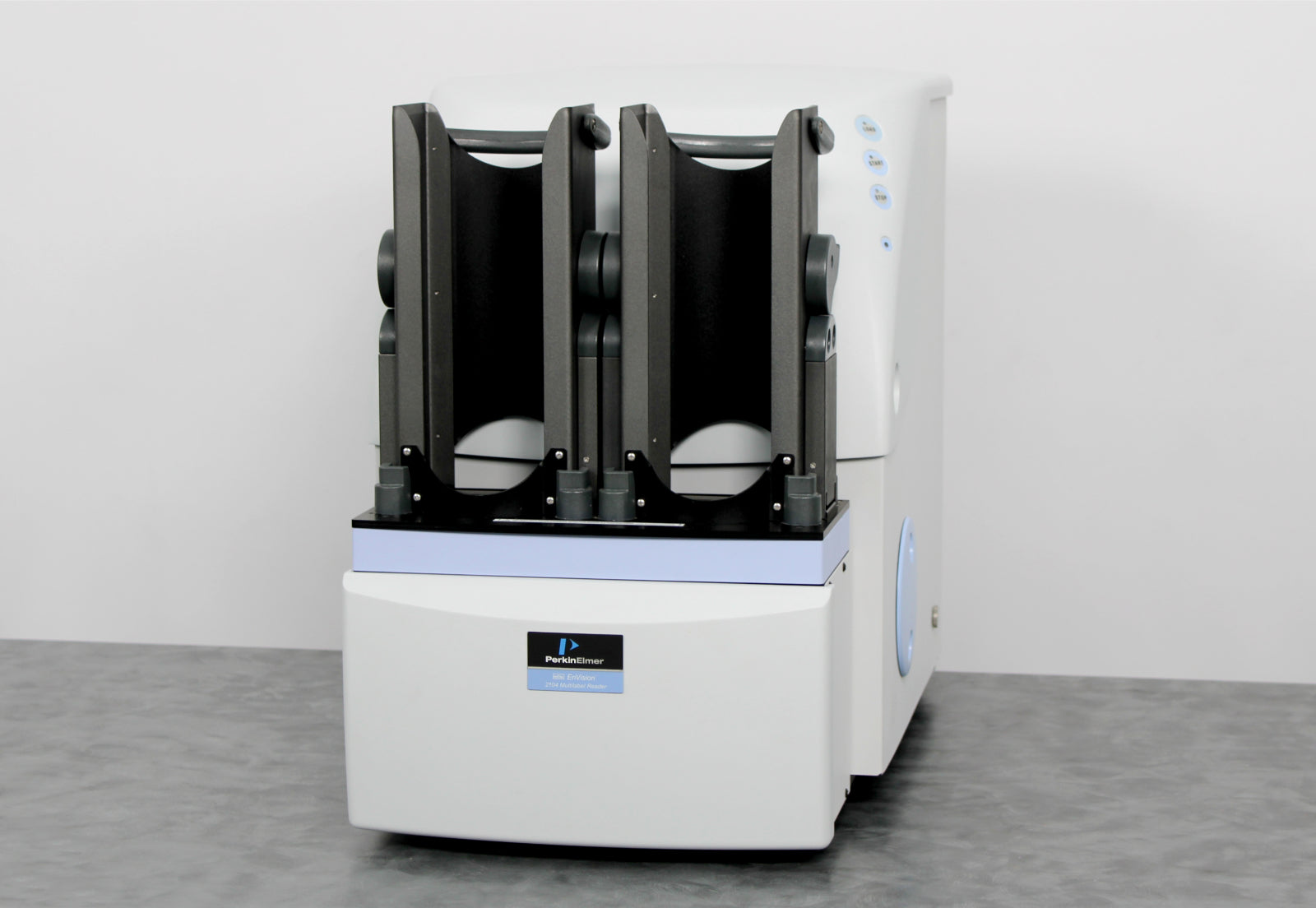

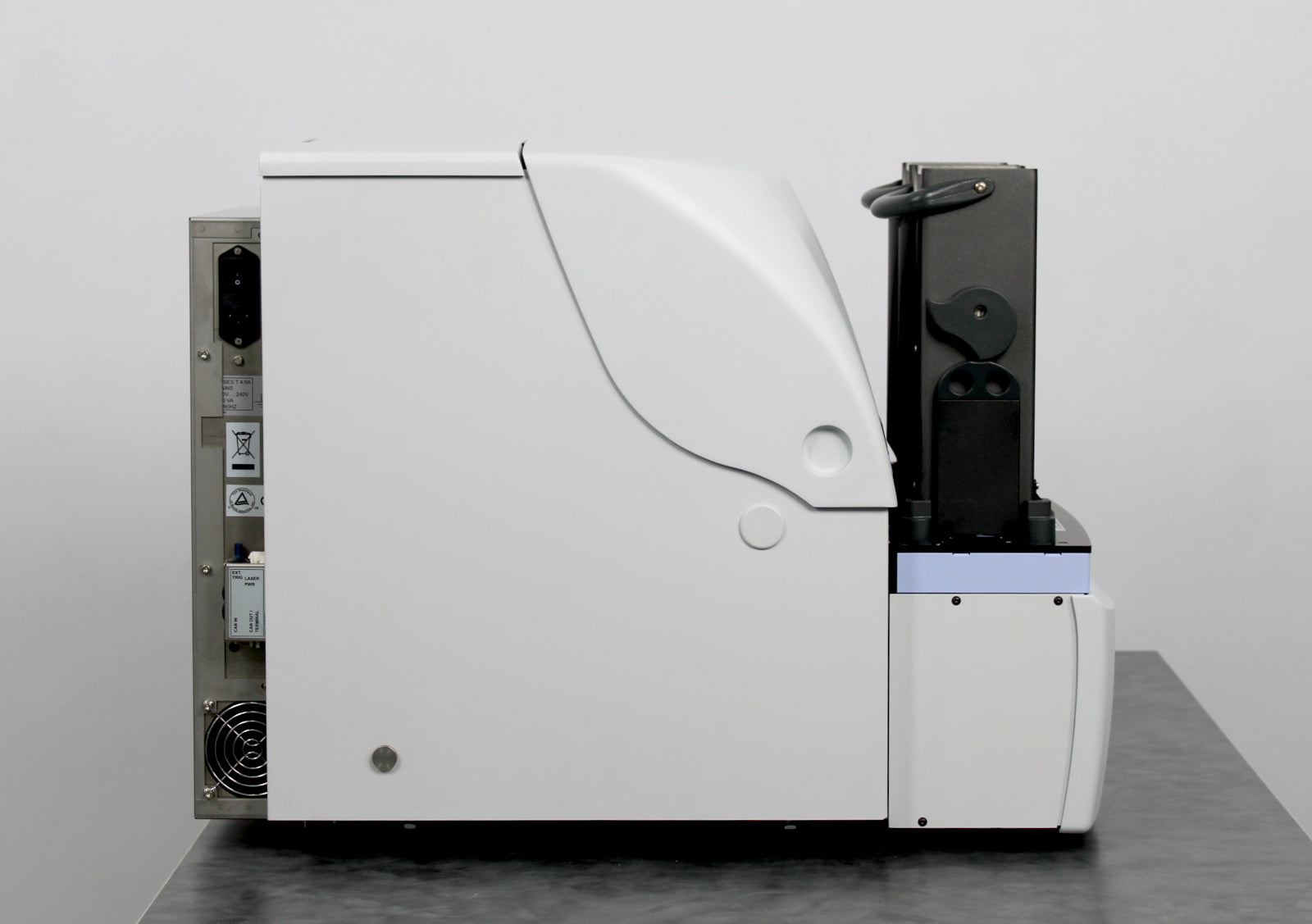

- Perkin Elmer EnVision 2104 Multilabel Plate Reader (2104-0020)

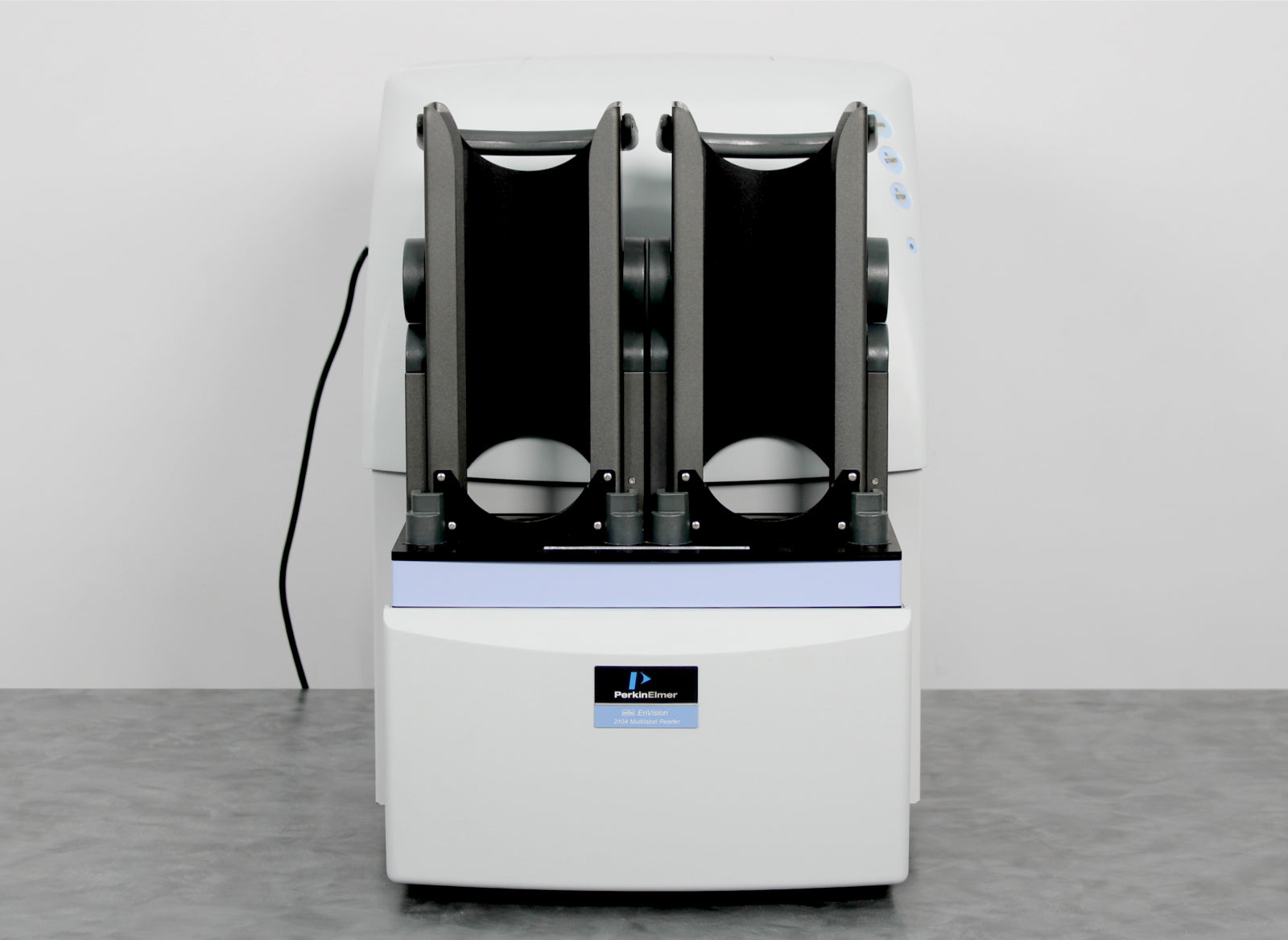

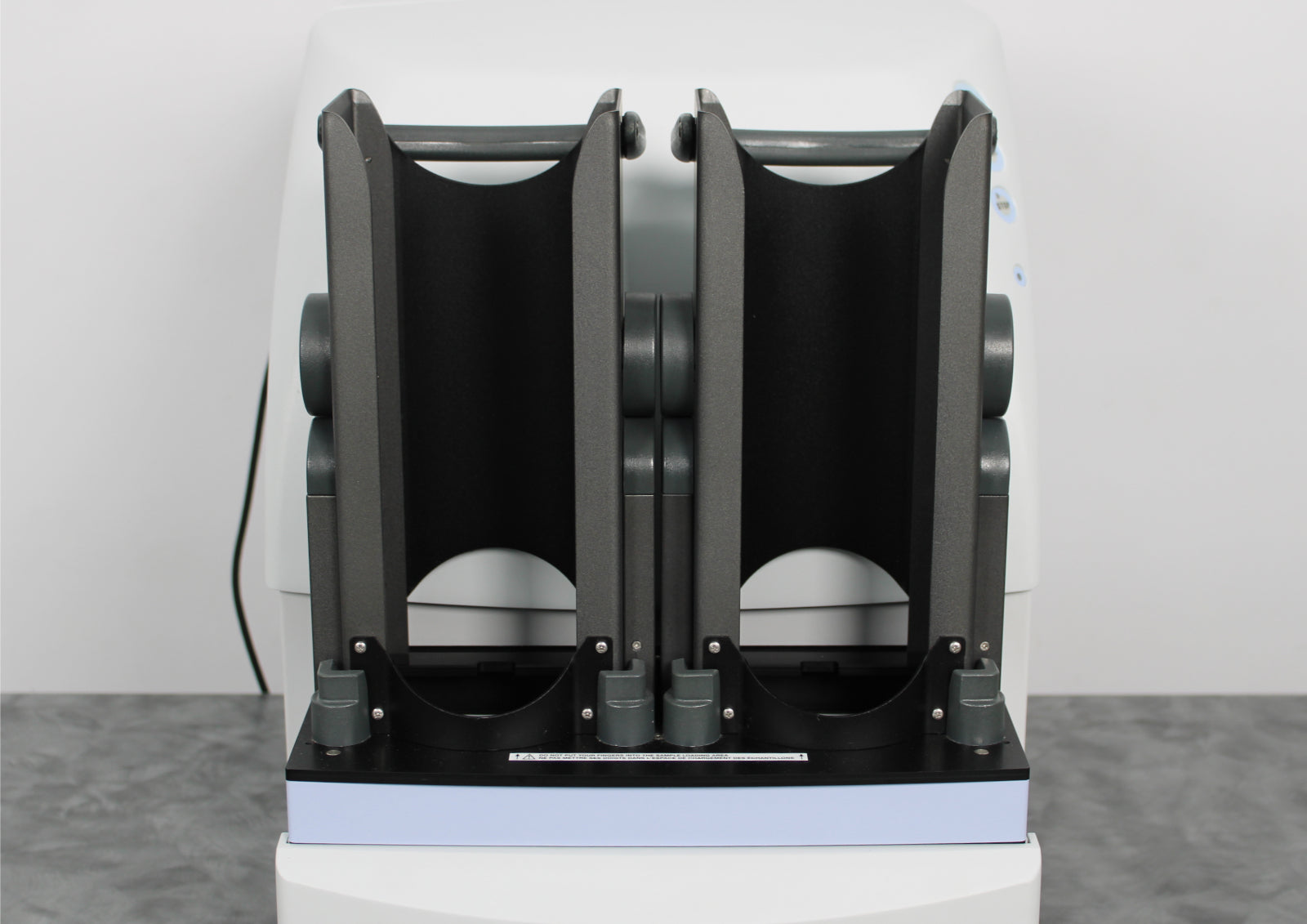

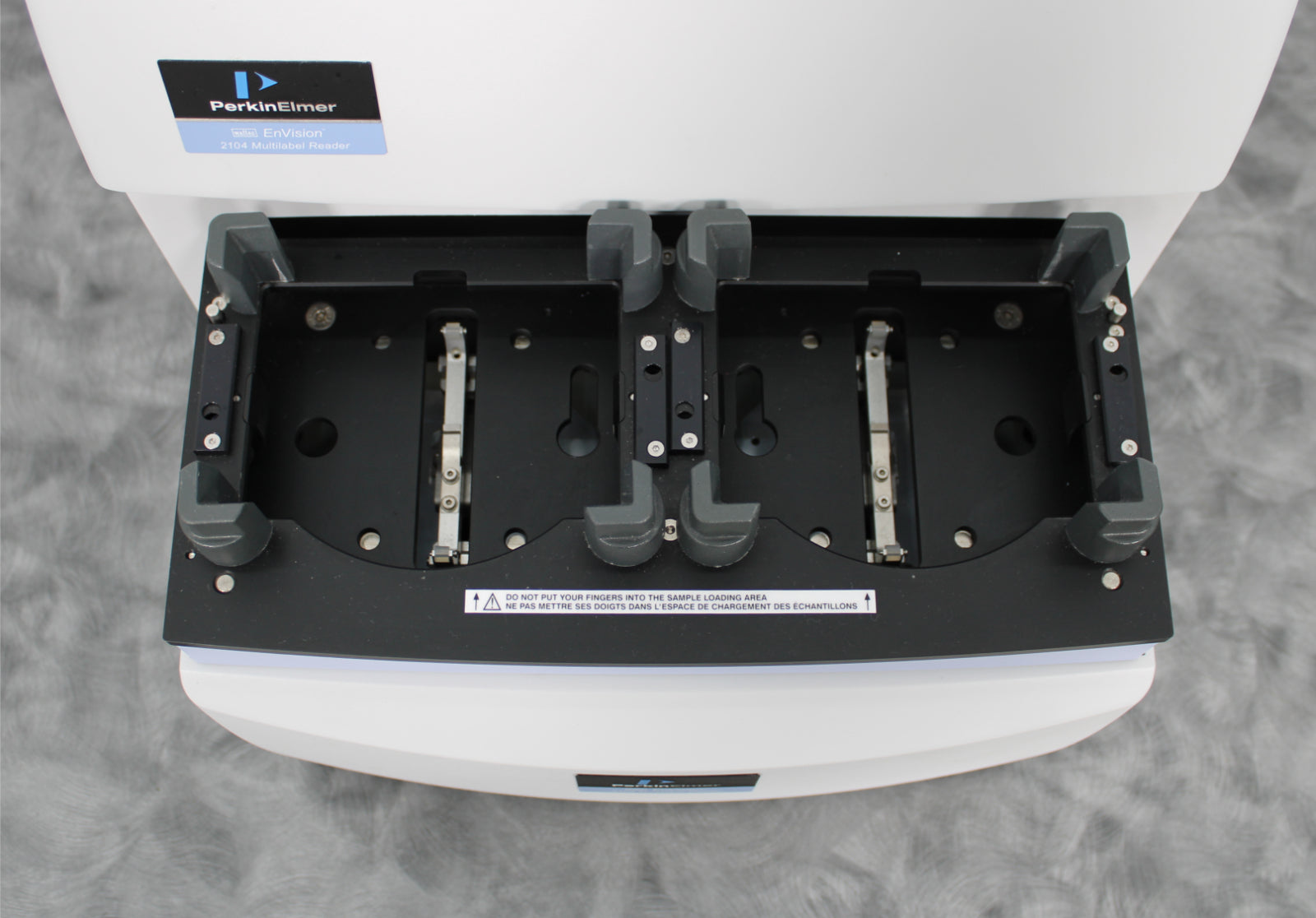

- Plate Stacker Option
- x2 Stacks
- Power Cable with NEMA 5-15 Plug
- 90-Day Warranty
Notice: A computer and software must be acquired to operate this plate reader.

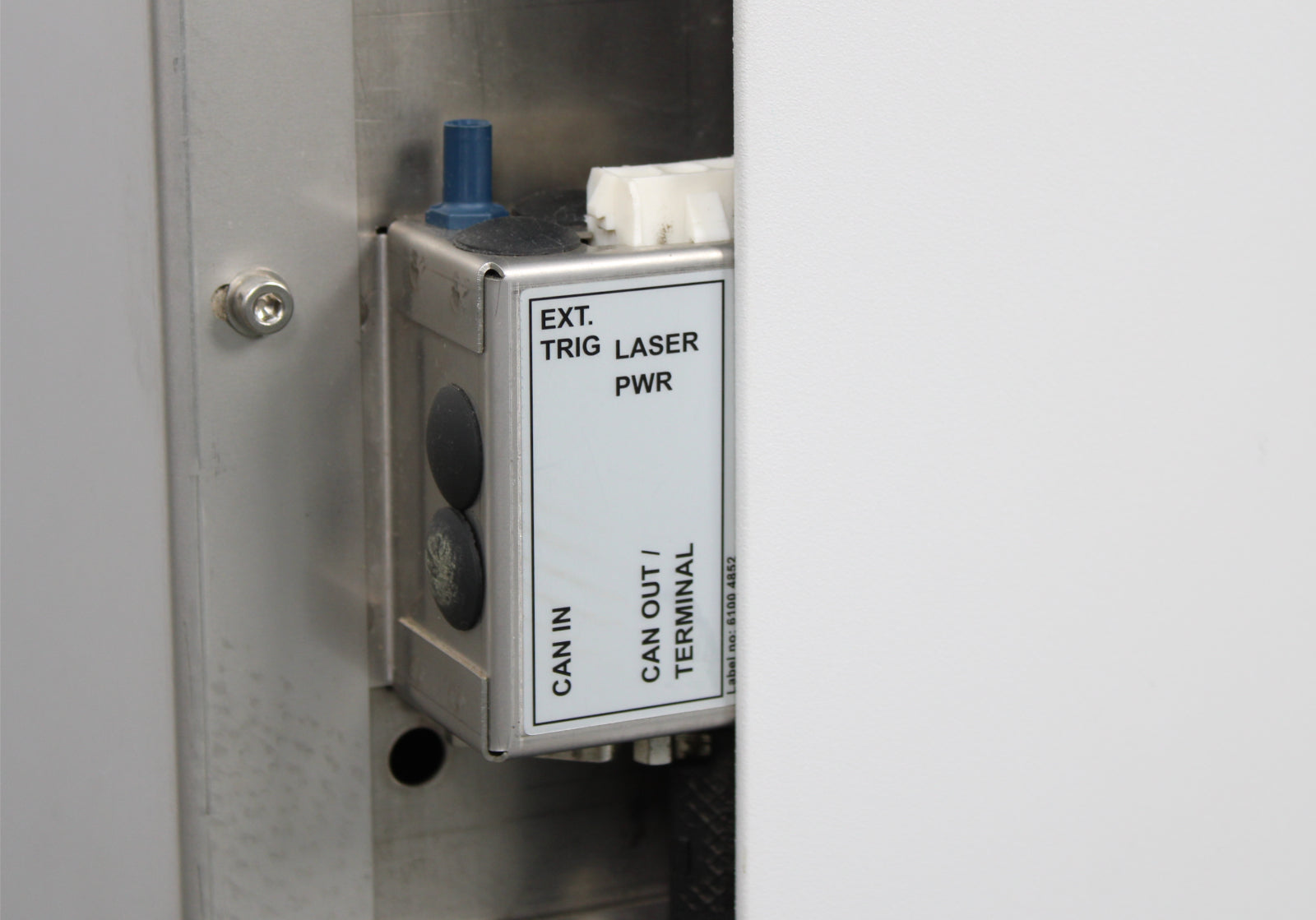

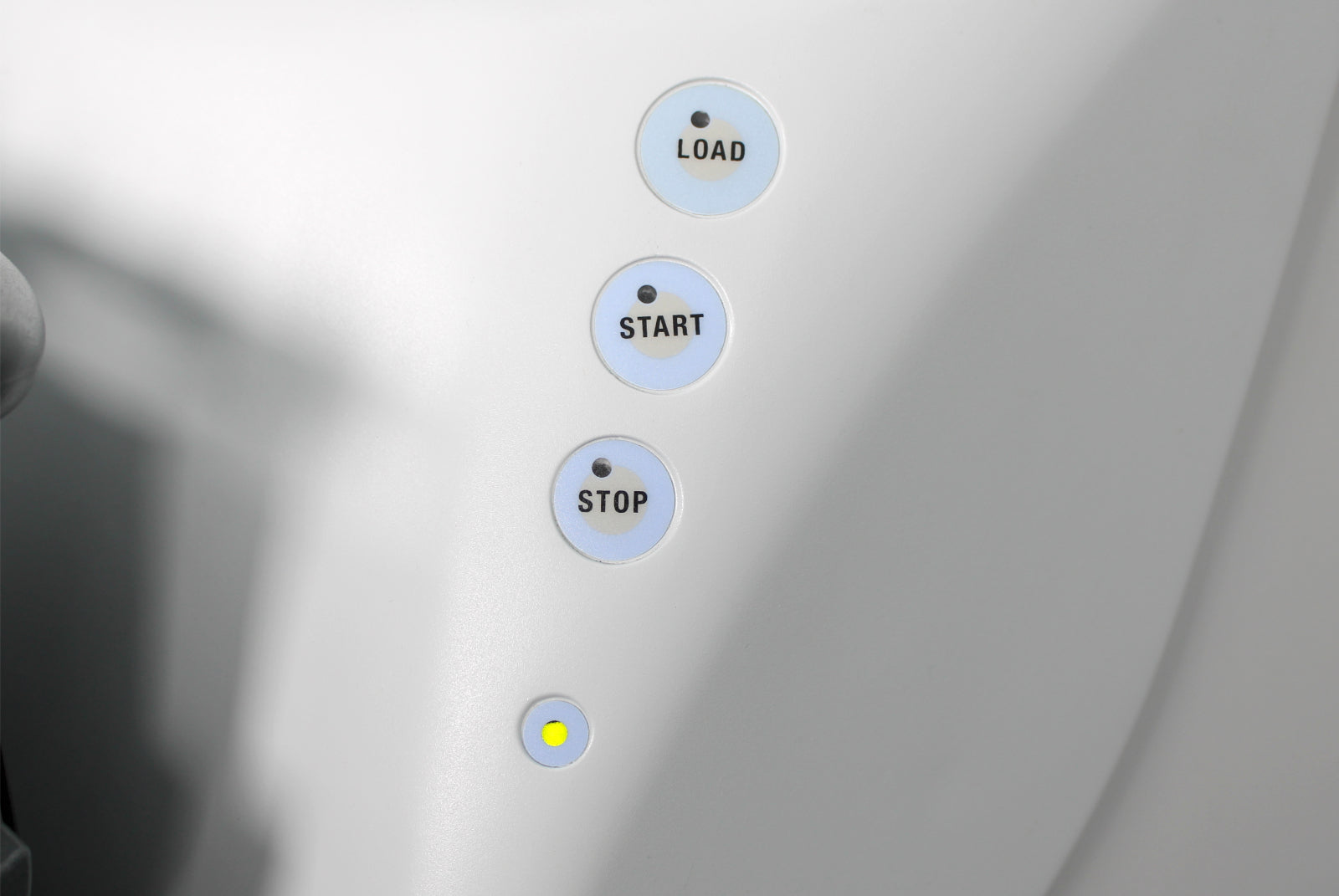

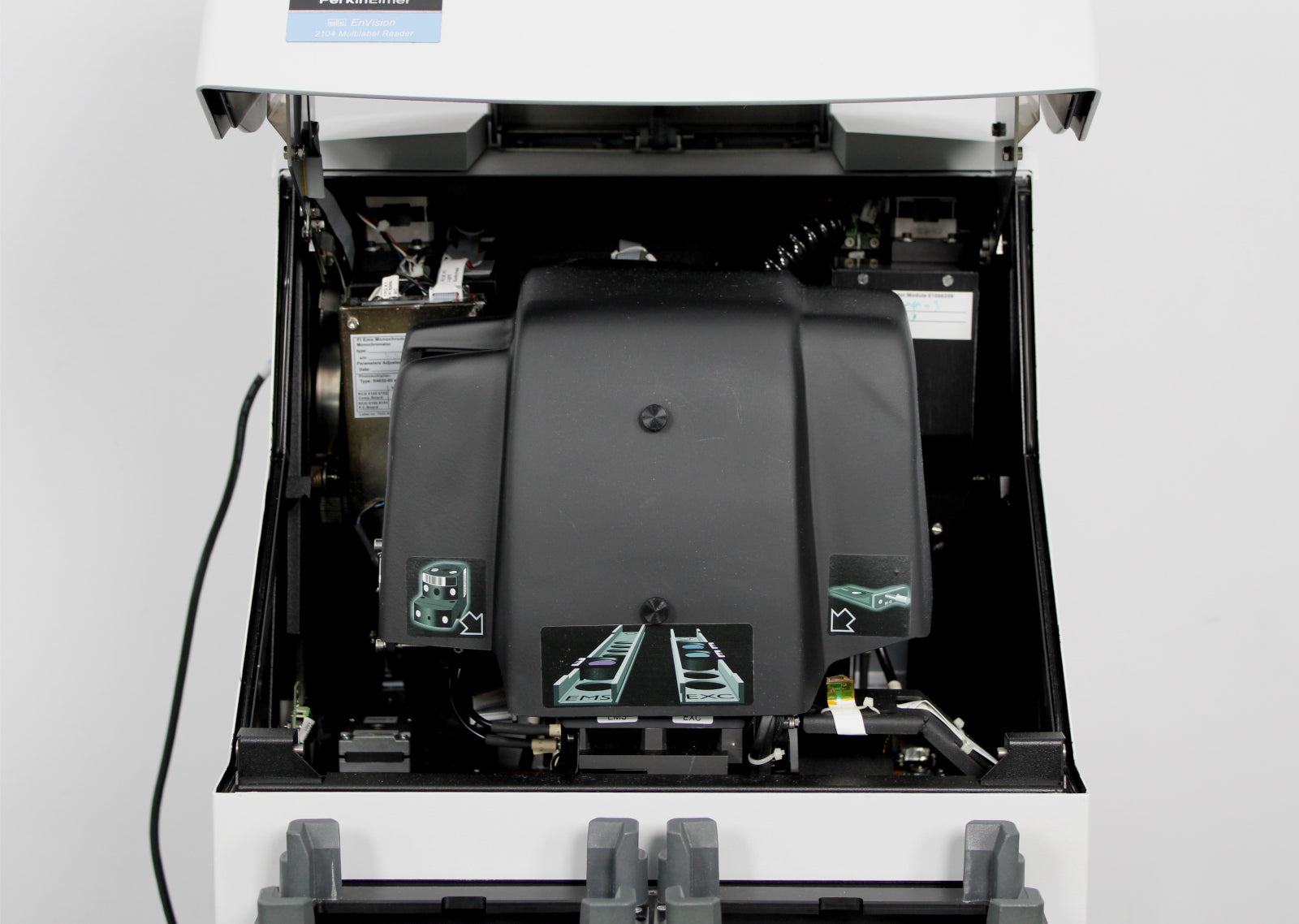

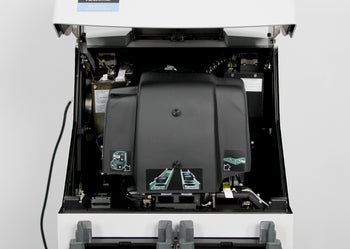

We powered on this EnVision plate reader and observed the power indicator light green and the internal fans spin up. We also inspected the internal components and everything appeared to be in good condition. No further testing was performed.
|

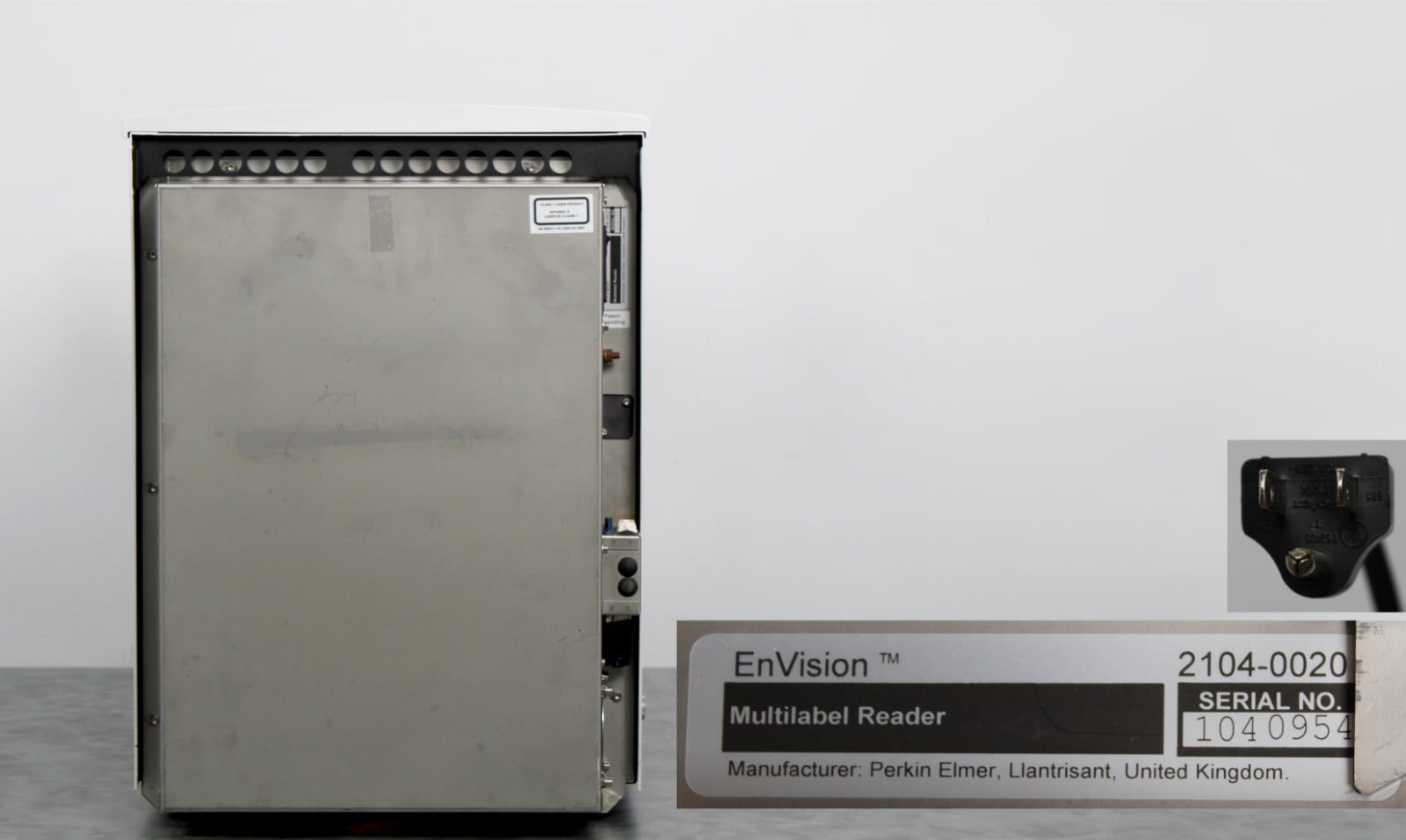

Manufacturer
|
Perkin Elmer
|
|
Type
|
Multilabel plate reader
|
|
Model
|
EnVision 2104
|
|
Cat. No.
|
2104-0020
|
|
Serial No.
|
1040954
|
|
Maximum throughput (time per plate)
|
96-well plate; kinetic cycle 6 s, single read 22s, stackers 28 s
384-well plate; kinetic cycle 10 s, single read 27 s, stackers 32 s
1536-well plate; kinetic cycle 20 s, single read 36 s, stackers 42 s
|
|
Light source
|
Xenon flash lamp
|
|
Plate format
|
1- to 1536-well
|
|
Temperature range
|
from 2°C above ambient up to 50°C (0.5°C increments)
|
|
Temperature uniformity
|
±1°C
|
|
Temperature heating time
|
<10 minutes (from RT up to 37°C)
|
|
Shaking
|
Linear, orbital, dual orbital
|
|
Power rating
|
100-240V, 50/60Hz
|
|
Power consumption
|
300VA max.
|
|

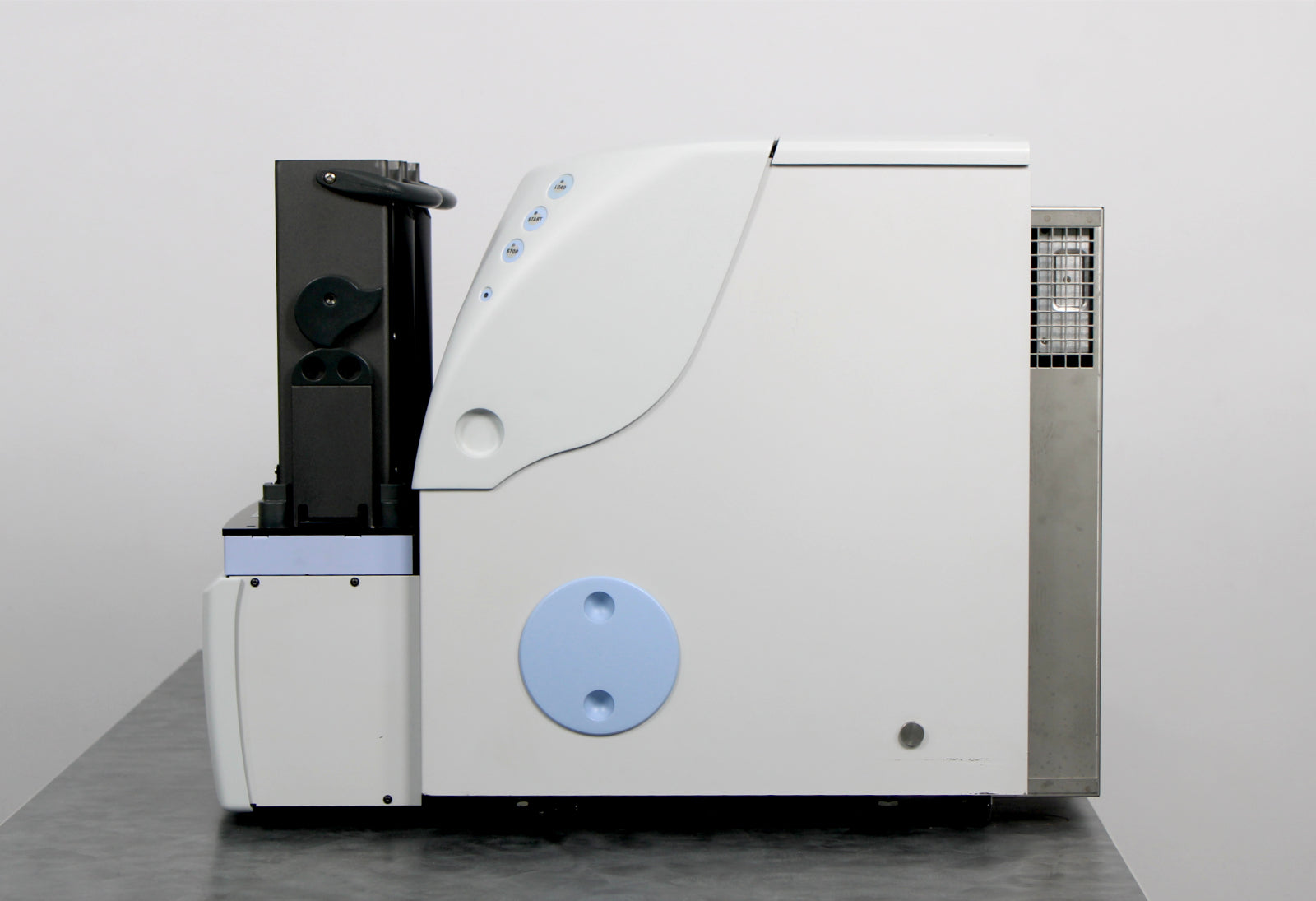

Dimensions without stacker (W x D x H)
|
16.5 x 21.7 x 22.8 in (42 x 55 x 58 cm)
|
|
Dimensions with stacker (W x D x H)
|
16.5 x 29.5 x 22.8 in (42 x 75 x 58 cm)
|
|
Weight without stacker
|
110.2 lb (50 kg)
|
