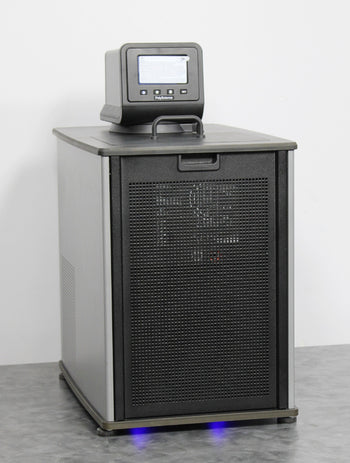

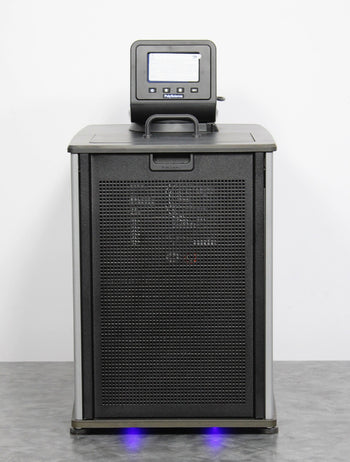

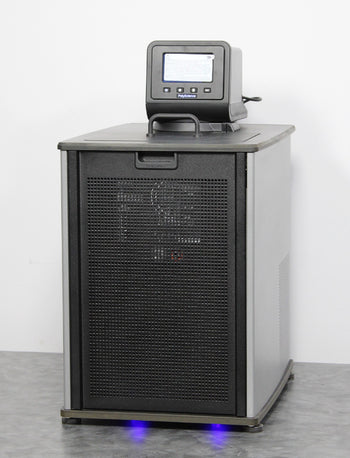

Manufacturer

PolyScience

Model

AD15R-30-A11B

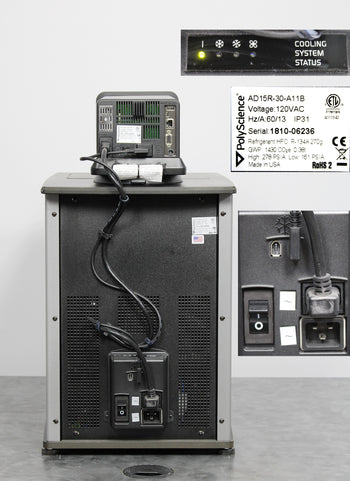

Serial No.

1810-06236

Body

-30, 15 L ref. circulator

Controller type

Advanced digital

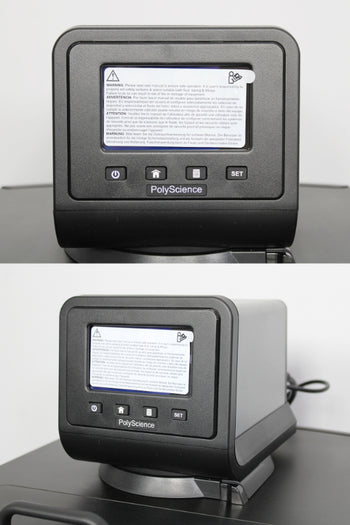

Display

3.75” (9.5 cm) touch-pad lcd

Language supported

4: French, German, Spanish, English

Working temperature range

-30°C to 200°C

Temperature stability

±0.01°

External temperature control capability

Yes

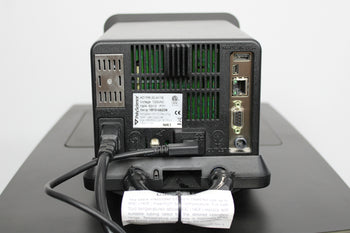

On-board connectivity

USB-A, USB-B, Ethernet, RS232/addressable RS485, external temperature probe

Flammability class (DIN 12876-1)

III (FL)

Max. pressure (60Hz)

0.30 bar (4.30 psi)

Max. pressure flow rate (60Hz)

20.10 l/min (5.30 gpm)

Max. suction flow rate (60 Hz)

14.70 l/min (3.90 gpm)

Cooling capacity @ -20°C (60Hz)

165W

Cooling capacity @ 0°C (60Hz)

505W

Cooling capacity @ +20°C (60Hz)

915W

Heater wattage (60Hz)

1100

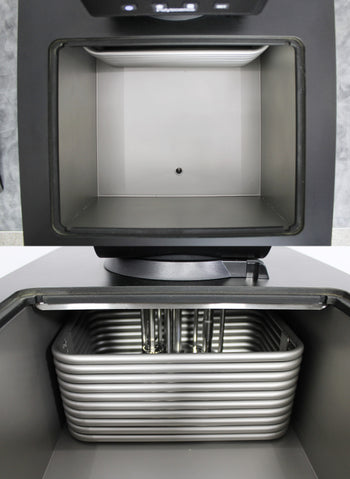

Reservoir capacity

3.96 gallons (15 liters)

Reservoir/tank material

Stainless steel

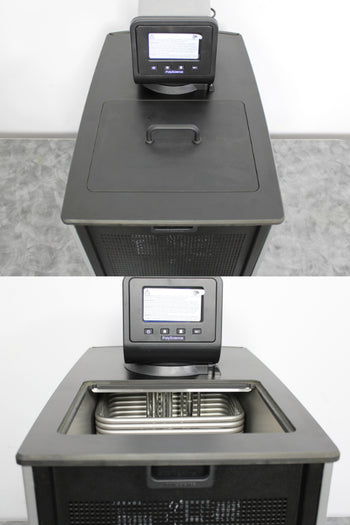

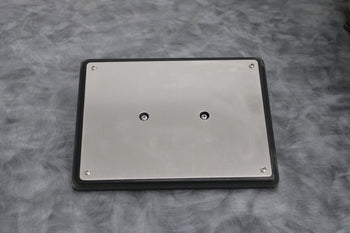

Reservoir cover

Included

DuraTop

Yes

Working access (W x D x H)

10.88 x 8.35 x 5.5 in (27.6 x 21.2 x 14 cm)

Pump type

Pressure/suction

Pump speed

Variable

Over-temperature protection/failsafe heater control

Yes

Low liquid level protection

Yes

WhisperCool environmental control technology

Yes

Reservoir drain

Yes

Max. ambient temperature

35°C (95°F)

Refrigerant

R134A

Environmental compliance

ROHS, WEEE

Electrical requirements

120VAC, 60Hz, 13A, 1Ph

Dimensions (W x D x H)

14 x 22.4 x 26.9 in (36.8 x 56.9 x 68.3 cm)

Weight

118 lbs (53.5 kg)
