Microfluidics Production Scale M700 Microfluidizer Processor

Warranty

  • Includes a 90-Day warranty
  • 1-Year Warranty Upgrade Available. Contact for pricing

QUALITY ASSURED BY NLS TECH STAFF

Specs Below
click to see what's included

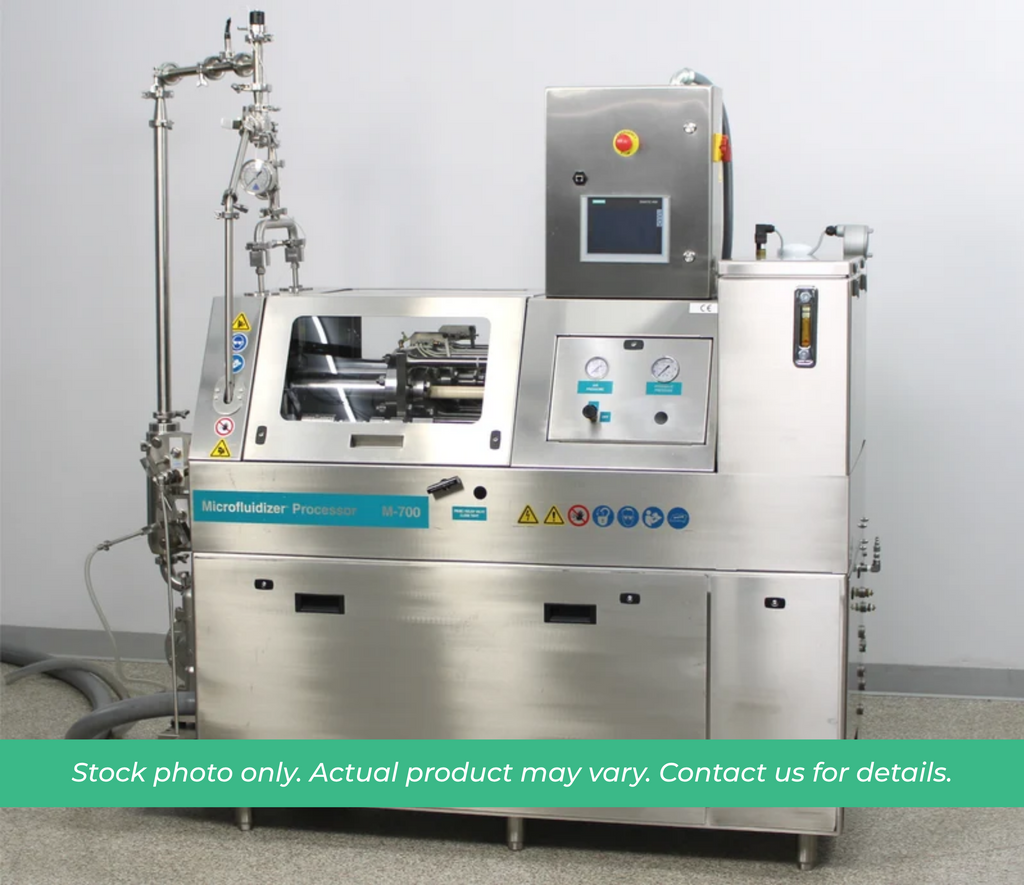

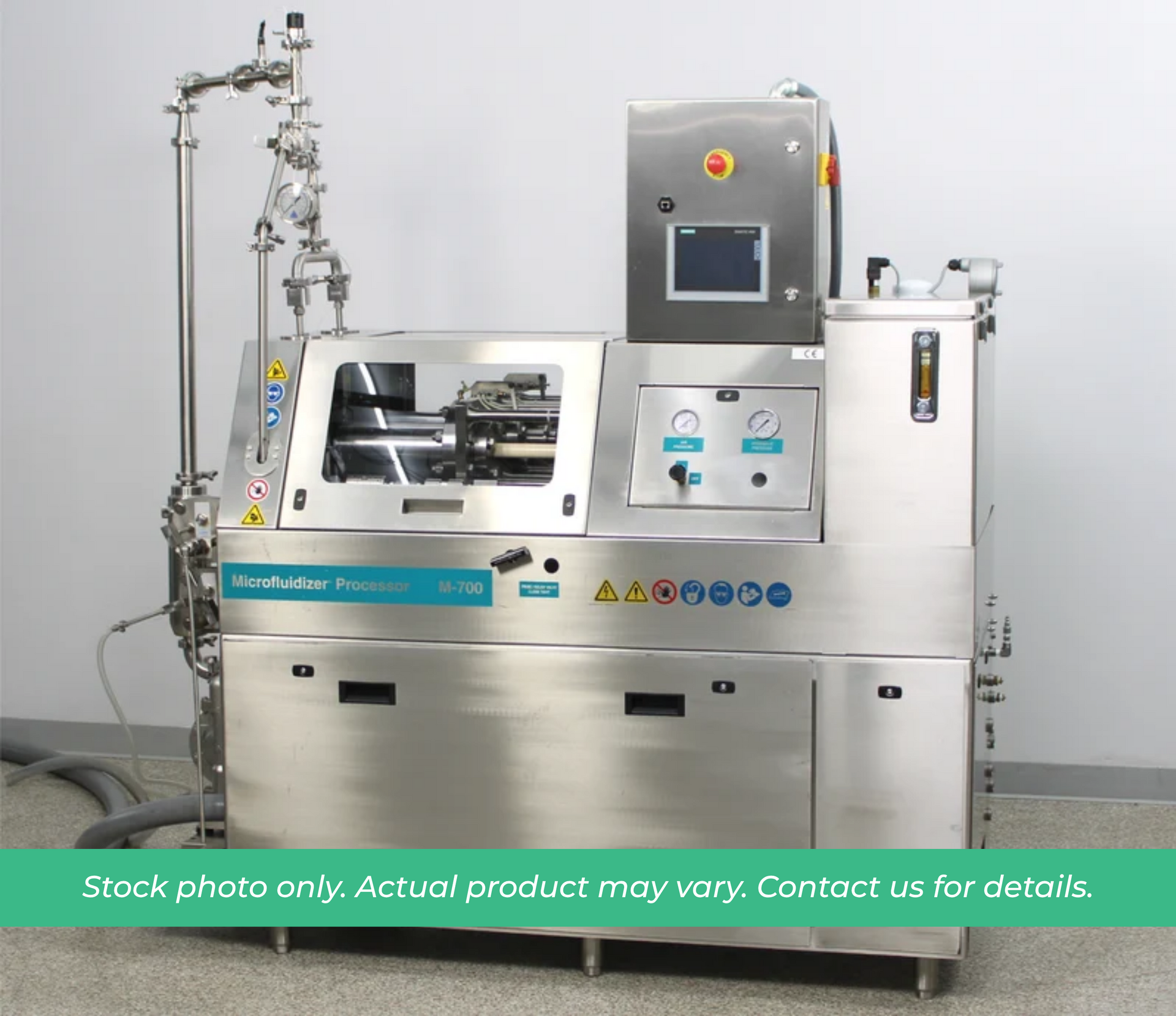

Overview of Microfluidics Production Scale M700 Series Microfluidizer Processor

The Microfluidics M700 series microfluidizer is a proven cost-effective processor that delivers repeatable, uniform particle size results at the highest shear rate available for premium results. If you want to scale up to full production, the M700 series is the perfect Microfluidics equipment.

View in-stock used microfluidizers for sale here. Need assistance? Get in touch with us today.



Microfluidics M700 Microfluidizer Features

Several features that make the M700 series microfluidizer standout from other processors are:

Ulta-high shear: Delivers the finest and most uniform distribution of submicron particle size at the highest shear rates available.

Highly reliable: The M7125 and M7250 models generates up to 30,000 psi operating pressure.

Geometrically fixed design: With its patented interaction chamber made to withstand abrasive and corrosive formulations, this ensures that the entire product stream will encounter equal energy per unit fluid volume.

Stainless steel construction: This protects the high pressure components from damage.



M700 Microfluidizer Specifications

Manufacturer

Microfluidics

Type

M700 Series

Product Flowrate

Up to 15.12 lpm (4.0 gpm)

Feed temperature

Maximum 165°F (75°C)

Utility requirements

Cooling water for hydraulic oil heat exchanger
Cooling water for process fluid heat exchanger
Compressed air for feed pump and cycling control switches requires 0.65 m3/min @ 6.2 bar (23 scfm @ 90 psi) minimum with -37°C to -18°C (-35°F to 0°F) dew point

Power rating

3 phase electrical service, 208/230/380/460/575V

50 HP (37.3 kw) 250A max.

Dimensions (W x D x H)

71 x 29 x 72 in

Weight

2,400 lb (1,089 kg)


Our Testing Process

1. Microfluidizer technician inspects electrical components, verifying proper functionality. Rewiring is done if needed.
2. Microfluidizer technician performs a detailed inspection on the high pressure fittings, and proper tightness are ensured.
3. The low pressure fittings are then inspected for proper seal.
4. Microfluidizer technician inspects hydraulic and pneumatic systems for damage. Then the unit is turned on, to make sure it runs smoothly.
5. Microfluidizer technician changes hydro oil if necessary.
6. The unit is then run/sterilized with denatured alcohol.
7. The unit is then cleaned and stainless steel is polished.
8. Upon purchase by the customer, plunger seal(s) are replaced, to ensure a fresh seal when the customer gets it.


Available Microfluidics M700 Series Microfluidizer Upgrades, Accessories, and Options

- Auxiliary Processing Module (AMP) Specific Configuration Based on your Application
- Interaction Chamber
- Touch Screen User Interface (Not available on all models)
- Product Pressure Adjustment Valve
- Inlet/Outlet Temperature Probes
- Air Pressure Regulator
- Pneumatic Product Feed Diaphragm Pump
- Heat Exchanger
- Product Feed Pressure Gauge
- Prime Relief Valve
- Power Cabinet
- 90-Day to 1-Year Warranty

Note: We can provide further assistance in acquiring more interaction chambers if needed.

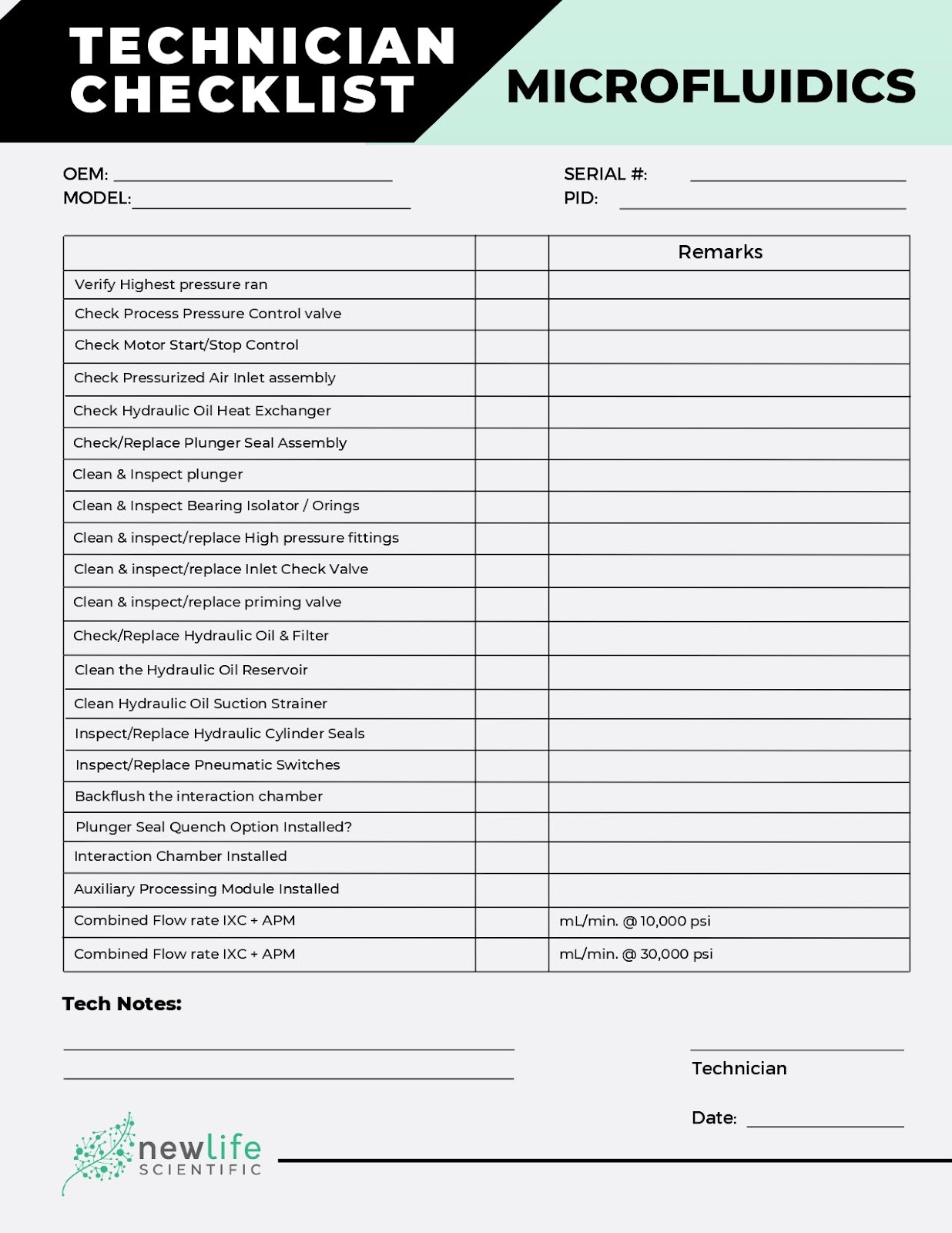

Our Microfluidics Microfluidizer Technician Checklist

At New Life Scientific, our technicians test each device thoroughly before shipping to verify performance and functionality. After our microfluidizer technician finishes the initial testing process, this Microfluidics Technician Checklist is filled out to record the important information gathered throughout the repair process. This checklist will be available publicly after the unit has undergone tech completion.

Microfluidics M700 Microfluidizer Processor Applications

• Cell Disruption and Lysis - Efficient breaking of cell walls or membranes to release intracellular components, such as proteins, nucleic acids, and enzymes.

Emulsification - Creation of stable emulsions by dispersing one liquid into another, typically with the goal of producing uniform droplets in applications like cosmetics, food, and pharmaceuticals.

Nanoparticle and Liposome Preparation - Formation of nanoparticles or liposomes for drug delivery, diagnostics, and other applications requiring fine particle sizes.

Homogenization - Ensuring uniform distribution of particles in a liquid, often for biological, food, or chemical products.

Dispersing Powders or Solids into Liquids - Efficiently dispersing powders or solid materials into liquids, which is crucial for making stable suspensions and slurries.

Particle Size Reduction - Reducing the size of particles in a sample to achieve desired size distributions, which is essential for the uniformity and quality of products in various sectors.

• Vaccine and Antigen Production - Disrupting bacterial or viral cells for vaccine preparation, enhancing the delivery of antigens in therapeutic formulations.

• Gene Therapy Applications - Creating gene delivery vectors or working with nucleic acids (e.g., DNA or RNA) for generic engineering or therapy.

Bioprocessing - Large-scale production of biopharmaceuticals, enzymes, and other biologics through the processing of cell cultures or bio-based products.



Contact New Life Scientific Today for Additional Information

Are you ready to add a reliable production-scale microfluidizer processor to your laboratory's workbench? Our team can help you decide whether the M700's capacity and features align with your processing needs. Contact us today if you have questions or need additional specifications. You may also:

• Live chat with us by clicking on the icon at the lower right of your screen.

• Email us at cs@newlifescientific.com

• Call us at (567)-210-2838
