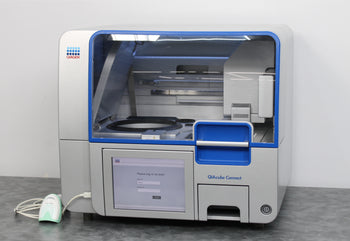

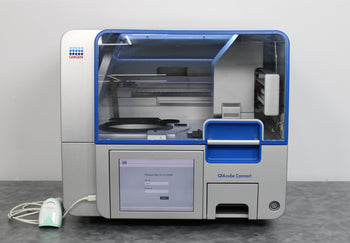

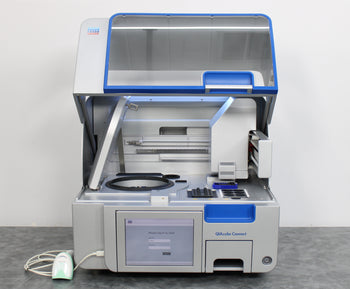

- QIAGEN QIAcube Connect Device (9002864)

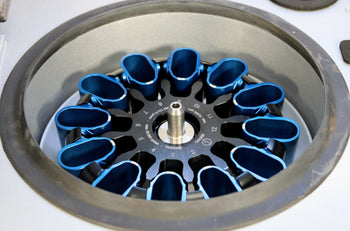

- QIAGEN Swing Bucket Rotor with 12 Buckets

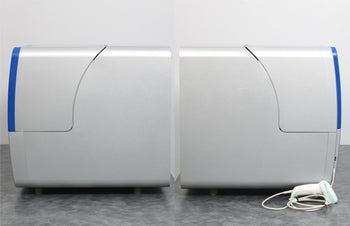

- Barcode Scanner
- Reagent Bottle Rack
- Shaker Adapter “2”
- Shaker Cover

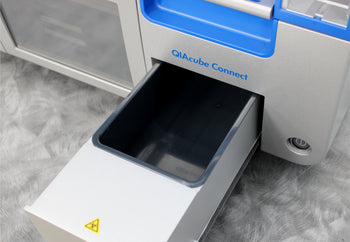

- Waste Tray Liner
- Power Cable
- 30-Day Warranty

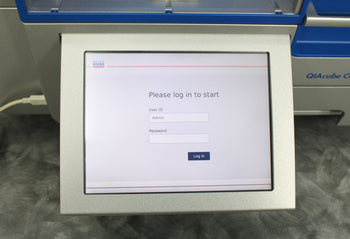

Notice: This system has been locked out due to unsuccessful log-in attempts. The price of this system has been reduced due to this lock out.
- Consumables (Pipette Tips, Swing Bucket Adapters, Spin Columns, Reagents)
- “S2” Shaker Adapter
- Set of Shaker Rack Plugs
After its initial disinfection and inspection, our technicians tested the QIAGEN QIAcube Connect Device with the following results:
- Inspection: PASSED
- Shaker: PASSED
- Centrifuge: PASSED
- Verified this unit has the latest update: PASSED
|
Manufacturer
|
QIAGEN
|
|
Model
|
QIAcube Connect Device
|
|
Ref. No.
|
9002864
|
|
Serial No.
|
01860
|
|
GTIN
|
04053228034766
|
|

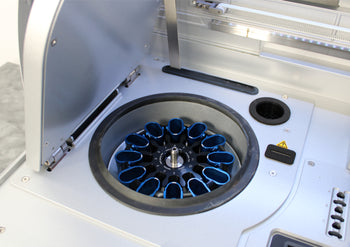

Centrifuge
|
10,640 rpm maximum, 12,000 x g maximum, swing-out rotor maximum 45°, 12 rotor positions
|
|
Shaker
|
Speed 100-2000 rpm, amplitude 2 mm, heating range of ambient temperature to 70°C (158°F), ramp-up time of <5 minutes from ambient temperature to 55°C (±3°C). Difference in temperature detected by the internal sensor and the temperature of the sample liquid is approximately -2°C.
|
|
Pipetting system
|
Syringe size 1 ml, pipetting range 5-900 µl
|
|
Table capacity
|
Up to 12 samples per run
|
|
Touchscreen
|
10.4” TFT touchscreen, active area 211.2 x 158.4 mm, resolution 800x600 SVGA
|
|
Data output
|
USB stick: USB2.0; Compatible OS: Windows 8, Windows 7, Windows Vista, Windows XP (SP3 or later); Mac OS x 10,1 or later
|
|
UV lamp
|
Wavelength: 278nm; Optical power: 200-300mW
|
|
Special feature
|
Handheld scanner; Scan pattern: Area Image (838 x 640-pixel array); Motion tolerance: Up to 610 cm/s (240 in/s) for 13 mil UPC at optimal focus; Symbol contrast: 20% minimum reflectance difference; Decode capability: Reads standard 1D, PDF, 2D, Postal and OCR symbology
|
|
Software
|
QIAGEN protocols are pre-installed on the QIAcube Connect.
|
|
Altitude
|
Up to 2000 m (6500 ft)
|
|
Operating temperature
|
18 to 28°C (64.4 to 82.4°F)
|
|
Relative humidity
|
15-75% (non-condensing)
|
|
Place of operation
|
For indoor use only
|
|
Pollution level
|
2
|
|
Environmental class
|
3K2 (IEC 60721-3-3)
|
|

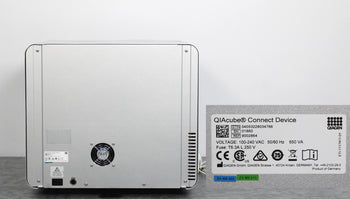

Power rating
|
100-240VAC, 50/60Hz
|
|
Power consumption
|
650VA. Note: The apparent power can exceed 650 VA for up to 2 seconds during the centrifuge acceleration and can reach an approximate value of 1000 VA.
|
|
Dimensions (W x D x H)
|
25.6 x 24.4 x 22.8 in (65 x 62 x 58 cm)
|
|
Weight
|
157.6 lb (71.5 kg)
|
