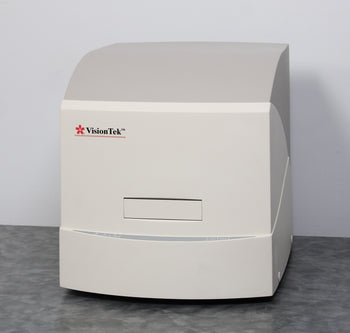

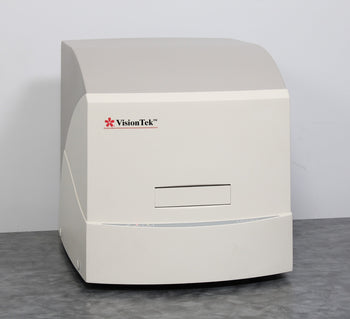

Sakura Finetek VisionTek DM01 Digital Microscope

You Will Receive:

- Sakura Finetek VisionTek DM01 Digital Microscope (9999)
- Power Cable
- 90-day Warranty

Not Included:

- Computer and Software

Untested and in Good Condition:

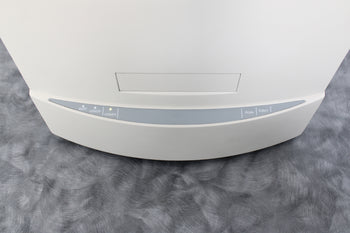

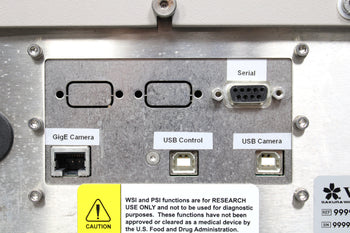

When powered on, the LED labeled "POWER" lights amber. We attached a USB cable to a Windows 7 laptop and the port labeled USB camera and attempted to install drivers. Hardware ID was VID_1409&PID_1000, which is an IDS camera that we installed drivers for, but there was no control of the other device in the DM01.

Specifications:

Manufacturer	Sakura Finetek
Product line	VisionTek
Model	DM01
Ref. No.	9999
Serial No.	9999 0023-0312
Optics	EC Plan NeoFluar 2.5x/0.075 NA, 10x/0.3 NA, 20x/0.5 NA
Magnification	Overview image 0.45x High-resolution live magnifications: 2.5x, 10x, 20x, 40x
Illumination	Illumination white LED, with Köhler illumination; User illumination control
Z-stage autofocus	High-precision mechanical focus; motor controlled via mouse; Resolution 0.2 μm; IR beam and image-based autofocus mechanisms work together to focus automatically after each XY stage movement
XY-stage automation	Automation XY stage accommodates 4 standard microscope slides on a slide carrier and controlled via mouse
Slide loading	Slide carrier accommodates up to 4 standard microscope slides
Label/barcode	1D and 2D barcode recognition
Image detection	Overview camera resolution at 0.45x = 12 μm/pixel Live view and scanning camera resolution at 2.5x = 2.20 μm/pixel, at 10x = 0.550 μm/pixel, at 20x = 0.275 μm/pixel
Scan speed	3.0 min. for 15 x 15 mm (at 0.275 μm/pixel)

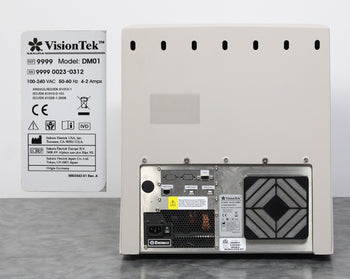

Power rating	100-240V, 50-60Hz, 4-2Amps
Dimensions (W x D x H)	15.9 x 20.5 x 17.9 in (40.5 x 52 x 45.5 cm)
Weight	77.2 lb (35 kg)

Country

Province

Zip Code

Sakura Finetek VisionTek DM01 Digital Microscope

Name: Sakura Finetek VisionTek DM01 Digital Microscope
Brand: Sakura
SKU: 23974
Price: 10000.0 USD
Availability: InStock

You Will Receive:

- Sakura Finetek VisionTek DM01 Digital Microscope (9999)
- Power Cable
- 90-day Warranty

Not Included:

- Computer and Software

Untested and in Good Condition:

When powered on, the LED labeled "POWER" lights amber. We attached a USB cable to a Windows 7 laptop and the port labeled USB camera and attempted to install drivers. Hardware ID was VID_1409&PID_1000, which is an IDS camera that we installed drivers for, but there was no control of the other device in the DM01.

Specifications:

Manufacturer	Sakura Finetek
Product line	VisionTek
Model	DM01
Ref. No.	9999
Serial No.	9999 0023-0312
Optics	EC Plan NeoFluar 2.5x/0.075 NA, 10x/0.3 NA, 20x/0.5 NA
Magnification	Overview image 0.45x High-resolution live magnifications: 2.5x, 10x, 20x, 40x
Illumination	Illumination white LED, with Köhler illumination; User illumination control
Z-stage autofocus	High-precision mechanical focus; motor controlled via mouse; Resolution 0.2 μm; IR beam and image-based autofocus mechanisms work together to focus automatically after each XY stage movement
XY-stage automation	Automation XY stage accommodates 4 standard microscope slides on a slide carrier and controlled via mouse
Slide loading	Slide carrier accommodates up to 4 standard microscope slides
Label/barcode	1D and 2D barcode recognition
Image detection	Overview camera resolution at 0.45x = 12 μm/pixel Live view and scanning camera resolution at 2.5x = 2.20 μm/pixel, at 10x = 0.550 μm/pixel, at 20x = 0.275 μm/pixel
Scan speed	3.0 min. for 15 x 15 mm (at 0.275 μm/pixel)
Power rating	100-240V, 50-60Hz, 4-2Amps
Dimensions (W x D x H)	15.9 x 20.5 x 17.9 in (40.5 x 52 x 45.5 cm)
Weight	77.2 lb (35 kg)
