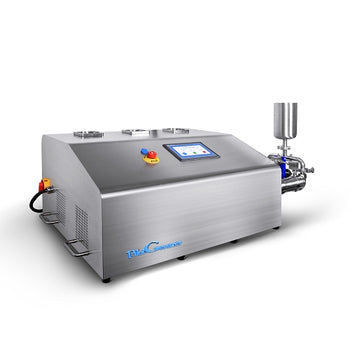

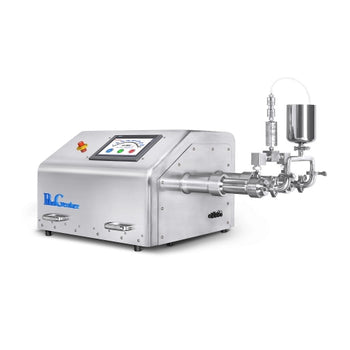

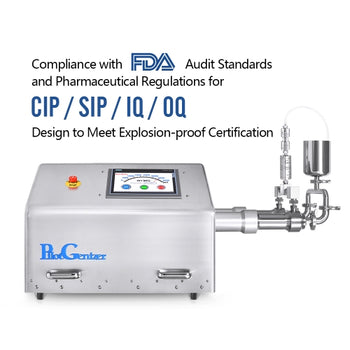

PilotGenizer High Pressure Homogenizer with Dual Pump
PilotGenizer High Pressure Homogenizer with Dual Pump
PilotGenizer High Pressure Homogenizer with Dual Pump
PilotGenizer High Pressure Homogenizer with Dual Pump
PilotGenizer High Pressure Homogenizer with Dual Pump
PilotGenizer High Pressure Homogenizer with Dual Pump

PilotGenizer High Pressure Homogenizer with Dual Pump

Specs Below
click to see what's included
Pilot Scale High Pressure Homogenizer with Dual Pump for continuous pressure up to 45,000 psi





Performance Highlight
  • Energy efficient: 1/2 energy loss of the most homogenizers
  • Small: Integrated design deliver the lightweight and small dimensions
  • Smart: Programming control systems confer diligent functions
  • Silent: Noiseless performance with high energy efficiency
  • Strong: More than 30L/hr at 30,000 psi
  • CE compliant and RoHs compliant



Application
  • Nano dispersions, nano emulsions and nanotube, graphene
  • Cell disruption
  • Micro/nano encapsulation in polymers, liposomes and oils
  • Solid dispersion and suspension, deagglomeration





Specifications:

Catalog No.

PilotGenizer
15K

 PilotGenizer
20K		 PilotGenizer
25K		 PilotGenizer
30K		 PilotGenizer
35K		 PilotGenizer
40K		 PilotGenizer
45K

Flow Rate

 150mL/hr 60L/hr 45L/hr 35L/hr 30L/hr 25L/hr 20L/hr
Min. Sample 200mL 100mL 100mL 100mL 100mL 100mL 100mL
Max. Pressure 15,000psi 20,000psi 25,000psi 30,000psi 35,000psi 40,000psi 45,000PSI
Dimensions(cm)  145 x 75 x 90 145 x 75 x 50 165 x 90 x 65 165 x 90 x 65 165 x 90 x 65 165 x 90 x 65 165 x 90 x 65
Weight(kg) 260 260 320 320 320 320 320
Max. Temp. 80ºC (176ºF)
Power 380V440V
Cleaning Flush to clean/CIP/SIP
Application Nano emulsion, fat emulsion, liposome, cell disruption, nano dispersion, deagglomeration
Features Dual pump for continuous pressure, digital display of pressure





Standard Features:

Parts

Y-type diamond interaction chamber with cooling option
Control System High pressure programming control systems: touch screen, speed control, auto stop control by volume, time, pressure or temperature, settable volume control as low as 1mL, display of flow rate and time, overload protection
Pressure Gauge Electric
Inlet Type Tri-clamp or luer
Outlet Type Tri-clamp or luer
Inlet Reservoir 2L SUS316 cylinder
Product Material 316L stainless steel, tungsten carbide, viton, teflon
Material Standard Sanitary grade, FDA, GMP
Warranty 1 year against any manufacturing defects





Option Features:

Parts High pressure extruders, homogenizing valves, heat exchanger
Control System Tradition mechanical control: speed, start, stop controls; FDA 21CFR Compliance; Explosion-Proof
Detector Pressure gauge, pressure transducer, sensor
Outlet Type Tri-clamp or luer
Inlet Reservoir 1L, 2L Cylinder or Online; 1" or 2"  Tri-Clamp
Outlet Reservoir 1L, 2L Cylinder or Online; 1" or 2"  Tri-Clamp
Cylinder Titanium high pressure cylinder (resistant to strong acid and base)
