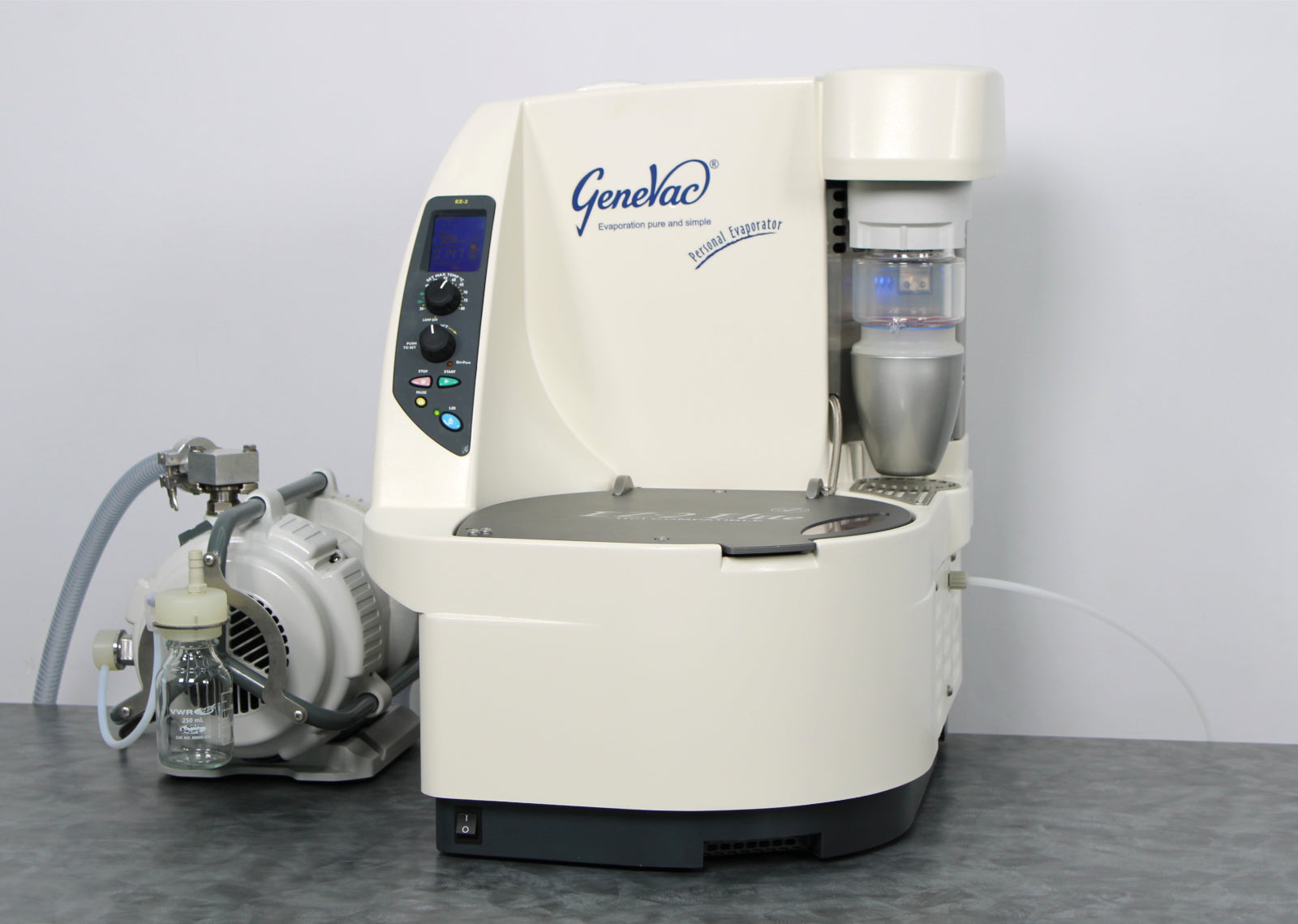

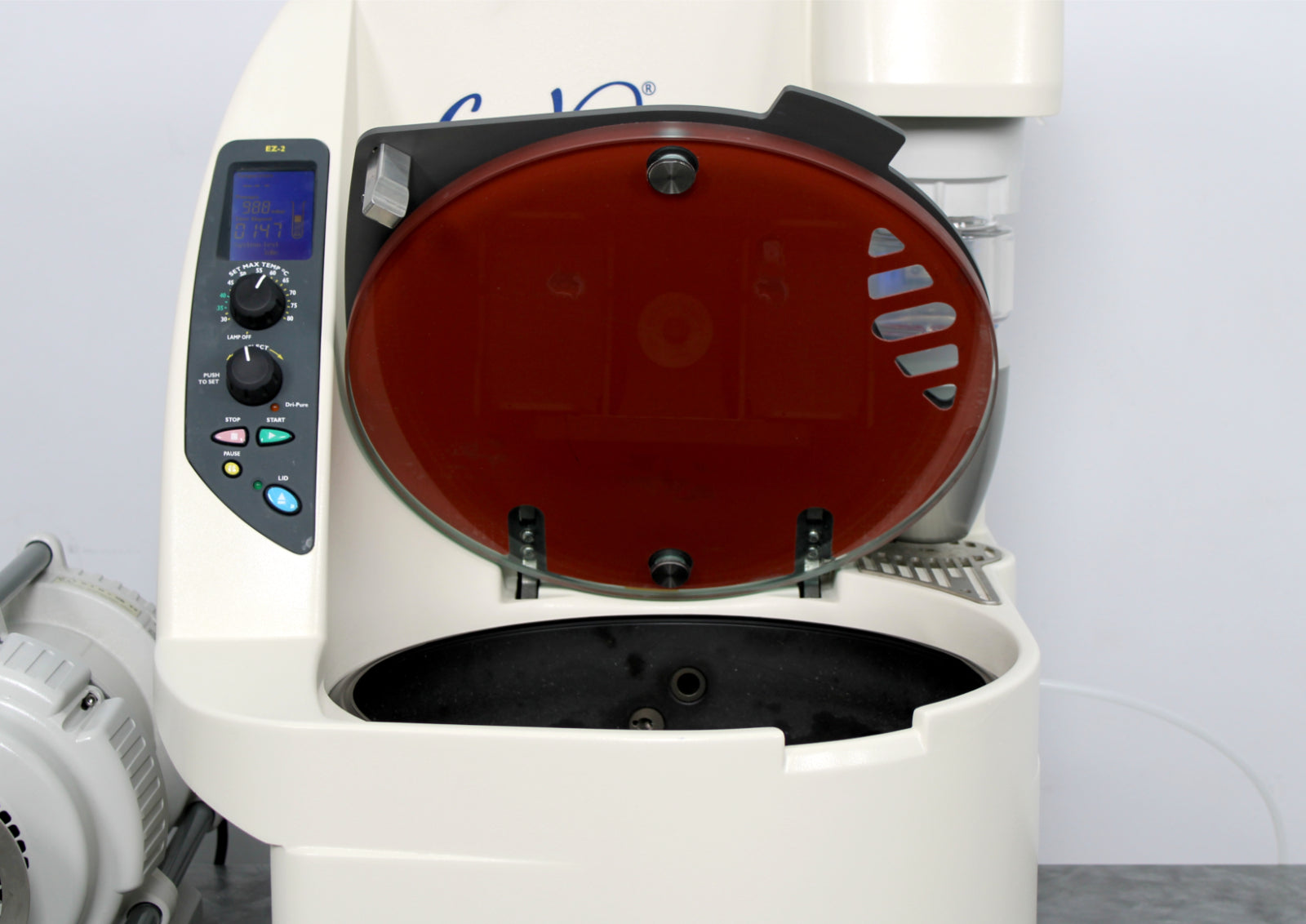

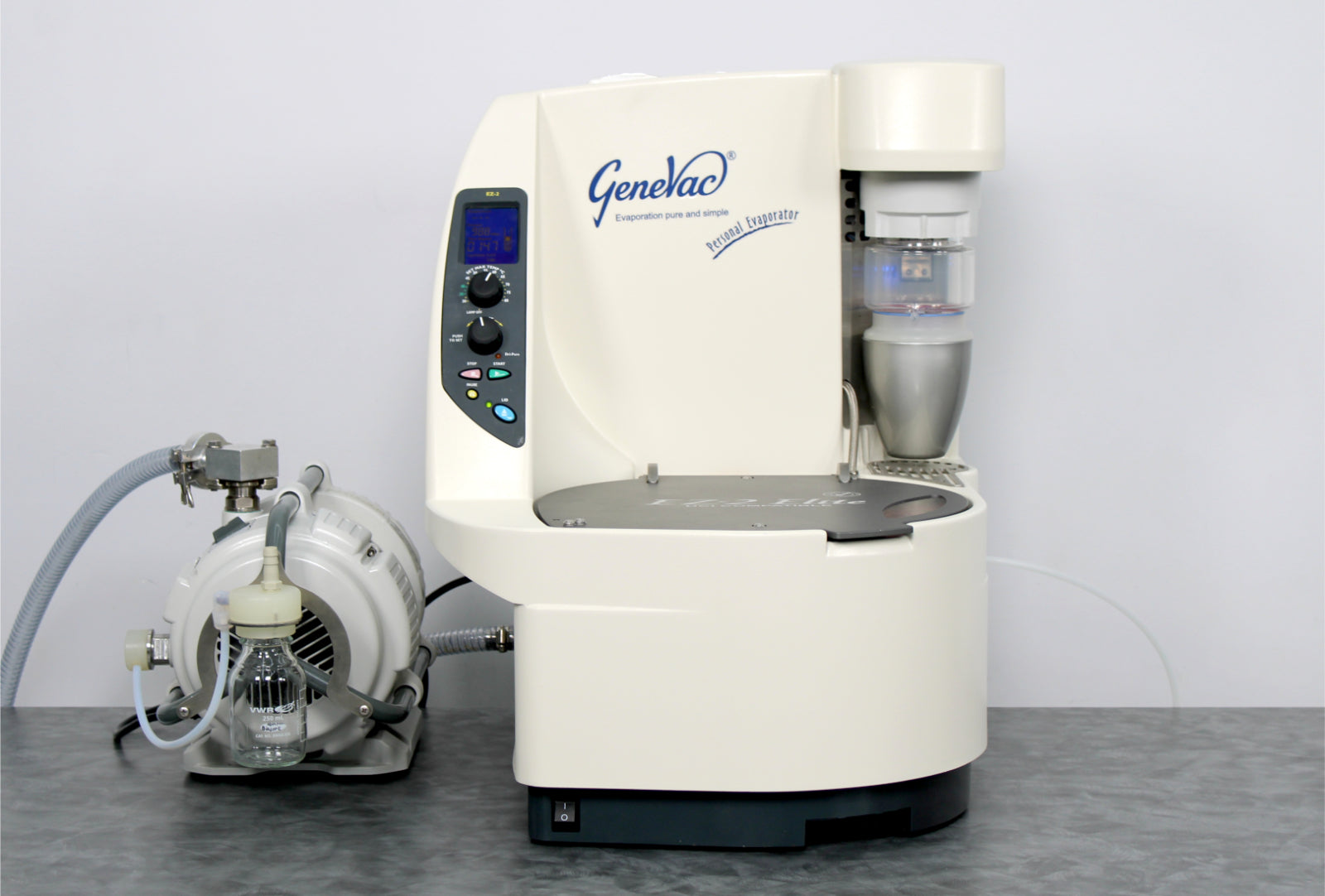

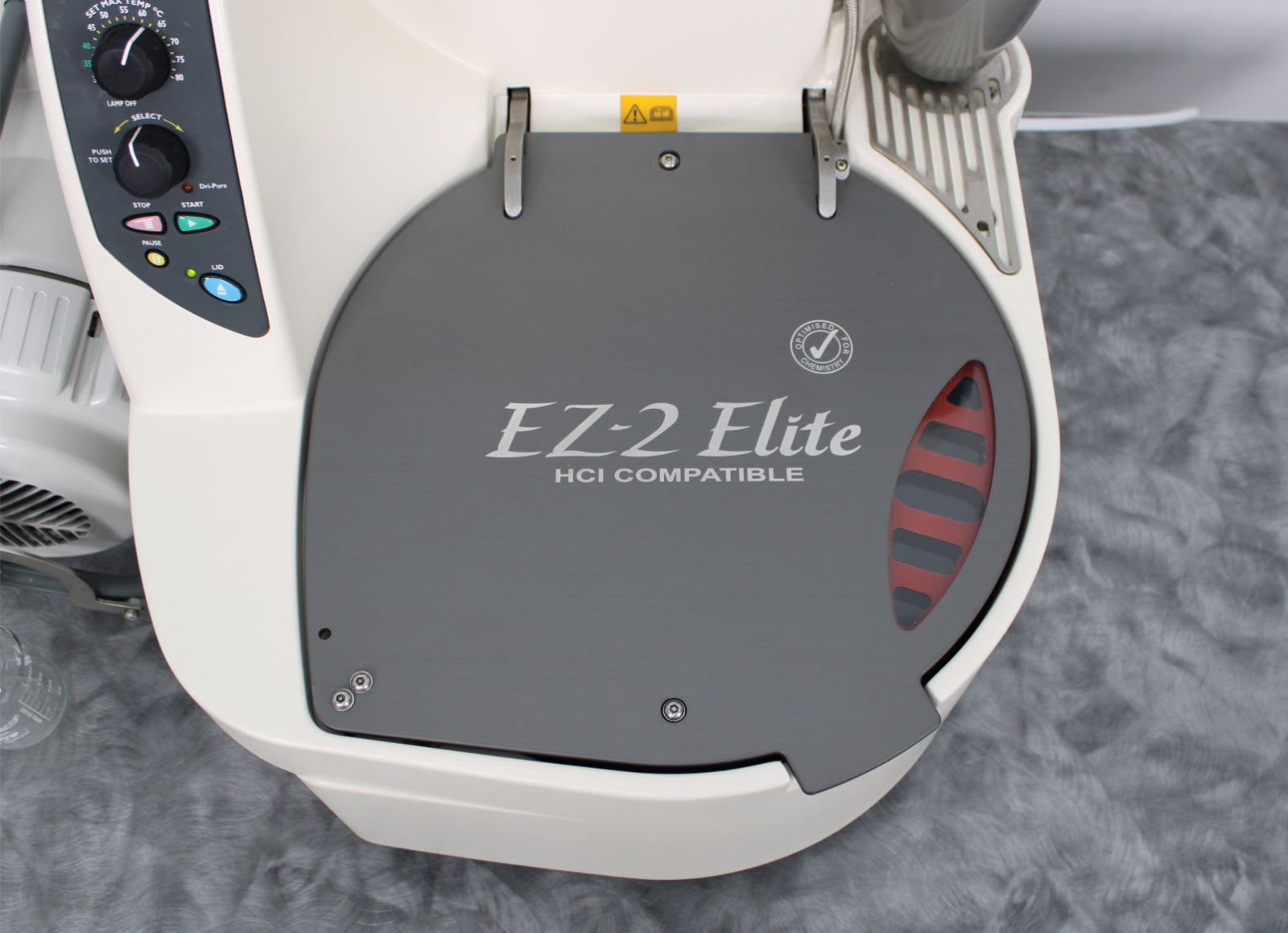

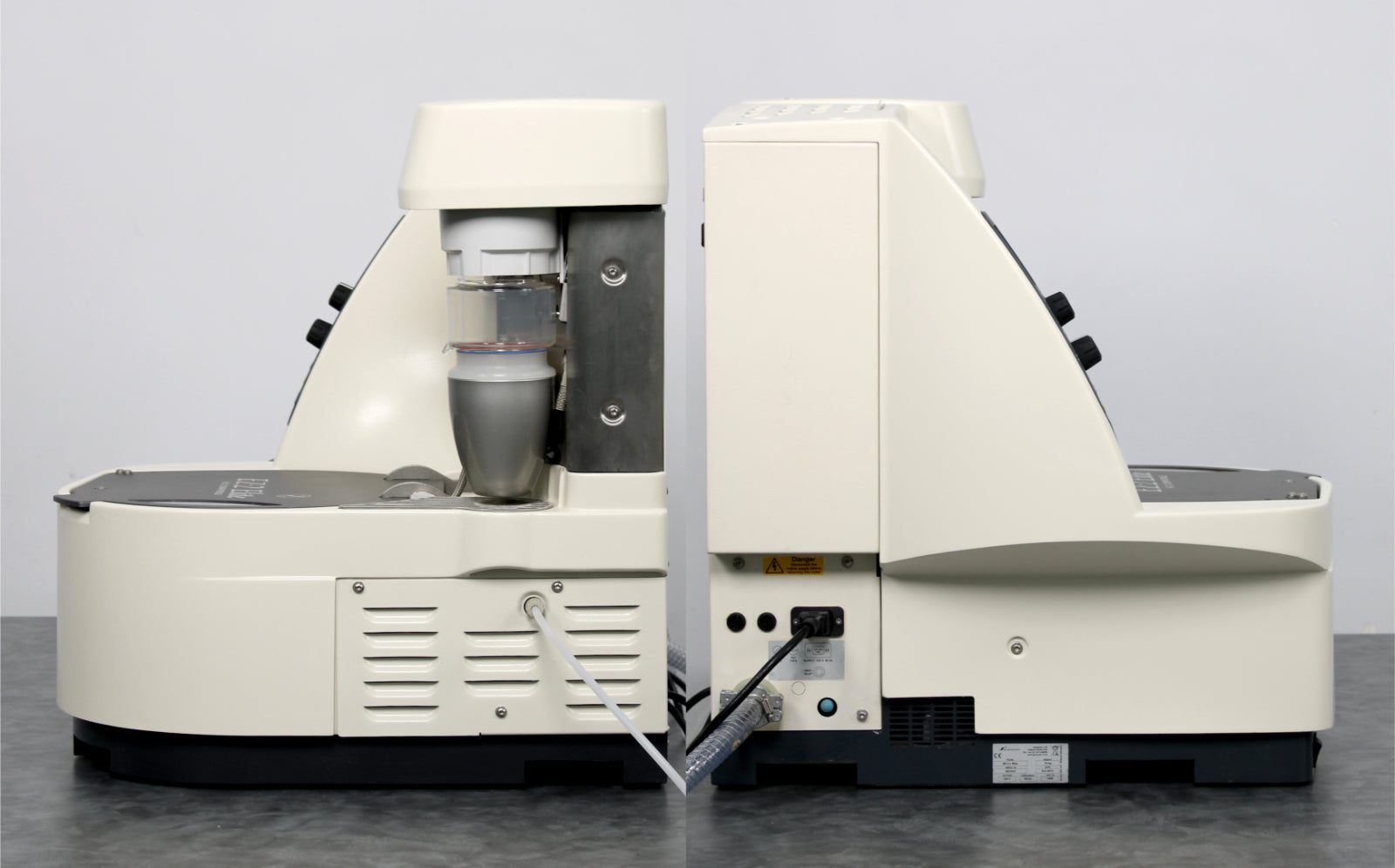

- SP Scientific GeneVac EZ-2.3 Elite Personal Centrifugal Evaporator 120V

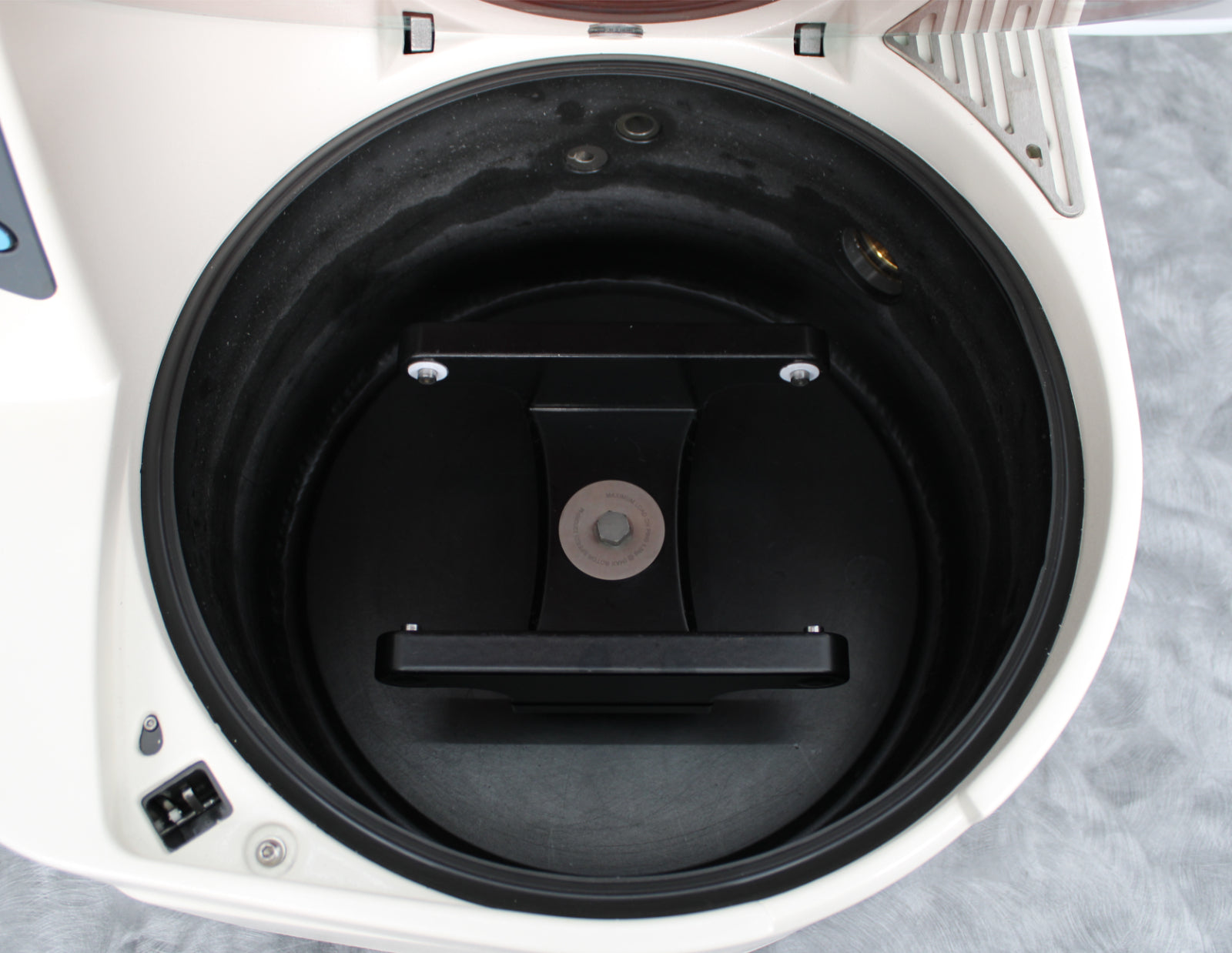

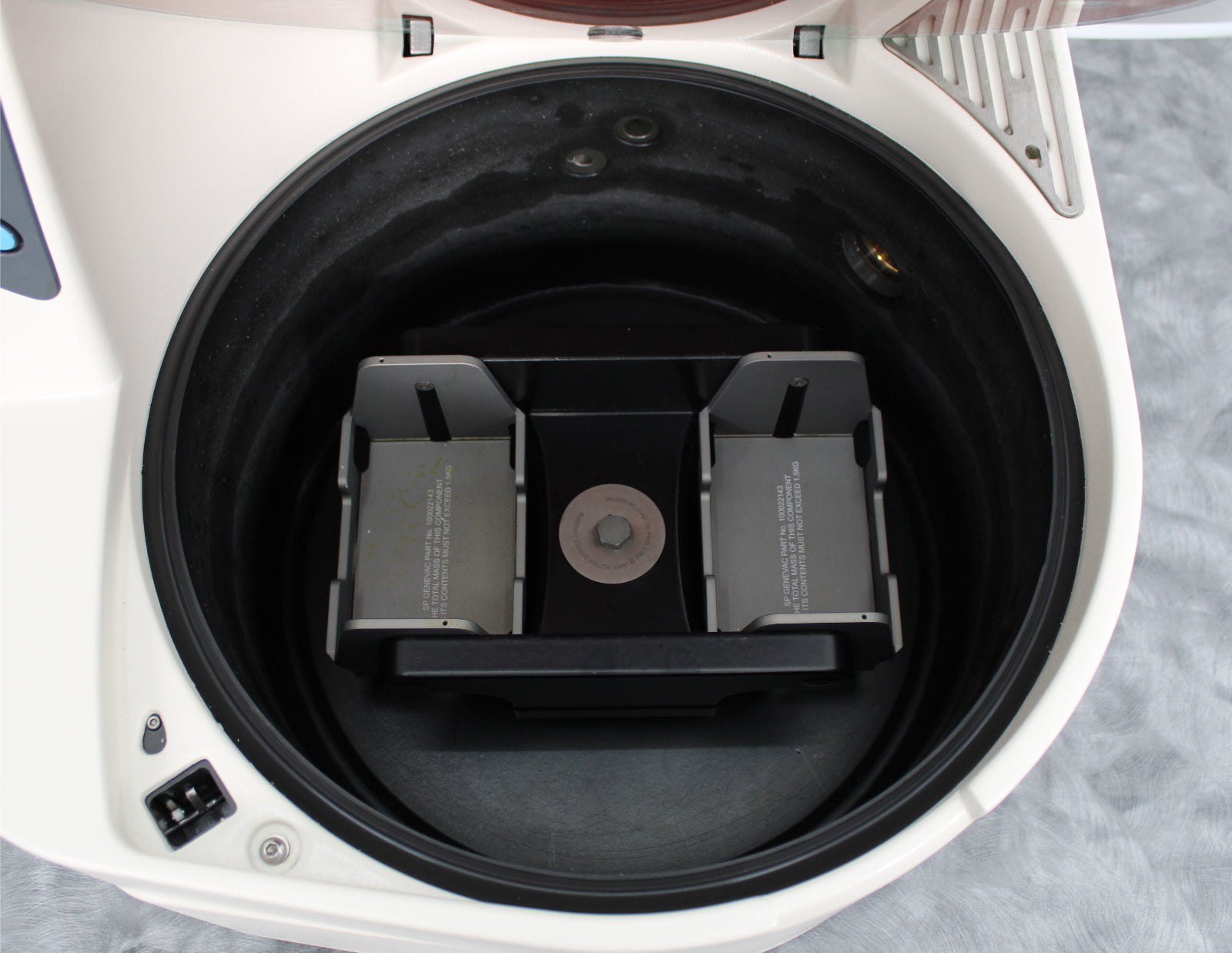

- Swinging Bucket Rotor

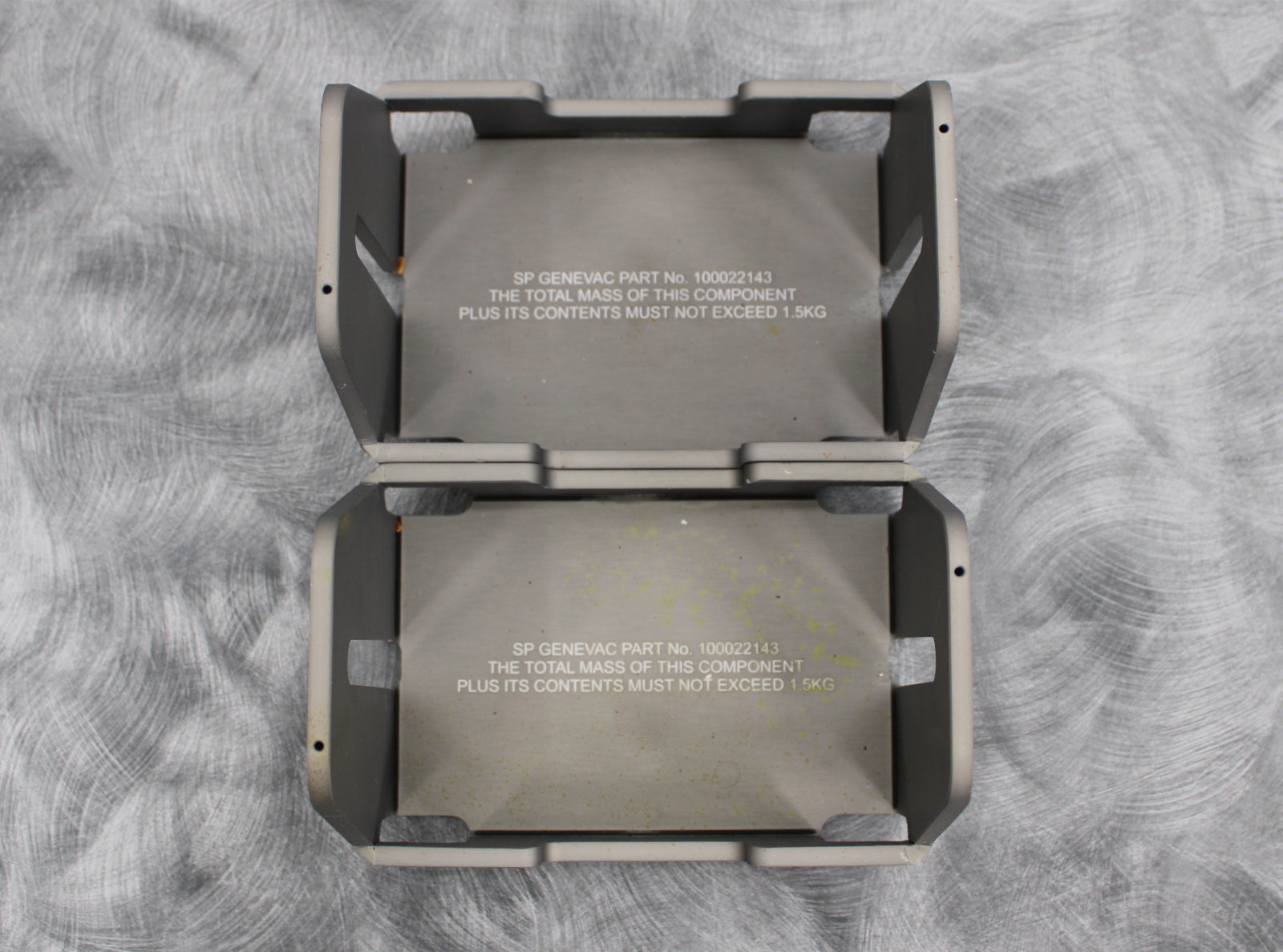

- x2 Rotor Buckets

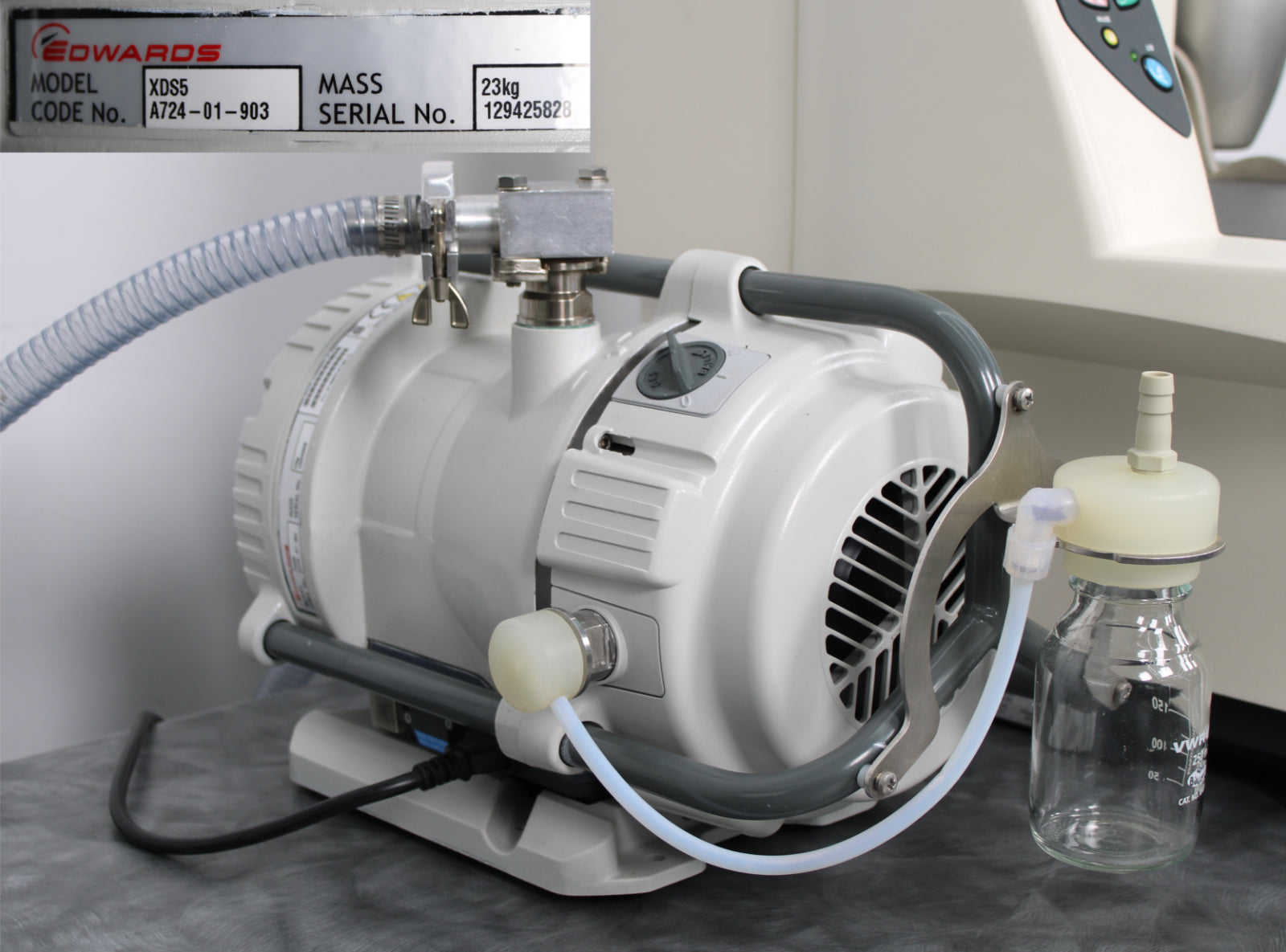

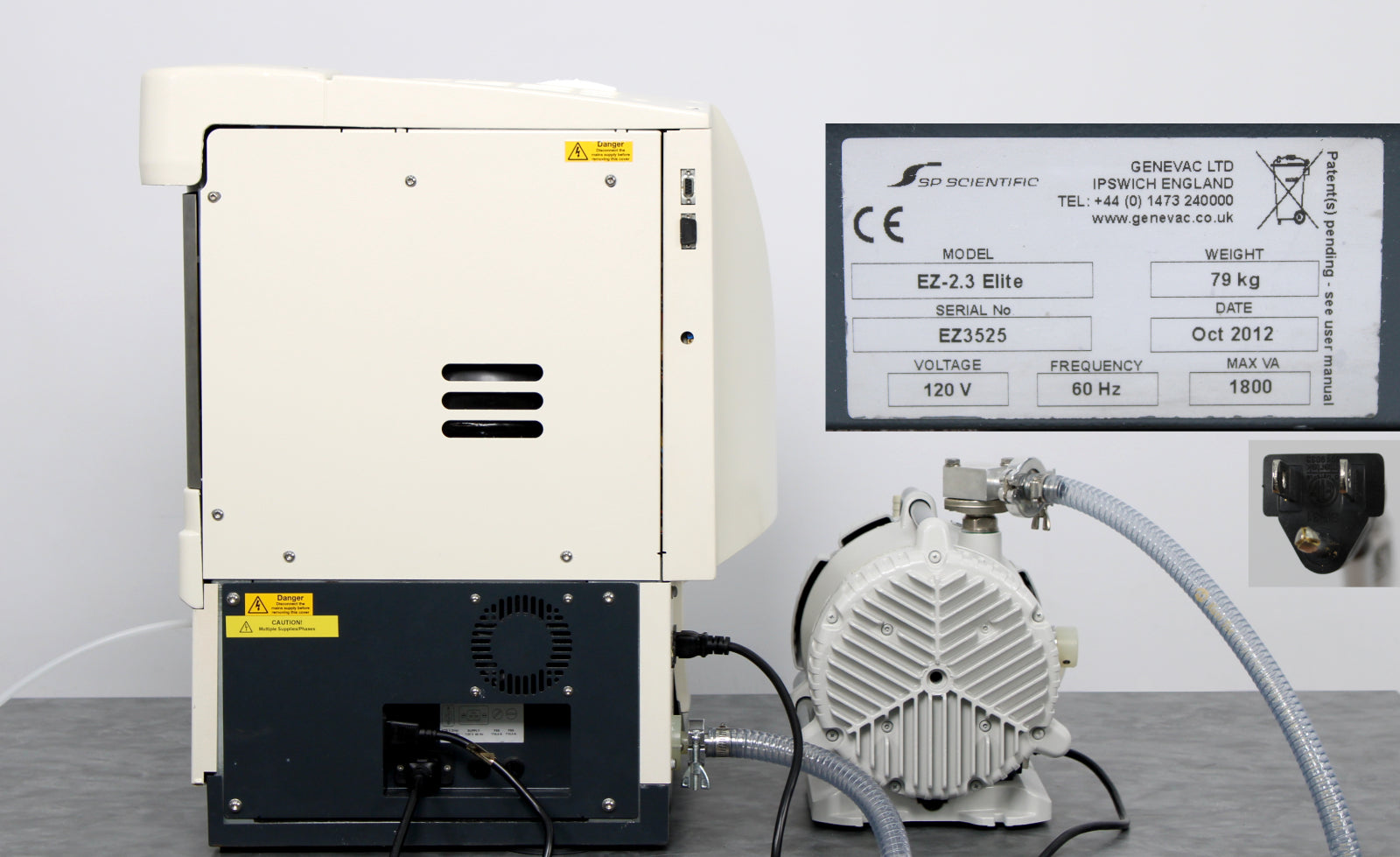

- Edwards XDS5 Dry Scroll Vacuum Pump (A724-01-903)
- Vacuum Hose
- Pump Power Cable
- x2 Power Cables with NEMA 5-15 Plug
- 90-Day Warranty
Notice: This is a truly complete, turn-key package, ready to operate the same day it arrives at your facility.
After its initial disinfection and inspection, our technicians tested the SP Scientific GeneVac EZ-2.3 Elite personal centrifugal evaporator with the following results:

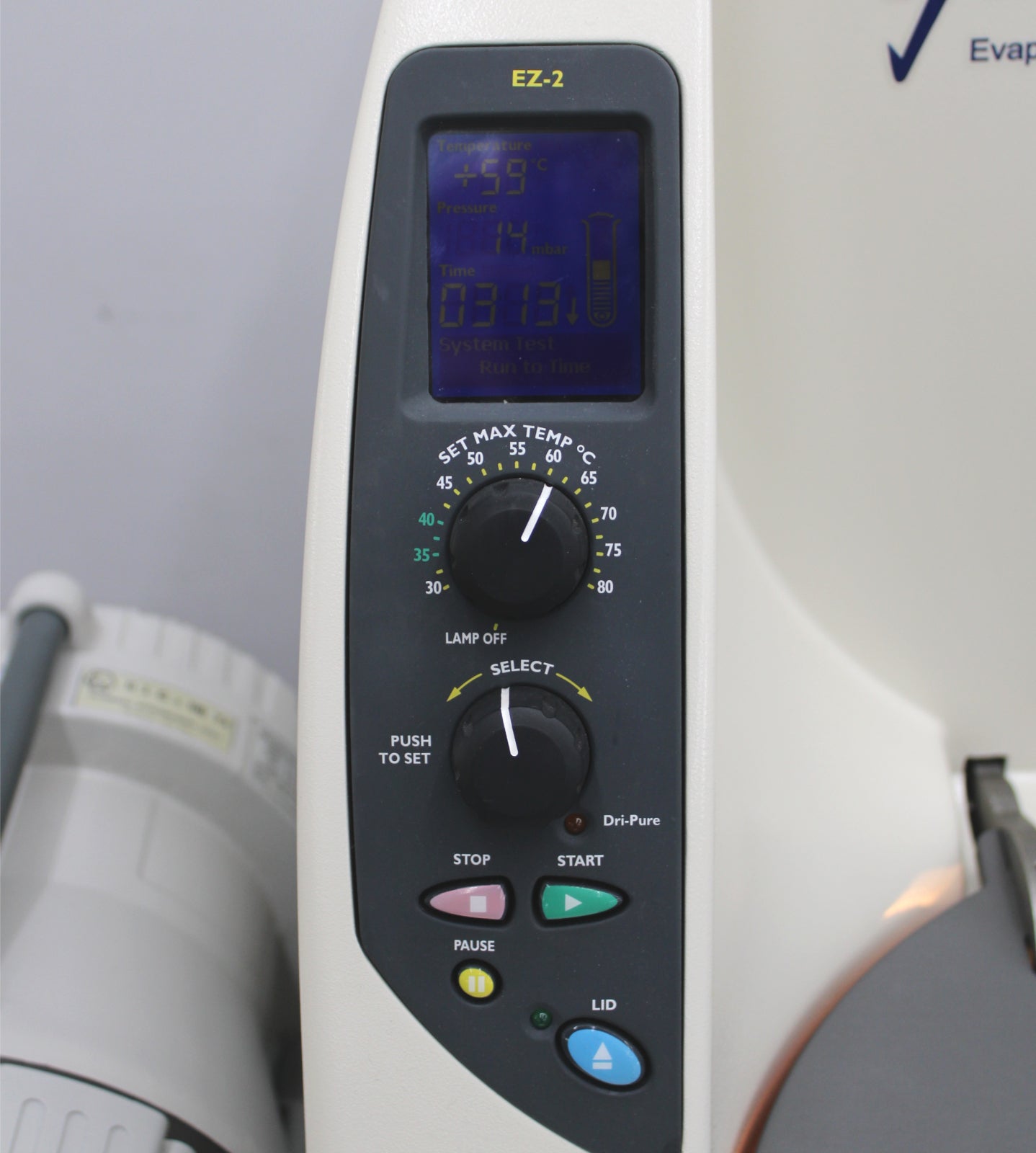

- User interface: PASSED

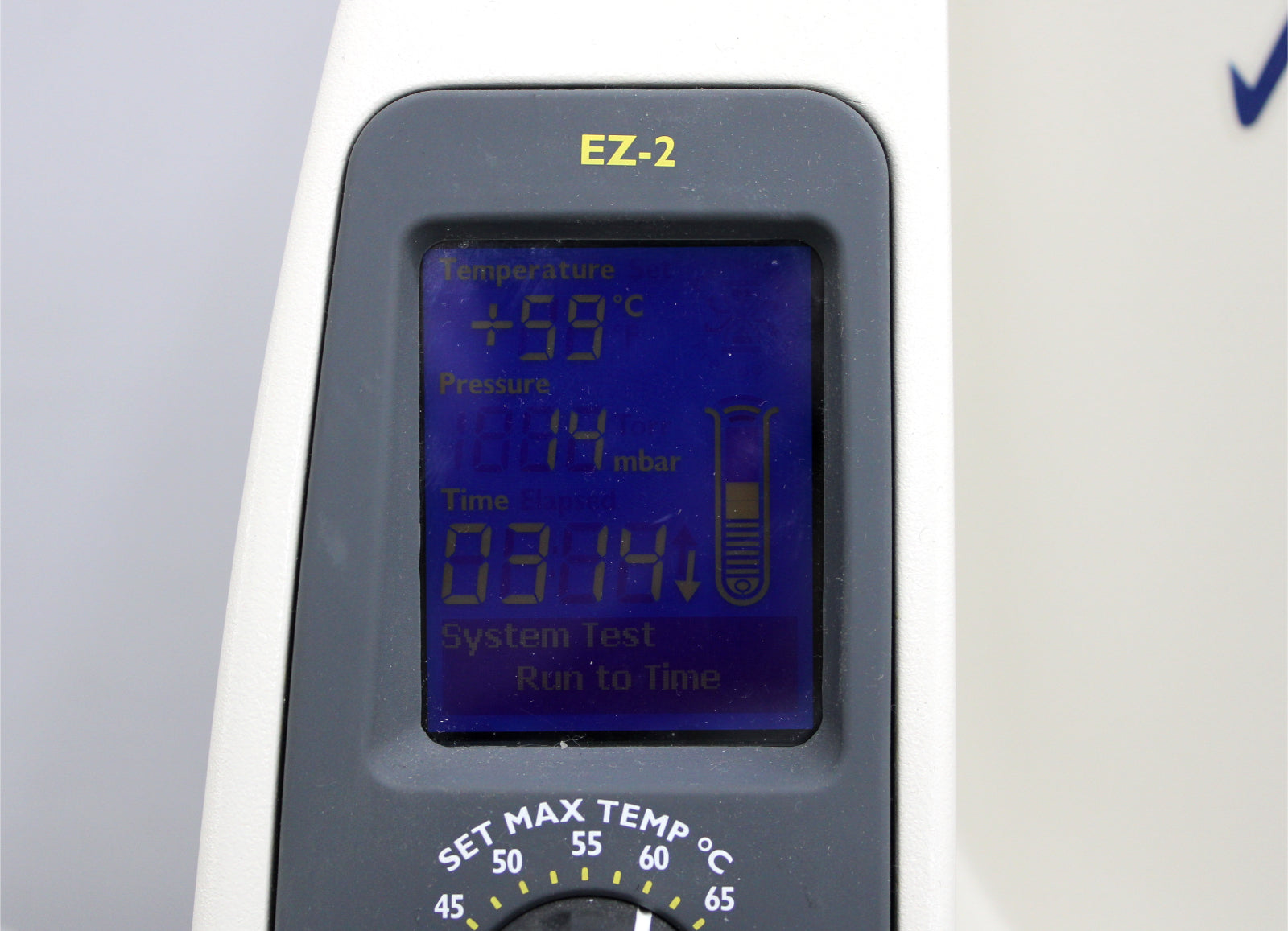

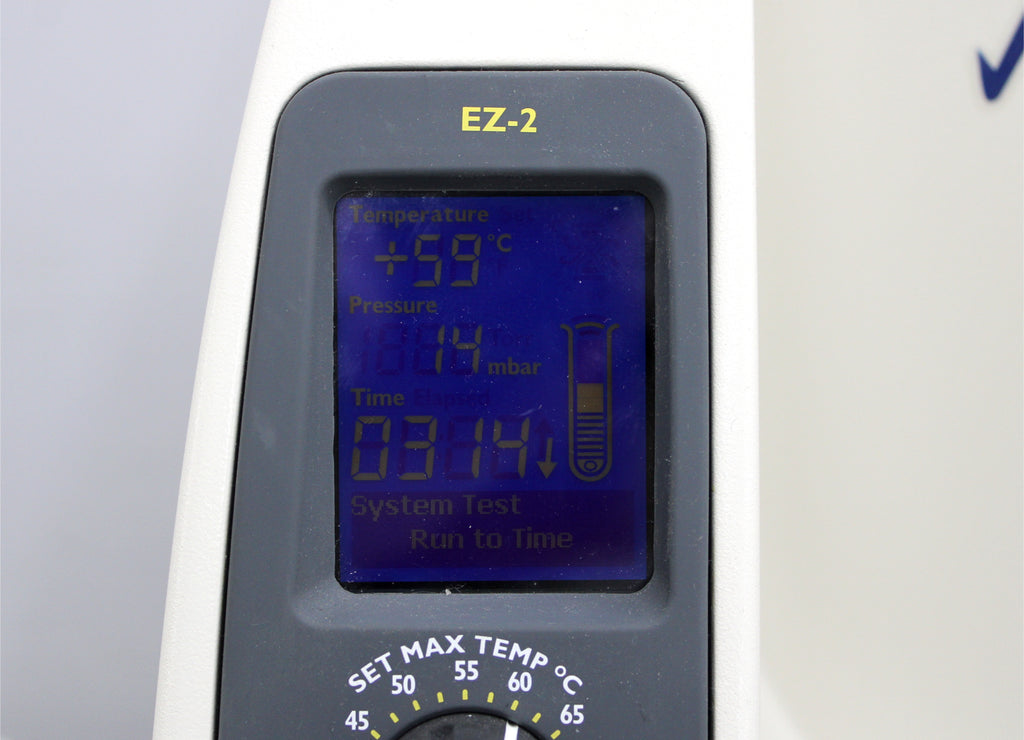

- Ran built-in self-test: PASSED
- Vacuum pull performance: PASSED
- System sealing integrity: PASSED
- Installed new bearings in the main rotor shaft.
- Identified and sealed internal vacuum leaks.
- Rebuilt Edwards XDS5 scroll pump with brand new tip seals.
- Applied high-quality exterior repaint.
|
Manufacturer
|
SP Scientific
|
|
Model
|
EZ-2.3 Elite
|
|
Serial No.
|
EZ3525
|
|
Mfg. date
|
October 2012
|
|
Maximum rpm
|
2150 rpm
|
|
Maximum G
|
500 G
|
|
Drive system
|
Direct
|
|
Sample load including swings
|
1.5 kg
|
|
Max. imbalance
|
40 g
|
|
IR lamps number
|
1
|
|
Pressure display
|
0-1150 mbar
|
|
Bump protection
|
Yes
|
|
Auto vacuum vent valve
|
Yes
|
|
Temperature control range
|
Ambient to 80°C
|
|
Temperature control accuracy
|
+/- 2.5°C
|
|
Temperature sensing
|
Infrared pyrometer
|
|
Temperature display range
|
-99 to +99°C
|
|
Condenser temperature
|
-40°C
|
|
Vacuum pots (number)
|
1
|
|

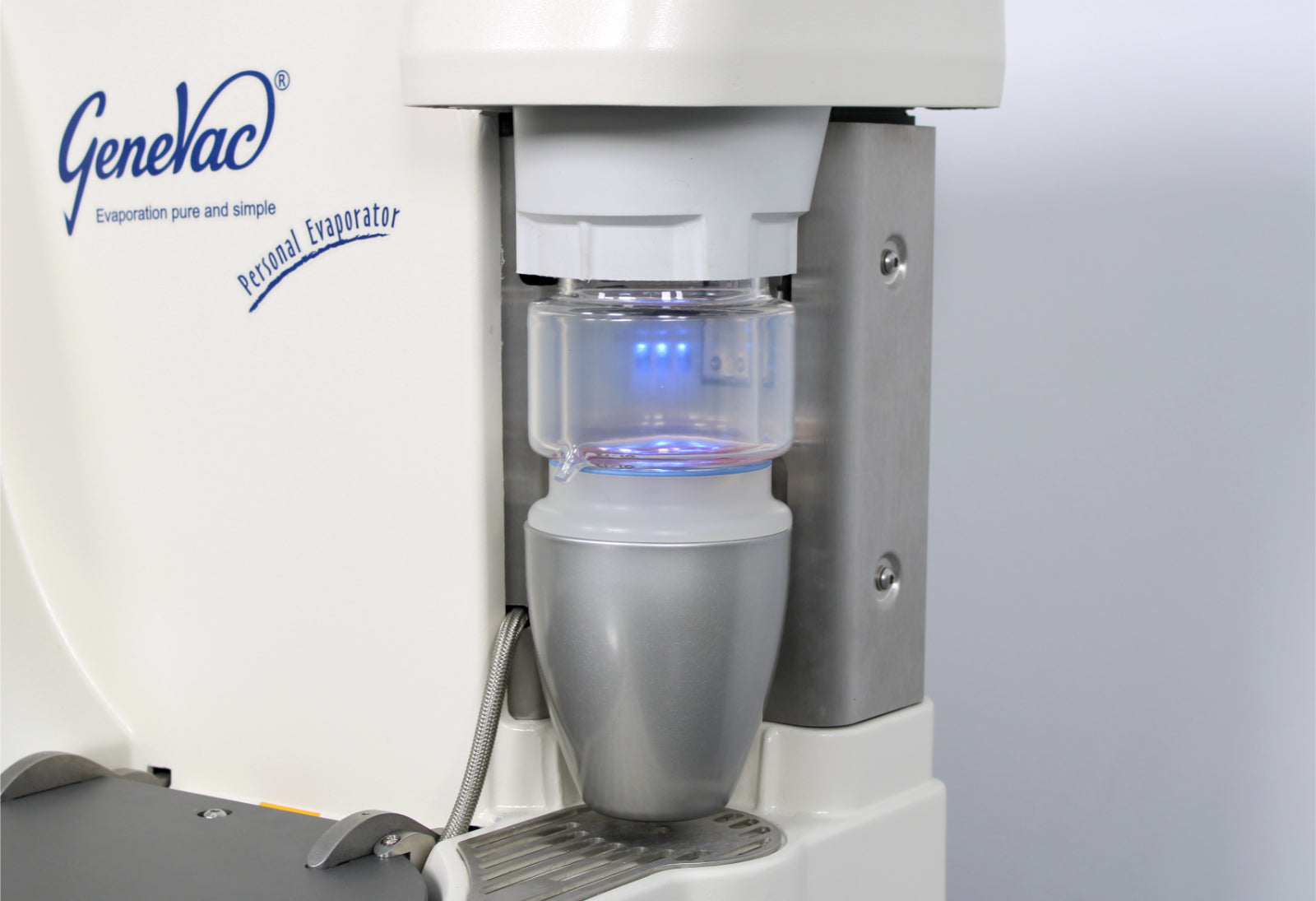

Vacuum pot useable capacity
|
1 liter
|
|
Condenser jar materials
|
Borosilicate glass
|
|
Refrigerant
|
R404a
|
|
Power rating
|
120V, 60Hz
|
|
Power consumption
|
1800VA max
|
|
Dimensions (W x D x H)
|
21.5 x 26 x 28 in
|
|
Weight
|
176.4 lb (80 kg)
|
