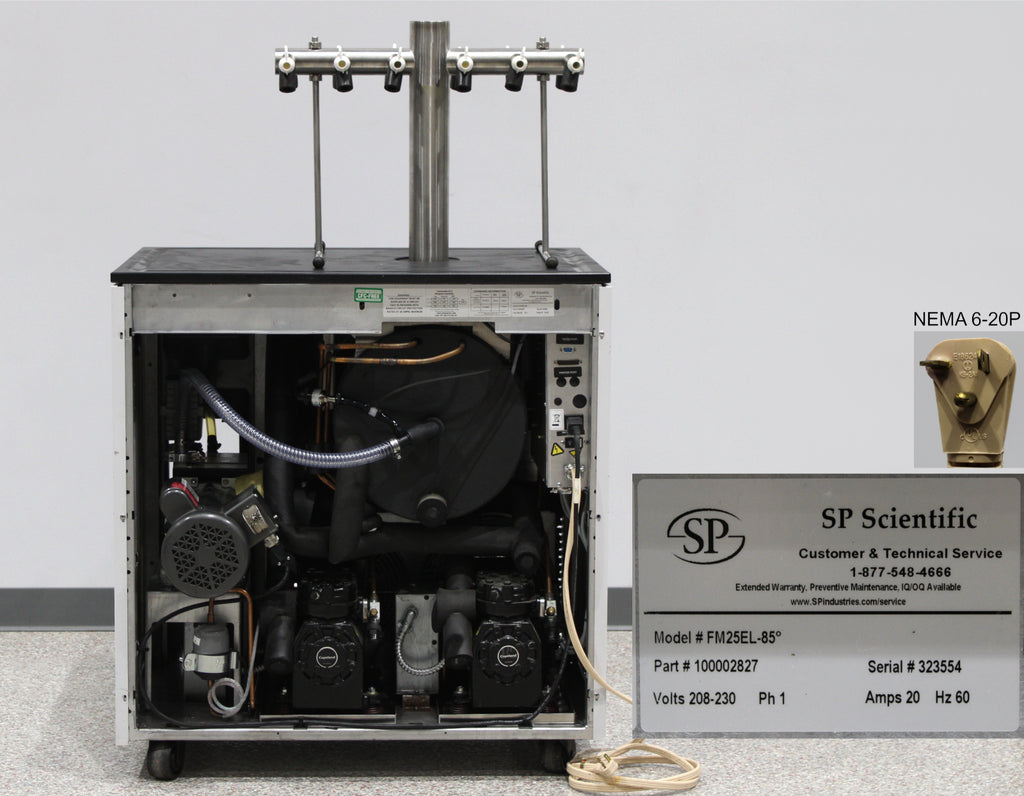

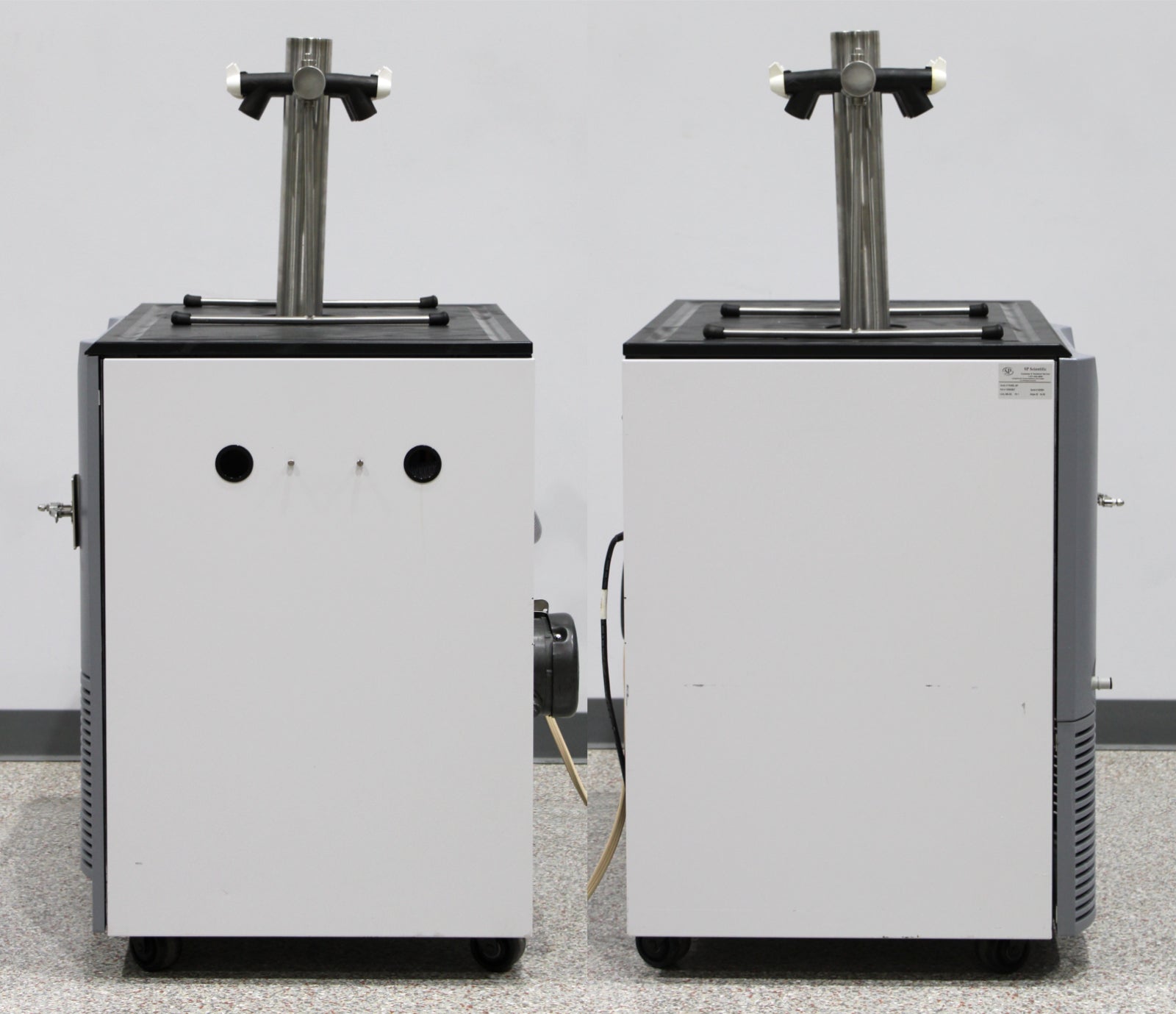

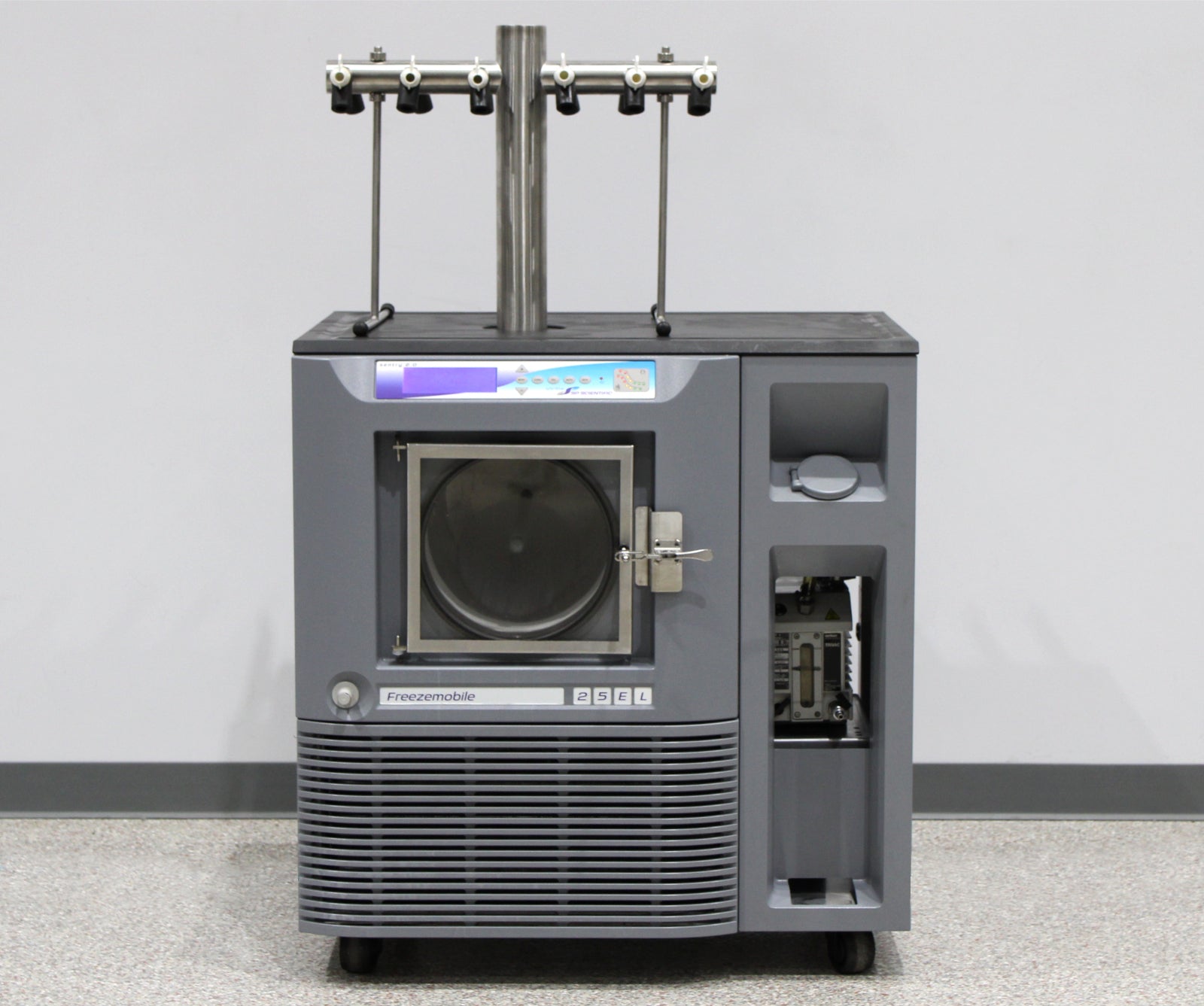

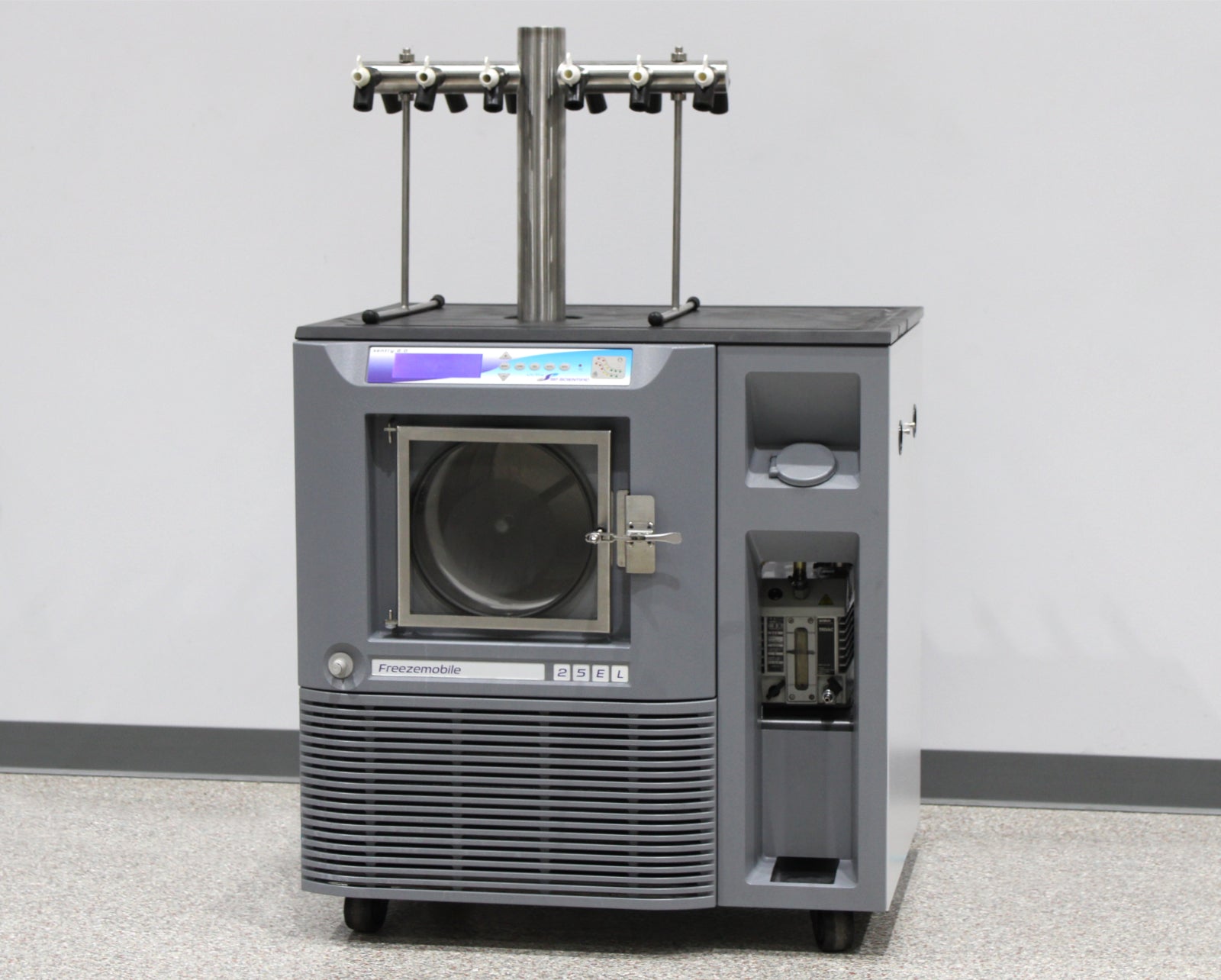

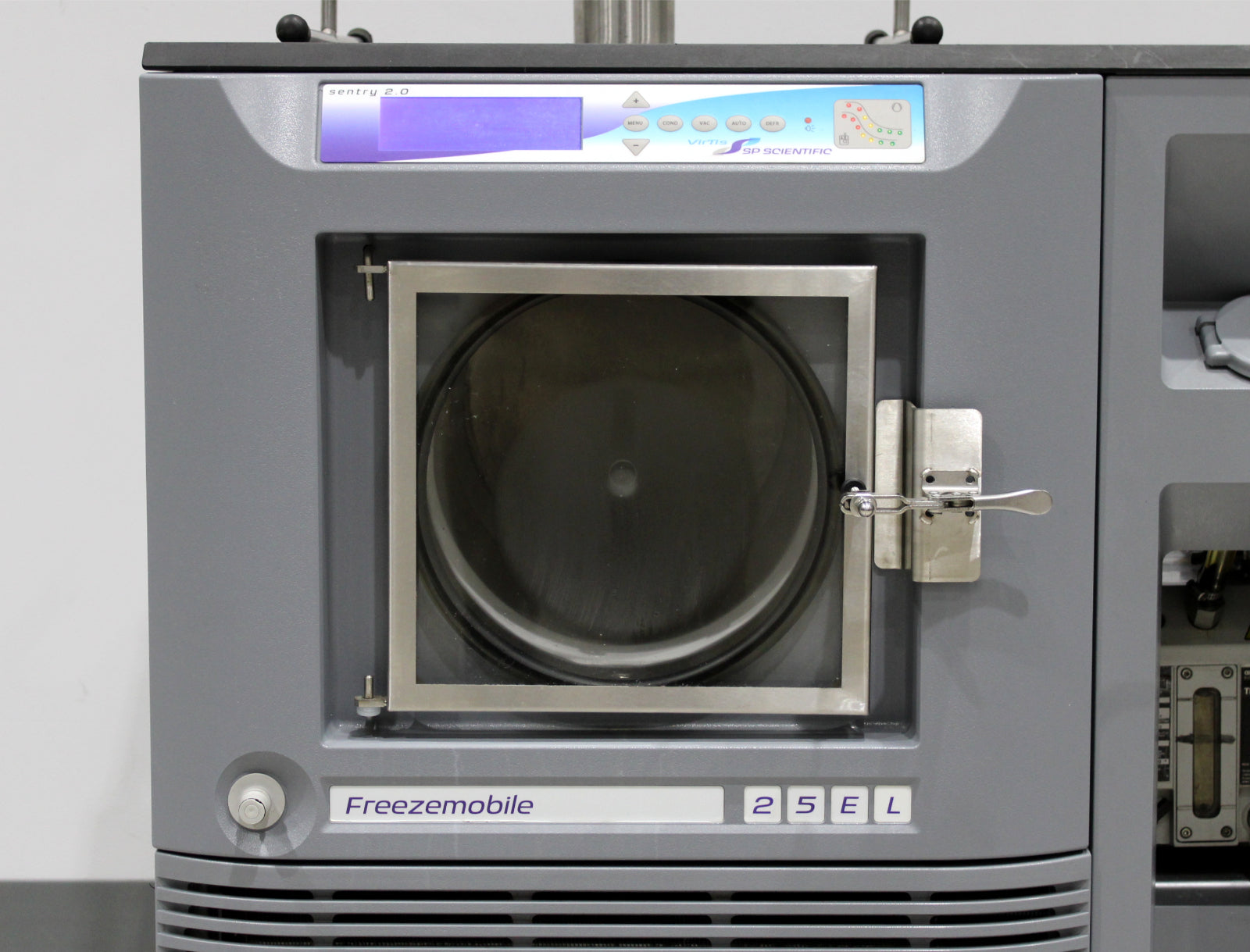

- SP Scientific VirTis Freezemobile FM25EL-85° Floor Freeze Dryer Lyophilizer (100002827)

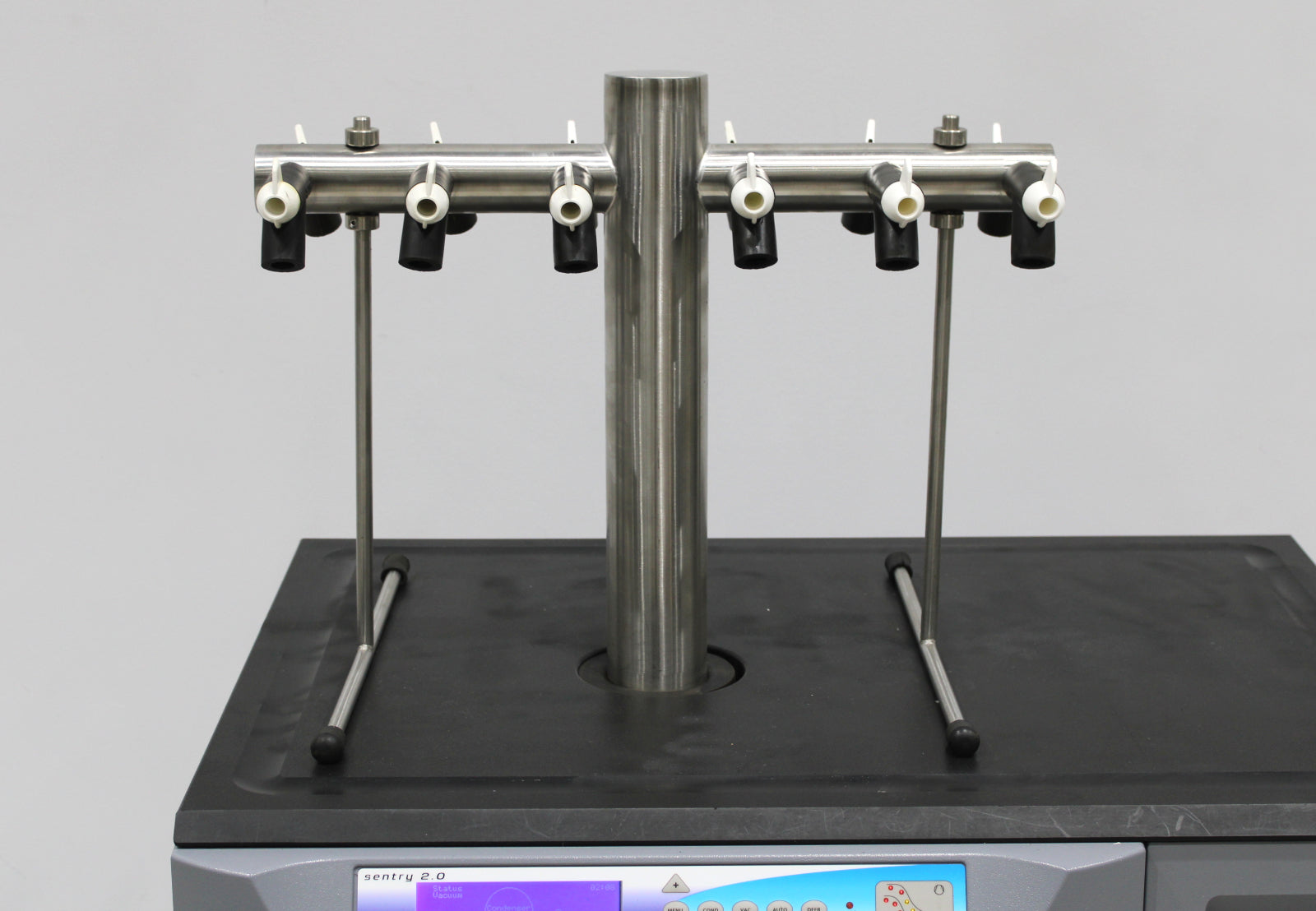

- 12-Port Tree Manifold with 12 Manifold Valves

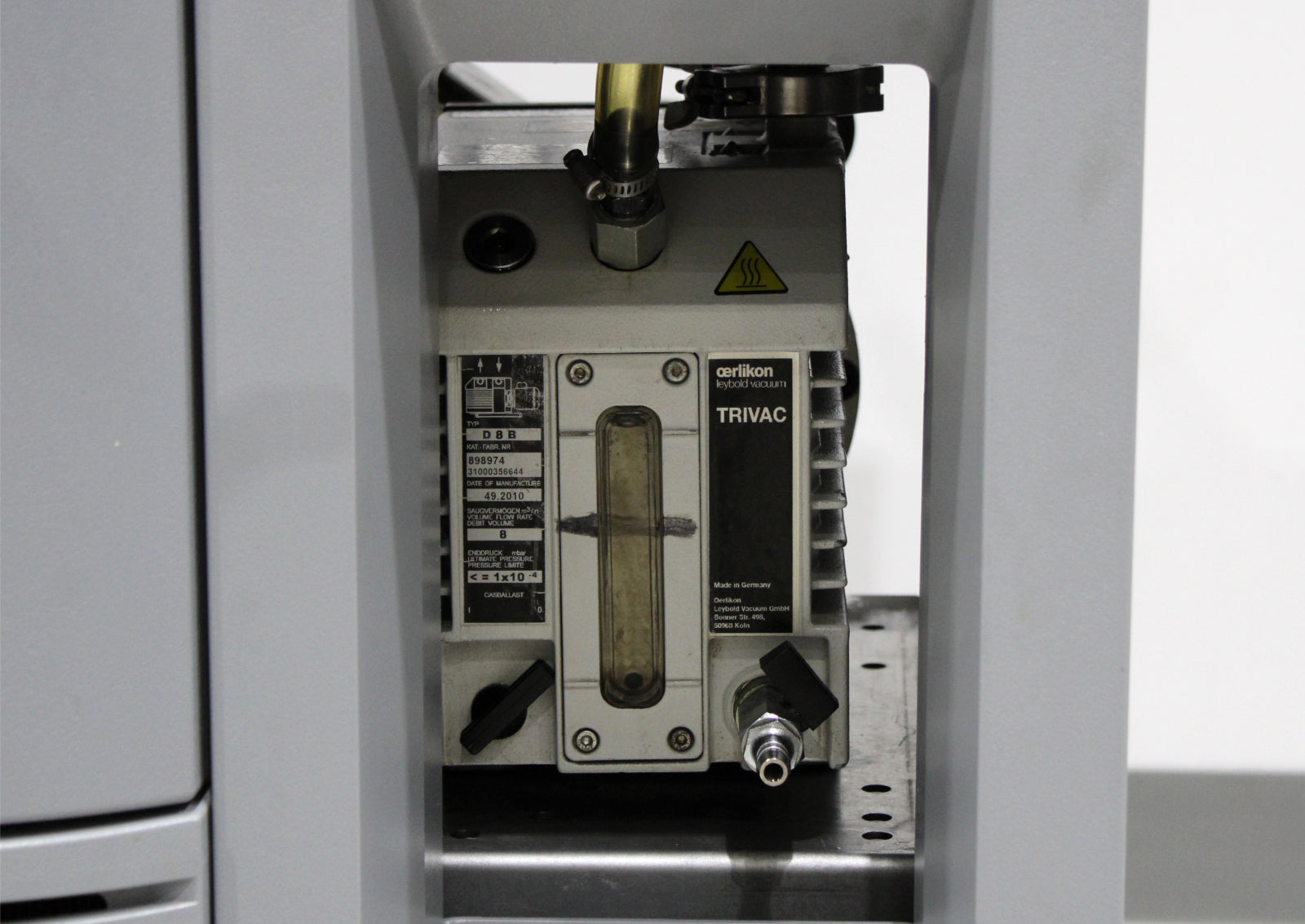

- Vacuum Pump

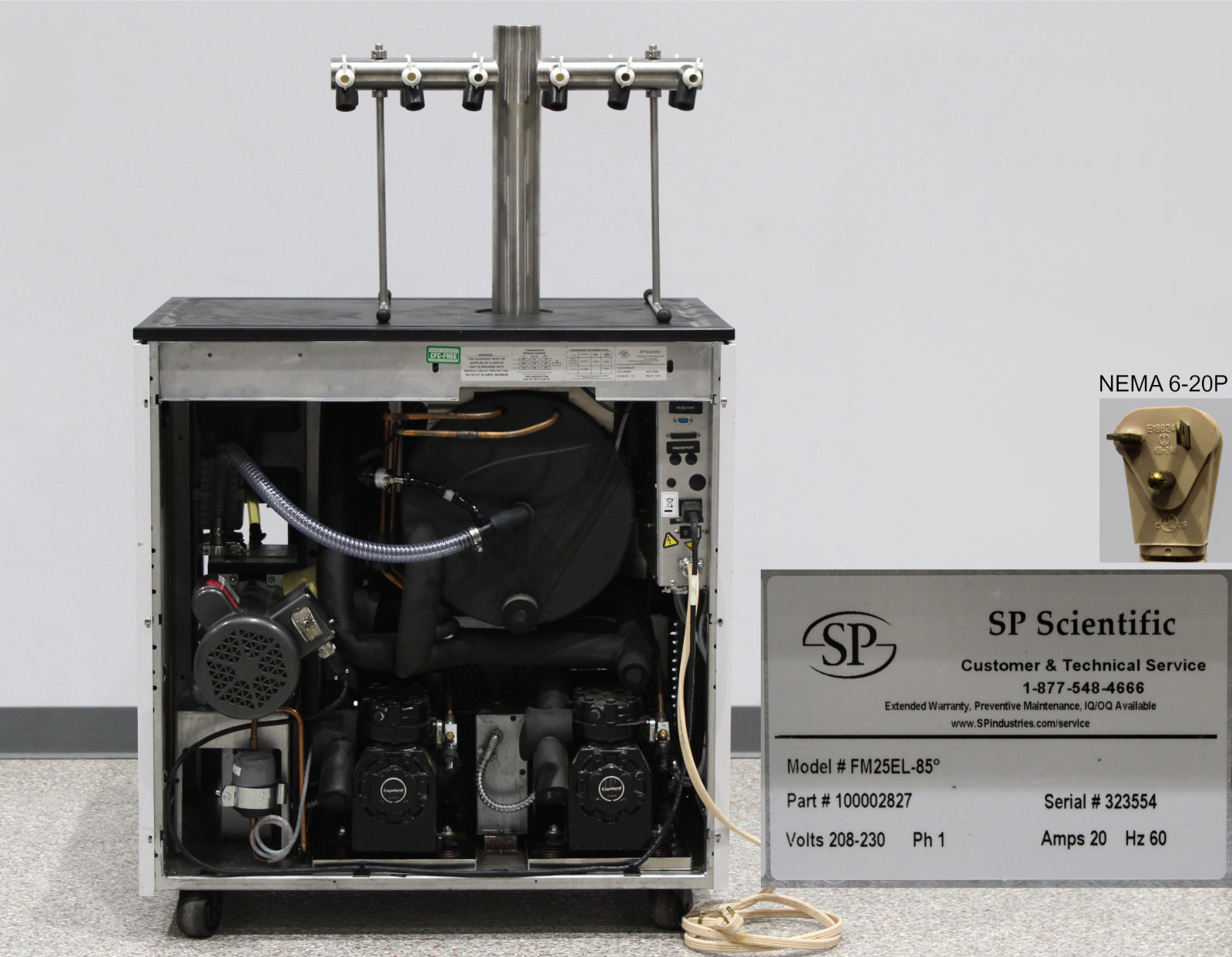

- Attached Power Cable with NEMA 6-20P Plug
- 90-Day Warranty
After its initial disinfection and inspection, our technicians tested the SP Scientific VirTis Freezemobile FM25EL-85° freeze dryer with the following results:

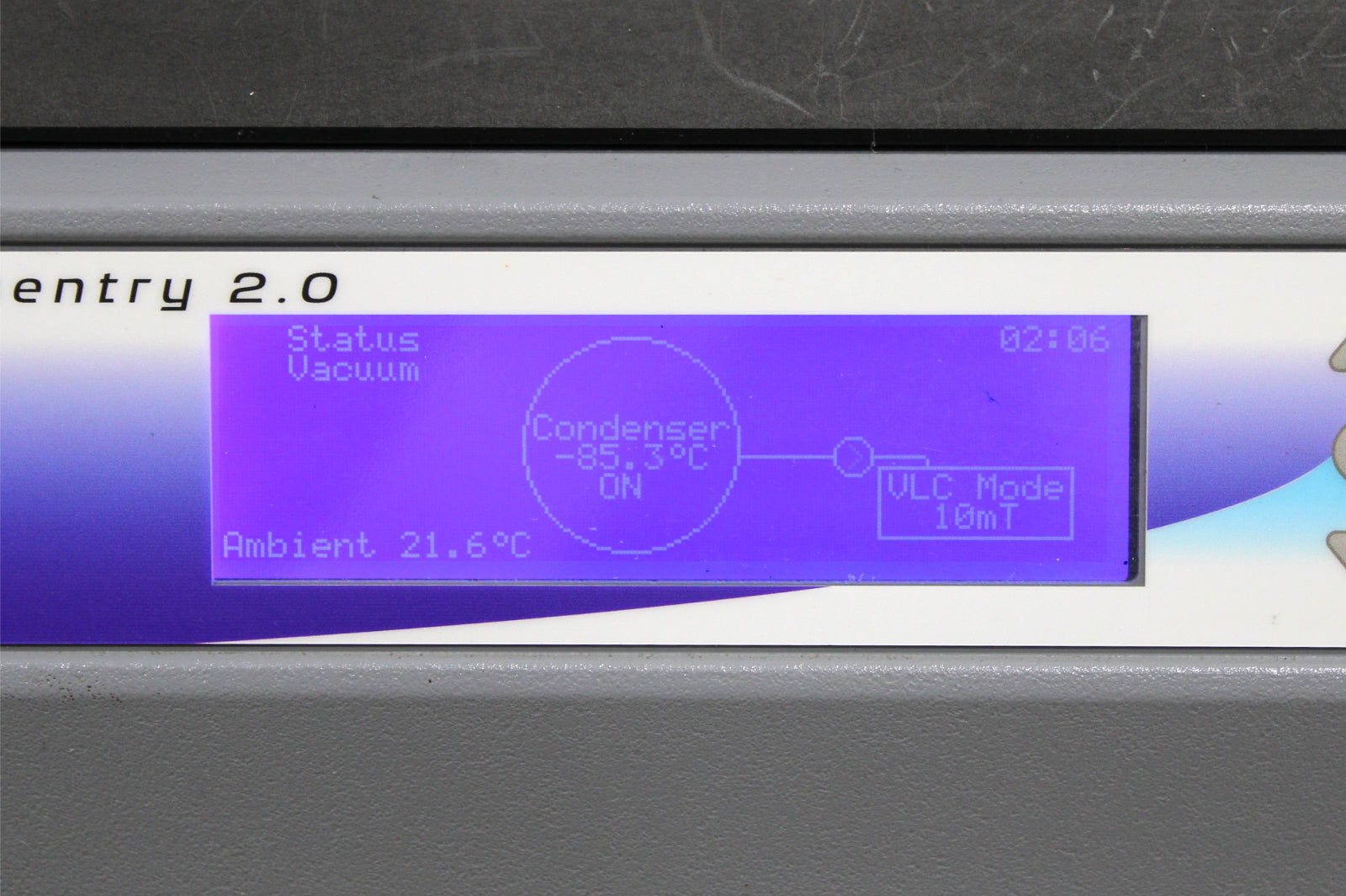

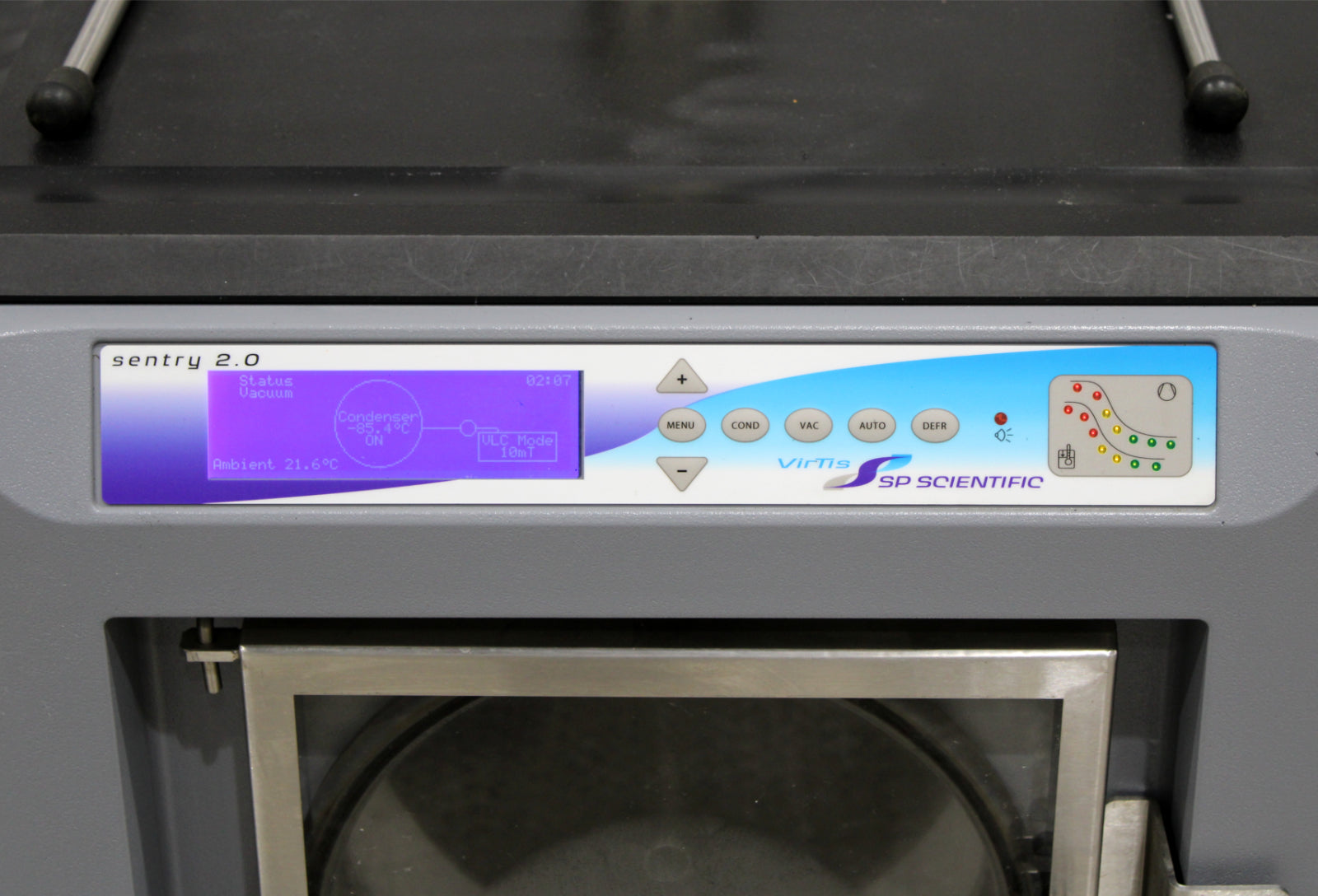

- Condenser temperature achieved -85.3°C: PASSED
- Vacuum achieved 10 mTorr: PASSED
- Inspected and reinsulated refrigeration lines as needed.
- Inspected and reinsulated vacuum hoses as needed.
|
Manufacturer
|
SP Scientific
|
|
Model
|
Freezemobile
|
|
Model No.
|
FM25EL-85°
|
|
Part No.
|
100002827
|
|
Serial No.
|
323554
|
|
Lowest condenser temp. (50 Hz / 60Hz)
|
-82°C / -85°C
|
|
Max. condenser capacity
|
25 L
|
|
Condenser surface area
|
506 in2 (3264 cm2)
|
|
Max. ice condensing capacity in 24 hours
|
12 L
|
|
Max. deposition rate
|
0.5 L/hour
|
|

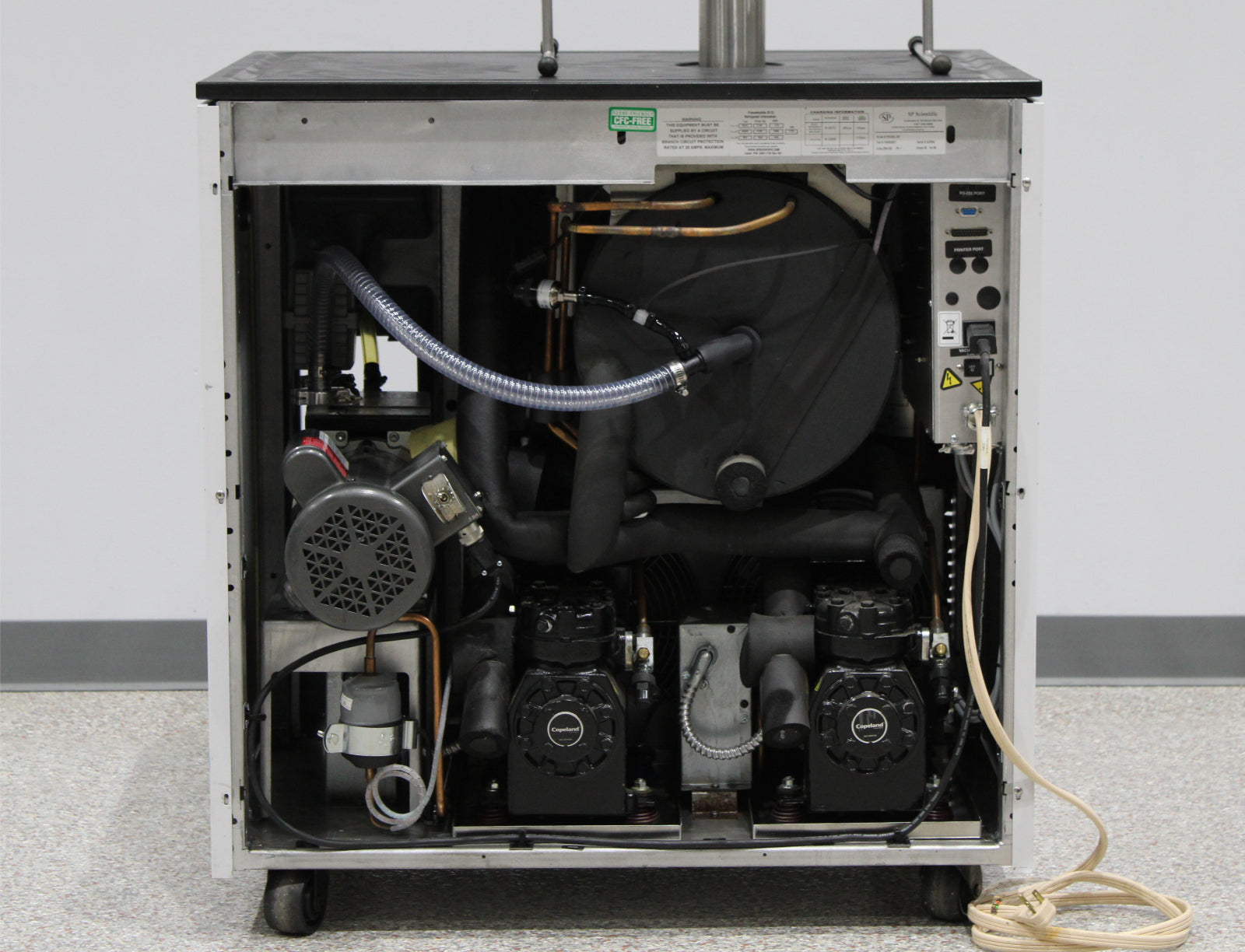

Number of compressors
|
2
|
|
Compressor horsepower
|
1.0, 1.0
|
|
Vacuum time to 100 millitorr
|
≤ 20 minutes
|
|
Lowest system vacuum
|
≤ 15 mT
|
|
Average defrost time
|
≤ 60 minutes
|
|

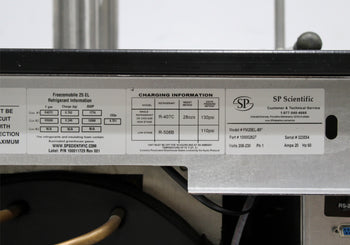

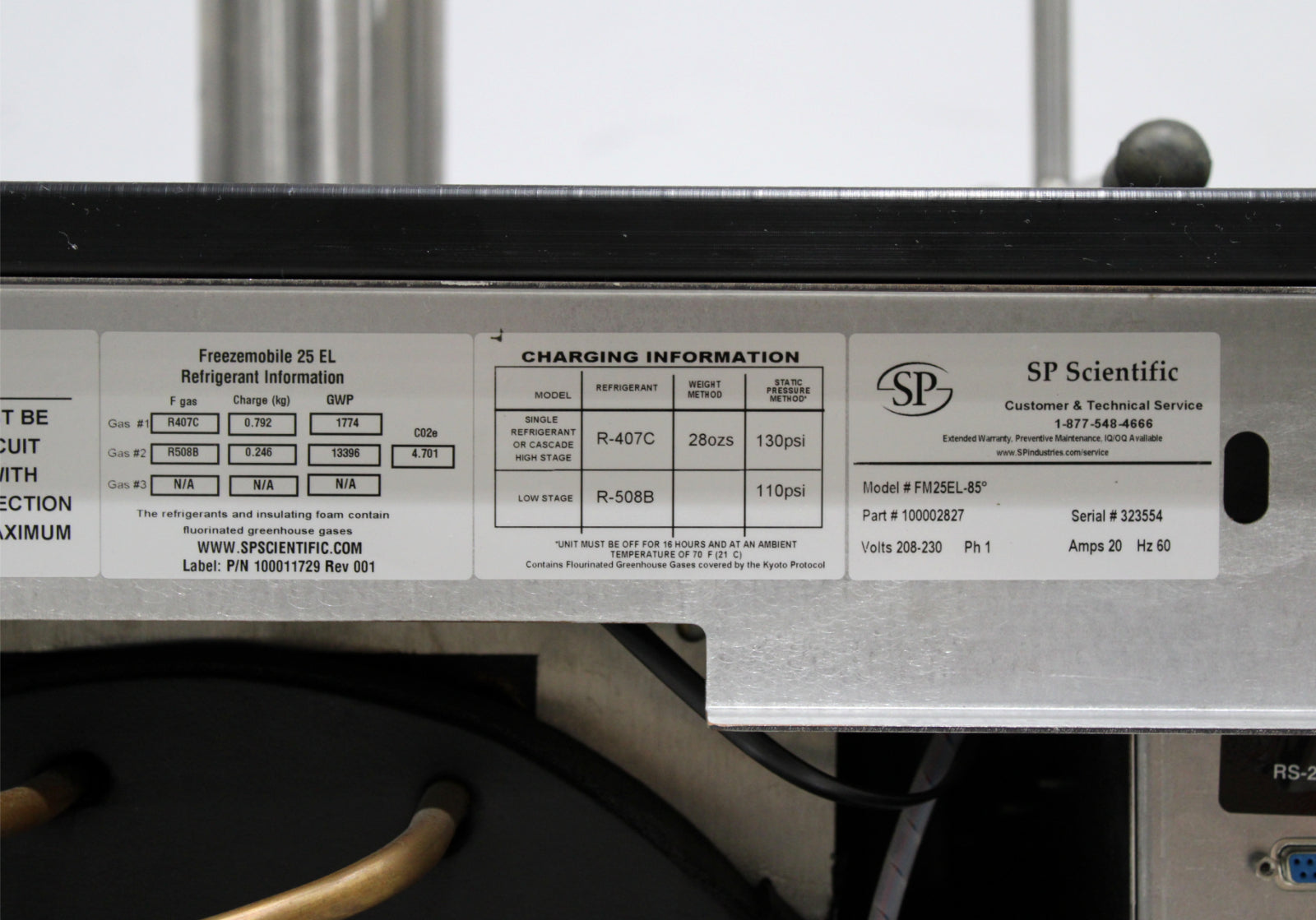

Refrigerant
|
R508B, R407C
|
|
Construction
|
316L stainless steel condenser
|
|
Plug
|
NEMA 6-20P
|
|
Power rating
|
208-230V, 60Hz, 20A, 1Ph
|
|
Dimensions (W x D x H)
|
35 x 27 x 37 in
|
|
Dimensions with manifold (W x D x H)
|
35 x 27 x 55 in
|
|
Approximate weight range depending on configuration
|
280-495 lb (127-225 kg)
|
Note: Performance specifications are based on SP Scientific test data from units operating at an ambient room temperature of approximately 20°C. SP Industries recommends an operating range of 15-25°C (59-77°F).
