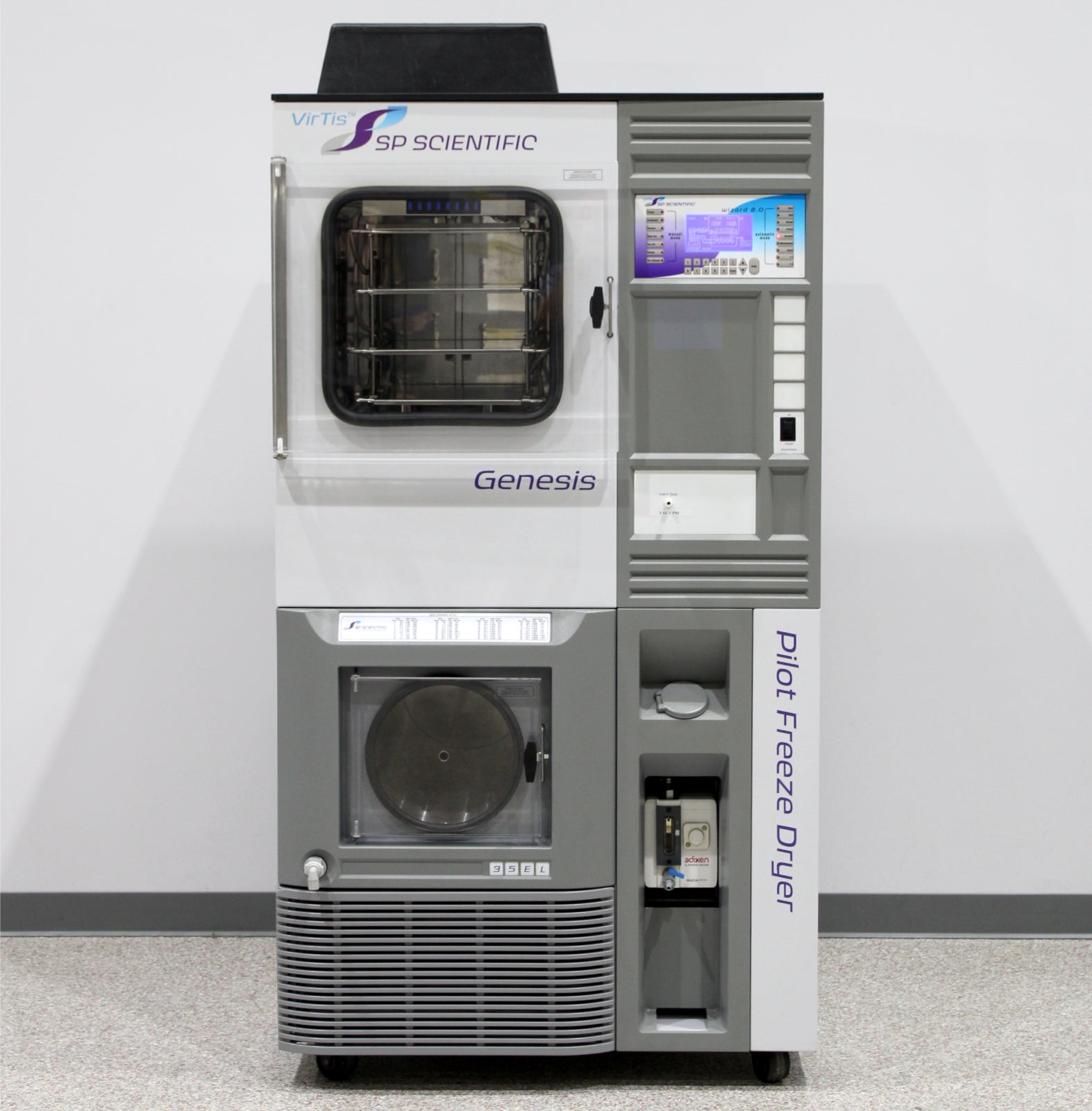

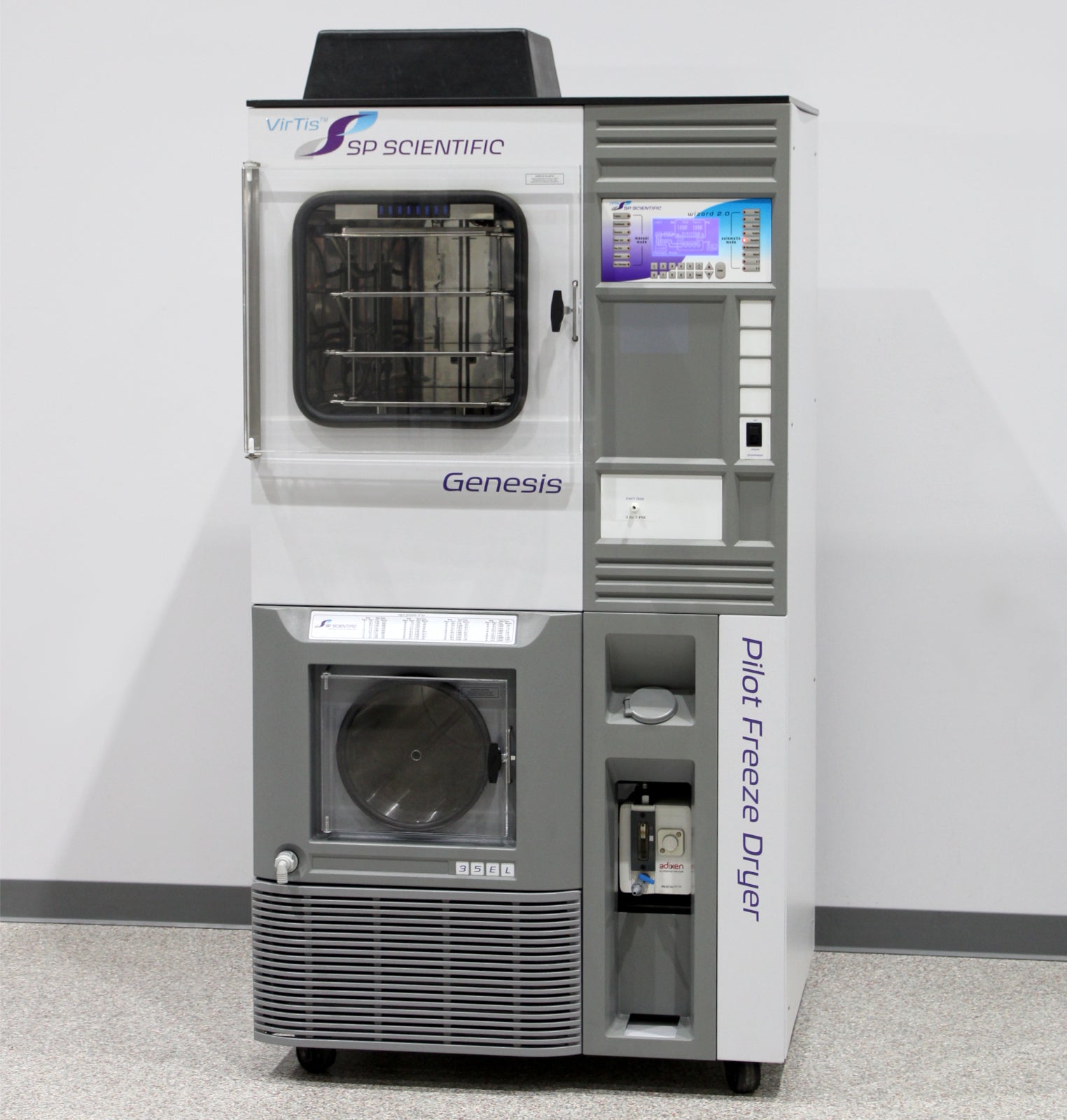

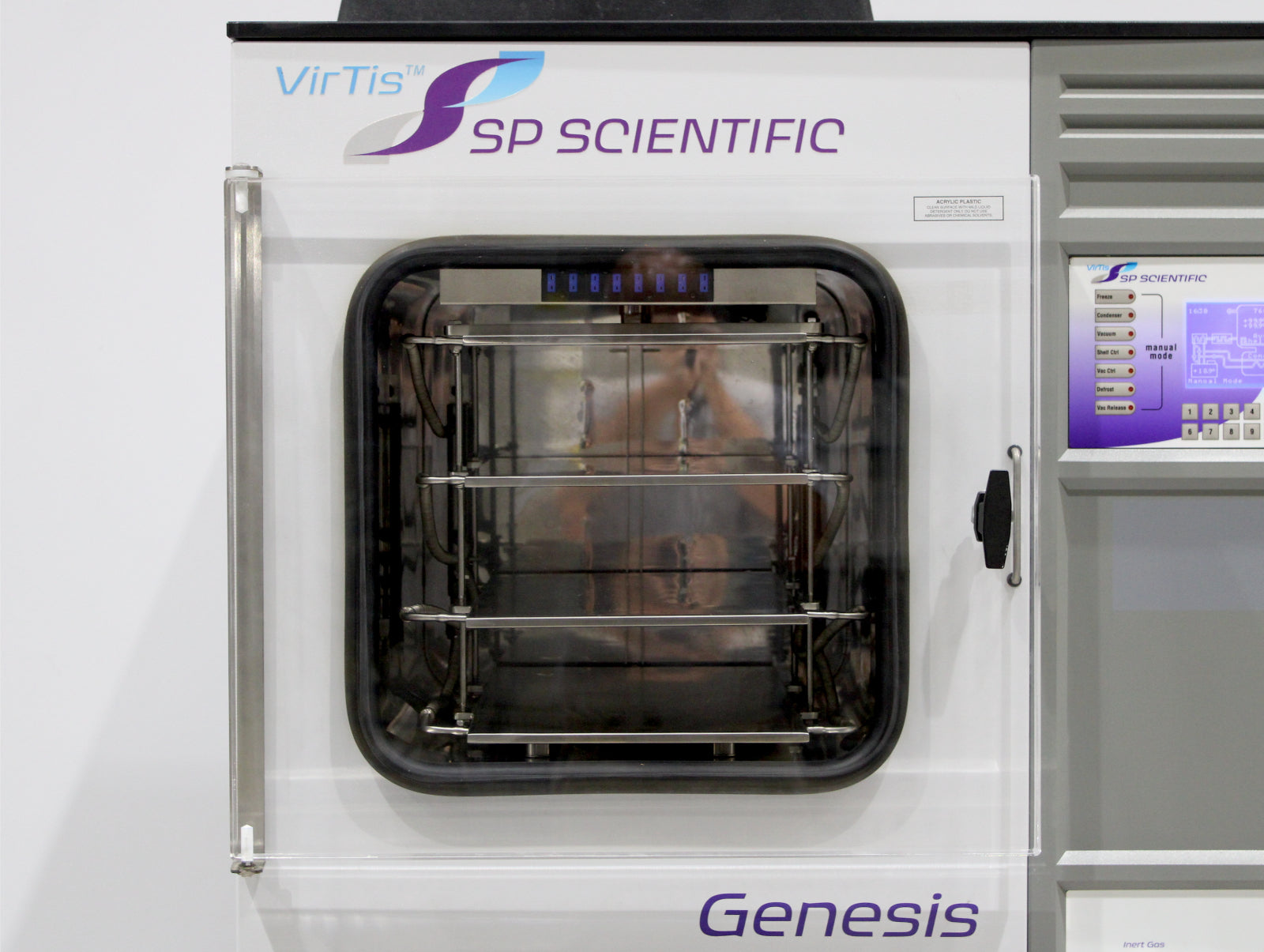

- SP Scientific VirTis 35L Genesis SQ EL-85 Stoppering Freeze Dryer

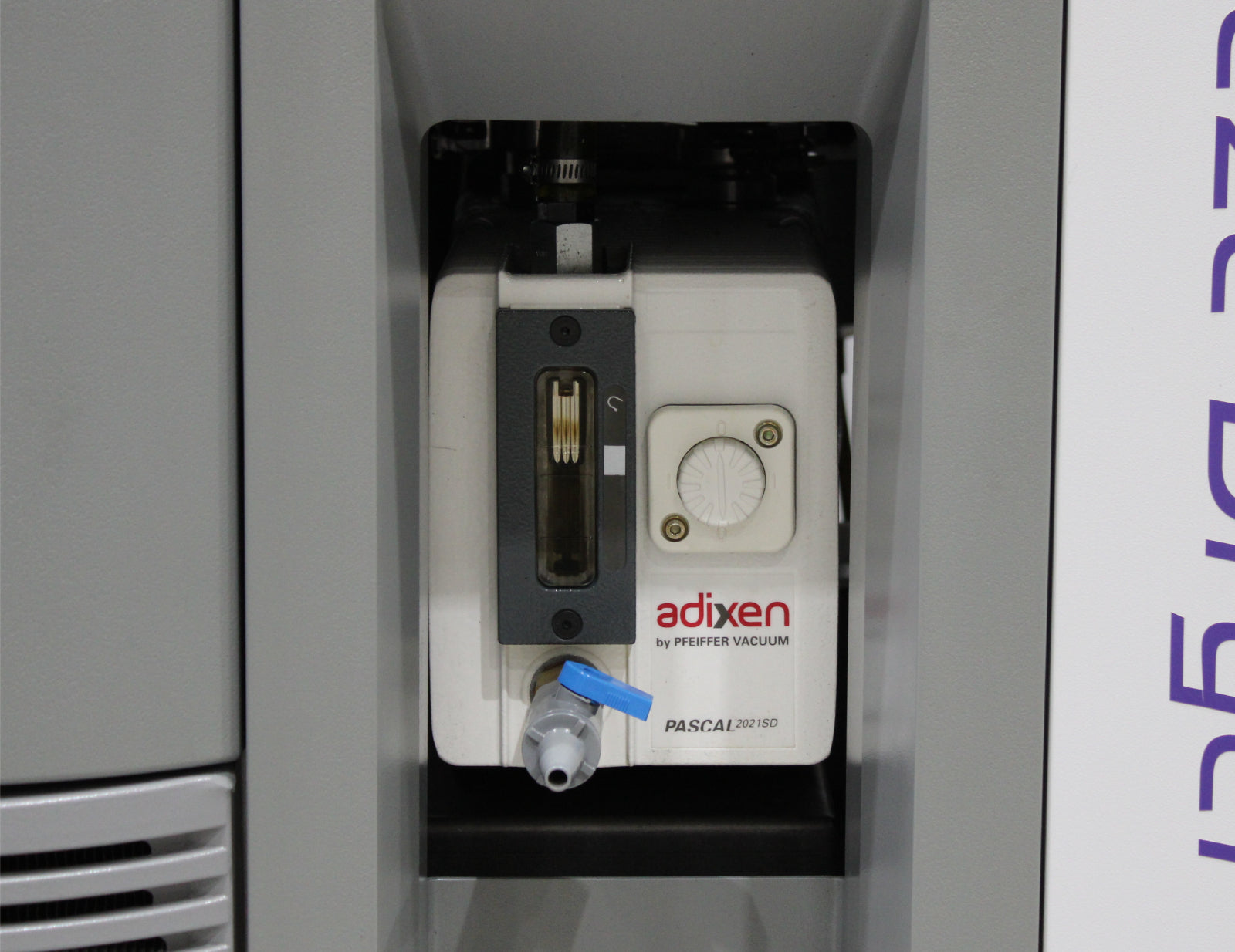

- 1 gallon Inland-19 Vacuum Pump Oil
- Manual Fluid Evacuator
- Power Cables
- 90-Day Warranty

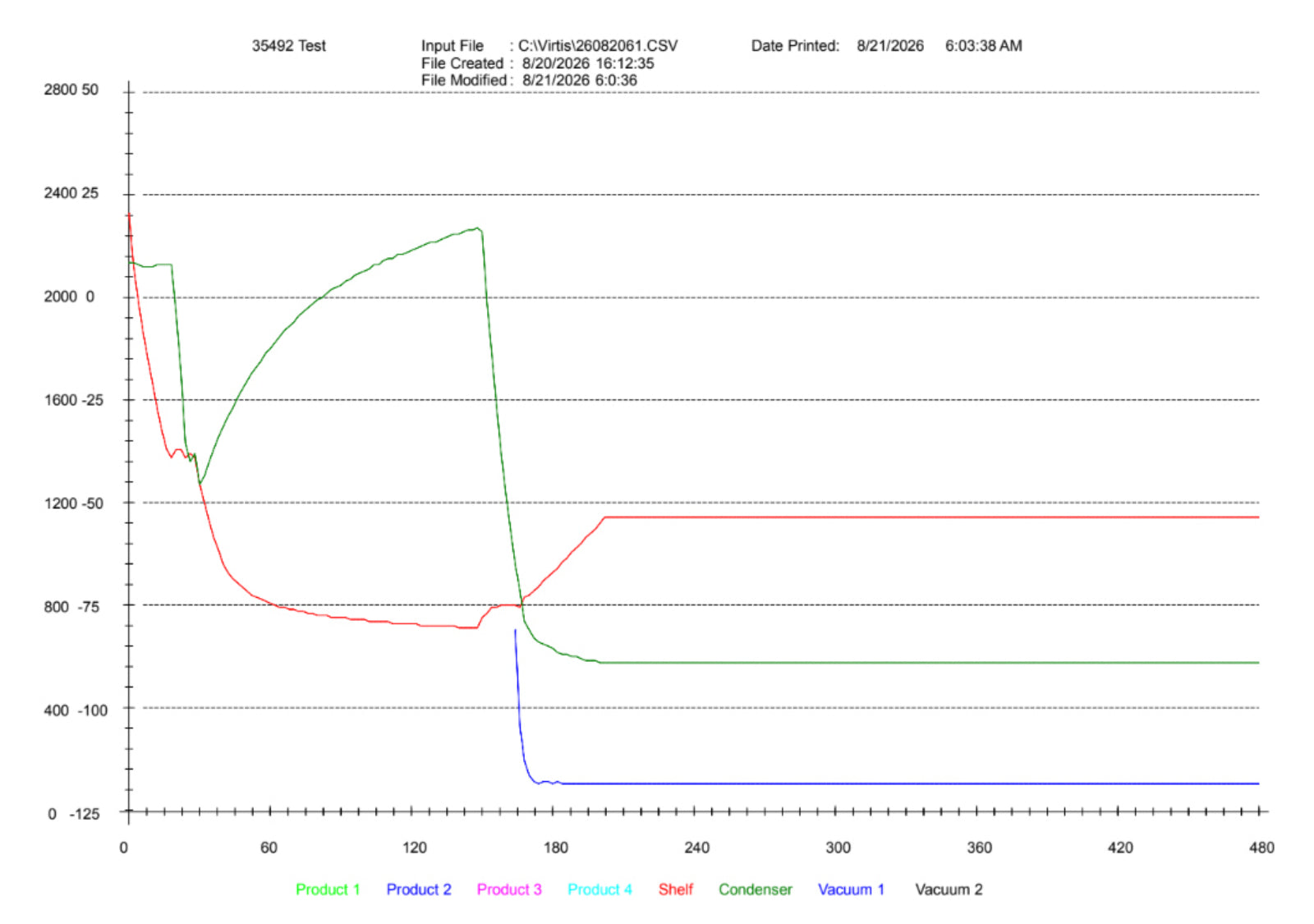

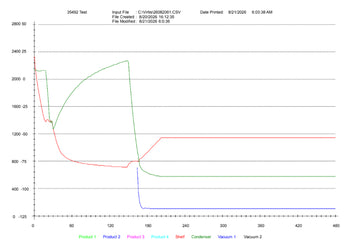

After its initial disinfection and inspection, our technicians tested the SP VirTis 35L Genesis SQ EL-85 freeze dryer with the following results:
- Condenser temperature reached specified -85°C: PASSED
- Shelf temperature reached specified -80°C: PASSED
- Vacuum reached 11mT: PASSED
|
Manufacturer
|
SP Scientific
|
|
Model
|
35L Genesis SQ EL-85
|
|
Part No.
|
100006958
|
|

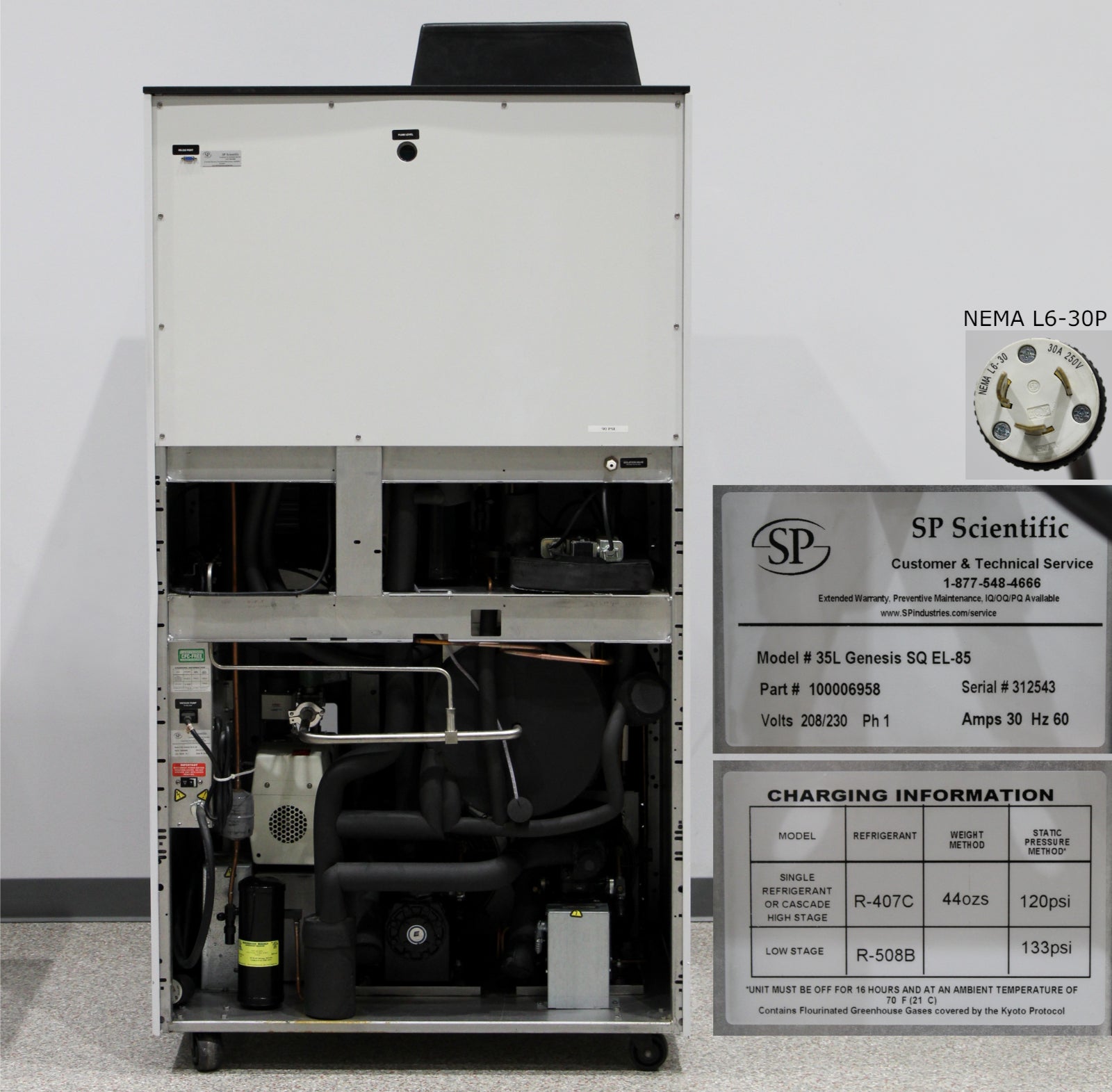

Serial No.
|
312543
|
|
Shelf temperature control range
|
-55°C to 65°C
|
|
Lowest shelf temperature (50Hz/60Hz)
|
-67°C/-70°C
|
|
Lowest condenser temperature (50Hz/60Hz)
|
-82°C/-85°C
|
|

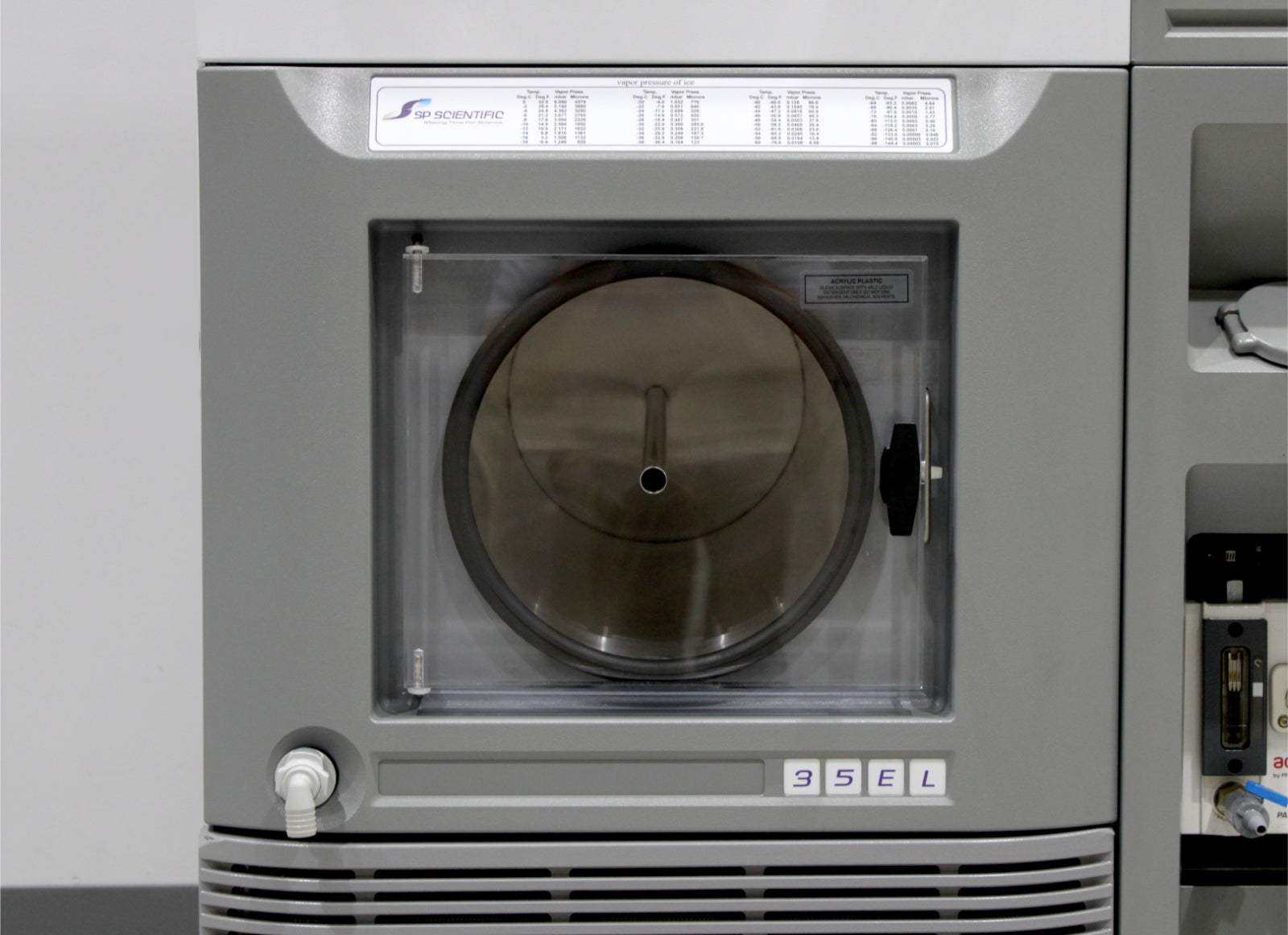

Maximum condenser capacity
|
35 liters
|
|
Condenser surface area
|
750 in2
|
|
Maximum ice condensing capacity in 24 hours
|
20 liters
|
|
Condenser pull-down from 20°C to -45°C
|
25 minutes or less
|
|
Shelf pull-down from 20°C to -40°C
|
30 minutes or less
|
|
Vacuum time to 100 millitorr
|
20 minutes or less
|
|
Lowest system vacuum
|
15 mT or less
|
|
Temperature uniformity
|
+/- 1.0°C
|
|
Electrical requirements
|
208/230V, 60Hz, 30A, Ph1
|
|

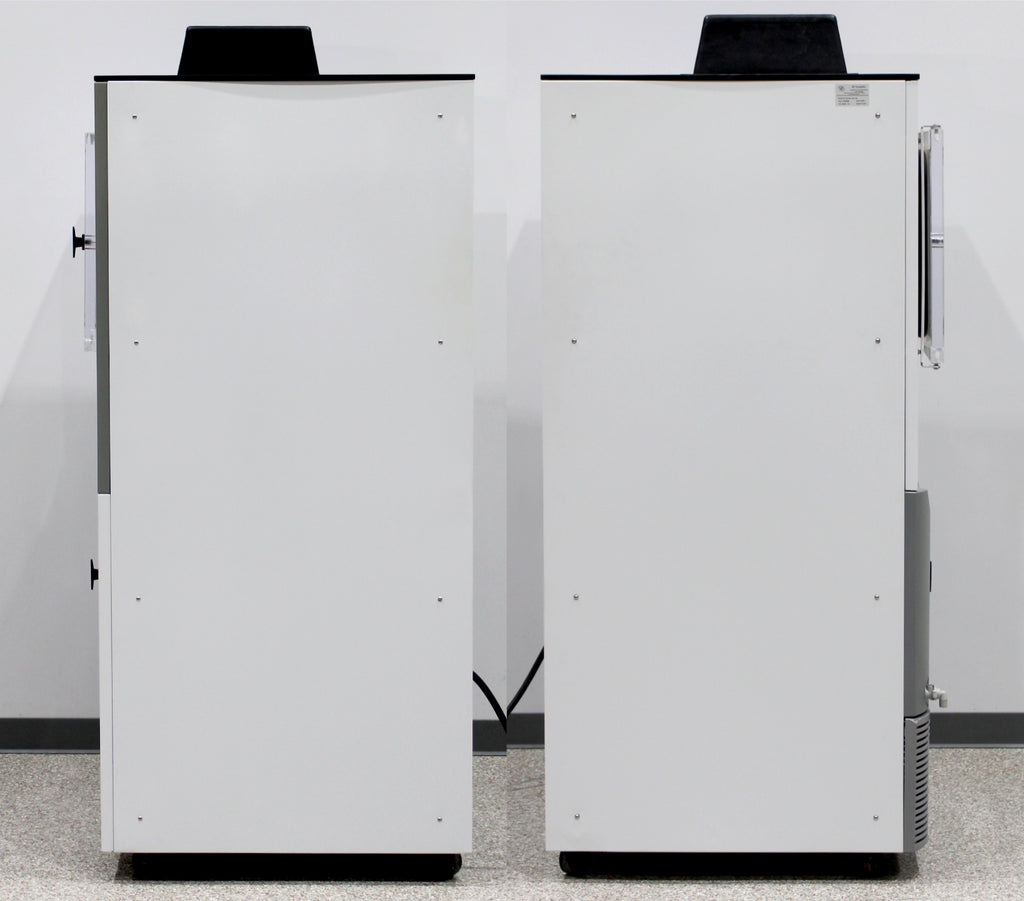

Dimensions (W x D x H)
|
40 x 36 x 80 in
|
|
Weight
|
850 lbs
|
|
Minimum clearance on all sides
|
10 in.
|
