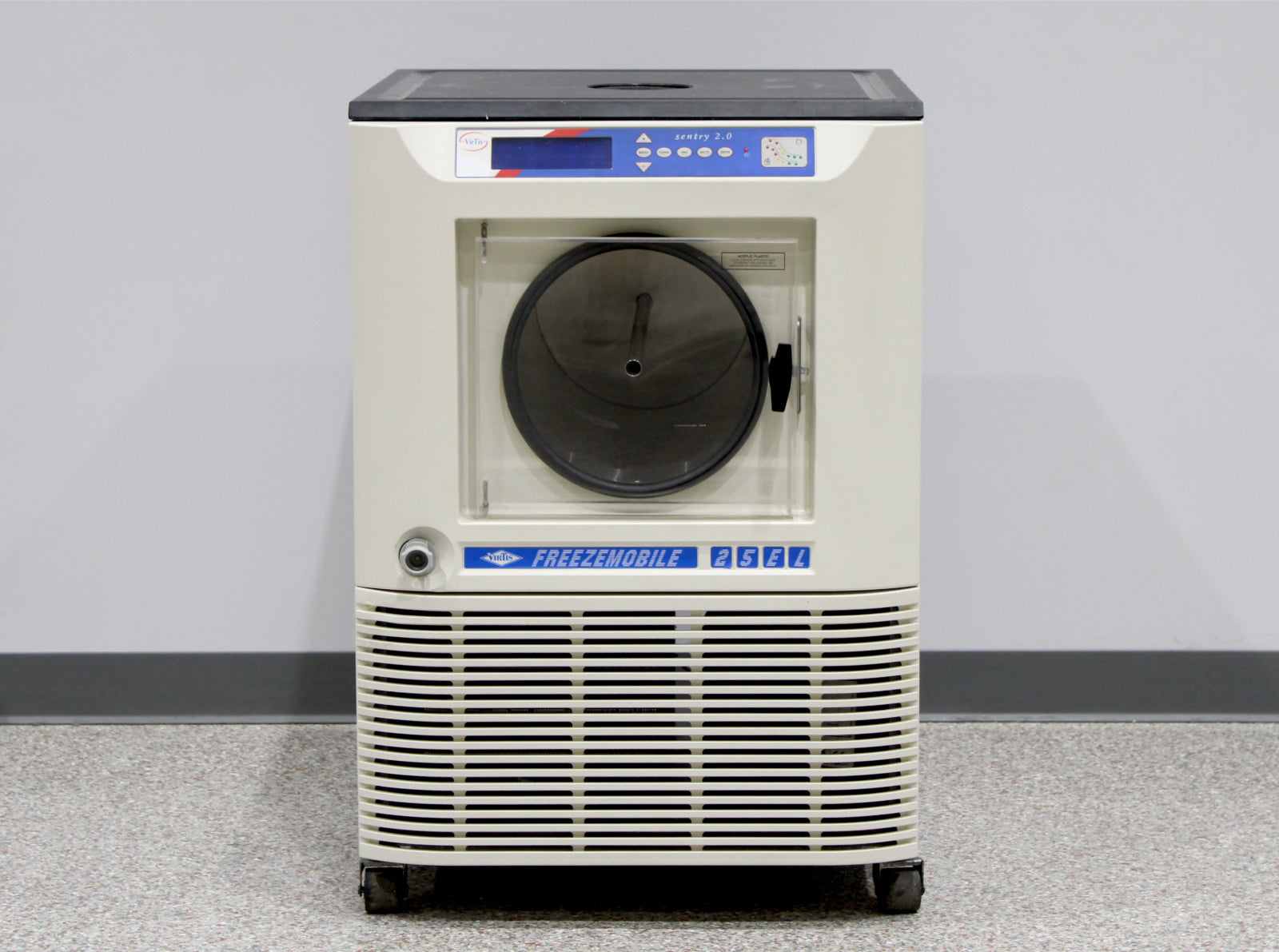

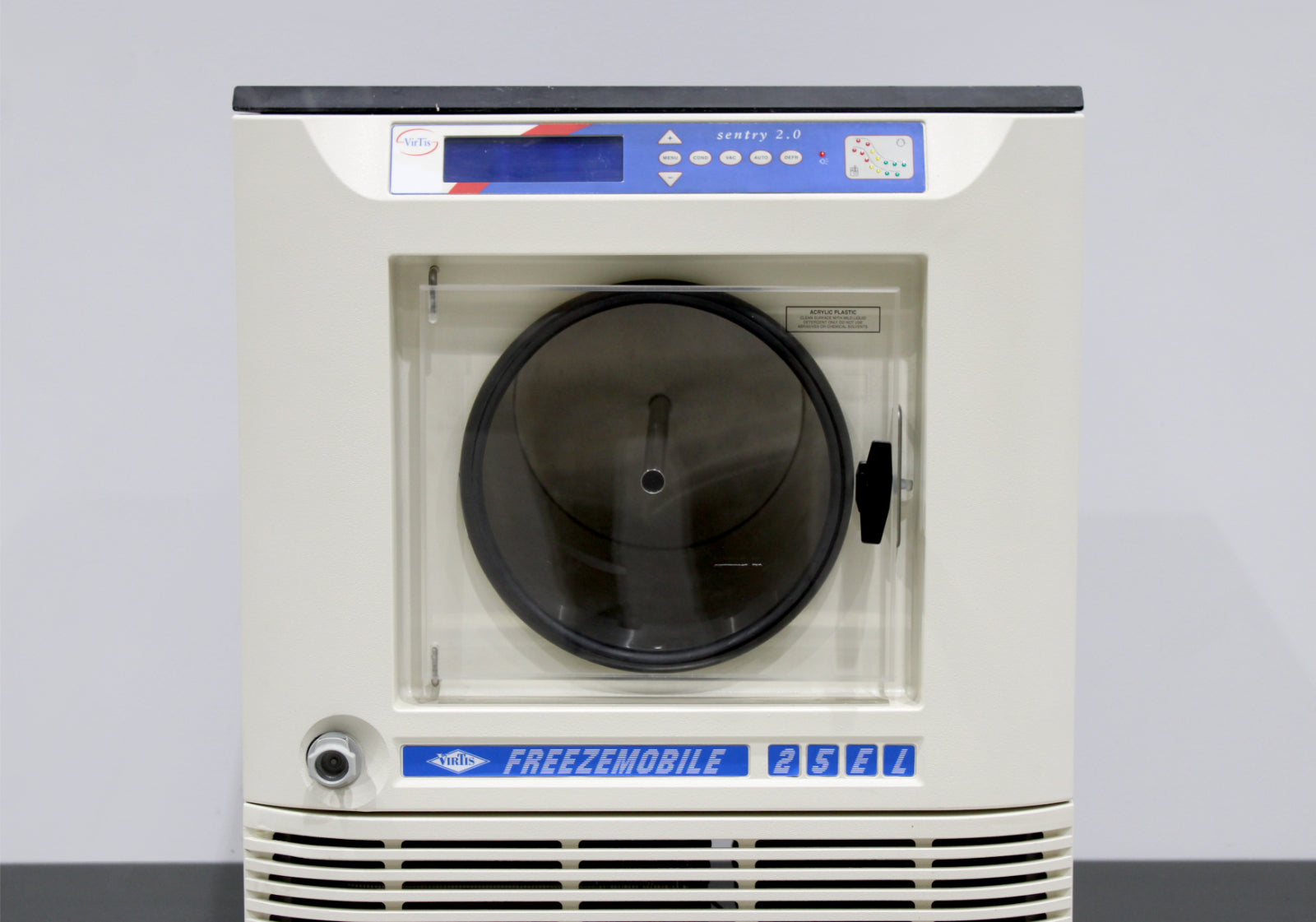

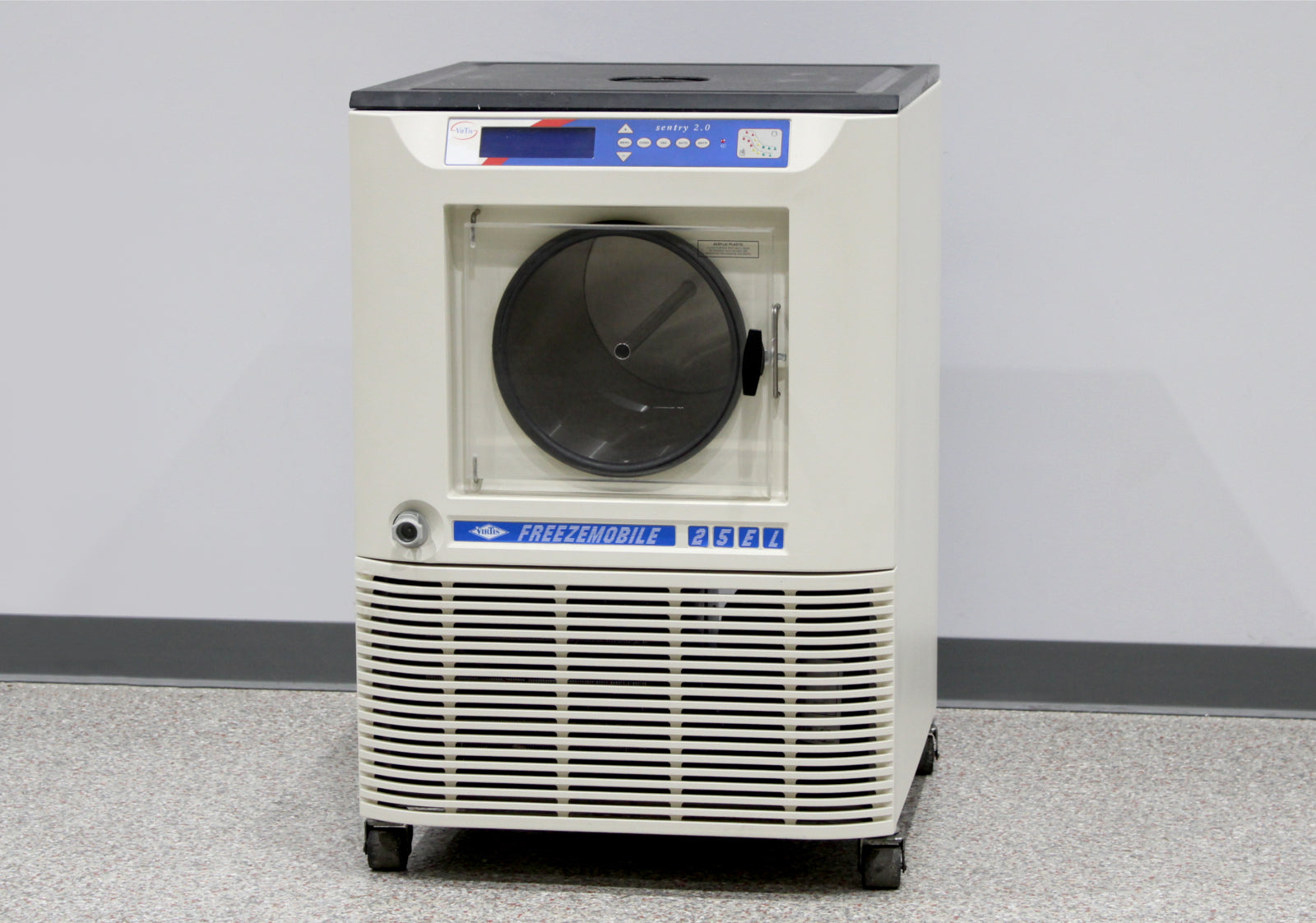

- SP VirTis 25EL Freezemobile FM25EL-85 Freeze Dryer Lyophilizer (446197)
- Vacuum Pump
- Attached Power Cable with NEMA 6-20 Plug
- 90-Day Warranty
- Manifold and Manifold Valves
Notice: Please contact us if you require a manifold. We have manifolds of various types and sizes available.
After its initial disinfection and inspection, our technicians tested the SP VirTis 25EL Freezemobile freeze dryer with the following results:
- Condenser temperature achieves -87°C: PASSED
- Vacuum achieves 17 mT: PASSED
- Pressure tested refrigeration system.
- Recharged refrigeration system.

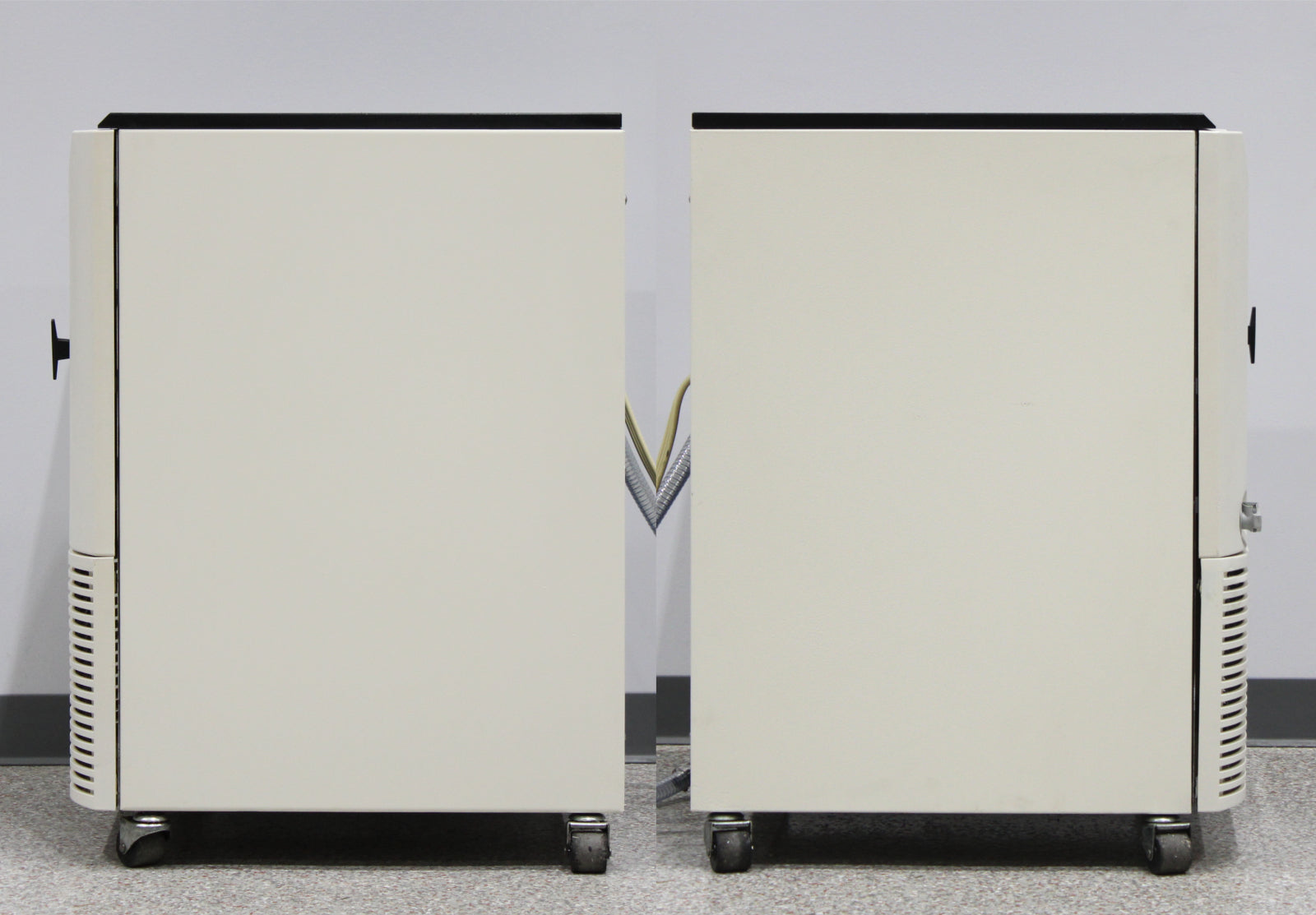

Notice: This freeze dryer has some minor cosmetic blemishes. Please review the available photos to see the physical condition before purchasing.
|
Manufacturer
|
SP Industries
|
|
Product line
|
Freezemobile
|
|
Model No.
|
FM25EL-85
|
|
Part No.
|
446197
|
|
Serial No.
|
NLS37487
|
|
Lowest condenser temp. (50 Hz / 60Hz)
|
-82°C / -85°C
|
|
Max. condenser capacity
|
25 L
|
|
Number of compressors
|
2
|
|
Compressor horsepower
|
1.0, 1.0
|
|
Vacuum time to 100 millitorr
|
≤ 20 minutes
|
|
Lowest system vacuum
|
≤ 15 mT
|
|
Refrigerant
|
R-407C (high side compressor)
B-508B (low side compressor)
|
|
Construction
|
316L stainless steel condenser chamber
|
|

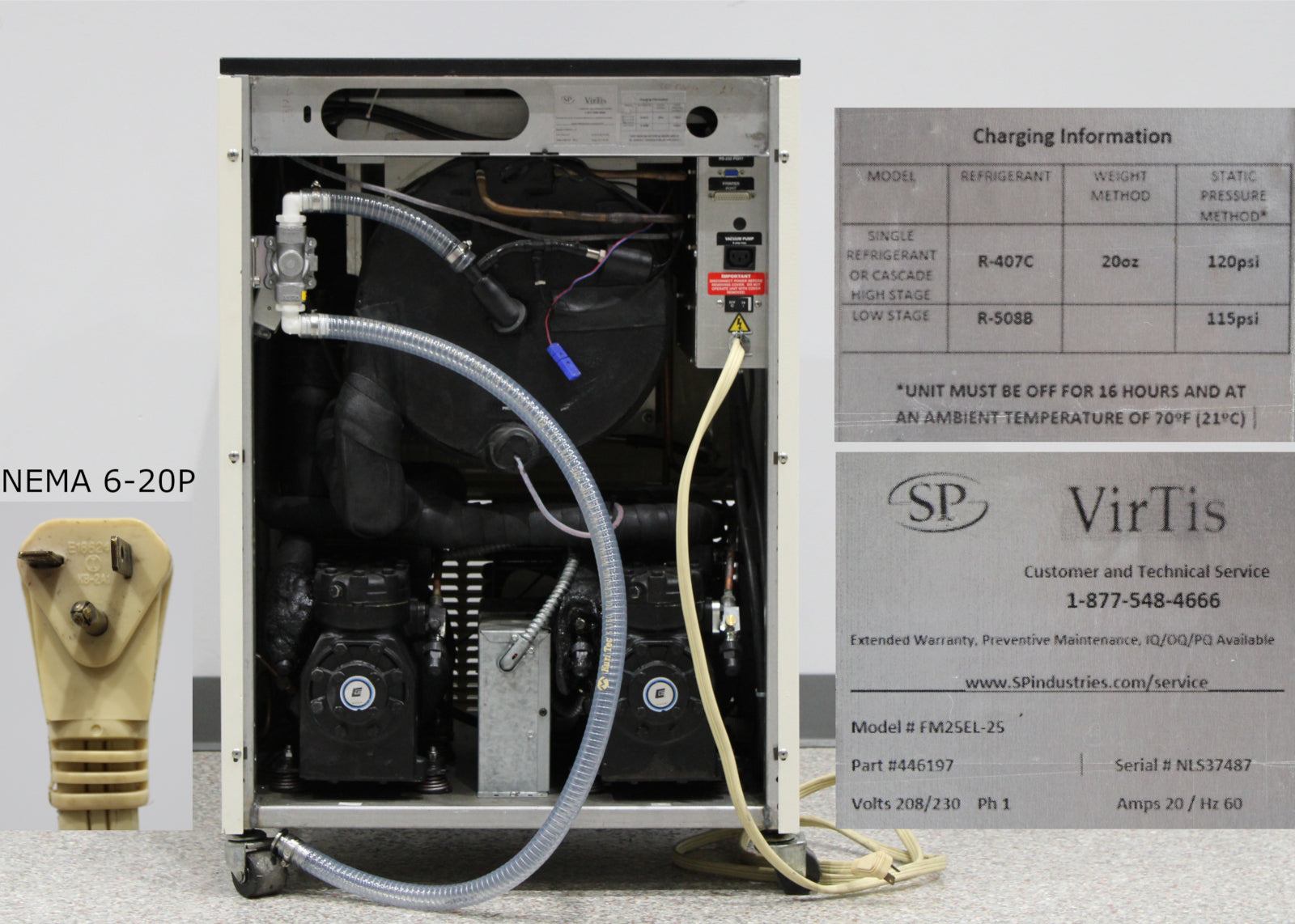

Plug type
|
NEMA 6-20P
|
|
Power rating
|
208/230V, 60Hz, 20A, 1Ph
|
|
Dimensions (W x D x H)
|
25 x 27 x 37 in (63.5 x 68.6 x 94 cm)
|
|
Approximate weight
|
~280-495 lb (127-225 kg)
|
