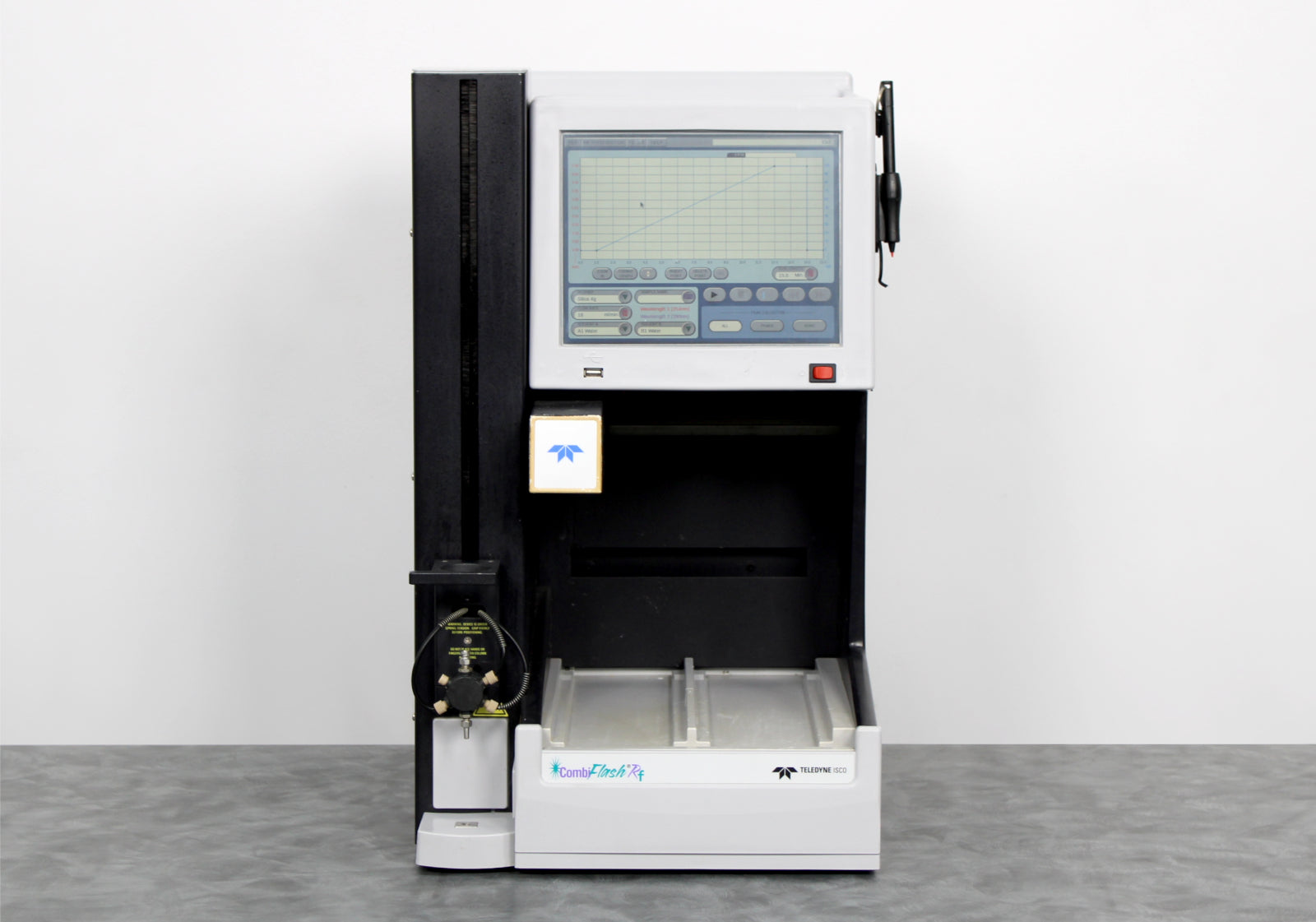

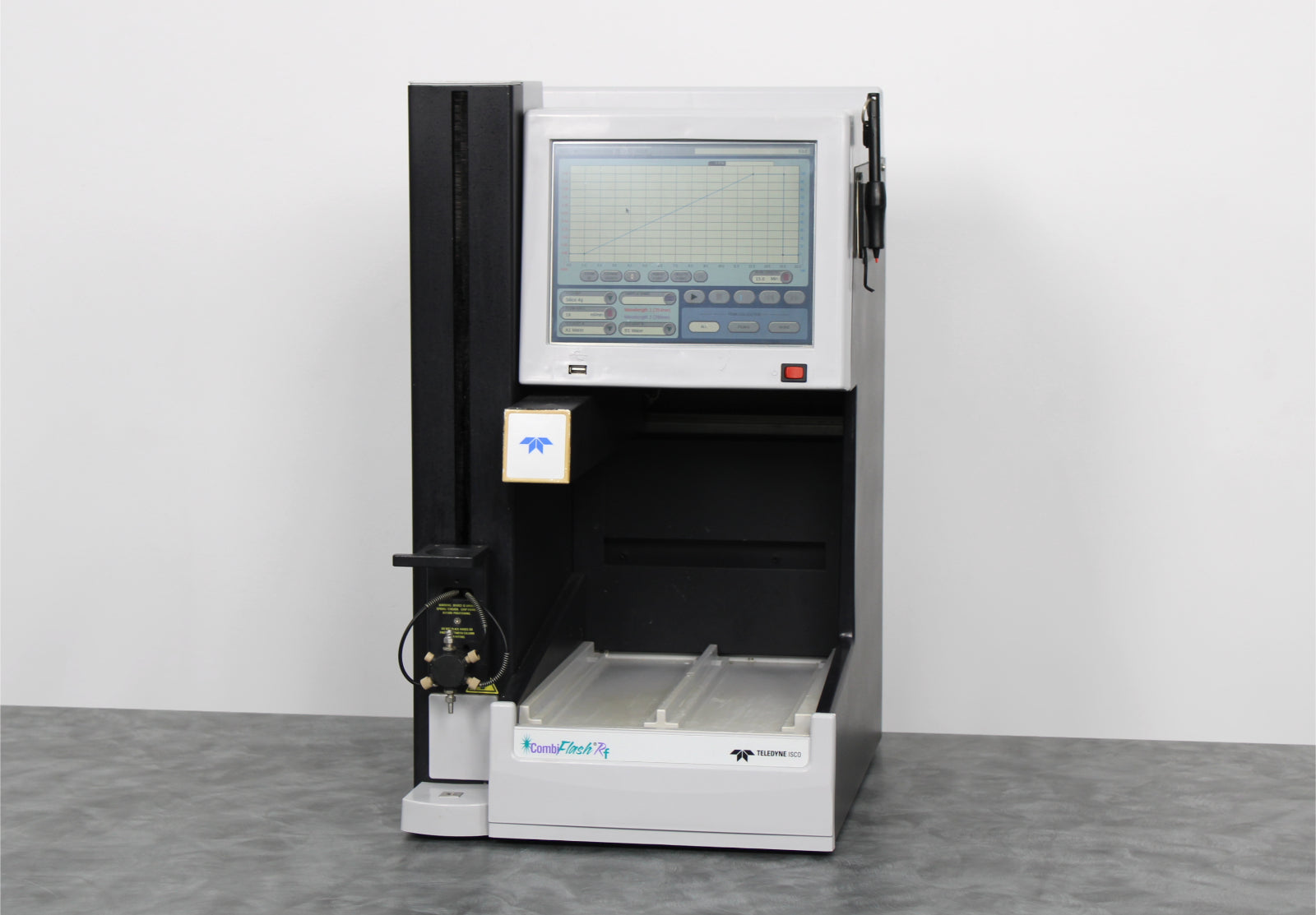

- Teledyne Isco CombiFlash Rf Automated Flash Chromatography System (625230006)
- Power Cable
- 90-Day Warranty
Notice: All accessories and consumables must be acquired separately.
- Consumables, Flash Column, Racks, Bottles, Solvent and Waste Plumbing/Level Sense, Prime Tube, Injection Assembly
After its initial disinfection and inspection, our technicians tested the Teledyne Isco CombiFlash Rf flash chromatography system with the following results:
- System initialization: PASSED
- Robotic arm homes during initialization: PASSED

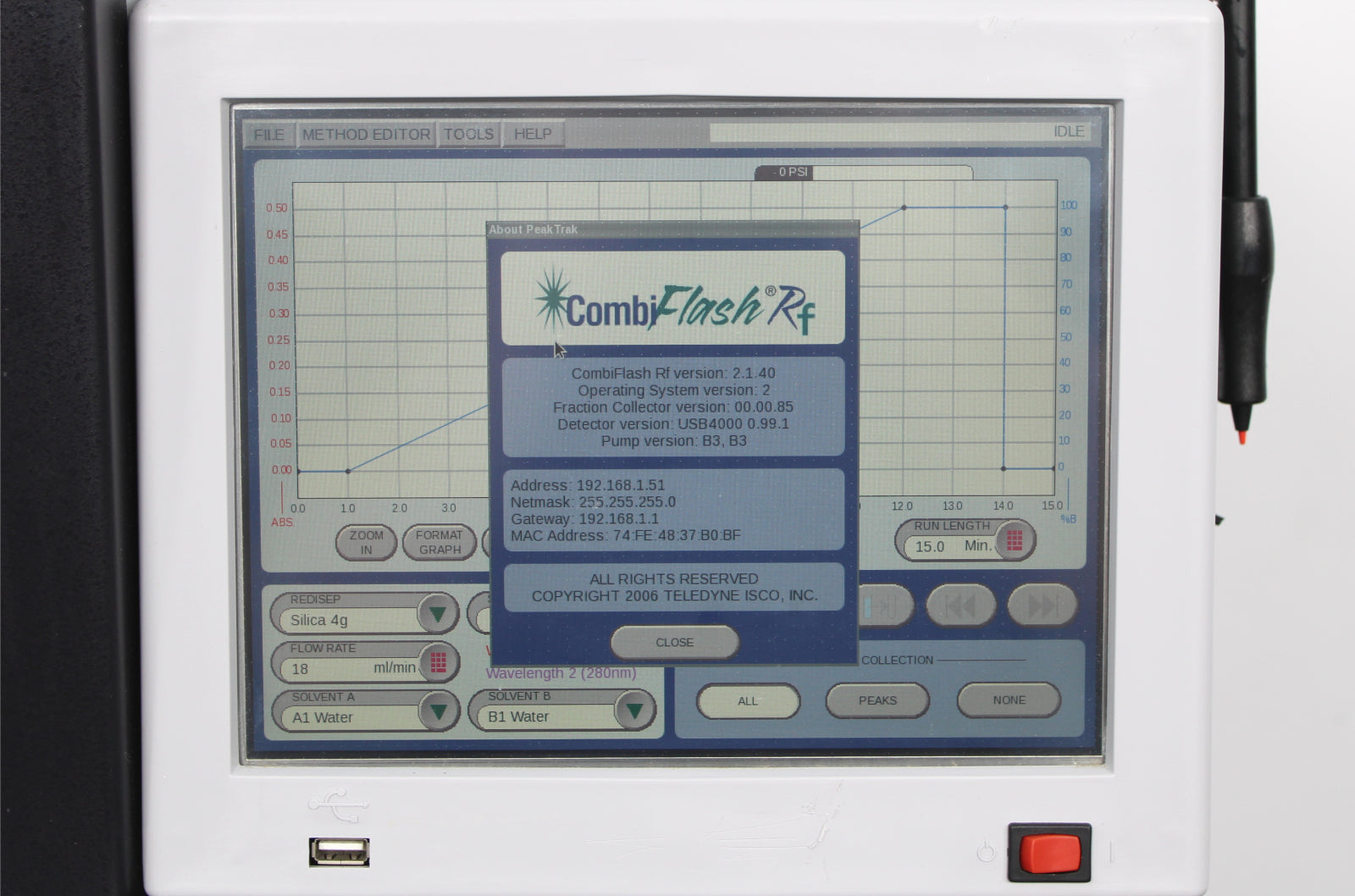

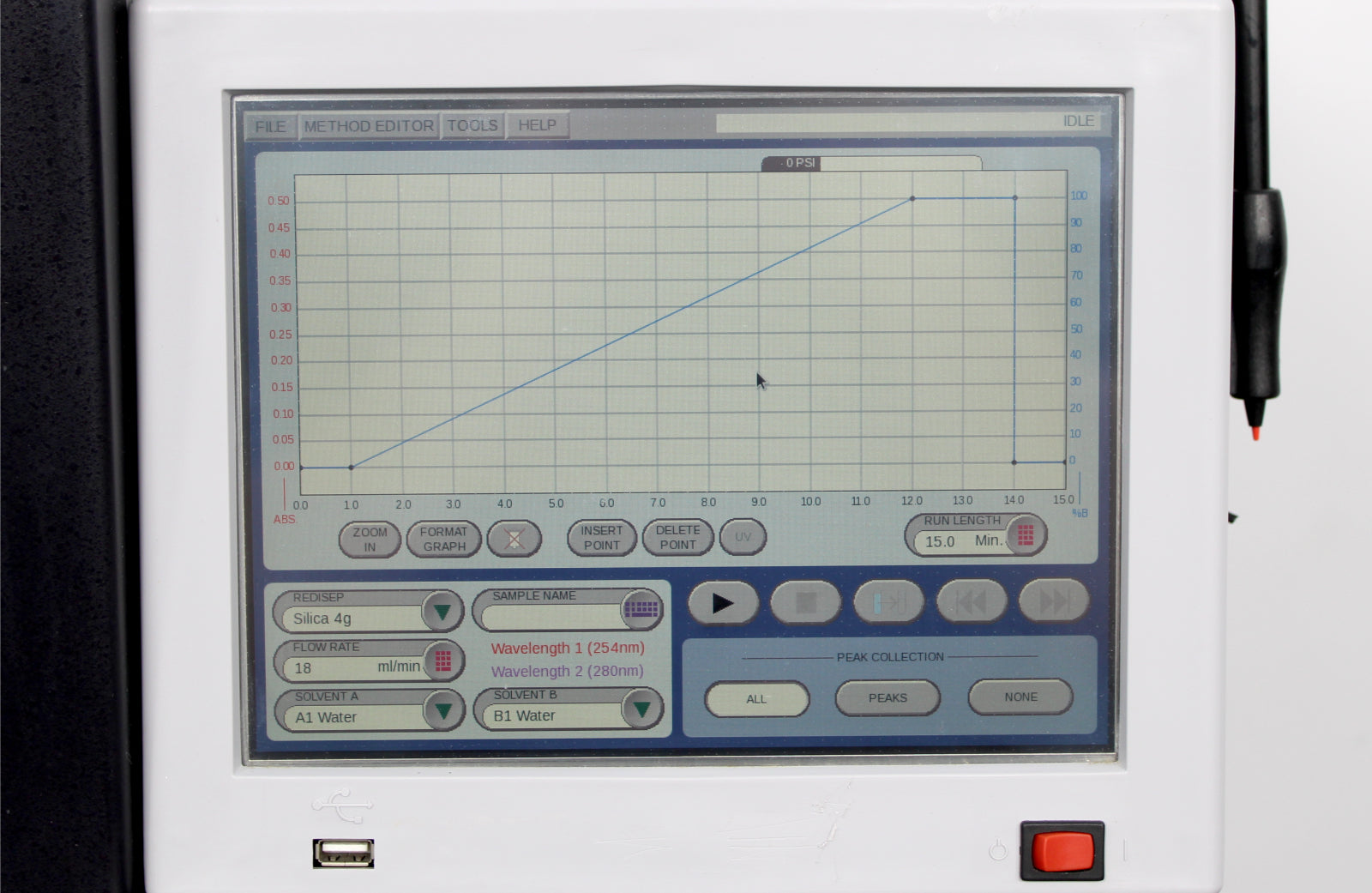

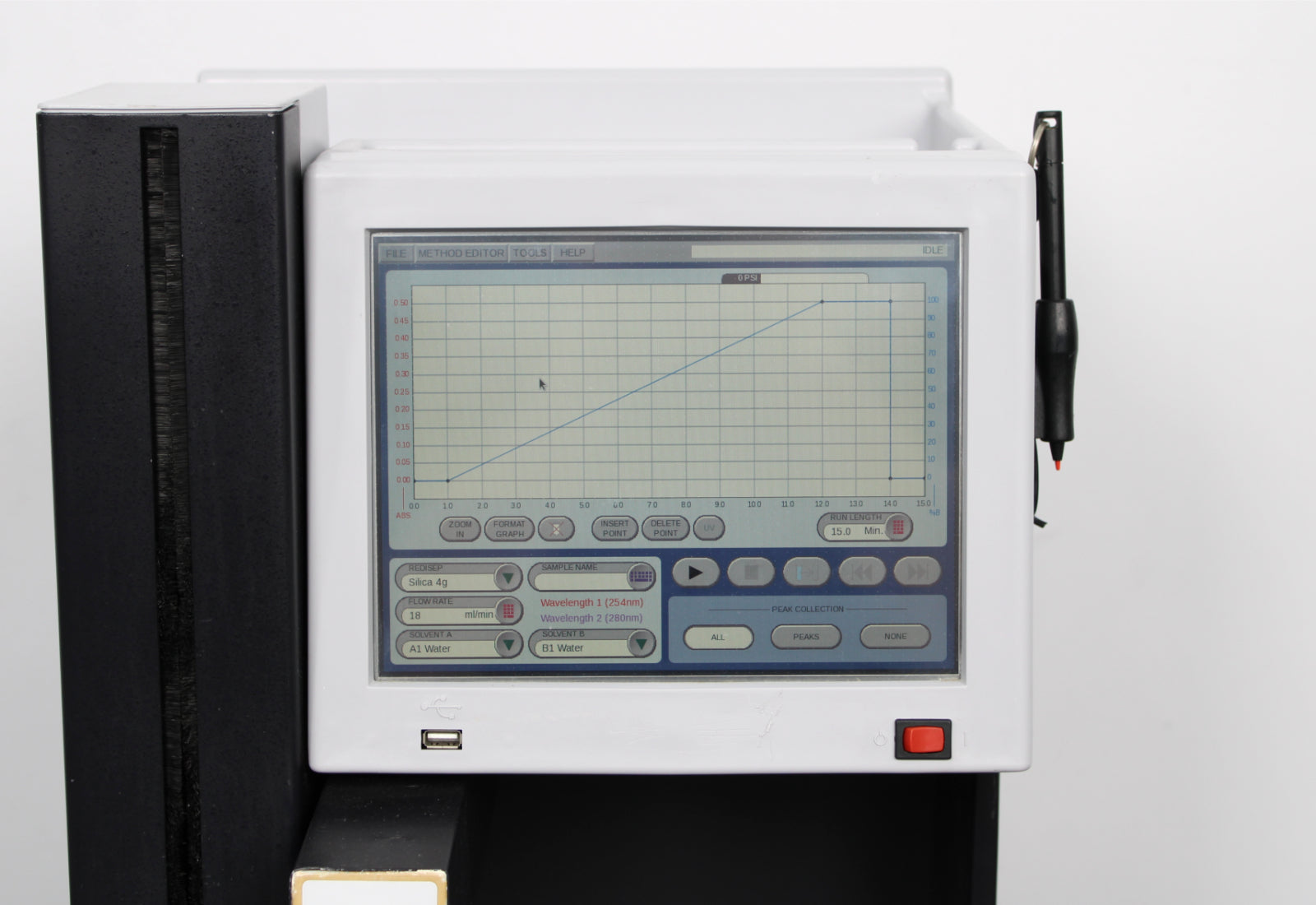

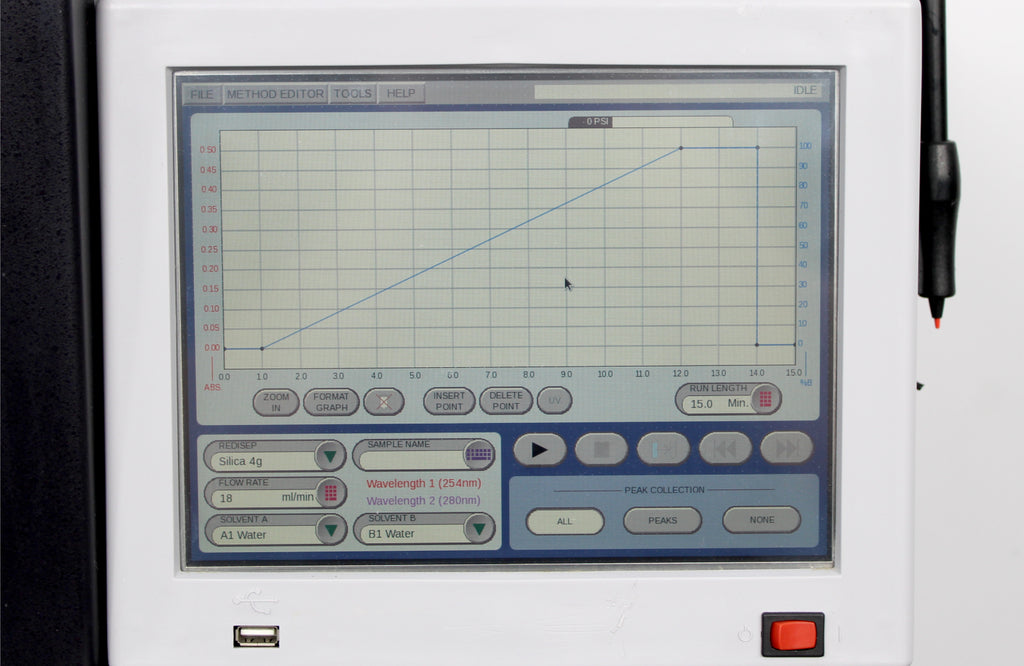

- Touchscreen interface: PASSED
- Liquid level sensor correctly reads empty reservoir: PASSED
- Flow cell reads as clean: PASSED
- Raw lamp energy levels: PASSED
- Air purge: PASSED

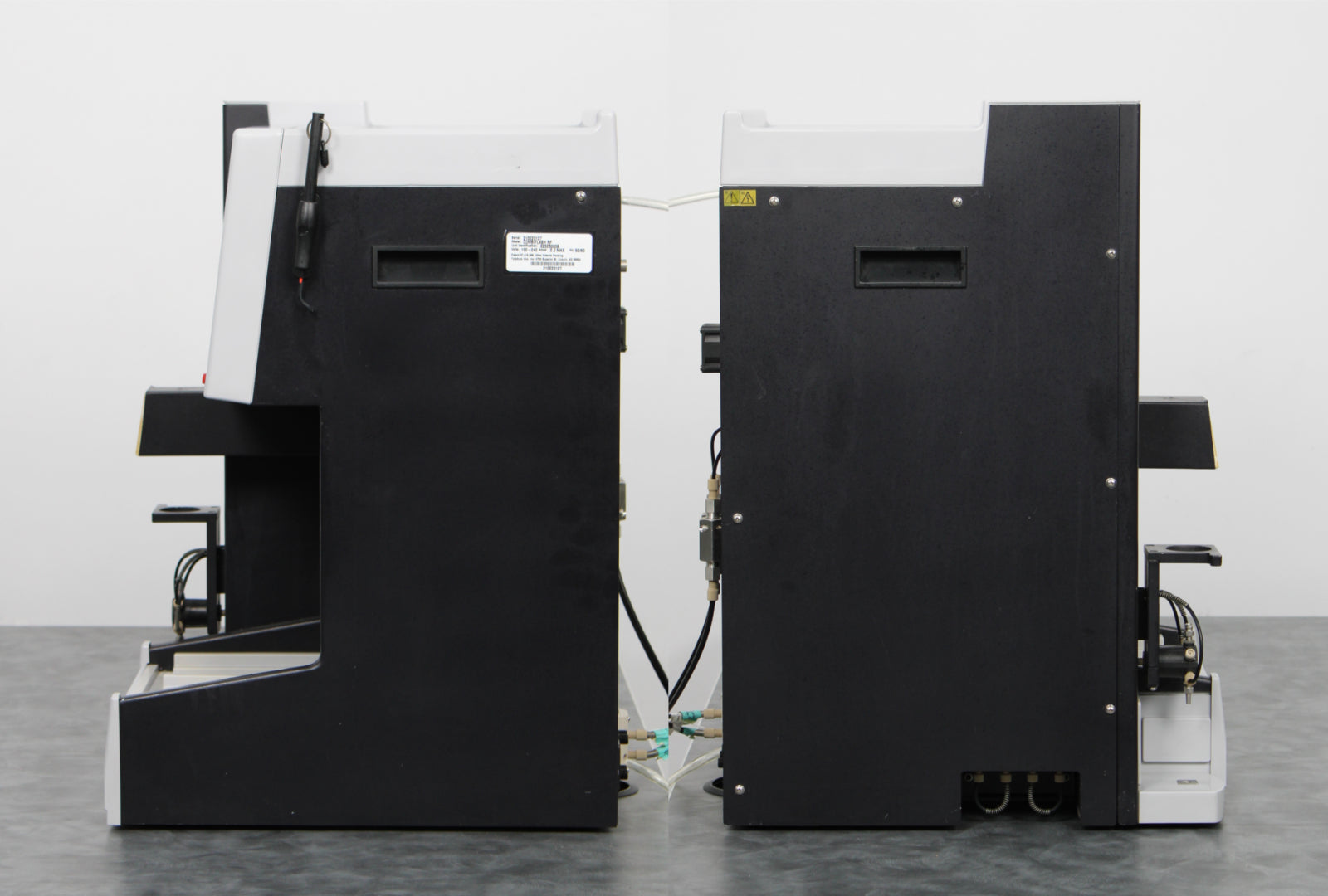

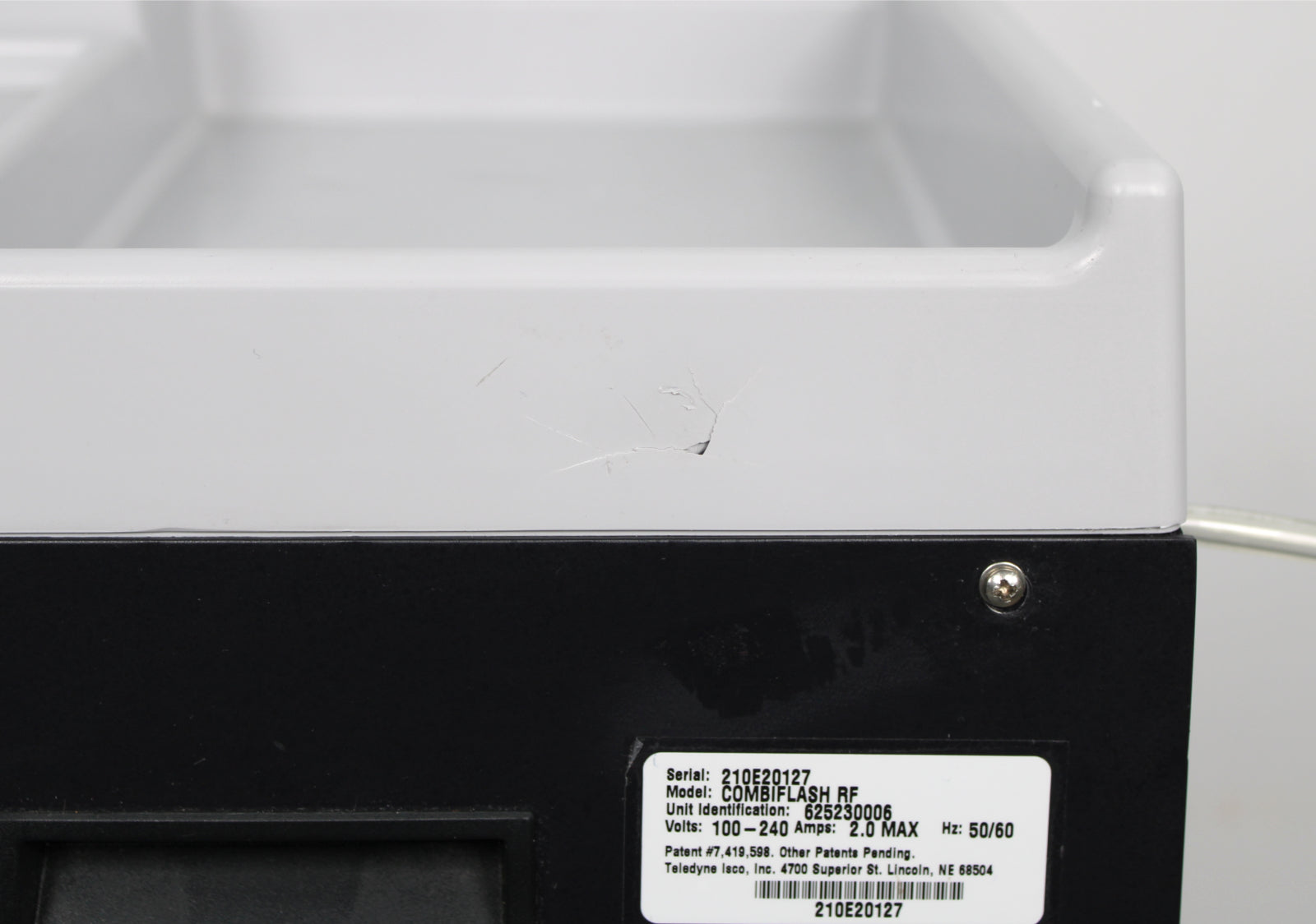

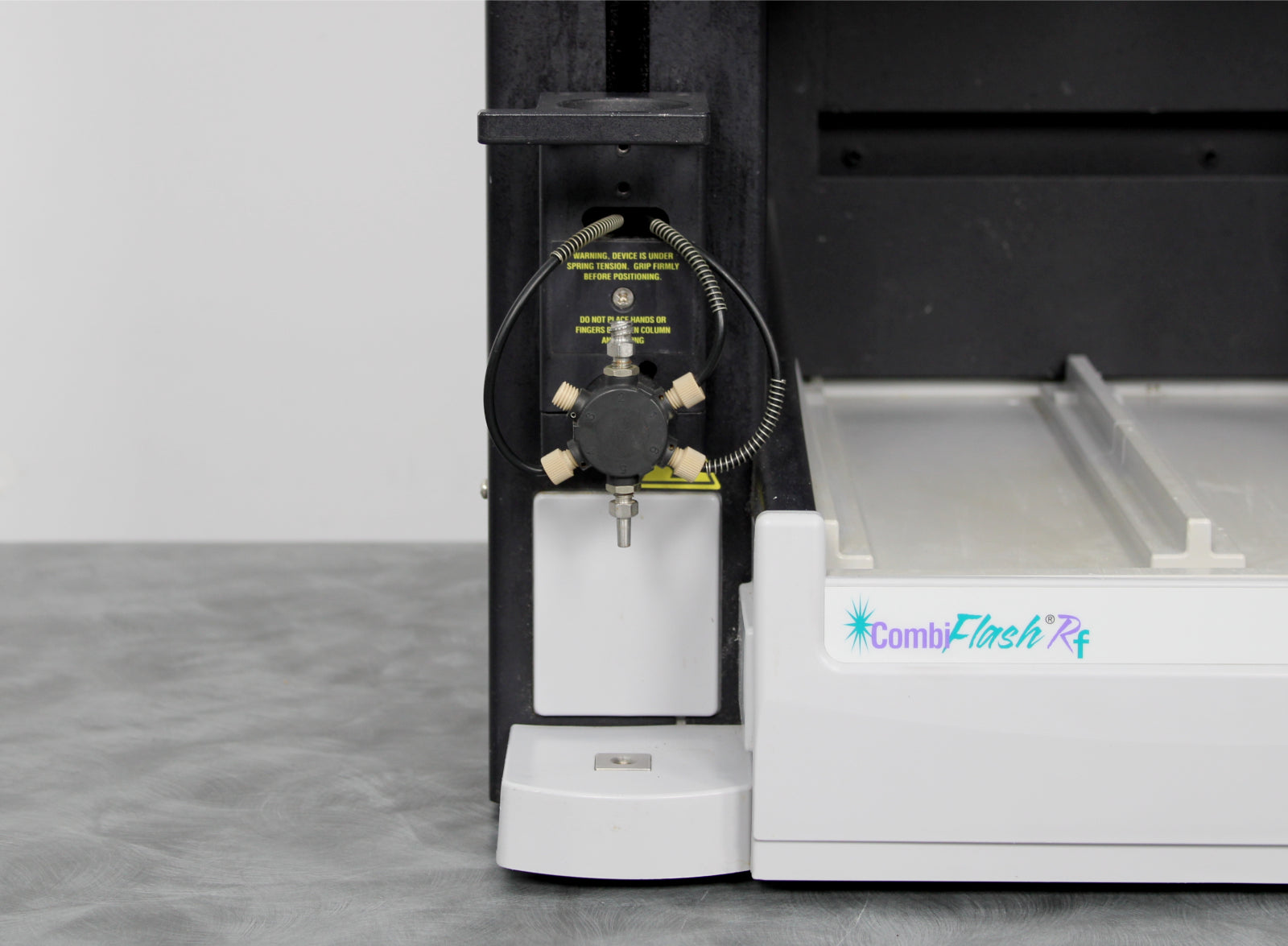

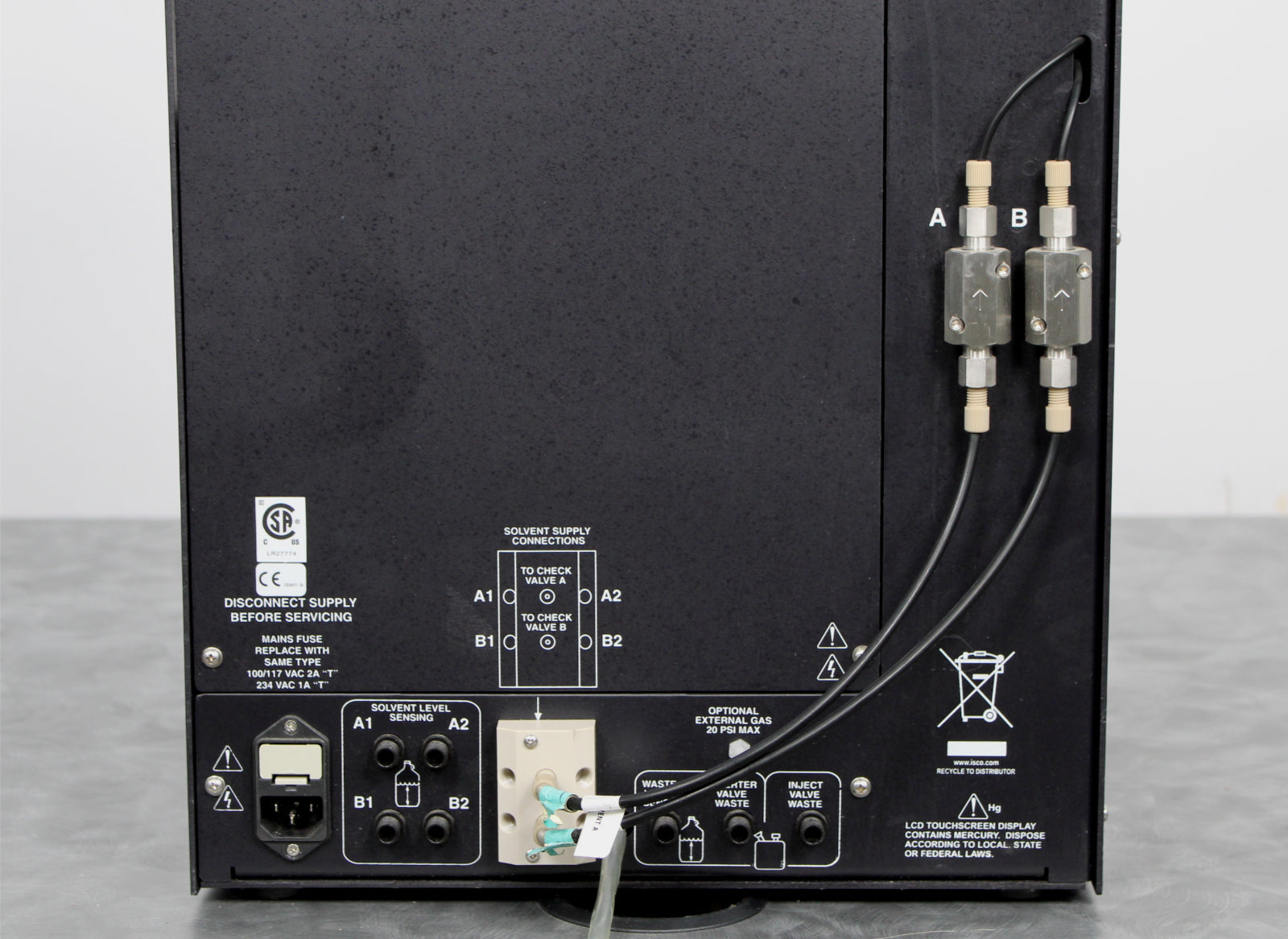

Notice: This instrument has some minor cosmetic blemishes. Please review the available photos to see the physical condition before purchasing.
|
Manufacturer
|
Teledyne Isco
|
|
Model
|
CombiFlash RF
|
|

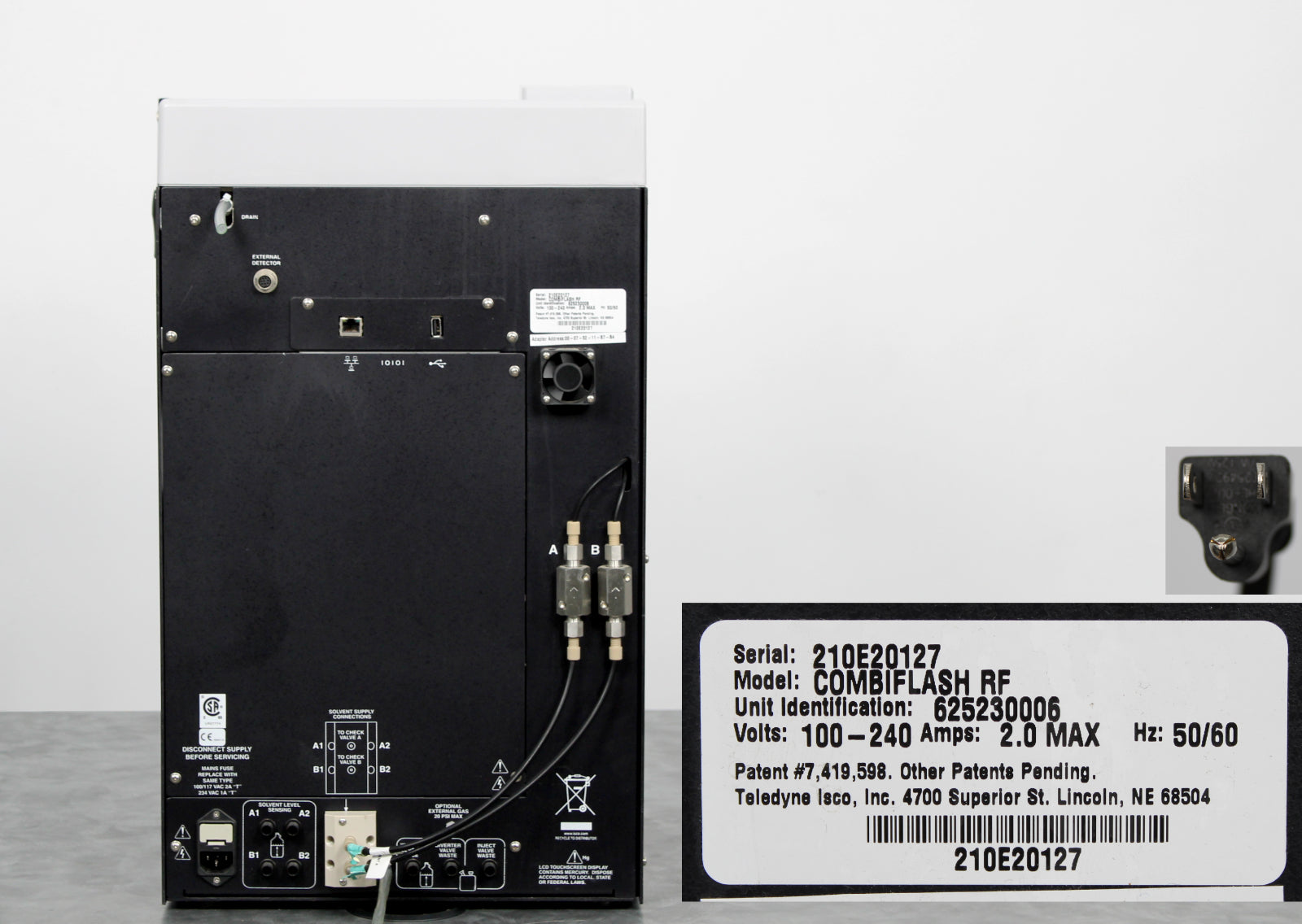

Serial No.
|
210E20127
|
|
Unit identification
|
625230006
|
|
Flow rate range
|
1 to 200 mL/min
|
|
Flow rate accuracy (tested with water at 138 kPa or 20 psi)
|
+/- 5% (5-200 mL/min)
|
|
Pressure limit
|
Up to 1379 kPa (200 psi) (column dependent)
|
|
Pressure accuracy
|
5% of full scale
|
|
Gradient formation
|
Binary gradient from 1, 2, and 3, 4 solvent inlets. Solvent selection can be automatically controlled by the method.
|
|
Gradient accuracy
|
+/- 1% of full scale
|
|
Peak detection modes
|
Slope or threshold
|
|
Flow cell pathlength
|
0.1mm, +/- 25%
|
|
UV detection wavelength
|
200 to 400 nm, optional 200 to 800 nm UV-Vis
|
|
Monitor wavelength with purity ratio
|
200 to 400 nm, optional
200 to 800 nm UV-Vis
|
|
Wavelength accuracy
|
+/- 5 nm
|
|
Fraction accuracy
|
+/- [2mL + (flow rate / 60)]
|
|
Power options
|
Input voltage ranges from 100 to 240VAC, 50/60Hz, 2A maximum. Line cord is the disconnect device.
|
|
Line frequency
|
50/60Hz
|
|
Dimensions (W x D x H)
|
14 x 17 x 24 in
|
|
Weight
|
54 lb (24.5 kg)
|
