Manufacturer
|
Thermo Electron Corporation
|
|
Model
|
435
|
|

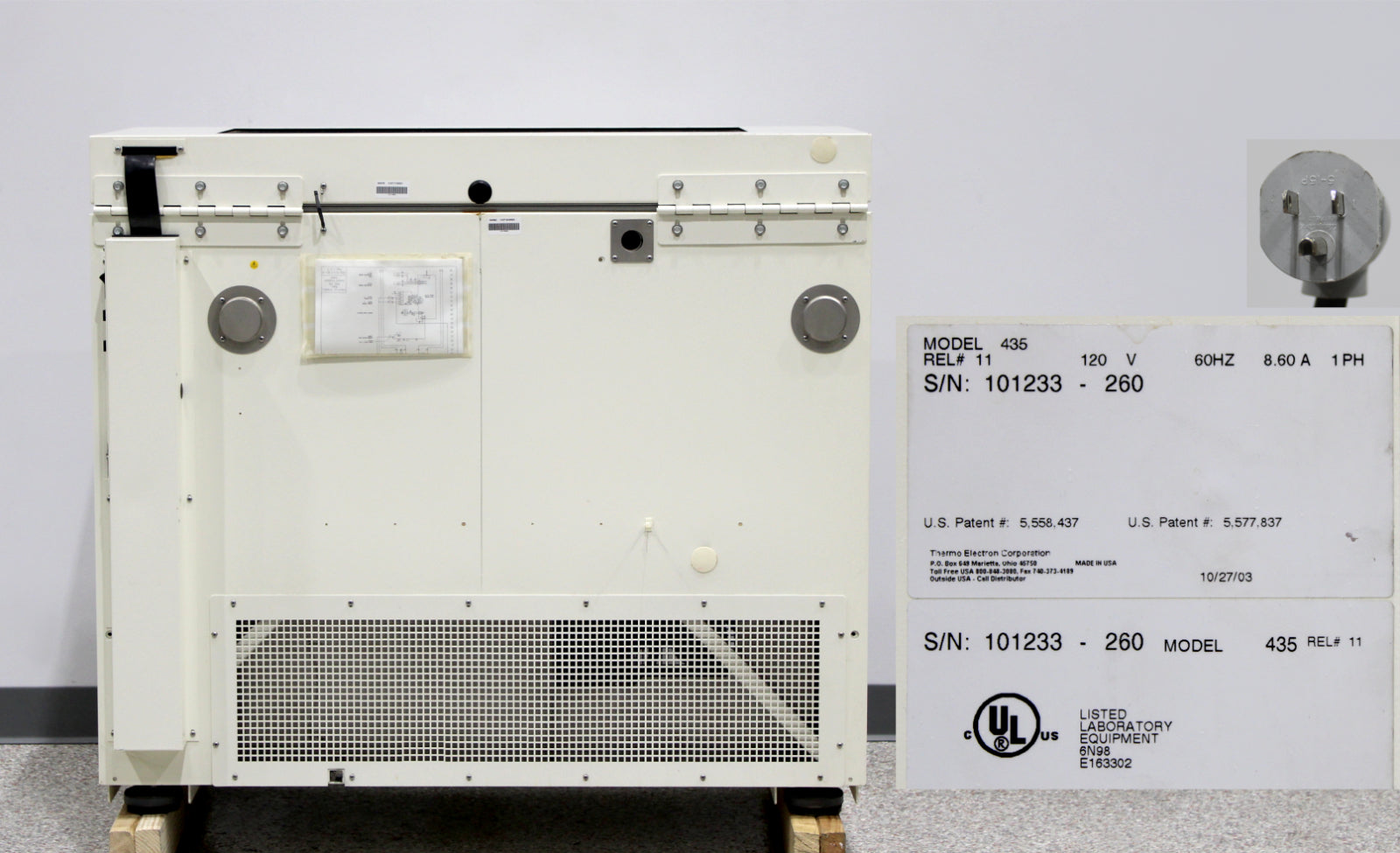

Serial No.
|
101233-260
|
|
Mfg. date
|
10/27/03
|
|
Shaking range
|
25-525 rpm
|
|
Shaking accuracy
|
±1 rpm
|
|
Shaking motion
|
1 inch/orbital
|
|
Shaking indicator
|
LCD in 1 rpm increments
|
|
Temperature range
|
5°C above ambient to 60°C (140°F)
|
|
Temperature control
|
±0.1°C
|
|
Temperature uniformity
|
±0.2°C (in flask)
|
|
Temperature indicator
|
LCD, in 0.1°C increments
|
|
Timer periods
|
Programmable from 5 minutes to 200 hours, or continuous operation
|
|
Timer indicator
|
LCD in 5 minute increments
|
|
Timer run time
|
Display counts down for a timed run or counts up in a “hold” function
|
|
Alarms
|
Adjustable tracking high/low temp, adjustable tracking high/low rpm, run complete, fail message displayed on LCD screen
|
|
Safetys
|
Independent over temperature, independent platform motion
|
|

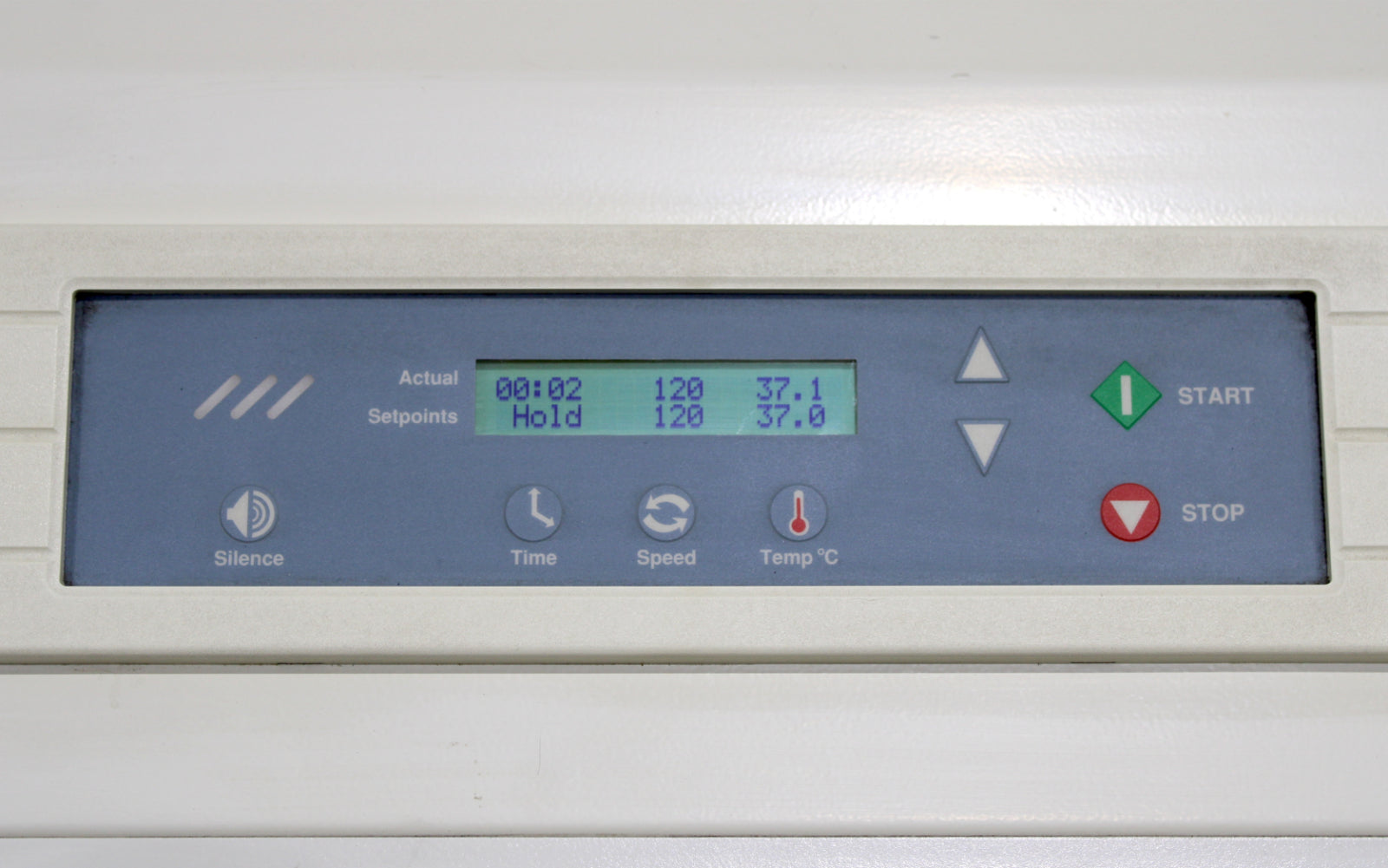

LCD display
|
Run time, rpm, temperature, user program, alarm conditions and power failure indicated by messages
|
|
Drive
|
Triple counterbalanced. Handles unbalanced platform loads regardless of flask placement
|
|
Drive motor
|
⅓ HP brushless DC, permanently-lubricated ball bearing
|
|

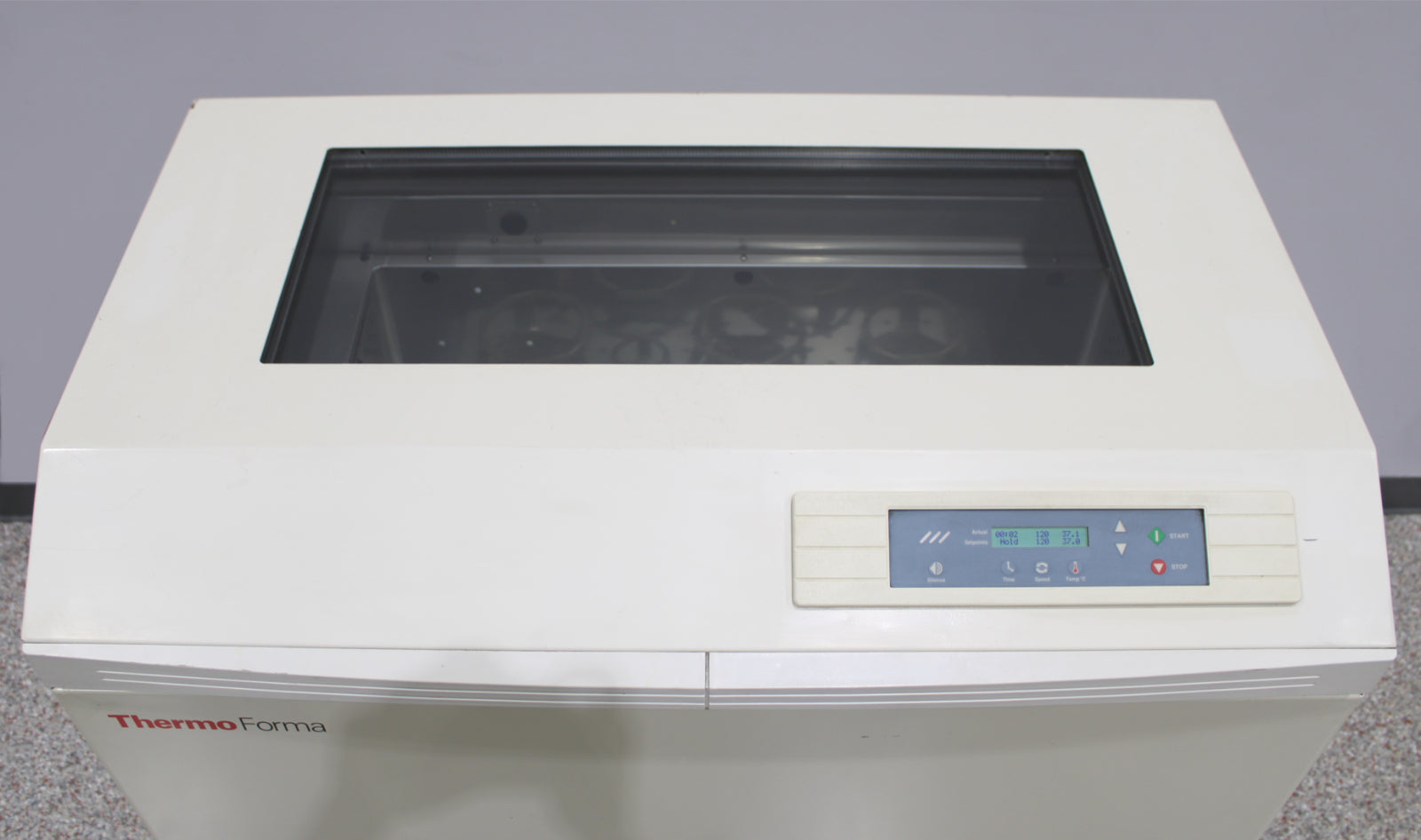

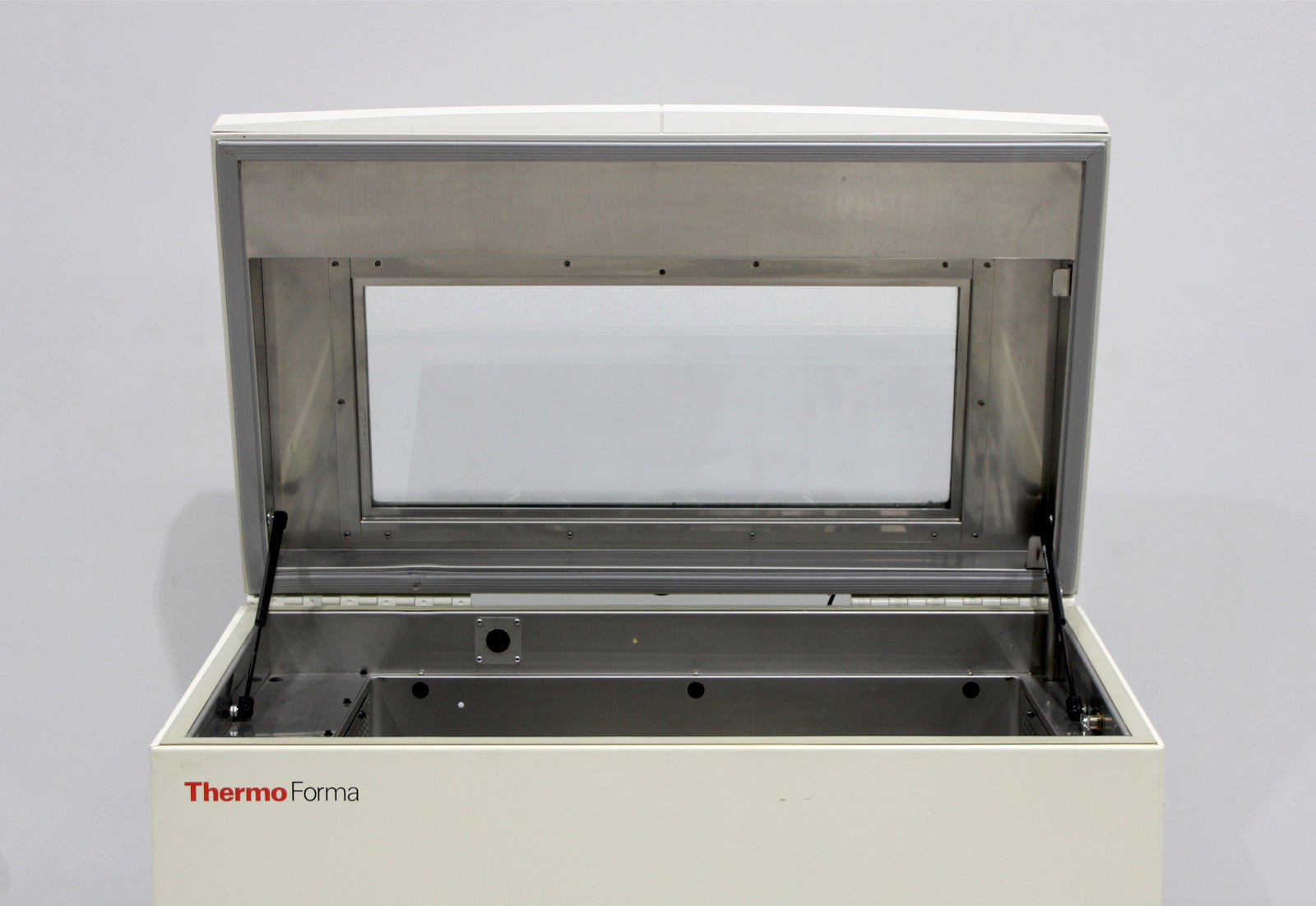

Lid
|
Counterbalanced, hand or foot operated, with tempered thermal pane window and key lock
|
|
Automatic restart
|
Microprocessor retains all programming in non-volatile memory. In the event a power outage, the shaker restarts automatically
|
|
Construction
|
Interior: stainless steel with coved corner
Exterior: cold rolled steel
Finish: powder coated for durable, easily maintained surface
Platform: anodized brushed aluminum
|
|

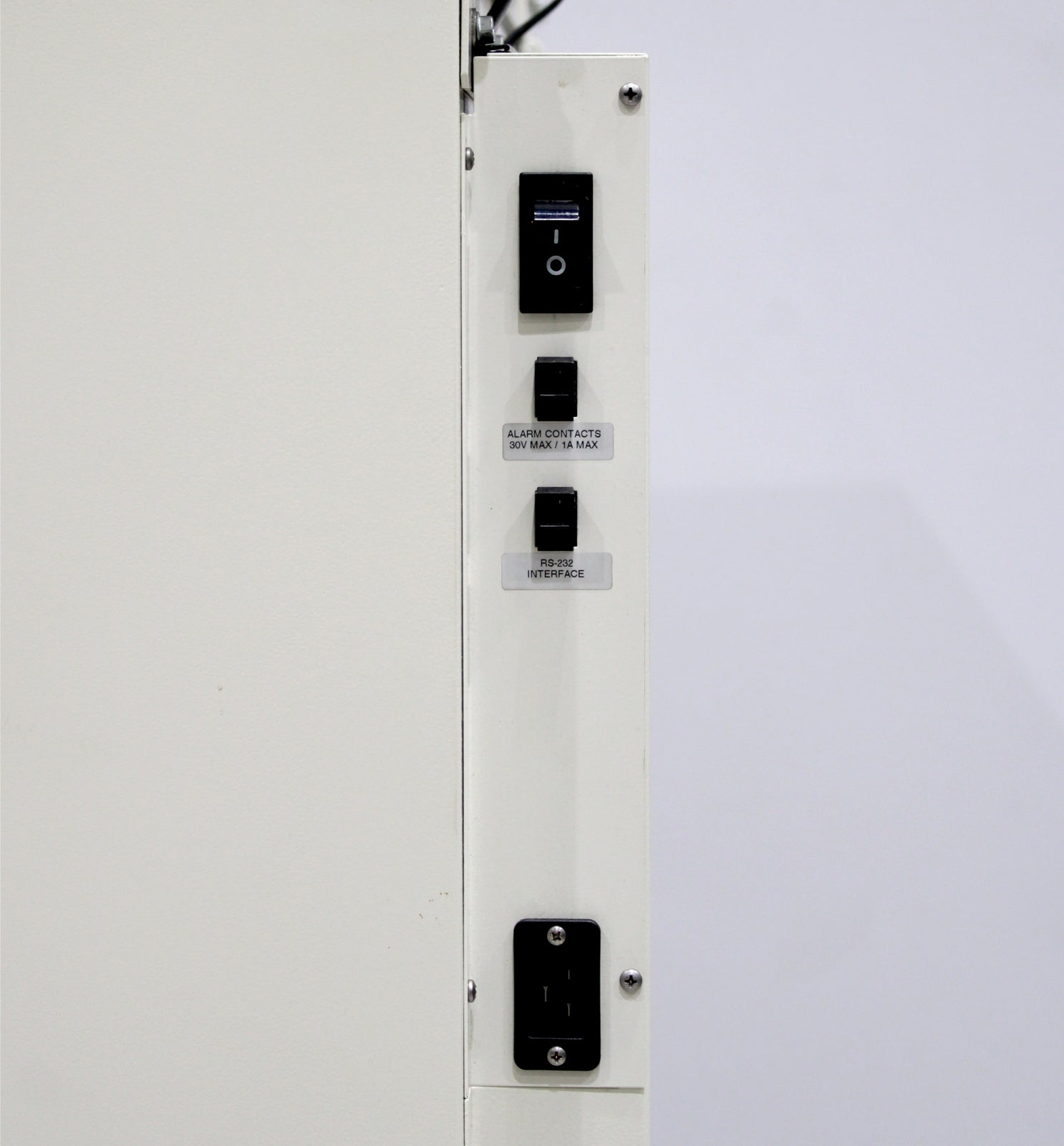

Data output
|
RS-232 standard
|
|
Remote alarm contacts
|
Time, rpm, temperature and loss of power alarms
|
|
Ambient operation conditions
|
For indoor use
Temperature 18°C (64°F) to 40°C (104°F)
Humidity 80% RH at or below 31°C, decreasing linearly to 50% RH at 40°C
|
|
Sound level
|
Not to exceed 85db
|
|
Safety specifications
|
Altitude 2,000 meters
Temperature 5°C to 40°C
Humidity 80% RH at or below 31°C, decreasing linearly to 50% RH at 40°C
|
|

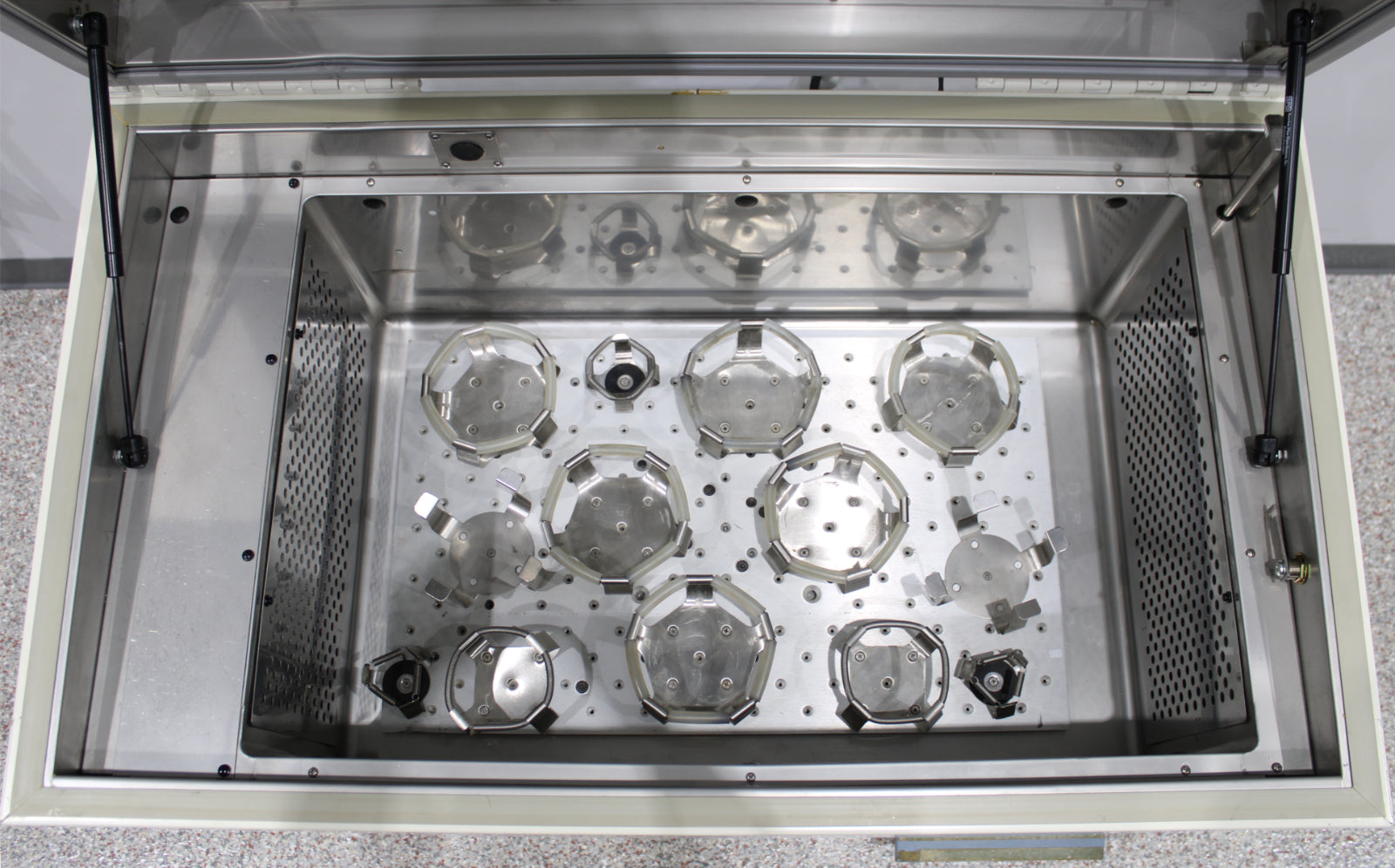

Capacity
|
Flasks from (91) 25 mL up to (4) 6L
|
|
Power rating
|
120V, 60Hz, 8.60A, 1Ph
|
|
Platform dimensions (W x D)
|
29.5 x 18 in (74.9 x 45.7 cm)
|
|
Interior dimensions (W x D x H)
|
34.3 x 21.1 x 18.8 in (87.1 x 53.6 x 47.8 cm)
|
|
Exterior dimensions (W x D x H)
|
45 x 30 x 39 in (114.3 x 76.2 x 99.1 cm)
|
|
Weight
|
518 lb (235.2 kg)
|
