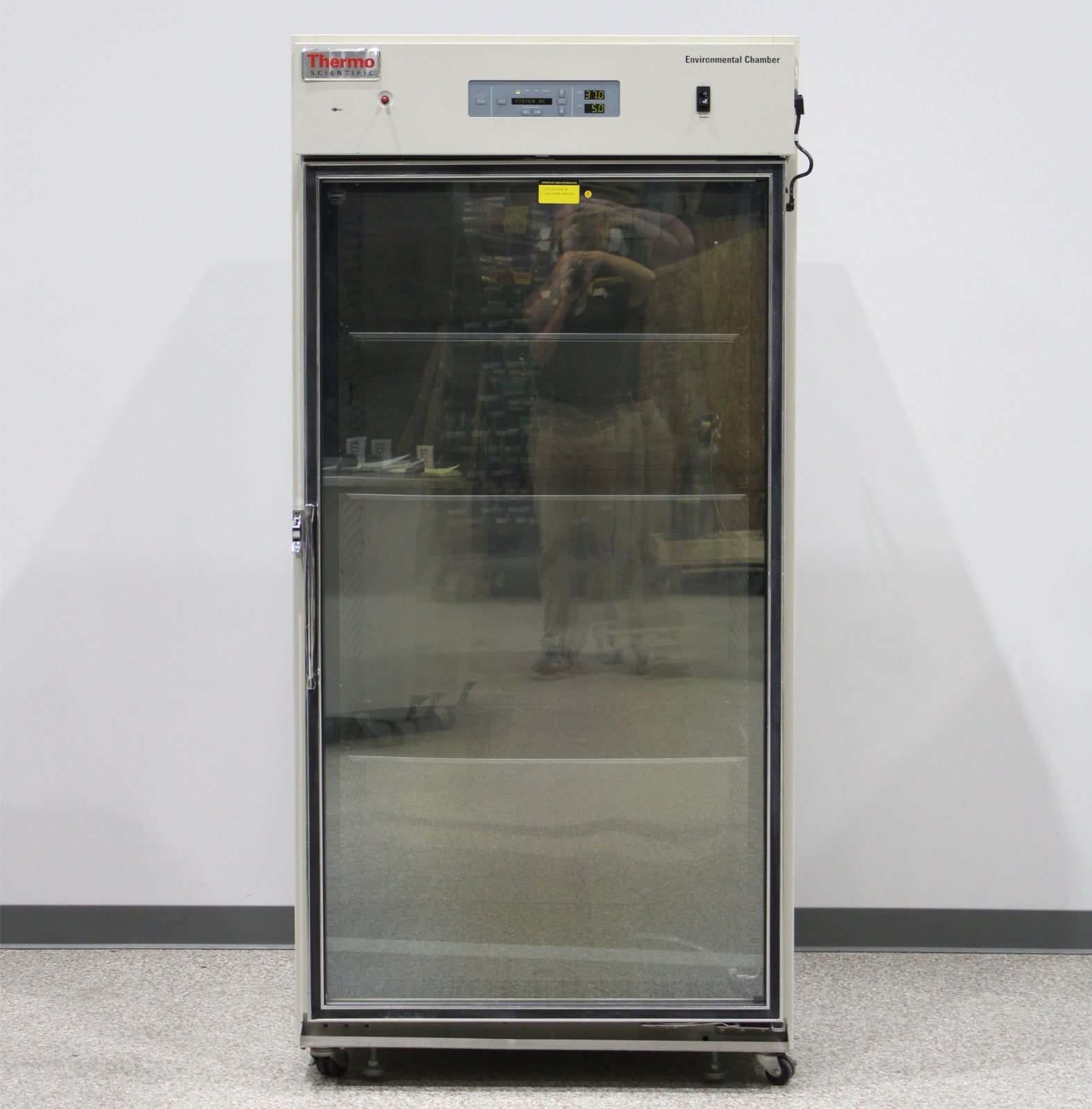

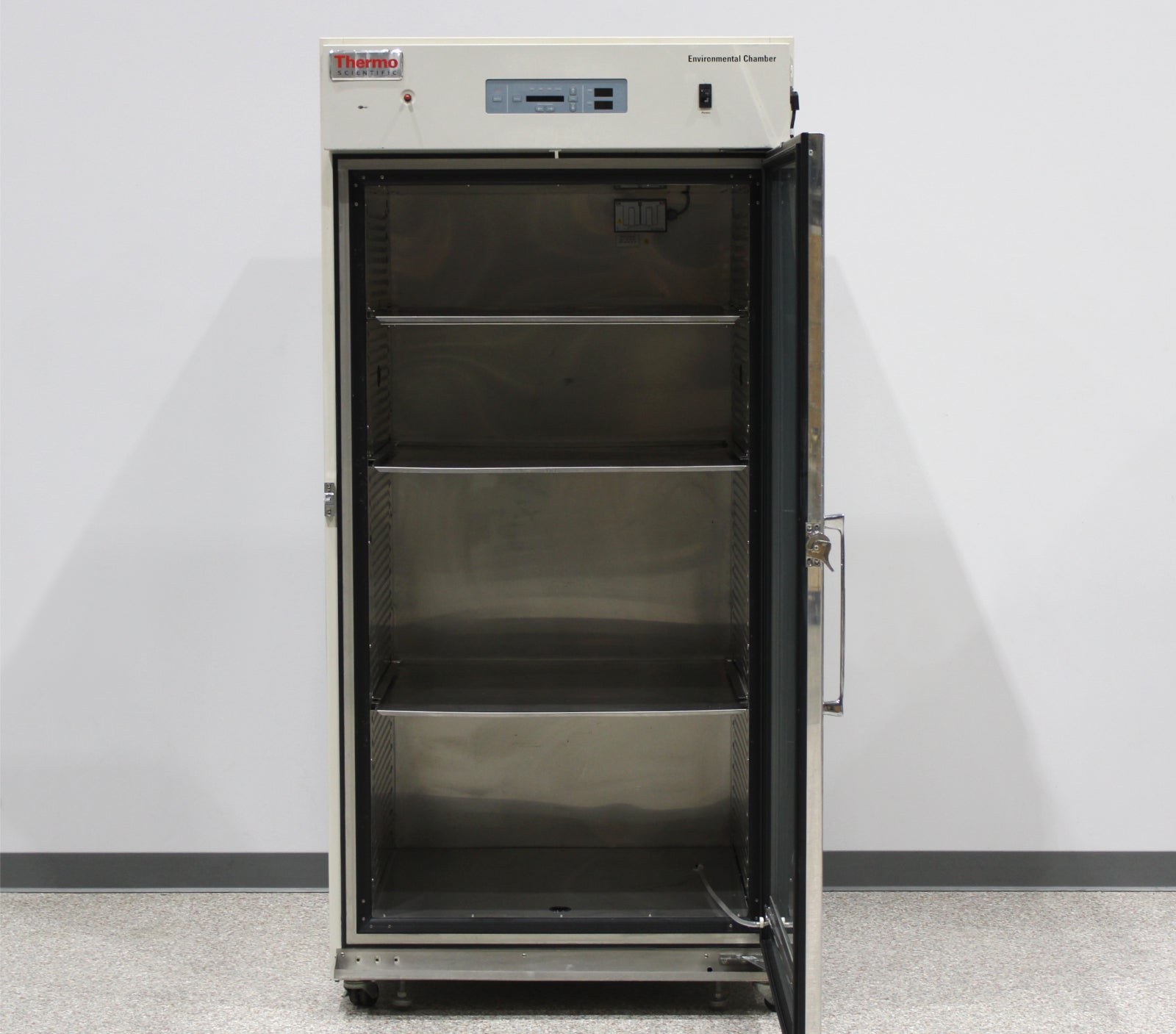

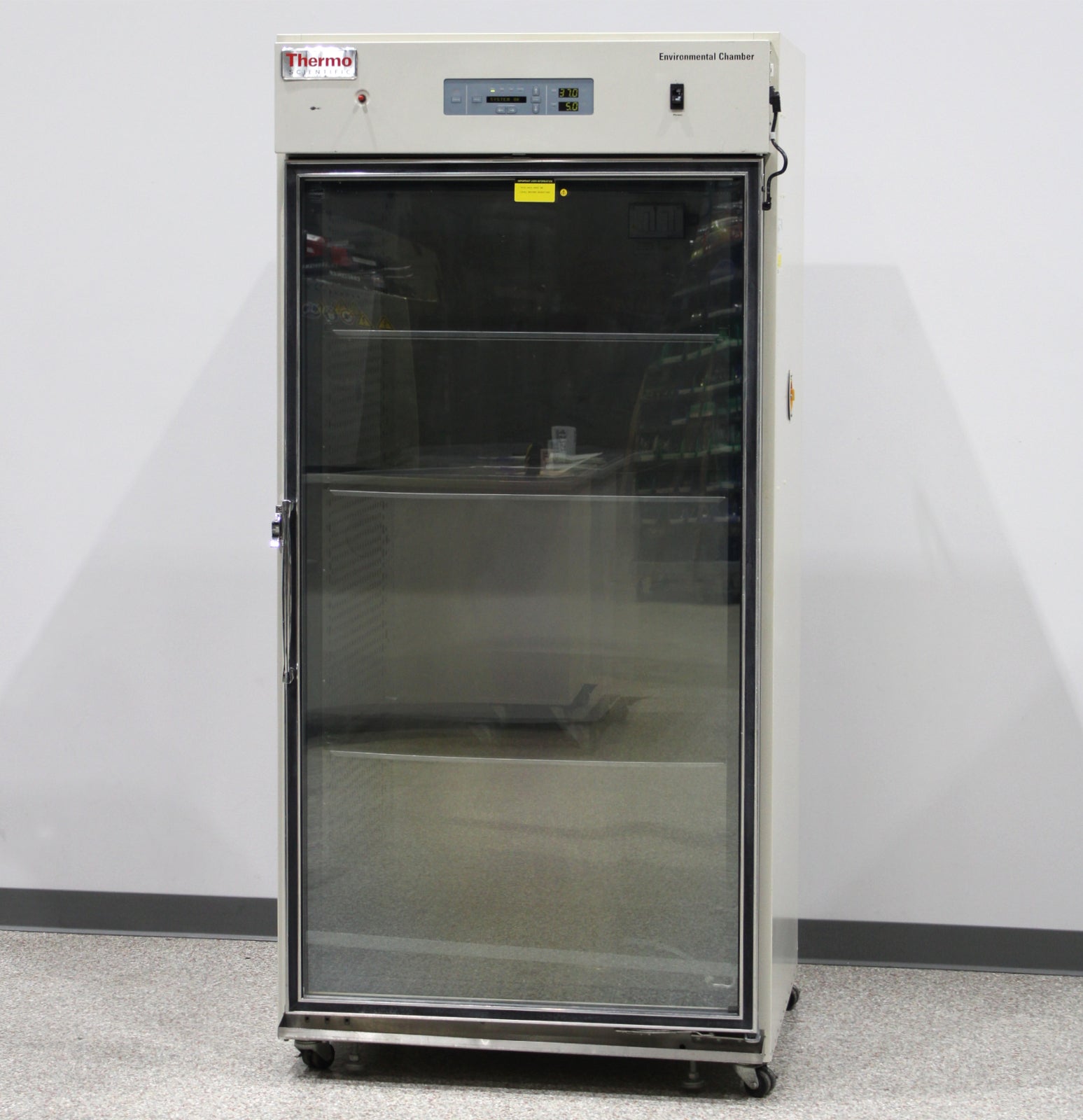

- Thermo Scientific Forma 3950 Reach-In CO2 Incubator

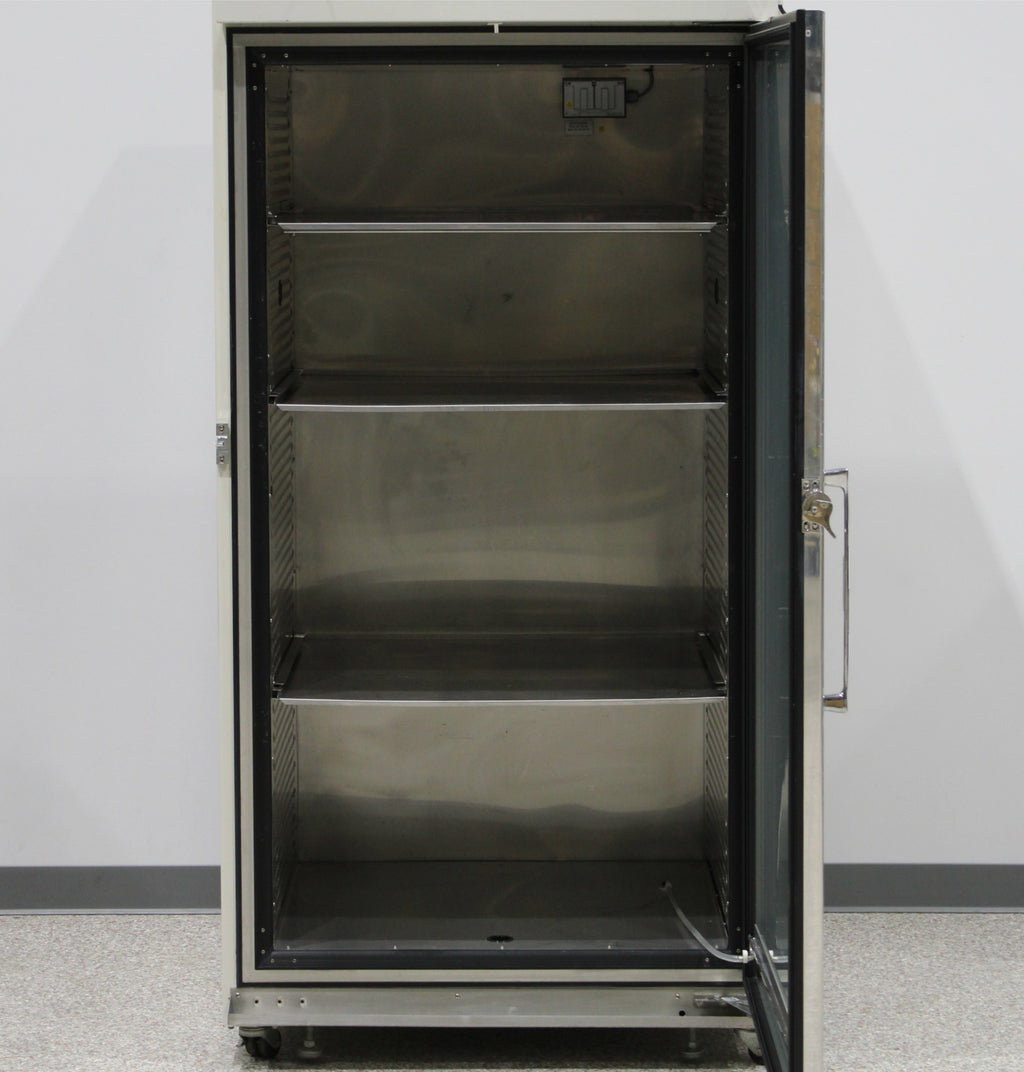

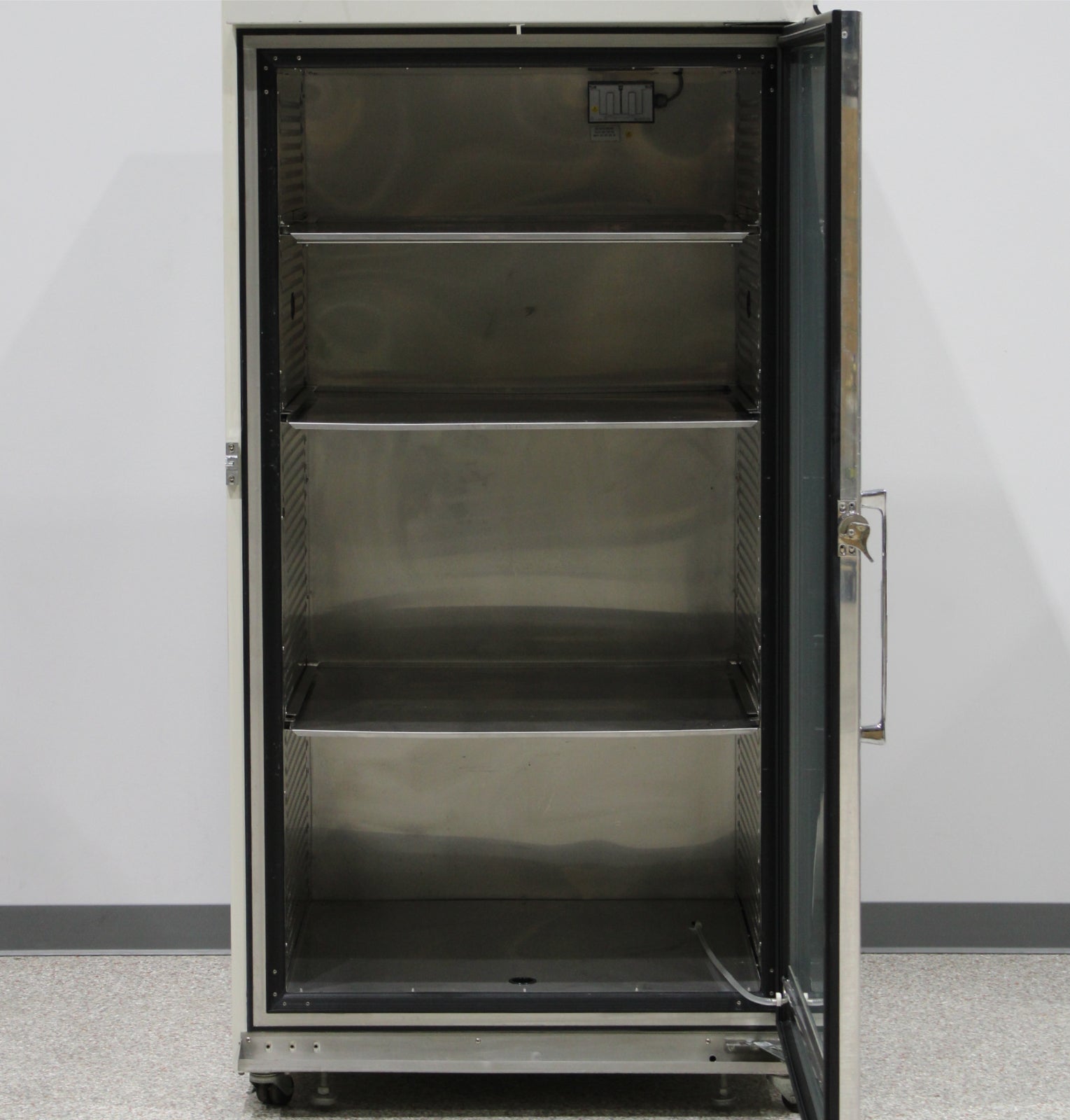

- x3 Adjustable Stainless Steel Shelves
- Power Cable with NEMA 5-15P Plug
- 90-Day Warranty
After its initial disinfection and inspection, our technicians tested the Thermo Scientific Forma 3950 reach-in CO2 incubator with the following results:

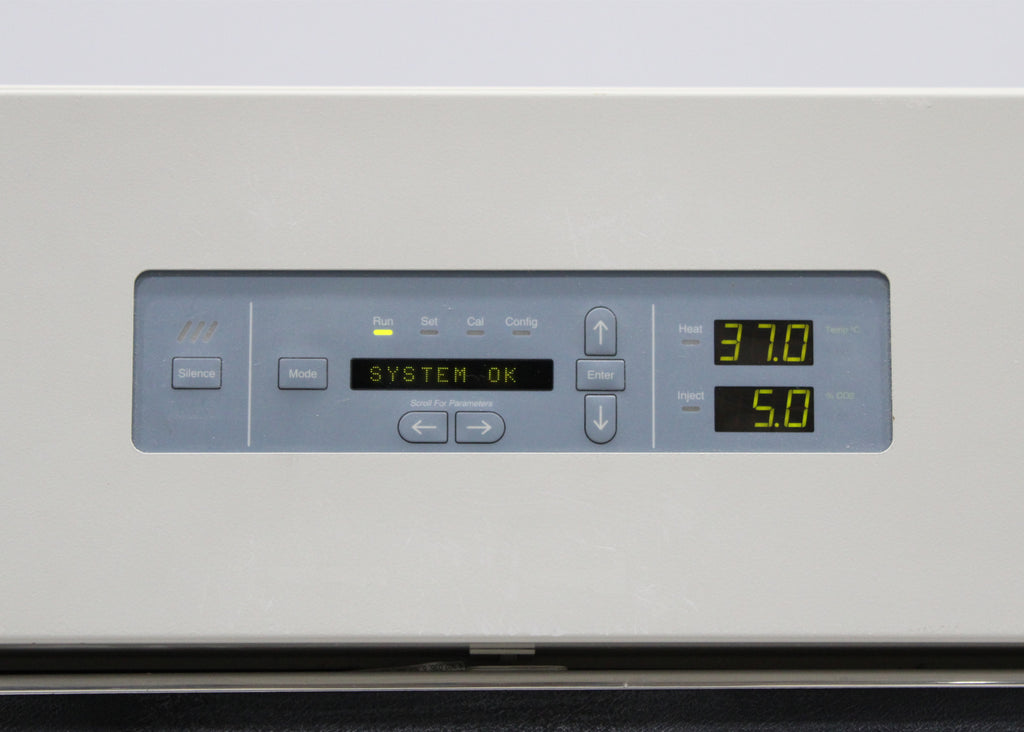

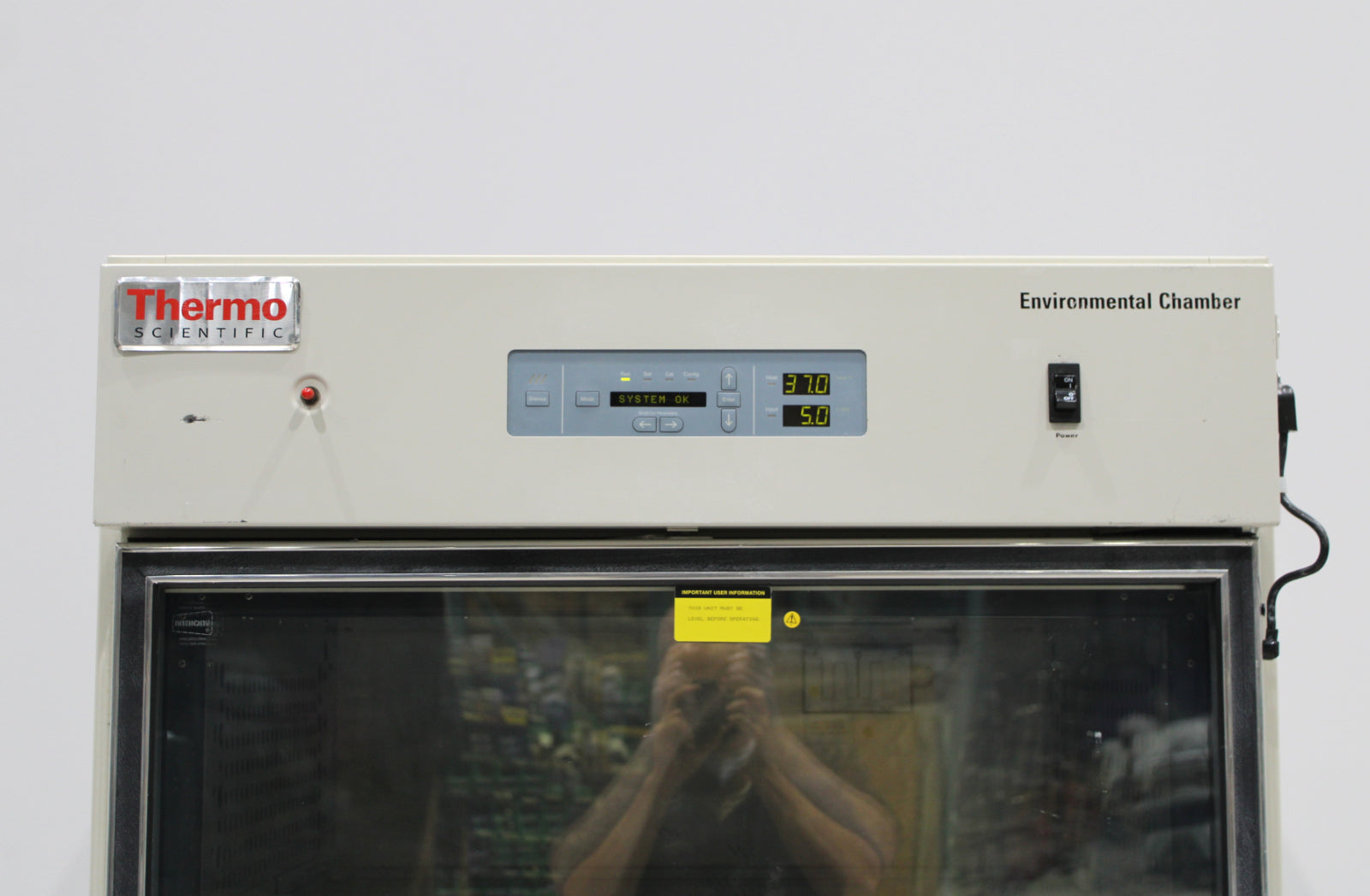

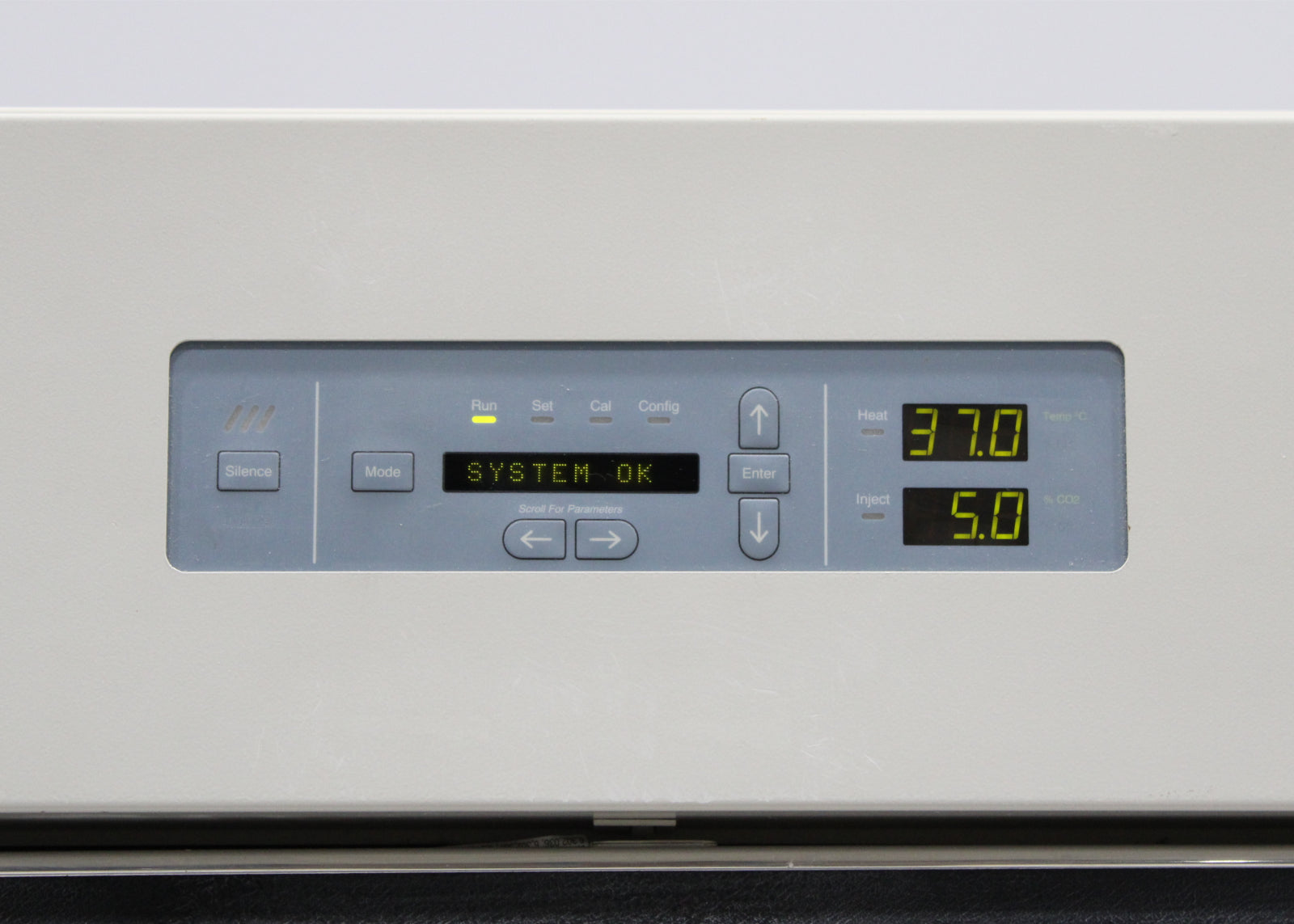

- Control panel readout and buttons: PASSED
- Temperature reading verification: PASSED
- Temperature holds steady at 37°C setpoint: PASSED
- CO2 reading verification: PASSED
- CO2 concentration holds steady at 5% setpoint: PASSED
Notice: This incubator has some minor cosmetic blemishes. Please review the available photos to see the physical condition before purchasing.
|

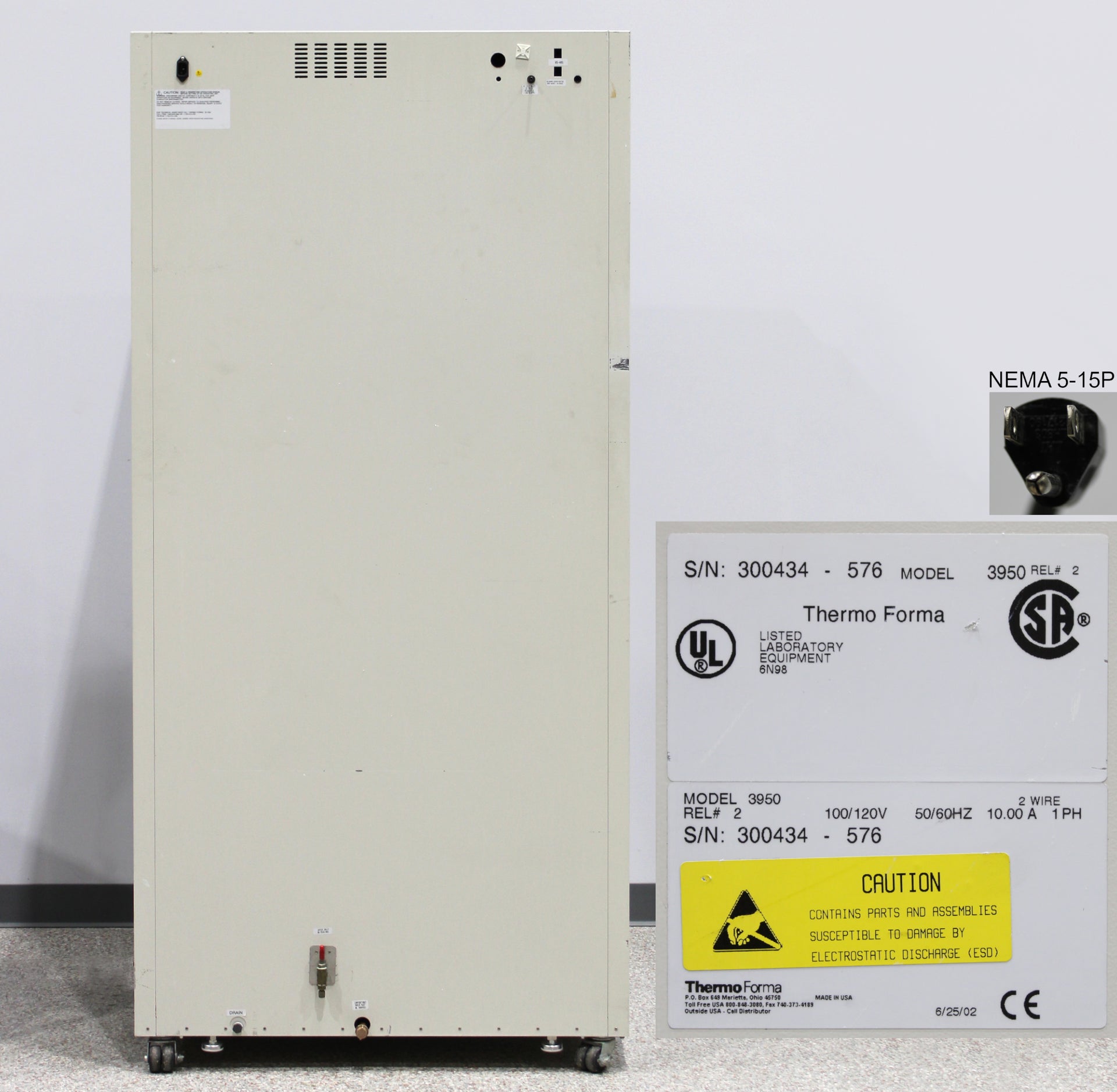

Manufacturer
|
Thermo Forma
|
|
Model
|
3950
|
|
Serial No.
|
300434-576
|
|
Mfg. date
|
6/25/02
|
|
Power rating
|
100/120V, 50/60Hz, 10.00A, 1Ph
|
|
Interior dimensions (W x D x H)
|
31 x 26.5 x 60 in
|
|
Exterior dimensions (W x D x H)
|
38 x 32 x 80 in
|
|
Temperature
|
|
Control
|
+/- 0.1°C Microprocessor PID
|
|
Setpoint
|
Digital - Touch Pad, 0.1°C
|
|
Range
|
+5°C above ambient to 60°C
|
|
Uniformity
|
+/- 0.3°C @ +37°C
|
|
Tracking Alarm
|
User programmable (low) indicator
|
|
Overtemp
|
Tracking, user programmable, action and indicator
|
|
Display
|
Digital, LED, 0.1°C increments
|
|
Safety Type
|
Extreme temperature safety, action and indicator
|
|
Safety Sensor
|
Thermostat, independent of temperature control system
|
|
Safety Indicator
|
Message center, audible and visual alarms
|
|
Relative Humidity
|
|
Selectable Ranges
|
Medium (>80%), High (>90%)
|
|
CO2
|
|
Control
|
+/- 0.1% microprocessor PID
|
|
Sensor
|
Thermal conductivity
|
|
Readability
|
0.1%
|
|
Range
|
0 to 20%
|
|
Inlet Pressure
|
15 PSIG (+/- 5 PSIG)
|
|
Display
|
Digital LED, 0.1% increments
|
|
Shelves
|
|
Dimensions
|
30.62 W x 25.81" F-B (77.78 x 65.56 cm)
|
|
Construction
|
Solid stainless steel, 2B finish
|
|
Surface Area
|
5.4 sq. ft (0.51 sq. m) per shelf
|
|
Max per Chamber
|
145.8 sq. ft (13.55 sq. m)
|
|
Standard
|
5
|
|
Maximum
|
27
|
|
Clearance
|
Adjustable on 2" (5 cm) centers
|
|

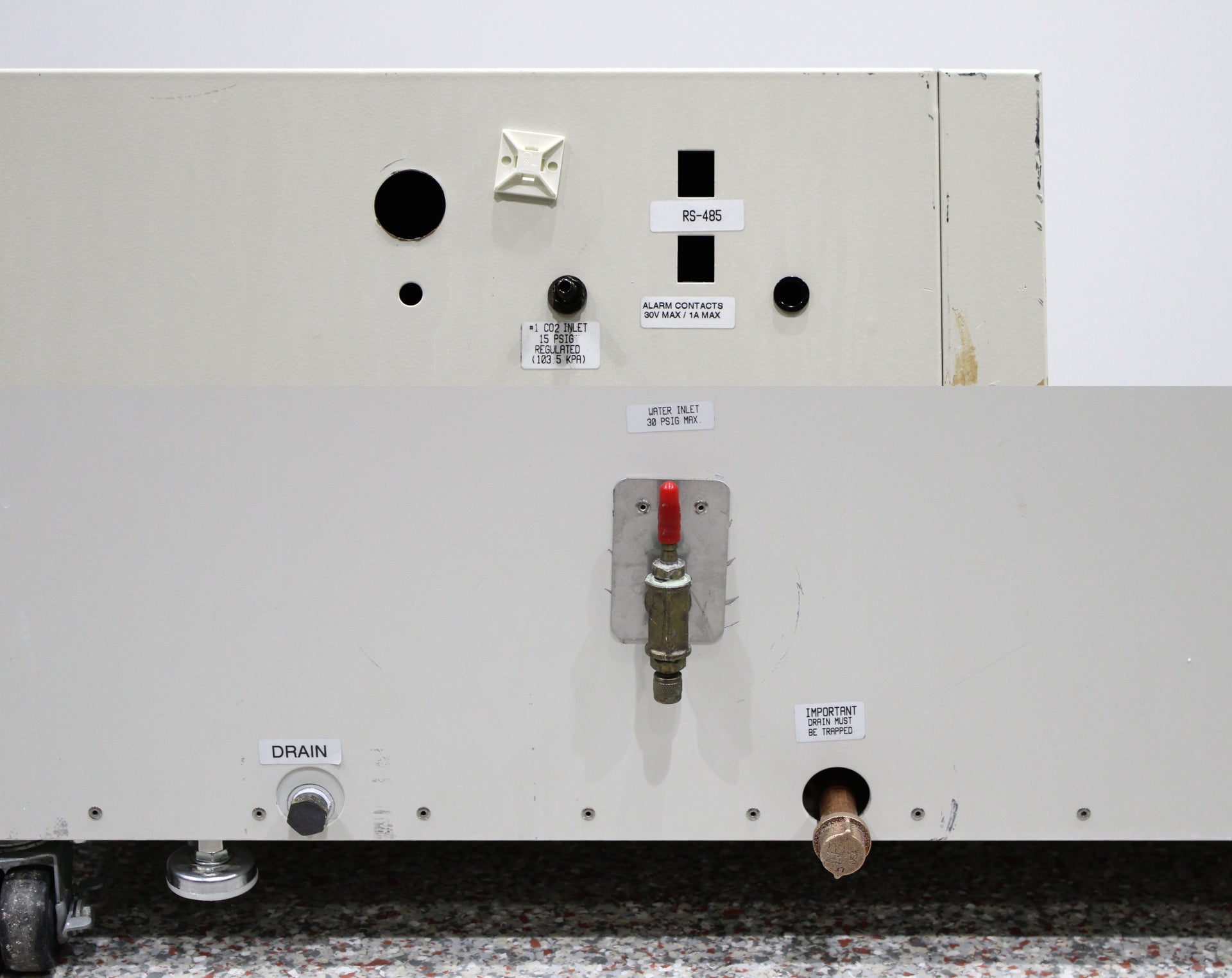

Fittings
|
|

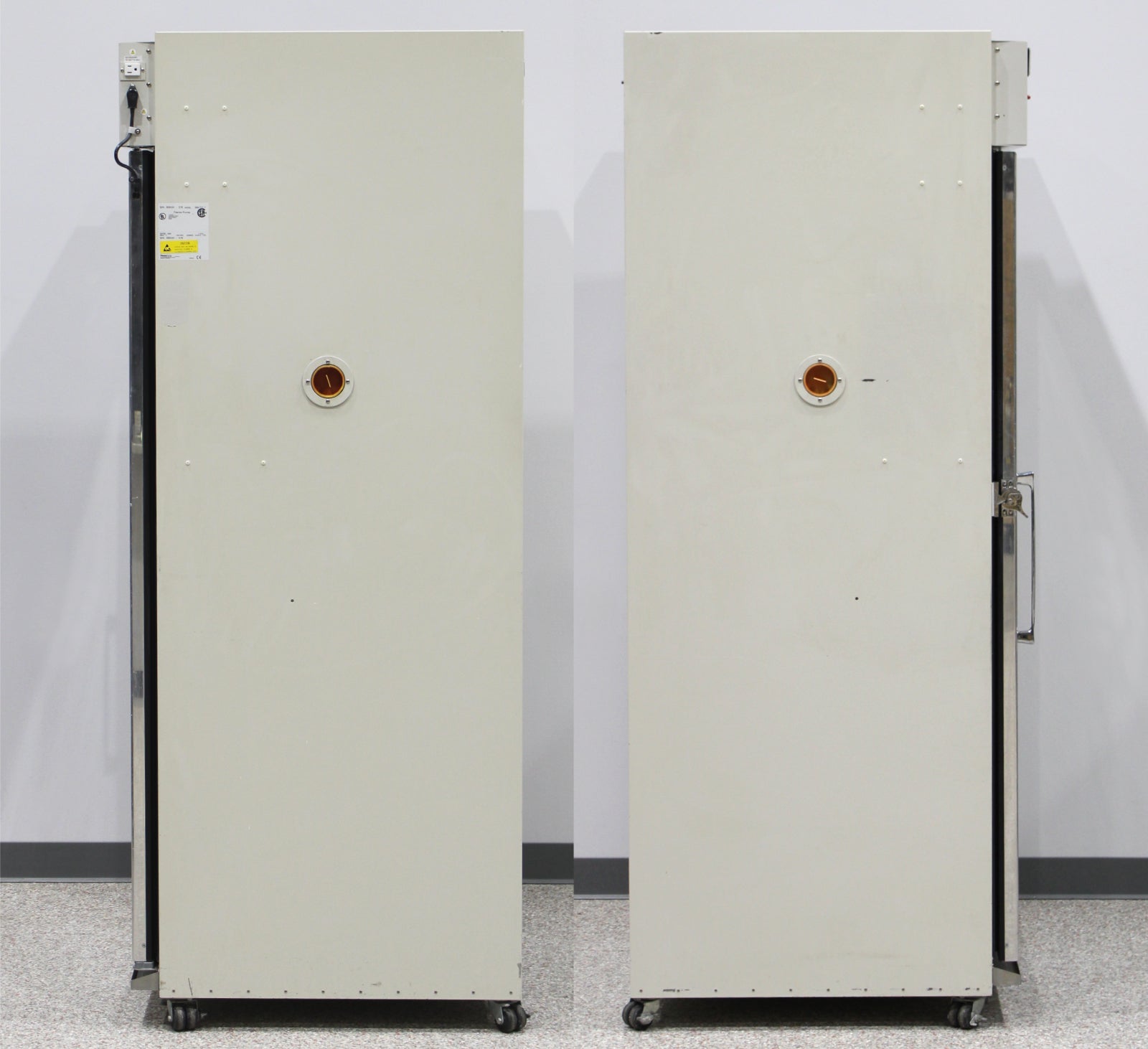

Access Port
|
2.4" (6.1 cm) ID, one port per side
|
|
CO2 Inlet
|
1/4" barbed
|
|
Sample Port
|
Front mount, 1/4" barbed
|
|
Water Inlet
|
1/4" MPT for automatic fill
|
|
Overflow Drain
|
3/8" MPT
|
|
Condensate Drain
|
3/8" FPT
|
