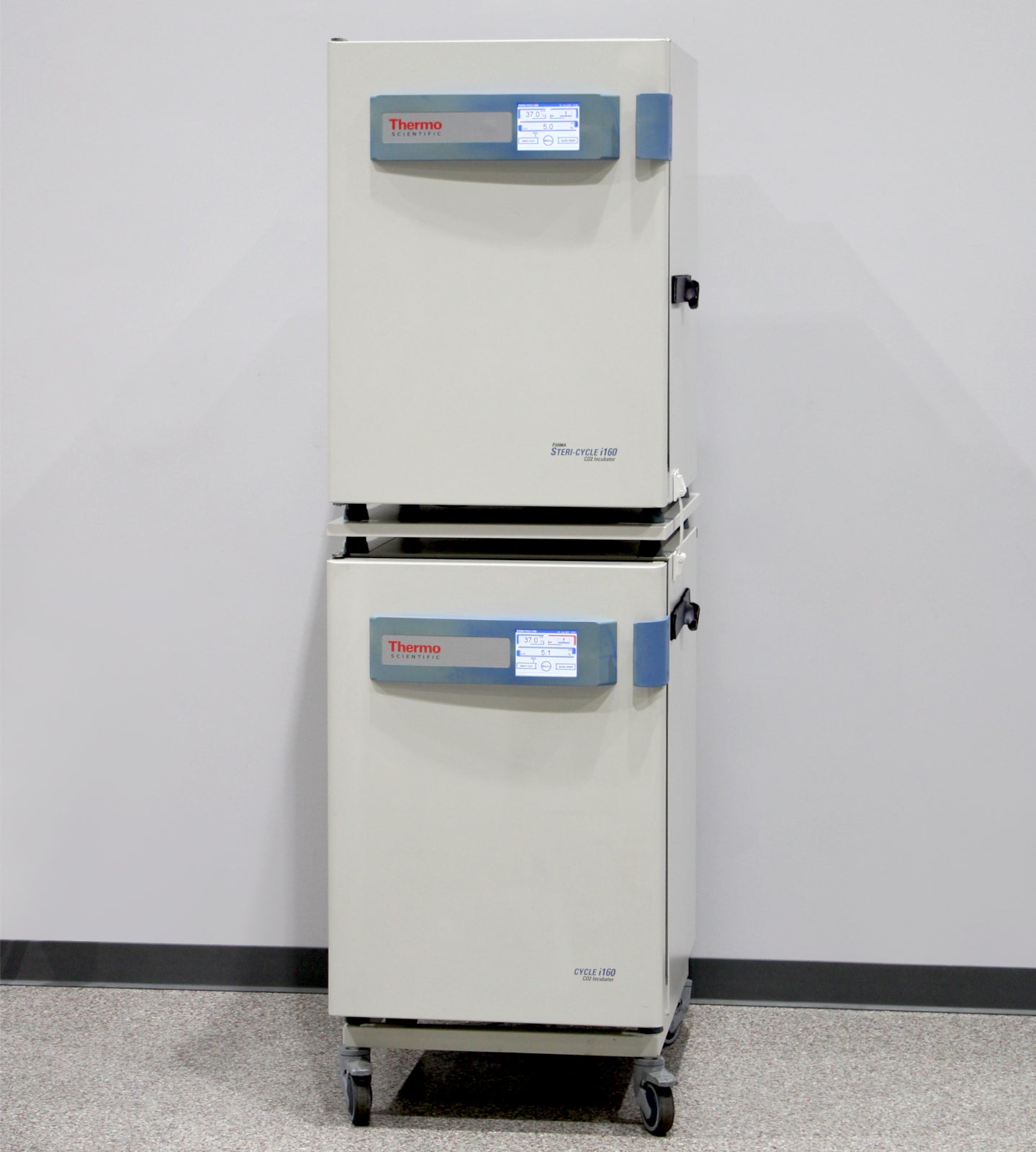

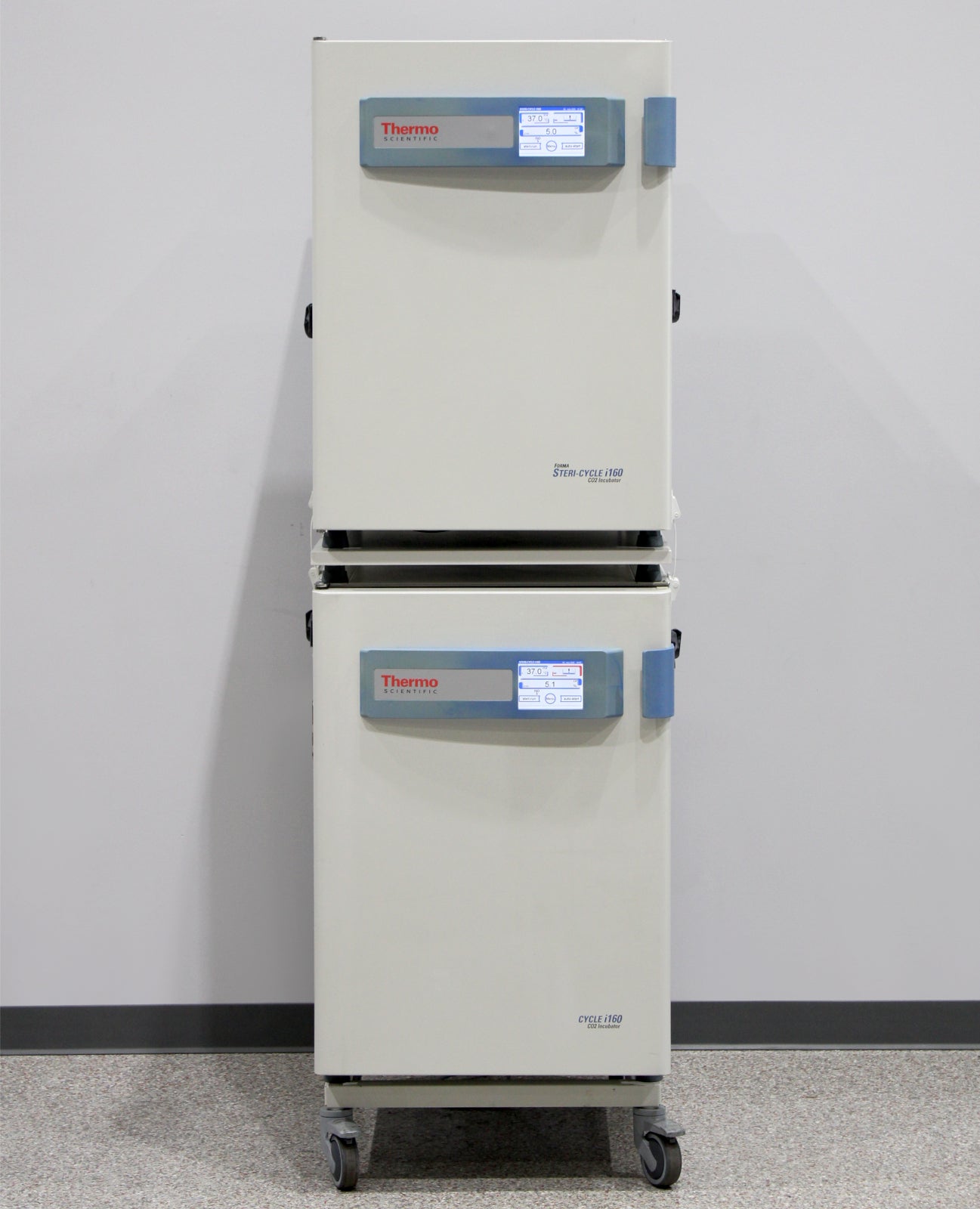

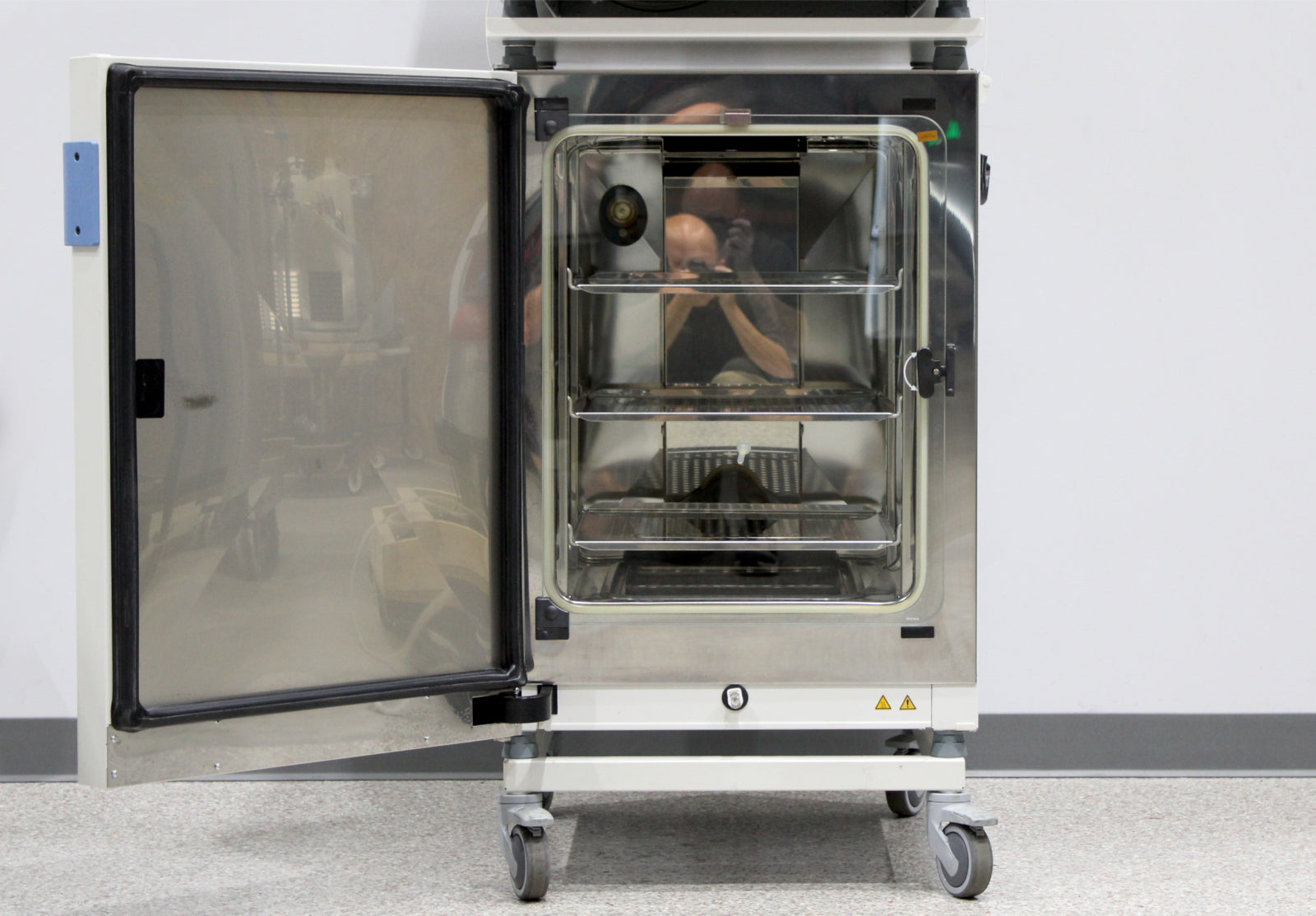

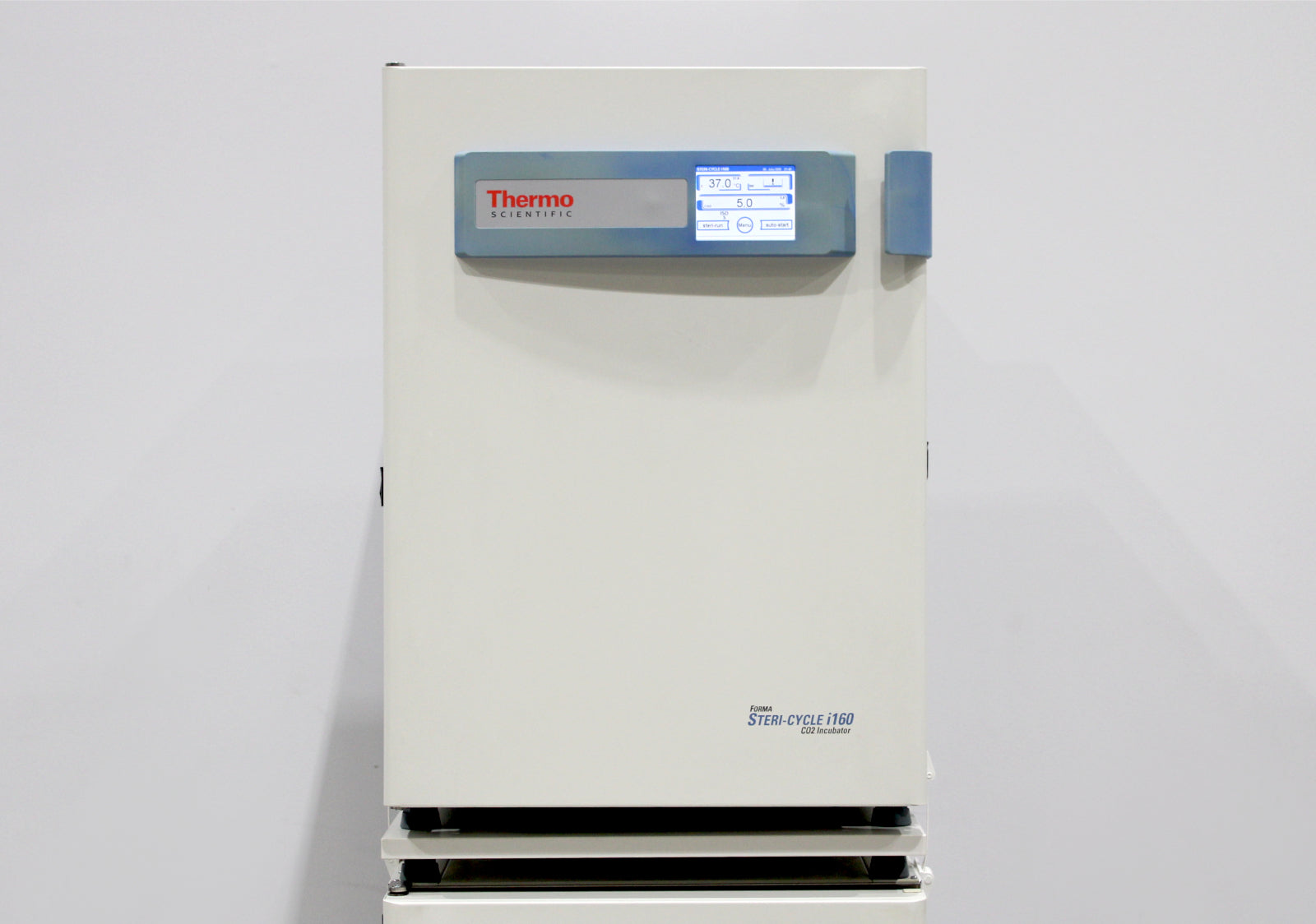

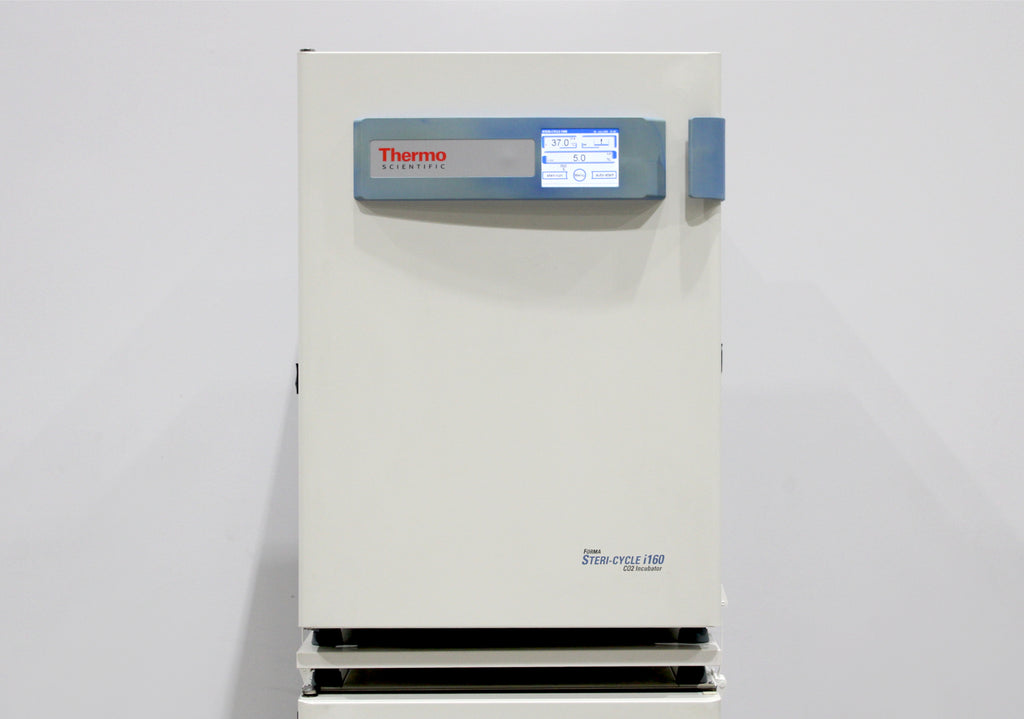

- x2 Thermo Scientific Forma Steri-Cycle i160 Stainless Steel CO2 Incubators (51030532)
- x6 Adjustable Stainless Steel Shelves

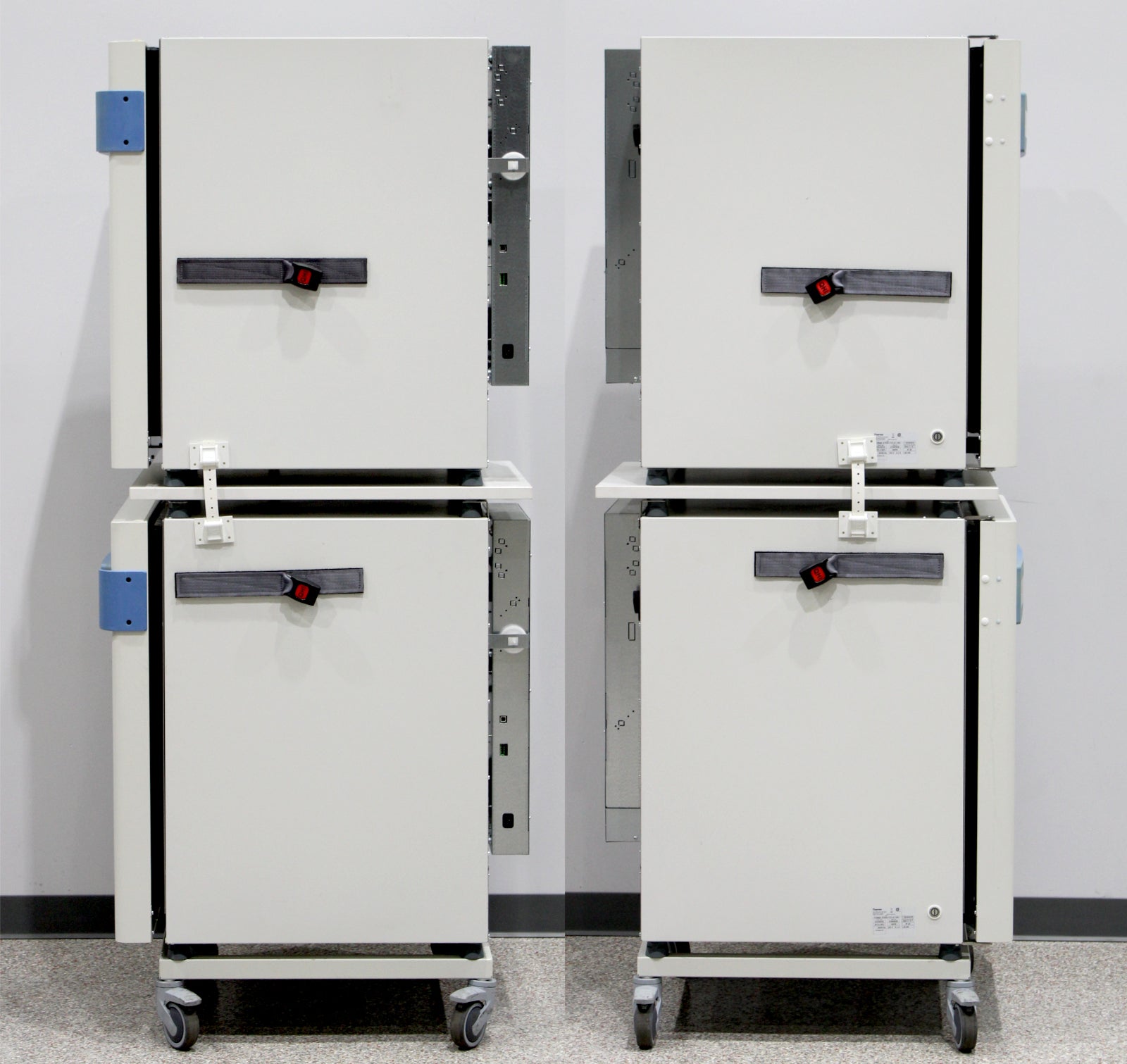

- Stacking Kit
- Cart
- x2 Power Cables
- 90-Day Warranty
After its initial disinfection and inspection, our technicians tested the Thermo Scientific Forma Steri-Cycle i160 stacked stainless steel CO2 incubators with the following results:

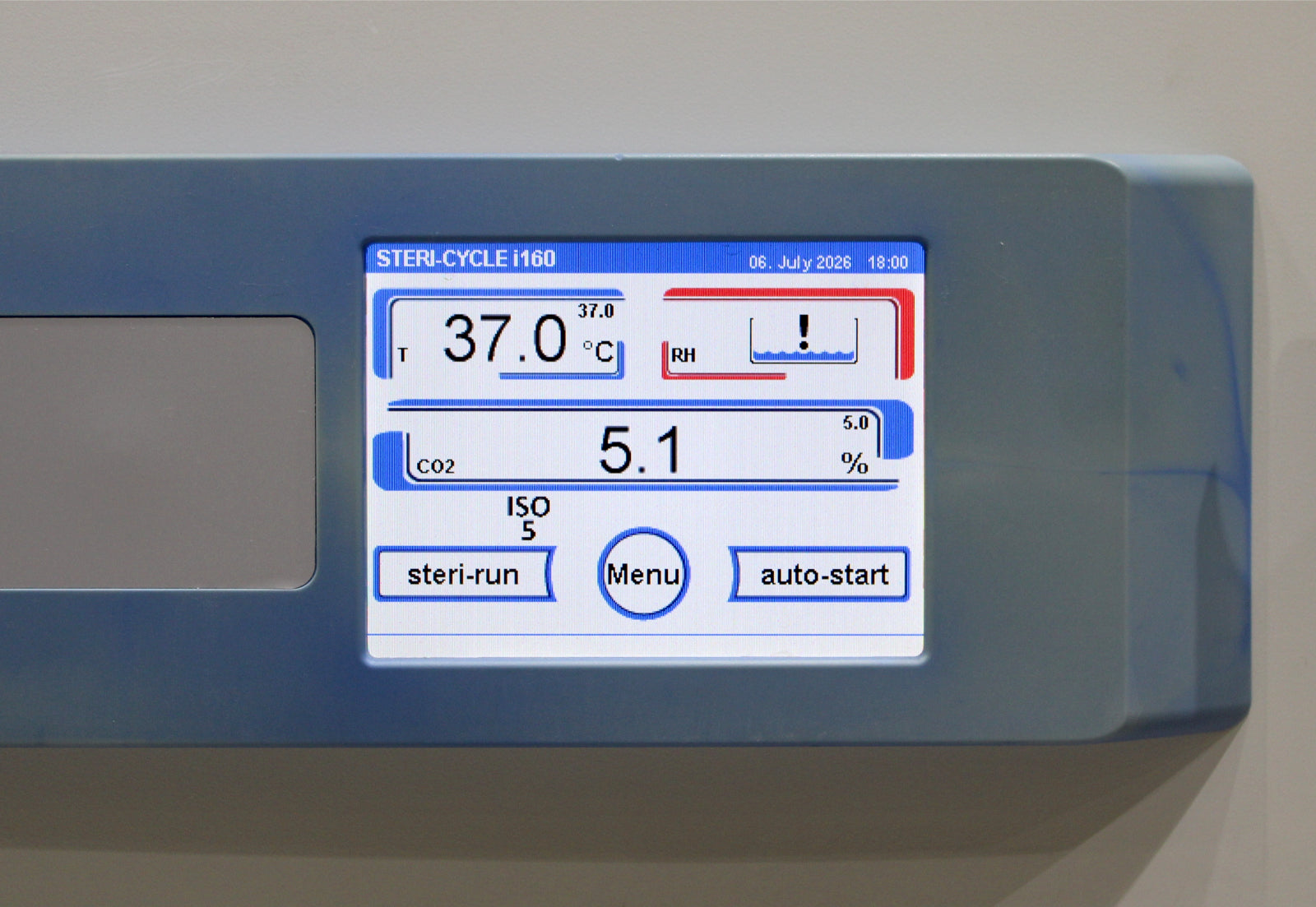

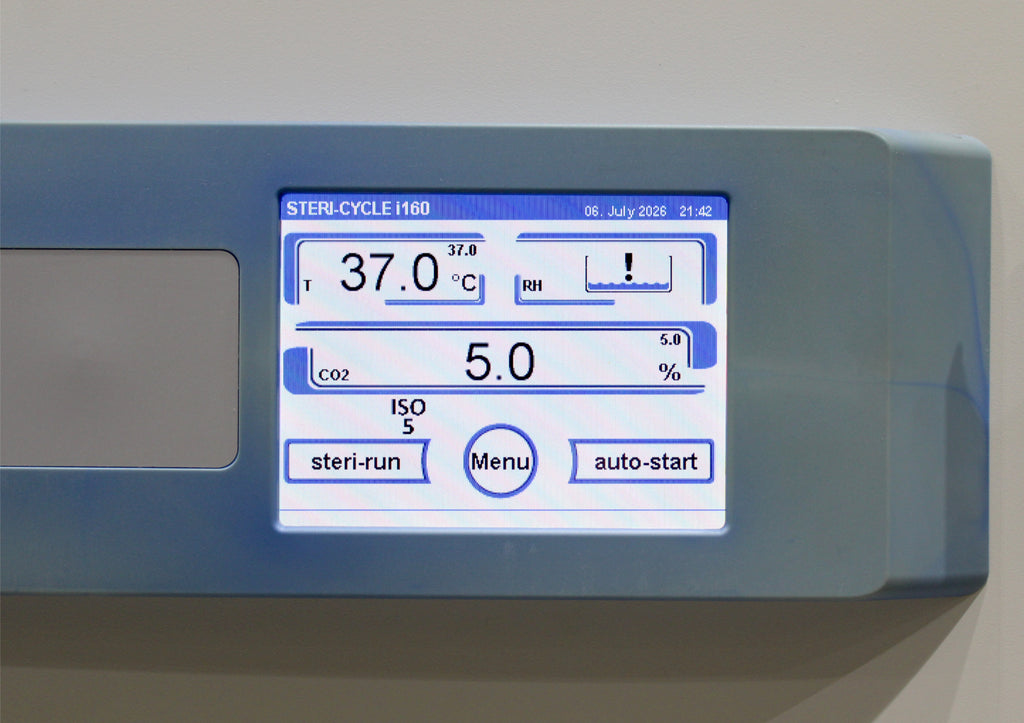

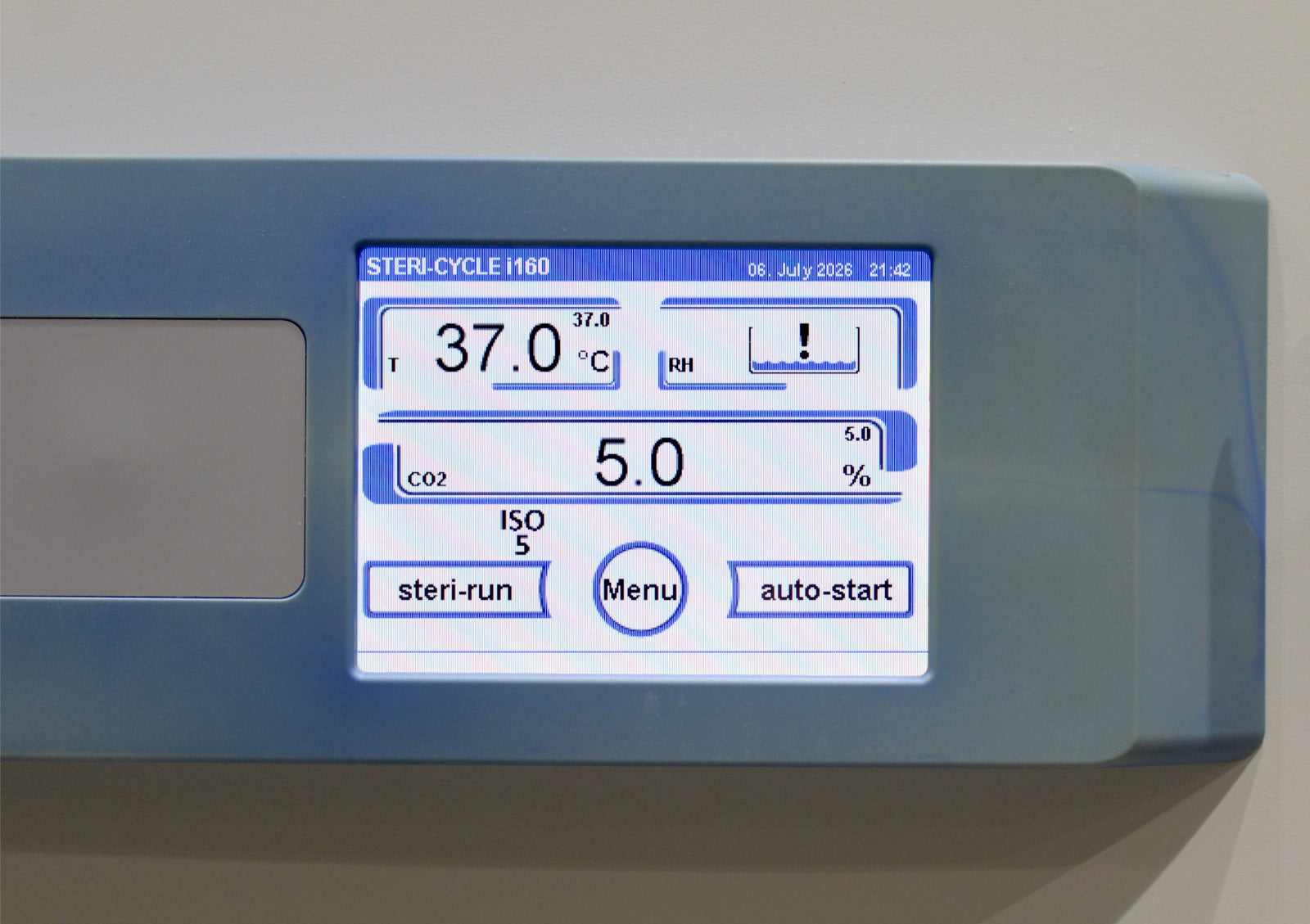

- Temperature holds steady at 37°C setpoint: PASSED
- Temperature calibration: PASSED
- CO2 concentration reading holds steady at 5% setpoint: PASSED
- CO2 concentration reading calibration: PASSED

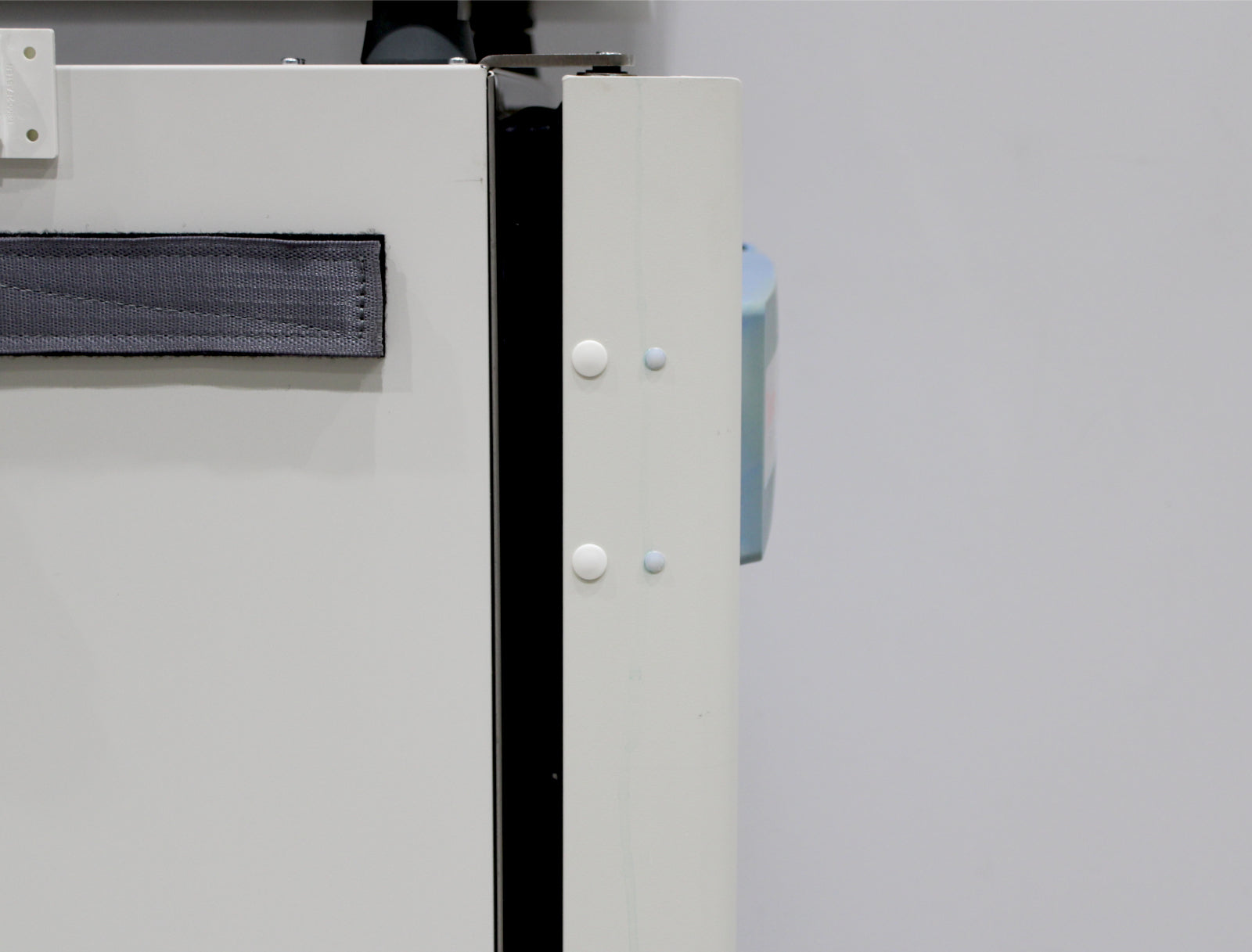

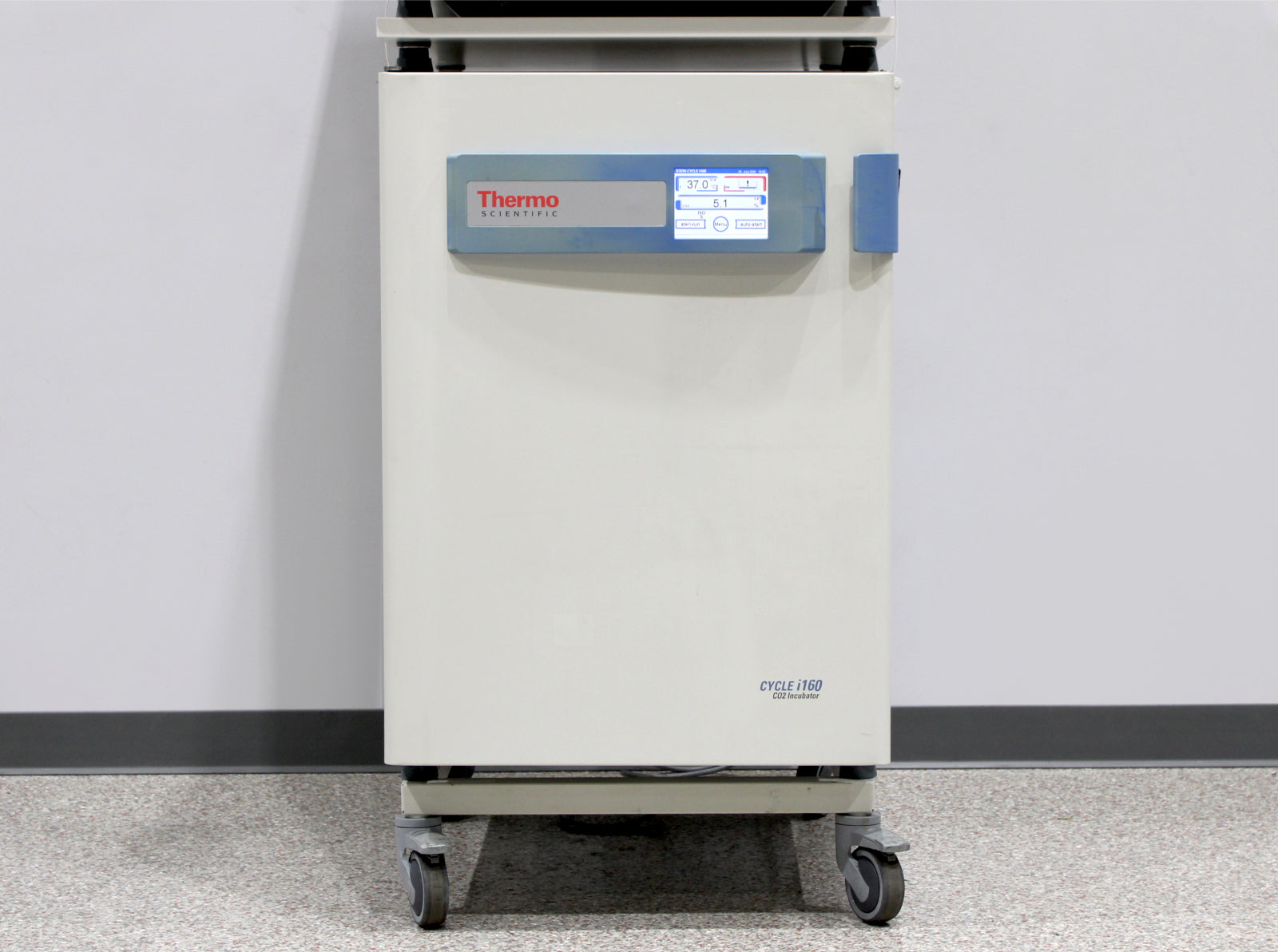

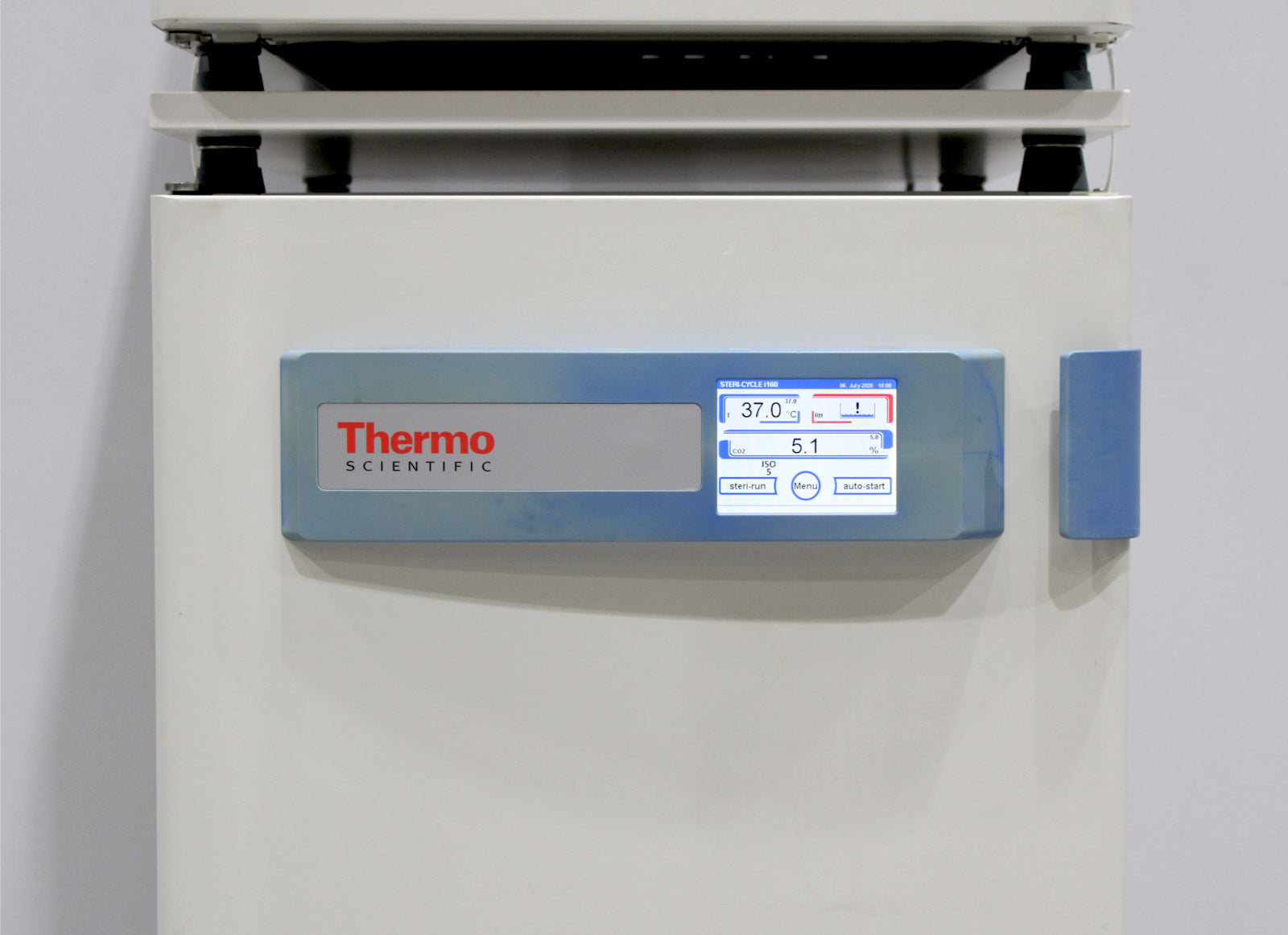

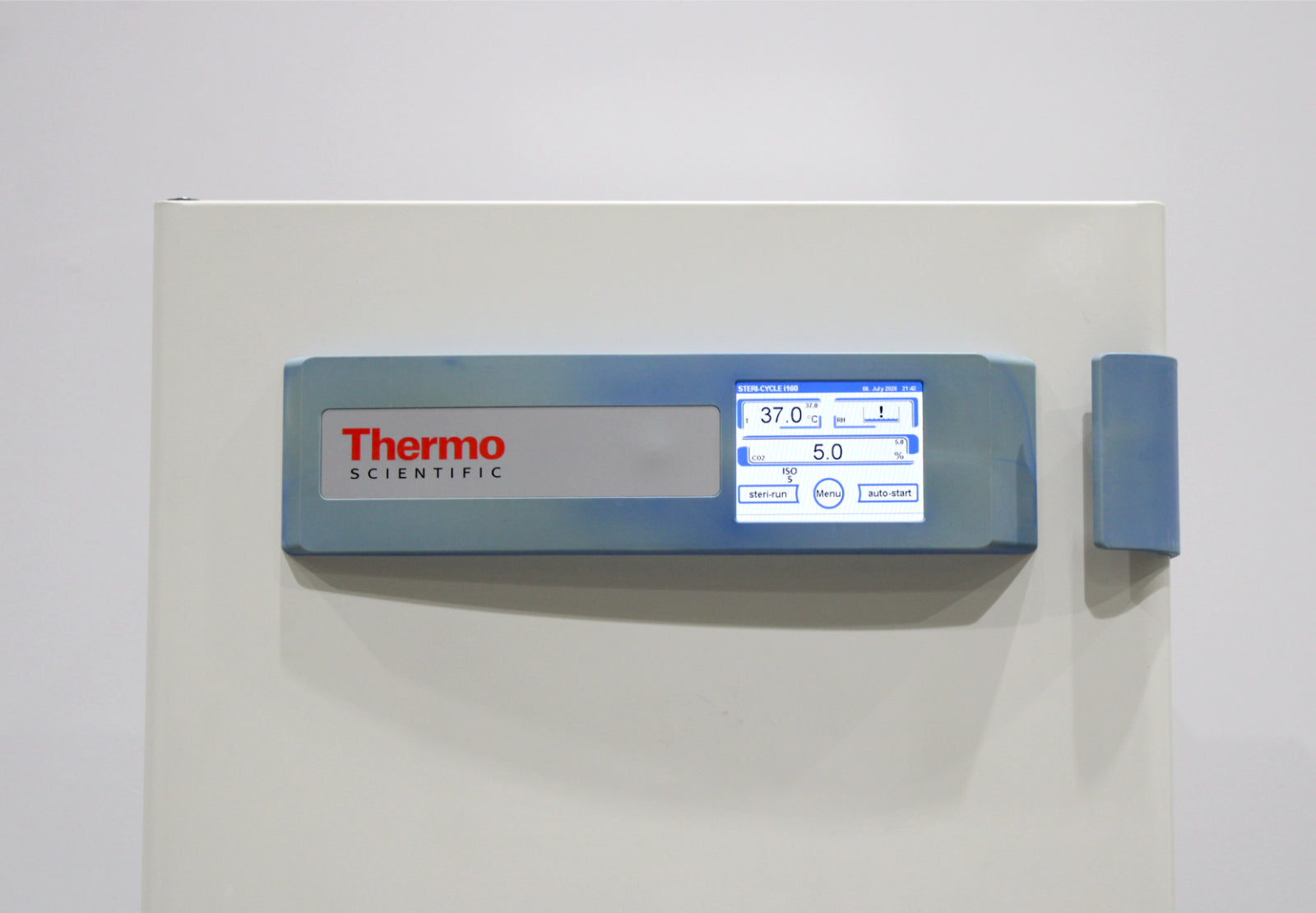

Notice: These incubators have some cosmetic blemishes, most notable being the discoloration on the control panel and the light blue stains on the stacking platform and down the left side of the bottom incubator. Please review the available photos to see the physical condition before purchasing.
|
Manufacturer
|
Thermo Fisher Scientific
|
|
Type
|
Forma Steri-Cycle i160
|
|
Order code
|
51030532
|
|

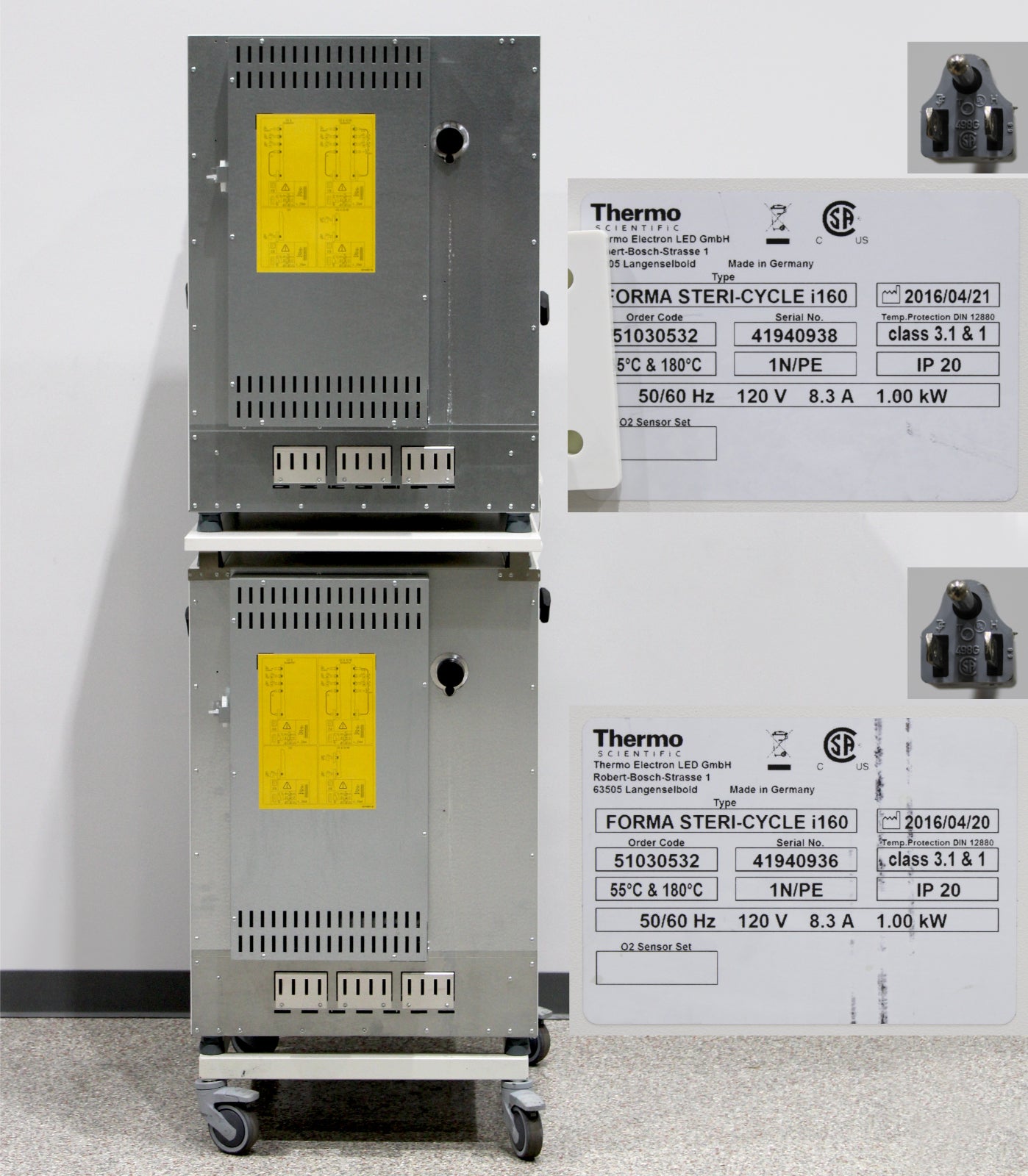

Serial No. (Mfg. date)
|
41940938 (2016/04/21)
41940936 (2016/04/20)
|
|
Chamber volume
|
5.8 cu.ft. (165L)
|
|
Temperature range
|
3°C above ambient to 55°C
|
|
Temperature control
|
±0.1°C
|
|
Temperature uniformity
|
<±0.3°C
|
|
Relative humidity
|
≥ 93% @ 37°C
|
|
Humidity reservoir
|
Max. 3L / min 0.5L
|
|
CO2 sensor technology
|
IR Sensor
|
|
CO2 control
|
±0.1%
|
|
CO2 range
|
1-20%
|
|
CO2 tracking alarm
|
±1%
|
|
CO2 inlet pressure
|
12-15 PSI (0.8-1.0 bar)
|
|
CO2 gas purity
|
min. 99.5 or medical quality
|
|
CO2 inlet
|
⅛” hose (barbed)
|
|
Sterilization cycle temperature
|
180°C on all internal surfaces
|
|
Sterilization cycle duration
|
Under 12 hours
|
|
Shelf dimensions (W x D)
|
16.7 x 18.3 in (42.3 x 46.5 cm)
|
|
Shelf number standard/maximum
|
3/10
|
|
Max. load per shelf/total load
|
22/66 lbs (10/30 kg)
|
|
Shelves construction
|
Perforated, adjustable
|
|

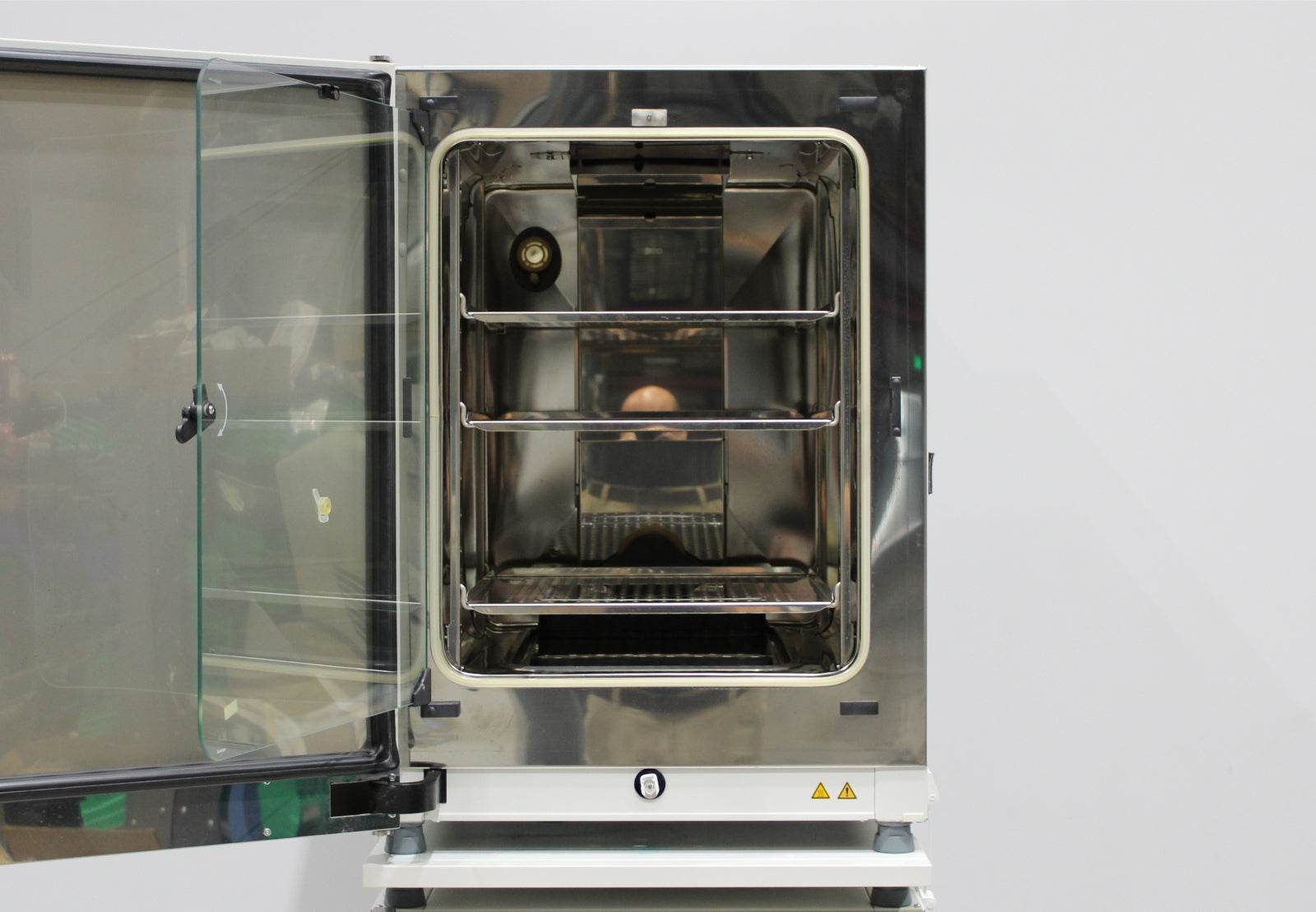

Interior chamber material
|
Electropolished stainless steel
|
|
Exterior chamber material
|
18 gauge (1 mm), cold-rolled steel, powder coated
|
|
Access port
|
42 mm diameter
|
|

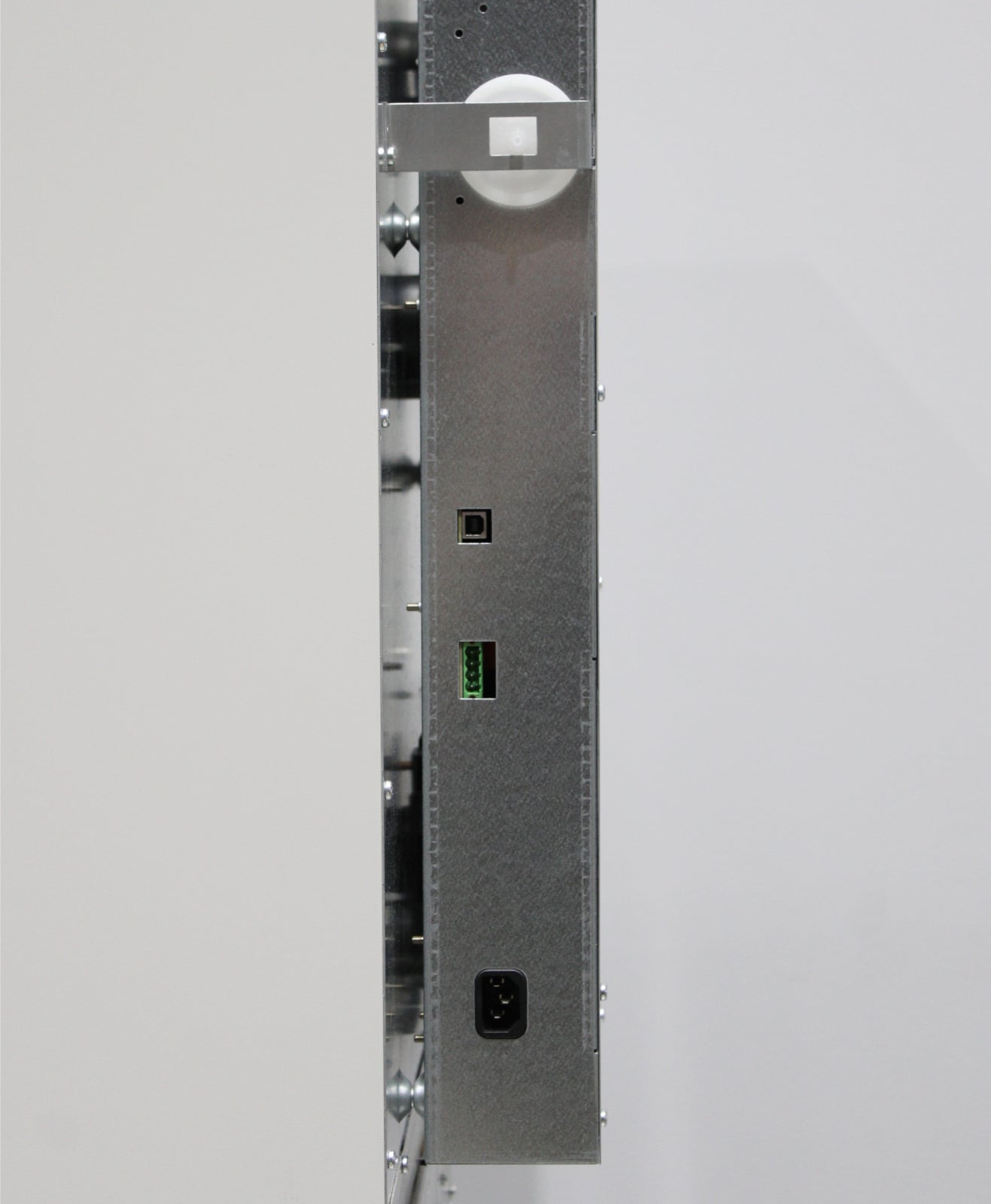

Data outputs
|
Remote alarm contacts, USB
|
|
Power rating
|
120V, 50/60Hz, 8.3A
|
|
Power consumption
|
1.00 kW
|
|
Interior dimensions (W x D x H)
|
18.5 x 22.7 x 23.9 in (47 x 57.6 x 60.7 cm)
|
|
Exterior dimensions single (W x D x H)
|
25.1 x 34.6 x 35.4 in (63.7 x 88 x 90 cm)
|
|
Exterior dimensions double (W x D x H)
|
25.1 x 34.6 x 80 in (63.7 x 88 x 203.2 cm)
|
|
Approx. weight single (without accessories)
|
183 lb (83 kg)
|
|
Approx. weight double (without accessories)
|
395 lb (179 kg)
|
