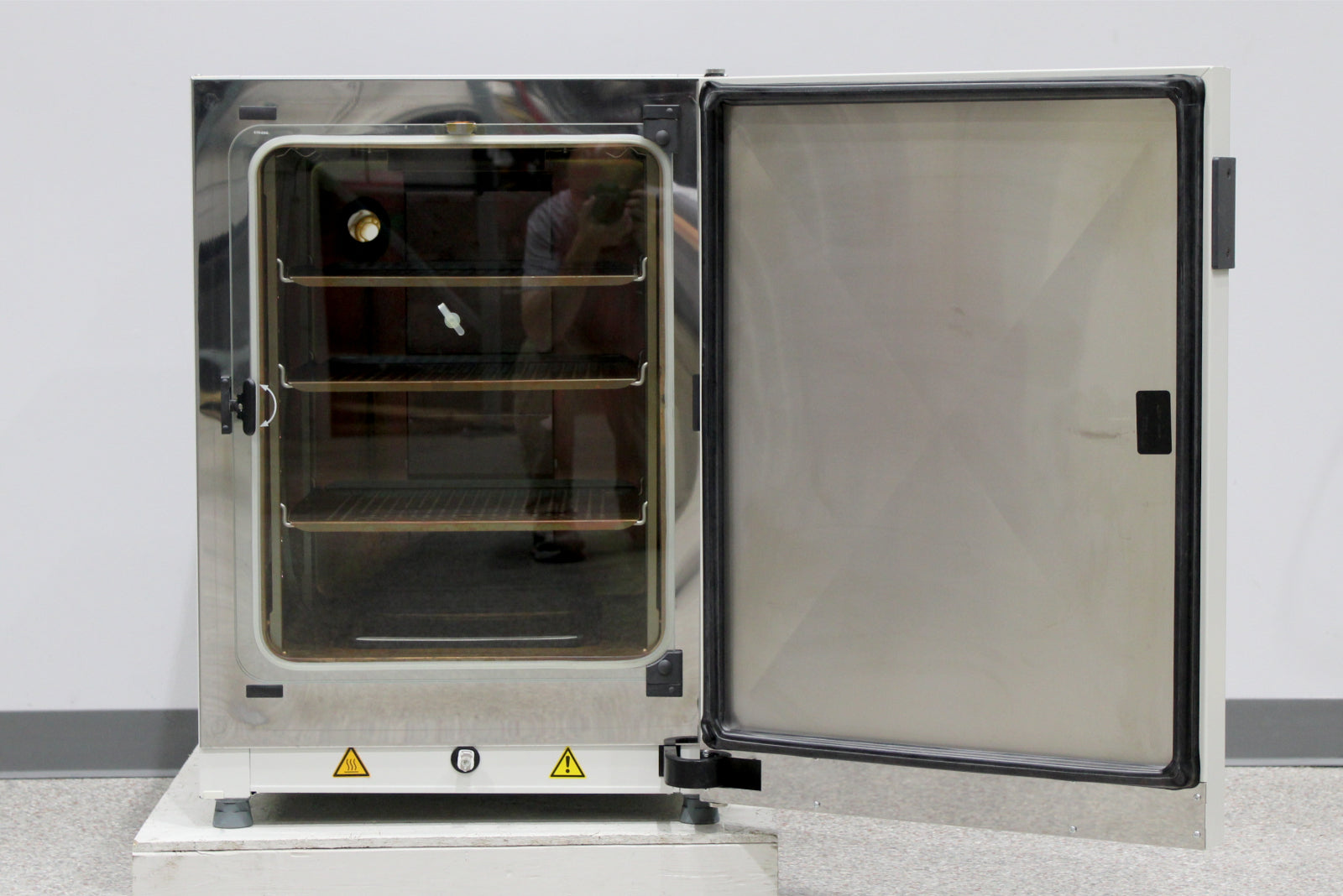

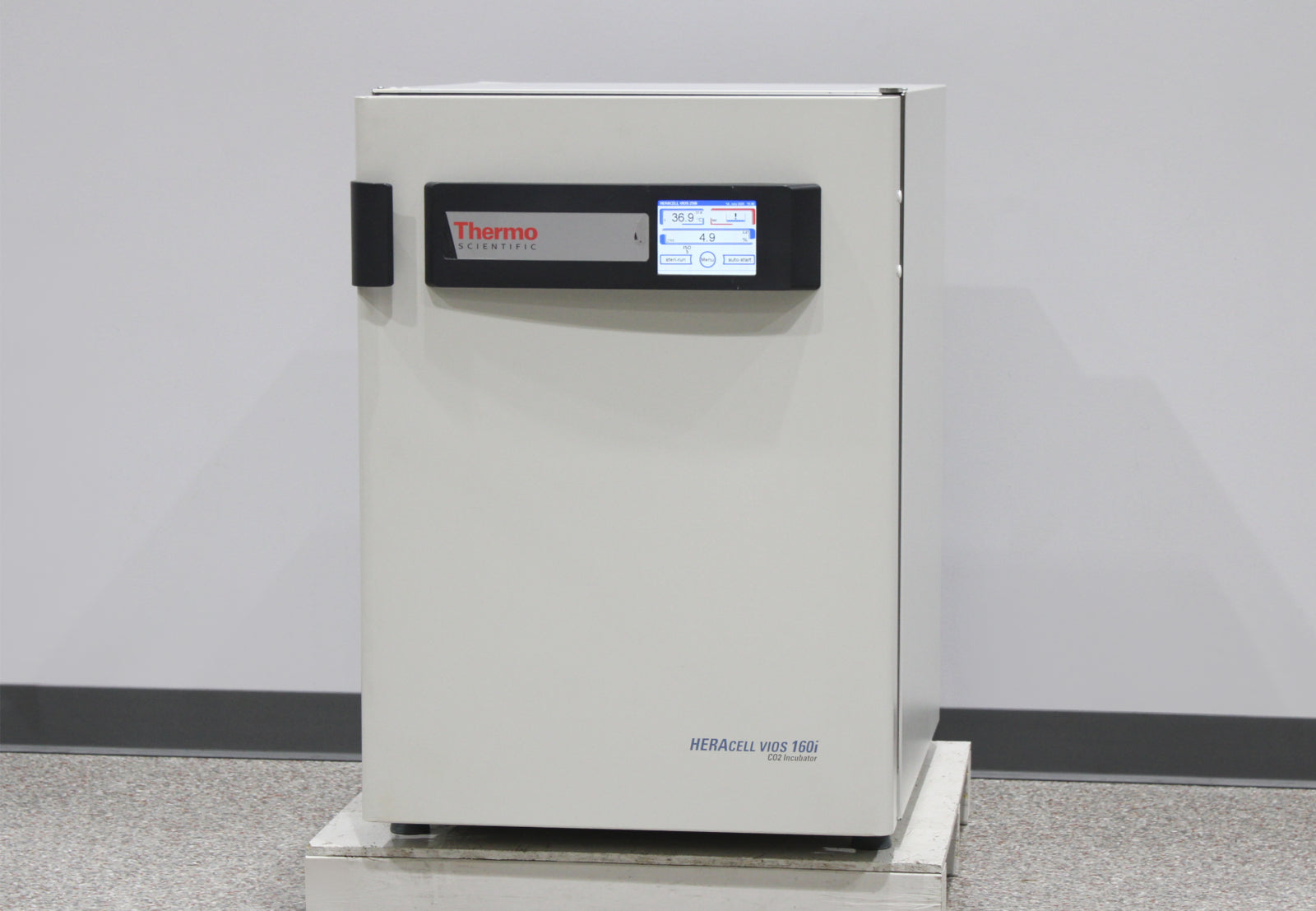

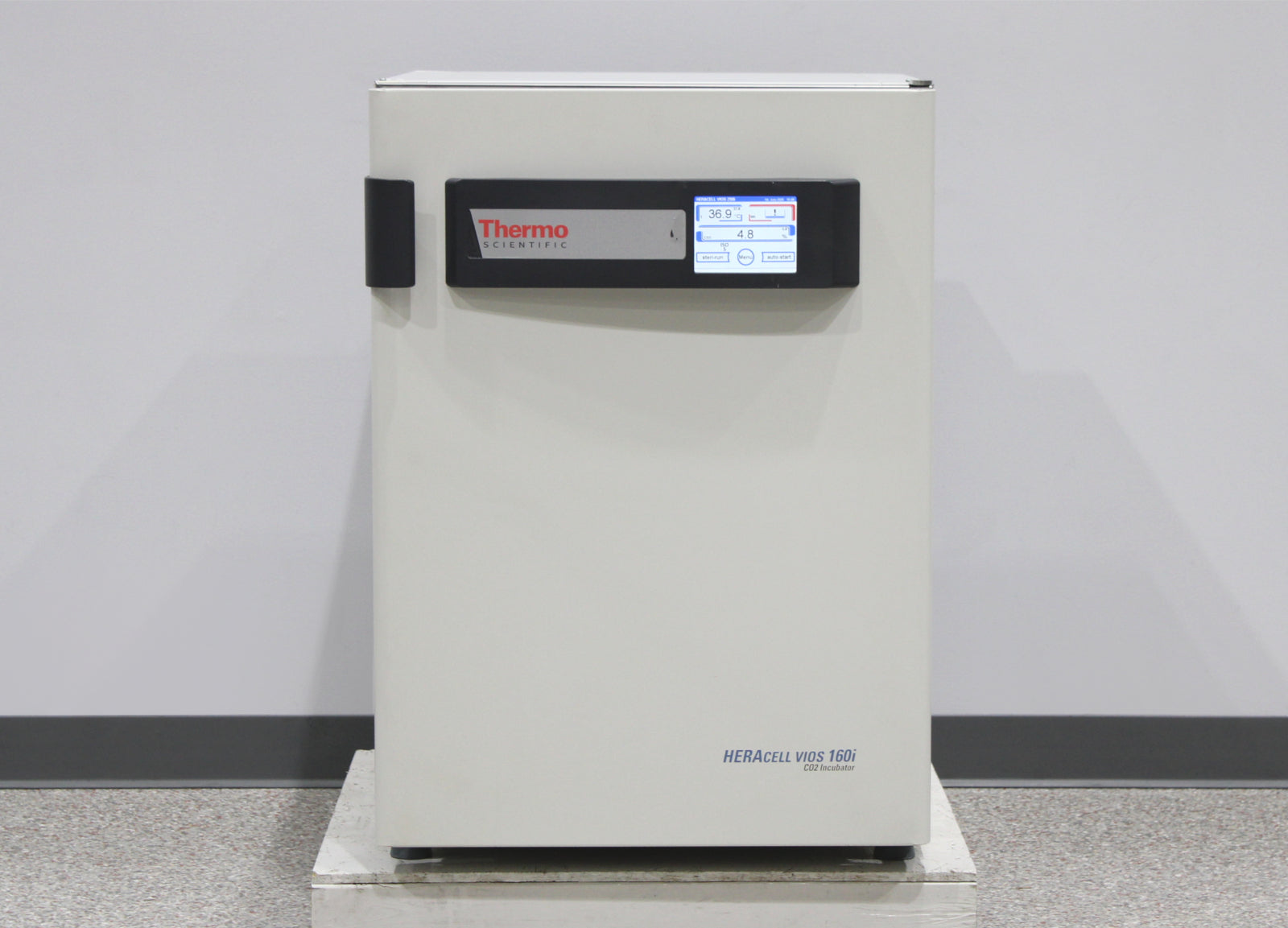

- Thermo Scientific HERAcell vios 160i Copper Lined CO2 Incubator (51030284)

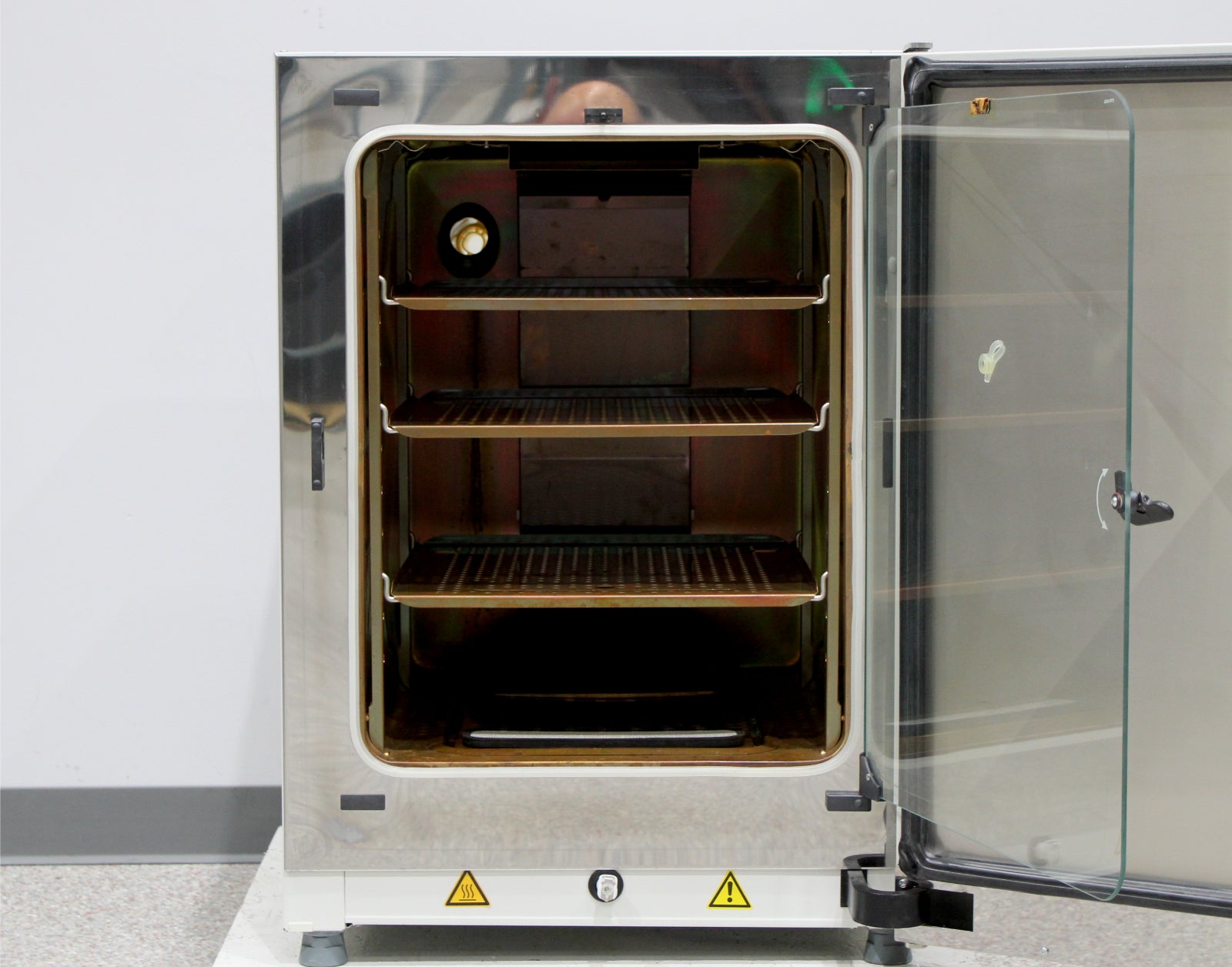

- x3 Adjustable Copper Shelves
- Power Cable
- 90-Day Warranty
After its initial disinfection and inspection, our technicians tested the Thermo Scientific HERAcell vios 160i CO2 incubator with the following results:

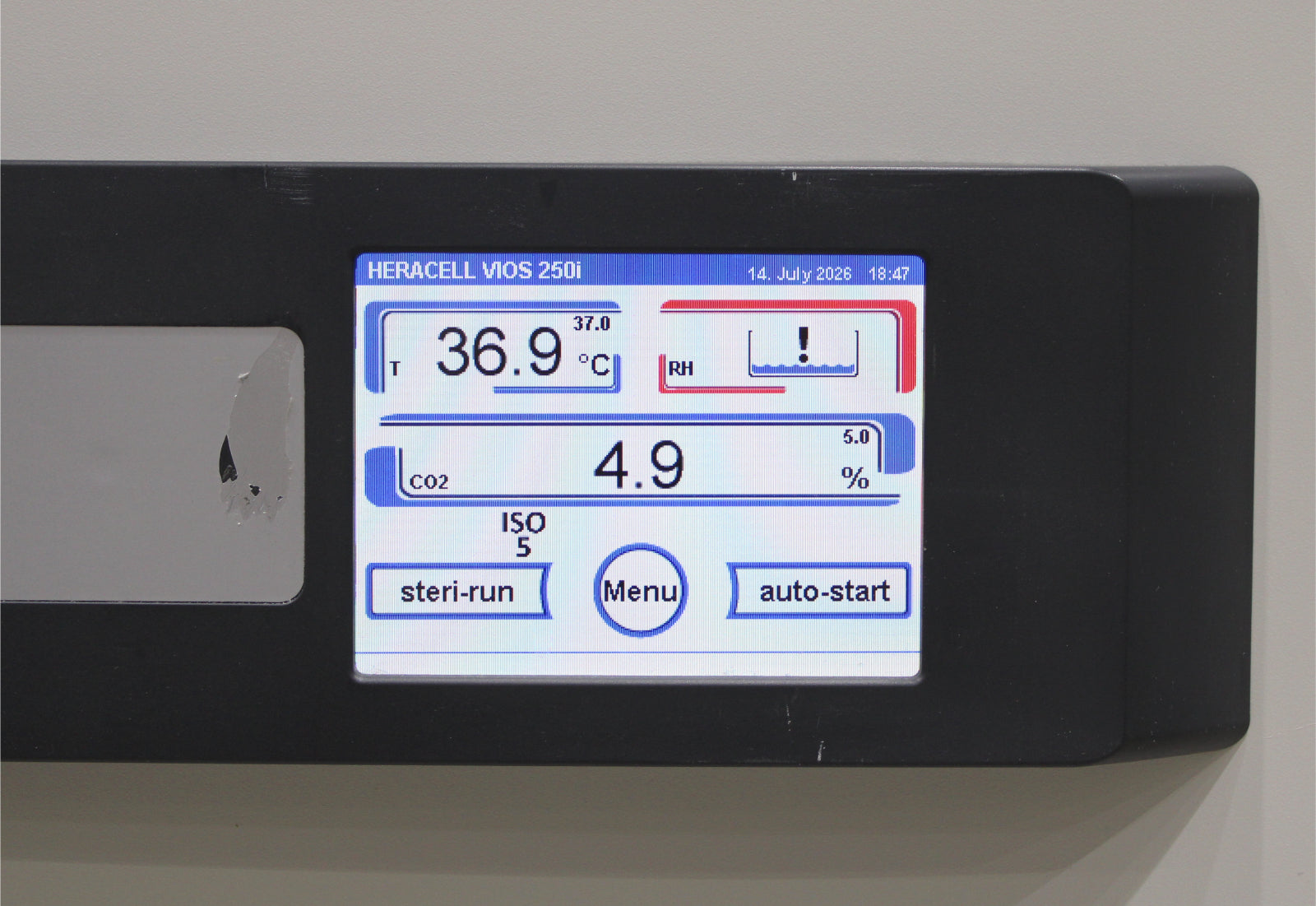

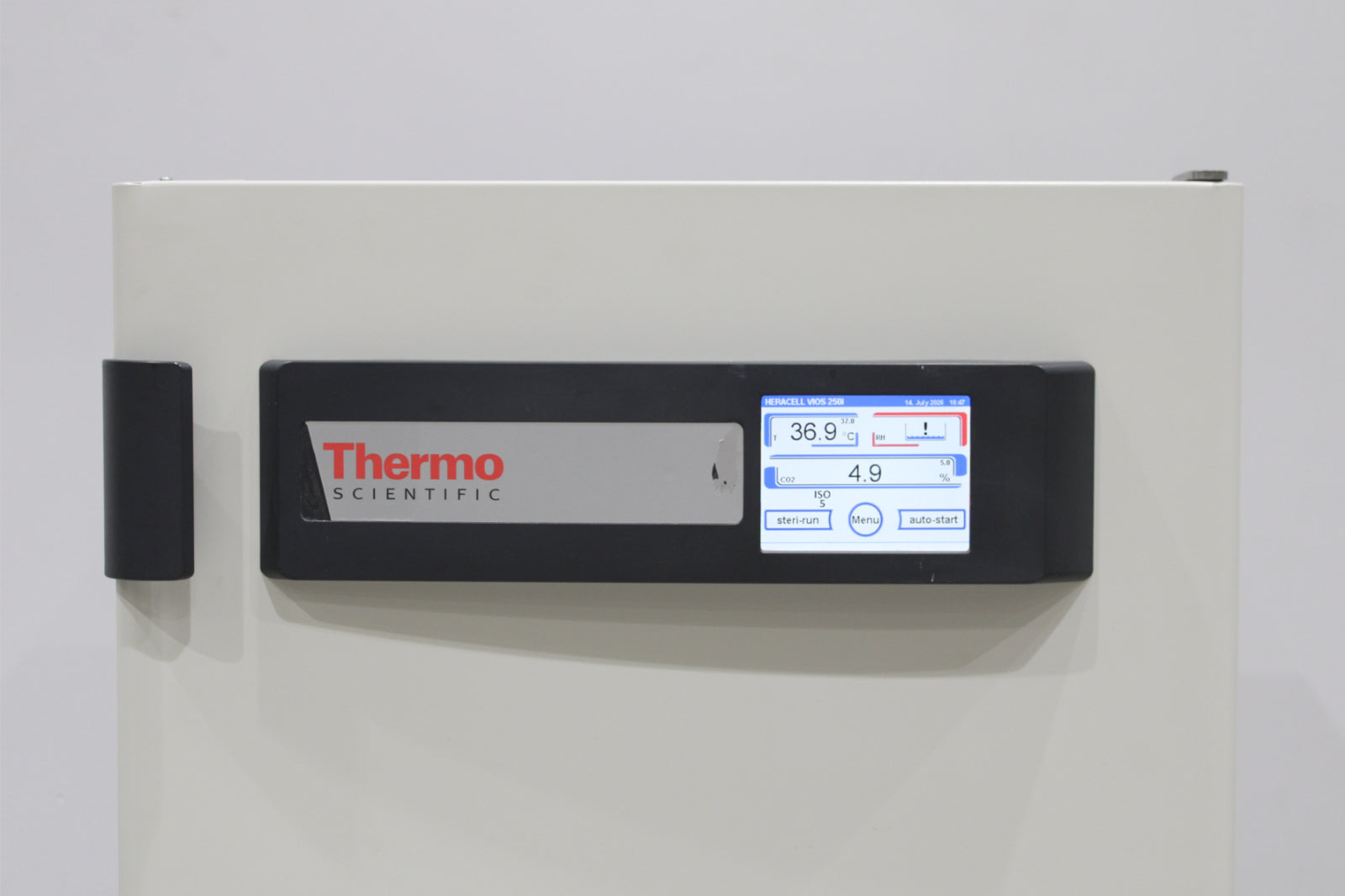

- Temperature held steady at 37°C setpoint: PASSED
- Temperature reading calibration: PASSED
- CO2 concentration held steady at 5% setpoint: PASSED
- CO2 concentration reading calibration: PASSED

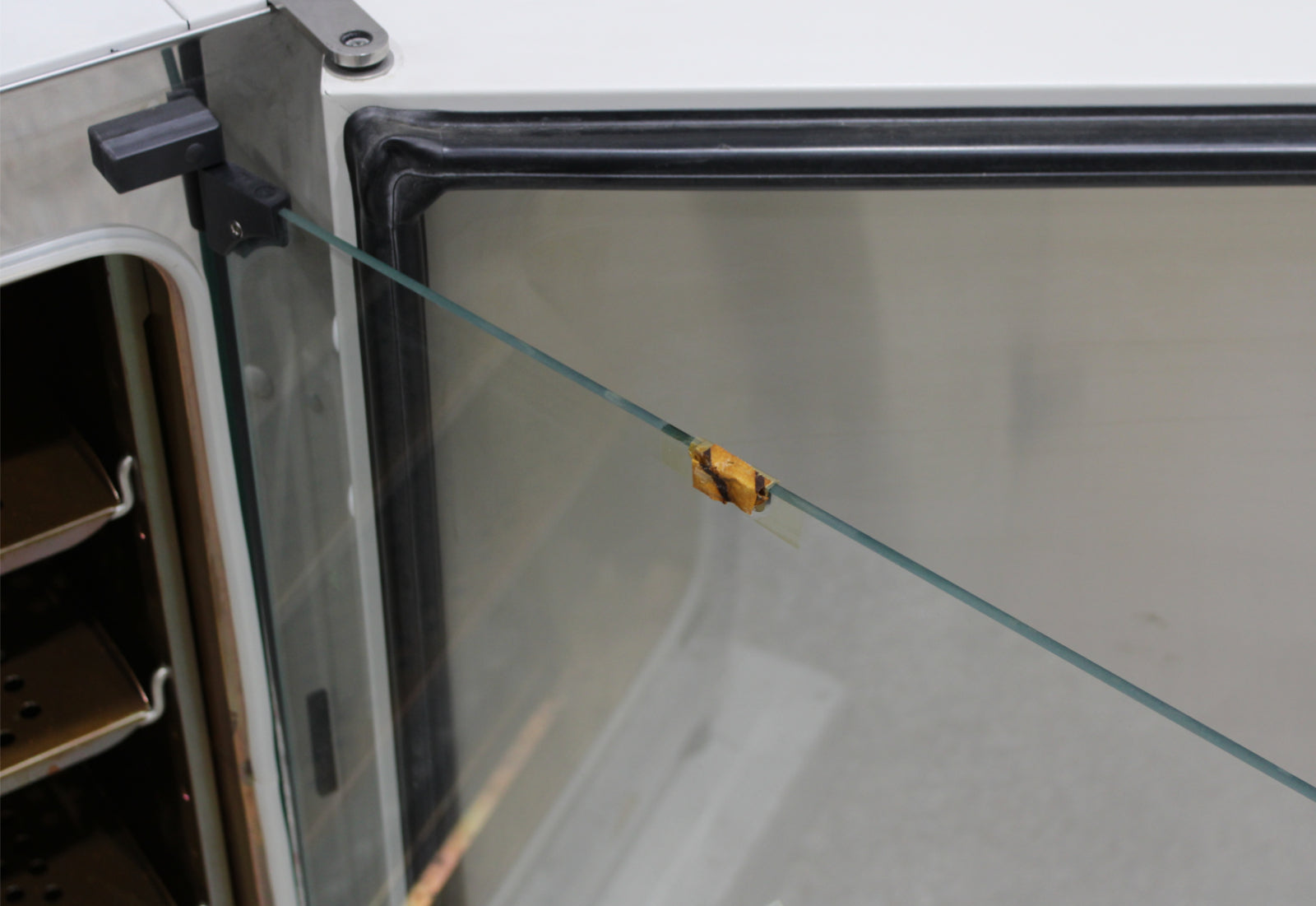

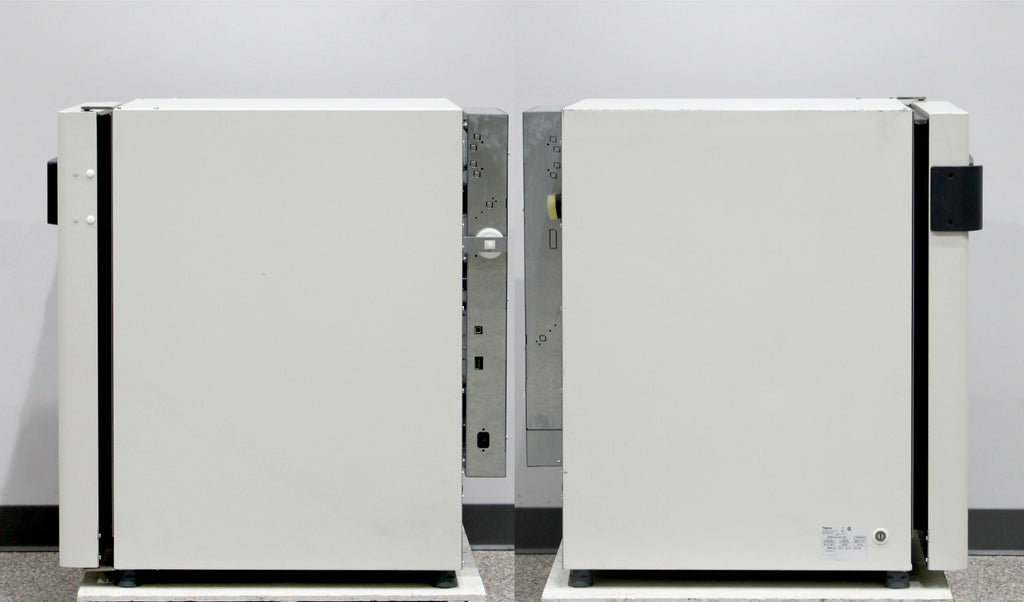

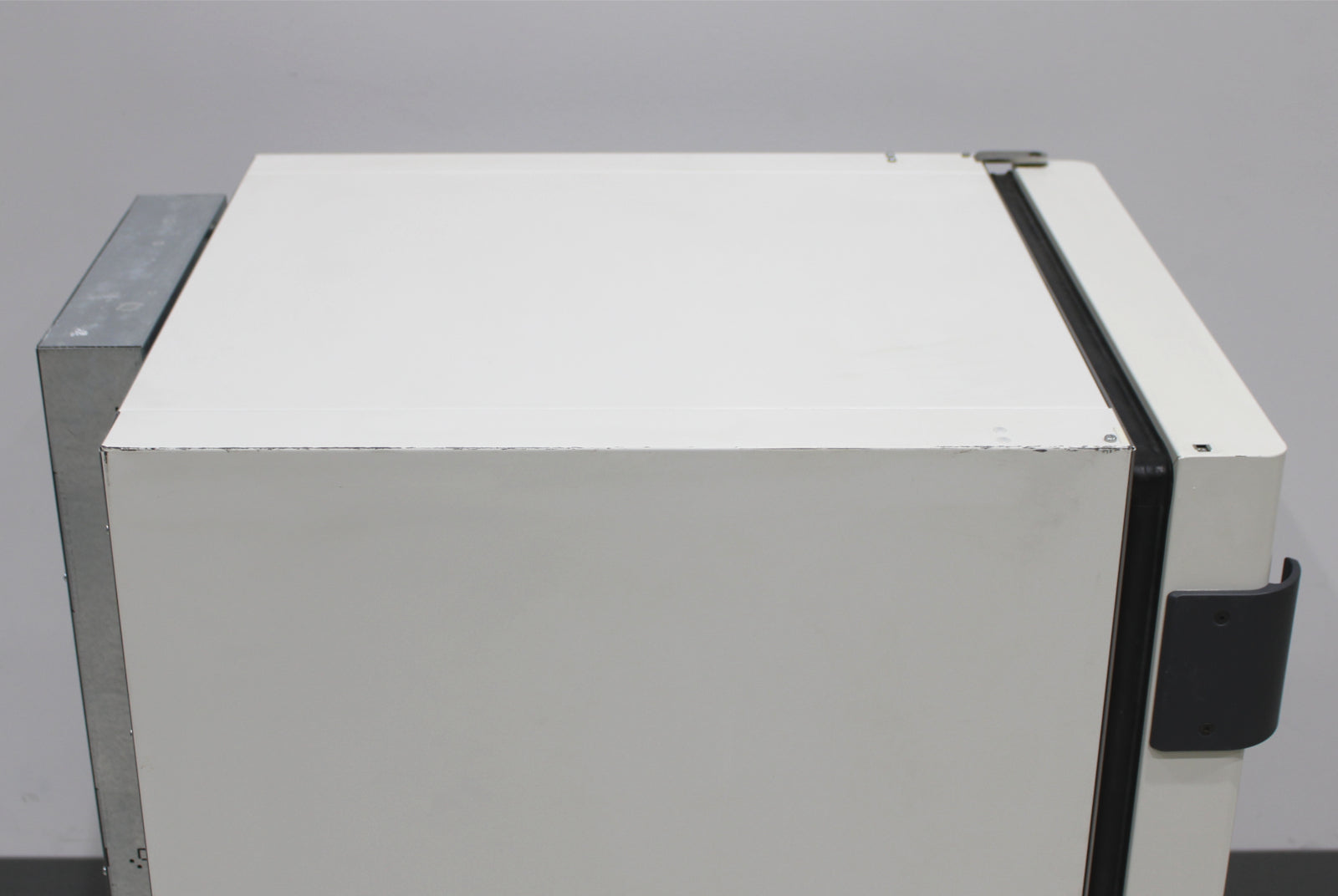

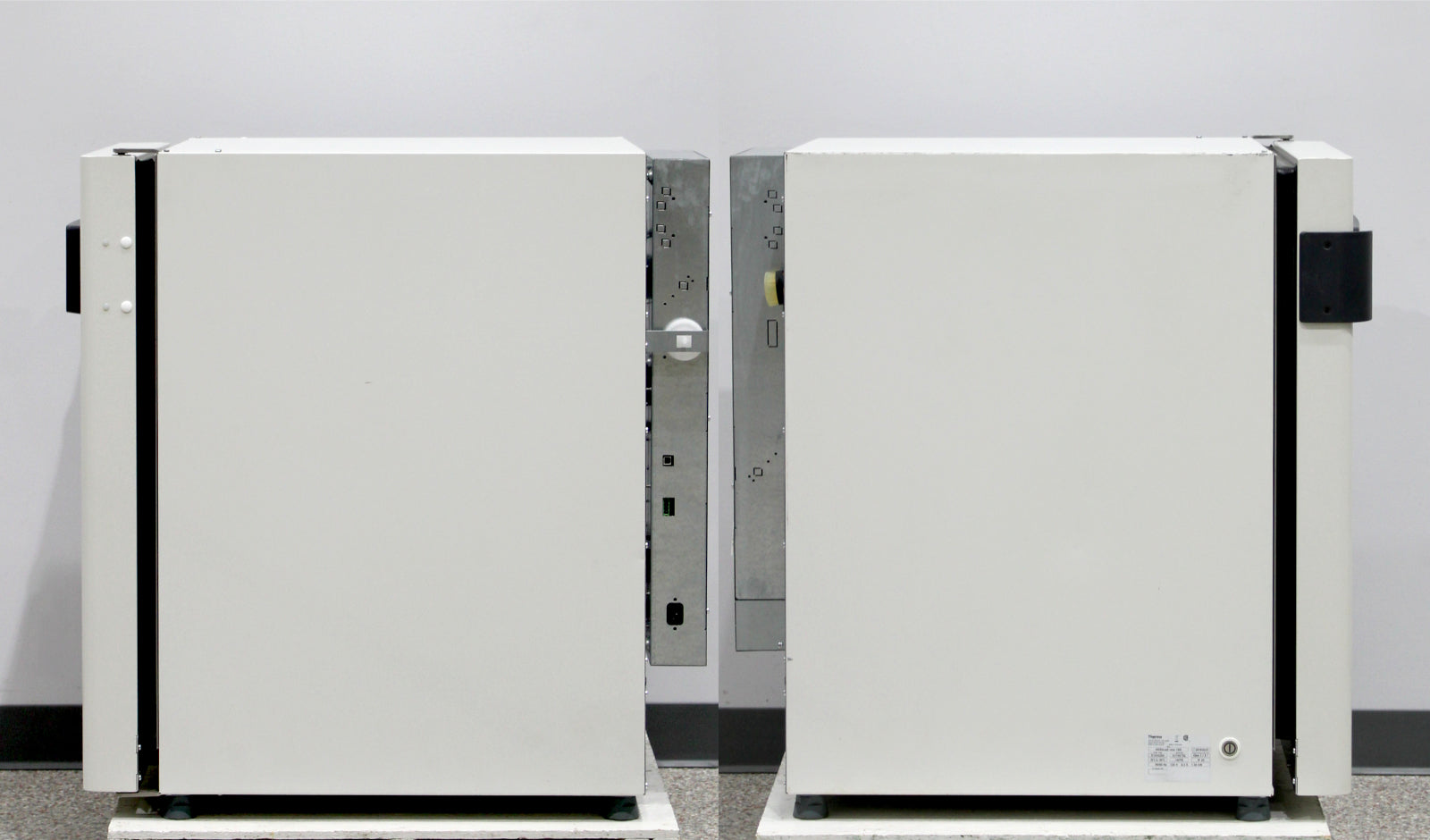

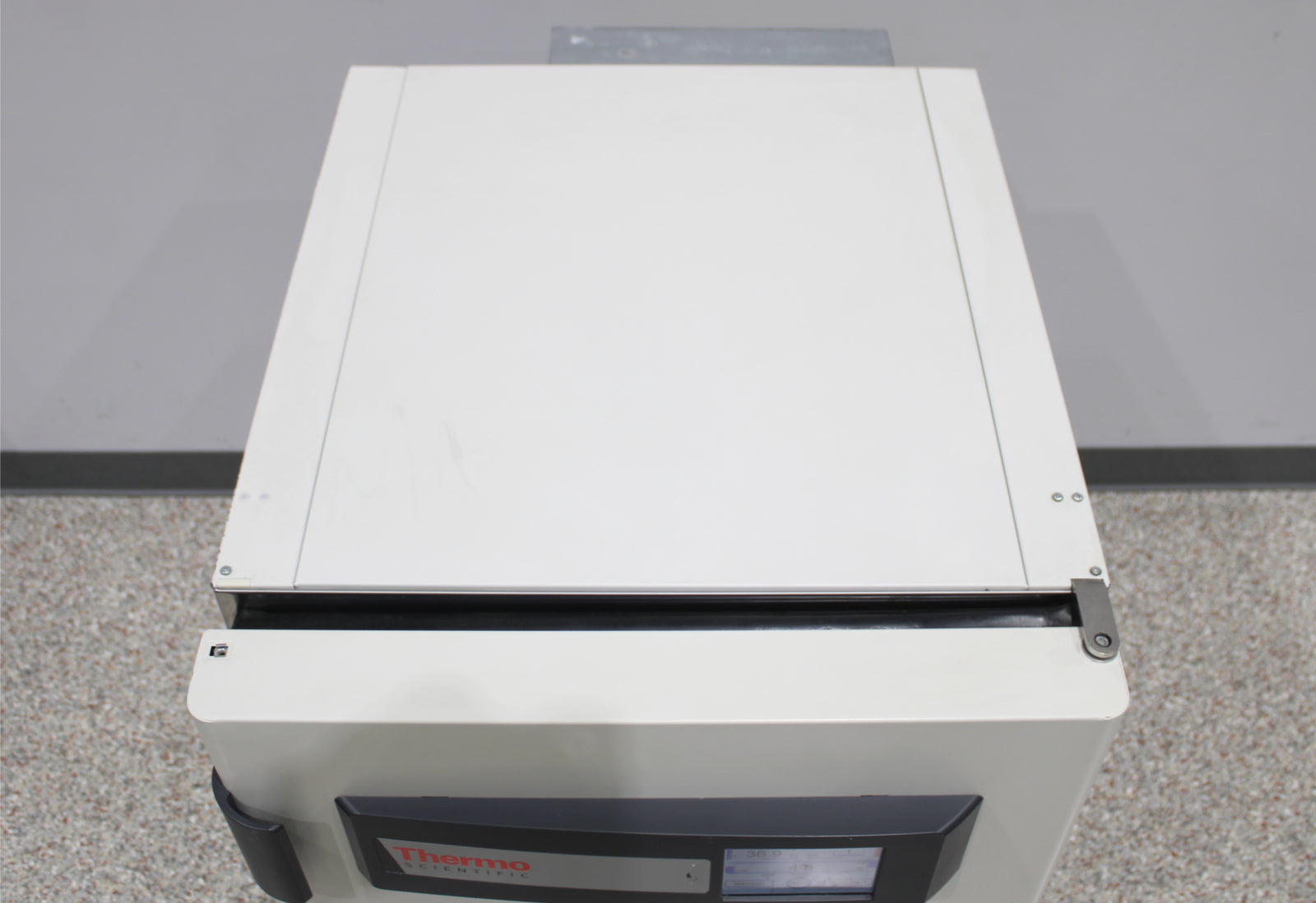

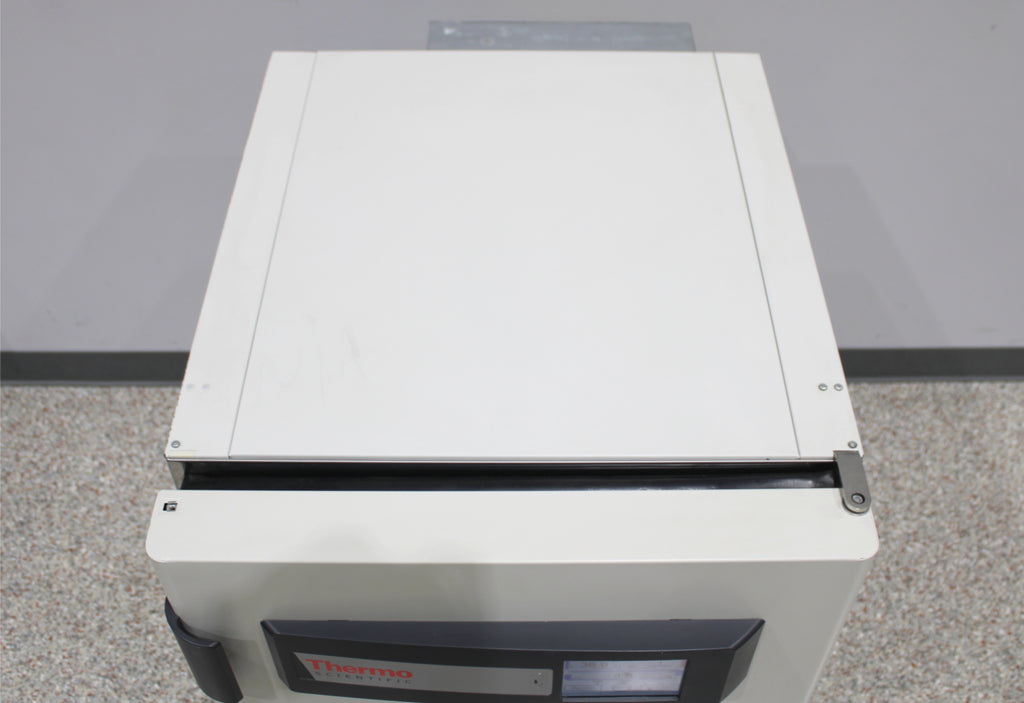

Notice: This incubator has some cosmetic blemishes. Please review the available photos to see the physical condition before purchasing.
|

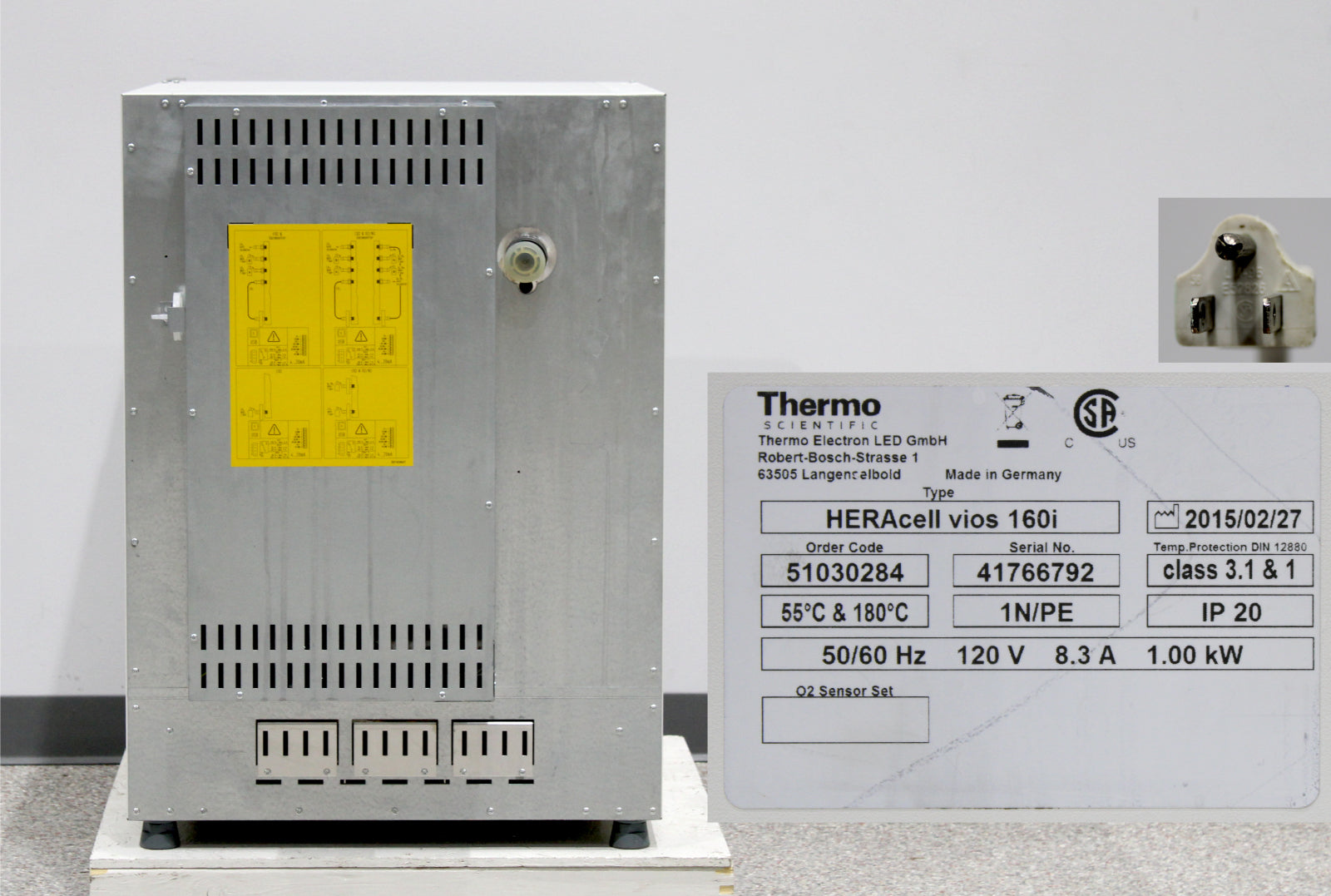

Manufacturer
|
Thermo Scientific
|
|
Model
|
HERAcell vios 160i
|
|
Mfg. No.
|
51030284
|
|
Serial No.
|
41766792
|
|
Mfg. date
|
2015/02/27
|
|
Chamber volume
|
165L (5.8 cu.ft.)
|
|
Temperature control
|
±0.1°C
|
|
Temperature range
|
3°C above ambient to 55°C
|
|
Temperature uniformity
|
< ±0.3°C
|
|
Temperature ambient range
|
18°C to 34°C
|
|
Temperature tracking alarm
|
±1°C
|
|
Sterilization cycle
|
180°C on all internal surface (duration under 12 hrs)
|
|
Relative humidity
|
> 93% at 37°C
|
|
Humidity reservoir
|
max. 3L / min 0.5L
|
|
CO2 sensor technology
|
TC sensor
|
|
CO2 control
|
±0.1%
|
|
CO2 range
|
1-20%
|
|
CO2 tracking alarm
|
±1%
|
|
CO2 inlet pressure
|
12-15 PSI (0.8-1.0 bar)
|
|
CO2 gas purity
|
min. 99.5 or medical quality
|
|
CO2 inlet
|
⅛” hose (barbed)
|
|
Shelves dimensions
|
16.7 x 18.3 in (423 x 465 mm)
|
|
Shelves number standard/max
|
3/10
|
|
Max. load per shelf/total load
|
22/66 lb (10/30 kg)
|
|

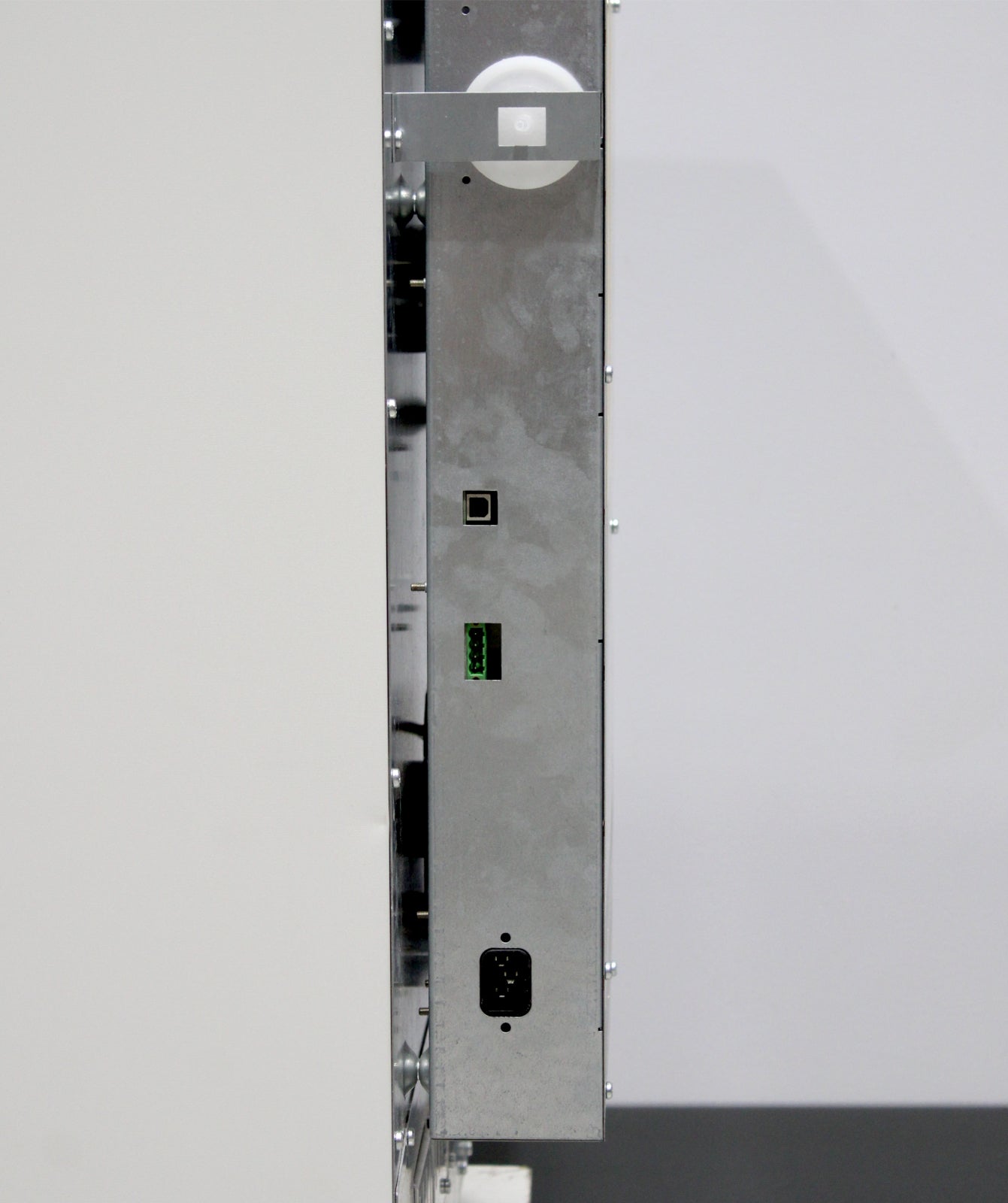

Data outputs
|
USB, and optional 4-20mA
|
|
Power rating
|
120V, 50/60Hz, 8.3A
|
|
Power consumption
|
1.00 kW
|
|
Interior dimensions (W x D x H)
|
18.5 x 22.7 x 23.9 in
|
|
Exterior dimensions (W x D x H)
|
25.1 x 35.4 x 34.6 in
|
|
Weight
|
183 lb (83 kg)
|
