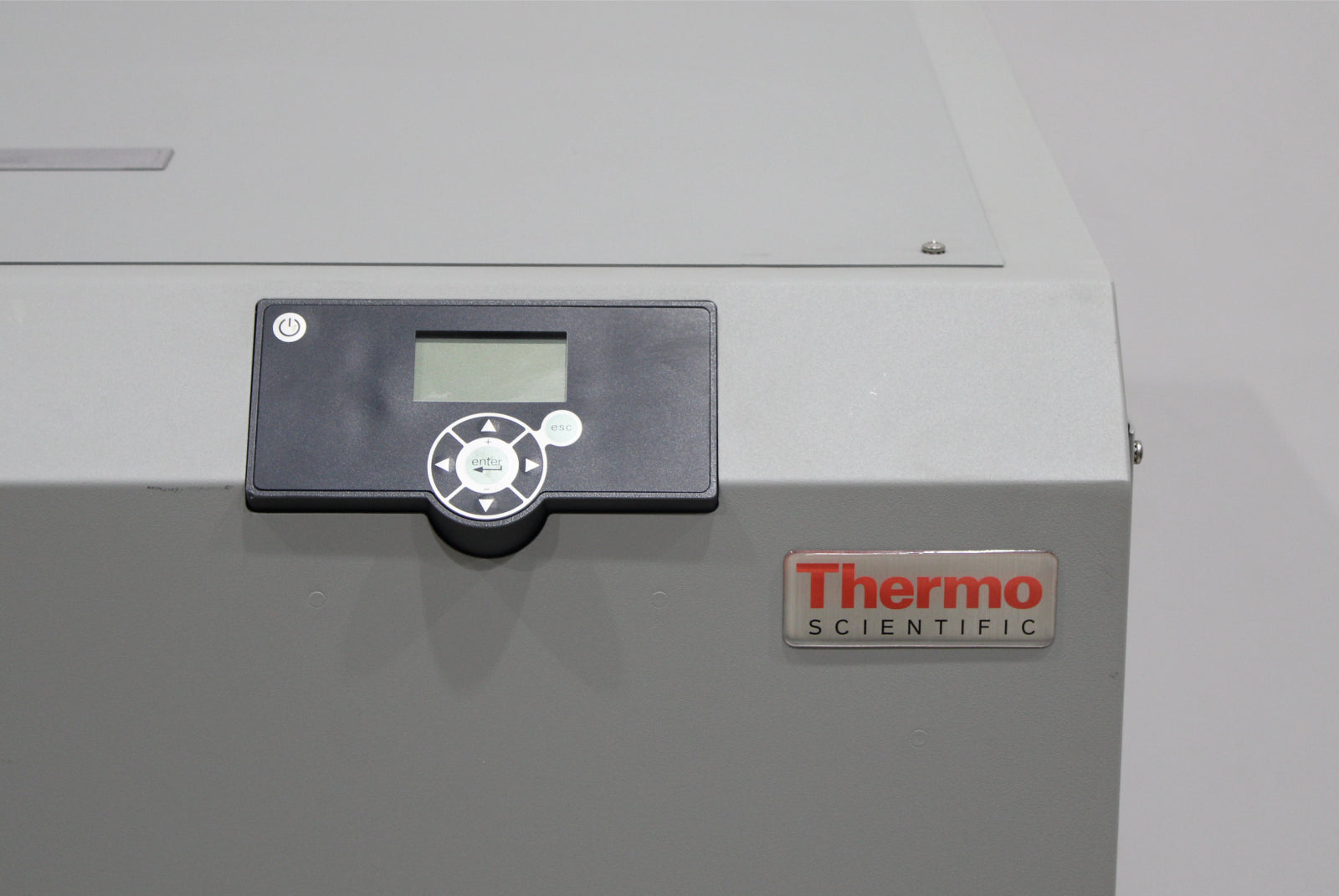

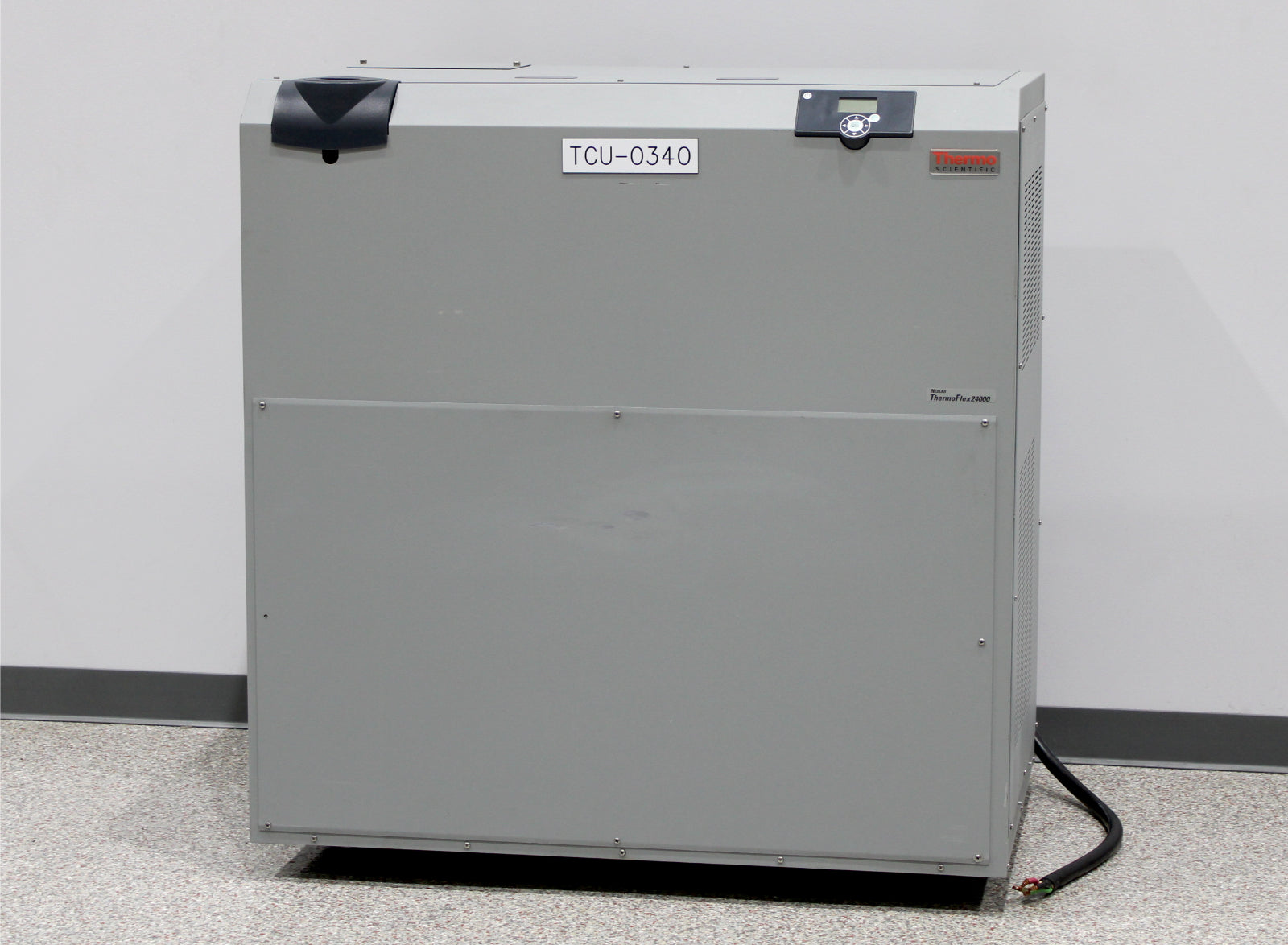

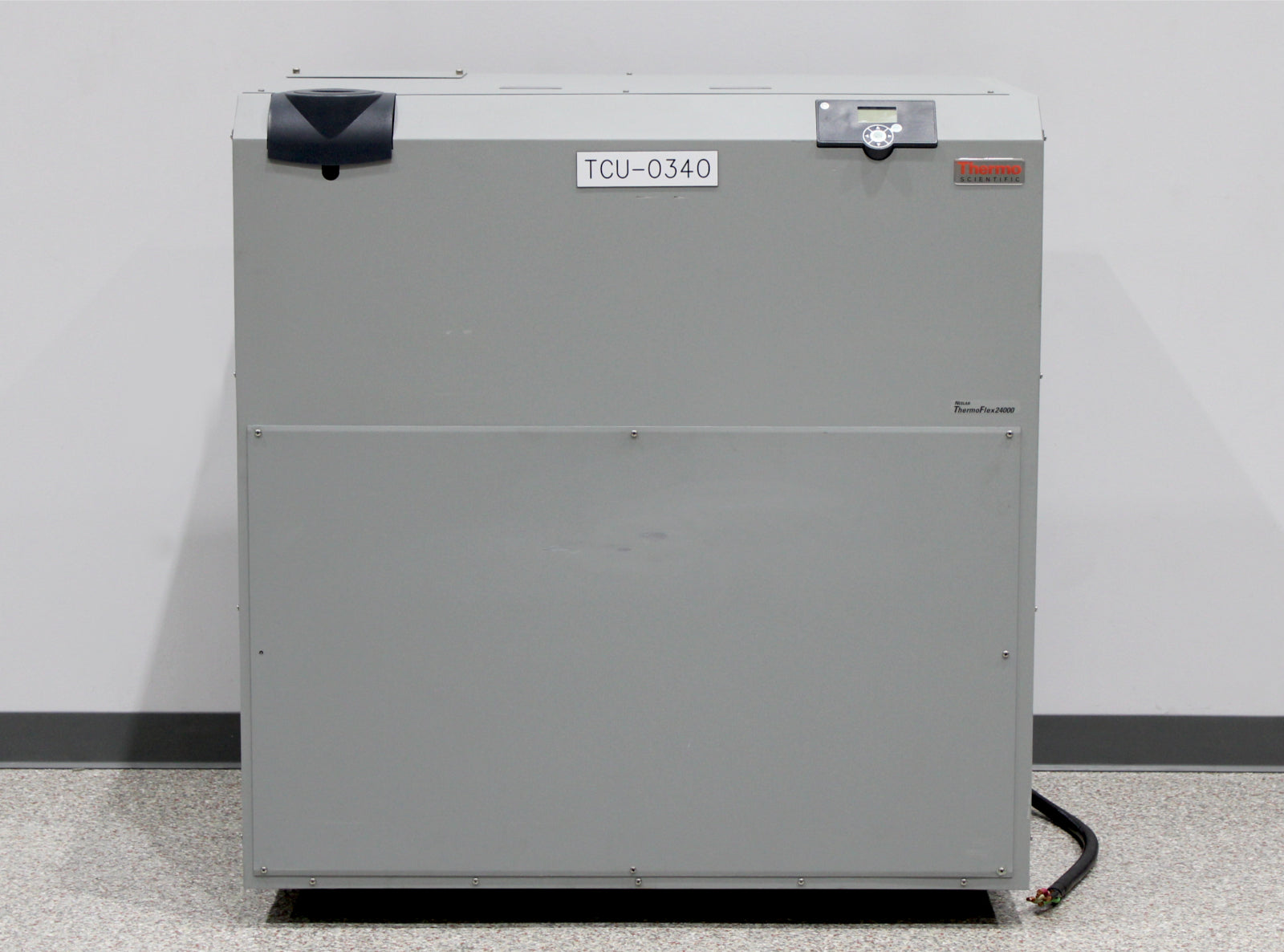

- Thermo Scientific NESLAB ThermoFlex 24000 Water-Cooled Recirculating Chiller with Digital Controller

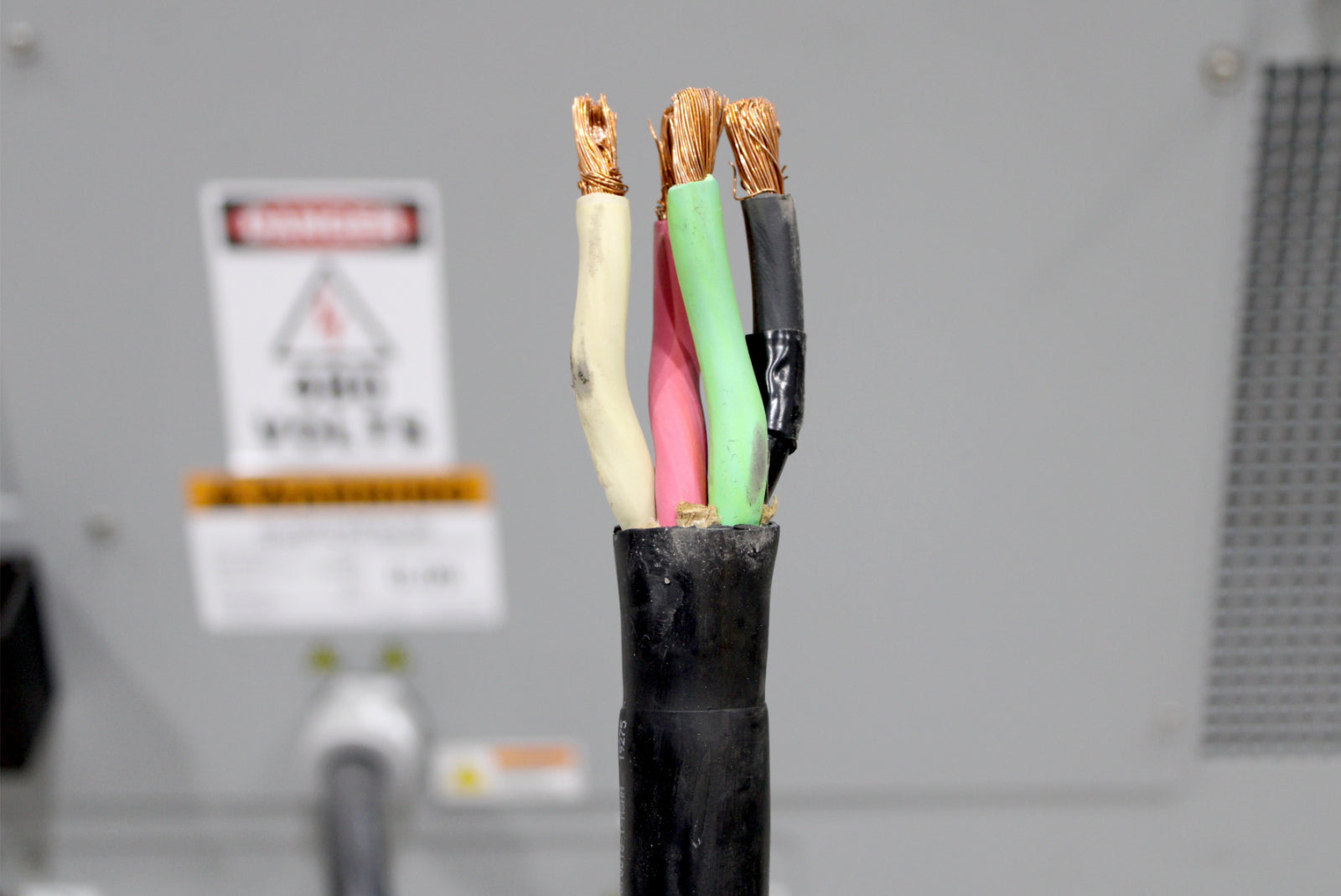

- Attached Power Cable (bare end/wire lead, no plug attached)
- 90-Day Warranty
- Power cable plug (buyer must wire/install a compatible high-voltage plug)
- Fluid hoses/process lines

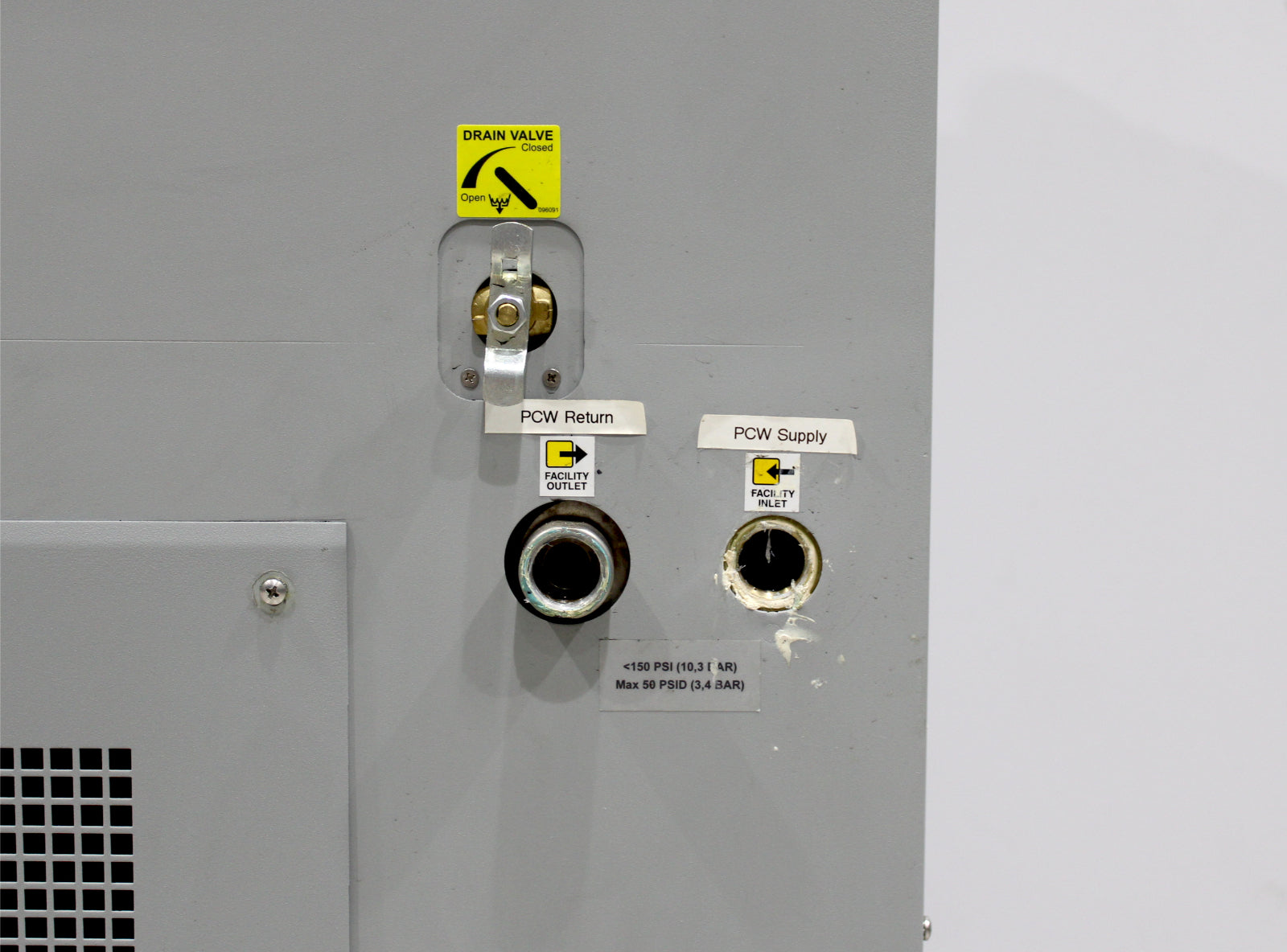

- Facility cooling water hookup fittings and supply
After its initial disinfection and inspection, our technicians tested the Thermo Scientific Neslab ThermoFlex 24000 recirculating chiller with the following results:

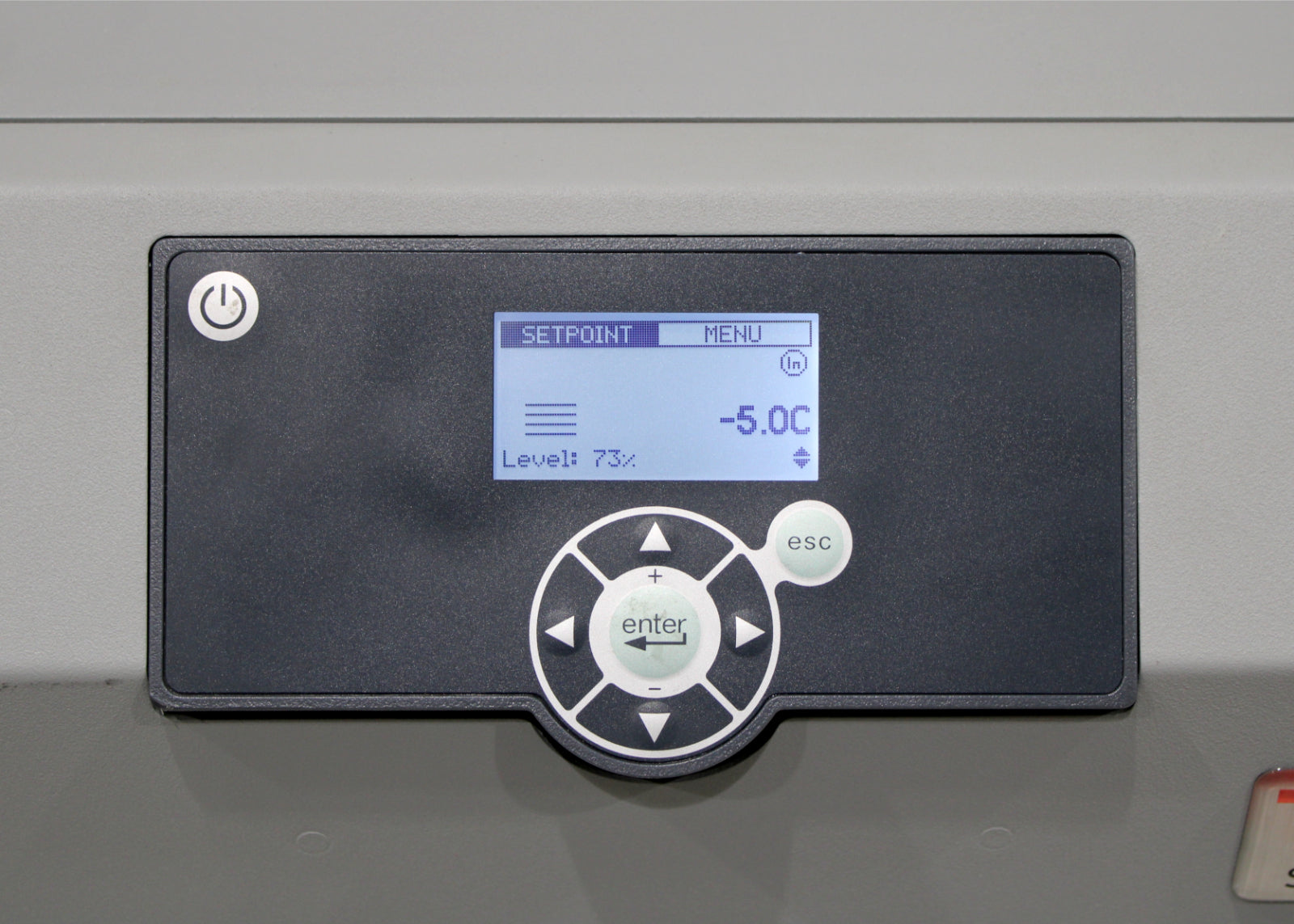

- Ran chiller to minimum operating limit of -5.0°C: PASSED
- Temperature stability: PASSED

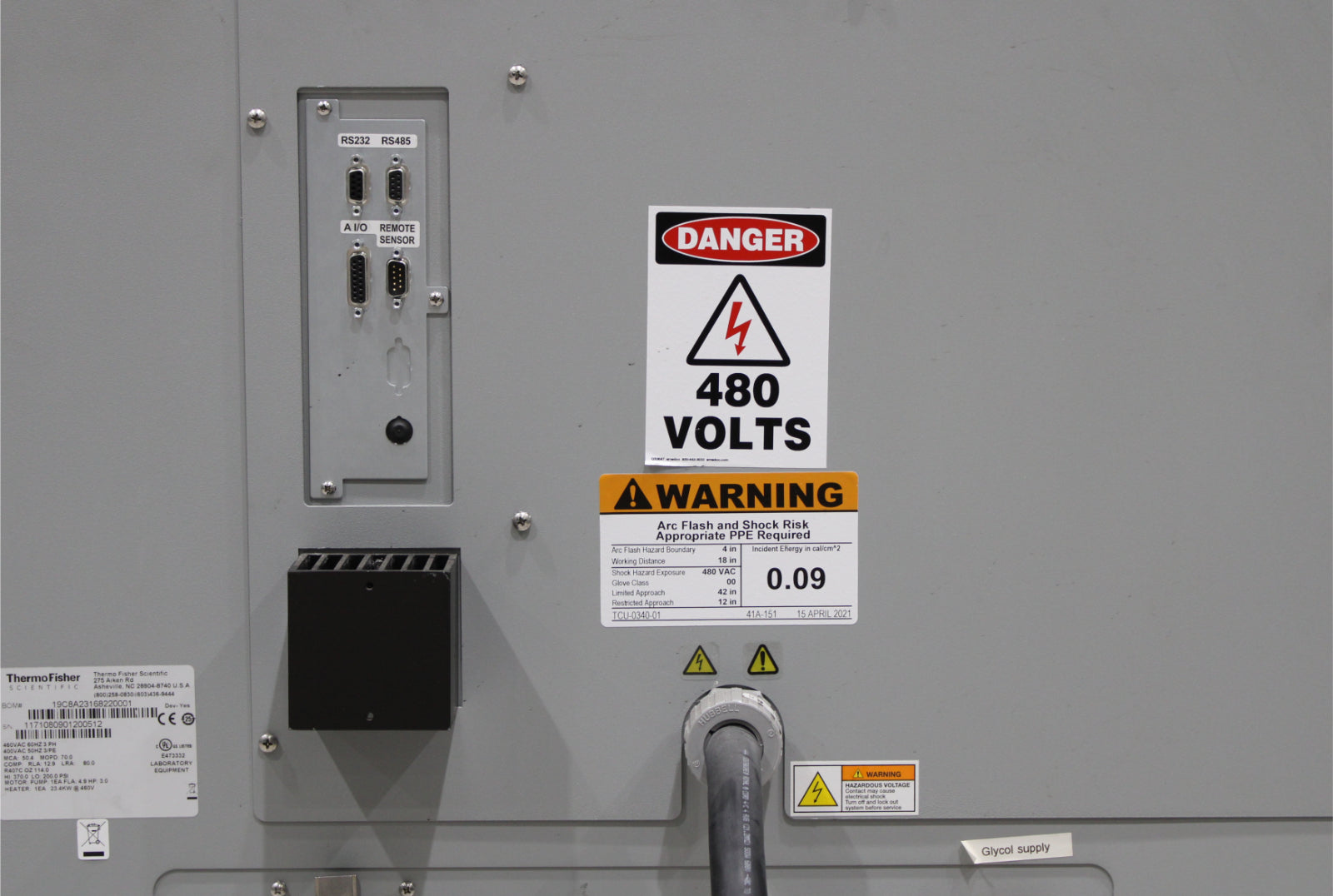

Notice: This is a WATER-COOLED unit requiring a facility cooling water connection to operate. It is NOT an air-cooled chiller. This chiller also requires a high-voltage power connection (ships with bare-ended cable; buyer must install plug). The internal condition is exceptionally clean with minimal prior usage hours.
|
Manufacturer
|
Thermo Fisher Scientific
|
|
Model
|
NESLAB ThermoFlex 24000
|
|

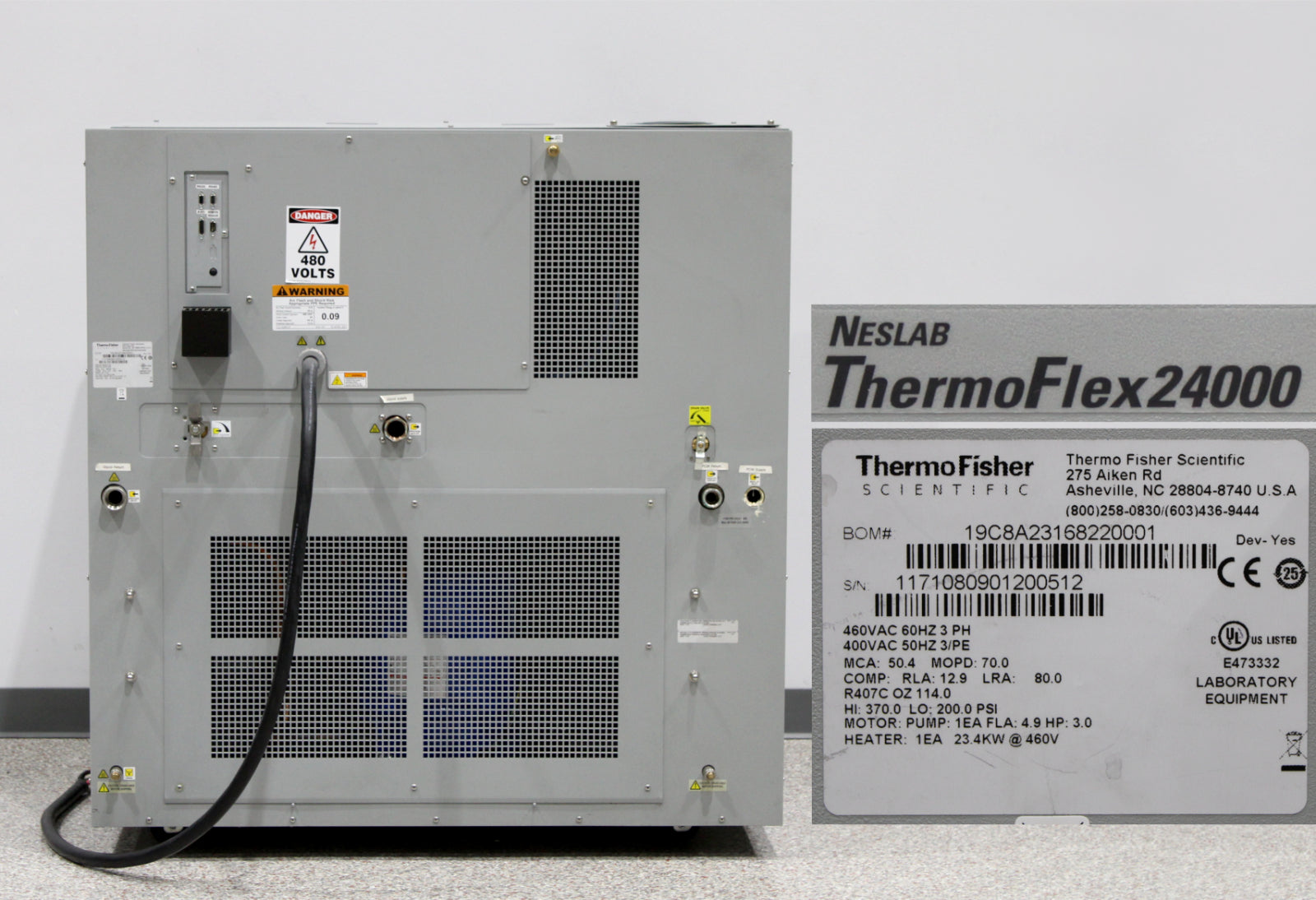

BOM#
|
19C8A23168220001
|
|
Serial No.
|
1171080901200512
|
|
Standard temperature range
|
+5°C to +40°C (+41°F to +104°F)
|
|
Ambient temperature range
|
+10°C to +40°C (+50°F to +104°F)
|
|
Temperature stability
|
±0.1°C
|
|
Standard cooling capacity
|
60Hz at +20°C: 24000W / 81964 BTU
50Hz at +20°C: 21000W / 71719 BTU
|
|
Reservoir volume
|
17.9 liters (4.75 gallons)
|
|
Refrigerant
|
R407C
|
|
P3 - Centrifugal Pump
|
60Hz: 10 gpm @ 32 psid / 37.9 lpm @ 2.2 bar
50Hz: 10 gpm @ 20 psid / 37.9 lpm @ 1.4 bar
|
|
P5 - Centrifugal Pump
|
60Hz: 20 gpm @ 60 psid / 75.7 lpm @ 4.1 bar
50Hz: 20 gpm @ 35 psid / 75.7 lpm @ 2.4 bar
|
|
Power rating
|
460VAC, 60Hz, 3Ph
400VAC, 50Hz, 3/PE
|
|
Dimensions (W x D x H)
|
46.5 x 30.9 x 49 in (118.1 x 78.6 x 148.9 cm)
|
|
Weight
|
510 lb (231.3 kg)
|
