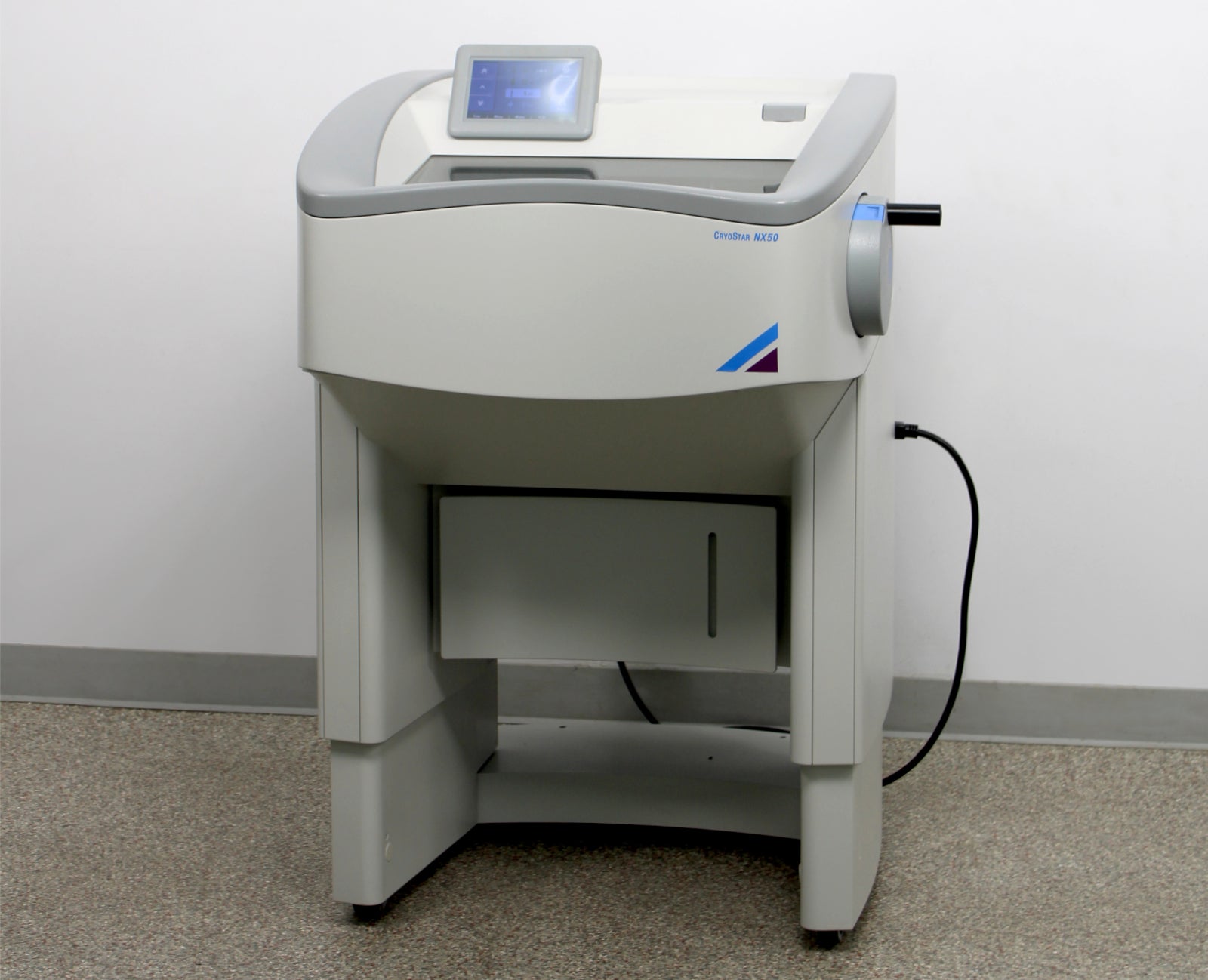

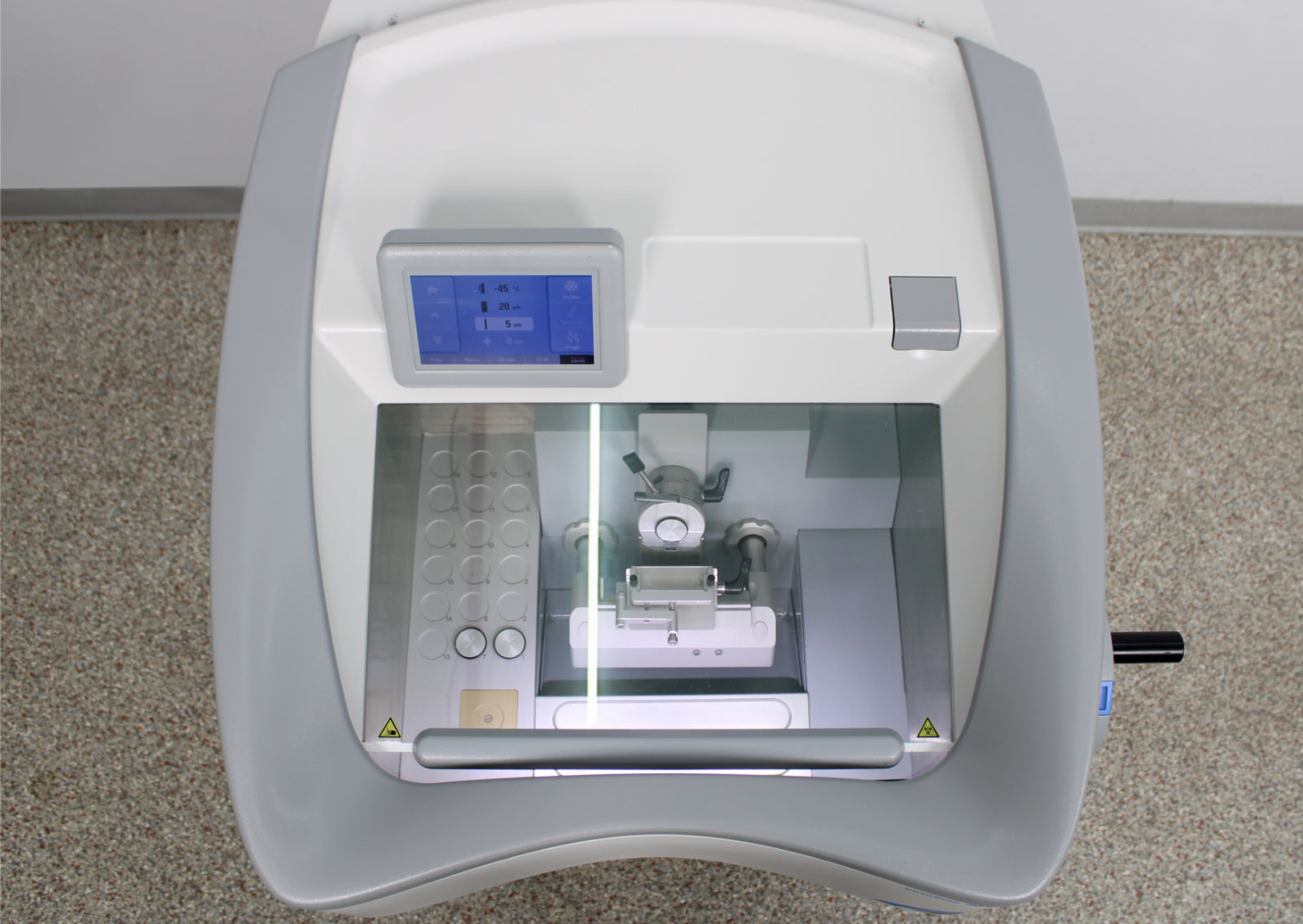

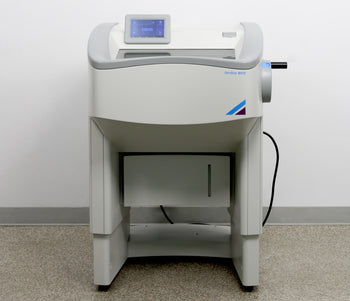

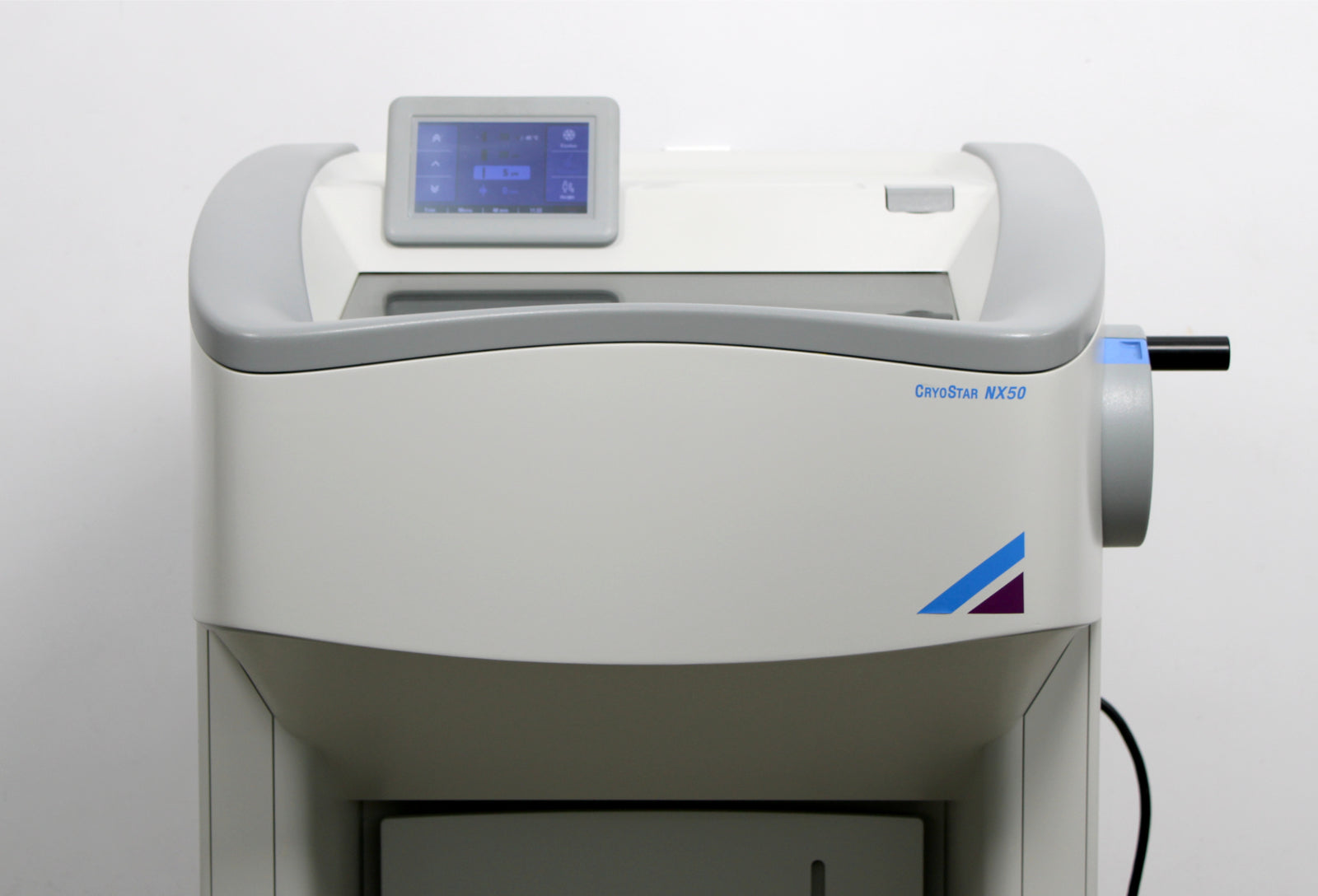

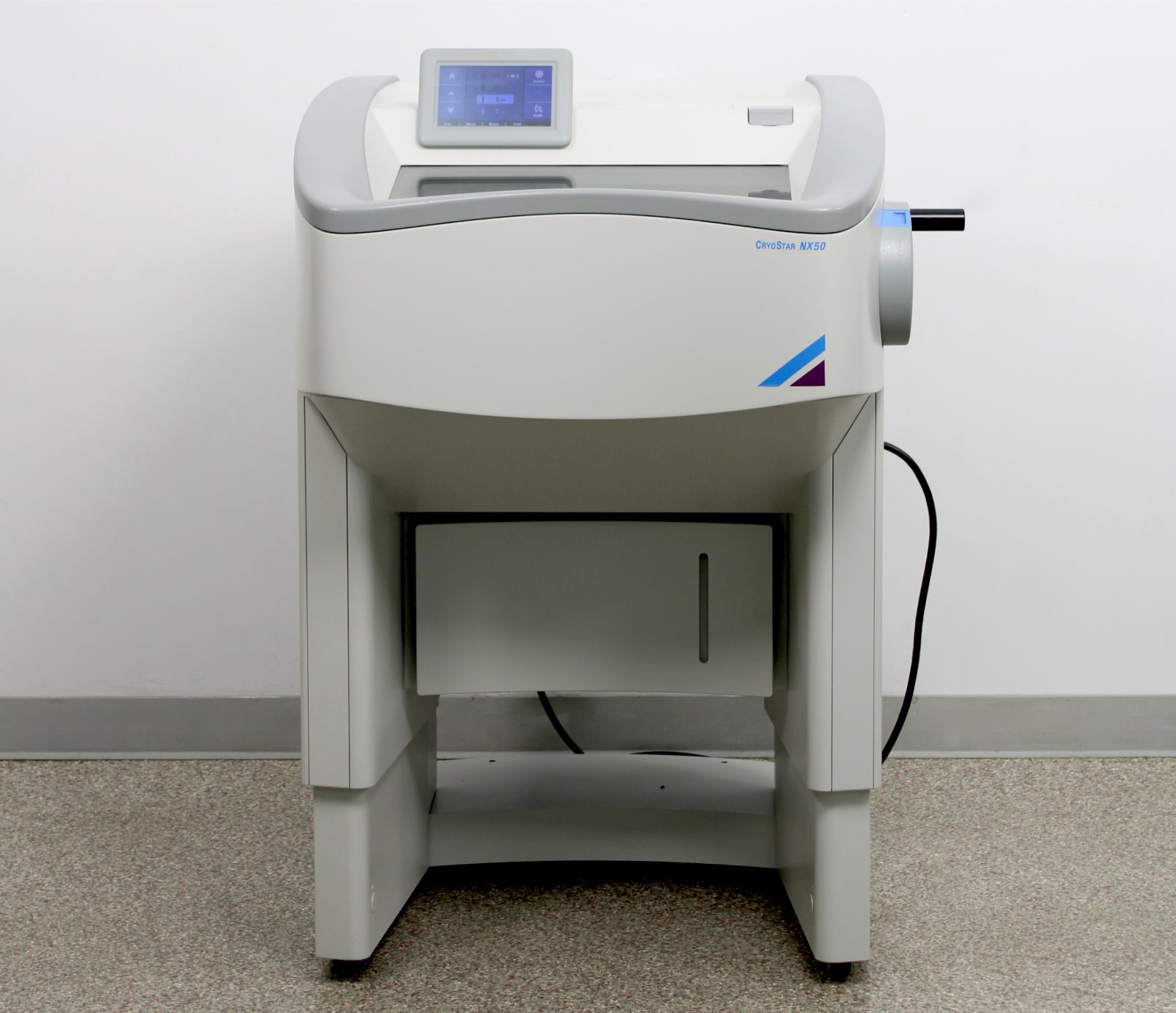

- Thermo Shandon CryoStar NX50 HOPD Cryostat Microtome (957110)

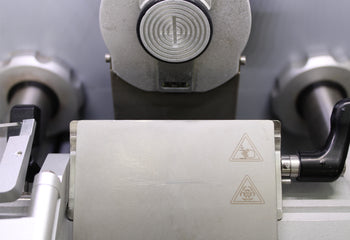

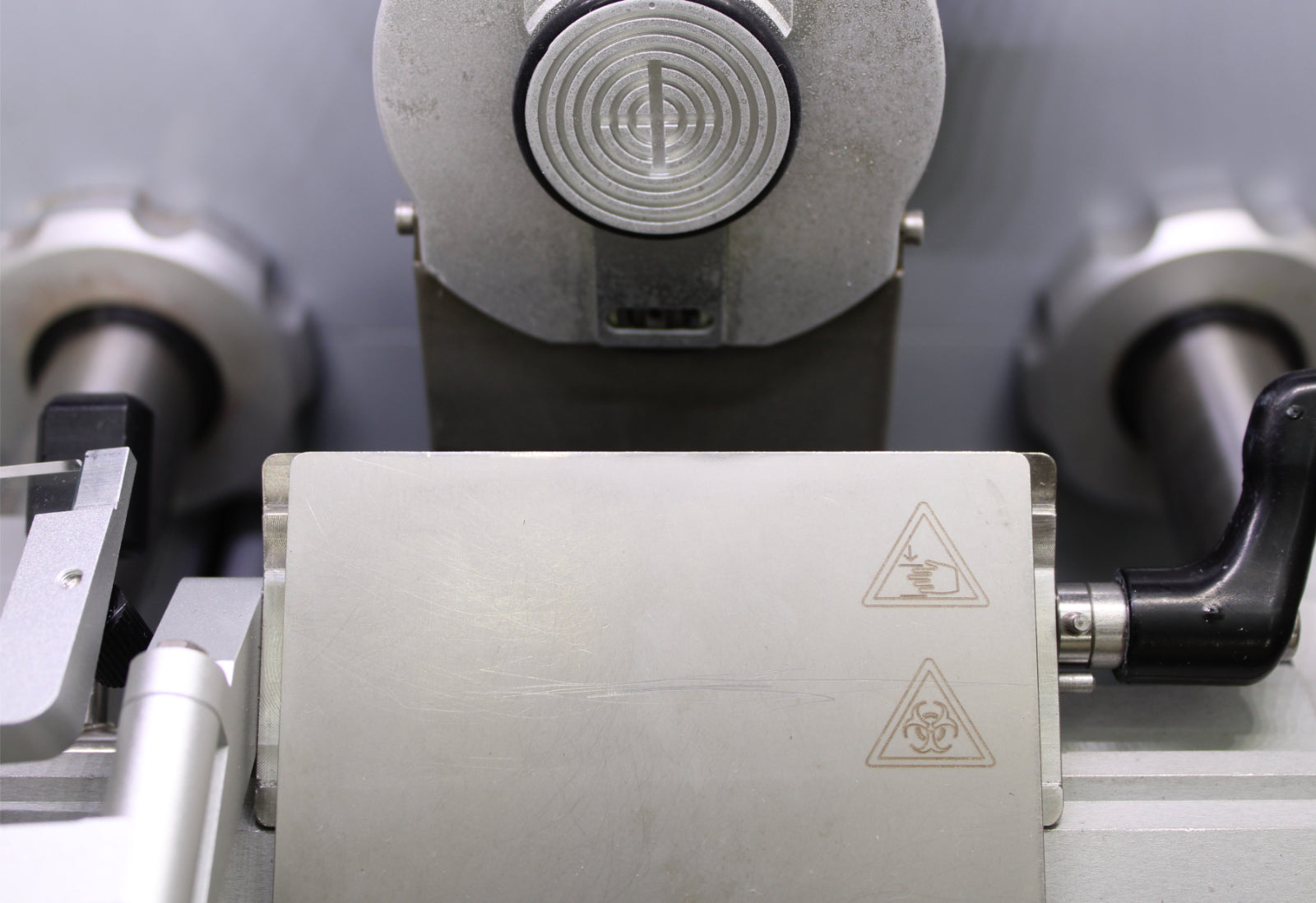

- Blade Holder Assembly with Anti-Roll Plate
- x3 Specimen Discs
- Power Cable with NEMA 5-15P Plug
- 90-Day Warranty
Option H - Height adjustment that raises and lowers the work area
Option O - Specimen cooling
Option P - Peltier cooling cryobar
Option D - Cold disinfection

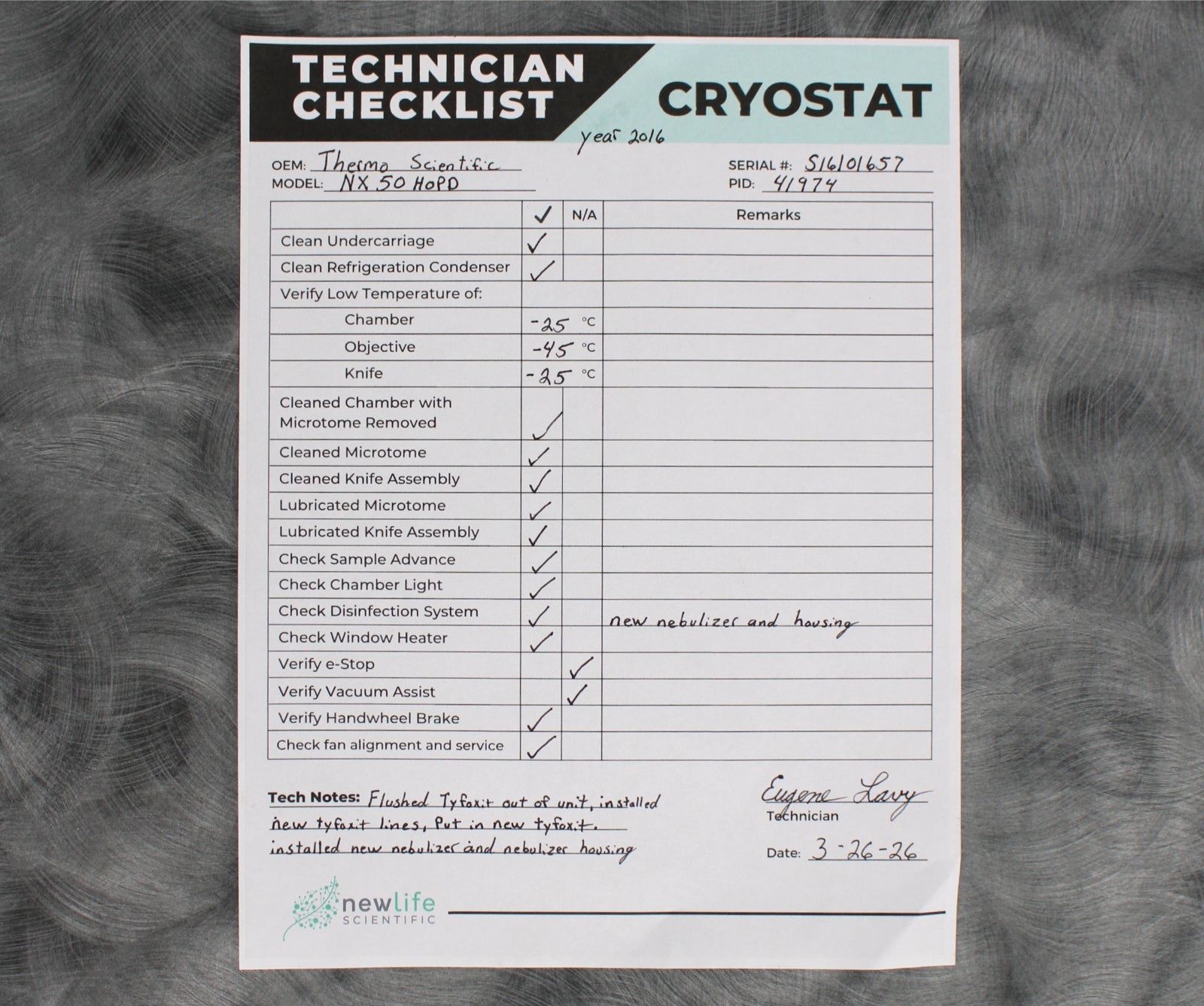

After its initial disinfection and inspection, our technicians tested the Thermo Shandon CryoStar NX50 HOPD cryostat microtome with the following results:
- Specimen cooling maintains -45°C: PASSED
- Chamber cooling maintains -25°C: PASSED
- Knife cooling maintains -25°C: PASSED
- Service self-test final check: PASSED
- Defrost: PASSED
- Chamber light: PASSED
- Sample advance: PASSED
- Disinfection system: PASSED
- Window heater: PASSED

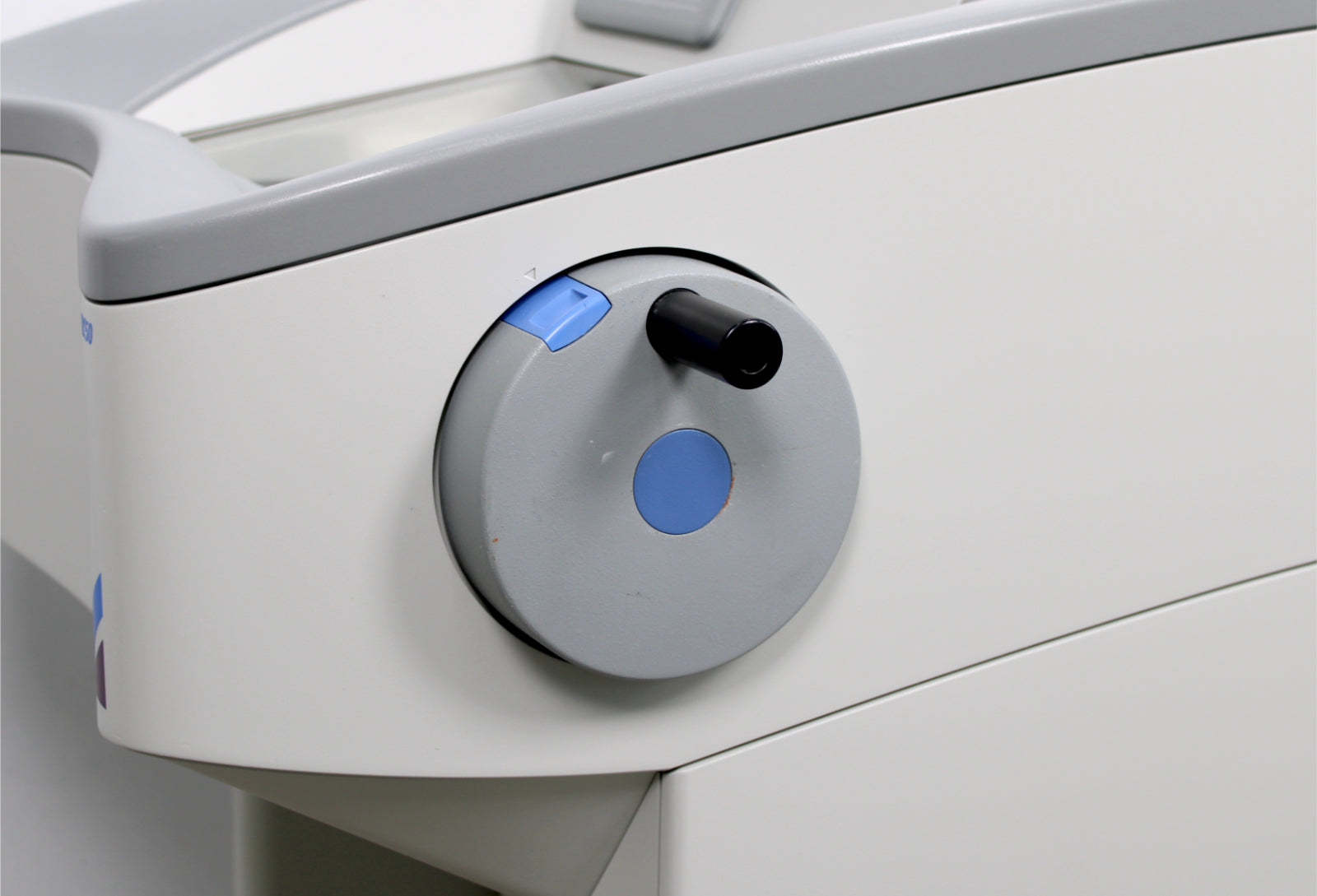

- Handwheel brake: PASSED
- Clean undercarriage.
- Clean refrigeration condenser.

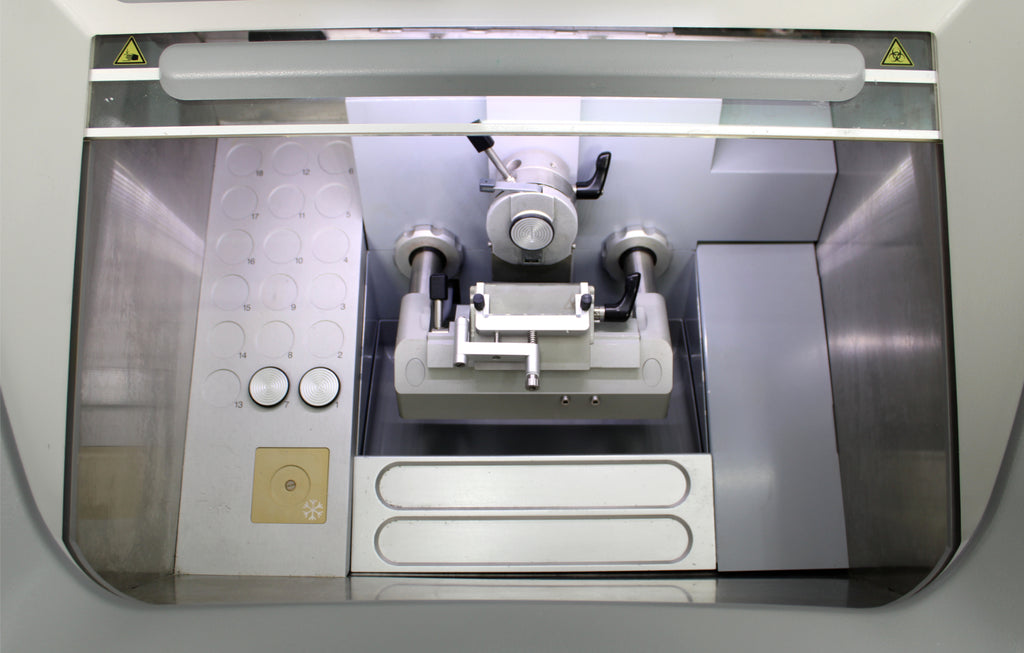

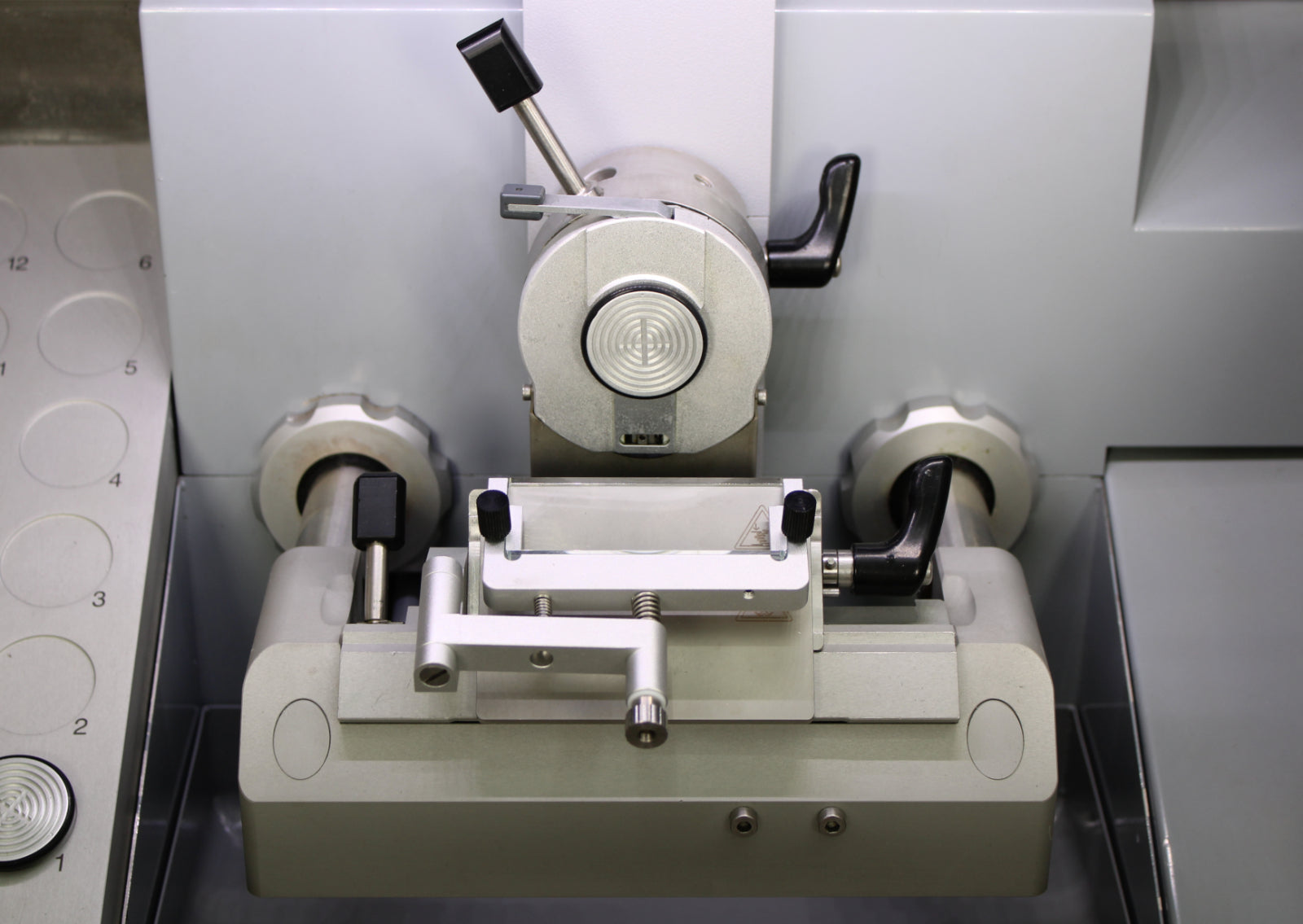

- Cleaned microtome and knife assembly.
- Lubricated microtome and knife assembly.
- Flushed and filled tyfoxit lines.
- Installed new nebulizer and housing.

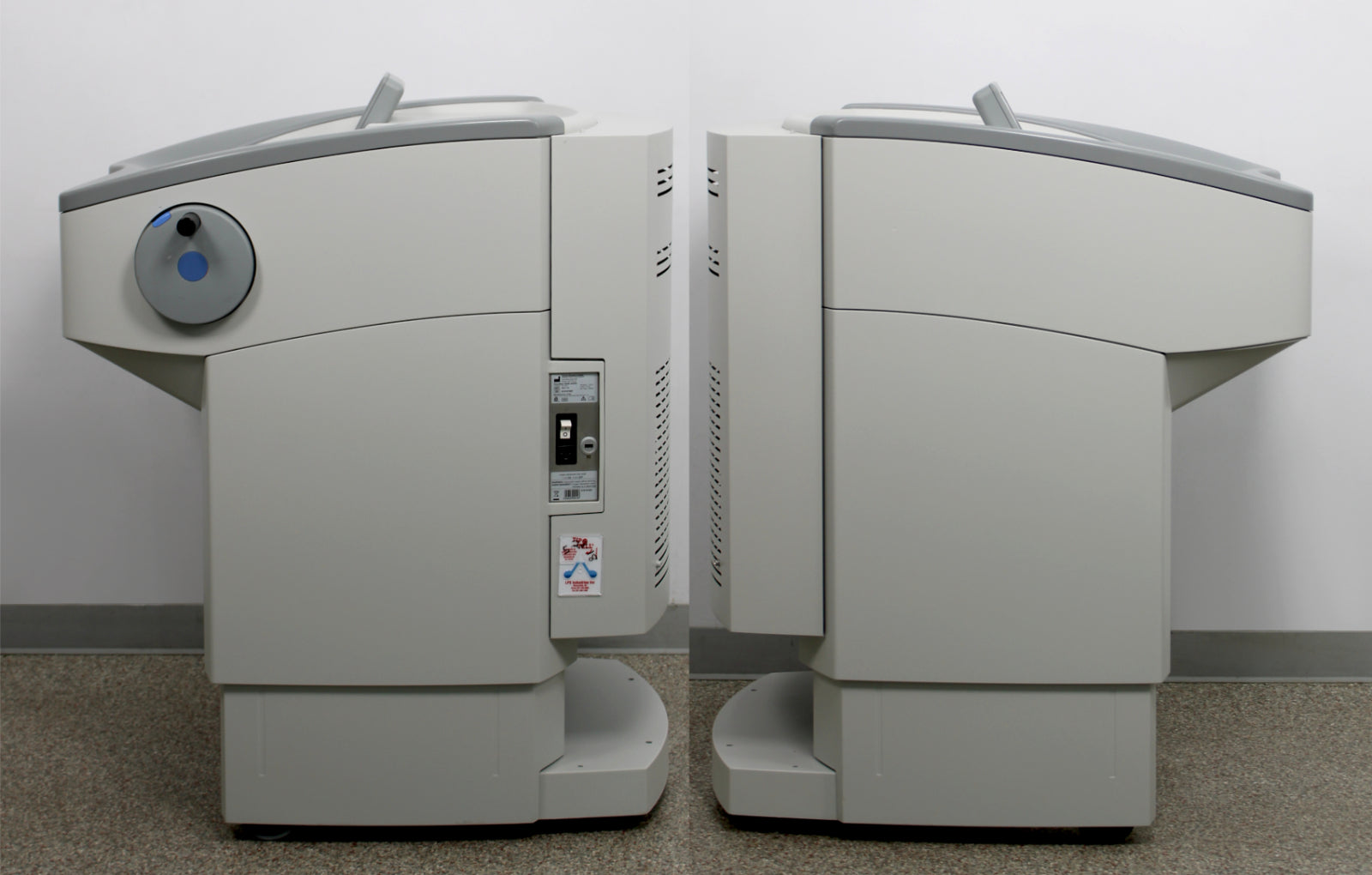

Notice: This cryostat has some minor cosmetic blemishes. Please review the available photos to see the physical condition before purchasing.
|

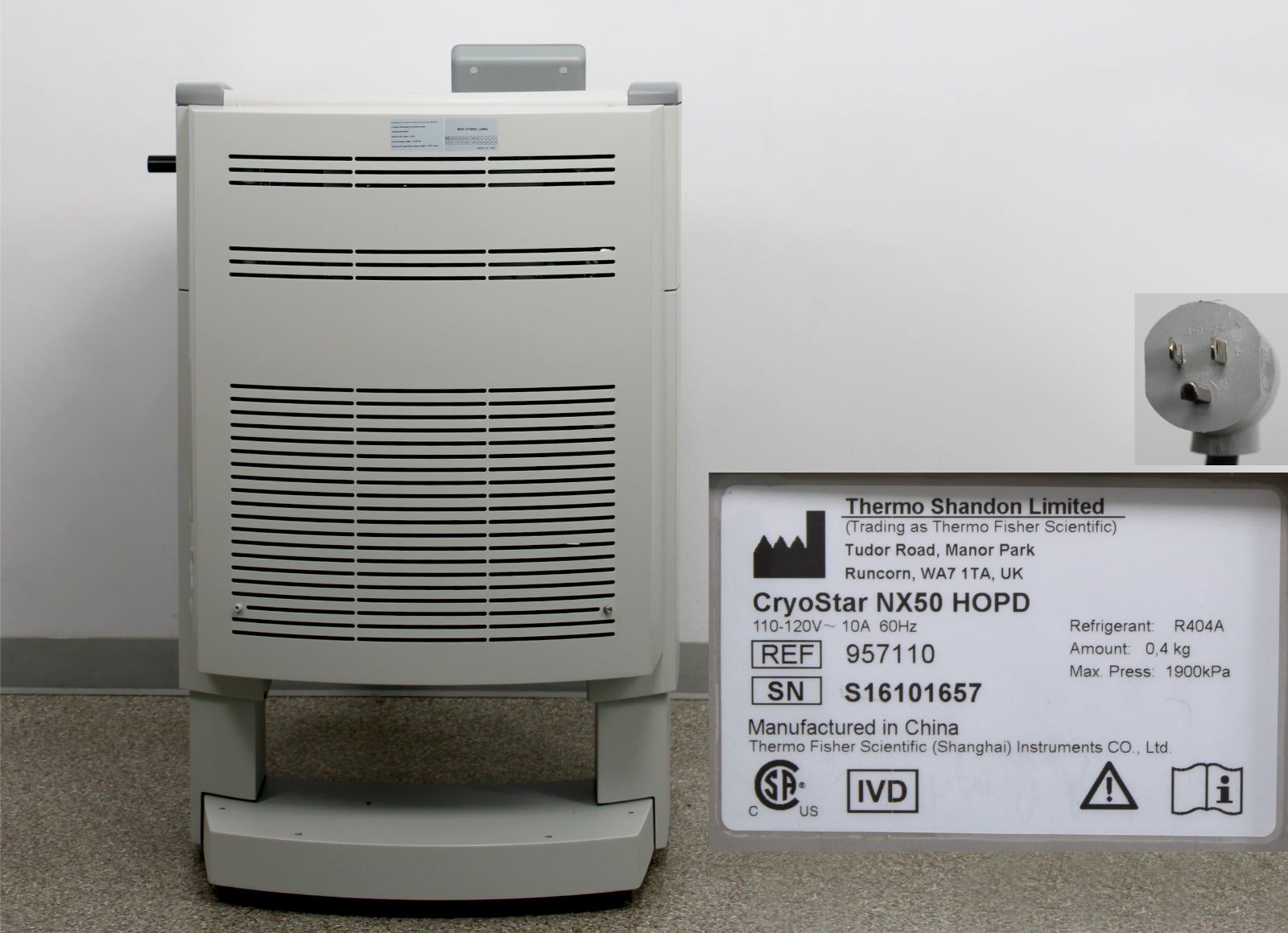

Manufacturer
|
Thermo Shandon Limited
|
|
Model
|
CryoStar NX50 HOPD
|
|
Ref. No.
|
957110
|
|

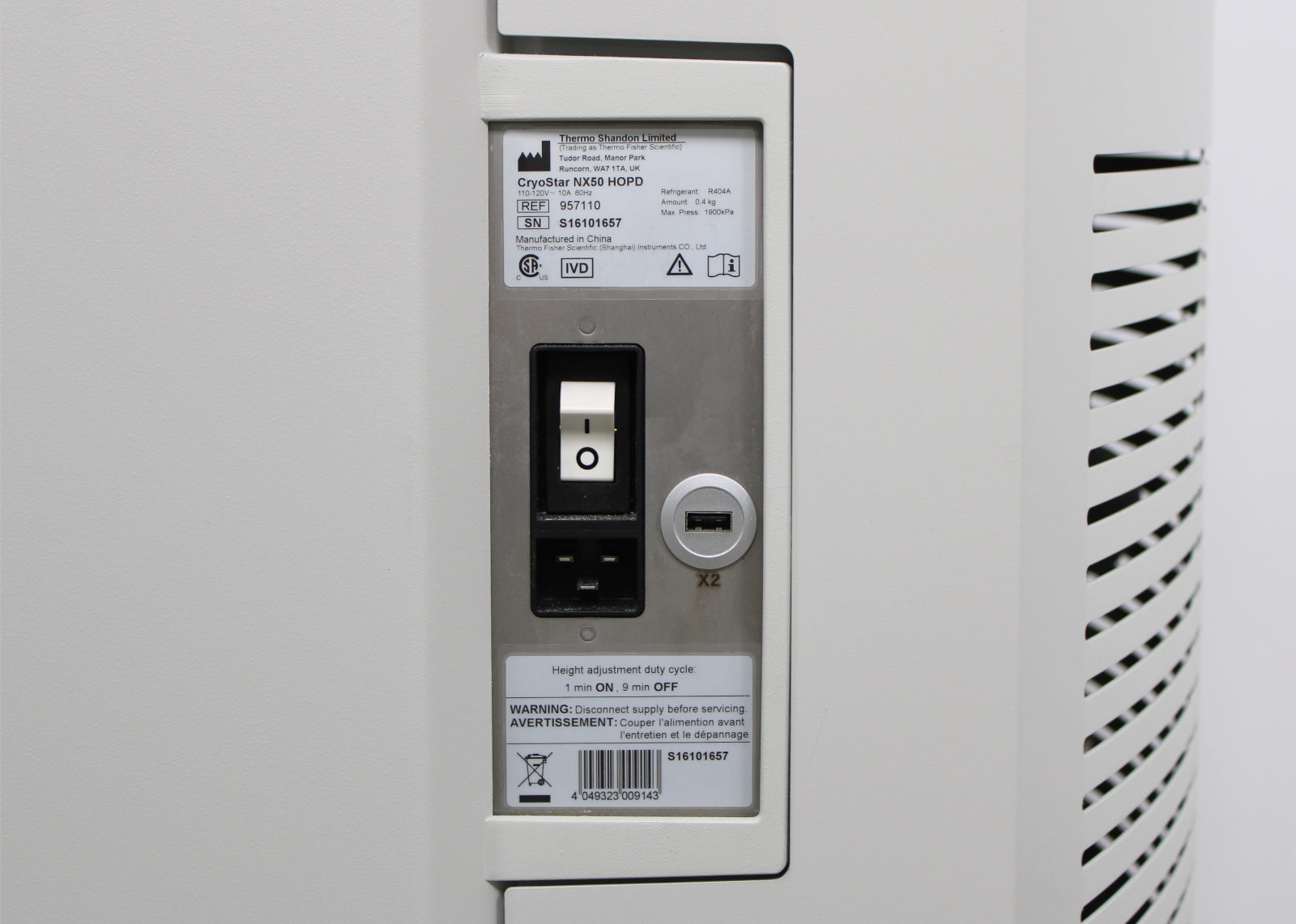

Serial No.
|
S16101657
|
|
Mfg. year
|
2016
|
|
Fine section thickness range
|
0.5 - 100 µm
|
|
Trimming thickness range
|
5 - 500 µm
|
|
Vertical specimen stroke
|
64 mm (2.5 in)
|
|
Horizontal knife movement
|
48 mm (1.9 in)
|
|
Specimen orientation
|
x- and y- axes universal 8° with zero positioning; z-axis up to 360°
|
|
Specimen retraction
|
20 µm
|
|
Specimen temperature control
|
-43°C ±2°C (-45.4°F) at 20°C (68°F) ambient
|
|
Cryobar cooling
|
-57°C ±3°C (-70.6°F) at 20°C (68°F) ambient
|
|

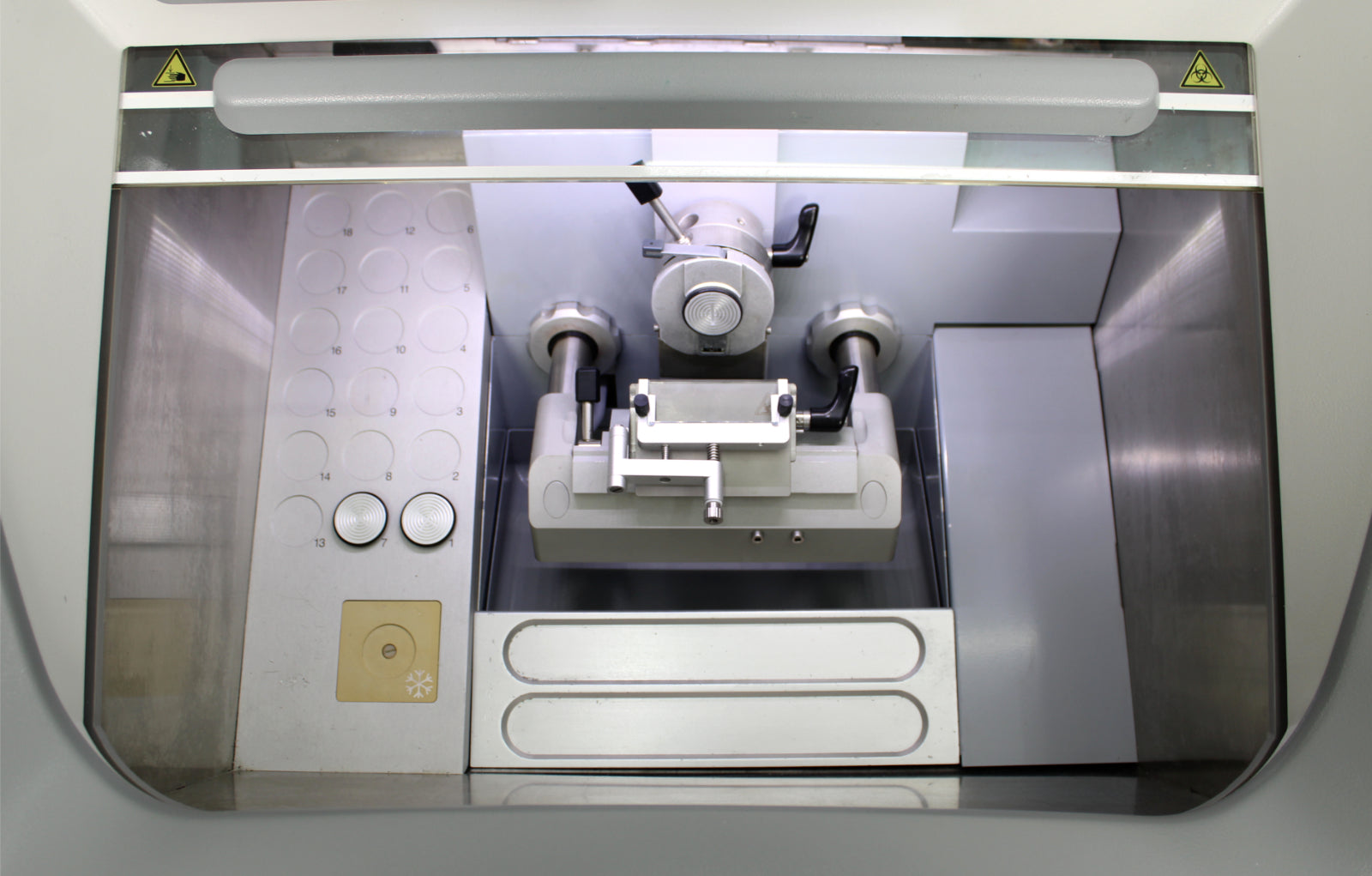

Cryochamber
|
-25°C ±2°C (-13°F) at 20°C (68°F) ambient; continuously cooled
|
|
Knife holder
|
-27°C ±2°C (-16.6°F) at 20°C to 30°C (68°F to 86°F) ambient; continuously cooled
|
|
Defrosting options
|
Programmed / Immediate
|
|
Power rating
|
110-120V~, 60Hz, 10A
|
|
Dimensions (W x D x H)
|
29.7 x 39.4 x 32-44 in (75.5 x 100 x 82-112 cm)
|
|
Weight
|
441 lb (200 kg)
|
