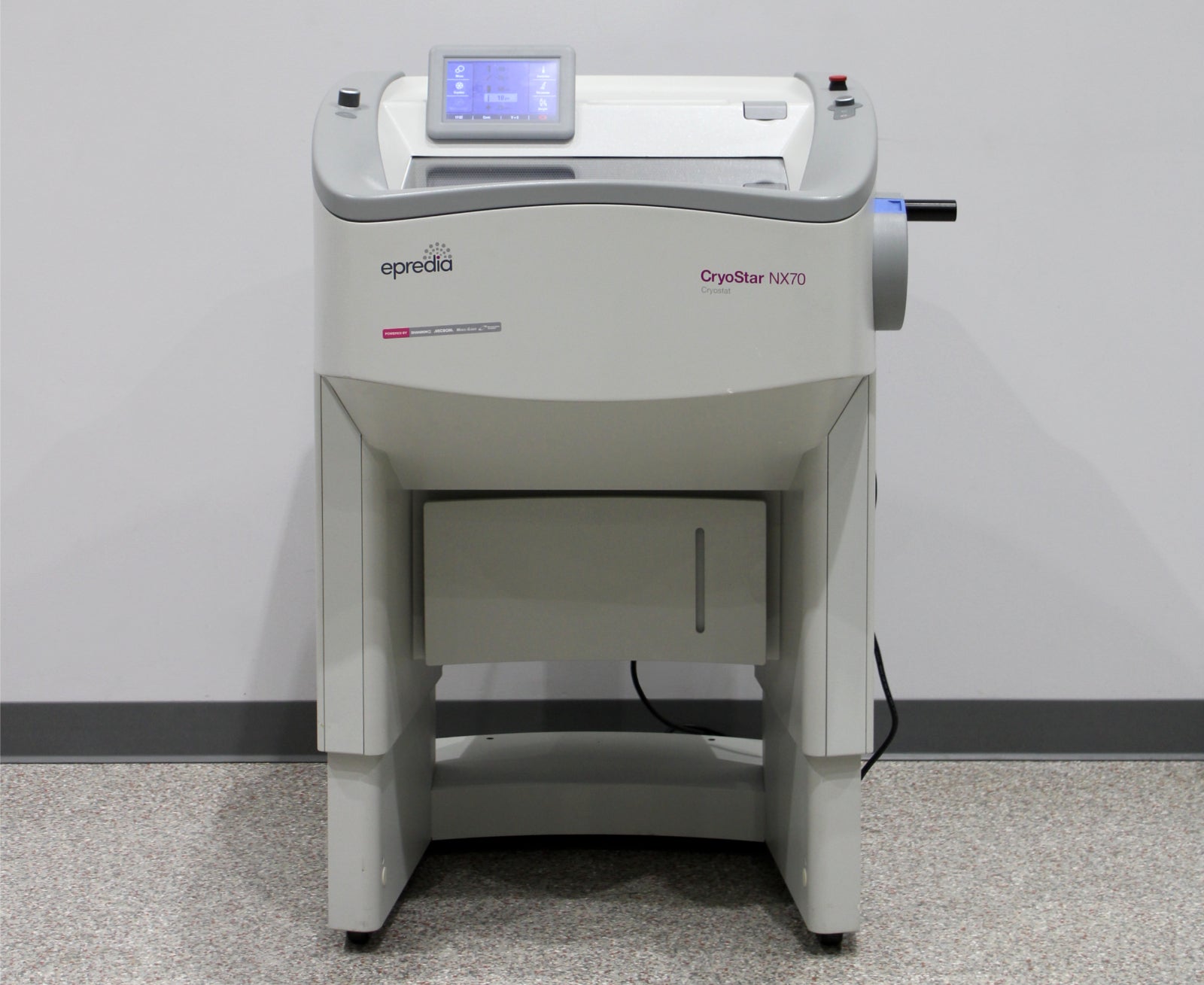

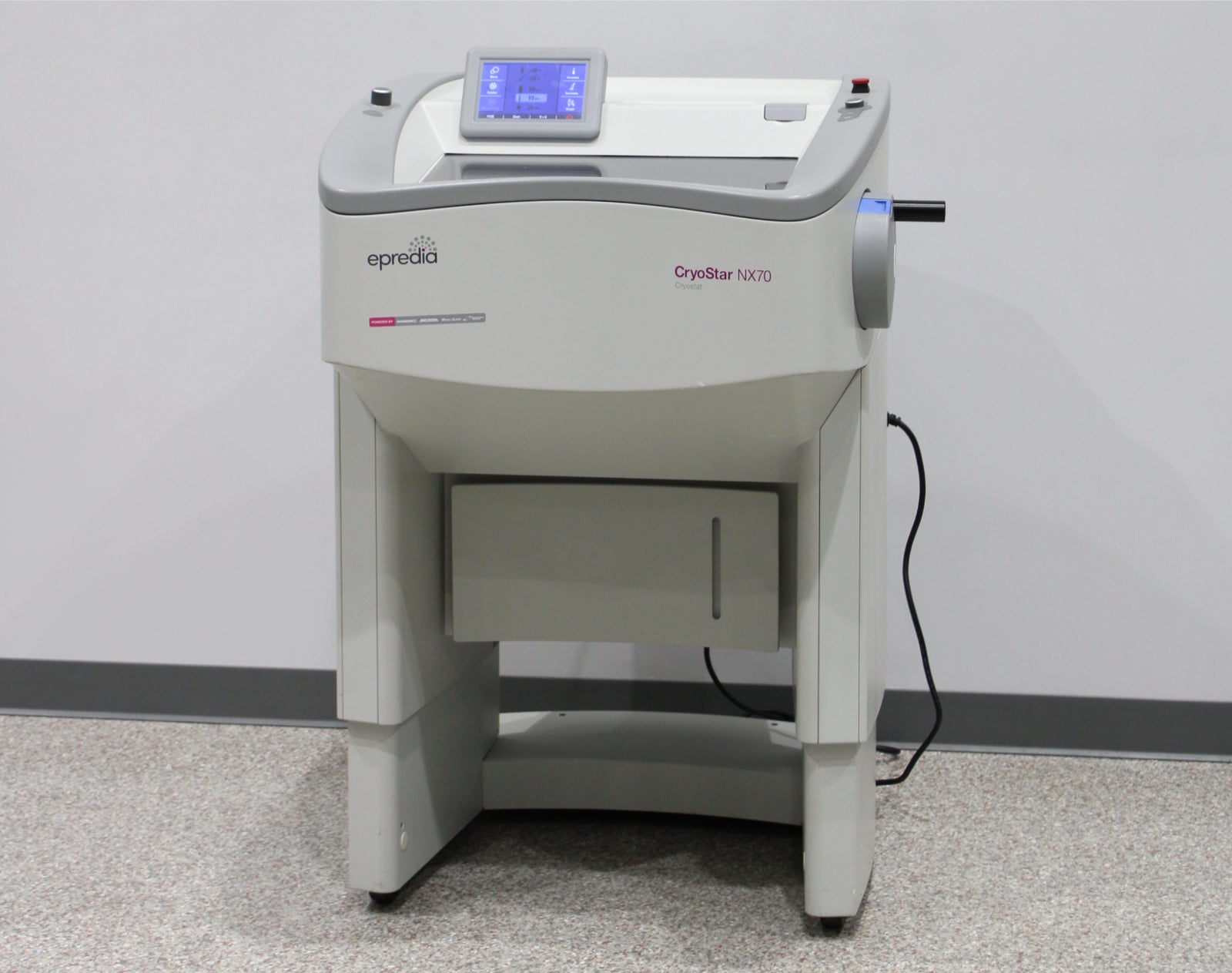

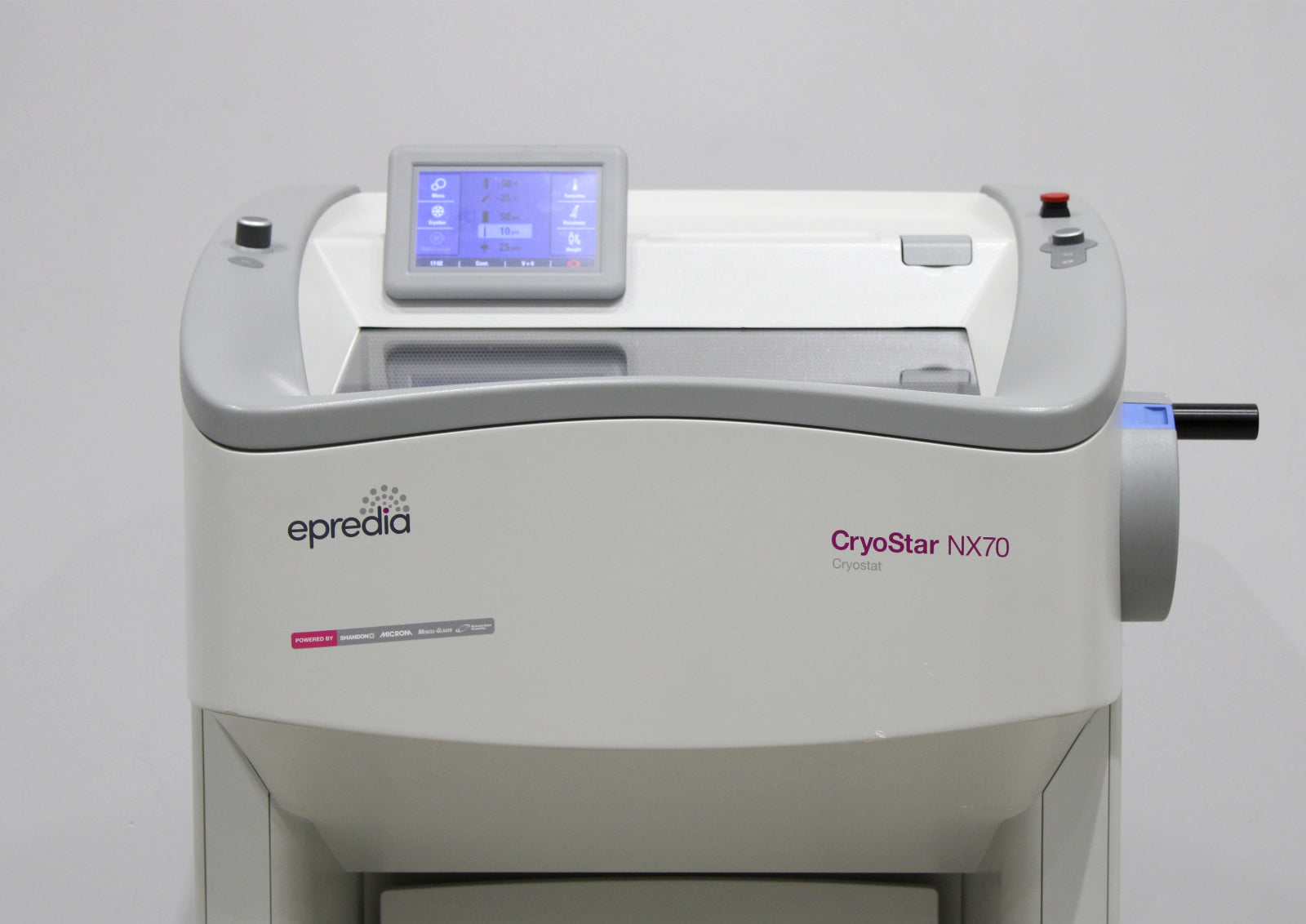

- Thermo Shandon Epredia CryoStar NX70 HOMVP Cryostat Microtome (957020)

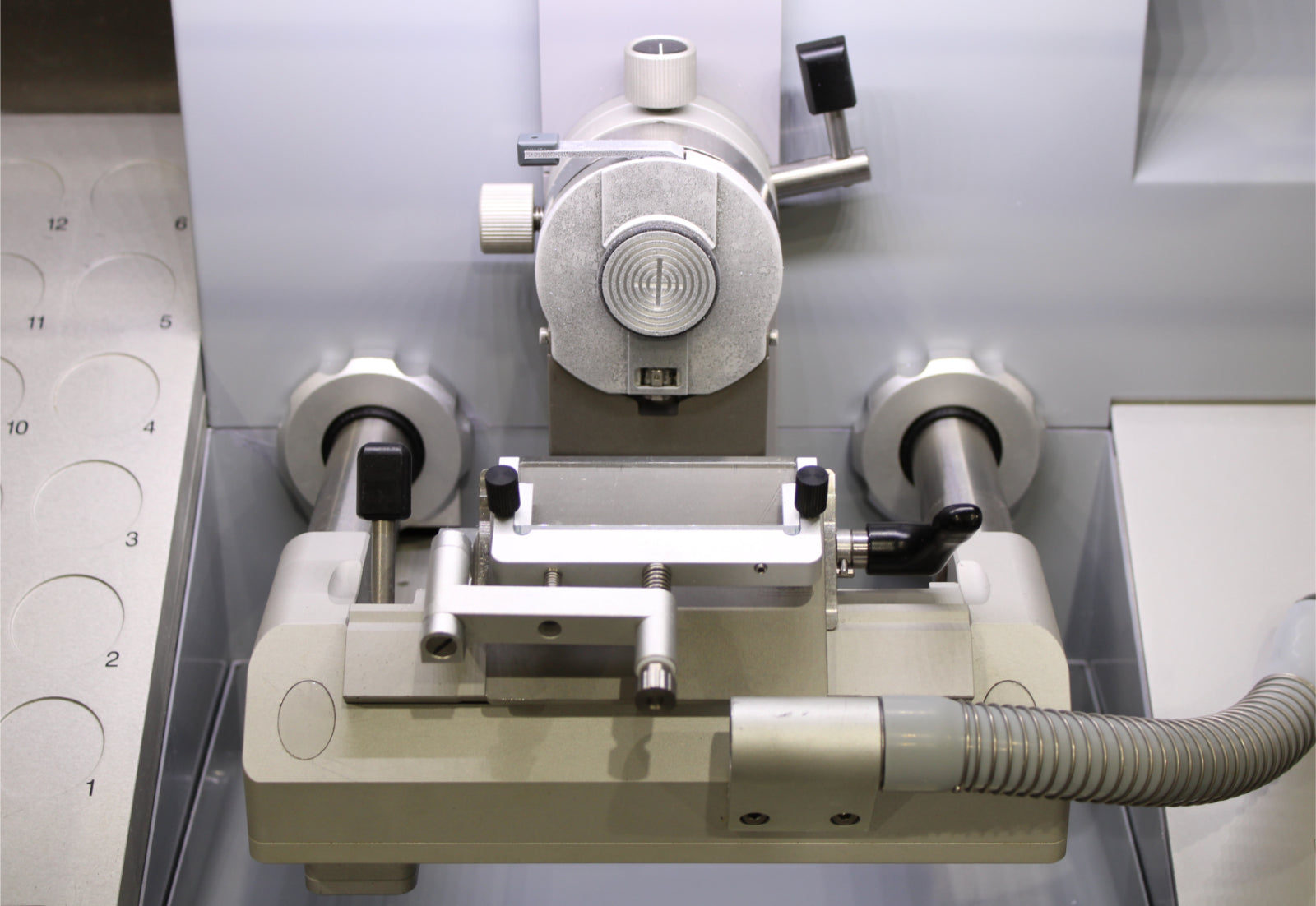

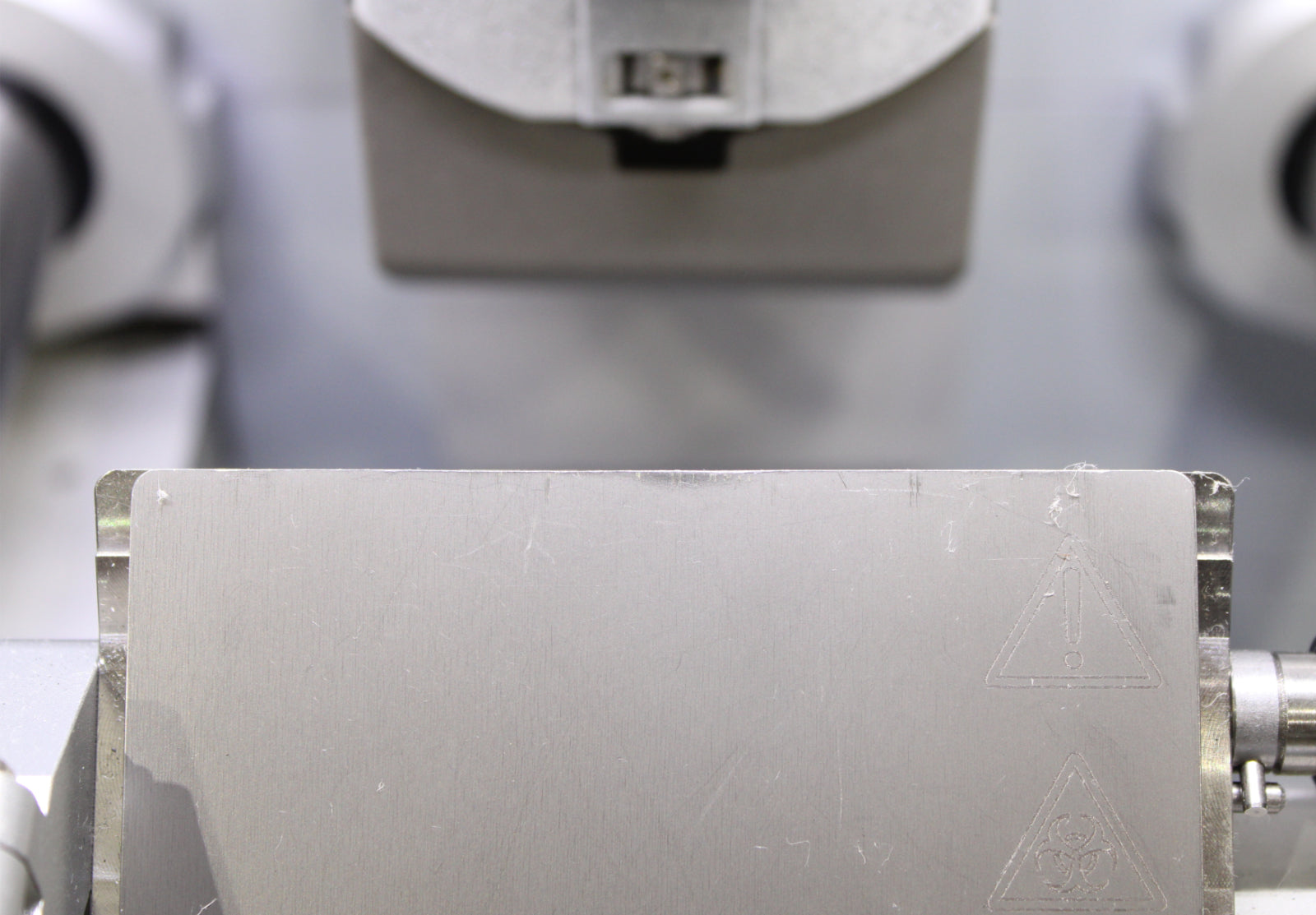

- Blade Holder Assembly with Glass Anti-Roll Plate
- x3 Specimen Discs
- Power Cable with NEMA 5-15P Plug
- 90-Day Warranty
Notice: This cryostat has the vacutome option, but the vacutome attachment for the blade holder assembly is not included.
Option H - Height adjustment that raises and lowers the work area
Option O - Specimen cooling
Option M - Motorized cutting
Option V - Vacutome system for stretching cryo-sections
Option P - Peltier cooling cryobar

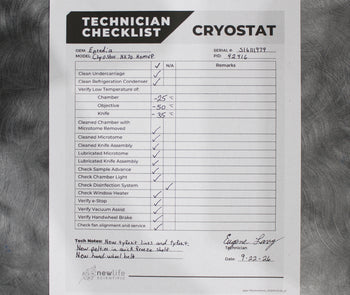

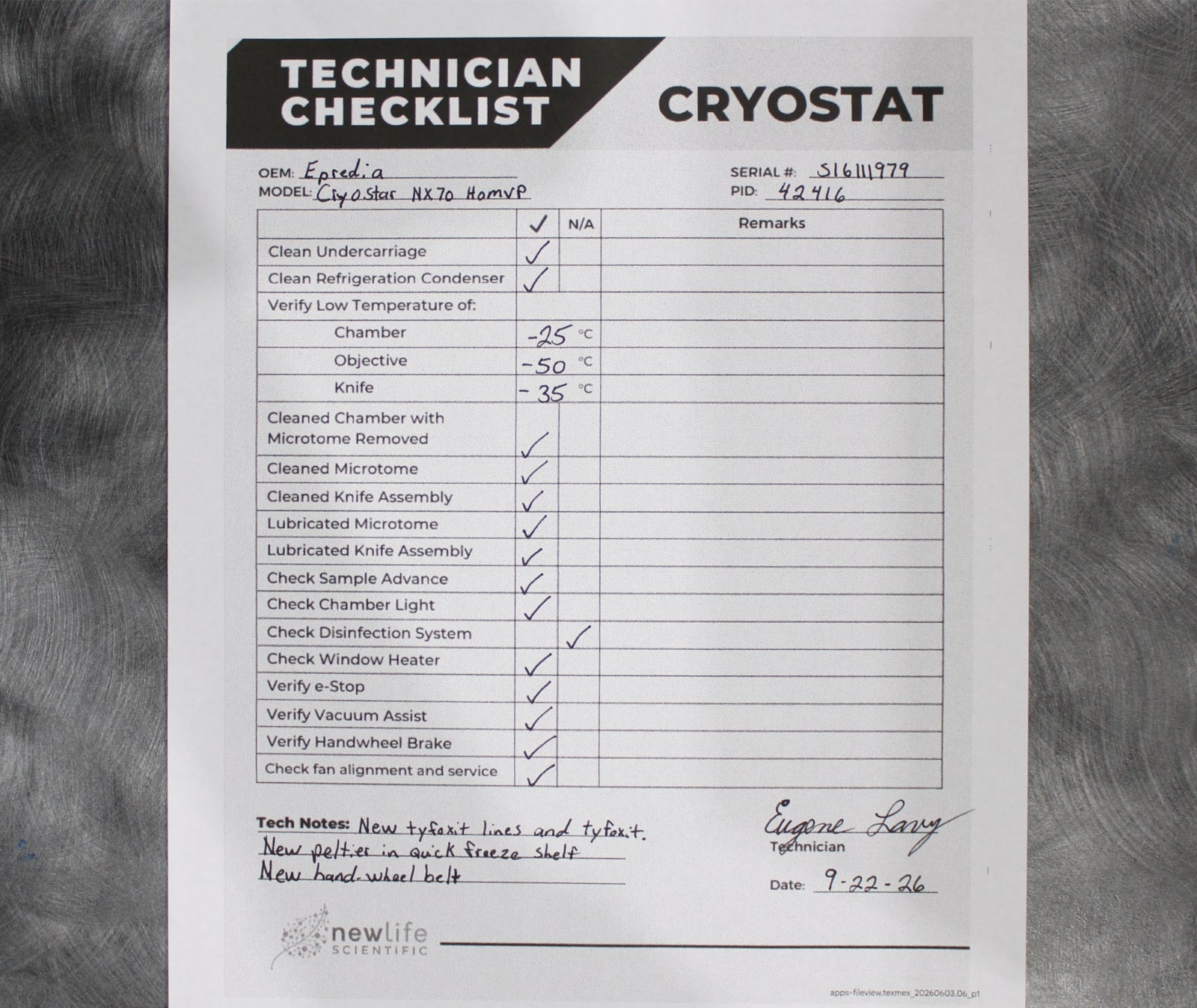

After its initial disinfection and inspection, our technicians tested the Thermo Shandon Epredia CryoStar NX70 HOMVP cryostat microtome with the following results:
- Specimen temperature to -50°C setpoint: PASSED
- Knife temperature to -35°C setpoint: PASSED
- Chamber temperature to -25°C: PASSED
- Defrost: PASSED
- Chamber light: PASSED
- Window heater: PASSED
- Peltier cooling: PASSED
- Sample advance: PASSED
- Disinfection system: PASSED
- Verify e-Stop: PASSED
- Verify handwheel brake: PASSED
- Installed new tyfoxit lines and tyfoxit fluid.
- Installed a new peltier in the quick freeze shelf.

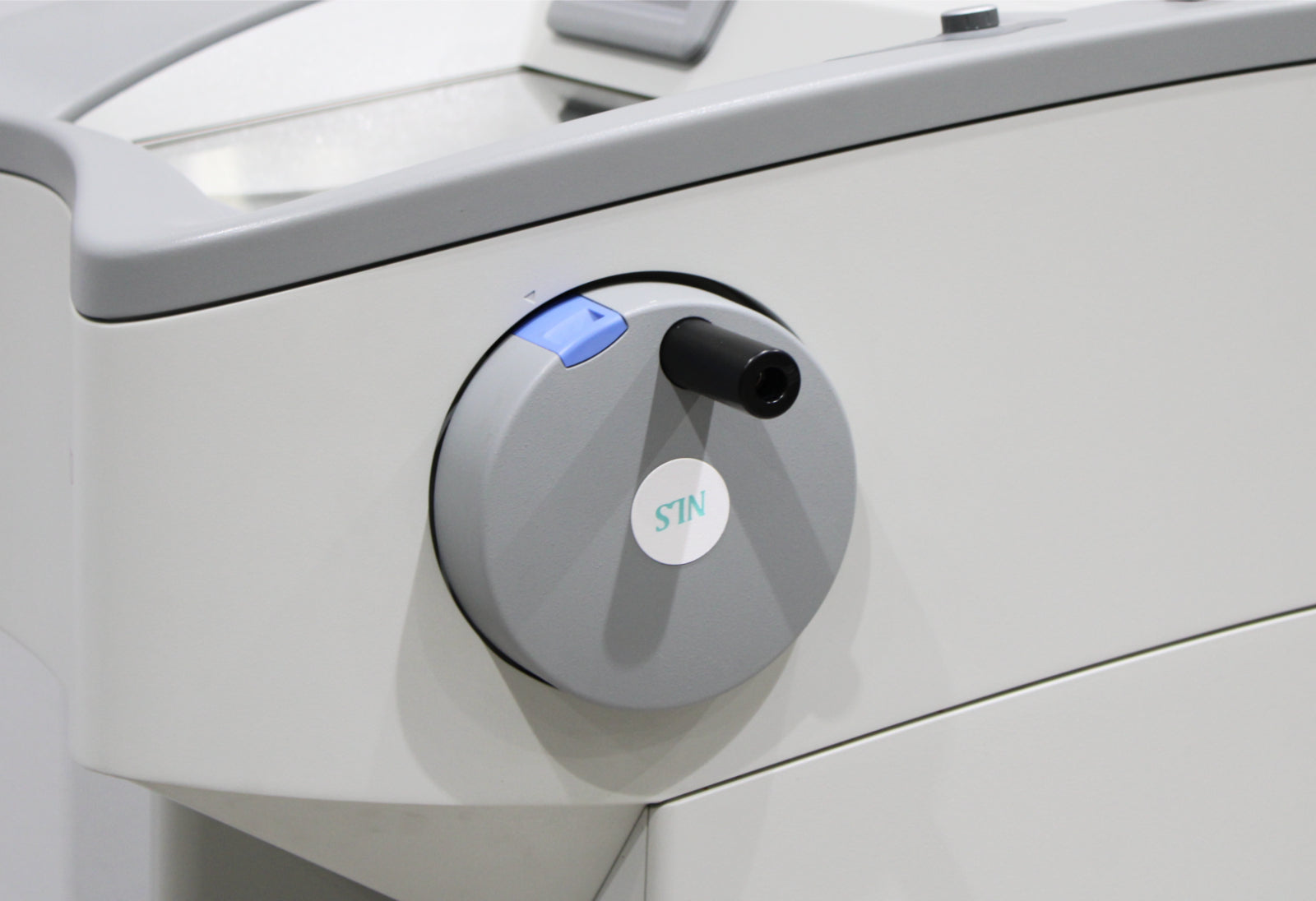

- Installed a new handwheel belt.
- Cleaned undercarriage with dry ice blasting.
- Cleaned refrigeration condenser.

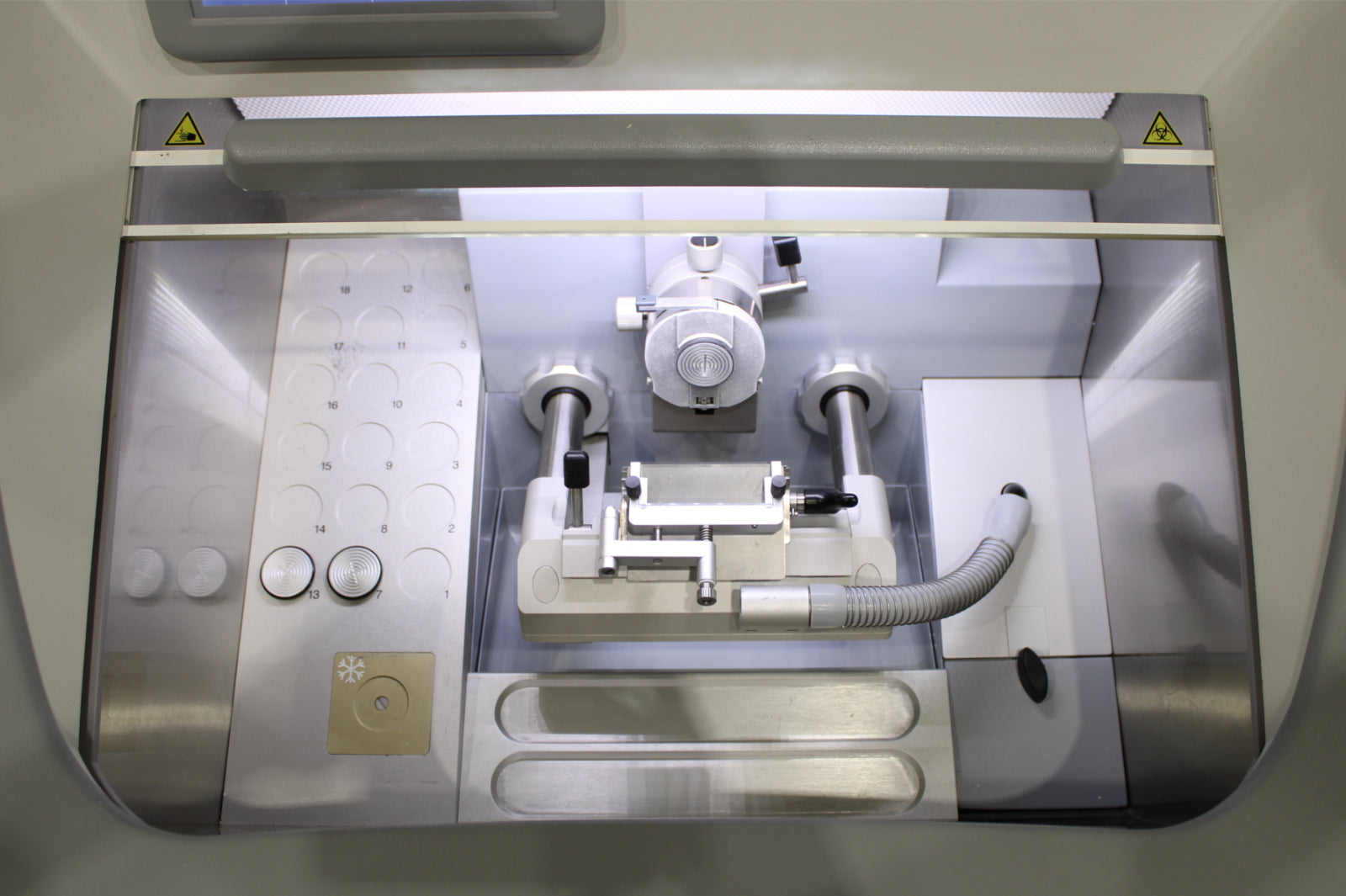

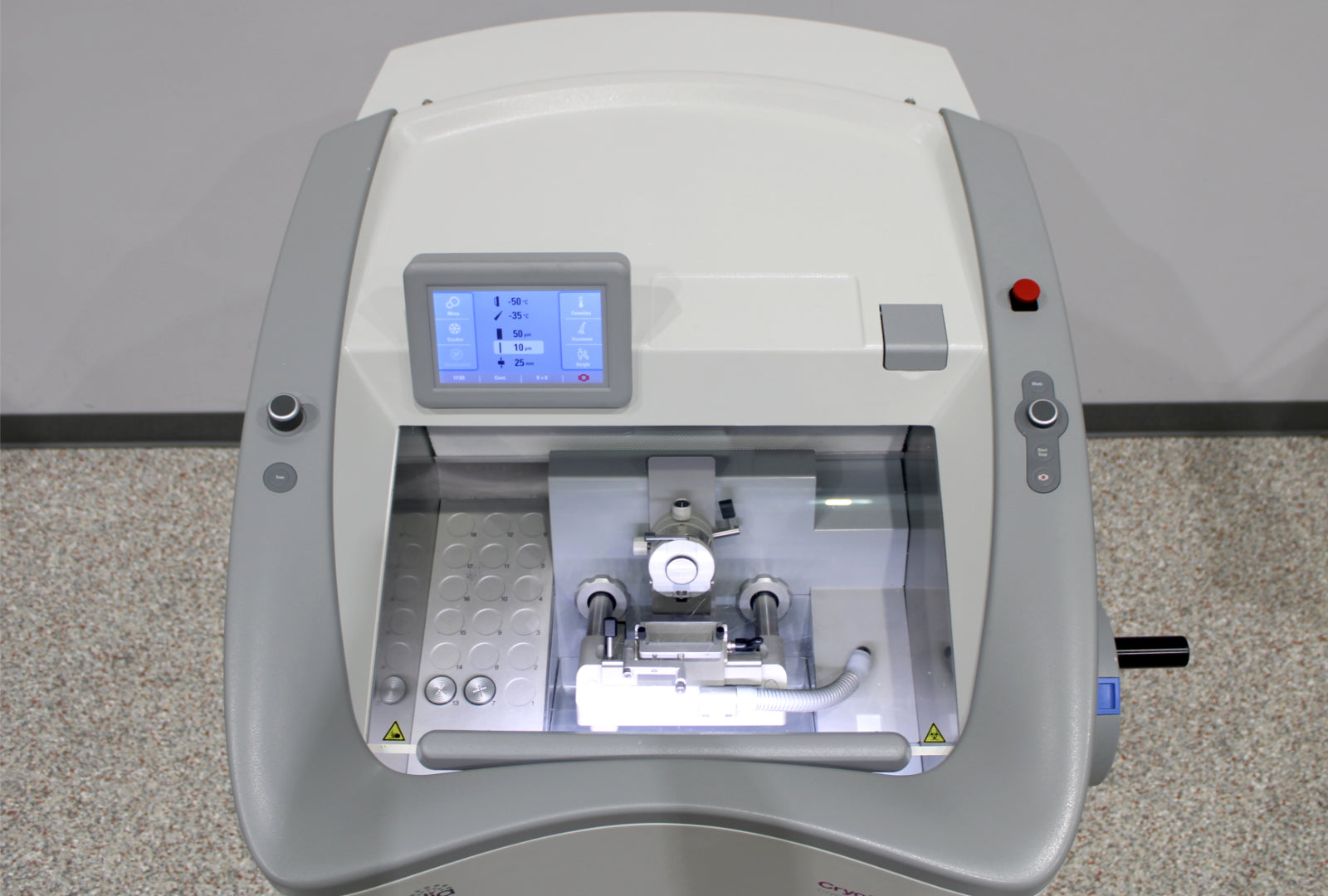

- Cleaned chamber, microtome, and knife assembly.
- Lubricated microtome and knife assembly.

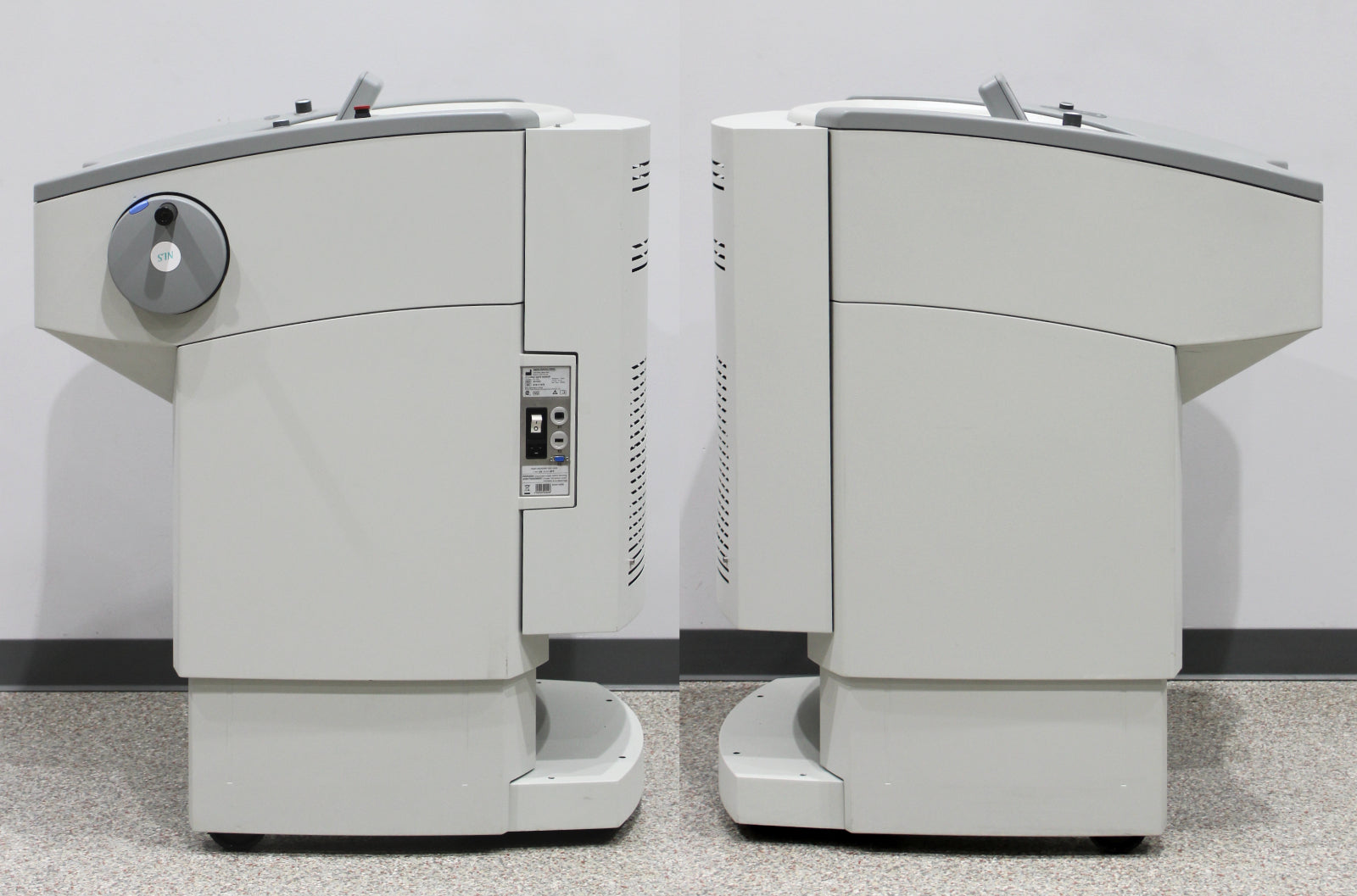

Notice: This cryostat has some minor cosmetic blemishes. Please review the available photos to see the physical condition before purchasing.
|

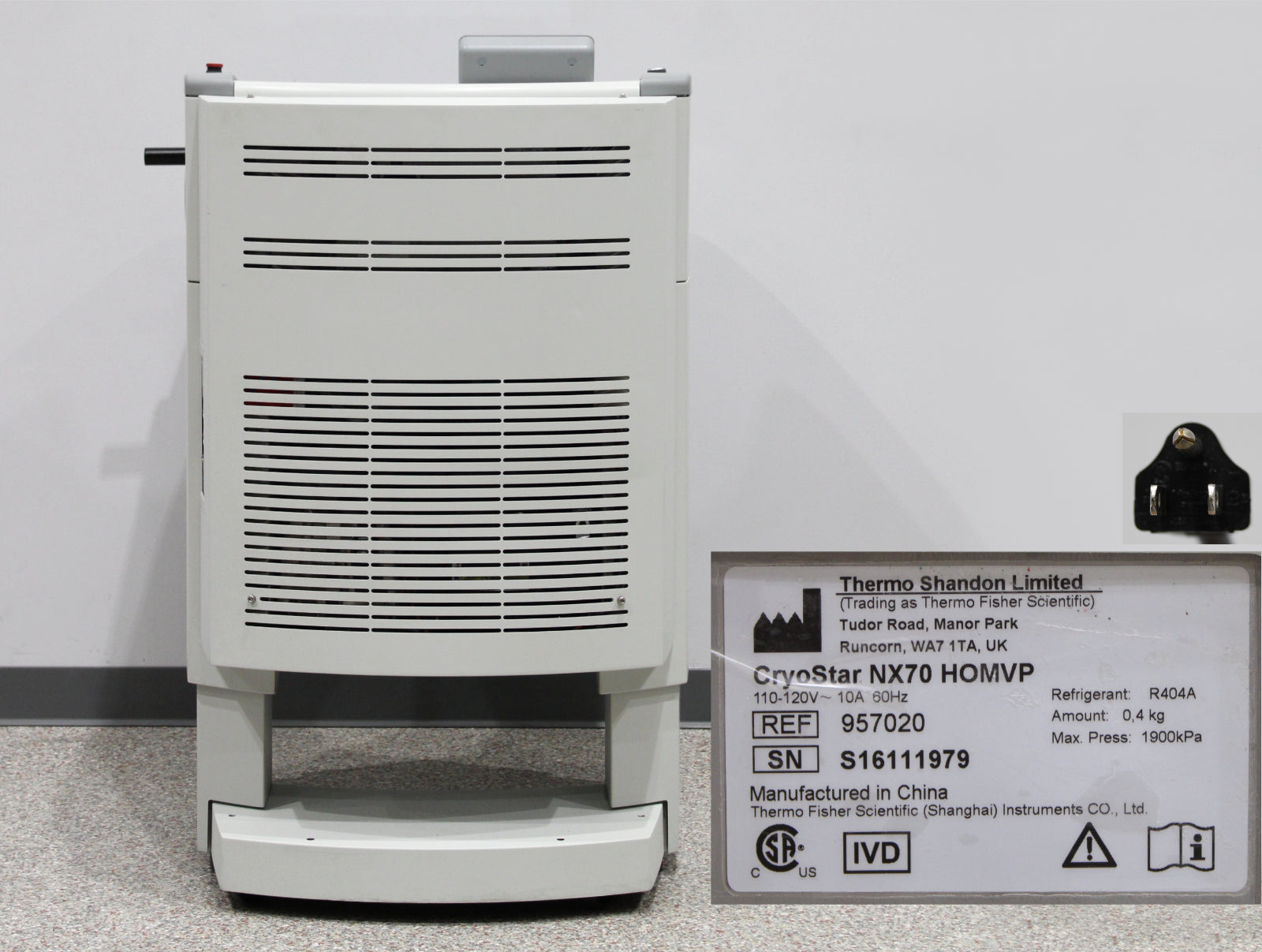

Manufacturer
|
Thermo Shandon Limited
|
|
Model
|
CryoStar NX70 HOMVP
|
|
Cat. No.
|
957020
|
|

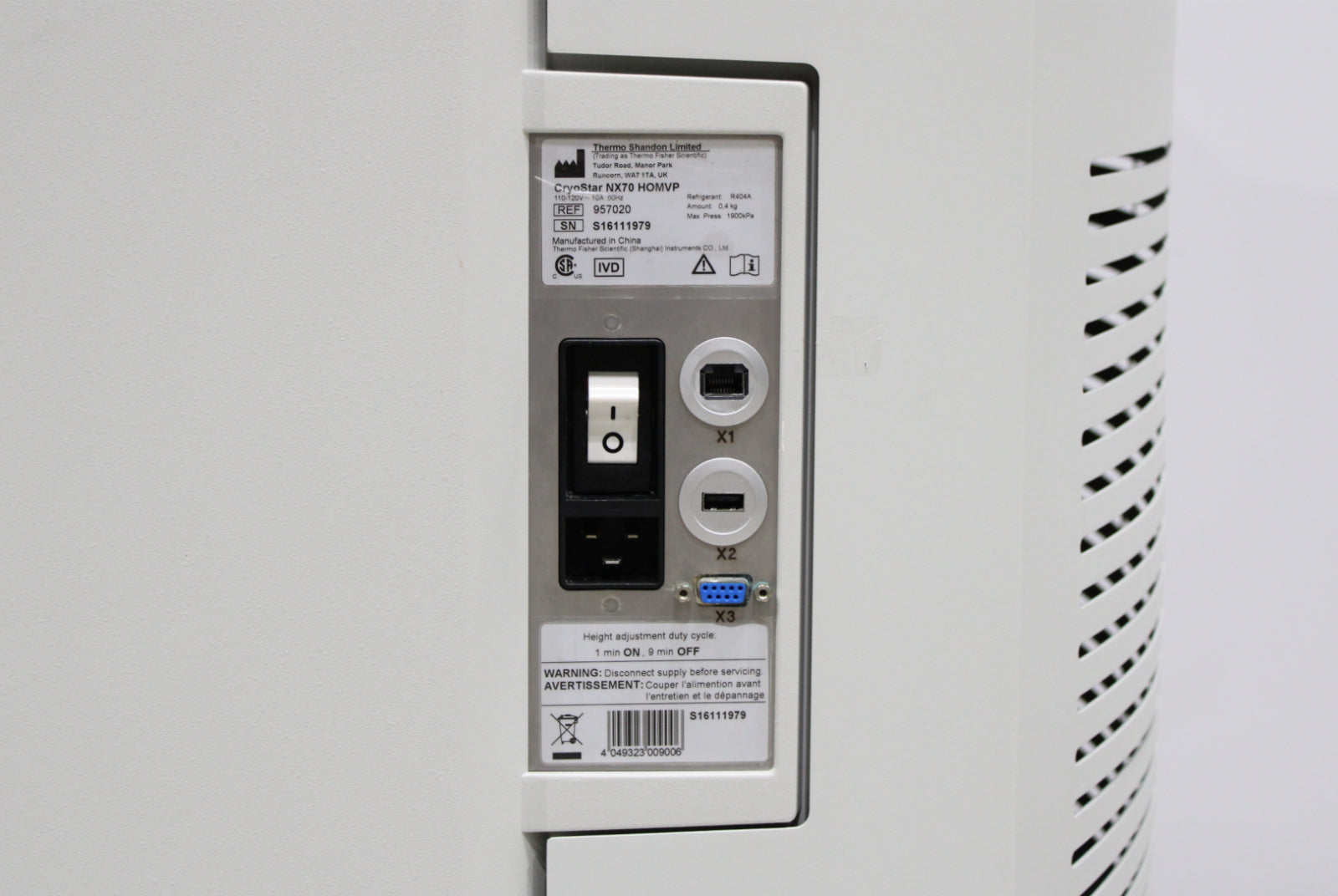

Serial No.
|
S16111979
|
|
Section thickness range
|
0.5 to 500µm
|
|
Options type
|
HOMVP
|
|
Fine section thickness range
|
0.5 to 100µm
|
|
Fine section thickness resolution
|
0.5 to 5µm in 0.5µm steps, 5 to 10µm in 1µm steps, 10 to 20µm in 2µm steps, 20 to 50µm in 5µm steps, 50 to 100µm in 10µm steps
|
|
Trim thickness range
|
5 to 500µm
|
|
Trim thickness resolution
|
0.5 to 5µm in 0.5µm steps, 5 to 10µm in 1µm steps, 10 to 20µm in 2µm steps, 20 to 50µm in 5µm steps, 50 to 100µm in 10µm steps
|
|
Vertical cutting stroke
|
64mm
|
|
Horizontal specimen movement
|
48mm
|
|
Specimen orientation
|
x- and y-axes universal 7° with zero positioning; z-axis up to 360°
|
|
Cutting drive
|
Manual and motorized, electronically controlled
|
|
Cutting speed
|
0 to 256mm/sec.
|
|
Cutting window
|
Manually adjusted to specimen size
|
|
Chamber temperature
|
-60°C max.
|
|
Specimen temperature control
|
-50° to +10°C (-58° to +50°F) at +20°C room temp. (decrease 0.7°C/1°C room temp. increase)
|
|
Knife temperature control
|
-35° to -5°C (-31° to +23°F) at 20°C room temp. (decrease 0.5°C/1°C room temp. increase)
|
|
Display
|

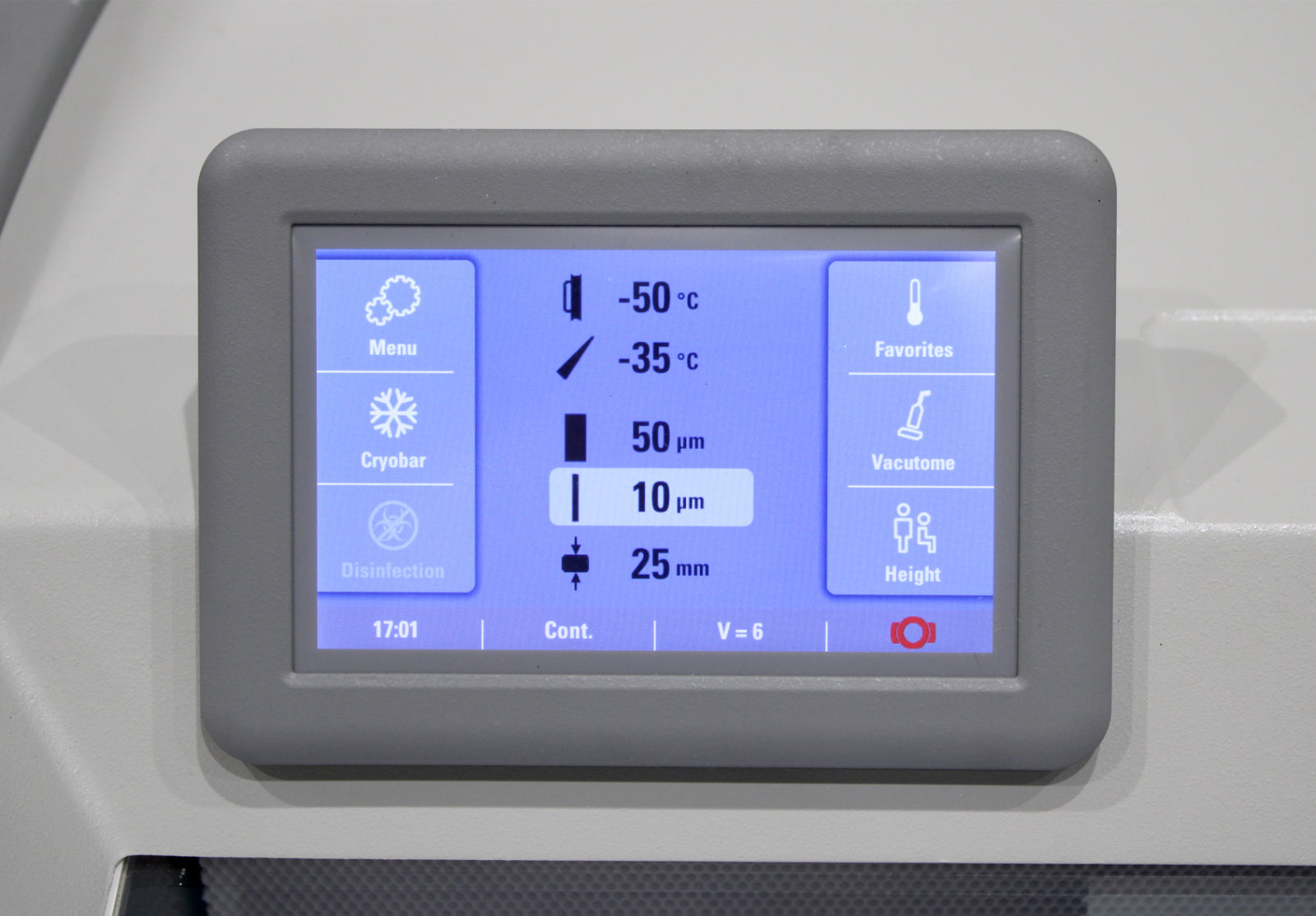

Integrated color LCD touch screen
|
|
Specimen retraction
|
20µm
|
|
Lighting
|
LED
|
|
Coarse feed
|
Motorized (on/off)
|
|
Clearance angle adjustment
|
Disposable blade carrier 8 to 16°
|
|
Defrost
|
Programmed/Immediate
|
|
Power rating
|
110-120V~, 60Hz, 10A
|
|
Dimensions (W x D x H)
|
29.7 x 39.4 x 32.3 to 44.0 in (75.5 x 100 x 82 to 112 cm)
|
|
Weight
|
440 lb (200 kg)
|
