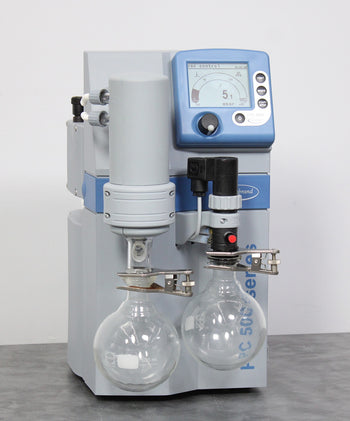

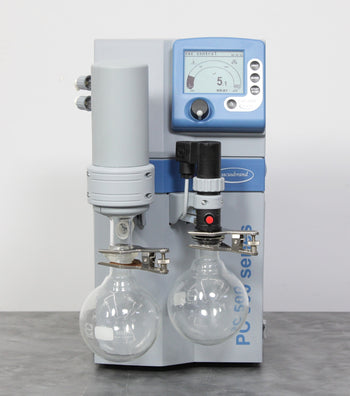

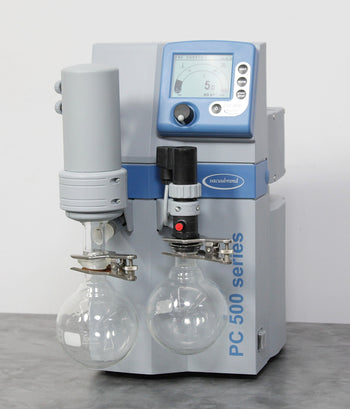

- Vacuubrand PC 510 NT Chemistry Vacuum Pumping Unit with CVC 3000 Controller

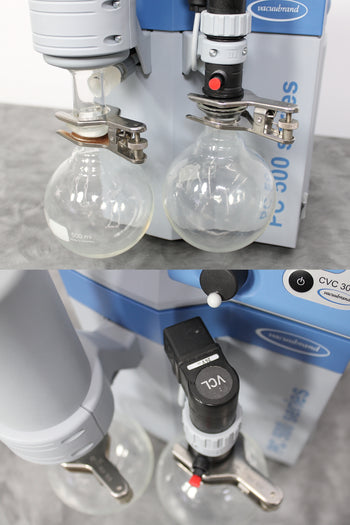

- x2 500mL Glass Catchpots
- x2 Stainless Steel Catchpot Clips
- Power Cable
- 120-Day Warranty
After its initial disinfection and inspection, our technicians tested the Vacuubrand PC 510 NT chemistry vacuum pumping unit with the following results:
- Powers on and initializes: PASSED

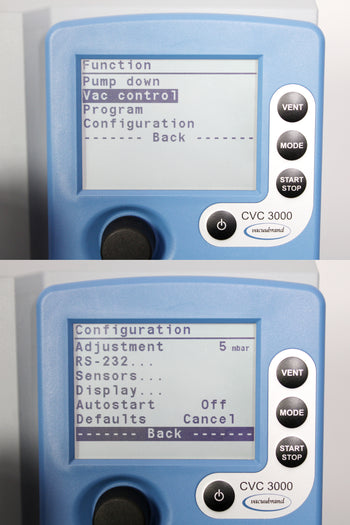

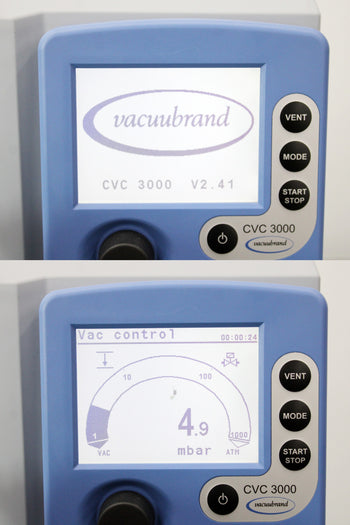

- Navigation through menu screens: PASSED
- Ran vacuum test to 5.0 mbar: PASSED

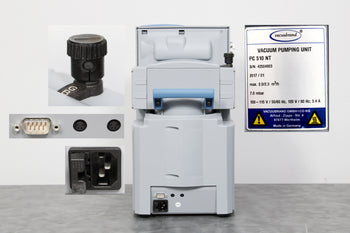

Manufacturer
|
Vacuubrand
|
Model
|
PC 510 NT
|
Serial No.
|
42504903
|
Mfg. date
|
2017/01
|

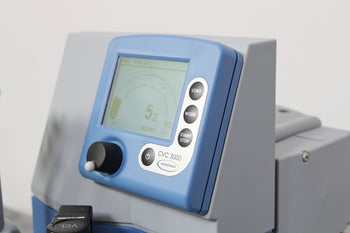

Vacuum controller
|
CVC 3000
|
Max. pumping speed 50Hz
|
2 m3/h
|
Max. pumping speed 60Hz
|
1.4 cfm
|
Ultimate vacuum
|
7 mbar (5 torr)
|
Ultimate vacuum with gas ballast
|
12 mbar (9 torr)
|
Number of heads
|
2
|
Number of stages
|
2
|
Operating ambient temp. range
|
10°C to 40°C
|
Storage ambient temp. range
|
-10°C to 60°C
|
Max. back pressure (abs.)
|
1.1 bar
|
Inlet connection
|
Hose nozzle DN 8-10 mm
|
Outlet connection
|
Hose nozzle DN 8-10 mm
|

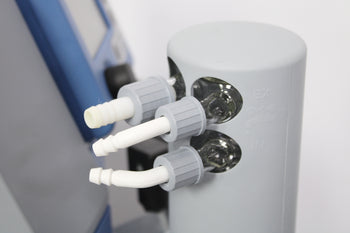

Coolant connection
|
2 x hose nozzle DN 6-8 mm
|
Rated motor power
|
0.18 kW
|
Rated motor speed at 50/60Hz
|
1500/1800 rpm
|
Electrical requirements
|
100-115V / 50/60Hz, 120V / 60Hz; 3.4A
|
Dimensions (W x D x H)
|
9.5 x 16 x 17.5 in
|
Weight
|
17 kg (37.4 lbs)
|
