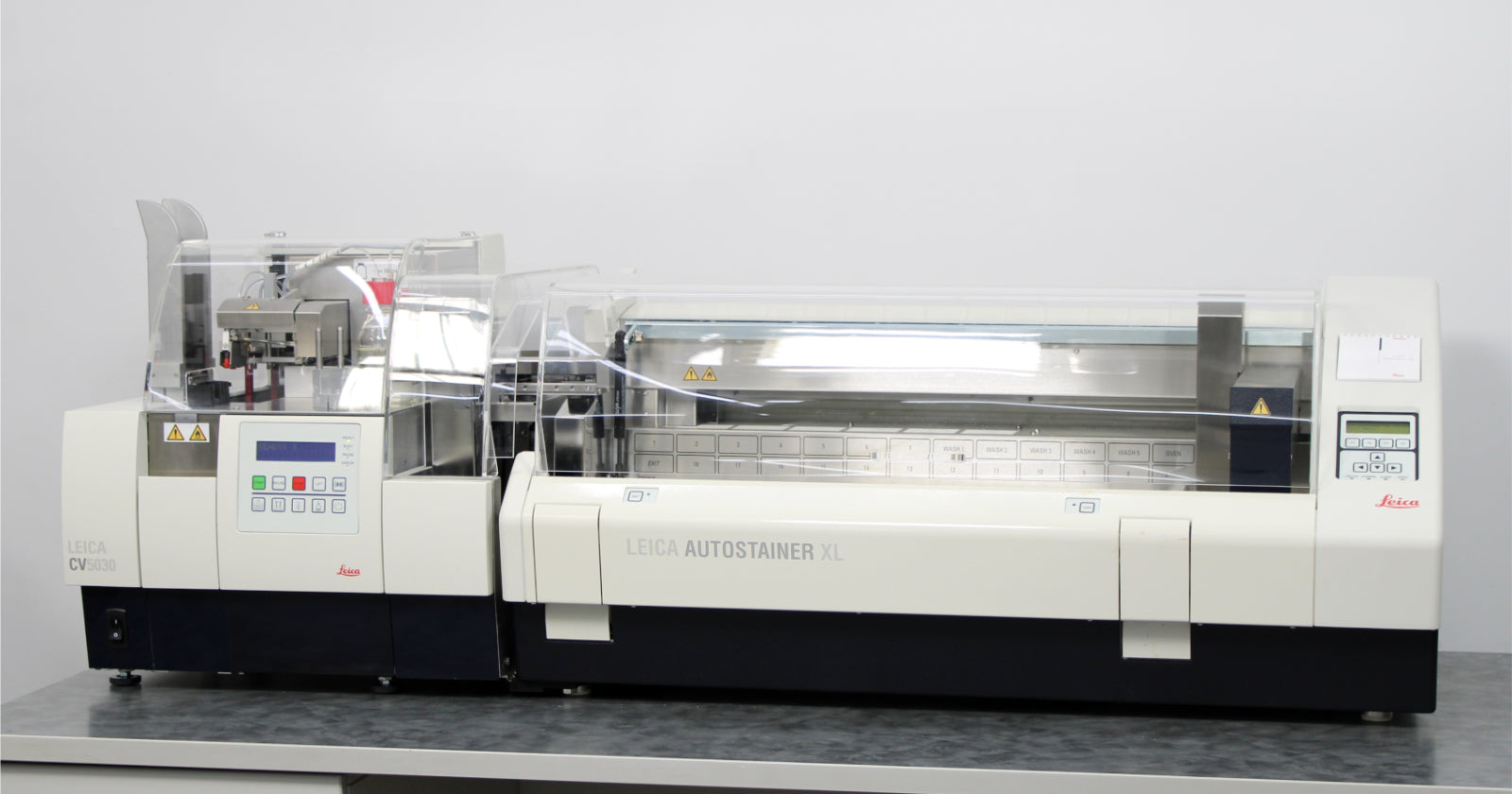

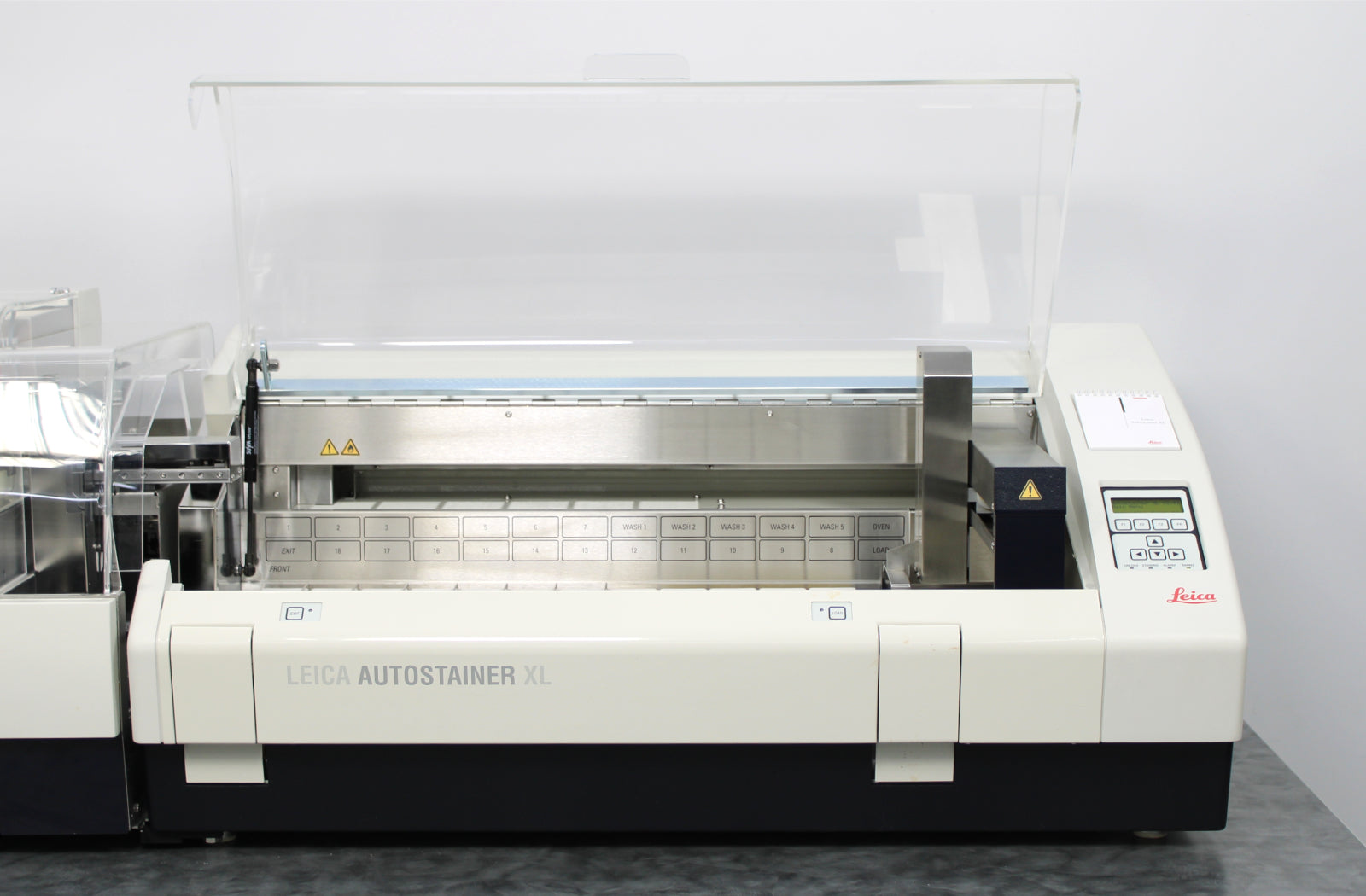

- Leica AutoStainer XL ST5010 Programmable Automatic Benchtop Slide Stainer (14045638880)

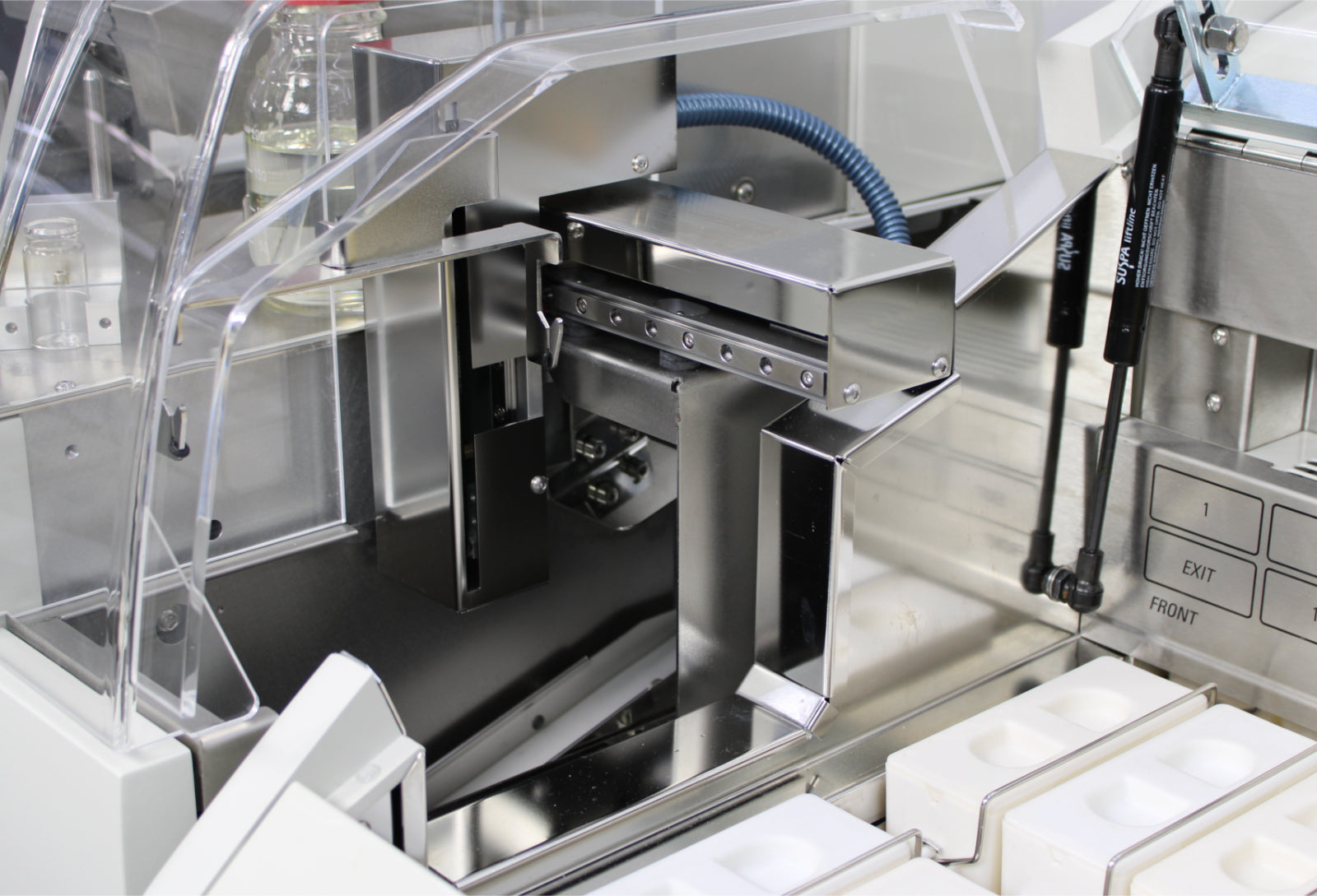

- Leica TS5015 Transfer Station (14050638050)

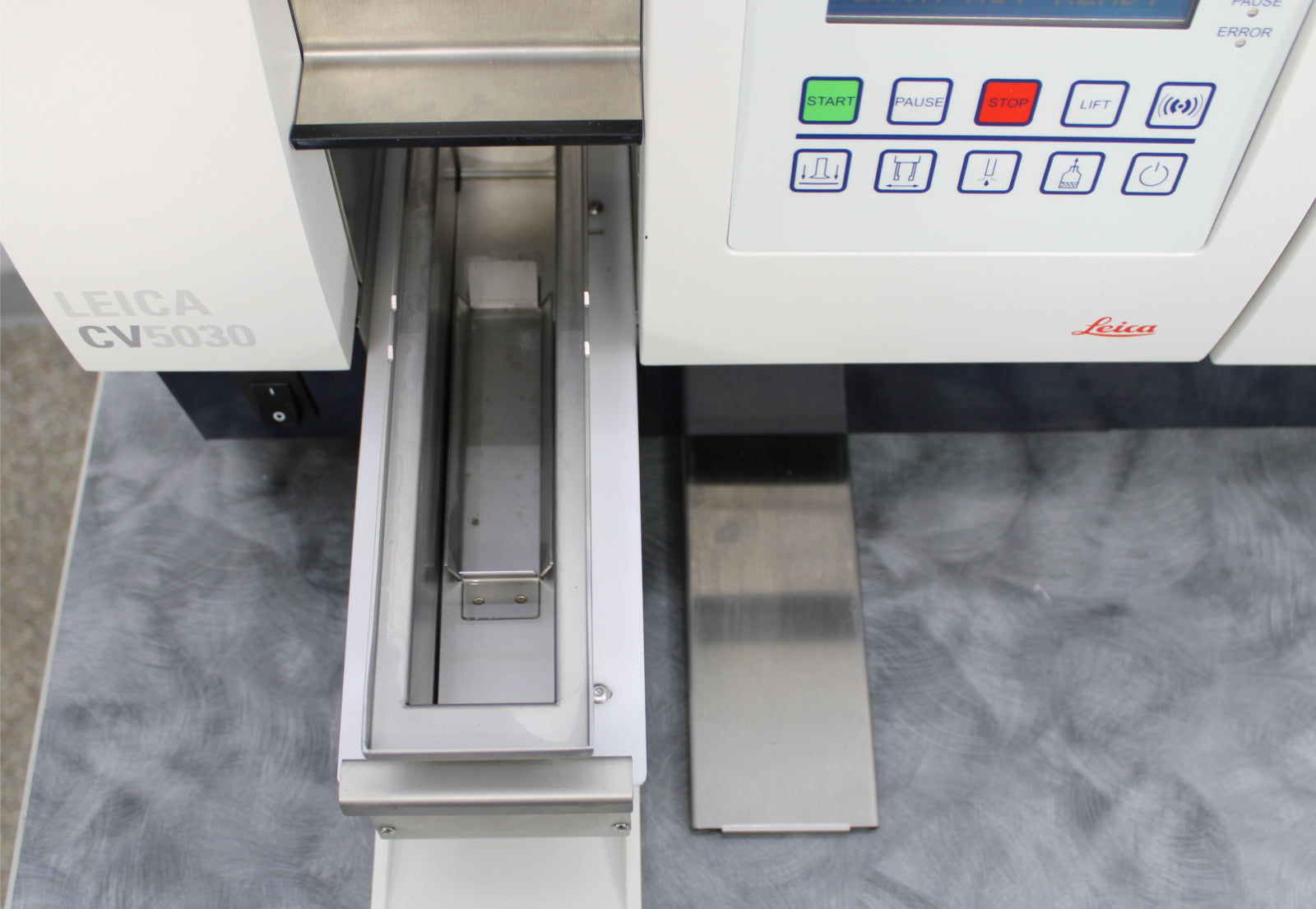

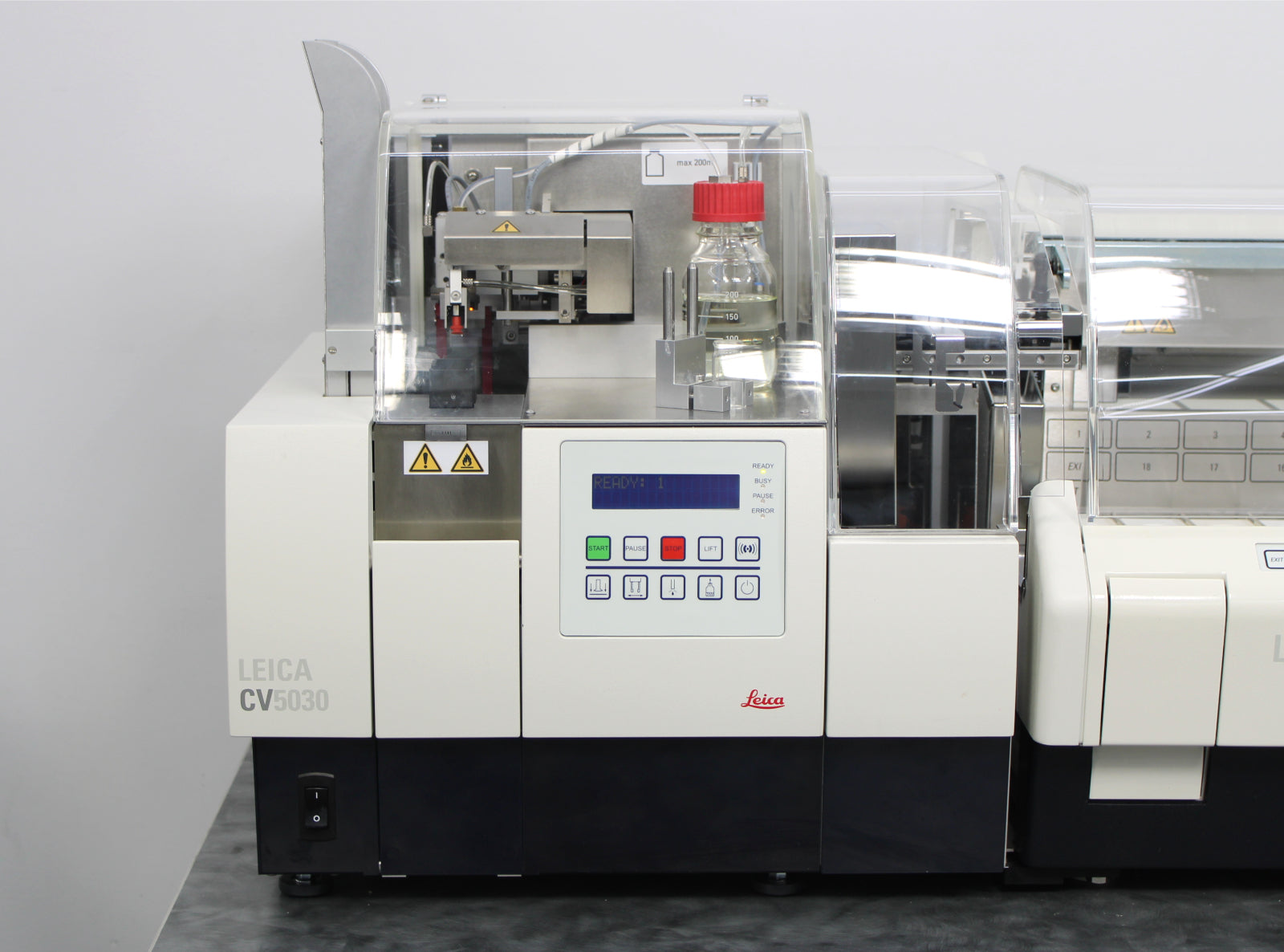

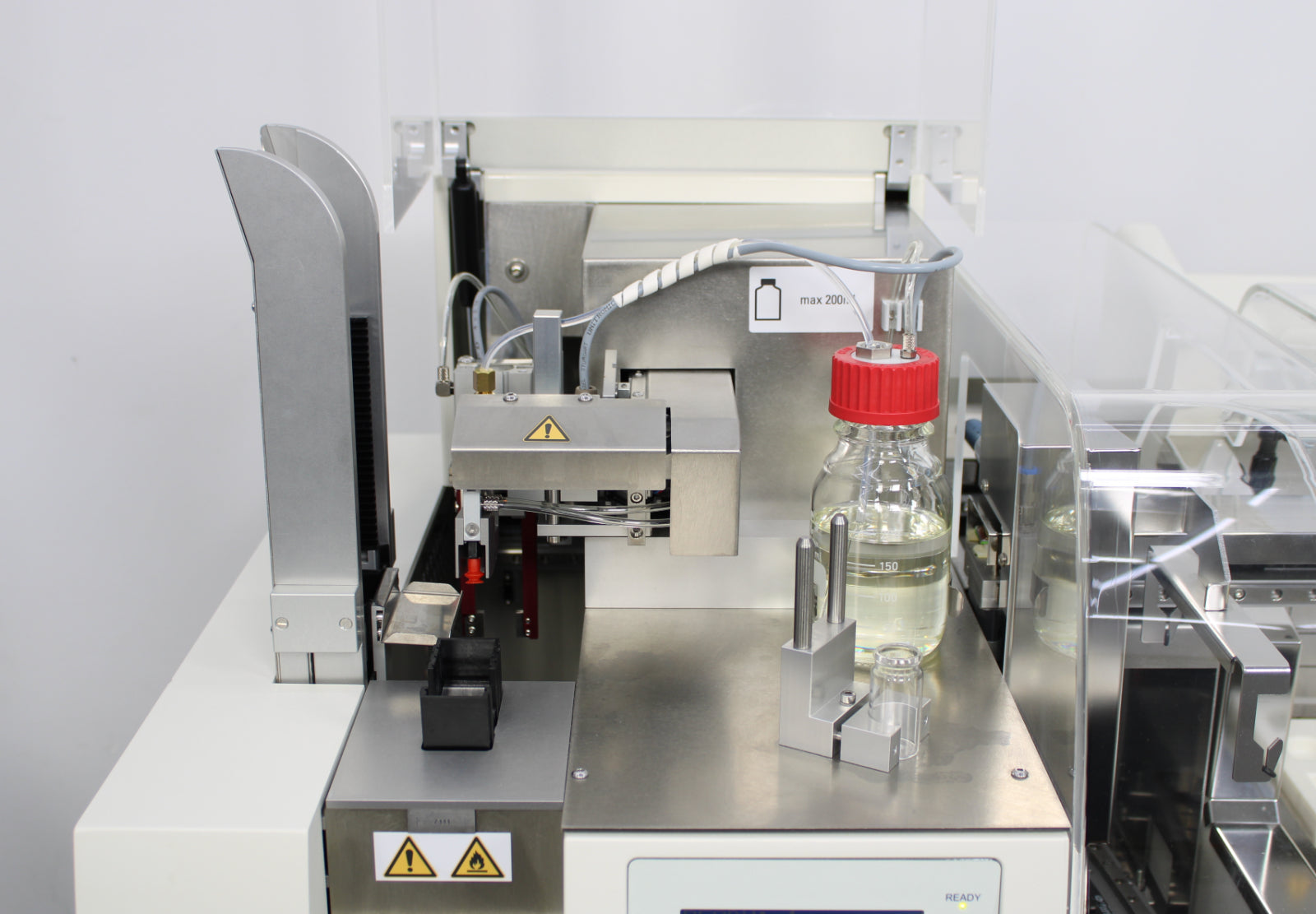

- Leica CV5030 Coverslipper (14047839700)
- Slide Basket

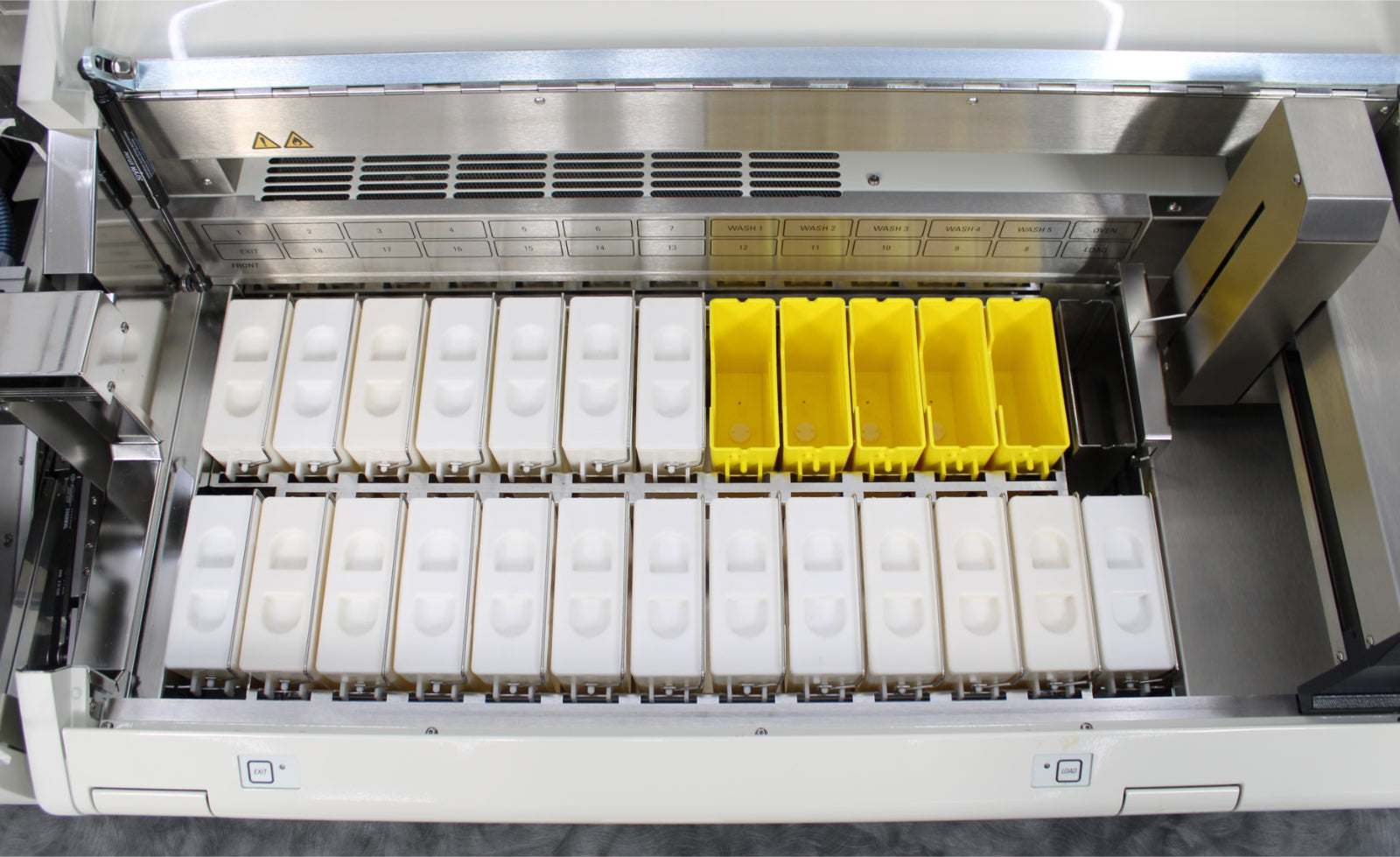

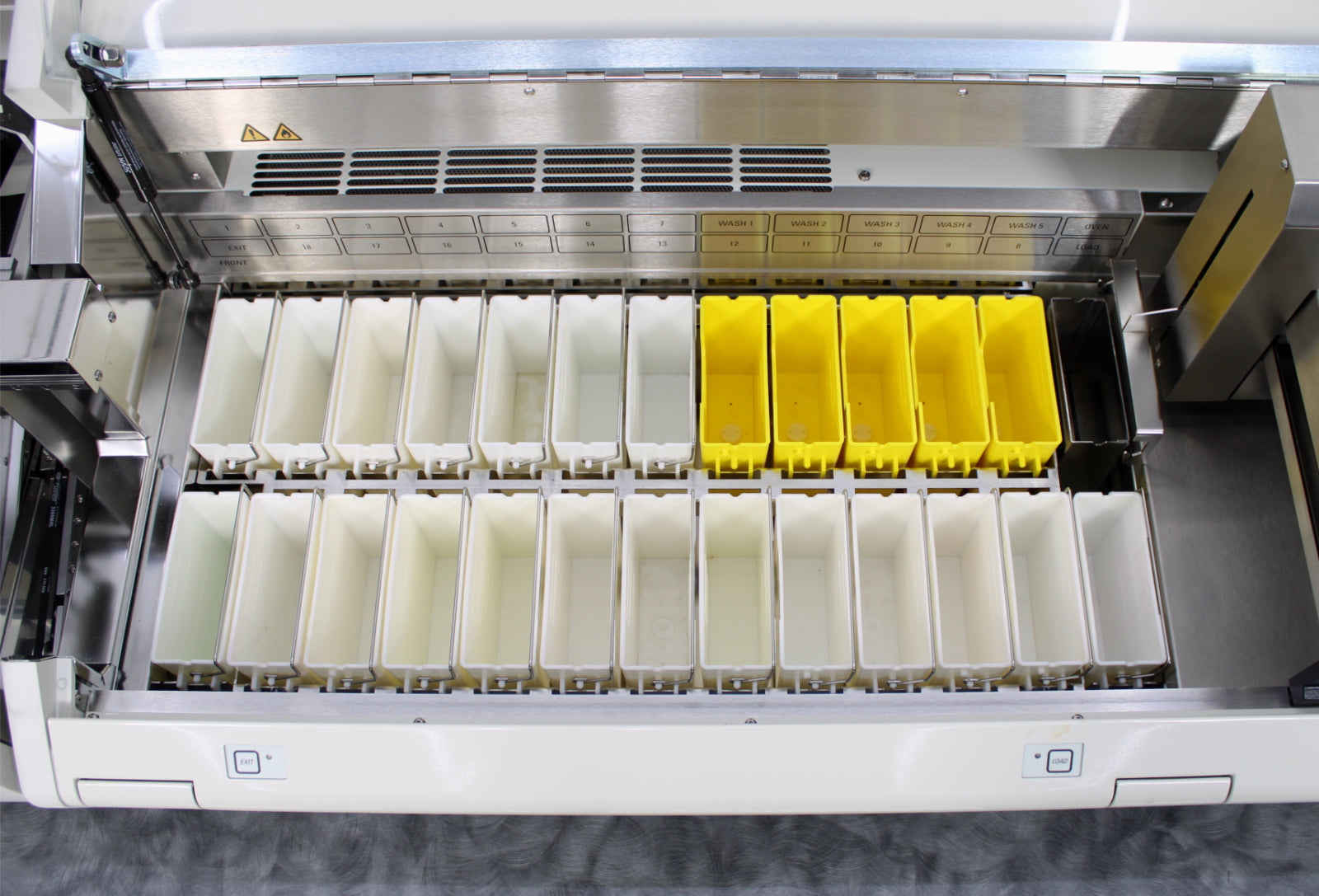

- x18 Reagent Vessels
- x2 Load/Unload Vessels
- x5 Rinse Vessels
- x20 Vessel Lids
- Oven Station

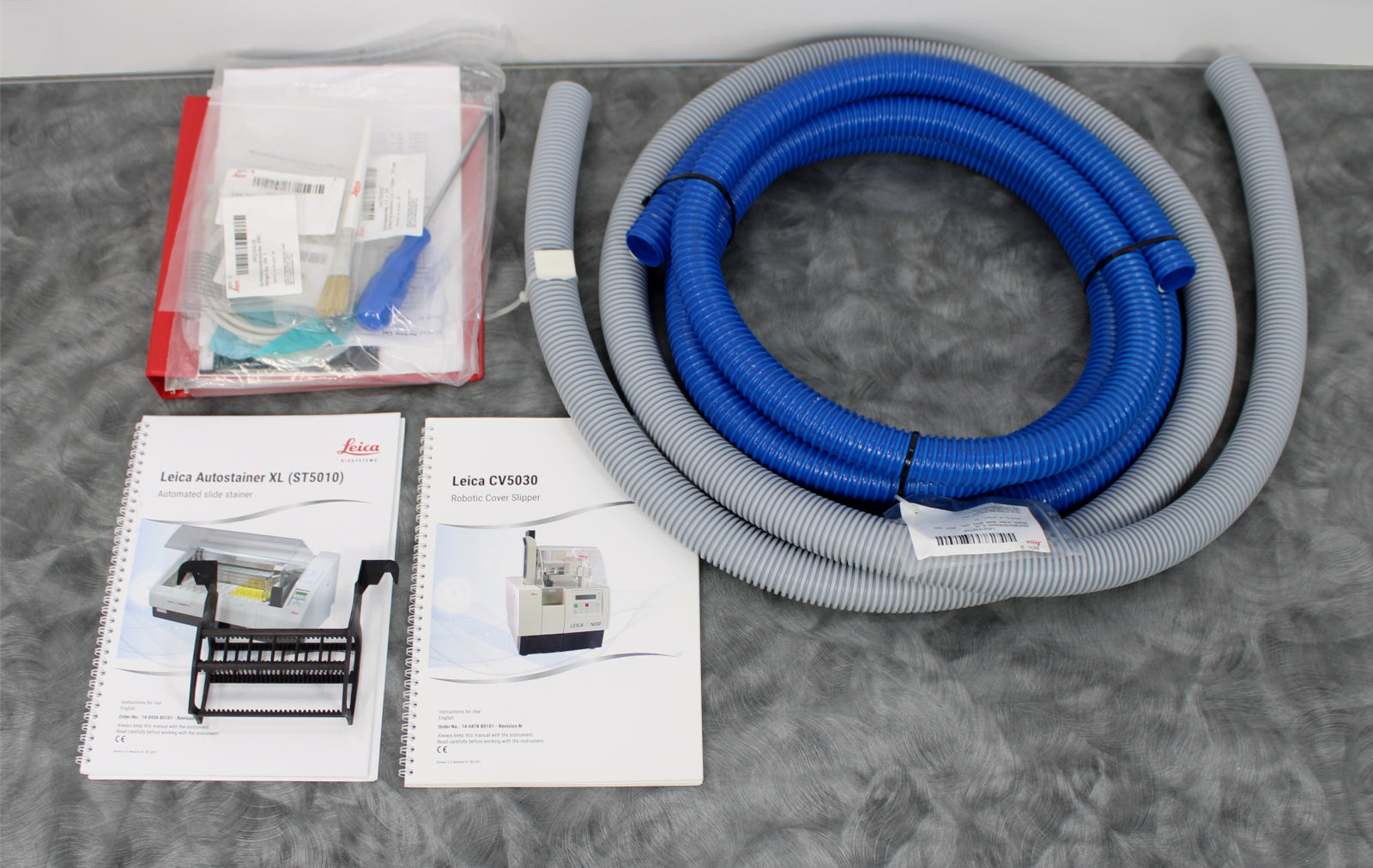

- Manuals
- x2 Exhaust Hoses
- x3 Power Cables
- 90-Day Warranty
After its initial disinfection and inspection, our technicians tested the Leica AutoStainer XL slide stainer, transfer station, and coverslipper with the following results:
- Slide stainer functions: PASSED

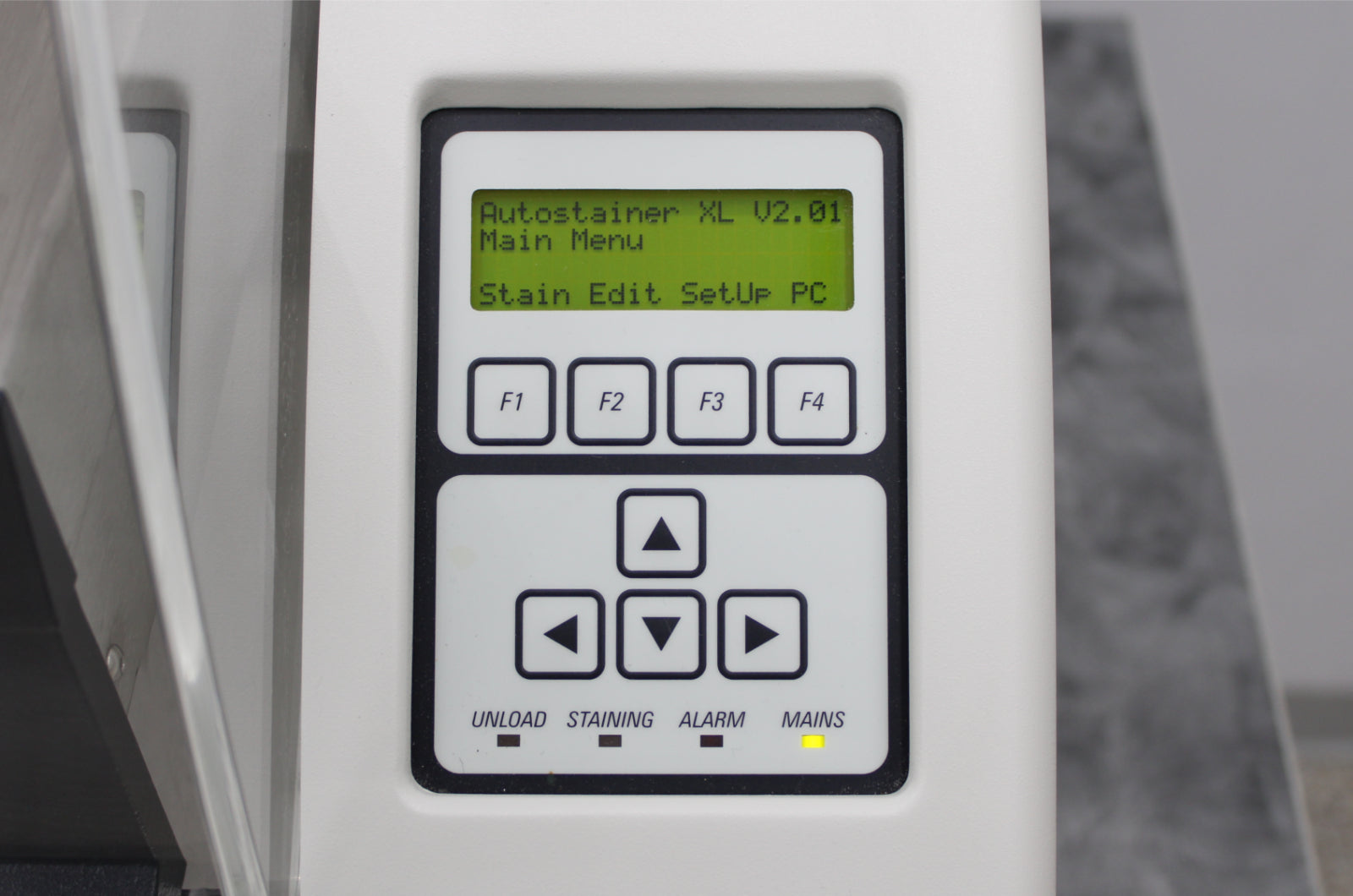

- Slide stainer user interface: PASSED

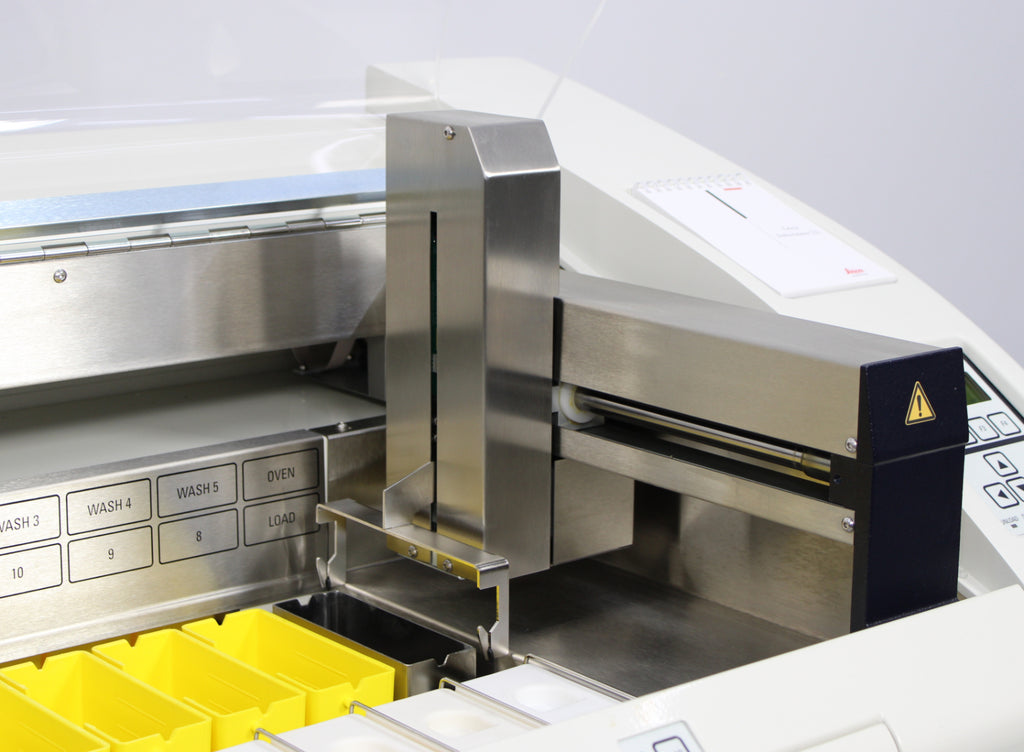

- Transfer station: PASSED

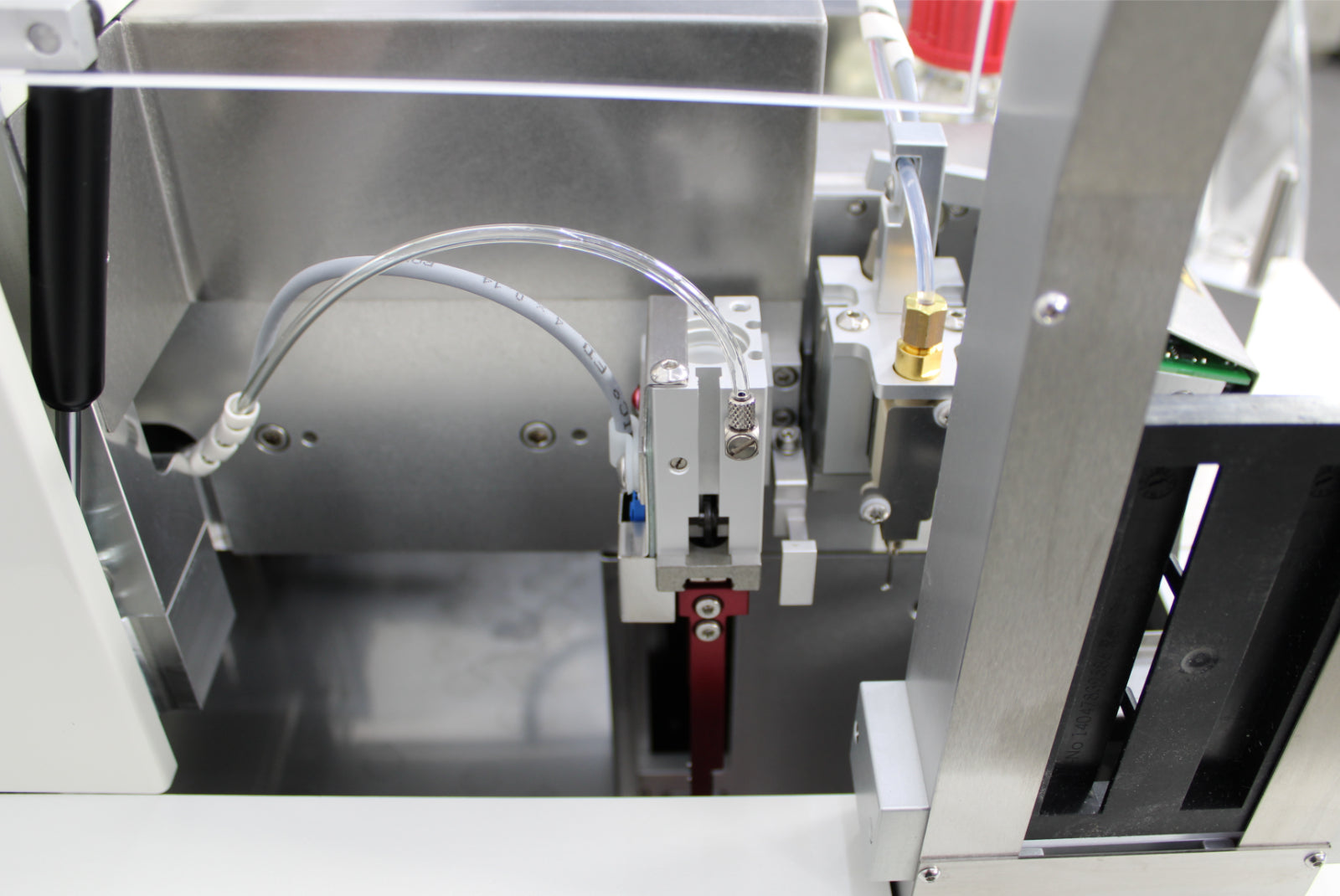

- Coverslipper functions: PASSED

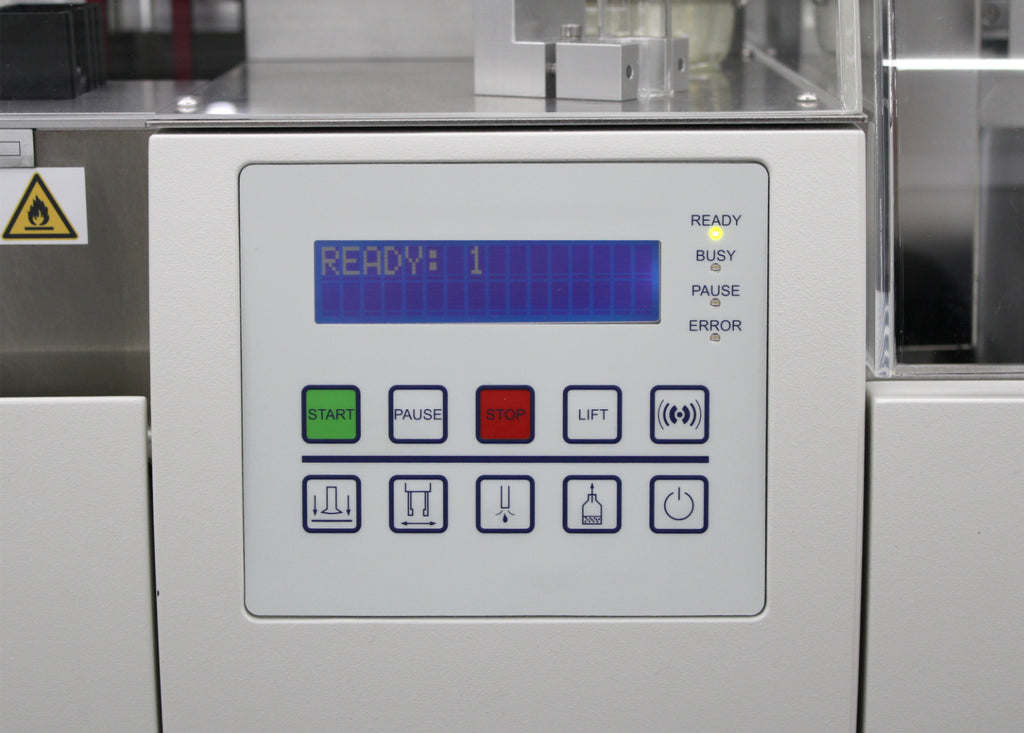

- Coverslipper user interface: PASSED
Notice: This slide stainer system has some minor cosmetic blemishes. Please review the available photos to see the physical condition before purchasing.
|

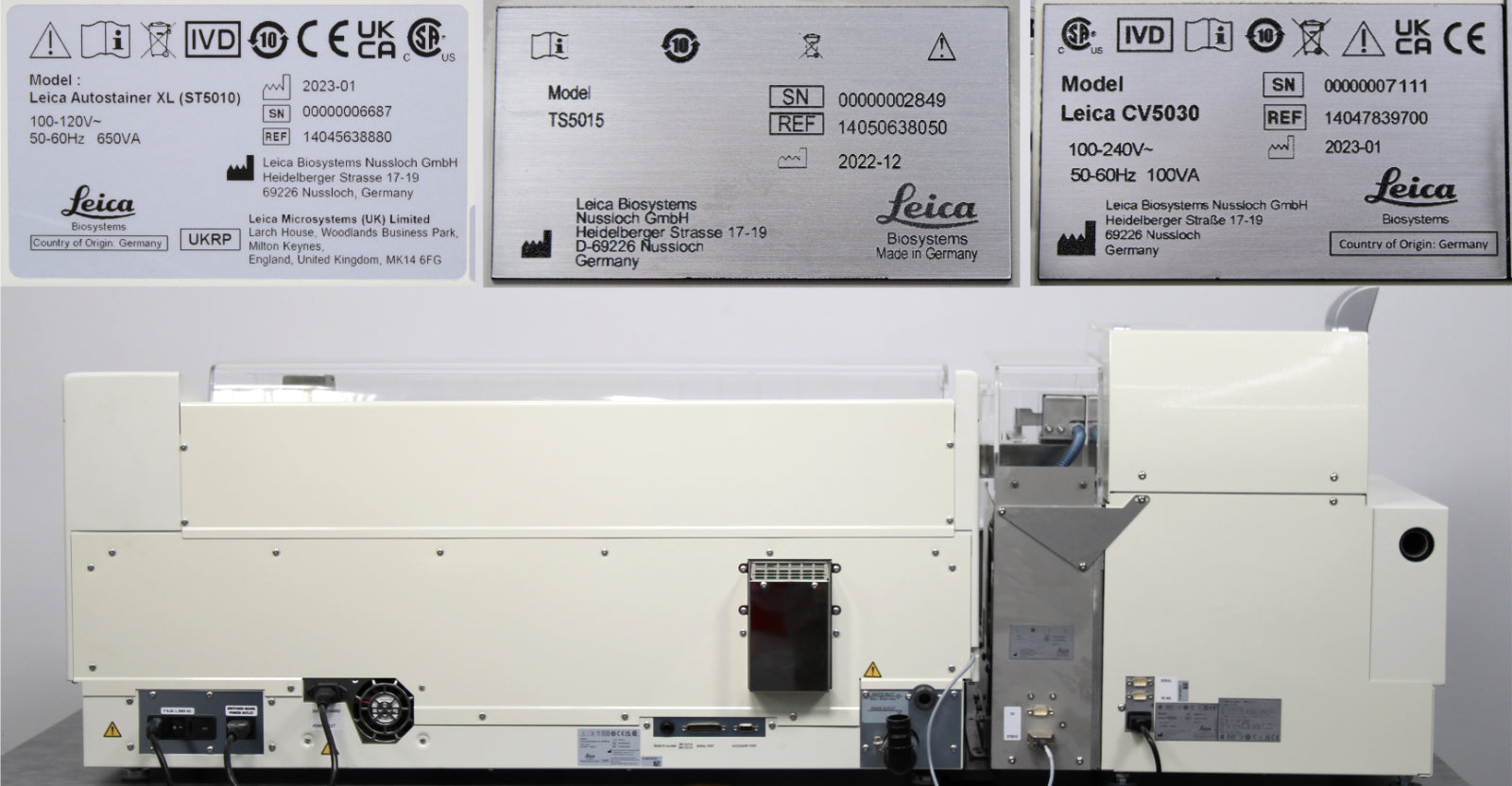

Manufacturer
|
Leica Biosystems
|
|
Model
|
Autostainer XL ST5010
|
|
Cat. No.
|
14045638880
|
|
Serial No.
|
6687
|
|
Mfg. date
|
2023-01
|
|
Slide throughput
|
Depending on selected protocol:
Max. 600 slides/h
Min. 200 slides/h
|
|
Loading capacity
|
Max. 11 specimen slide holders
|
|
Capacity of one specimen slide holder
|
30 slides
|
|
Overall number of stations
|
26
|
|
Reagent stations
|
Min. 18
|
|
Volume of reagent vessels
|
450 ml
|
|
Overall number of water stations
|
Max. 5 (DI water optional)
|
|
Number of oven chambers
|
1
|
|
Temperature of oven chamber
|
Ambient temperature or +30 to +65°C
|
|
Incubation time setting
|
0s to 99 min 59 s
|
|
Overall number of loading/unloading stations
|
1/1
|
|
Capacity of nonvolatile storage
|
15 programs with up to 25 steps
|
|
Integration
|
Connection with CV5030 (coverslipper, optional)
|
|
Power rating
|
100-120V~, 50-60Hz
|
|
Power consumption
|
650VA
|
|
Dimensions (W x D x H)
|
42.2 x 26 x 20 in (109 x 67 x 51 cm)
|
|
Weight
|
143.3 lb (65 kg)
|
|
Manufacturer
|
Leica Biosystems
|
|
Model
|
TS5015
|
|
Cat. No.
|
14050638050
|
|
Serial No.
|
2849
|
|
Mfg. date
|
2022-12
|
|
Manufacturer
|
Leica Biosystems
|
|
Model
|
CV5030
|
|
Cat. No.
|
14047839700
|
|
Serial No.
|
7111
|
|
Mfg. date
|
2023-12
|
|
Power rating
|
100-240V~, 50-60Hz
|
|
Power consumption
|
100VA
|
